Vaira: 2019-10-24 10:00:00 (DOY 297)
Author: Joe Verfaillie
Others: Siyan

Summary: Still very dry, trees senescing, tested tipping bucket, went to the pond

Vaira
2019-10-24

Siyan and I arrived at about 10:00. I was clear sunny and mild with little to no wind. Everything is still very dry and the trees are beginning to brown.

I collected the tower data and Siyan did soil moisture and the well.

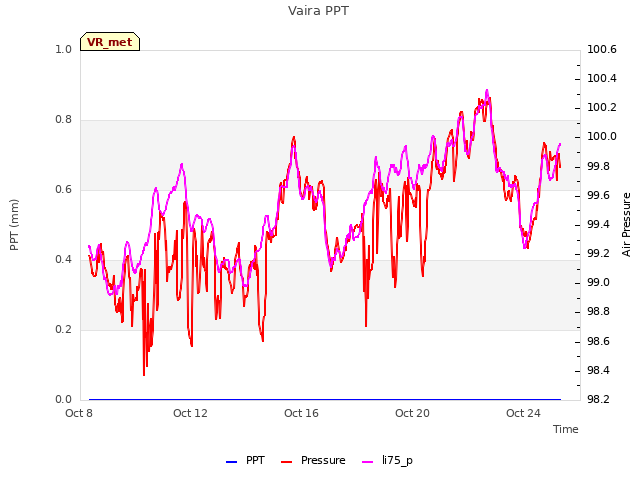

I tested the tipping bucket sn 24875-999. I connected the tipping bucket to a CR23x and dripped 475ml of water through the bucket which should result in 100tips. We got 103 tips. I did not adjust it. I added a pluggable screw terminal to the wire to make it easier next time.

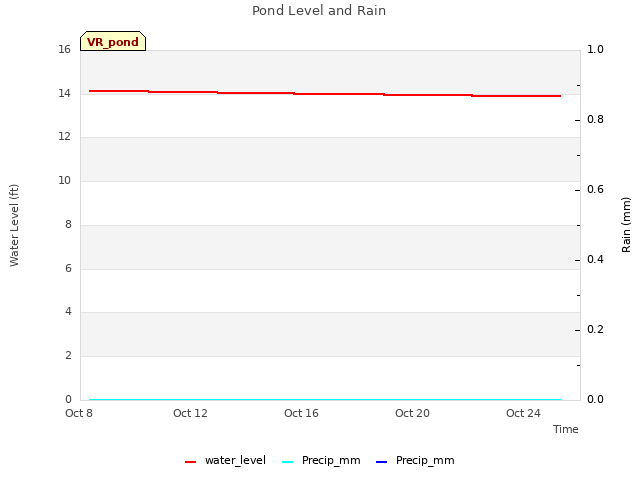

We went to the pond. The pond level was 13.98ft.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2019-10-24	VR_well	58.8
2019-10-24	TZ_floor	27.3
2019-10-24	TZ_tower	32.1
2019-10-24	TZ_road	36.4
2019-10-24	VR_pond	13.98

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Soil_Transect_4_3 [23] => Soil_Transect_3_3 [24] => Soil_Transect_2_3 [25] => Soil_Transect_1_3 [26] => SoilCO2_West_A_3 [27] => SoilCO2_West_B_3 [28] => SoilCO2_West_C_3 [29] => Tower_4 [30] => Soil_Transect_4_4 [31] => Soil_Transect_3_4 [32] => Soil_Transect_2_4 [33] => Soil_Transect_1_4 [34] => SoilCO2_West_A_4 [35] => SoilCO2_West_B_4 [36] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2019-10-24	297	0	nan	4.2	5.3	5.9	1.5	2.7	3.6	0.4	0.1	5.9	2.5	10.6	4.8	5.4	8.7	142	11.5	4	8.7	0.6	12.4	13.7	8.4	9.2	12	15.5	13.4	16.8	14.8	12	17	10.5	16.8	24	11.3	14.8	17.3	23.7
2019-10-24	297	1	nan	4.7	6.2	3.8	0.6	4.5	3.6	0.4	5.9	6.5	1	11.2	4.8	6.9	7.5	14.5	10.9	4.5	8.7	0.2	11.8	13.7	8.4	9.5	12	16.2	12.9	16.8	14.8	12.3	17	11.3	16.5	25.4	11.6	14.8	17	22.8
2019-10-24	297	Avg	0-15cm																																						0
2019-10-24	297	Avg	15-30cm																																						0
2019-10-24	297	Avg	30-45cm																																						0
2019-10-24	297	Avg	45-60cm																																						0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-10-24	297	0	nan	3.9	1.5	1.2	13	12.4	7.5	16.5	7.3	16.5	28.2	16.2	19.9
2019-10-24	297	1	nan	3.9	3.3	0.9	11.5	12.4	6.6	16.2	7.3	17	28.8	16.2	19.3
2019-10-24	297	Avg	0-15cm													0
2019-10-24	297	Avg	15-30cm													0
2019-10-24	297	Avg	30-45cm													0
2019-10-24	297	Avg	45-60cm													0
