Field Notes

<--2019-06-27 14:00:00 | 2019-07-10 09:15:00-->
Other sites visited today: Vaira | Tonzi | Tonzi

Sherman Wetland: 2019-07-02 15:00:00 (DOY 183)
Author: Joe Verfaillie
Others: Siyan

Summary: Installed Arable, cleaned phenocam window.

Sherman Wetland
2019-07-02

Siyan and I arrived at about 15:00. This was a quick stop to install Arable Mark I sn A001911. I put the Arable on the railing on the west side of the scaffolding midway between the radiation boom and eddy system. The solar panel is mounted nearby. It would be nice to move it out unto the square tube of the radiation boom and plug the power into the tower system.

I also cleaned the phenocamera window both inside and out. This necessitated moving the camera so the FOV might change a little.

0 photos found

Graphs display:
7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
16 SW_met graphs found

Explore the graph:Temperatures in a new window

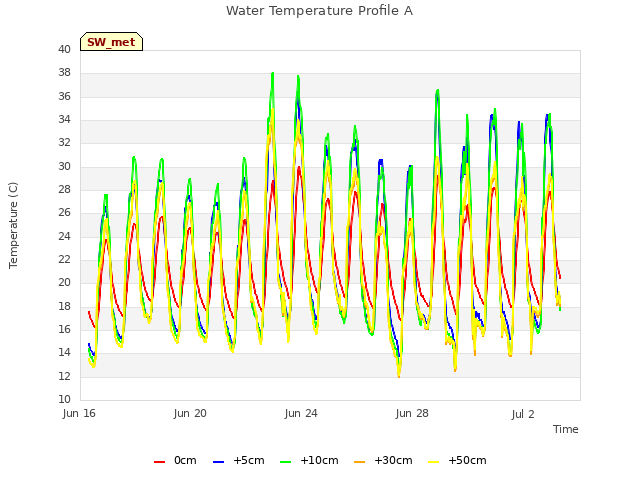

Explore the graph:Water Temperature Profile A in a new window

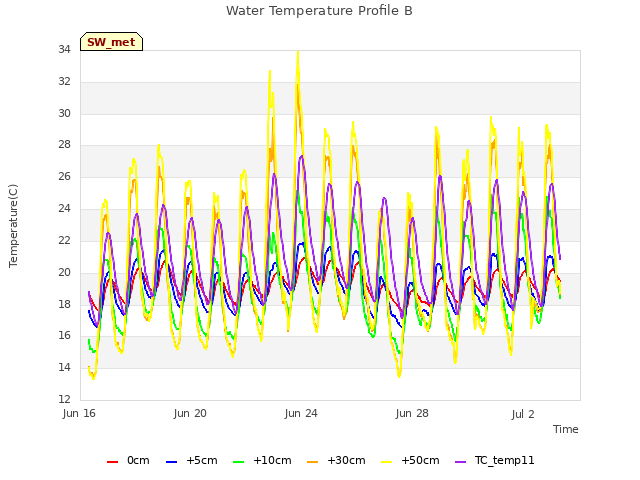

Explore the graph:Water Temperature Profile B in a new window

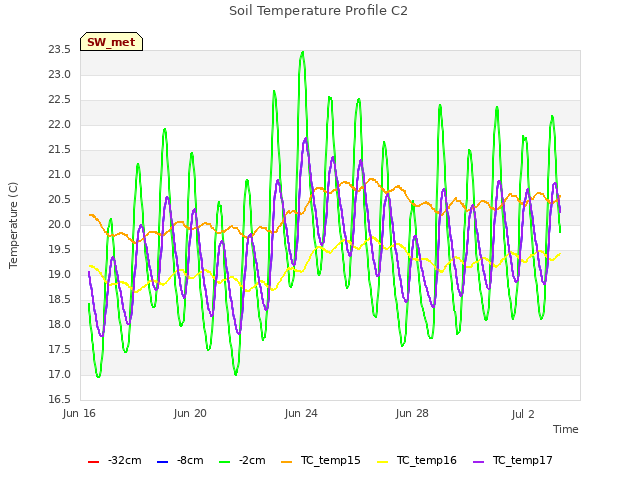

Explore the graph:Soil Temperature Profile C2 in a new window

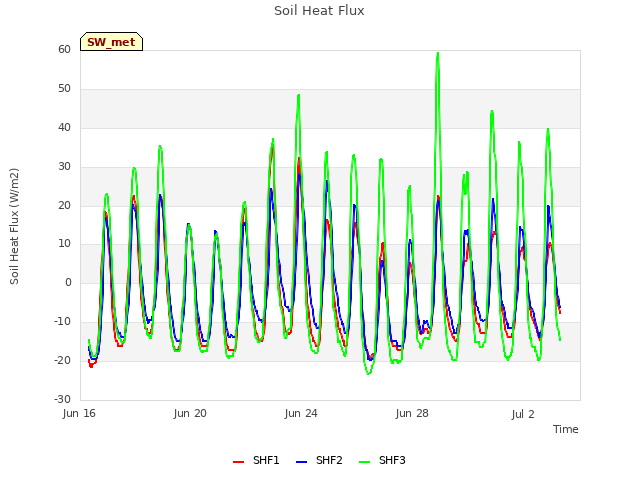

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four channel Radiometer in a new window

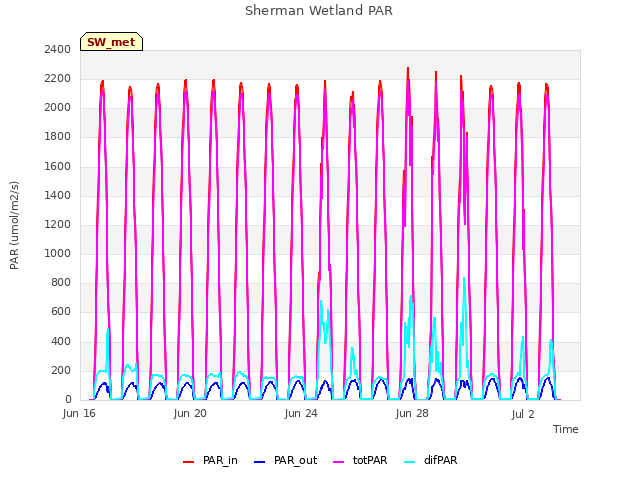

Explore the graph:Sherman Wetland PAR in a new window

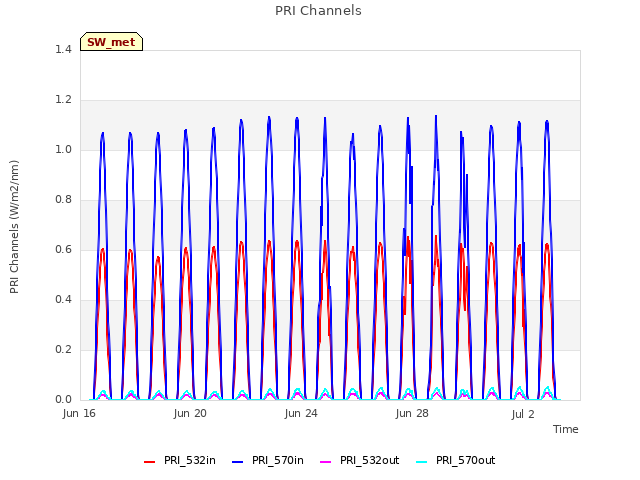

Explore the graph:PRI Channels in a new window

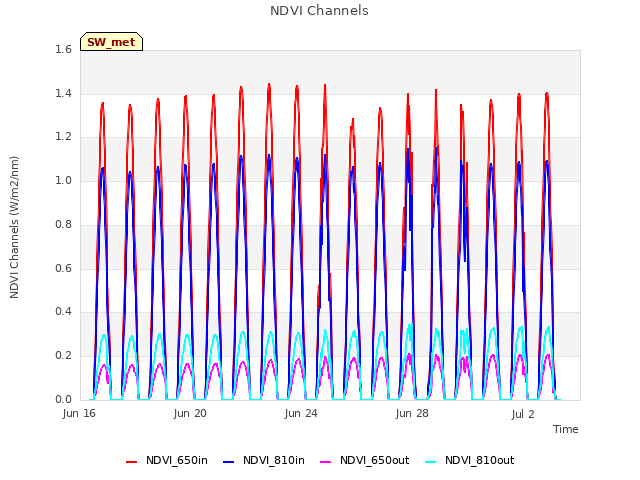

Explore the graph:NDVI Channels in a new window

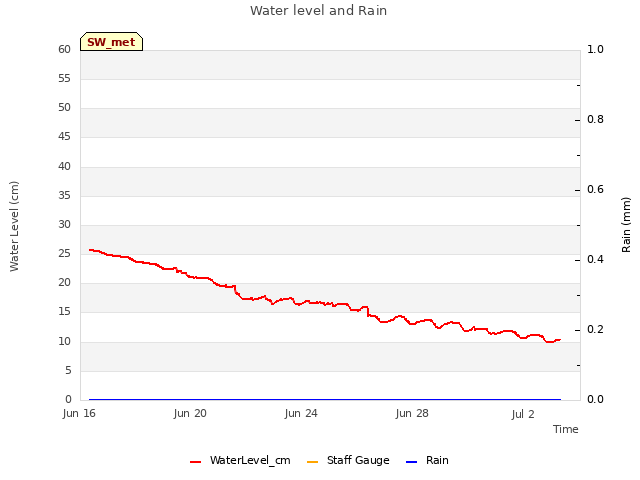

Explore the graph:Water level and Rain in a new window

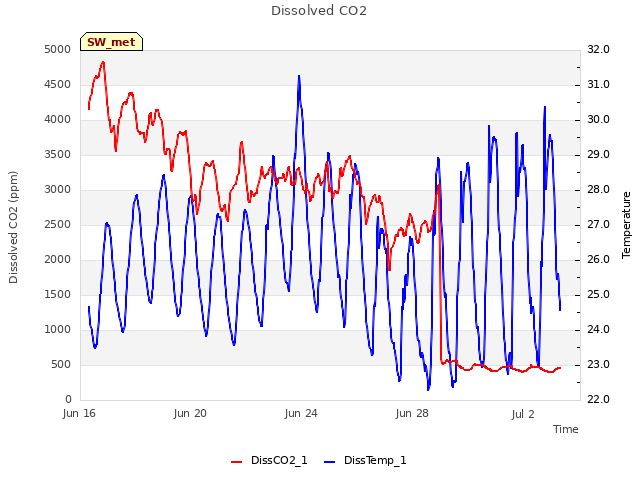

Explore the graph:Dissolved CO2 in a new window

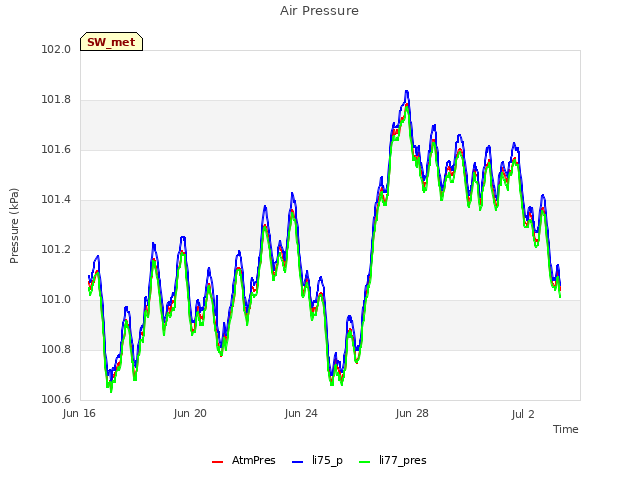

Explore the graph:Air Pressure in a new window

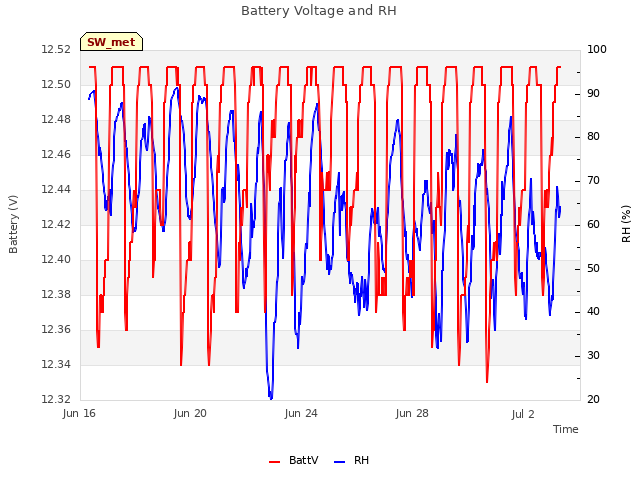

Explore the graph:Battery Voltage and RH in a new window

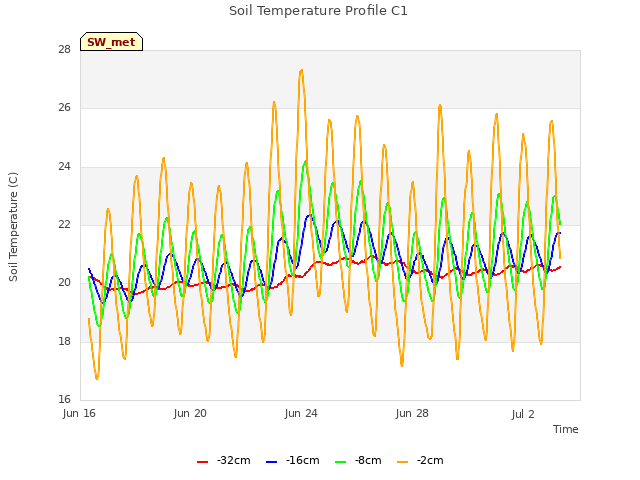

Explore the graph:Soil Temperature Profile C1 in a new window

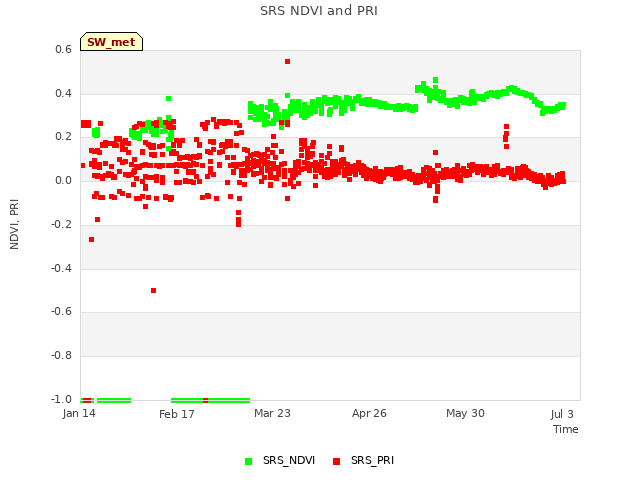

Explore the graph:SRS NDVI and PRI in a new window

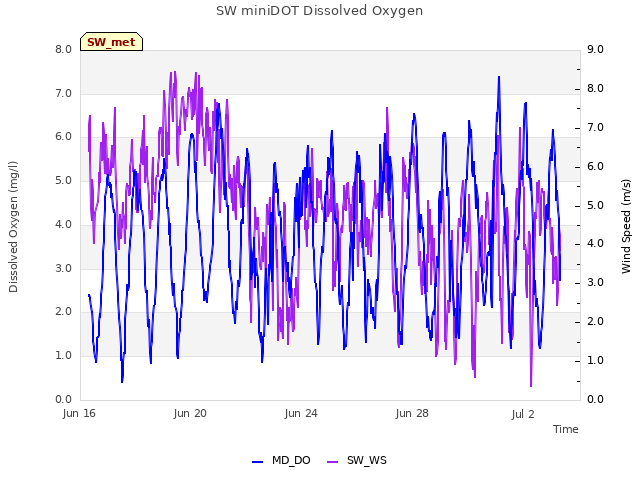

Explore the graph:SW miniDOT Dissolved Oxygen in a new window

4 SW_flux graphs found

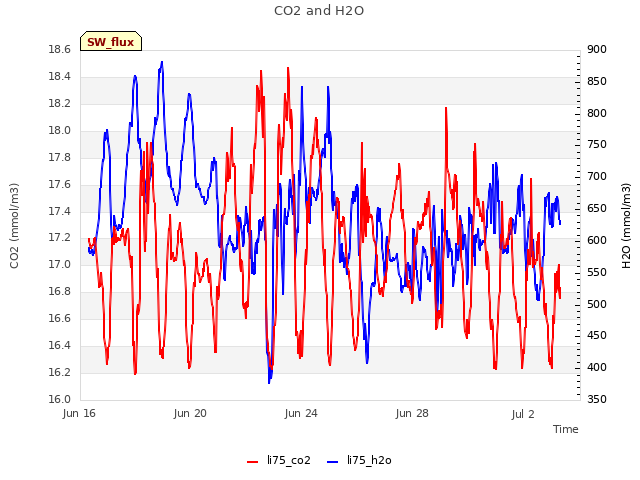

Explore the graph:CO2 and H2O in a new window

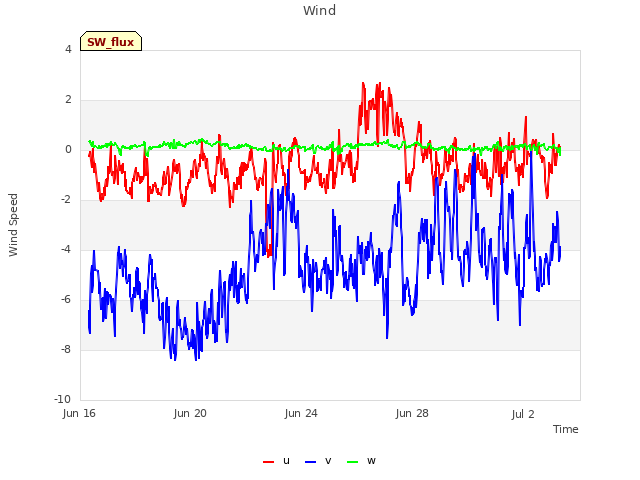

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found

Explore the graph:Temperatures in a new window

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Explore the graph:Temperature Profile A in a new window

Explore the graph:Temperature Profile B in a new window

Explore the graph:Temperature Profile C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four-channel radiometer in a new window

Explore the graph:NDVI Channels in a new window

Explore the graph:PAR in a new window

Explore the graph:Air Pressure and Water Level in a new window

Explore the graph:Air T and RH in a new window

No data found for SW_arable.
