Tonzi: 2019-07-02 11:30:00 (DOY 183)
Author: Joe Verfaillie
Others: Siyan

Summary: Standard fieldwork, added Arable to top of tower, soilco2 losing power over night, neighbor's barn burned down

Tonzi
2019-07-02

Siyan and I arrive at about 11:30. It was sunny and hot with a breeze from the south swinging around to the southwest. The grass is brown and crispy but there are a few flowers left. We met Rob on the way out. He said the neighborâ€™s barn to the south burned down the other day. We also got the locks on the gate sorted out again â€“ our lock is in the second spot now.

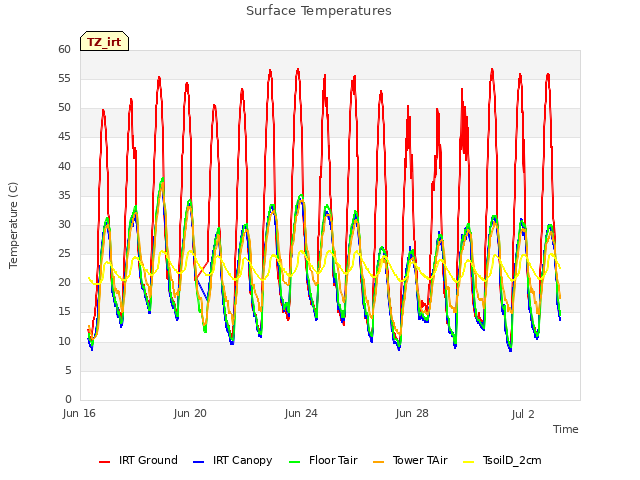

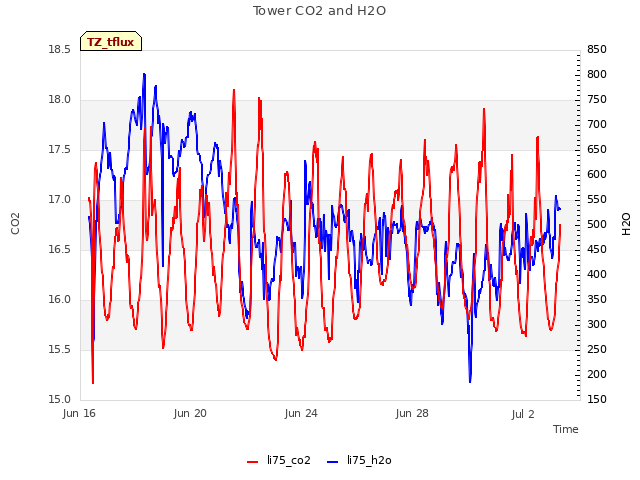

I collected the flux data and tower data including the FLIR. All the FLIR images were on the USB stick drive and look good. I also collected the FLIR IRT data â€“ those programs still need work.

I installed an Arable Mark I sn A000251 at the top of the Tower. Itâ€™s on a post extending to the east of the southeast corner of the tower. Itâ€™s difficult to reach and the folding radiation boom my not clear it when folding. So, it needs a better mount. I need to figure out how to mount the Arable devices on the side of the square tube the radiation booms use. Its solar panel is mounted nearby with cable ties. This needs to be replaced with a power line connected to the Towerâ€™s system.

Siyan did the standard fieldwork including midday water potential.

I brought in three more of the tram tripods for use as a secondary tower at BA and maybe for Arianeâ€™s soil coring.

I serviced the z-cams. Z-cam 1 had a blob of bird poop center stage so some of its images will be bad.

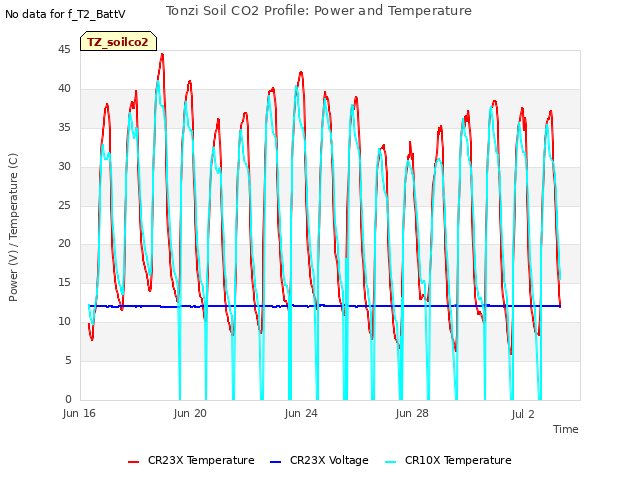

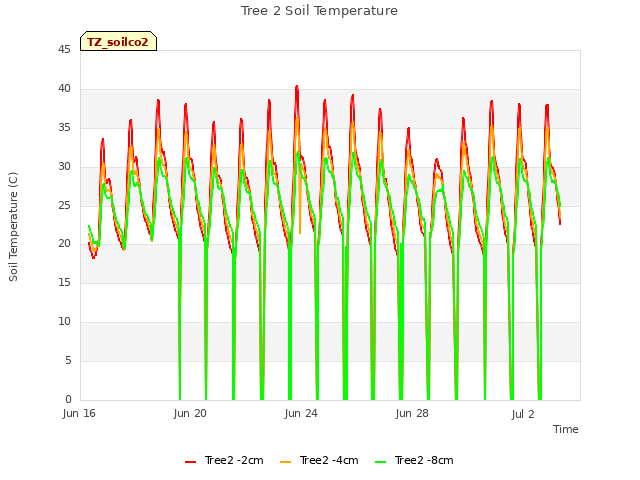

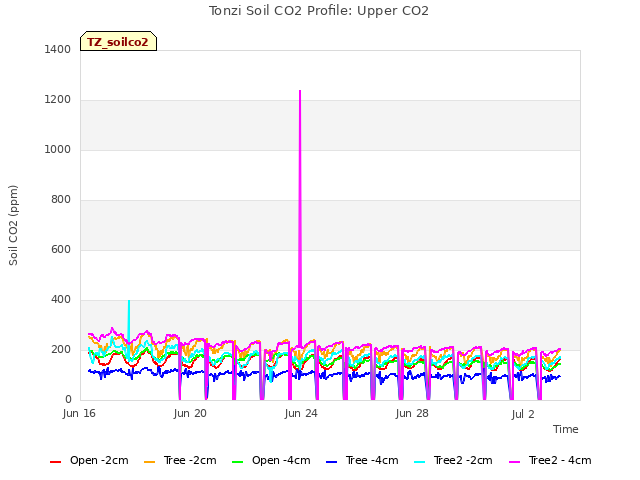

The soilco2 data seems to be losing power at night and the CR1000 IRT system lost a couple over nights too.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2019-07-02	VR_pond	17.6
2019-07-02	VR_well	51.6
2019-07-02	TZ_floor	16.6
2019-07-02	TZ_tower	21.5
2019-07-02	TZ_road	26

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_West_4 [32] => Soil_Transect_4_4 [33] => Soil_Transect_3_4 [34] => Soil_Transect_2_4 [35] => Soil_Transect_1_4 [36] => SoilCO2_West_A_4 [37] => SoilCO2_West_B_4 [38] => SoilCO2_West_C_4 [39] => Floor_South_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_South_4	Spacial Count
2019-07-02	183	0	nan	4.7	4.8	6.2	1.5	3.9	5	1.2	10.6	6.2	2.1	12.4	8.1	10.8	8.4	17	13.3	5.4	8.4	0.8	13.6	14	23.7	15	10.6	17.3	18.7	14.8	16.8	15.4	13.7	20.2	21.3	13.6	21.6	25.9	13	16.8	19.9	25.1
2019-07-02	183	1	nan	4.7	1		1.5	4.5	6.2	1.2	8.6	7.1	2.4	22.7	8.1		8.1	17.6	13.9	4.5	8.7	1.1	13.3	16.2	14.5		11.2	17.3	17.9	14.5	16.5	15.4	13.7	20.2		13.3	21.3	29.4	13.6	17	19.9	35.4	11.1
2019-07-02	183	Avg	0-15cm																																									0
2019-07-02	183	Avg	15-30cm																																									0
2019-07-02	183	Avg	30-45cm																																									0
2019-07-02	183	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Solar_Panels_2 [3] => Flux_Tower_2 [4] => Biomass_Cage_2 [5] => Solar_Panels_3 [6] => Flux_Tower_3 [7] => Biomass_Cage_3 [8] => Solar_Panels_4 [9] => Flux_Tower_4 [10] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-07-02	183	0	nan	2.4	3	12.4	14.2	7.2	17.6	7.3	17.6	31.4	18.2	20.5
2019-07-02	183	1	nan	3.9	2.4	12.4	14.8	6.9	17	7.8	17.9	31.9	18.8	19.9
2019-07-02	183	Avg	0-15cm												0
2019-07-02	183	Avg	15-30cm												0
2019-07-02	183	Avg	30-45cm												0
2019-07-02	183	Avg	45-60cm												0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2019-07-02	1	20.2
2019-07-02	102	9.1
2019-07-02	2	13.1
2019-07-02	245	11.2
2019-07-02	3	17.6
2019-07-02	4	5.0
2019-07-02	5	15.5
2019-07-02	7	19.1
2019-07-02	72	18.2
2019-07-02	8	8.5

Water Potential - mode: raw

Time	Species	Tree	readings (bar)
2019-07-02 13:06:00	OAK	102	-25	-13	-11
2019-07-02 13:06:00	OAK	35	-22	-17	-35
2019-07-02 13:06:00	OAK	92	-25	-27	-35
2019-07-02 13:35:00	PINE	OLD	-18	-3	-7
2019-07-02 13:35:00	PINE	YNG	-5	-3	-2
