Bouldin Alfalfa: 2019-06-20 09:40:00 (DOY 171)
Author: Daphne Szutu
Others: Kuno, Robert, Camilo

Summary: Regular data collection/cleaning, clip plots, spectral, LAI, veg height, removed sonic rangefinder and Arable, dropped USB stick in alfalfa somewhere, alfalfa mowed and baled

2019-06-20
Bouldin Alfalfa

Kuno, Robert, Camilo, and I arrived at 9:40. It was sunny and windy with clear skies. The alfalfa has been mowed and baled. New alfalfa growth is already up to my shins. The alfalfa under the tower was flowering, and Camilo trimmed it.

Kuno took clip plot samples and made spectral measurements. Robert did LAI and veg height measurements. Camilo cleaned flux and rad sensors and removed the sonic rangefinder sn URM06-001 to move to BC and the original Arable sn A000251 to bring back to the lab for now (no sense having three of them on the tower). I collected met, camera, USB GHG, and FD data. I dropped the empty USB stick somewhere and none of us could find it. We most likely refilled the wash reservoir.

LI-7500 readings:
CO2 382ppm
H2O 734ppm
T 19.9C
P 101.1kPa
SS 96--> 100 after cleaning
LI7700 readings:
CH4 1.90ppm
RSSI 35-->73 after cleaning

We left at 10:30.

Next Mowing: 2019-07-24

Veg Height (cm): Tape measure from ground to top of plant - Measured in NW Transect from Tower, ~5m between measurements
15, 37, 33, 34, 30, 34, 28, 34, 39, 32, avg = 31.6, stdev = 6.62

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

Explore the graph:Wind in a new window

Explore the graph:LI-7500 CO2 and H2O in a new window

Explore the graph:7700 CH4 and RSSI in a new window

Explore the graph:Counts in a new window

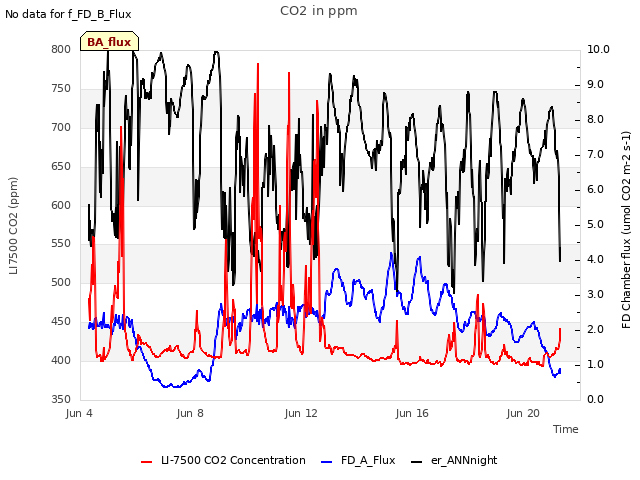

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

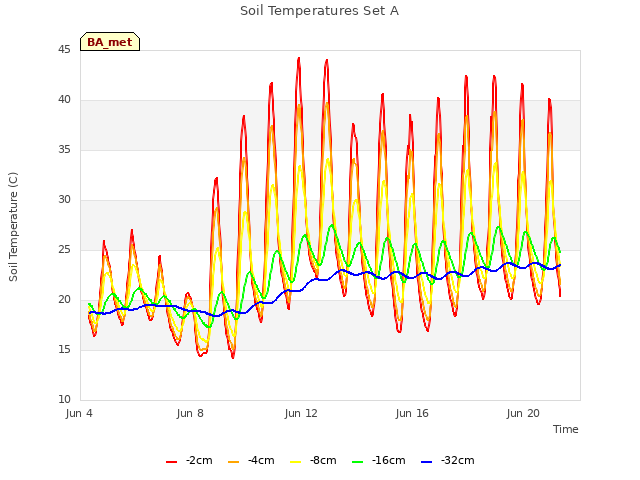

Explore the graph:Soil Temperatures Set A in a new window

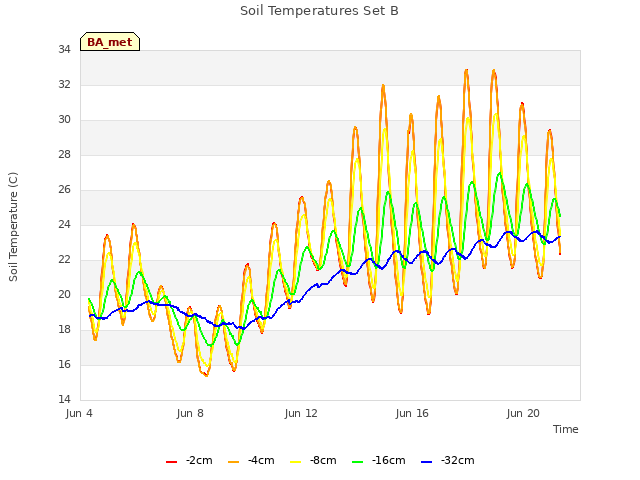

Explore the graph:Soil Temperatures Set B in a new window

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:Soil Heat Flux in a new window

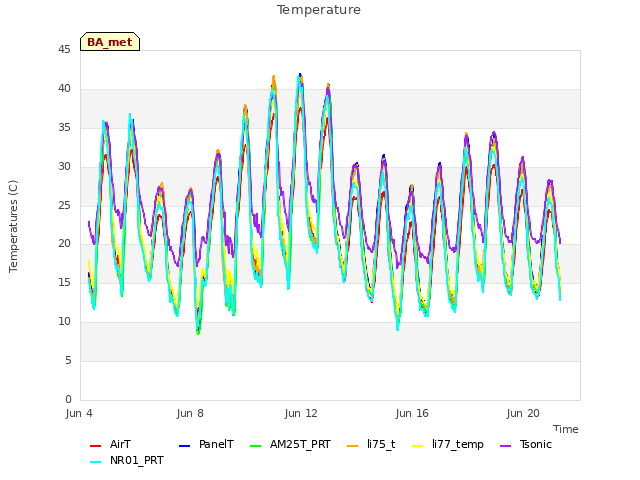

Explore the graph:Temperature in a new window

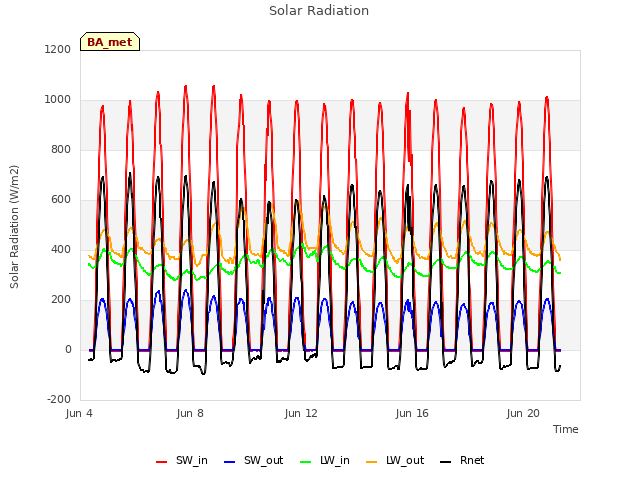

Explore the graph:Solar Radiation in a new window

Explore the graph:Air Pressure and RH in a new window

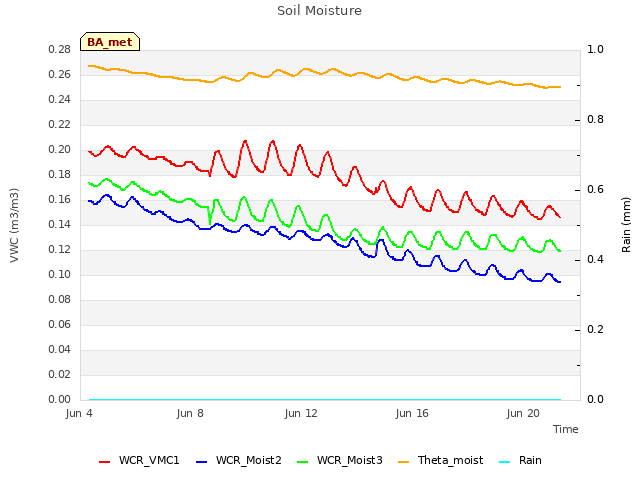

Explore the graph:Soil Moisture in a new window

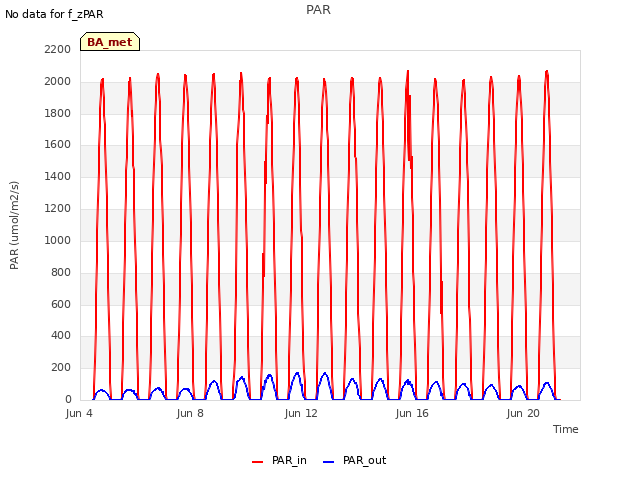

Explore the graph:PAR in a new window

Explore the graph:PRI Channels in a new window

Explore the graph:NDVI channels in a new window

Explore the graph:Battery Voltage in a new window

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

6 BA_arable graphs found

Explore the graph:Incoming Solar Bands in a new window

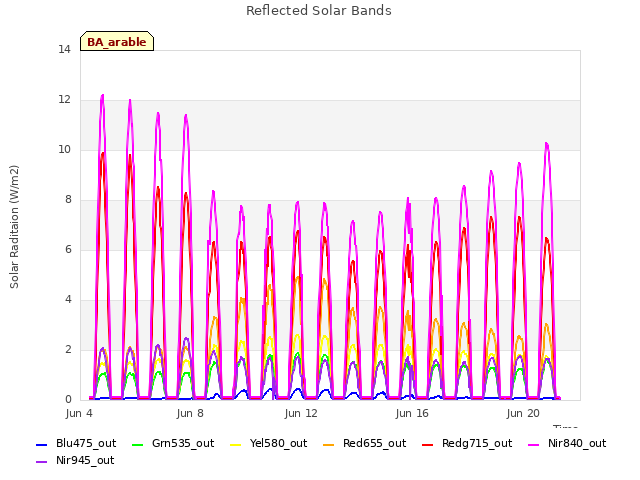

Explore the graph:Reflected Solar Bands in a new window

Explore the graph:Solar Radiation in a new window

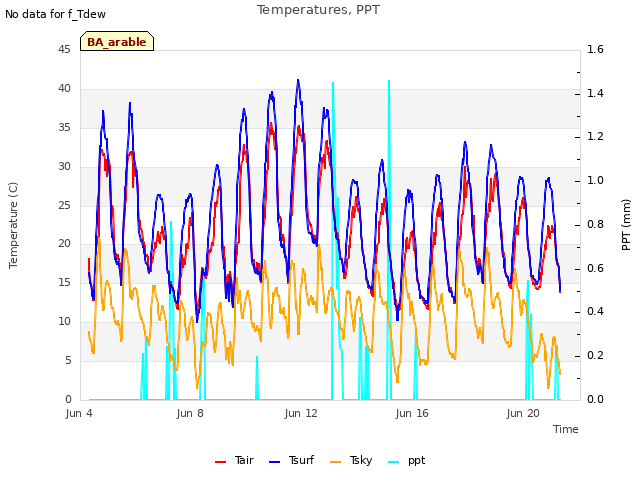

Explore the graph:Temperatures, PPT in a new window

Explore the graph:Sentek Deep Soil Moisture in a new window

Explore the graph:Pressure, RH in a new window

Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

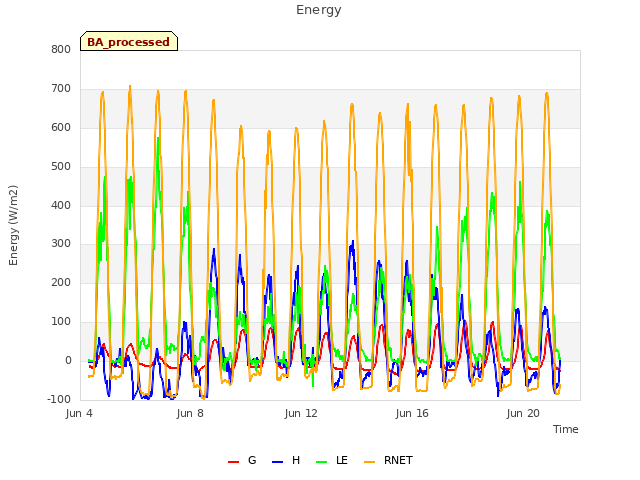

Explore the graph:Energy in a new window

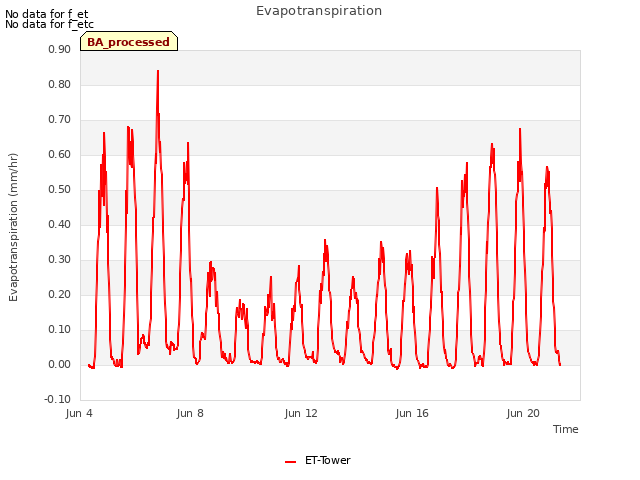

Explore the graph:Evapotranspiration in a new window
