Vaira: 2019-06-13 10:30:00 (DOY 164)
Author: Joe Verfaillie
Others: Siyan, Dennis

Summary: Standard data collection, seems green for mid June

Vaira
2019-06-13

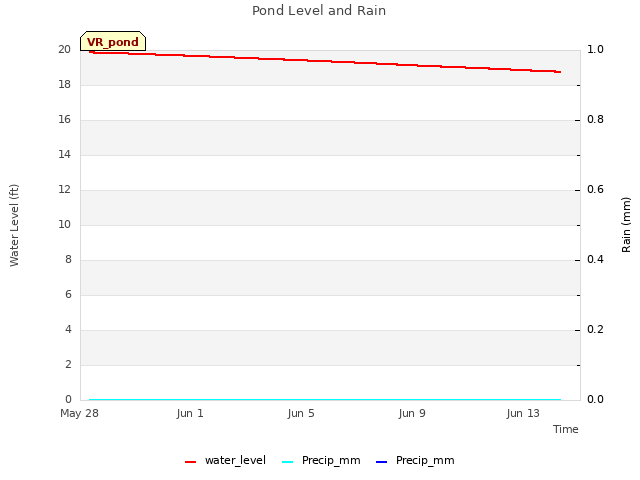

I arrived at about 10:30 with Siyan and Dennis. It was warm and sunny with a light breeze. The grass is mostly brown but still some green mixed in. The water level in the water hole is falling and the ground surface is dry.

I collected the data, Siyan did the spectra and Dennis did the soil moisture. The moisture point probe near the tower had bent pins that I was able to straighten but might fail soon. Dennis suggested relocating one from Tonzi.

There were lots of spider webs of the eddy sensors â€“ I cleaned them off.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2019-06-13	EP	1.77
2019-06-13	EE	0.3
2019-06-13	VR_well	50.5
2019-06-13	TZ_floor	14.6
2019-06-13	TZ_tower	19.5
2019-06-13	TZ_road	24.3

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Soil_Transect_4_1 [3] => Soil_Transect_3_1 [4] => Soil_Transect_2_1 [5] => Soil_Transect_1_1 [6] => SoilCO2_West_A_1 [7] => SoilCO2_West_B_1 [8] => SoilCO2_West_C_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Soil_Transect_4_2 [12] => Soil_Transect_3_2 [13] => Soil_Transect_2_2 [14] => Soil_Transect_1_2 [15] => SoilCO2_West_A_2 [16] => SoilCO2_West_B_2 [17] => SoilCO2_West_C_2 [18] => Tower_3 [19] => Floor_South_3 [20] => Soil_Transect_4_3 [21] => Soil_Transect_3_3 [22] => Soil_Transect_2_3 [23] => Soil_Transect_1_3 [24] => SoilCO2_West_A_3 [25] => SoilCO2_West_B_3 [26] => SoilCO2_West_C_3 [27] => Tower_4 [28] => Soil_Transect_4_4 [29] => Soil_Transect_3_4 [30] => Soil_Transect_2_4 [31] => Soil_Transect_1_4 [32] => SoilCO2_West_A_4 [33] => SoilCO2_West_B_4 [34] => SoilCO2_West_C_4 [35] => Floor_South_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_South_4	Spacial Count
2019-06-13	164	0	nan	7.4	3.4	4.5	13.5	5.9	3	13	10	3.9	13	8.4	9.3	20.6	18.5	5.4	11.6	1.7	16.7	16.8	27.9	12.9	20.4	24	16.5	20.7	18.7	20.4	23.1	15	26.8	41.4	13.9	25.1	23.4	31.4
2019-06-13	164	1	nan	7.1	4.7	4.5	13.2	5.6	3.3	16.2	9.7	3.6	13	8.4	9.3	20.6	18.8	5.7	11.2	1.7	15.8	17	27.9	12.3	20.7	23.2	16.8	20.4	19	20.7	24.5	14.5	26.8	41.4	13.9	25.1	23.4	30.2
2019-06-13	164	2	nan	7.4		4.5	13.2	6.2	2.7	15	9.7	5	13.9	10.3	9.7	20.6	18.8	5.4	12.1	0.8	15.5	17	17.6	11.7	20.7	22.9	16.5	20.1	18.4	20.7	25.1	15.3	26.8	41.4	15	25.4	22.8	29.9	17
2019-06-13	164	Avg	0-15cm																																					0
2019-06-13	164	Avg	15-30cm																																					0
2019-06-13	164	Avg	30-45cm																																					0
2019-06-13	164	Avg	45-60cm																																					0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Solar_Panels_2 [3] => Flux_Tower_2 [4] => Biomass_Cage_2 [5] => Solar_Panels_3 [6] => Flux_Tower_3 [7] => Biomass_Cage_3 [8] => Solar_Panels_4 [9] => Flux_Tower_4 [10] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-06-13	164	0	nan	6.9	5.3	16.7	19.7	11.5	21.6	10.3	21.2	35.7	19.9	23.1
2019-06-13	164	1	nan	7.4	5	16.4	19.4	11.2	21.5	9.8	21.8	35.4	19.9	22.8
2019-06-13	164	2	nan	7.1	5	16.7	19.7	10.9	21.8	10.9	21.2	35.5	19.4	21.9
2019-06-13	164	Avg	0-15cm												0
2019-06-13	164	Avg	15-30cm												0
2019-06-13	164	Avg	30-45cm												0
2019-06-13	164	Avg	45-60cm												0
