Field Notes

<--2019-05-14 14:00:00 | 2019-06-13 10:30:00-->
Other sites visited today: Tonzi | Tonzi
Phenocam link: Searching...

Vaira: 2019-05-30 10:30:00 (DOY 150)
Author: Joe Verfaillie
Others: Siyan, Ana

Summary: Still damp from recent rains, standard fieldwork, replaced Arable mount pole, went to the pond

Vaira
2019-05-30

I arrive at about 10:30 with Ana and Siyan. It was clear, sunny and warm. The ground is s till damp for the recent rains and grasses have retained some green. The pond level still seems to be dropping.

I collect the met and flux data and camera images, Siyan did soil moisture, spectra and clip plots. Ana measured the well.

I replaced plastic pipe that the Arable units were mounted on with a metal one.

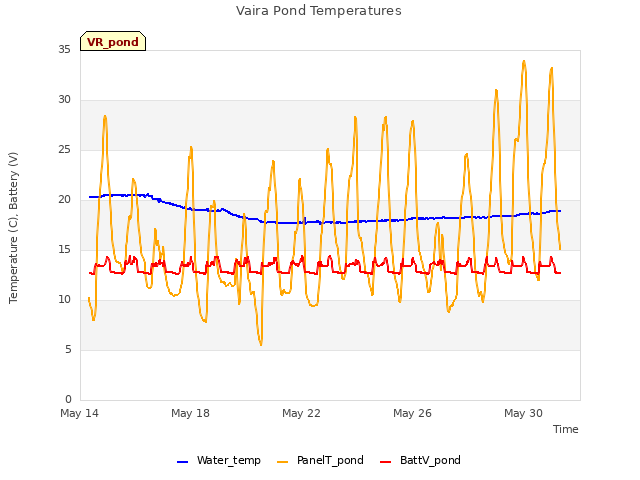

We went to the pond and collected the water level data but I did not notice the staff gauge reading

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2019-05-30	TZ_floor	13.9
2019-05-30	TZ_tower	18.7
2019-05-30	TZ_road	24.6

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_West_1 [3] => Soil_Transect_4_1 [4] => Soil_Transect_3_1 [5] => Soil_Transect_2_1 [6] => Soil_Transect_1_1 [7] => SoilCO2_West_A_1 [8] => SoilCO2_West_B_1 [9] => SoilCO2_West_C_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_West_2 [13] => Soil_Transect_4_2 [14] => Soil_Transect_3_2 [15] => Soil_Transect_2_2 [16] => Soil_Transect_1_2 [17] => SoilCO2_West_A_2 [18] => SoilCO2_West_B_2 [19] => SoilCO2_West_C_2 [20] => Tower_3 [21] => Floor_South_3 [22] => Floor_West_3 [23] => Soil_Transect_4_3 [24] => Soil_Transect_3_3 [25] => Soil_Transect_2_3 [26] => Soil_Transect_1_3 [27] => SoilCO2_West_A_3 [28] => SoilCO2_West_B_3 [29] => SoilCO2_West_C_3 [30] => Tower_4 [31] => Floor_South_4 [32] => Floor_West_4 [33] => Soil_Transect_4_4 [34] => Soil_Transect_3_4 [35] => Soil_Transect_2_4 [36] => Soil_Transect_1_4 [37] => SoilCO2_West_A_4 [38] => SoilCO2_West_B_4 [39] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_West_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_West_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Spacial Count
2019-05-30	150	0	nan	17.6	13.8	14.4	10.9	22.9	19.4	9.4	28.5	21.4	15.3	22.8	25.5	26.6	18.8	28.9	28.9	10	34.3	13	17.4	19.8	39	39.9	17.6	27.1	26.5	20.1	31.3	27.1	30.1	27.4	19.6	41.1	17.9	30.8	38	16.8	30.5	27.1	34.2
2019-05-30	150	1	nan	17.9	13.5	19.1	10.9	22.3	18.5	9.4	28.6	21.4	16.5	21.6	25.2	25.8	18.8	29.8	28.6	9.3	24.3	13.3	27.7	19.8	28.5	39.6	17.3	27.1	27.1	19.8	32.8	26.5	29.9	37.1	19.5	41.4	17.9	31.1	38.9	16.5	30.8	27.6	34.5
2019-05-30	150	Avg	0-15cm																																									0
2019-05-30	150	Avg	15-30cm																																									0
2019-05-30	150	Avg	30-45cm																																									0
2019-05-30	150	Avg	45-60cm																																									0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Biomass_Cage_1 [3] => Solar_Panels_2 [4] => Flux_Tower_2 [5] => Biomass_Cage_2 [6] => Solar_Panels_3 [7] => Flux_Tower_3 [8] => Biomass_Cage_3 [9] => Solar_Panels_4 [10] => Flux_Tower_4 [11] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-05-30	150	0	nan	39.9	11.8	8.8	26.4	27.1	17	27.6	12.9	26.2	38	20.8	24.8
2019-05-30	150	1	nan	39.9	12.7	8.6	24.9	26.5	17.6	27.4	13.4	27.1	37.7	21.3	25.4
2019-05-30	150	Avg	0-15cm													0
2019-05-30	150	Avg	15-30cm													0
2019-05-30	150	Avg	30-45cm													0
2019-05-30	150	Avg	45-60cm													0
