Tonzi: 2019-06-13 11:00:00 (DOY 164)
Author: Joe Verfaillie
Others: Siyan, Dennis

Summary: Tower computer okay, FLIR cal IRT programs could use some work, reinstall tree 102 DBH scale, checked COSMOS, lots of flowers

Tonzi
2019-06-13

I arrived at about 11am with Dennis and Siyan. It was warm and sunny with a nice breeze at the top of the tower. Lots and lots of flowers especially the yellow ones. The grass is still pretty green though it is mostly the broad leaf, native vegetation. Dennis remarked on the number of dead branches on the lower parts of the trees.

I checked on the tower computer. It seemed fine and the FLIR still had good focus. I added a USB drive to the open port and edited the FLIR batch file to move the images to the USB drive. I uninstalled the FLIR IR Monitor and IR Config software we installed last time that was useless. I did not remove the dotNet 3.5 package though.

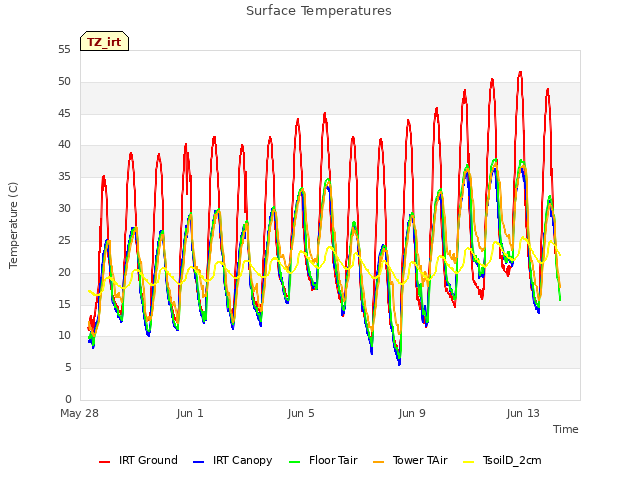

I collected the eddy data. Both sets of eddy sensors had a bunch of spider webs that I cleaned off. I also evicted a spider from the floor IRGA. I collected the IRT data. I think the data was okay but the programs need some work to put it away properly. I serviced the zcams.

Dennis did the soil moisture. Siyan collected the other data, did the well and DBH measurements and midday water potential.

I replaced the smaller scale on DBH gage on tree 102. It had fallen off on 5/14. I glued it back on with a little dab of super glue. The new reading is 8.8 but the last couple of readings will have to be estimated by comparison with the other trees.

I checked on the COSMOS system â€“ it has been missing some readings recently. We cycled power on the electronics box and reset the connector on the antenna. Nothing looked wrong.

Field Data

No tank data

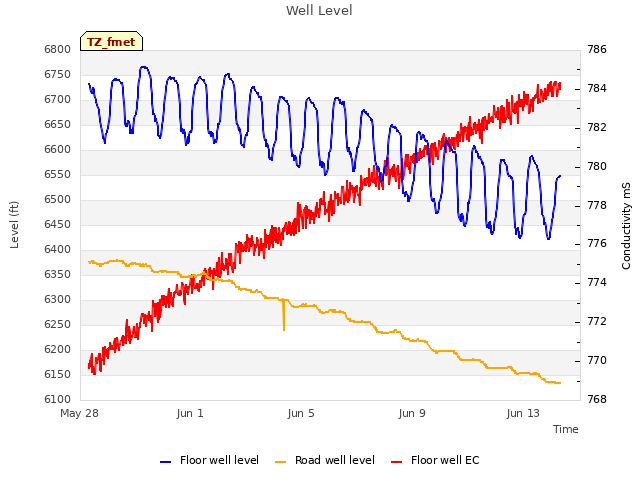

Well Depth

Date	Location	Depth (feet)
2019-06-13	EP	1.77
2019-06-13	EE	0.3
2019-06-13	VR_well	50.5
2019-06-13	TZ_floor	14.6
2019-06-13	TZ_tower	19.5
2019-06-13	TZ_road	24.3

mode = both

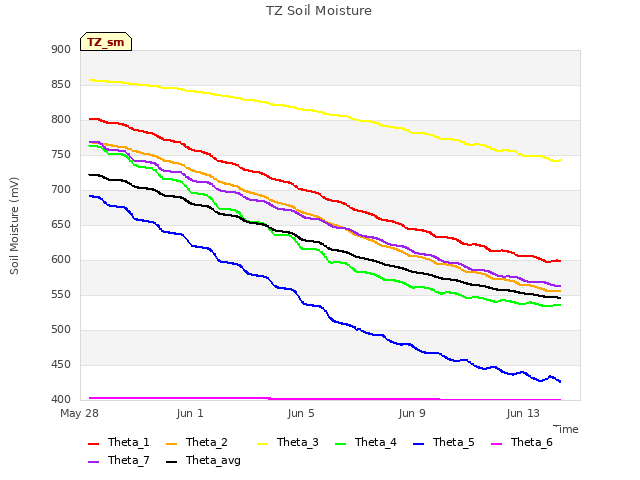

Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Soil_Transect_4_1 [3] => Soil_Transect_3_1 [4] => Soil_Transect_2_1 [5] => Soil_Transect_1_1 [6] => SoilCO2_West_A_1 [7] => SoilCO2_West_B_1 [8] => SoilCO2_West_C_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Soil_Transect_4_2 [12] => Soil_Transect_3_2 [13] => Soil_Transect_2_2 [14] => Soil_Transect_1_2 [15] => SoilCO2_West_A_2 [16] => SoilCO2_West_B_2 [17] => SoilCO2_West_C_2 [18] => Tower_3 [19] => Floor_South_3 [20] => Soil_Transect_4_3 [21] => Soil_Transect_3_3 [22] => Soil_Transect_2_3 [23] => Soil_Transect_1_3 [24] => SoilCO2_West_A_3 [25] => SoilCO2_West_B_3 [26] => SoilCO2_West_C_3 [27] => Tower_4 [28] => Soil_Transect_4_4 [29] => Soil_Transect_3_4 [30] => Soil_Transect_2_4 [31] => Soil_Transect_1_4 [32] => SoilCO2_West_A_4 [33] => SoilCO2_West_B_4 [34] => SoilCO2_West_C_4 [35] => Floor_South_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Floor_South_4	Spacial Count
2019-06-13	164	0	nan	7.4	3.4	4.5	13.5	5.9	3	13	10	3.9	13	8.4	9.3	20.6	18.5	5.4	11.6	1.7	16.7	16.8	27.9	12.9	20.4	24	16.5	20.7	18.7	20.4	23.1	15	26.8	41.4	13.9	25.1	23.4	31.4
2019-06-13	164	1	nan	7.1	4.7	4.5	13.2	5.6	3.3	16.2	9.7	3.6	13	8.4	9.3	20.6	18.8	5.7	11.2	1.7	15.8	17	27.9	12.3	20.7	23.2	16.8	20.4	19	20.7	24.5	14.5	26.8	41.4	13.9	25.1	23.4	30.2
2019-06-13	164	2	nan	7.4		4.5	13.2	6.2	2.7	15	9.7	5	13.9	10.3	9.7	20.6	18.8	5.4	12.1	0.8	15.5	17	17.6	11.7	20.7	22.9	16.5	20.1	18.4	20.7	25.1	15.3	26.8	41.4	15	25.4	22.8	29.9	17
2019-06-13	164	Avg	0-15cm																																					0
2019-06-13	164	Avg	15-30cm																																					0
2019-06-13	164	Avg	30-45cm																																					0
2019-06-13	164	Avg	45-60cm																																					0

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower_1 [1] => Biomass_Cage_1 [2] => Solar_Panels_2 [3] => Flux_Tower_2 [4] => Biomass_Cage_2 [5] => Solar_Panels_3 [6] => Flux_Tower_3 [7] => Biomass_Cage_3 [8] => Solar_Panels_4 [9] => Flux_Tower_4 [10] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Flux_Tower_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Biomass_Cage_4	Spacial Count
2019-06-13	164	0	nan	6.9	5.3	16.7	19.7	11.5	21.6	10.3	21.2	35.7	19.9	23.1
2019-06-13	164	1	nan	7.4	5	16.4	19.4	11.2	21.5	9.8	21.8	35.4	19.9	22.8
2019-06-13	164	2	nan	7.1	5	16.7	19.7	10.9	21.8	10.9	21.2	35.5	19.4	21.9
2019-06-13	164	Avg	0-15cm												0
2019-06-13	164	Avg	15-30cm												0
2019-06-13	164	Avg	30-45cm												0
2019-06-13	164	Avg	45-60cm												0

No TZ grass heigth found

No VR grass heigth found

Tree DBH

Date	Tag#	Reading (mm)
2019-06-13	1	19.2
2019-06-13	2	13.6
2019-06-13	245	11.4
2019-06-13	3	18.5
2019-06-13	4	5.1
2019-06-13	5	12.9
2019-06-13	7	19.1
2019-06-13	72	8.5
2019-06-13	8	8.4

Water Potential - mode: raw

Time	Species	Tree	readings (bar)
2019-06-13 12:00:00	OAK	102	-24	-12
2019-06-13 12:00:00	OAK	35	-28	-30	-31
2019-06-13 12:00:00	OAK	92	-25	-31	-24
2019-06-13 12:20:00	PINE	OLD	-17	-11	-15
2019-06-13 12:20:00	PINE	YNG	-2	-2	-1
