Field Notes

<--2018-08-07 16:02:00 | 2018-08-28 09:21:00-->
Other sites visited today: Bouldin Alfalfa | Bouldin Corn | East End | East Pond | Sherman Barn | Sherman Wetland | West Pond
Phenocam link: Searching...

Mayberry: 2018-08-23 15:55:00 (DOY 235)
Author: Joe Verfaillie
Others: Daphne, Kuno

Summary: Very hazy, water level very low, cable gate still sagging, swapped one miniDot batteries.

Mayberry
2018-08-23

I arrived at 15:55 with Daphne. The cable gate is still so low that you might be able to drive over it. Most of the doors on the trailers next to the levee were open. It was cool, sunny and windy with very poor visibility due to haze. The water level is very low – the tower is now beach front property. After cleaning the staff gauge the water level read 14cm of soft saturated muck and not standing water. The water was kind of an olive green color.

Daphne collected the data:
The 7500 read: 390ppm CO2, 740mmol/m3 H2O, 24.6C, 101.2kPa, 102SS
The 7700 read: 1.99ppm CH4, 40RSSI – 84 after cleaning
The wash reservoir was about a third low – refilled.

Water samples for Isabel were taken at 14:55 PST

We forgot the card reader so could not collect the camera images but checked that the camera was running.

I swapped the batteries in the top MiniDOT sn 1221. After re-lowering the boom the fluorometer is about 10cm above the muck, the upper Eos and MiniDOT are about 15cm above the muck and the bottom Eos and miniDot are laying on their sides on top of the muck.

There are dirty paw prints all over our stuff. The solar panels should be cleaned next time – we didn’t have the squeegee.

We left at 16:20

0 photos found

Graphs display:
11 sets found

7 MB_flux graphs found

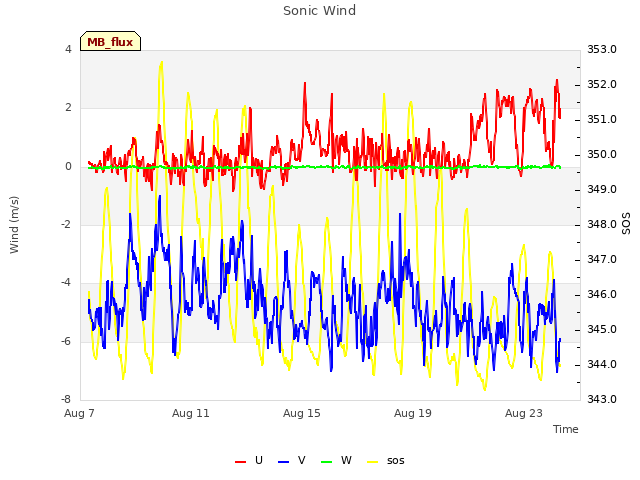

Explore the graph:Sonic Wind in a new window

Explore the graph:LI7700 mV signals in a new window

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 from analog signal in a new window

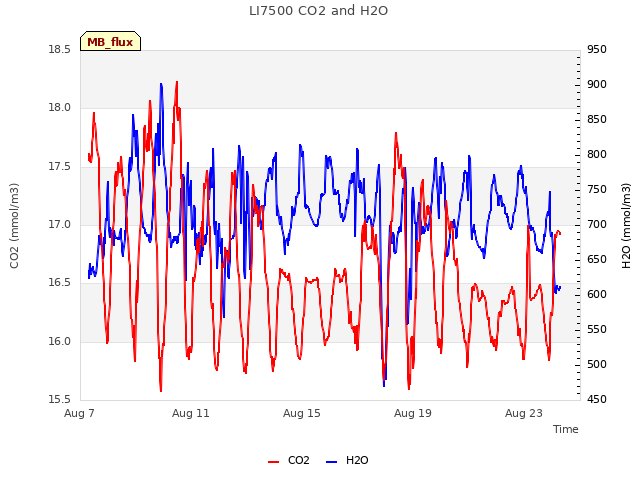

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 from digital signal in a new window

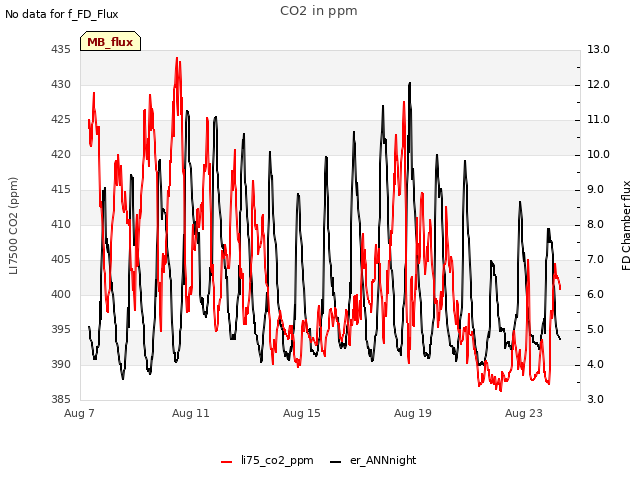

Explore the graph:CO2 in ppm in a new window

No data found for MB_met.
27 MB_tule graphs found

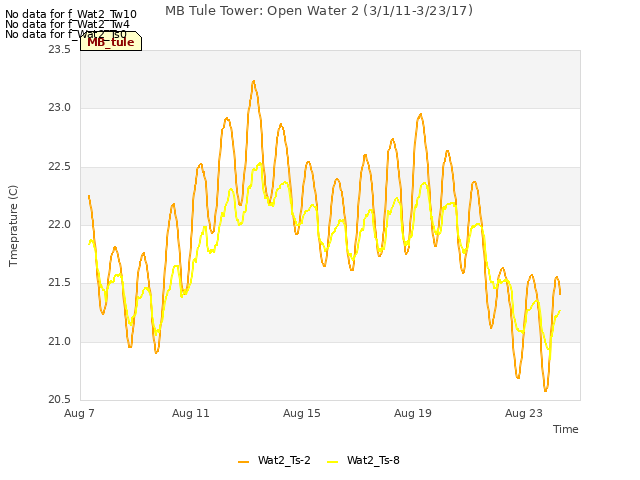

Explore the graph:MB Tule Tower: Open Water 2 (3/1/11-3/23/17) in a new window

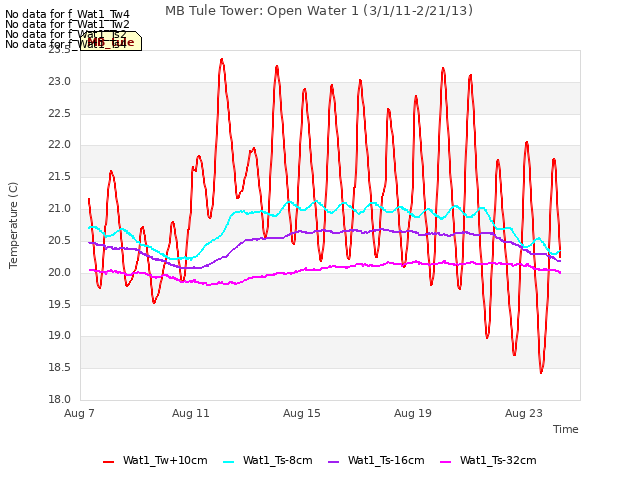

Explore the graph:MB Tule Tower: Open Water 1 (3/1/11-2/21/13) in a new window

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14) in a new window

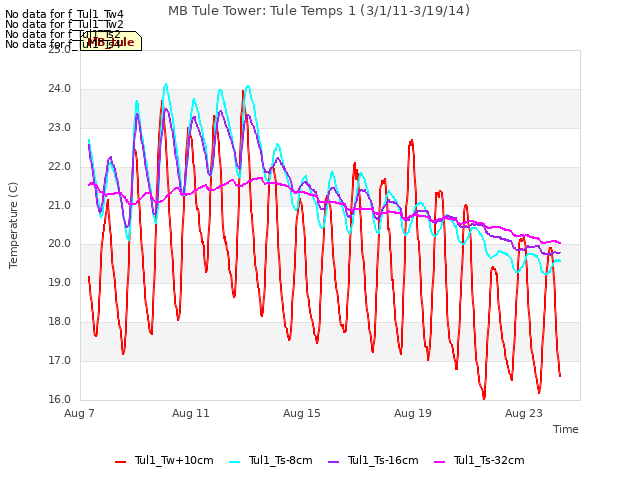

Explore the graph:MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14) in a new window

Explore the graph:Mayberry Tule Tower: Solar Radiation in a new window

Explore the graph:Mayberry Tule Tower: Disolved Oxygen in a new window

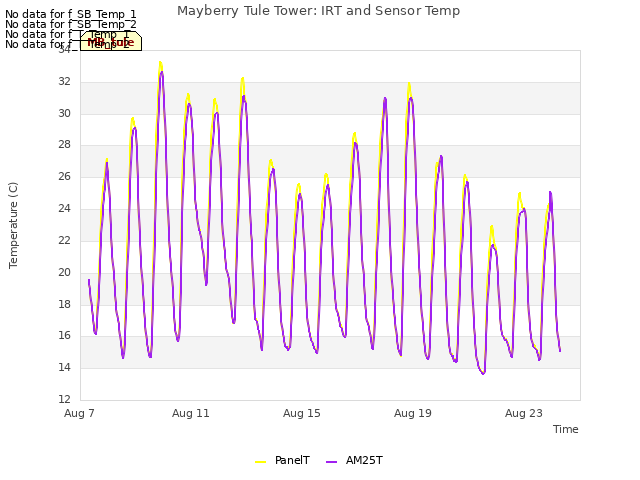

Explore the graph:Mayberry Tule Tower: IRT and Sensor Temp in a new window

Explore the graph:Mayberry Tule Tower: Volts and RH in a new window

Explore the graph:LED NDVI Sensor in a new window

Explore the graph:Water CO2 in a new window

Explore the graph:Water Pressure in a new window

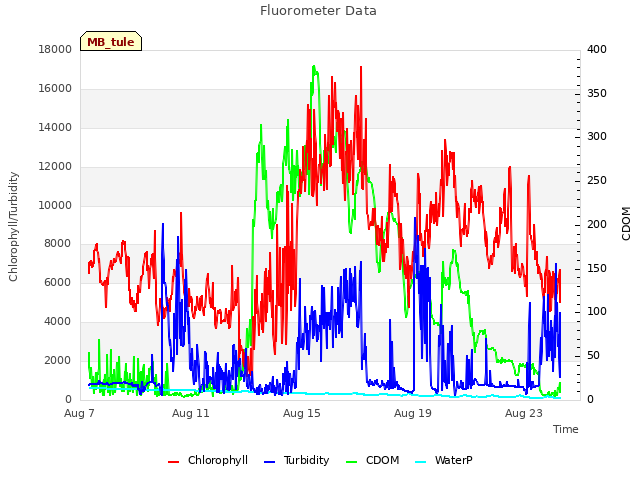

Explore the graph:Fluorometer Data in a new window

Explore the graph:Mayberry pCO2 Profile in a new window

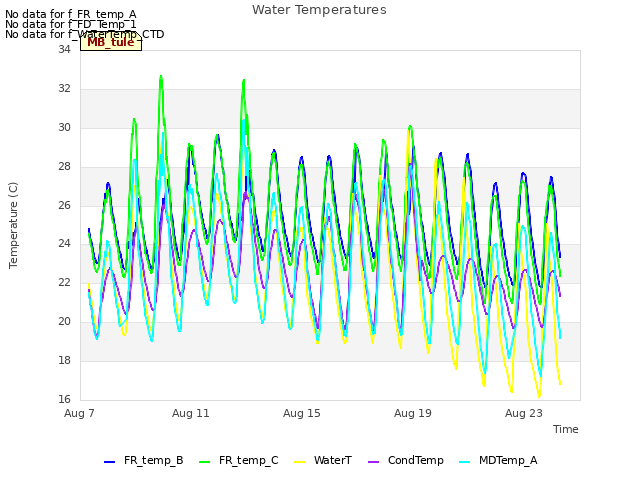

Explore the graph:Water Temperatures in a new window

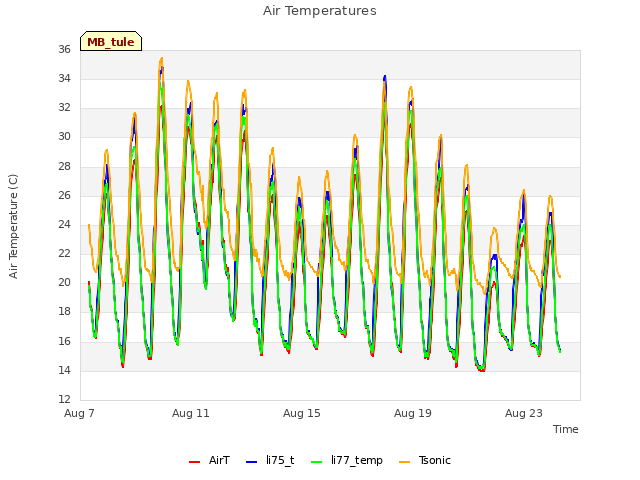

Explore the graph:Air Temperatures in a new window

Explore the graph:Air Pressure in a new window

Explore the graph:4-Way Radiometer in a new window

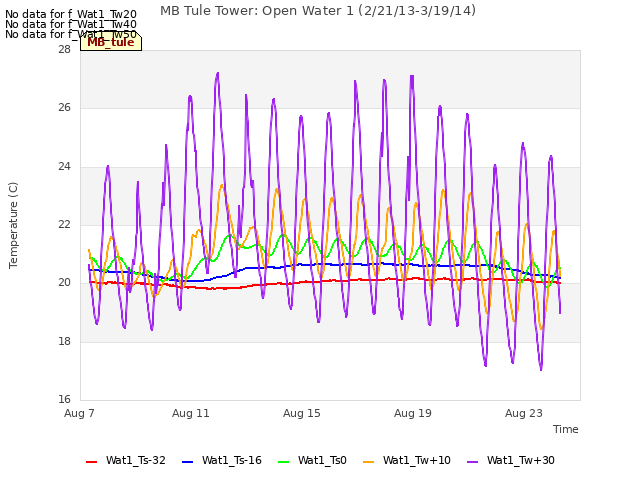

Explore the graph:MB Tule Tower: Open Water 1 (2/21/13-3/19/14) in a new window

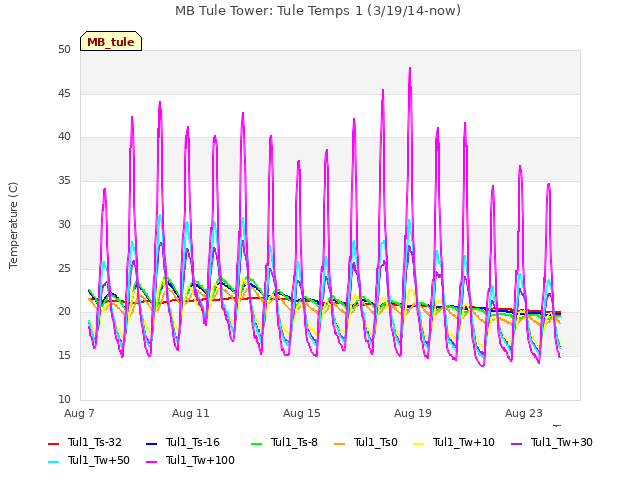

Explore the graph:MB Tule Tower: Tule Temps 1 (3/19/14-now) in a new window

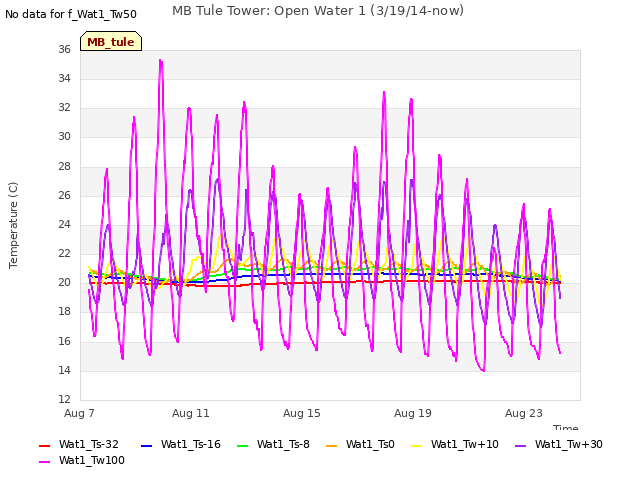

Explore the graph:MB Tule Tower: Open Water 1 (3/19/14-now) in a new window

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17) in a new window

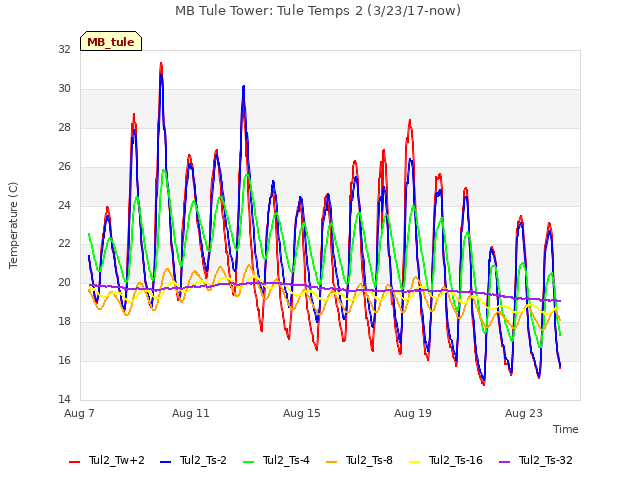

Explore the graph:MB Tule Tower: Tule Temps 2 (3/23/17-now) in a new window

Explore the graph:MB Tule Tower: Tule Temps 3 (3/23/17-now) in a new window

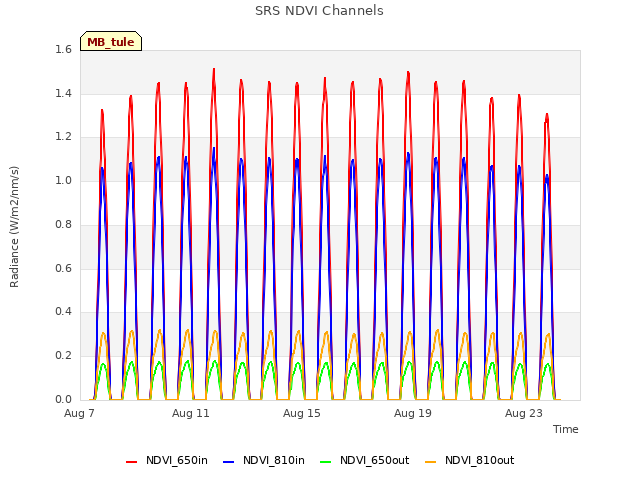

Explore the graph:SRS NDVI Channels in a new window

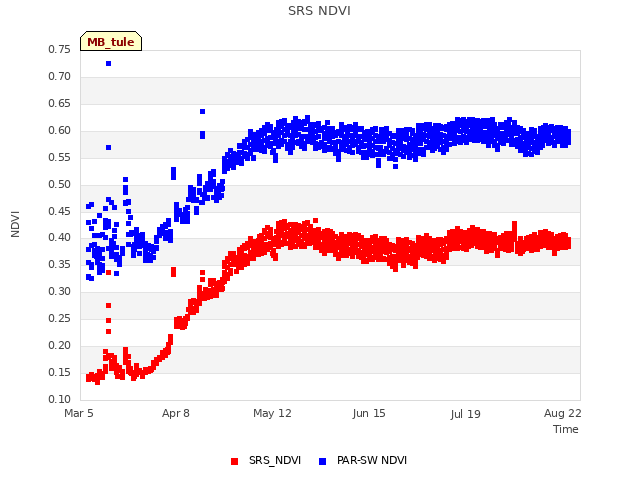

Explore the graph:SRS NDVI in a new window

Explore the graph:Net Radiation in a new window

Explore the graph:Conductivity in a new window

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

Explore the graph:Mayberry Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
1 MB_minidot graphs found

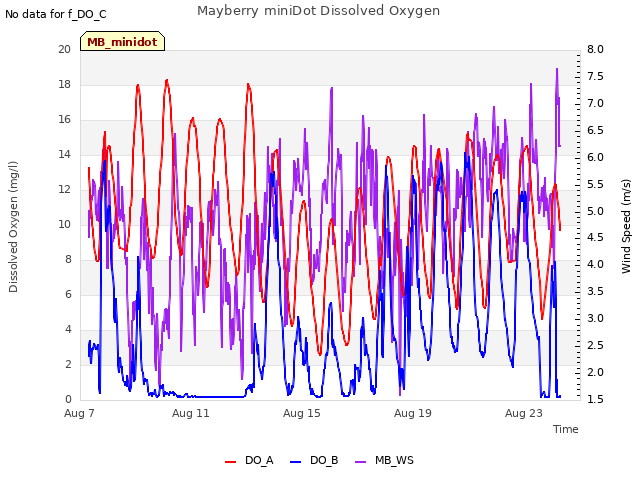

Explore the graph:Mayberry miniDot Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 MB_processed graphs found

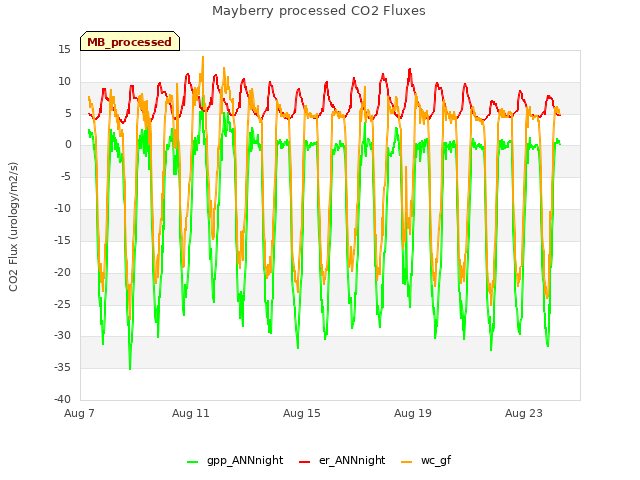

Explore the graph:Mayberry processed CO2 Fluxes in a new window

Can't check MB_fd
1 MB_fd graphs found

Explore the graph:Water Forced Diffusion CO2 Flux in a new window
