Sherman Wetland: 2018-05-31 15:50:00 (DOY 151)
Author: Daphne Szutu
Others: Alex, Katrina

Summary: Regular data collection/cleaning, water level lower

2018-05-31
Sherman Wetland

We arrived at 15:50. It was sunny and breezy. The wetland is drier than last time we were here, with most of the footprint looking dry. Water level is about 5cm below the high line on miniDOT.

I collected met, camera, and USB GHG data. Alex cleaned the flux and rad sensors and refilled the wash reservoir; it was mostly full. I renamed the 7550 from AIU-1569 to SW-1569 and reset the 7550 box and checked that data was logging.

LI-7500 readings:
CO2 395ppm
H2O 522ppm
T 20.3C
P 101.4kPa
SS 97 --> 102 after cleaning

LI7700 readings
CH4 1.99ppm
RSSI 41 --> 73 after cleaning

We left at 16:10.

0 photos found

Graphs display:
7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
16 SW_met graphs found

Explore the graph:Temperatures in a new window

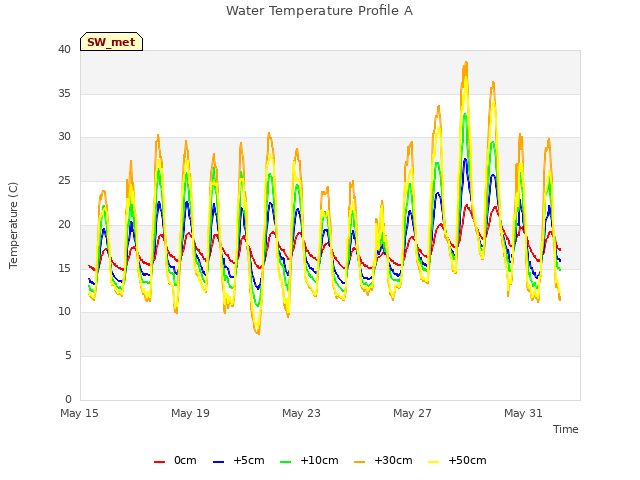

Explore the graph:Water Temperature Profile A in a new window

Explore the graph:Water Temperature Profile B in a new window

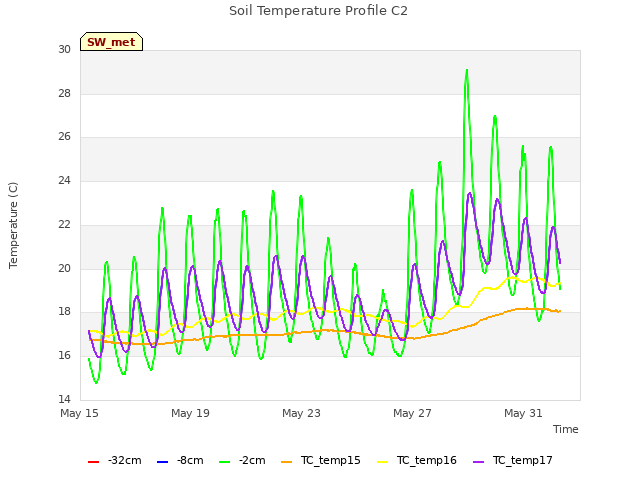

Explore the graph:Soil Temperature Profile C2 in a new window

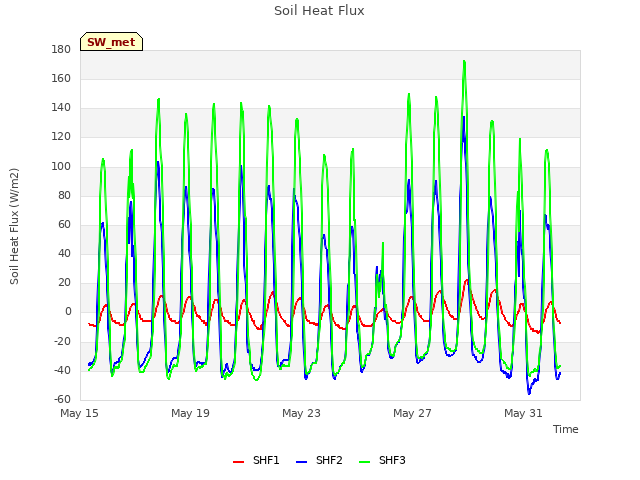

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four channel Radiometer in a new window

Explore the graph:Sherman Wetland PAR in a new window

Explore the graph:PRI Channels in a new window

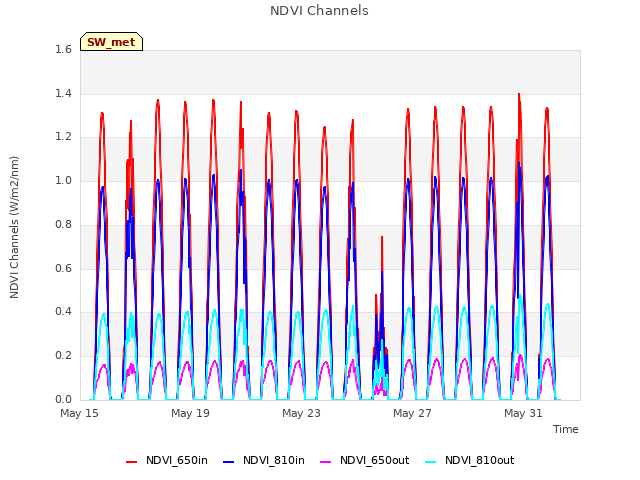

Explore the graph:NDVI Channels in a new window

Explore the graph:Water level and Rain in a new window

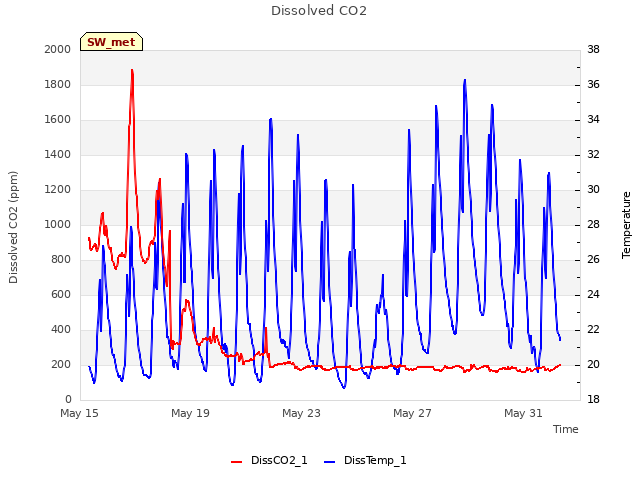

Explore the graph:Dissolved CO2 in a new window

Explore the graph:Air Pressure in a new window

Explore the graph:Battery Voltage and RH in a new window

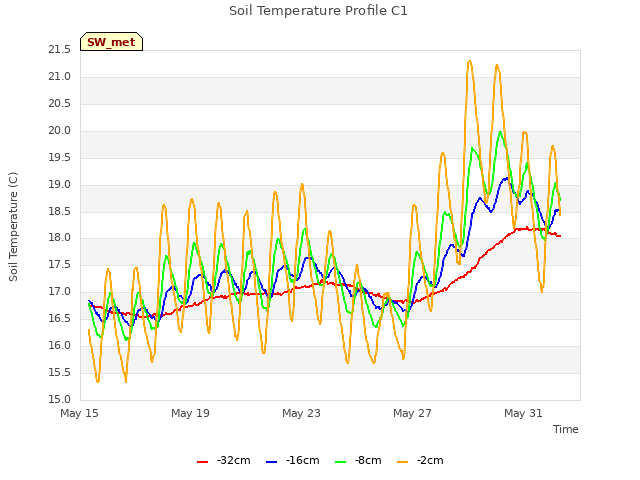

Explore the graph:Soil Temperature Profile C1 in a new window

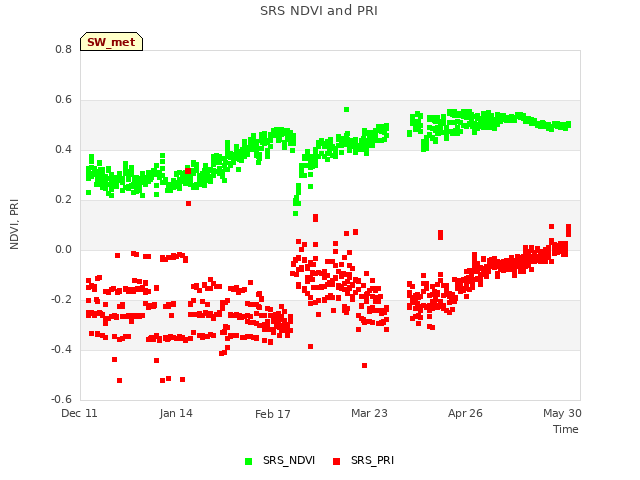

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:SW miniDOT Dissolved Oxygen in a new window

4 SW_flux graphs found

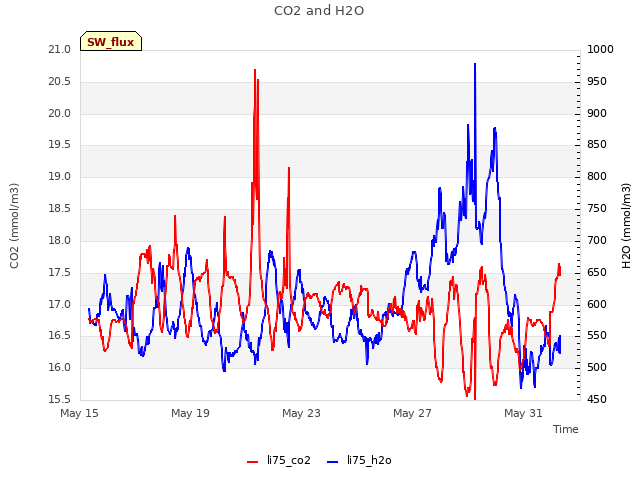

Explore the graph:CO2 and H2O in a new window

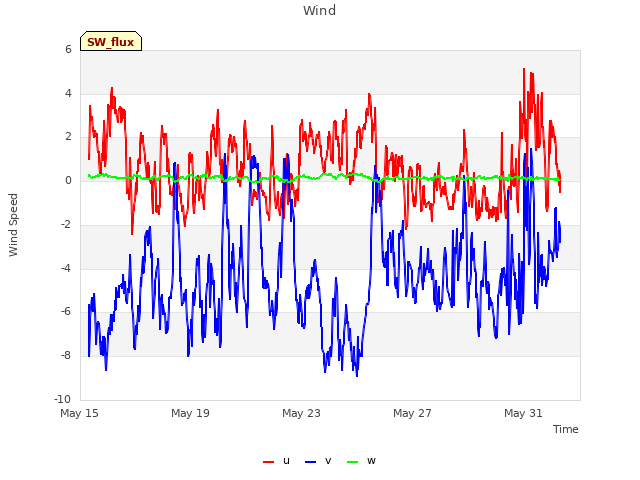

Explore the graph:Wind in a new window

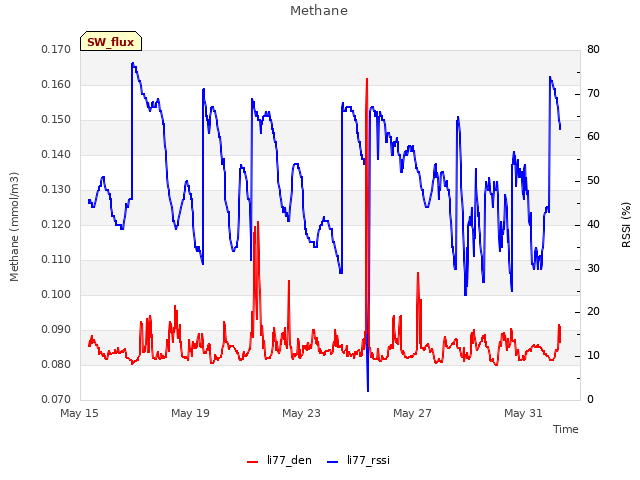

Explore the graph:Methane in a new window

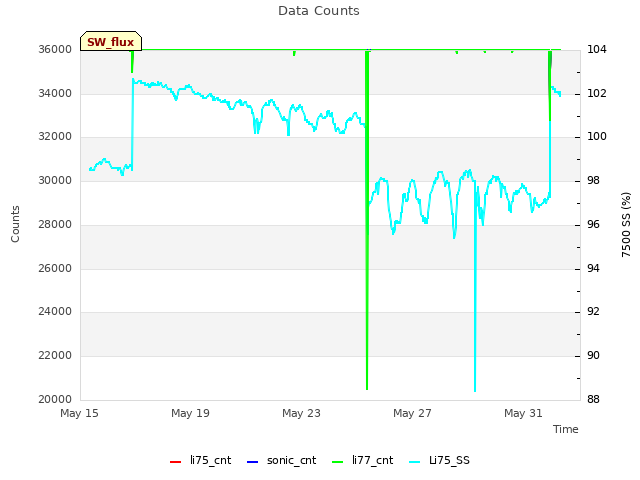

Explore the graph:Data Counts in a new window

Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found

Explore the graph:Temperatures in a new window

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Explore the graph:Temperature Profile A in a new window

Explore the graph:Temperature Profile B in a new window

Explore the graph:Temperature Profile C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four-channel radiometer in a new window

Explore the graph:NDVI Channels in a new window

Explore the graph:PAR in a new window

Explore the graph:Air Pressure and Water Level in a new window

Explore the graph:Air T and RH in a new window

No data found for SW_arable.
