When: Date: 5/4/2006 , Day: 124 , Watch Time: 9:10am .
Where: Tonzi/Vaira Ranch
Who: Siyan
Weather: partially cloud (<5%)
Phenology: very heterogeneous. At Vaira, 80% grass on heading and seeding stages, but some late geminated grasses were still in leaf growth. See a lot of clover under the tall grasses (~50cm high). At Tonzi, phenology seems delayed. See heading and seeding, yellow and white followers, also see broad-leaf herbs dominated in wetter and lower area. Oak leaves looked much bigger than they were last year.
Summary

1. Walking stick is very useful.
2. EC systems worked well. I swapped Li-7500 at Tower and Floor, and download data at Tower, Floor, and Vaira

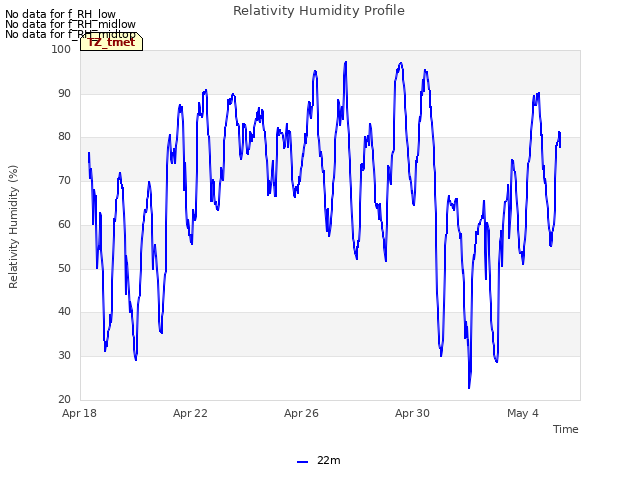

3. Fans of Tair and Rh sensor on the tower was failed. (already notice Ted).
4. Filenames in Tower computer is 1 day ahead. (already notice Ted).
5. Change the battery of radiation transect. Worked very well.
6. soil CO2 profile system back to ranges.
7. collect grass sample for LAI and phenology in Tower and Vaira, oak branches for N.
8. MIBA samples were not collected this time.

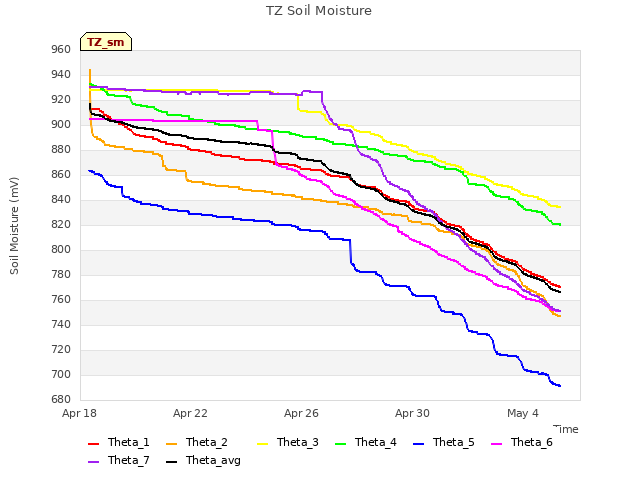

9. measured soil moisture, dendrometer, and spectrometer. Soil moisture dropped to 10% on the surface at Vaira; ~ 20-30% at Tonzi.

Vaira_Grass Site

1. Fence and gate power: >12 v.
2. Panel and Batteries: 13.8 v; 10.8 amps; 1.9 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time	8:46:08
Path/File name	D:\Data\V06_123 .flx D:\Data\VR06 1231400 .raw
	mean	std		mean	std
w	-0.33	.31	Ts	15.64	1.159
u	.03	.35	H2O	3.77	.187
v	.74	.59	CO2	1.60	.078

1. downloading data
2. check the fans of air temp. and relative humidity sensors at Vaira. Good.
3. Check MD-9 system connections: BUSY WITH COM
4. Check CR23X with two multiplexers

Sys_vot = not able to read because BUSY WITH COM
PC_start =

1. Check levels of Radiation sensors, clear up surfaces.

9. Closed gate and set up fence.

Tonzi_Tower Site

1. Fence and gate power: >12 v.
2. Panel and Batteries: 14.2 v; 0.0 amps; 3.4 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time	10:00:47
Path/File name	D:\Data\T06_ 125 .flx (!!!!! One day ahead) D:\Data\TW06 1250900 .raw
	mean	std		mean	std
w	-.39	.555	Ts	16.59	.476
u	1.43	1.024	H2O	.93	.03
v	.32	1.237	CO2	1.047	.014

1. downloading data
2. swaping Li-7500 Analyzer. (Remove SN# 41 ; install SN# 73 )
3. check the fans of air temp. and relative humidity sensors on the tower and the floor. Failed!!!
4. Check calibration cylinders; STILL in LAB.

CO₂ psig; flow psi.
N₂ psig; flow psi.
Manually calibrate Li-800. Following Ted’s instruction: H:\IoneSavanna_2004\Tower_2004\CO2Profile\LI800_Calibration_Procedure_2Nov04.txt
Is the pump running‌

1. close gate and set up fence.

Toniz_Floor Site

1. Fence and gate power: >12 v.
2. Panel and Batteries: 13.7 v; 8.5 amps; 1.8 amps.
3. Reading from Gillsonic screen before downloading data. (The value of H₂O and CO₂ should be in the range of 0 – 5 v.)

Time	11:26:16
Path/File name	D:\Data\F06_ 122 .flx D:\Data\FL06 1220900 .raw
	mean	std		mean	std
w	-0.110	.19	Ts	18.919	1.23
u	1.26	.705	H2O	4.996 (sth wrong‌‌‌ Need check the data!!!!)	0.002
v	-0.04	.475	CO2	1.722	0.038

1. downloading data
2. swaping Li-7500 Analyzer. (Remove SN# 35 ; install SN# 65 )

1. Check MD-9 system connections

CR23X3 – floor-Met
CR23X5 – soil CO₂ profile
CR23X6 – tower-Met
CR10X2 – floor-Met
CR10X4 – sap-flow
CR10X7 – CO₂ profile

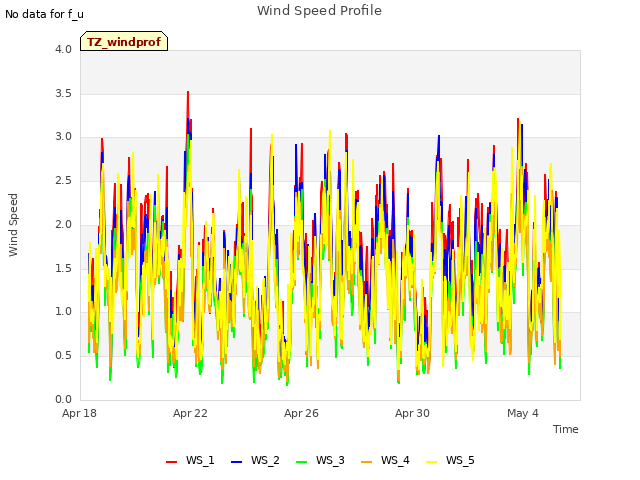

CR10X8 – wind profile

1. Soil CO₂ profile

Reading from datalogger

Panel temp		25.998
Battery voltage		13.454
CO2E_1	2226.8	TCE_1	27.2	CO2W_1	1520.3	TCW_1	18.7
CO2E_2	3000.1	TCE_2	28.5	CO2W_2	2703.5	TCW_2	17.7
CO2E_3	4275.3	TCE_3	23.6	CO2W_3	3298.1	TCW_3	17.0
CO2E_4	5234.4	TCE_4	20.4	CO2W_4	4831.2	TCW_4	17.4

Reading from panels of analyzers

depth	Open	order	depth	Tree	order
2cm (1%)	4520	1	2cm (1%)	3140	1
4cm	6040	2	4cm	9760	4
8cm	8650	3	8cm	5410	2
16cm	1.06%	4	16cm	1.33%	3

1. Close gate and set up fence.

tonzi	7931AFE	402165	574B4B	402FF3	574632	7A432E	7A3C6E	7A3B40	7A4AAA
4-May-06	124
	SM
0-15	25.7	15.4	25.7	11.4	18.2	21.2	16.8	12.2	11.3
15-30	33.2	28.4	28.6	32.4	29.0	18.6	23.4	25.5	11.1
30-45	35.8	38.7	40.1	34.2	46.5	23.2	24.2	28.9	29.9
45-60	40.0	63.5	56.6	44.6	42.7	27.8	38.0	43.6	25.4
	A6D882B	A3D04E8	A6D72F5
0-15	29.1	24.7	12.7
15-30	21.0	22.6	26.6
30-45	32.2	31.0	33.8
45-60	42.0	49.0	46.9
vaira	57318a	7933dee
0-15	8.4	9.4
15-30	17.9	19.0
30-45	21.2	21.4
45-60	24.8	29.2

Tonzi
Dendrometer
Date	Day	Tag #	Reading (cm)
5/4/2006	124	71	22.5
		72	23.4
		77	Broken
		78	Broken
		79	23.3
		245	21.9
		248	24.5
		250	21.7
		255	22.9
		‌252‌	missing
		102	Broken
