Field Notes

<--2017-08-16 13:00:00 | 2017-08-30 09:50:00-->
Other sites visited today: Twitchell Alfalfa | Sherman Wetland | Bouldin Corn | Bouldin Alfalfa

East End: 2017-08-23 12:30:00 (DOY 235)
Author: Daphne Szutu
Others: Elke Eichelmann, Kyle Hemes

Summary: Downloaded met/eclipse and Licor GHG data, updated CR1000 program to record 30-min data only

2017-08-23
East End

We arrived at 12:30. It was clear, sunny, warm, and there were many wasps. Kyle trimmed veg around the boardwalk.

I downloaded the met and 10s eclipse data tables and the Licor GHG data. Through Loggernet > File Options, I made EastEndMet_20170719.CR1 the default CR1000 program (Run Now and Run on Power Up).

LI7500 readings:
CO2 407.9 umol/mol
H2O 821.4 mmol/m3
T 27.9 C
P 101.2 kPa
SS 92.9

LI7700 readings:
CH4: 2.1
RSSI: 59.7 -> 80.2 after cleaning

We left at 13:00.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

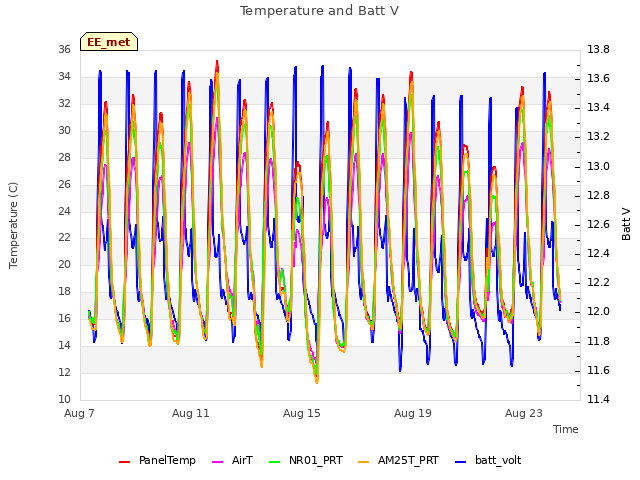

Temperature and Batt V

Soil Moisture and Well Pressure

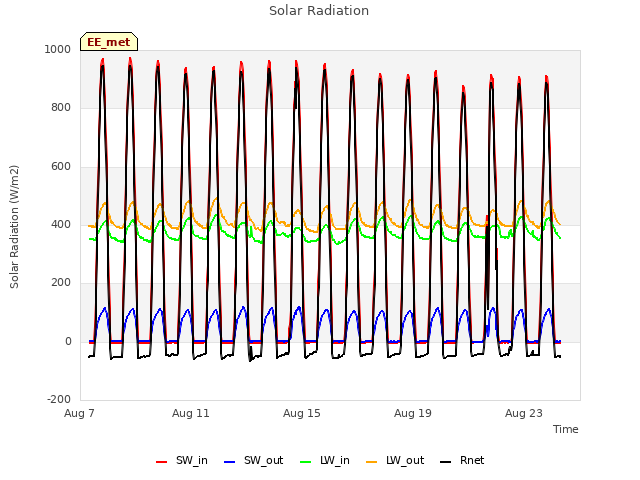

Solar Radiation

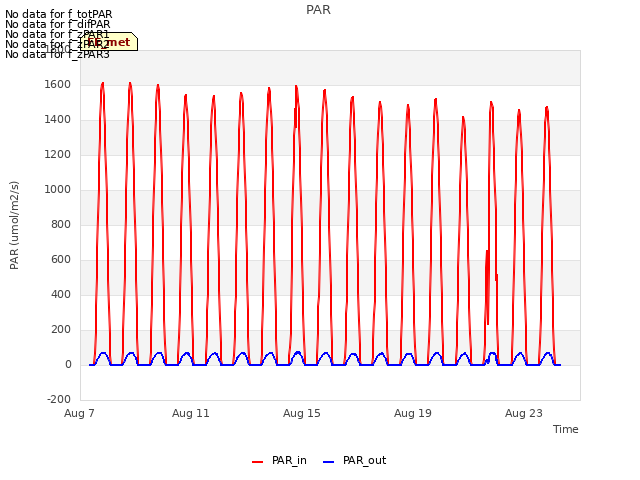

PAR

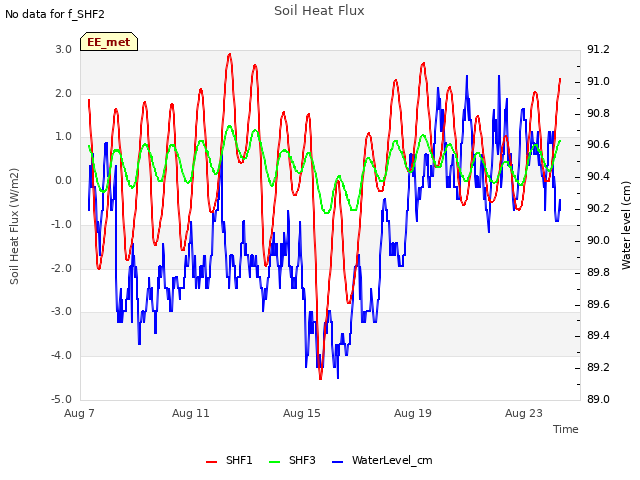

Soil Heat Flux

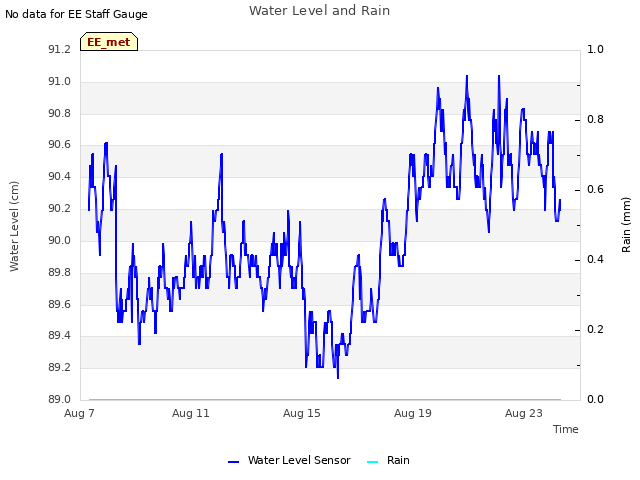

Water Level and Rain

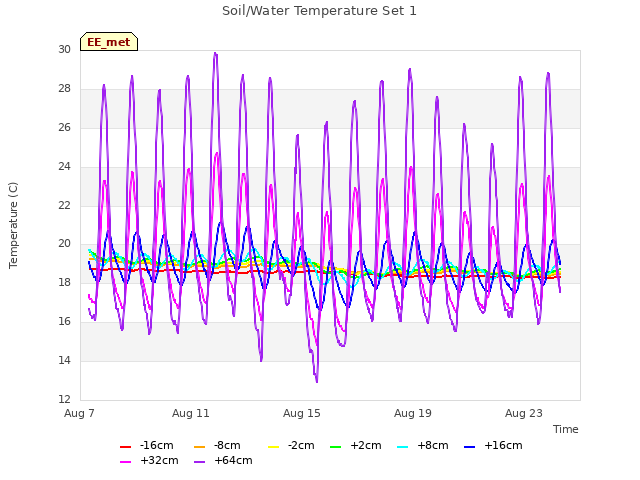

Soil/Water Temperature Set 1

Soil/Water Temperature Set 2

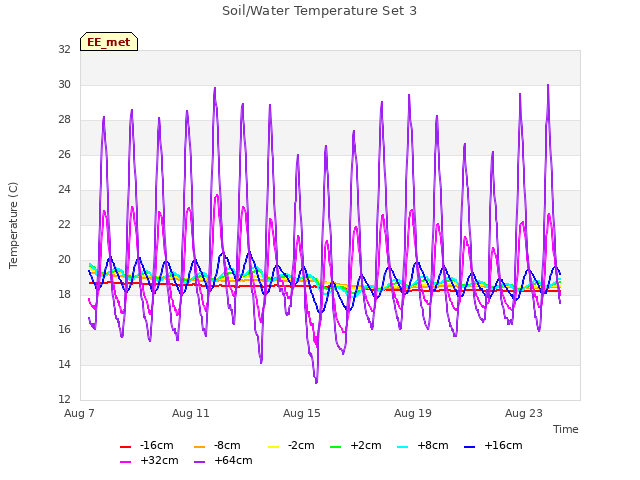

Soil/Water Temperature Set 3

Dissolved Oxygen and Wind Speed

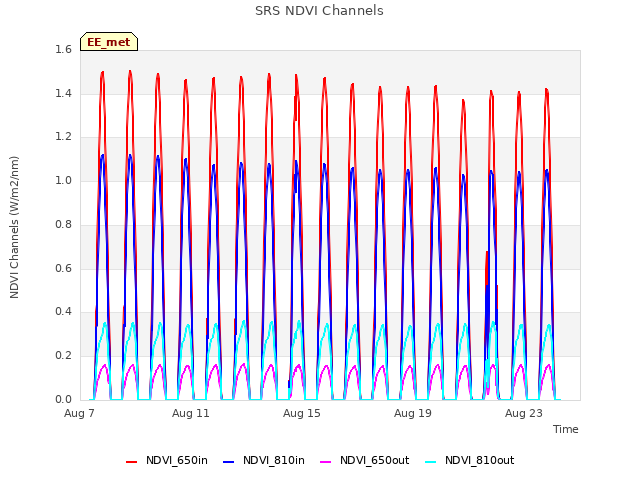

SRS NDVI Channels

Apogee NDVI

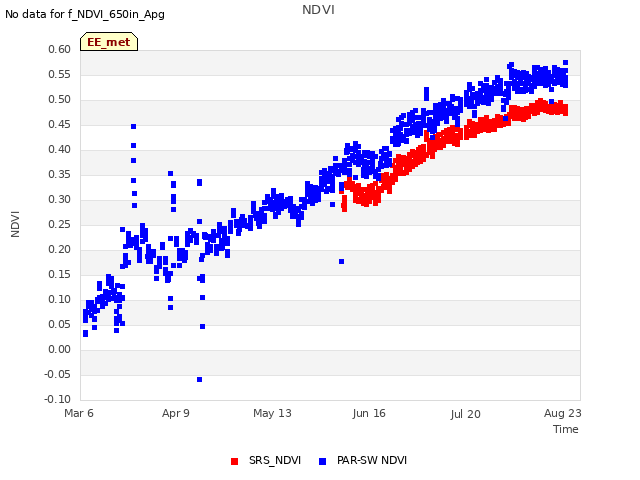

NDVI

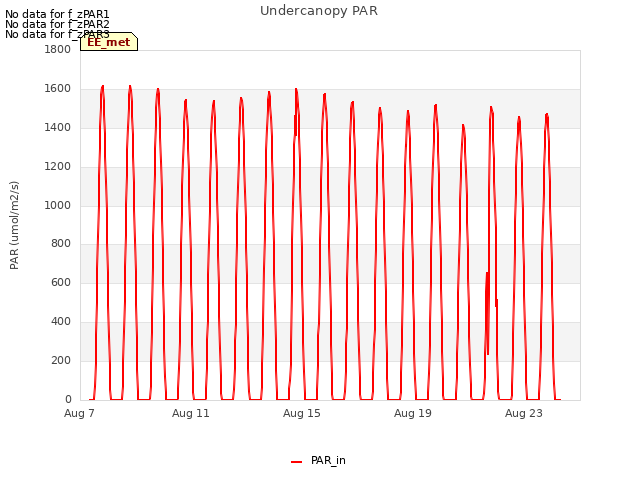

Undercanopy PAR

Can't check EE_mixed
1 EE_mixed graphs found

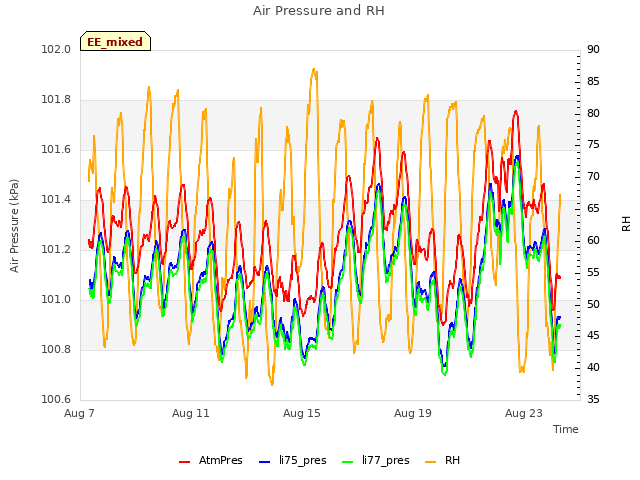

Air Pressure and RH

8 EE_flux graphs found

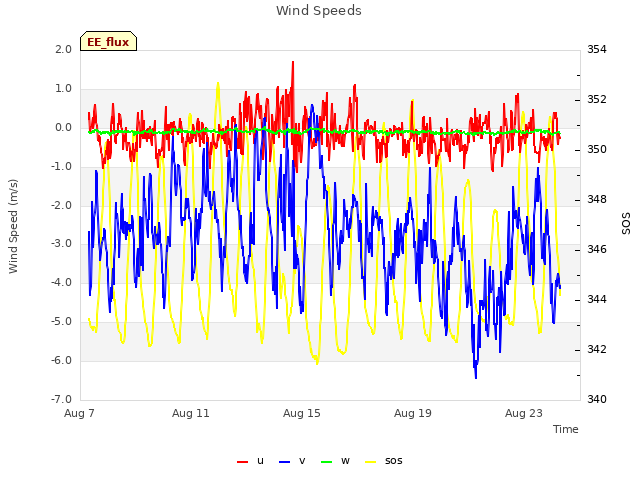

Wind Speeds

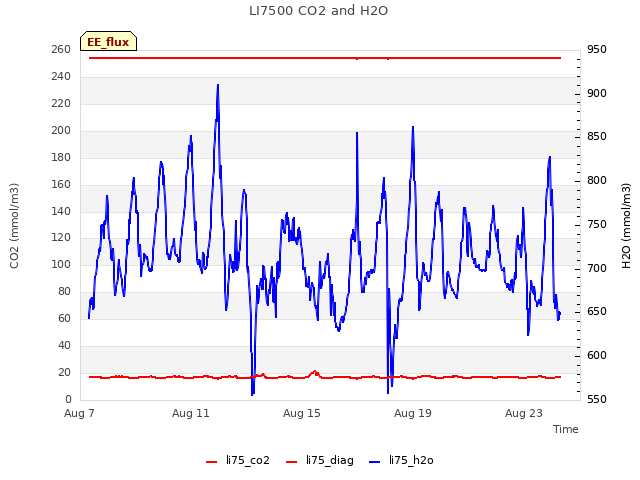

LI7500 CO2 and H2O

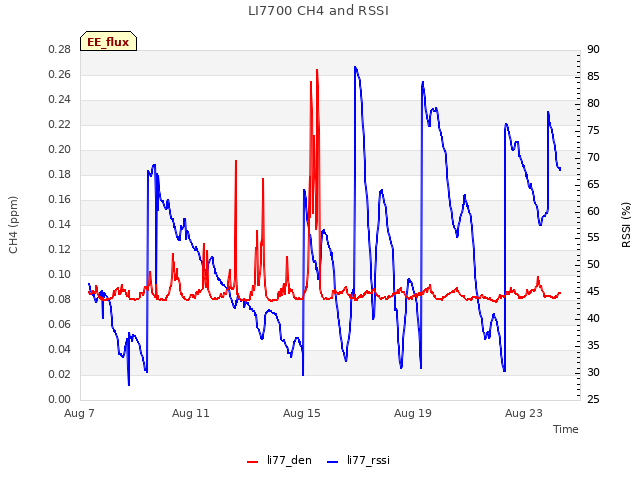

LI7700 CH4 and RSSI

Flux Counts

Instument Temperatures

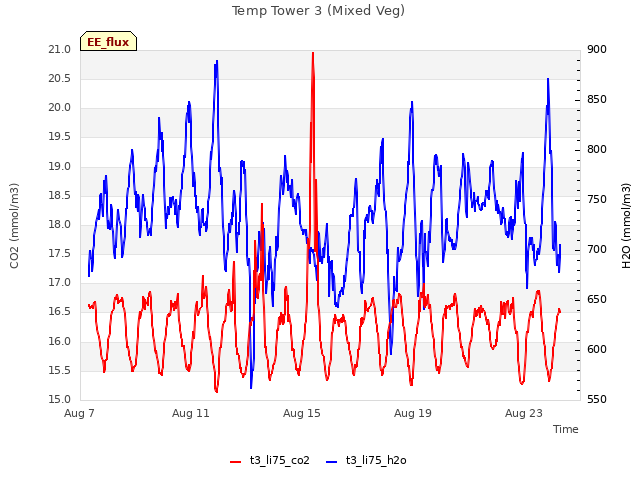

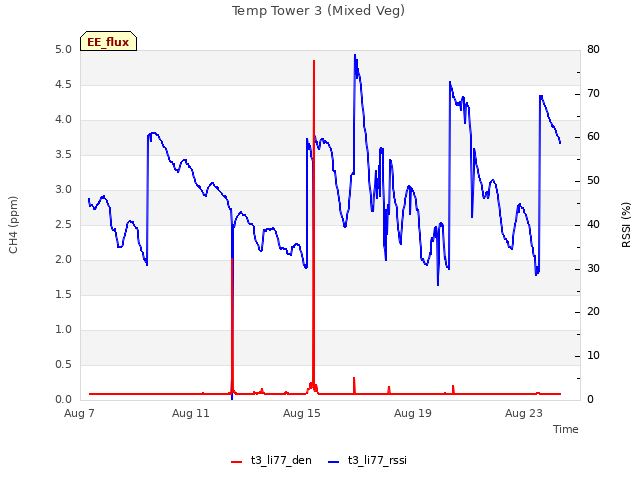

Temp Tower 3 (Mixed Veg)

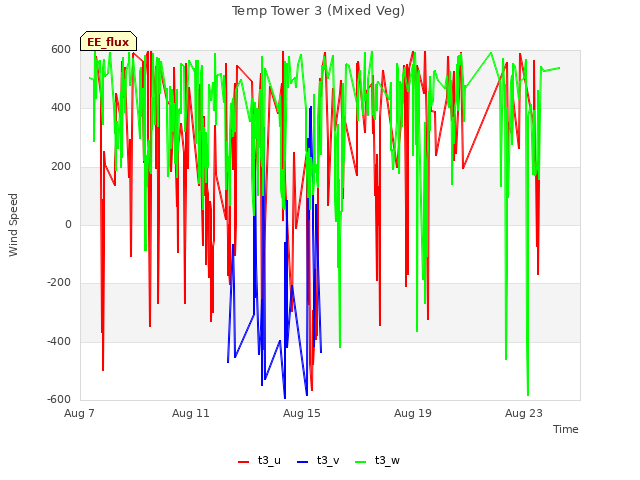

Temp Tower 3 (Mixed Veg)

Temp Tower 3 (Mixed Veg)

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

EE Autocam GCC

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

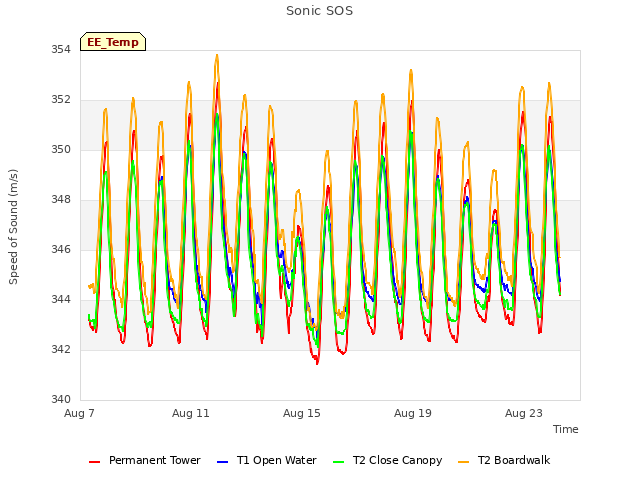

Sonic SOS

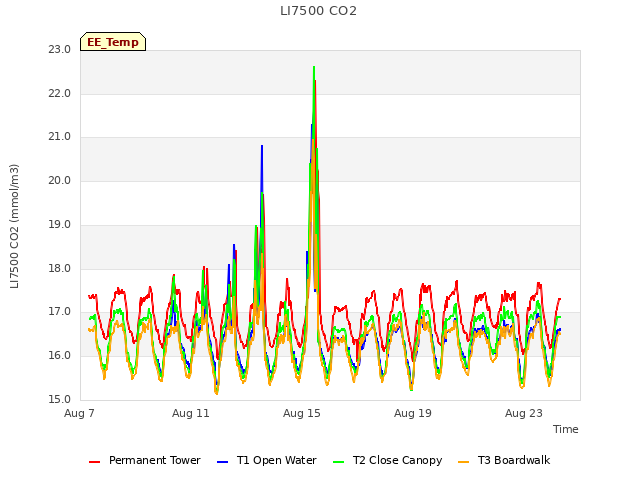

LI7500 CO2

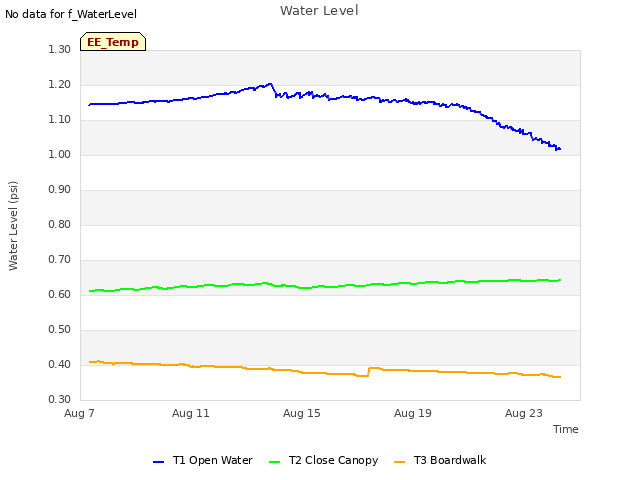

Water Level

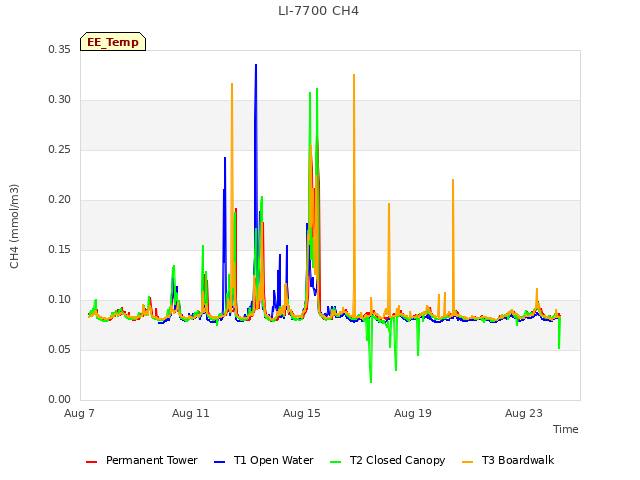

LI-7700 CH4

Wind Speed

Can't check EE_minidot
1 EE_minidot graphs found

EE miniDOT Dissolved Oxygen

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

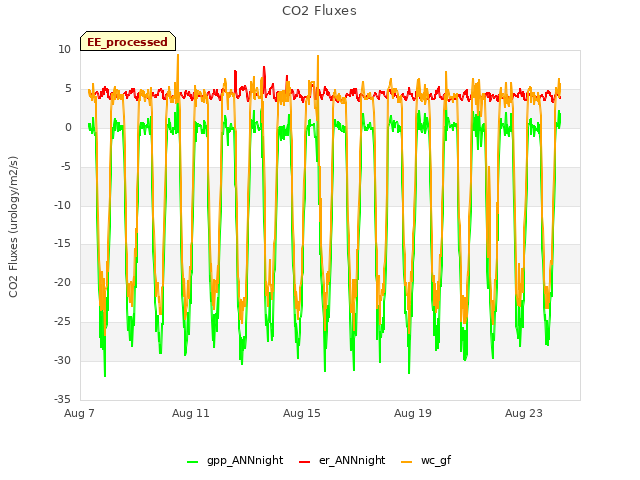

CO2 Fluxes
