Sherman Wetland: 2017-08-23 14:15:00 (DOY 235)
Author: Daphne Szutu
Others: Elke Eichelmann, Kyle Hemes

Summary: Downloaded met/eclipse and Licor GHG data, updated CR1000 program to record 30-min data only, updated analog sonic settings and LI-7550 time zone, dropped clipboard in wetland

2017-08-23
Sherman Wetland

We arrived at 14:15. It was sunny, hazy, windy, warm. The wind blew the clipboard from the boardwalk into the shallow water right next to the boardwalk.

I downloaded the met and 10s eclipse data tables and the Licor GHG data. Through Loggernet > File Options, I made SW_met_20170714.CR1 the default CR1000 program (Run Now and Run on Power Up).

I updated several settings at LI-7550: analog sonic settings, clock (it was 2 min off from the laptop), and timezone (I changed it from UTC to Etc/GMT+8).

Elke and Kyle cleaned the rain gauge and tipped bucket a few times.

We left at 14:35.

0 photos found

Graphs display:
7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
15 SW_met graphs found

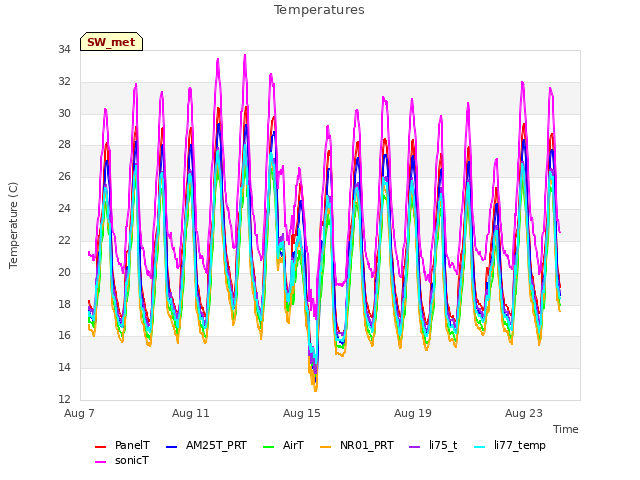

Temperatures

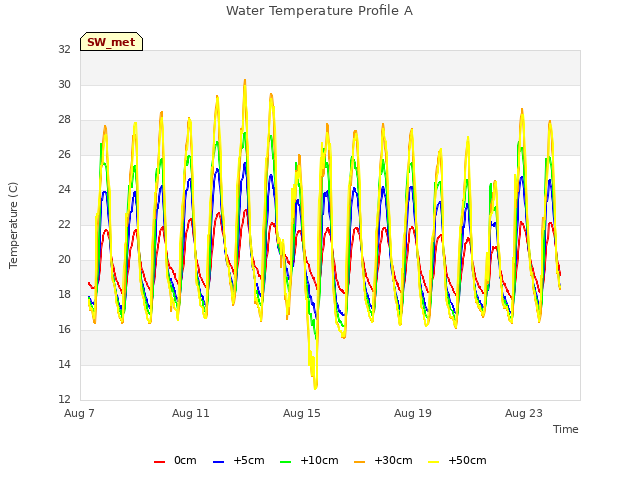

Water Temperature Profile A

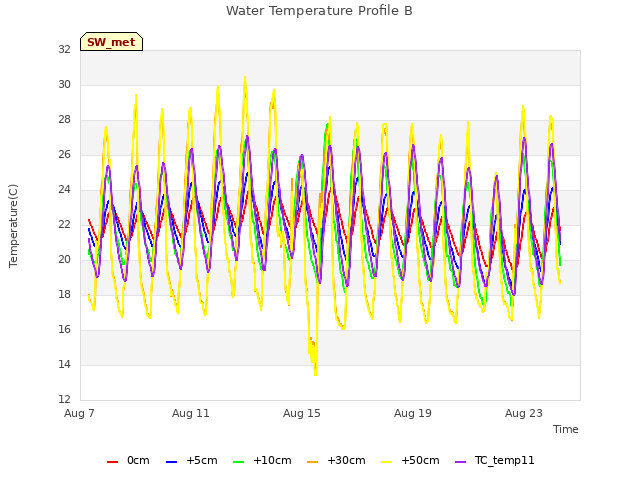

Water Temperature Profile B

Soil Temperature Profile C2

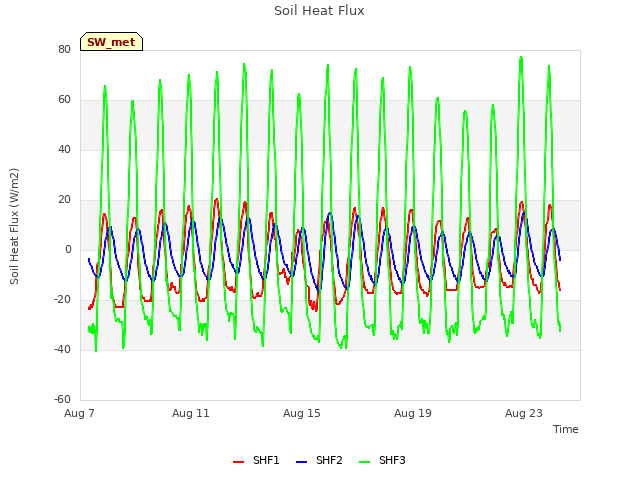

Soil Heat Flux

Four channel Radiometer

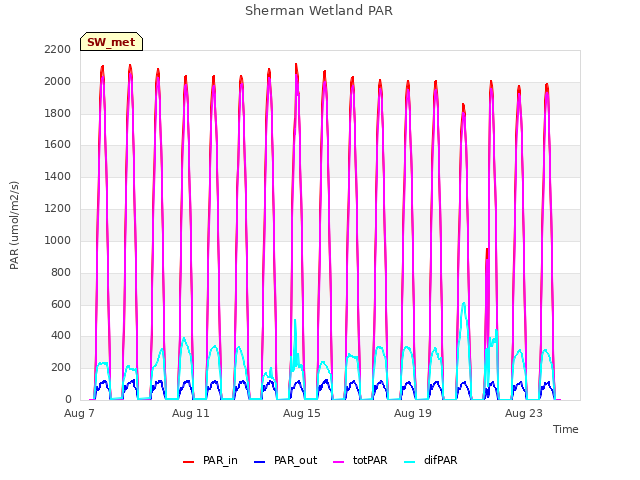

Sherman Wetland PAR

PRI Channels

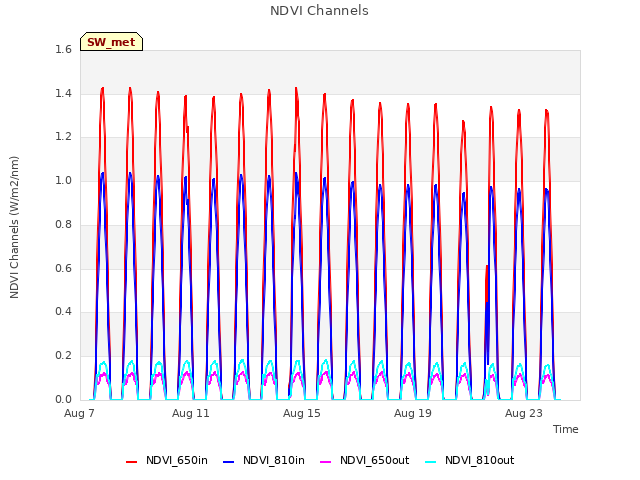

NDVI Channels

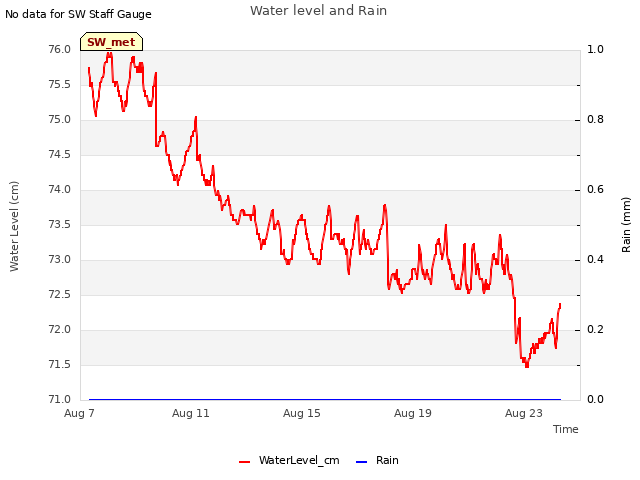

Water level and Rain

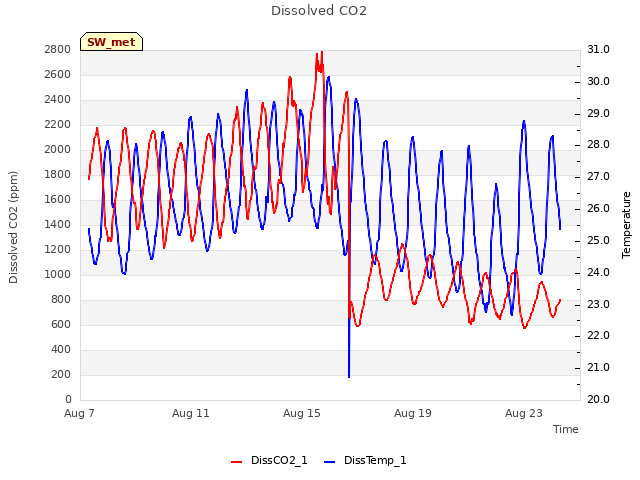

Dissolved CO2

Air Pressure

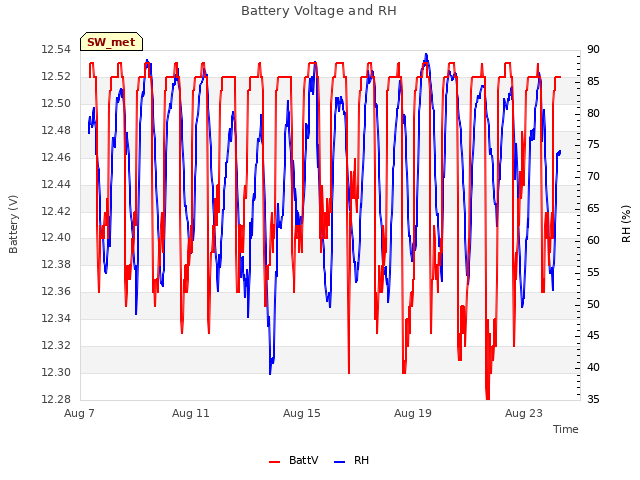

Battery Voltage and RH

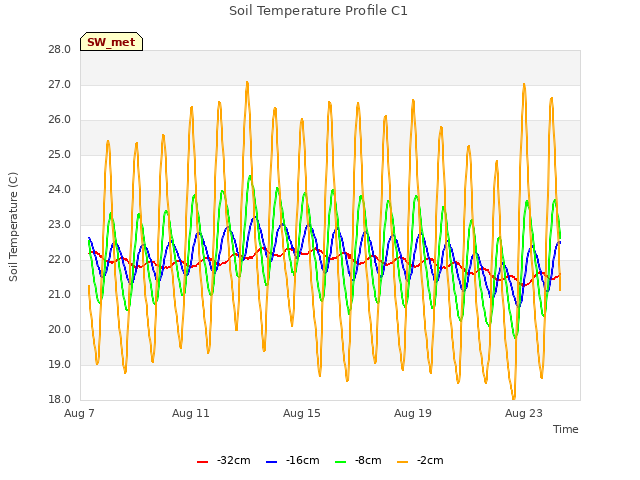

Soil Temperature Profile C1

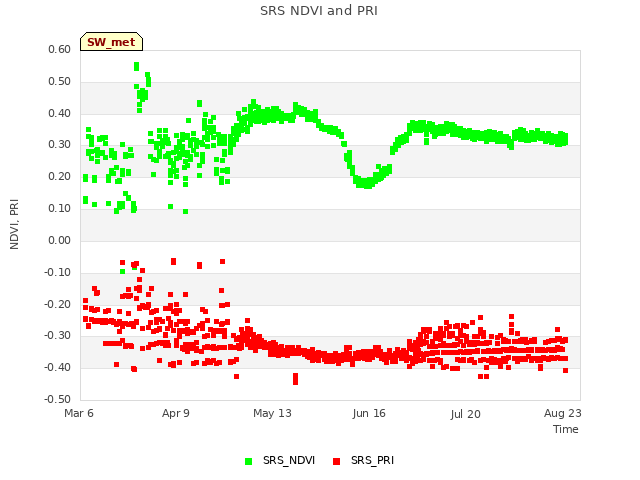

SRS NDVI and PRI

4 SW_flux graphs found

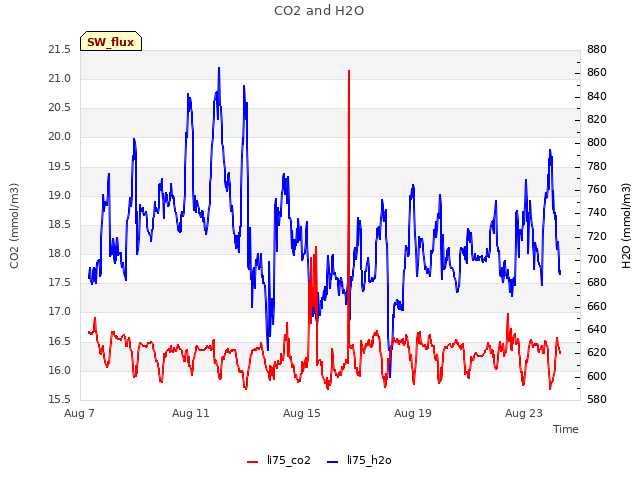

CO2 and H2O

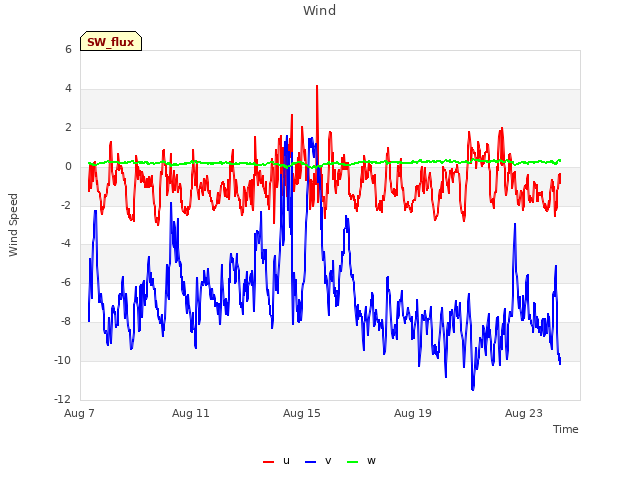

Wind

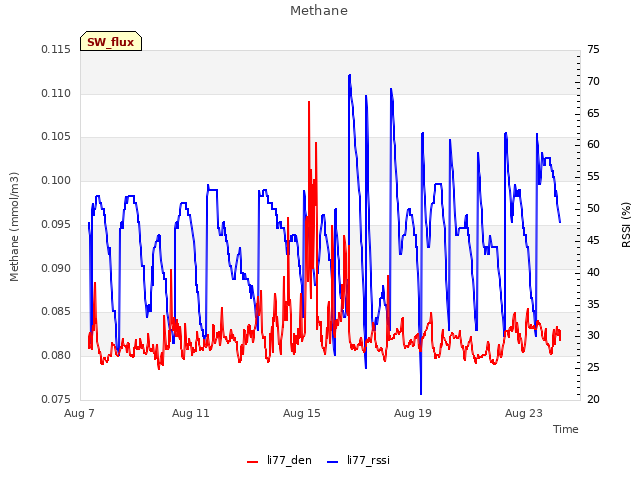

Methane

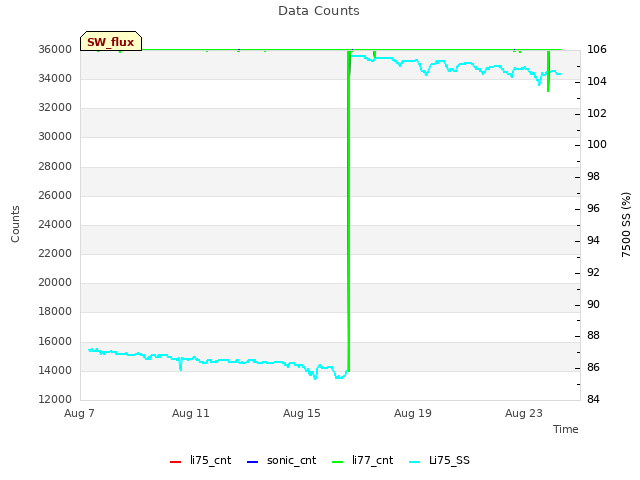

Data Counts

Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found

Temperatures

CO2 and H2O

Wind

Methane

Data Counts

Temperature Profile A

Temperature Profile B

Temperature Profile C

Soil Heat Flux

Four-channel radiometer

NDVI Channels

PAR

Air Pressure and Water Level

Air T and RH

No data found for SW_arable.
