Field Notes

Tonzi: 2017-07-12 12:30:00 (DOY 193)
Author: Joe Verfaillie
Others:

Summary: Swapped out Tower batteries, added batteries to Floor, swap Tower and Soil CO2 fence batteries. Found lost CFM card!

Tonzi
2017-07-12

I arrived about 12:30pm. It was clear, sunny and hot. The ground and grasses are dry and crispy. The pond is about half full and the trees still look good.

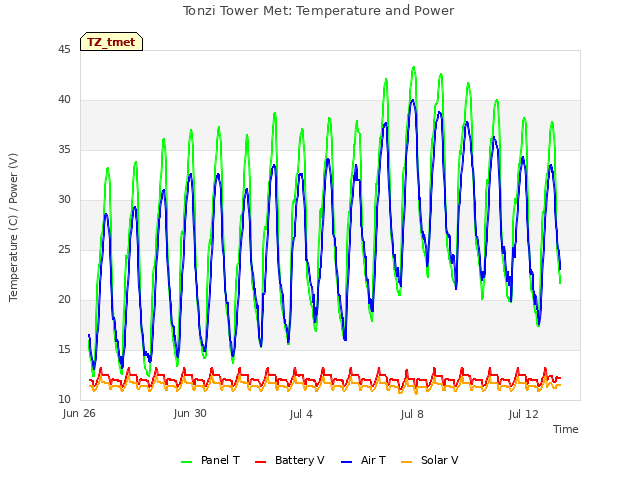

I swapped out the eight batteries remaining in the Tower battery bank sn BB-TT and replaced them with twelve new Duracell deep cycle marine group 27 lead acid batteries SLI27MDC from Batteries Plus. I had to replace one of the wooden pallets they sit on because it was rotting. Itâ€™s still a 12V system pending a major rewiring in the future.

The eight batteries I pulled off still tested good with the load tester. I used two to swap out weak fence charger batteries at the Tower and the Soil CO2 fences. Four others were added to the Floor battery bank sn BB-TF. The six there tested good too. There were five older and deader batteries there including the cracked one that I turned in for the core deposits. Two of the batteries that test good from the Tower and one of the dead fence batteries came back to the lab.

I made notes for rewiring the Tower power.

I found the CFM card I dropped about a month ago! It was about 4 inches from the Tower foundation.

Field Data

No tank data

No TZ Well data found

No TZ Moisture Point data found

No VR Moisture Point data found

No TZ grass heigth found

No VR grass heigth found

No TZ Tree DBH found

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found
