Bouldin Alfalfa: 2017-05-25 13:55:00 (DOY 145)
Author: Daphne Szutu
Others: Dennis, Joe, Sam

Summary: Regular data collection and cleaning, clip plots, veg height

2017-05-25
Bouldin Alfalfa

We arrived at 13:55. It was sunny and mostly clear. There was a path through the alfalfa starting at the tower and going NW; we suspect it was from Patty's sampling this past weekend.

Sam cleaned the radiation and EC sensors and refilled the wash reservoir. I collected the met and USB GHG data and swapped the camera card.

PAR up: sn 140452
PAR down: sn 140451

LI7500 readings:
CO2 385.1 umol/mol
H2O 715.0 mmol/m3
T 23.0 Celsius
P 100.7 kPa
SS 103.1 -> 107.1 after cleaning

LI7700 readings:
CH4: 1.96
RSSI: 35.9 -> 80.7 after cleaning

Dennis collected clip plot samples and Sam took 12 veg height measurements.

We left at 14:15.

Next Mowing: 2017-05-27

Veg Height (cm): Tape measure from ground to top of plant
60, 74, 69, 72, 80, 64, 74, 76, 68, 52, 69, 57, avg = 67.9, stdev = 8.28

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

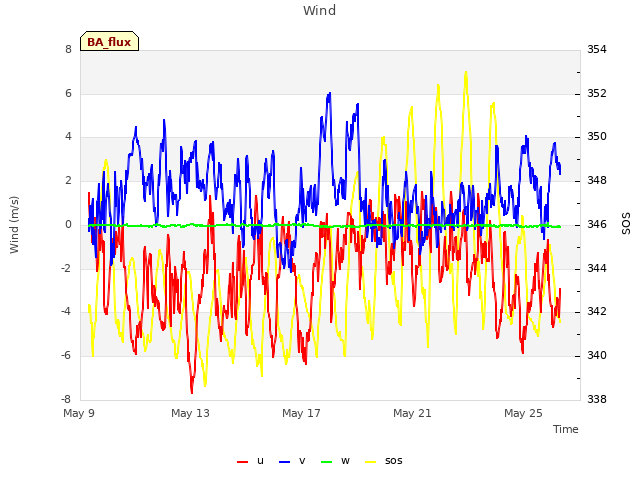

Wind

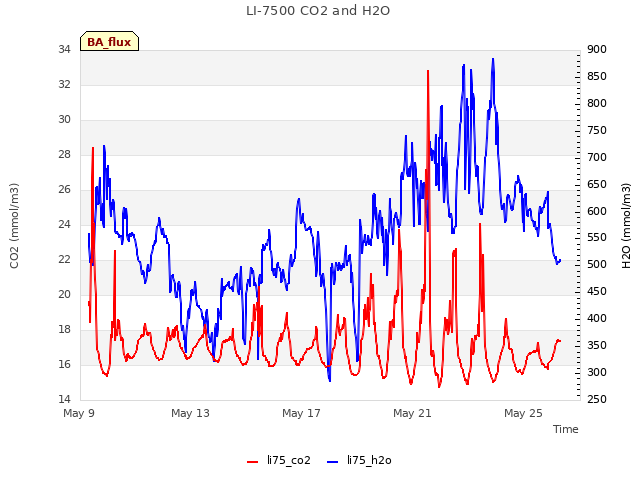

LI-7500 CO2 and H2O

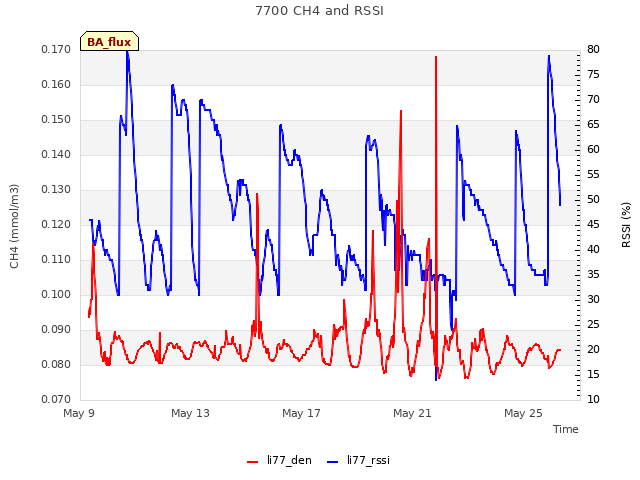

7700 CH4 and RSSI

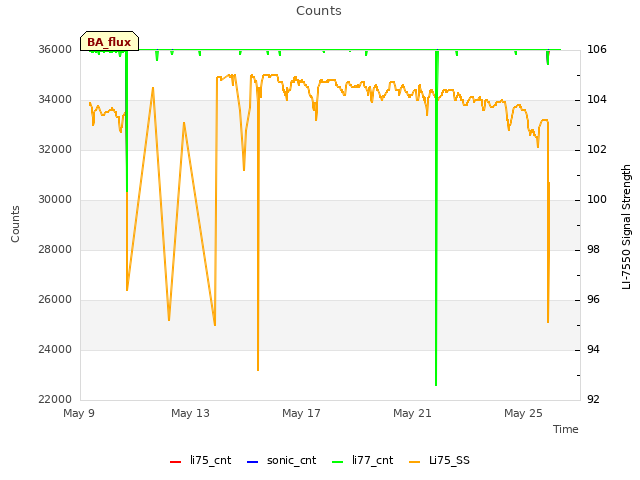

Counts

CO2 in ppm

21 BA_met graphs found

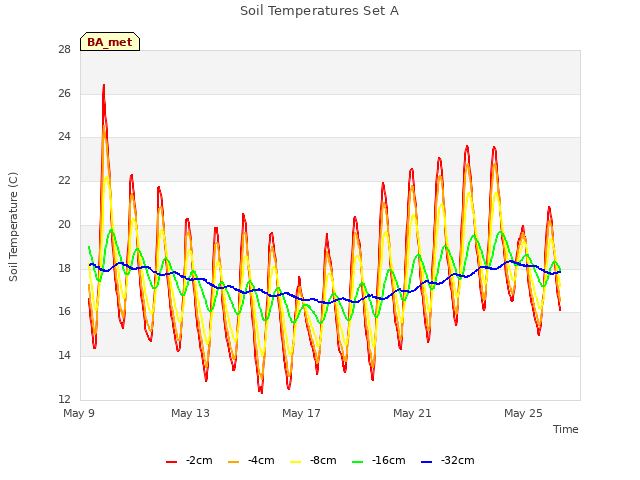

Soil Temperatures Set A

Soil Temperatures Set B

Soil Temperatures Set C

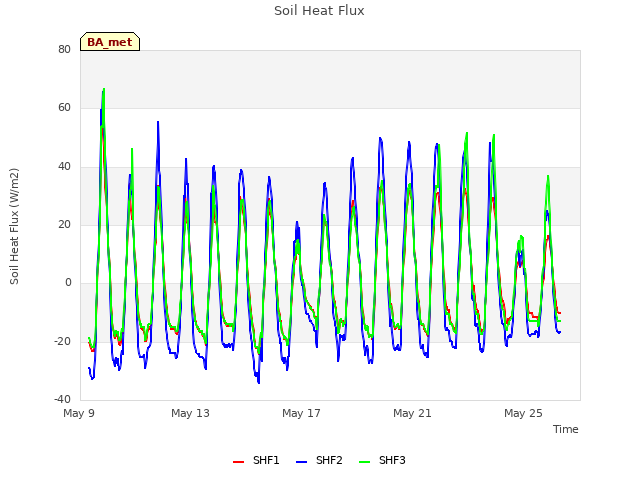

Soil Heat Flux

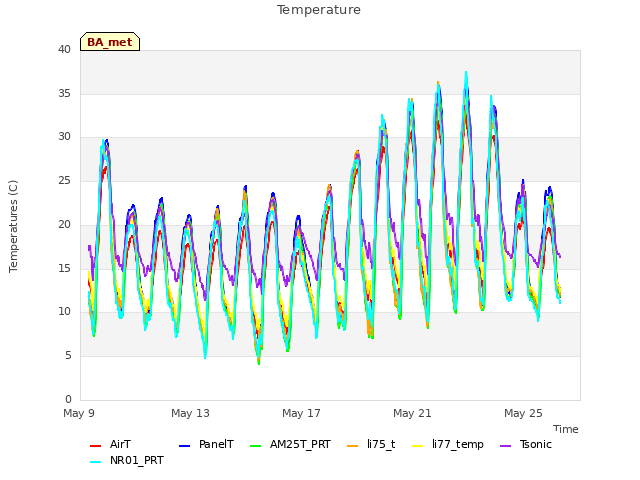

Temperature

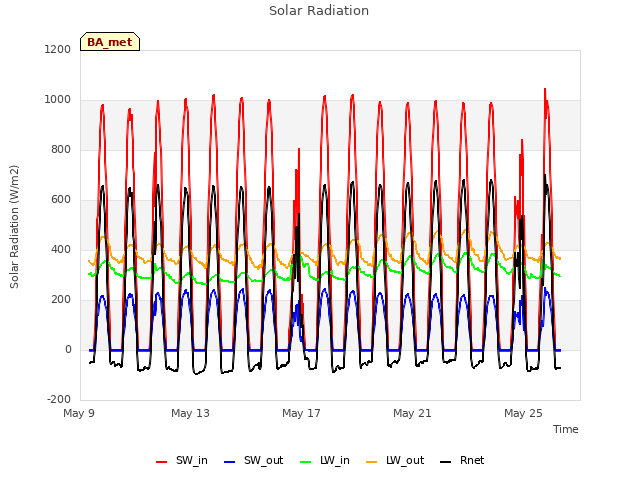

Solar Radiation

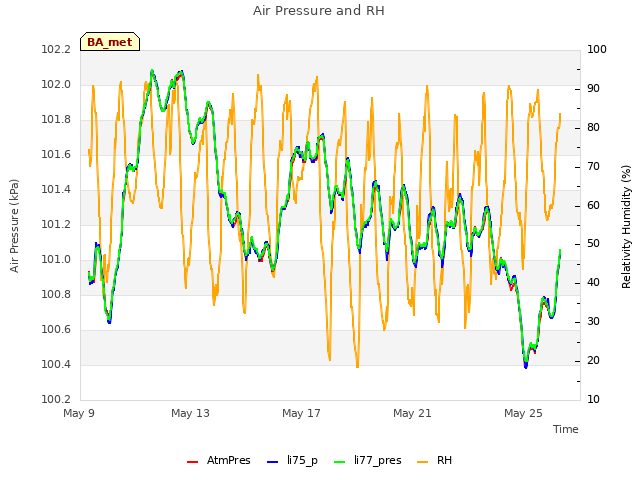

Air Pressure and RH

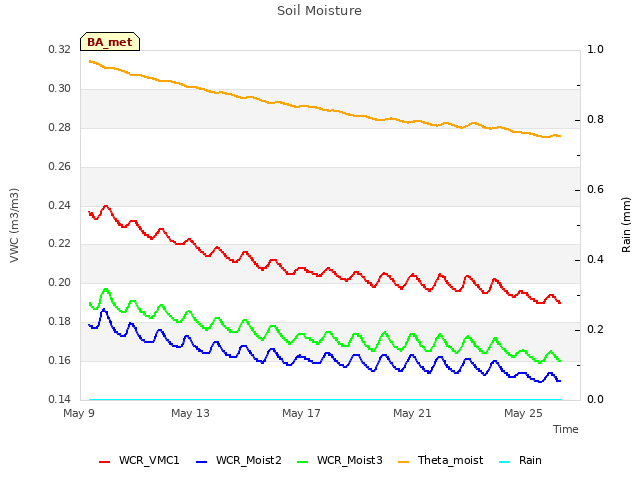

Soil Moisture

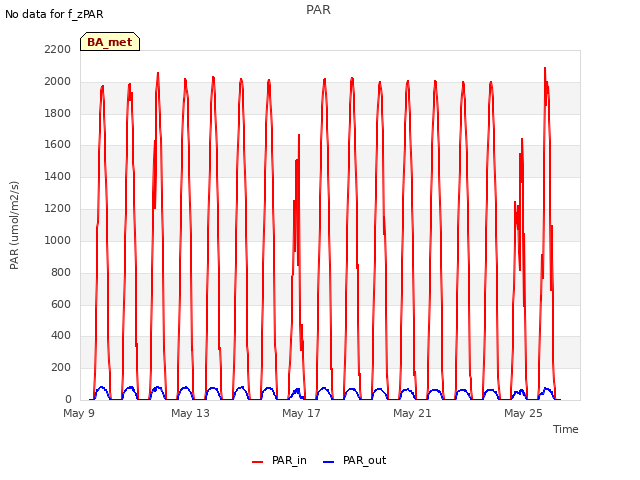

PAR

PRI Channels

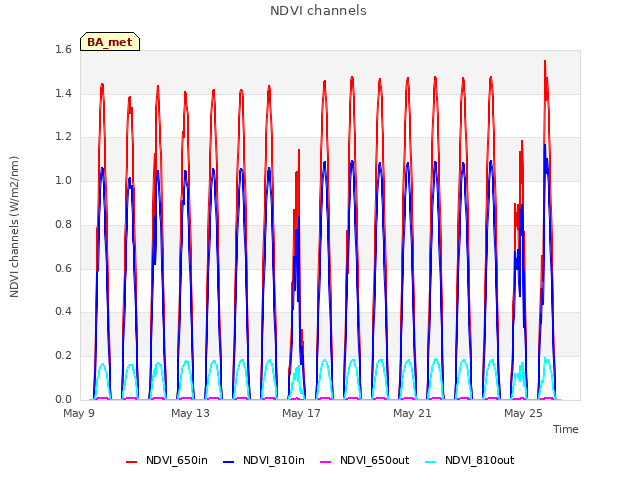

NDVI channels

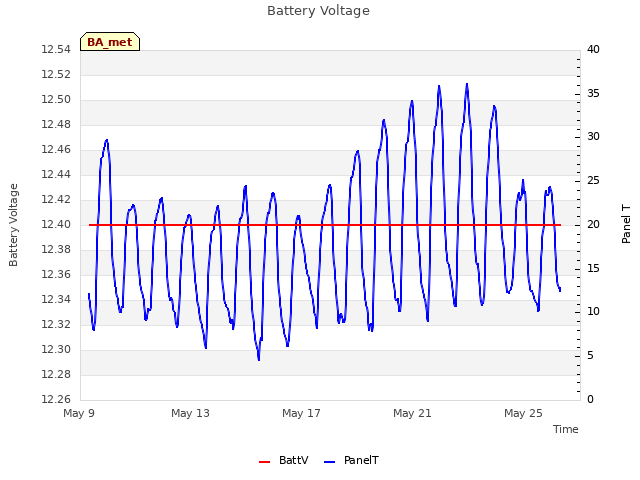

Battery Voltage

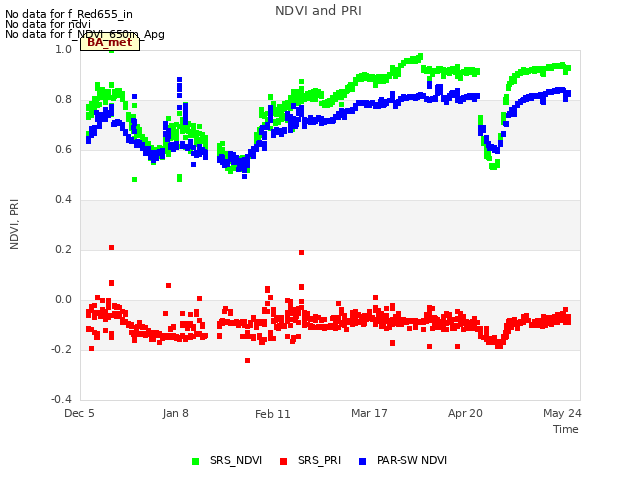

NDVI and PRI

Apogee NDVI

FD Chamber A CO2 and Temp

FD Chamber B CO2 and Temperature

Surface Temperature

Sentek Soil Moisture profile

Sentek Soil Temperature profile

Sentek Soil Salinity profile

Forced Diffusion Soil CO2 Flux

No data found for BA_arable.
Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

Energy

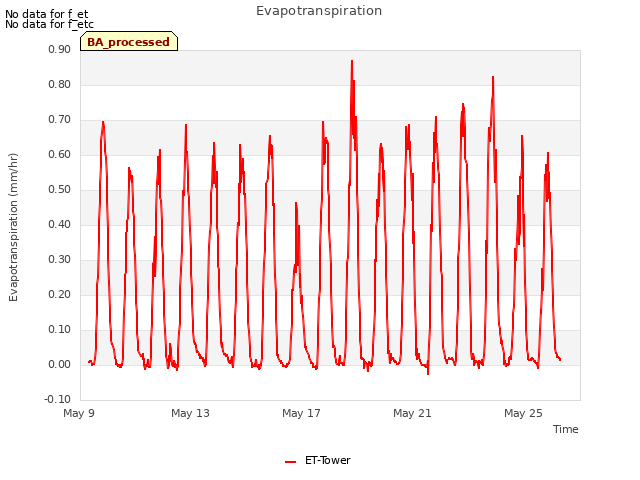

Evapotranspiration

No data found for BA_adex.
