Mayberry: 2017-03-15 10:20:00 (DOY 74)
Author: Daphne Szutu
Others: Elke Eichelmann, Kyle Hemes

Summary: Data collection/cleaning, wash reservoir pump not working, goats on levee road

2017-03-15
Mayberry

We arrived at 10:20. It was cool, mostly overcast, light breeze. Goats were grazing on the levee road. We drove slowly along the levee road and herded them to the other side of their fence.

At our tower, we are starting to see tule emerging roughly 1 m tall in most spots.

We collected met, USB GHG, camera, miniDOT, and Hobo daa and cleaned the radiation and EC sensors.

LI7500 readings:
CO2 422.1 umol/mol
H2O 590.2 mmol/m3
T 16.3 Celsius
P 102.3 kPa
SS 102.5 -> 102.7 after cleaning

LI7700 readings:
CH4: 1.97
RSSI: 21.3 -> 78.0 after cleaning

The wash reservoir was still completely full. We tested the wash cycle: the spin works but no water was coming out. The pump sounds like it is working, but even when the tube is disconnected at the box, no water is coming out of the box outlet. Something is probably wrong with the pump. There was also many wasps in the reservoir box.

We left at 10:50.

3 photos found

Goats on the levee road on the way to Mayberry Wetland.
Goats on the levee road on the way to Mayberry Wetland.

Goats on the levee road on the way to Mayberry Wetland.
Goats on the levee road on the way to Mayberry Wetland.

Many, many goats on the levee road on the way to Mayberry Wetland.
Many, many goats on the levee road on the way to Mayberry Wetland.

Graphs display:
11 sets found

7 MB_flux graphs found

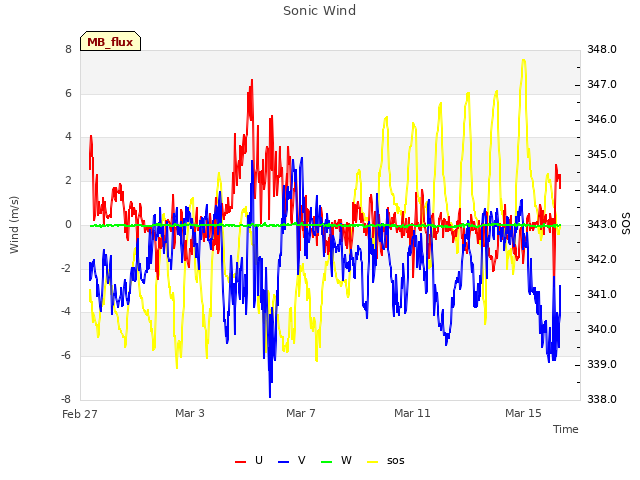

Explore the graph:Sonic Wind in a new window

Explore the graph:LI7700 mV signals in a new window

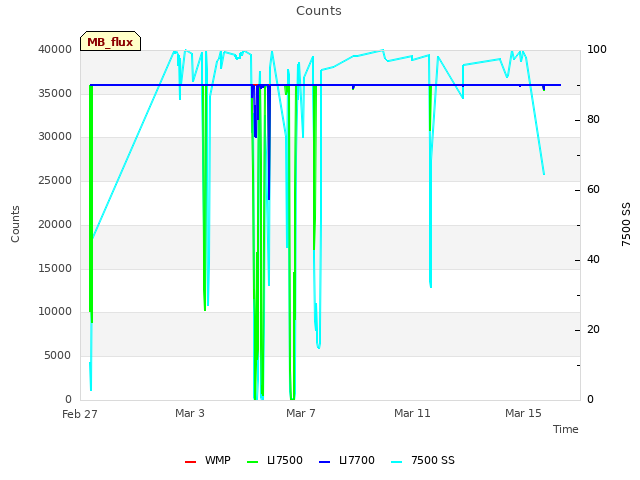

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 from analog signal in a new window

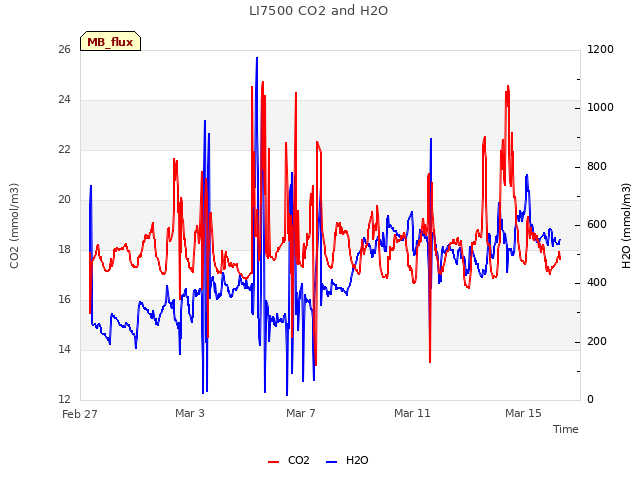

Explore the graph:LI7500 CO2 and H2O in a new window

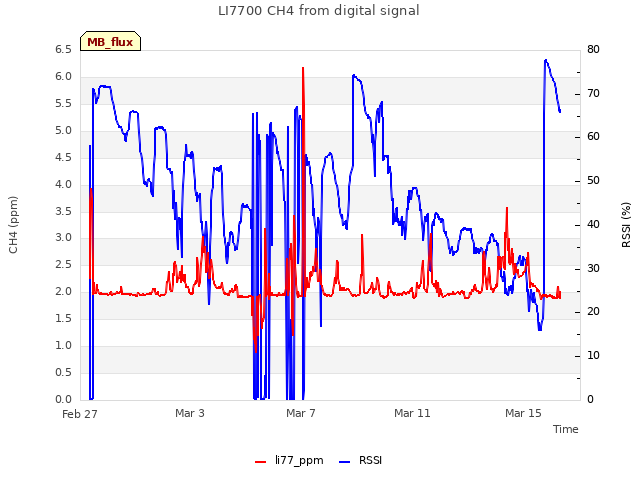

Explore the graph:LI7700 CH4 from digital signal in a new window

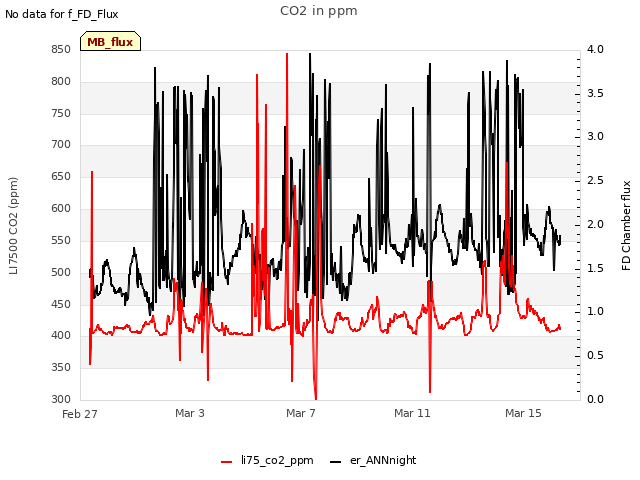

Explore the graph:CO2 in ppm in a new window

No data found for MB_met.
27 MB_tule graphs found

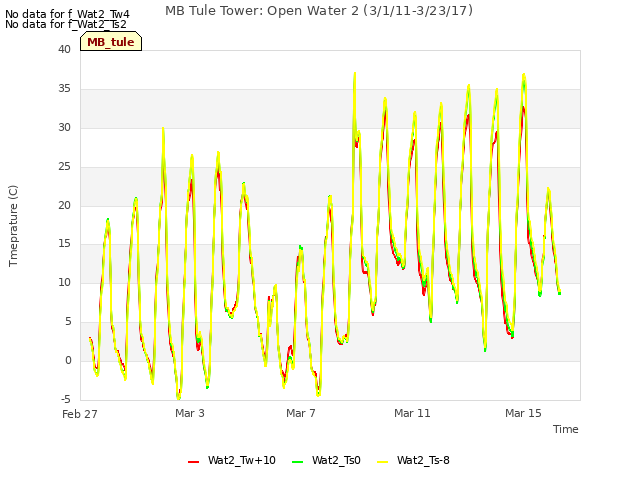

Explore the graph:MB Tule Tower: Open Water 2 (3/1/11-3/23/17) in a new window

Explore the graph:MB Tule Tower: Open Water 1 (3/1/11-2/21/13) in a new window

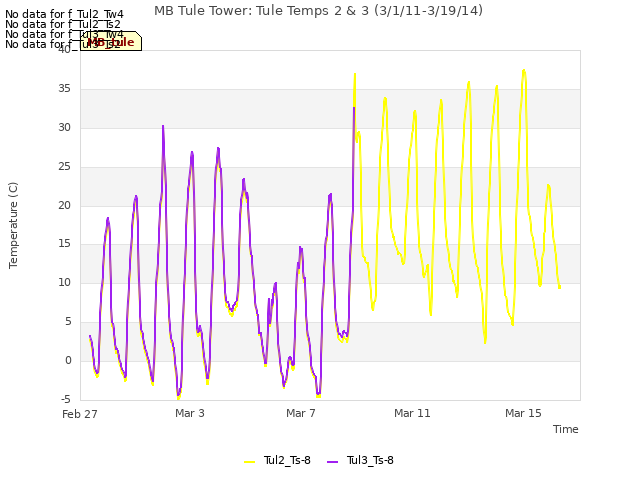

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14) in a new window

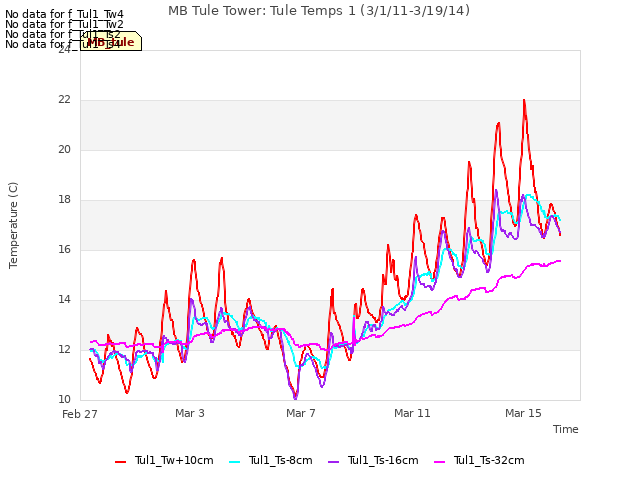

Explore the graph:MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14) in a new window

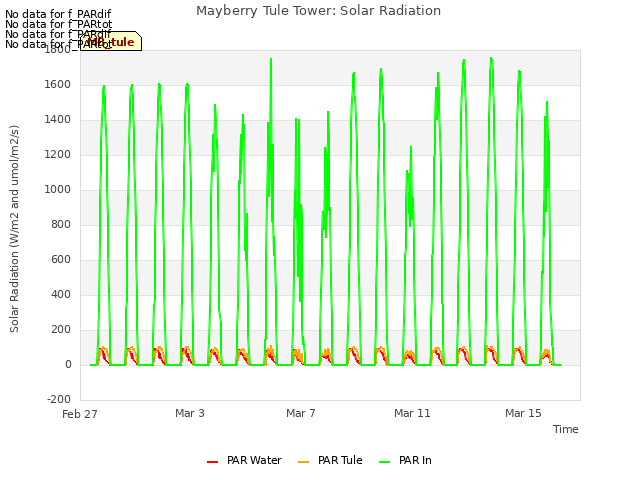

Explore the graph:Mayberry Tule Tower: Solar Radiation in a new window

Explore the graph:Mayberry Tule Tower: Disolved Oxygen in a new window

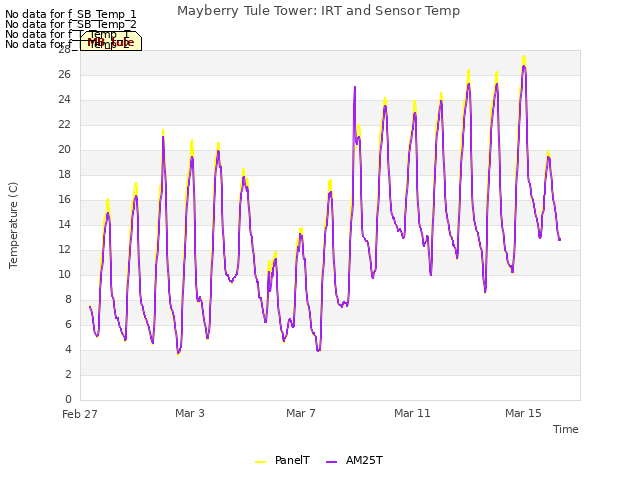

Explore the graph:Mayberry Tule Tower: IRT and Sensor Temp in a new window

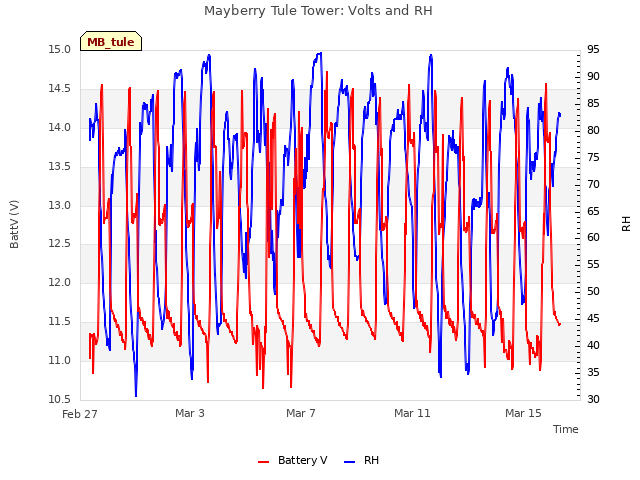

Explore the graph:Mayberry Tule Tower: Volts and RH in a new window

Explore the graph:LED NDVI Sensor in a new window

Explore the graph:Water CO2 in a new window

Explore the graph:Water Pressure in a new window

Explore the graph:Fluorometer Data in a new window

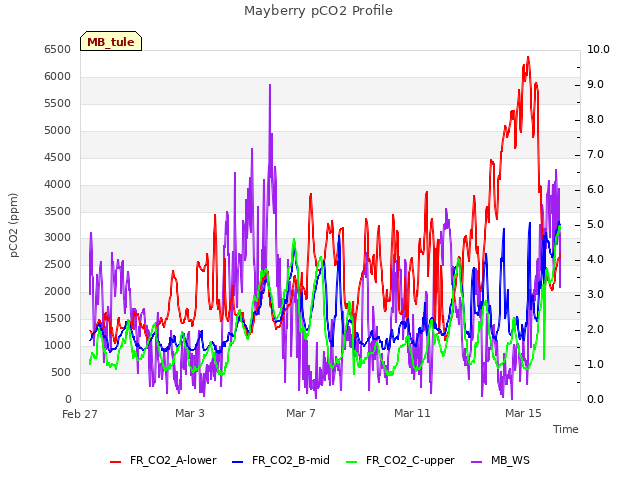

Explore the graph:Mayberry pCO2 Profile in a new window

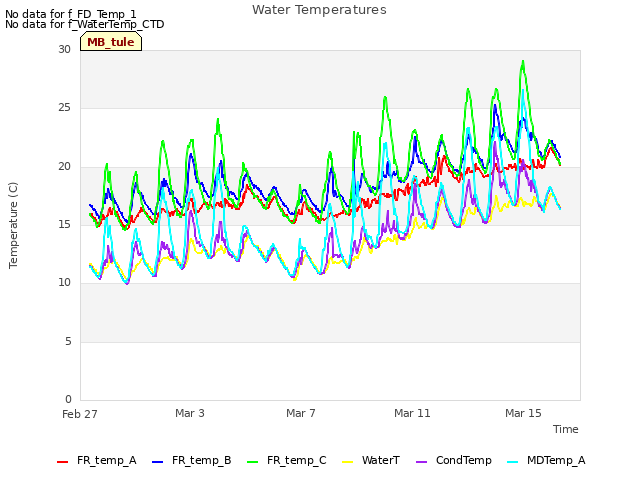

Explore the graph:Water Temperatures in a new window

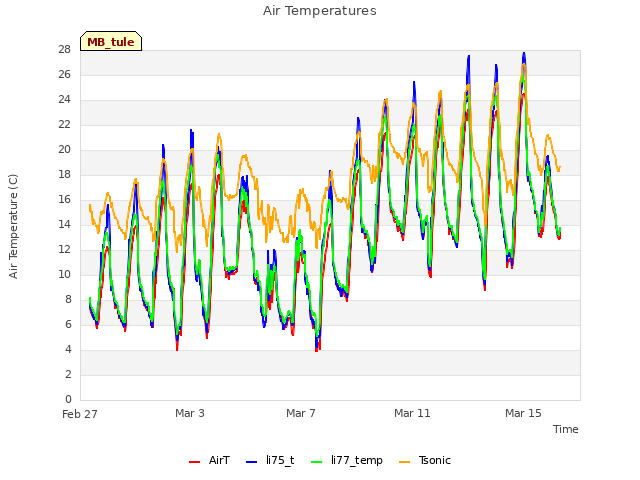

Explore the graph:Air Temperatures in a new window

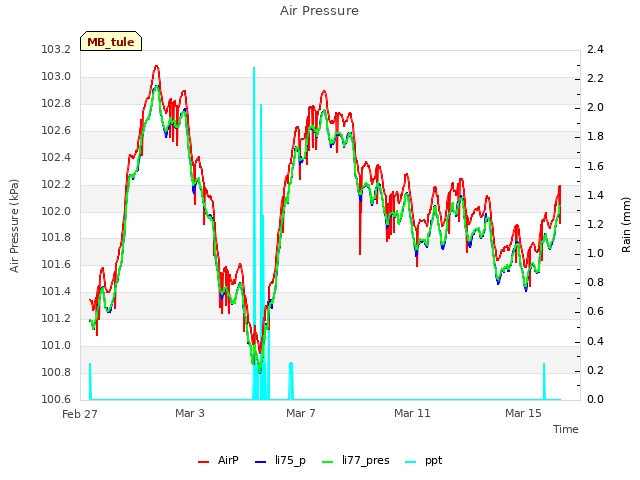

Explore the graph:Air Pressure in a new window

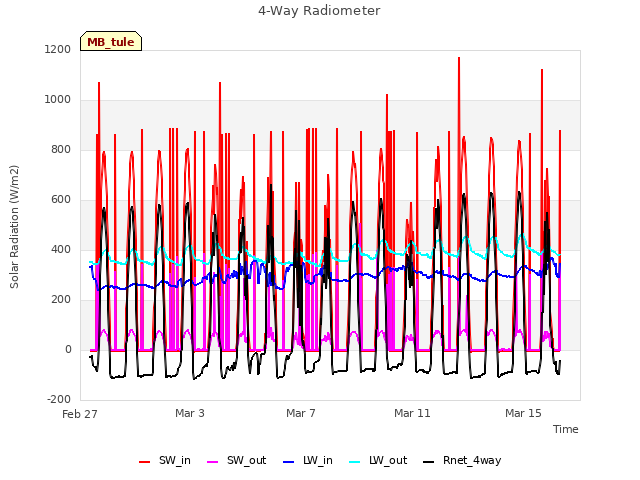

Explore the graph:4-Way Radiometer in a new window

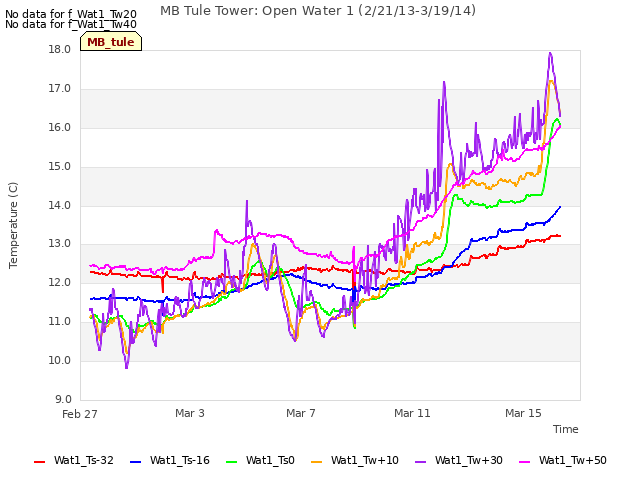

Explore the graph:MB Tule Tower: Open Water 1 (2/21/13-3/19/14) in a new window

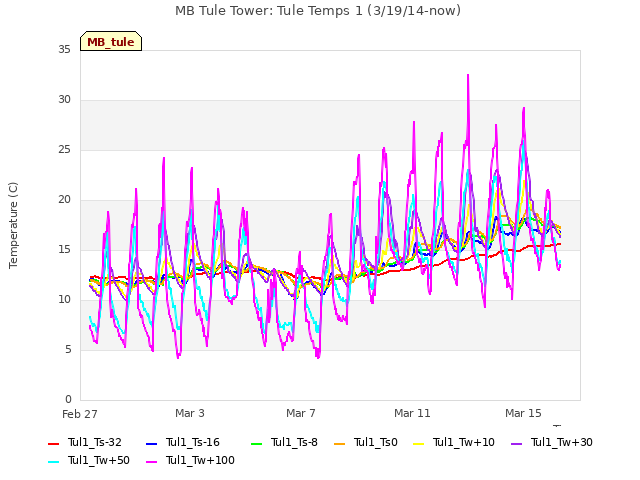

Explore the graph:MB Tule Tower: Tule Temps 1 (3/19/14-now) in a new window

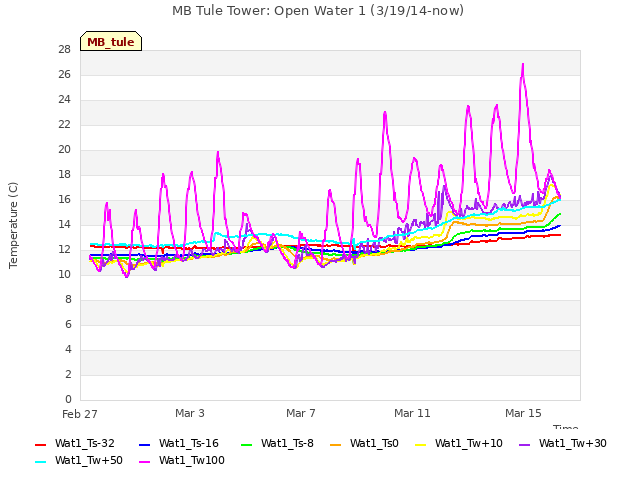

Explore the graph:MB Tule Tower: Open Water 1 (3/19/14-now) in a new window

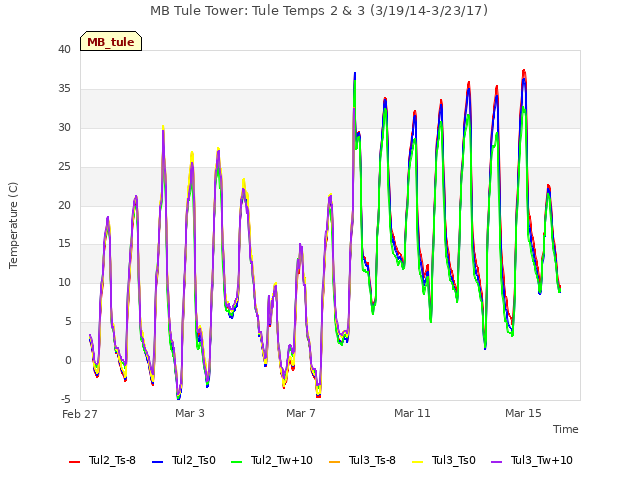

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17) in a new window

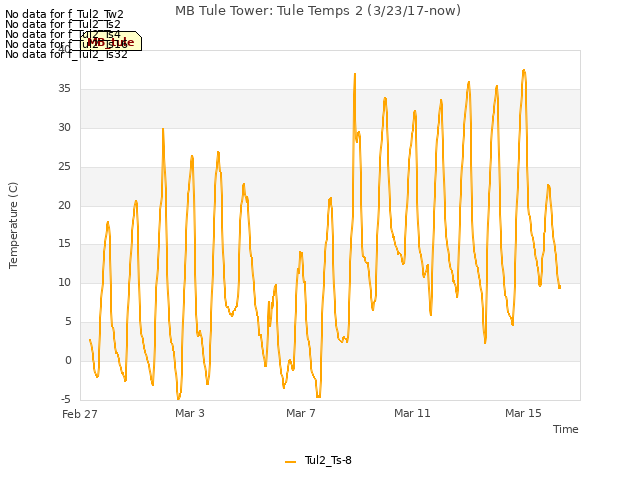

Explore the graph:MB Tule Tower: Tule Temps 2 (3/23/17-now) in a new window

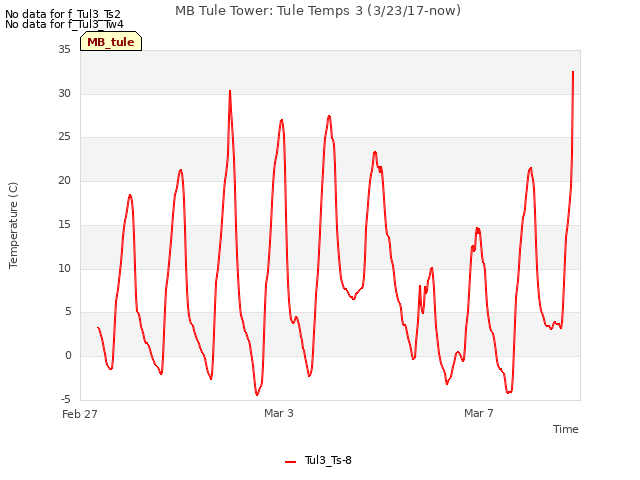

Explore the graph:MB Tule Tower: Tule Temps 3 (3/23/17-now) in a new window

Explore the graph:SRS NDVI Channels in a new window

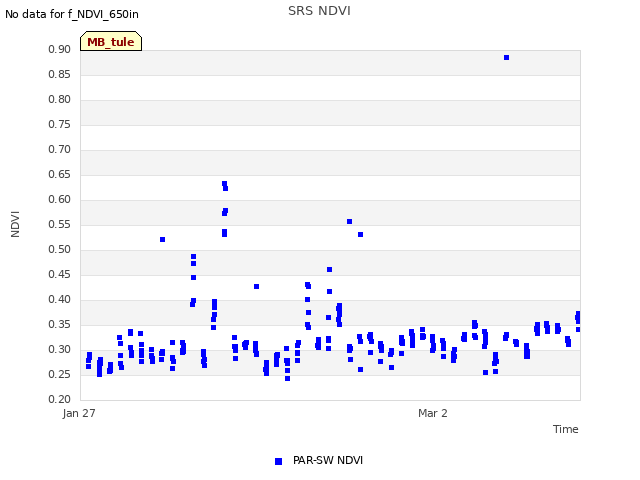

Explore the graph:SRS NDVI in a new window

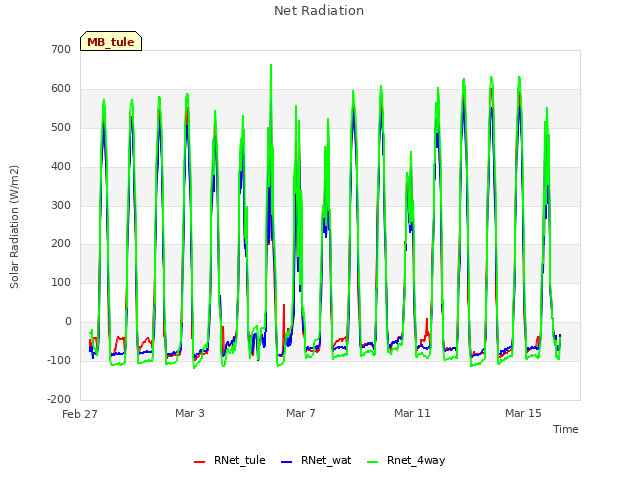

Explore the graph:Net Radiation in a new window

Explore the graph:Conductivity in a new window

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

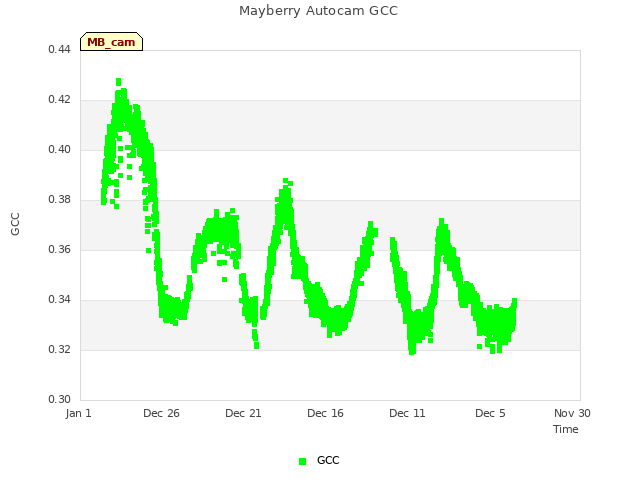

Explore the graph:Mayberry Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
1 MB_minidot graphs found

Explore the graph:Mayberry miniDot Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 MB_processed graphs found

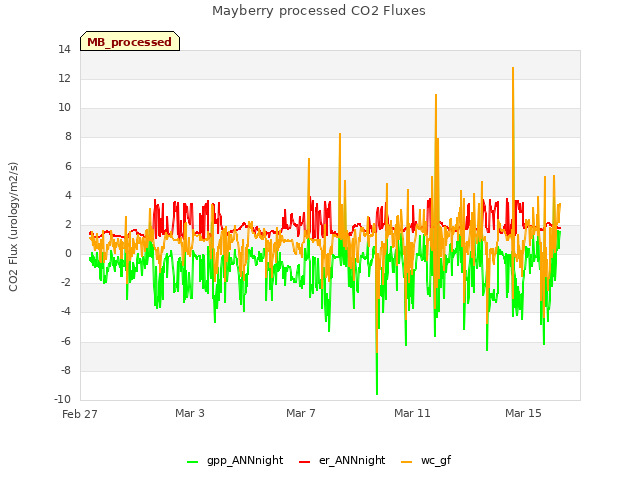

Explore the graph:Mayberry processed CO2 Fluxes in a new window
