Bouldin Alfalfa: 2016-12-07 09:30:00 (DOY 342)
Author: Joe Verfaillie
Others: Siyan, Daphne, Jorge Perez

Summary: Recently mowed and baled, swapped 7500, lots of birds.

Boudin Alfalfa
2016-12-07

I arrived about 9:30 with Siyan, Daphne and Jorge Perez. It was cold and still. The field has been recently mowed and baled. For the camera images it looks like they picked out the bales as they were made. We drove the truck over the field up to the tower. There were lots of sand hill cranes on the fields.

We swapped the 7500 - sn 75H-2667 came off and sn 0065 went on.
2667 read: 421.2ppm CO2, 319.1mmol/m3 H2O, 6.0C, 102.4kPa, 106.5SS
0065 read: 417.5ppm CO2, 270.0mmol/m3 H2O, 5.38C, 102.3kPa, 73.6SS

The 7700 read: 2.01ppm CH4, 50.0RSSI - good after cleaning
The wash reservoir was filled.

Next Mowing: 2017-04-24

0 photos found

Graphs display:
7 sets found

5 BA_flux graphs found

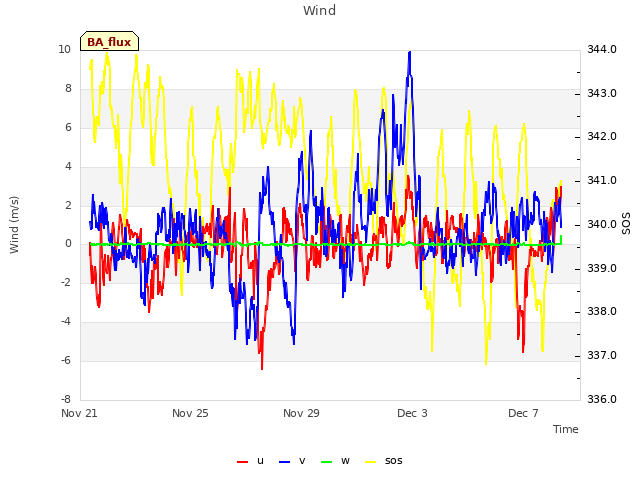

Explore the graph:Wind in a new window

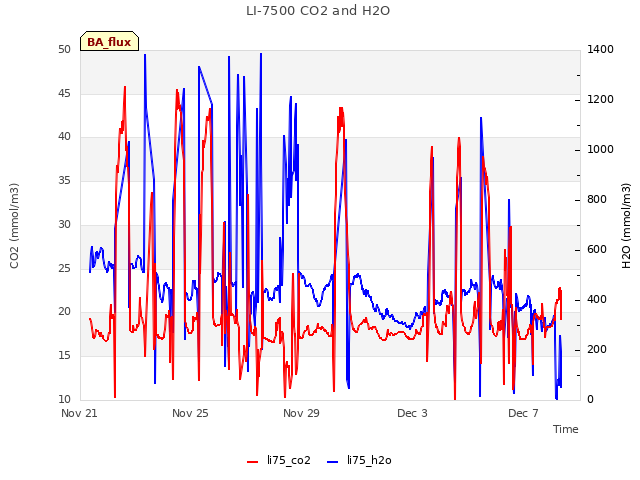

Explore the graph:LI-7500 CO2 and H2O in a new window

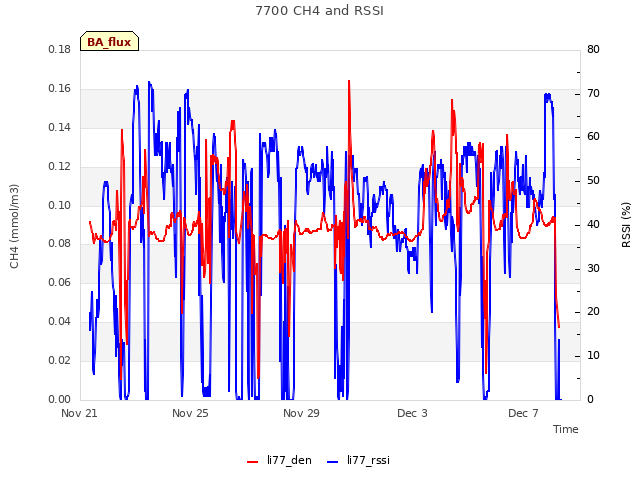

Explore the graph:7700 CH4 and RSSI in a new window

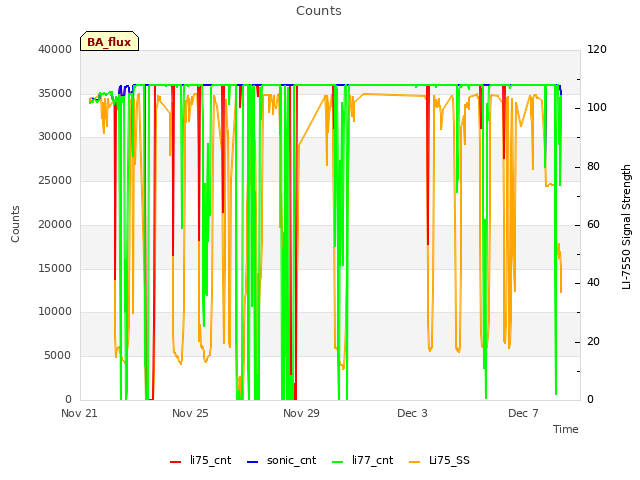

Explore the graph:Counts in a new window

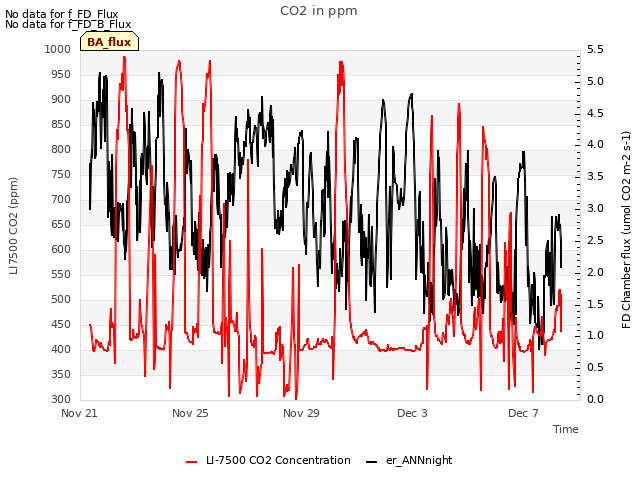

Explore the graph:CO2 in ppm in a new window

21 BA_met graphs found

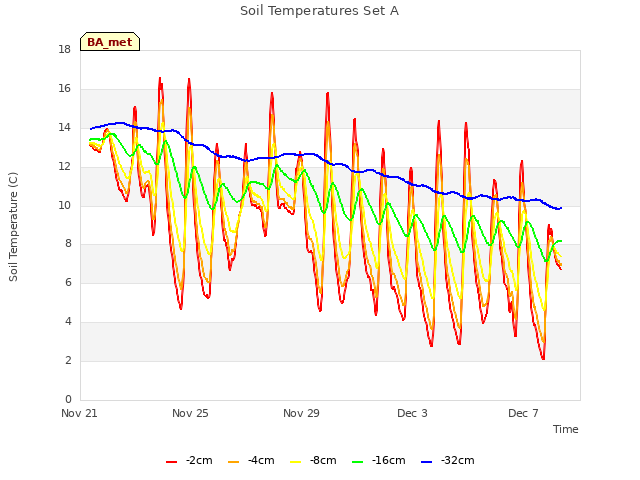

Explore the graph:Soil Temperatures Set A in a new window

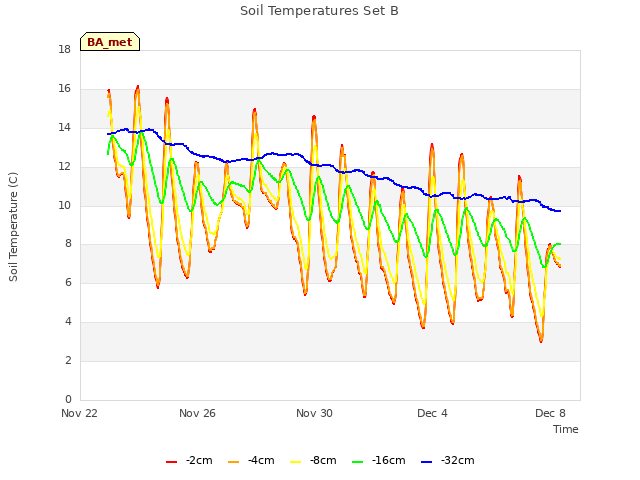

Explore the graph:Soil Temperatures Set B in a new window

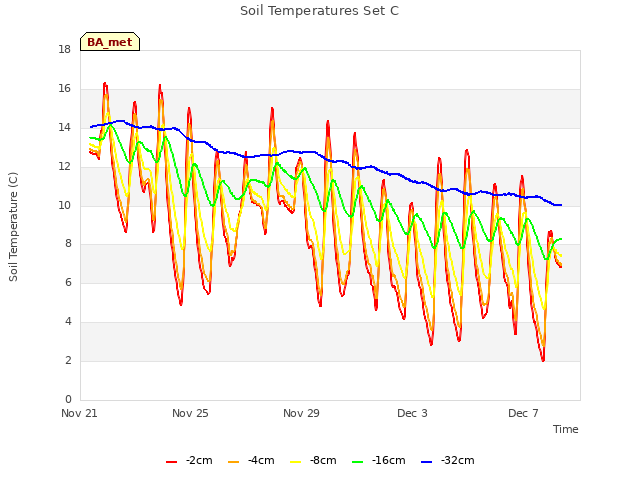

Explore the graph:Soil Temperatures Set C in a new window

Explore the graph:Soil Heat Flux in a new window

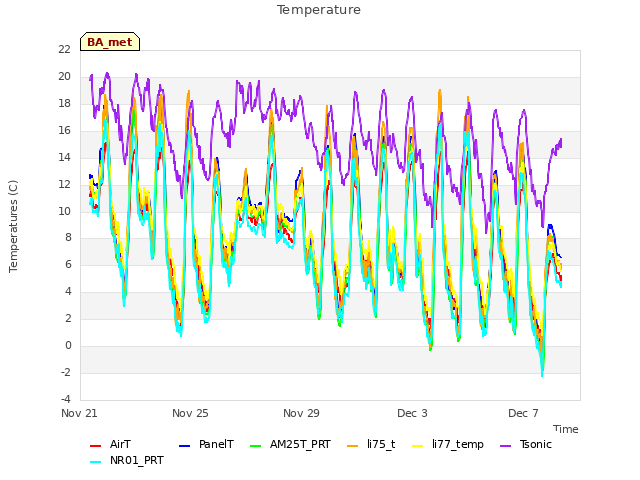

Explore the graph:Temperature in a new window

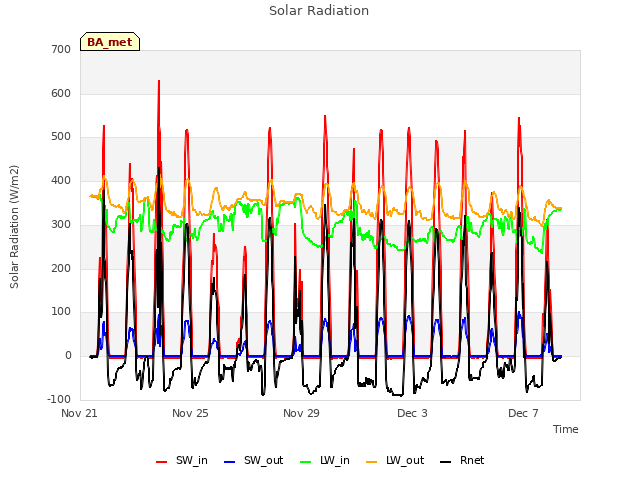

Explore the graph:Solar Radiation in a new window

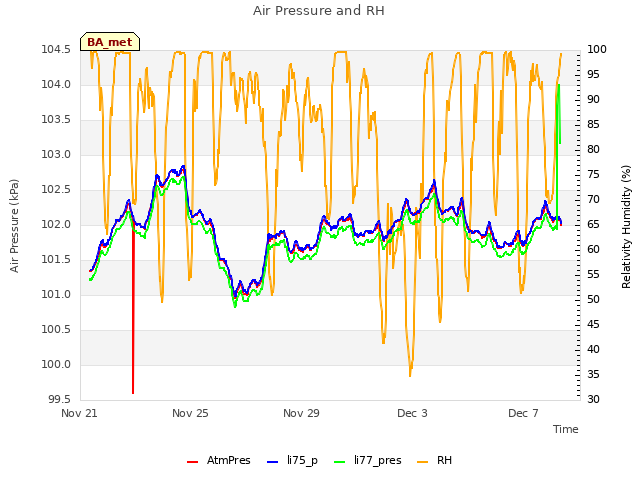

Explore the graph:Air Pressure and RH in a new window

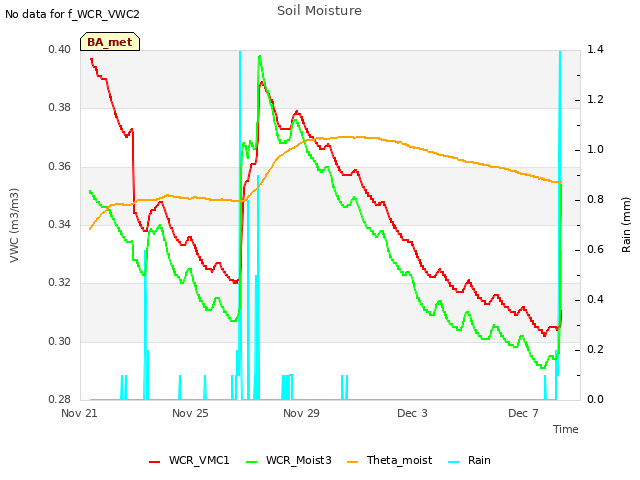

Explore the graph:Soil Moisture in a new window

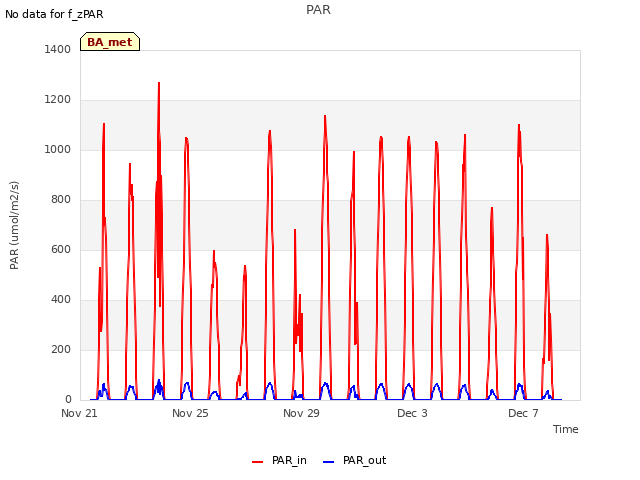

Explore the graph:PAR in a new window

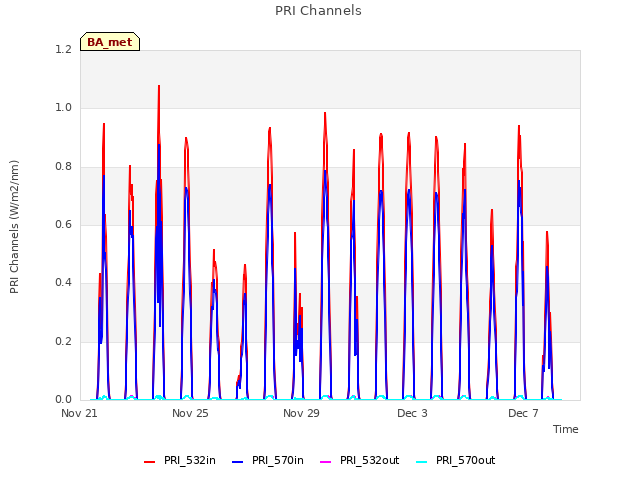

Explore the graph:PRI Channels in a new window

Explore the graph:NDVI channels in a new window

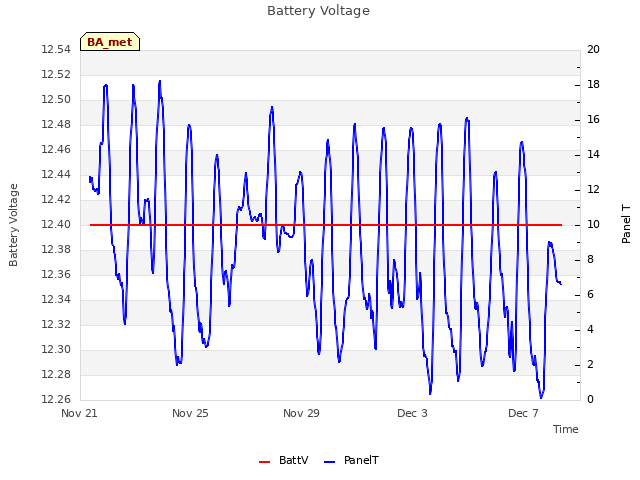

Explore the graph:Battery Voltage in a new window

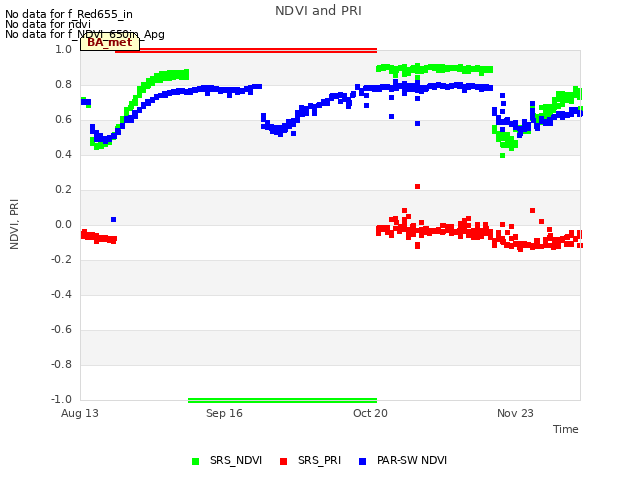

Explore the graph:NDVI and PRI in a new window

Explore the graph:Apogee NDVI in a new window

Explore the graph:FD Chamber A CO2 and Temp in a new window

Explore the graph:FD Chamber B CO2 and Temperature in a new window

Explore the graph:Surface Temperature in a new window

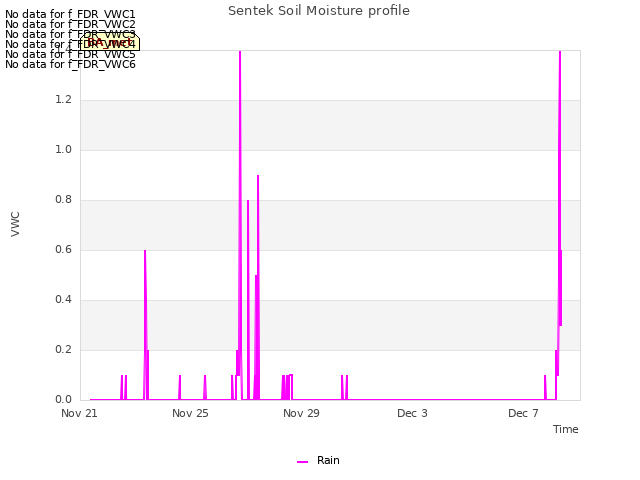

Explore the graph:Sentek Soil Moisture profile in a new window

Explore the graph:Sentek Soil Temperature profile in a new window

Explore the graph:Sentek Soil Salinity profile in a new window

Explore the graph:Forced Diffusion Soil CO2 Flux in a new window

No data found for BA_arable.
Can't check TATWBABCSB_cam
Can't check MBSWEEWPBCBA
2 BA_processed graphs found

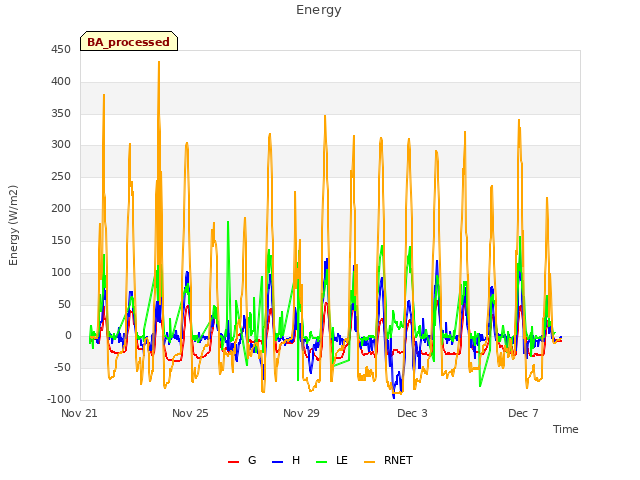

Explore the graph:Energy in a new window

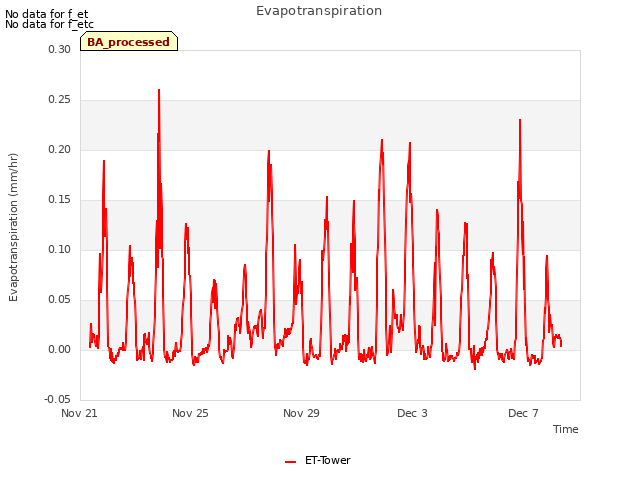

Explore the graph:Evapotranspiration in a new window

No data found for BA_adex.
