Tonzi: 2016-12-07 10:30:00 (DOY 342)
Author: Siyan Ma
Others: Joe, Daphne, Jorge Perez

Summary: swapped 7500s, collected pond data, Tower co2 profile down due to dead pump.

When: Date: 12/07/2016 , Day: 111 , Watch Time: 10:30 am .

Where: Tonzi/Vaira Ranch

Who: Siyan, Joe, Daphne, and Jorge (visitor from Chile)

Weather: a cold, cloudy day, rain in the late afternoon

Phenology:



Summary

  1. Joe swapped memory cards of CR1000s at three sites.
  2. Daphne swapped LIGA of the three towers.
  3. Joe checked and downloaded phenocam images
  4. Joe fixed data-sending problems at Vaira.
  5. Read dendrometers
  6. Measured soil moisture
  7. Measured grass heightMeasure groundwater well
  8. Collect grass samples for LAI (only Vaira)

Vaira_Grass Site

  1. Download pond data (Joe)
  2. Downloaded Phenocam images. (Joe)
  3. Swapped the memory cards of CR1000. (Joe)
  4. Swapped IRGA: sn 0042 off; sn 0041 on (Daphne)

  1. Checked the fans of air temp and relative humidity sensors at Vaira. (Joe)
  2. Downloaded met and soil CO2 profile data: (Joe)




  1. Checked levels of Radiation sensors, clear up surfaces. YES! (Jorge)
  2. Checked rain gage, make sure not clogged. YES! (Jorge)
  3. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence and gate power: 12 v.
  2. swapped the memory cards of CR1000. (Joe)
  3. Swapped IRGA (Daphne)
  4. download Phenocam images. Yes! (Joe)
  5. checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES! (Joe)
  6. Checked rain gage, make sure not clogged. YES!
  7. Screens of met dataloggers:

CR23X3 – floor-Met

CR23X6 – tower-Met

CR10X2 – floor-Met

Soil CO2 profile: CR23X5 – soil CO2 profile





  1. Calibrate CO2 profile system: off due to failure of pump

9. closed gate and set up fence. YES!

Toniz_Floor Site

  1. Fence and gate power: 12 v.
  2. Swapped the memory cards of CR1000. (Joe)
  3. Swapped IRGA (Daphne)
  4. Closed gate and set up fence. YES!

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2016-12-07TZ_floor30
2016-12-07TZ_road38.1
2016-12-07TZ_tower34.4
2016-12-07VR_pond15.35

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower [1] => Floor_South [2] => Floor_East [3] => Floor_West [4] => SoilCO2 [5] => Soil_Transect_4 [6] => Soil_Transect_3 [7] => Soil_Transect_2 [8] => Soil_Transect_1 [9] => SoilCO2_West_A [10] => SoilCO2_West_B [11] => SoilCO2_West_C )

Date DOY Rep Depth
Tower
Floor_South
Floor_East
Floor_West
SoilCO2
Soil_Transect_4
Soil_Transect_3
Soil_Transect_2
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
SoilCO2_West_C
 Avg
Spacial Count
Measurement Count
2016-12-07 342 0 0-15cm 24.7 25.3 33.5 34.6 13.9 19.7 17.6 25 19.7 30.5 25 29.1
2016-12-07 342 0 15-30cm 35.4 38.4 41.4 24.6 31.6 29.2 31.2 30.7 22.5 26.8 25.5 30.4
2016-12-07 342 0 30-45cm 32.4 42.4 49.4 38.8 42.4 33.8 32.4 34.3 34.1 35.4 35.7 37.1
2016-12-07 342 0 45-60cm 38.5 56 57.4 45.1 34.8 44.3 47.7 33.7 44 50.3 51.7
2016-12-07 342 1 0-15cm 25 24.7 33.2 29.7 38.4 25.6 19.7 25.3 20 30.5 25.6 29.1
2016-12-07 342 1 15-30cm 35.3 38.4 41.4 33.2 32.3 29.5 31.9 30.4 22.5 27.1 24.9 29.8
2016-12-07 342 1 30-45cm 32.7 42.7 49.1 38.2 43.5 33.2 32.9 34.3 34.3 34.3 37.1 36.8
2016-12-07 342 1 45-60cm 41.1 54.3 56.6 44.5 46 35.4 45.1 47.1 33.7 44 52.3 50
2016-12-07 342 Avg 0-15cm 24.85 25 33.35 32.15 26.15 22.65 18.65 25.15 19.85 30.5 25.3 29.1 26.06 12 24
2016-12-07 342 Avg 15-30cm 35.35 38.4 41.4 28.9 31.95 29.35 31.55 30.55 22.5 26.95 25.2 30.1 31.02 12 24
2016-12-07 342 Avg 30-45cm 32.55 42.55 49.25 38.5 42.95 33.5 32.65 34.3 34.2 34.85 36.4 36.95 37.39 12 24
2016-12-07 342 Avg 45-60cm 39.8 55.15 57 44.8 46 35.1 44.7 47.4 33.7 44 51.3 50.85 45.82 12 23

mode = both
Moisture Point Probes VR
Array ( [0] => Flux_Tower [1] => Gate [2] => Biomass_Cage [3] => Solar_Panels )

Date DOY Rep Depth
Flux_Tower
Gate
Biomass_Cage
Solar_Panels
 Avg
Spacial Count
Measurement Count
2016-12-07 342 0 0-15cm 21.7 23.8 10.3
2016-12-07 342 0 15-30cm 27.7 62.8 21.6 28.9
2016-12-07 342 0 30-45cm 16.2 29.9 31 36.8
2016-12-07 342 0 45-60cm 29.1 24.2 31.9 38.8
2016-12-07 342 1 0-15cm 21.2 14.4 10 25.3
2016-12-07 342 1 15-30cm 28 19.4 21.9 34.1
2016-12-07 342 1 30-45cm 15.9 74.5 31.5 37.7
2016-12-07 342 1 45-60cm 28.5 25.6 31.9 38.5
2016-12-07 342 Avg 0-15cm 21.45 19.1 10.15 25.3 19 4 7
2016-12-07 342 Avg 15-30cm 27.85 41.1 21.75 31.5 30.55 4 8
2016-12-07 342 Avg 30-45cm 16.05 52.2 31.25 37.25 34.19 4 8
2016-12-07 342 Avg 45-60cm 28.8 24.9 31.9 38.65 31.06 4 8

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2016-12-07125.5
2016-12-0710223.0
2016-12-07224.5
2016-12-0724523.0
2016-12-07323.9
2016-12-07418.9
2016-12-07520.5
2016-12-07717.1
2016-12-077223.6
2016-12-077923.3
2016-12-07820.2

No water potential data found

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

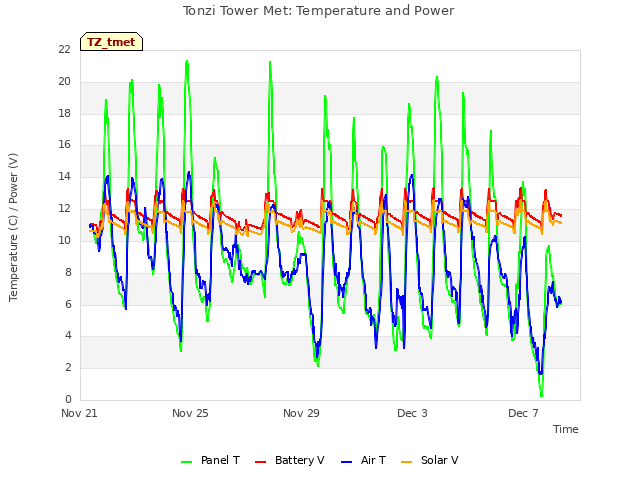

Tonzi Tower Met: Temperature and Power

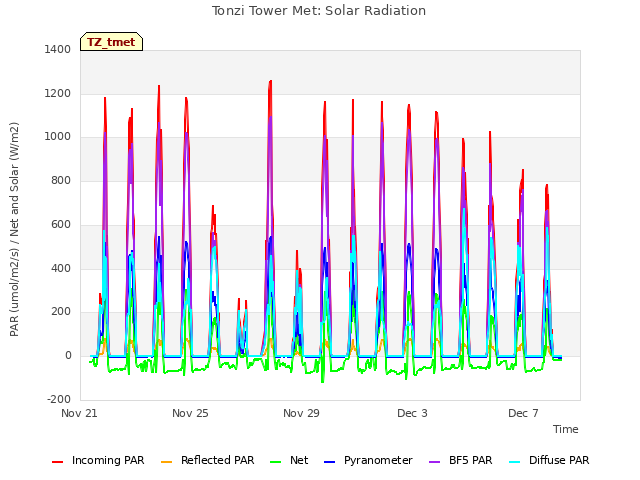

Tonzi Tower Met: Solar Radiation

Tonzi Tower Met: IRT Sensors

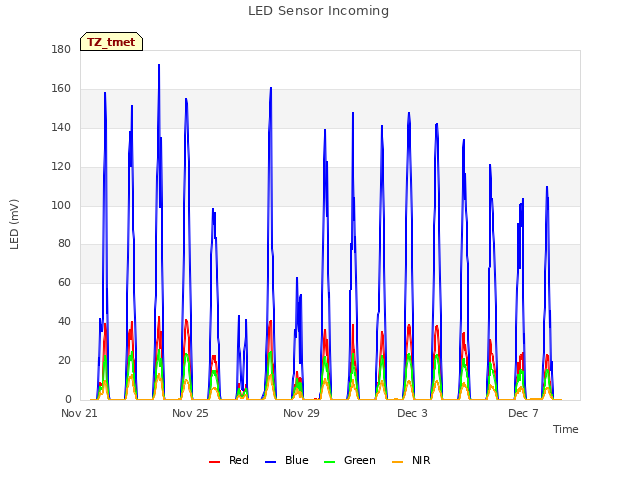

LED Sensor Incoming

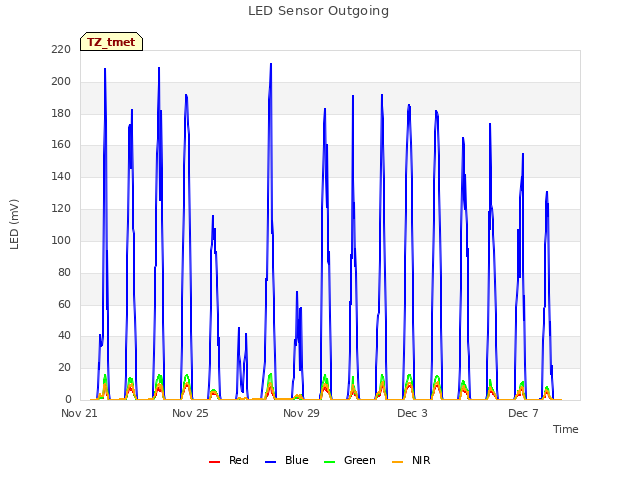

LED Sensor Outgoing

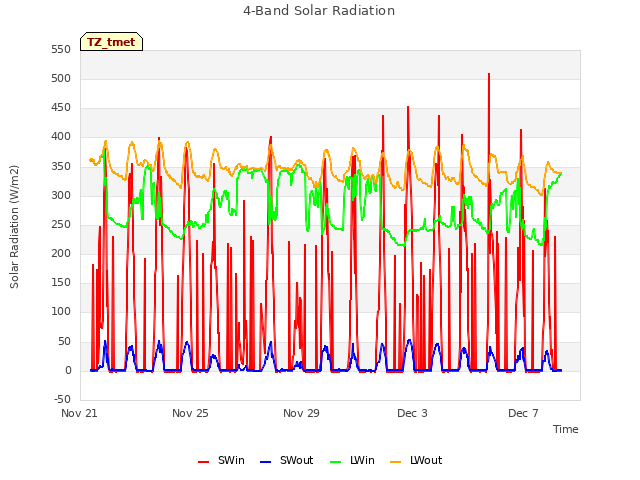

4-Band Solar Radiation

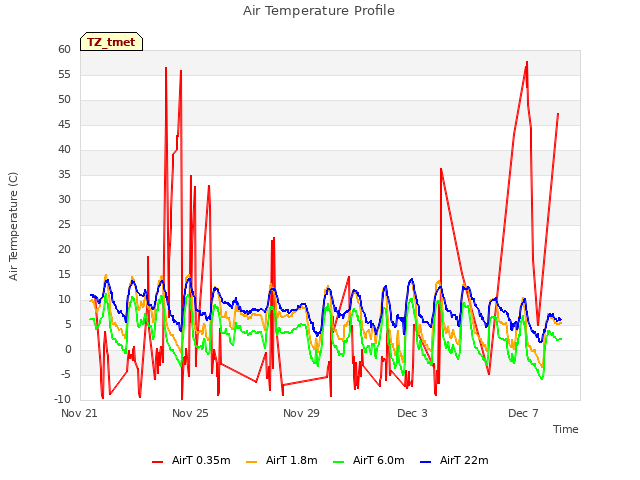

Air Temperature Profile

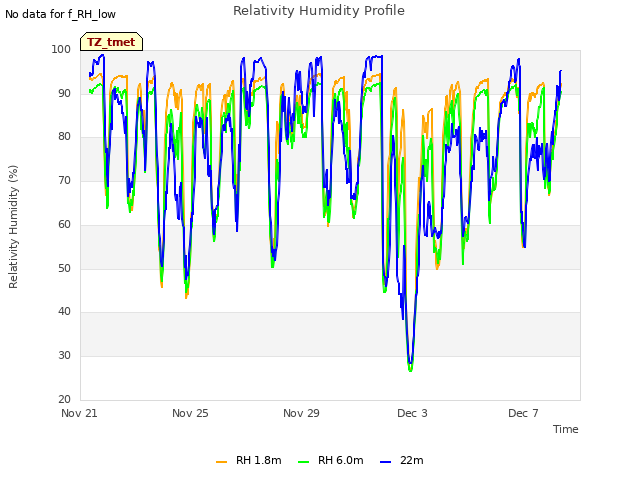

Relativity Humidity Profile

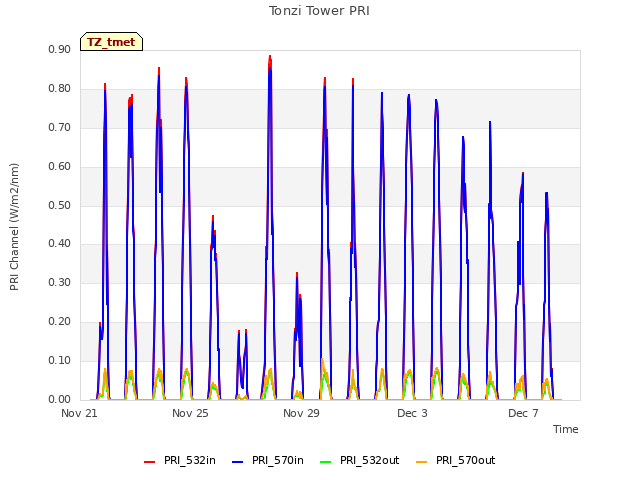

Tonzi Tower PRI

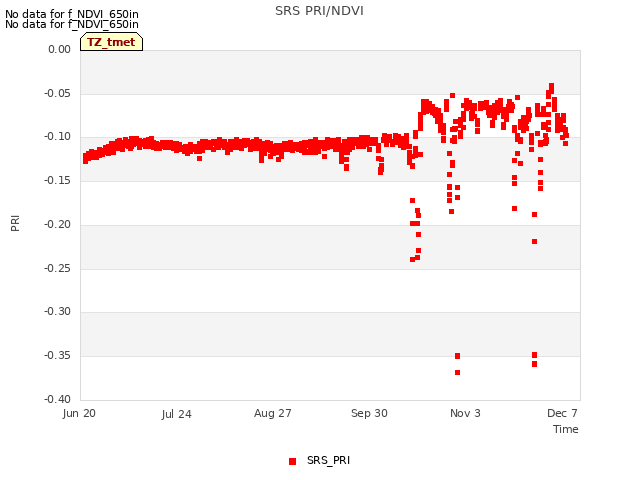

SRS PRI/NDVI

SRS NDVI

11 TZ_soilco2 graphs found

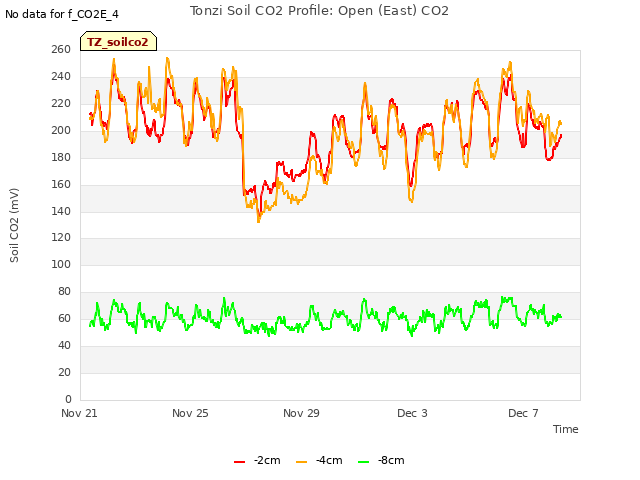

Tonzi Soil CO2 Profile: Open (East) CO2

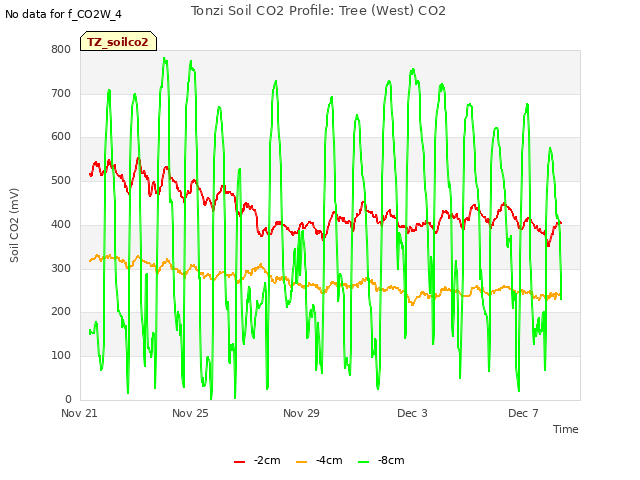

Tonzi Soil CO2 Profile: Tree (West) CO2

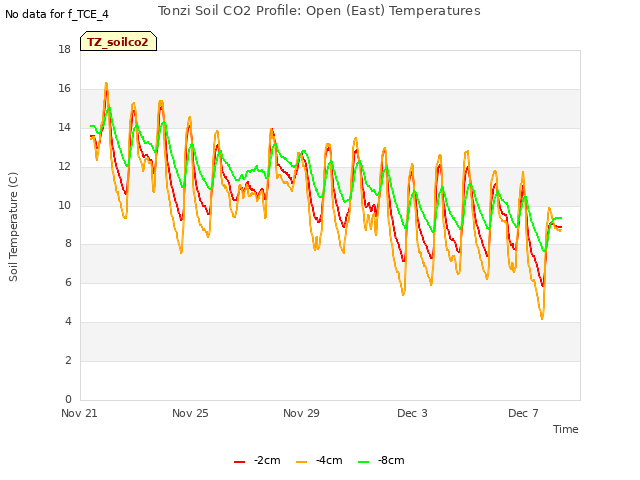

Tonzi Soil CO2 Profile: Open (East) Temperatures

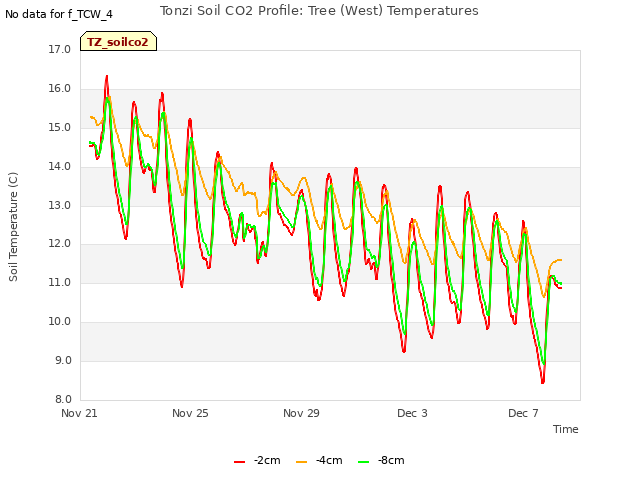

Tonzi Soil CO2 Profile: Tree (West) Temperatures

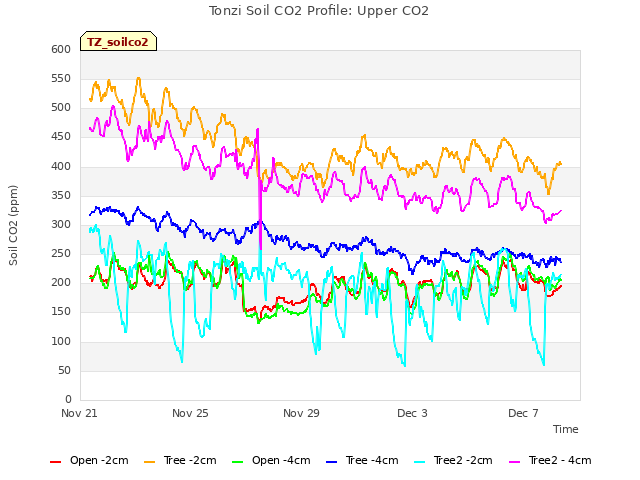

Tonzi Soil CO2 Profile: Upper CO2

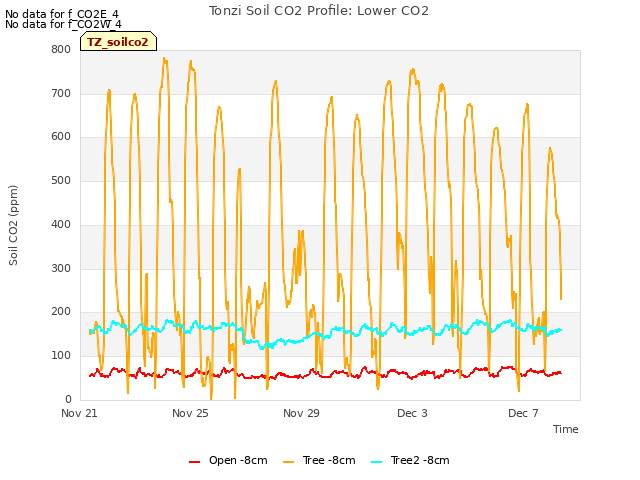

Tonzi Soil CO2 Profile: Lower CO2

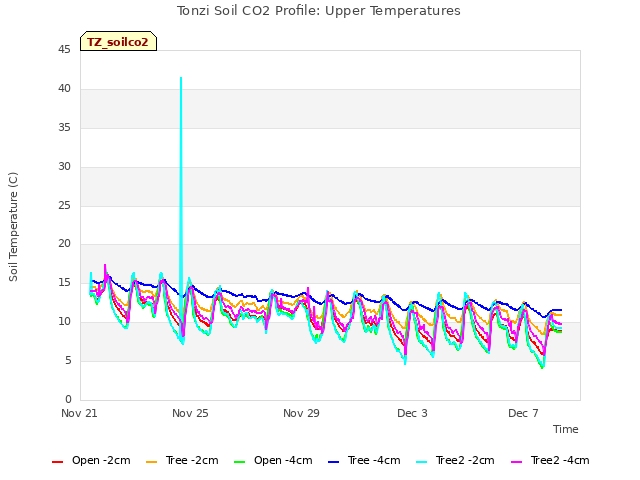

Tonzi Soil CO2 Profile: Upper Temperatures

Tonzi Soil CO2 Profile: Lower Temperatures

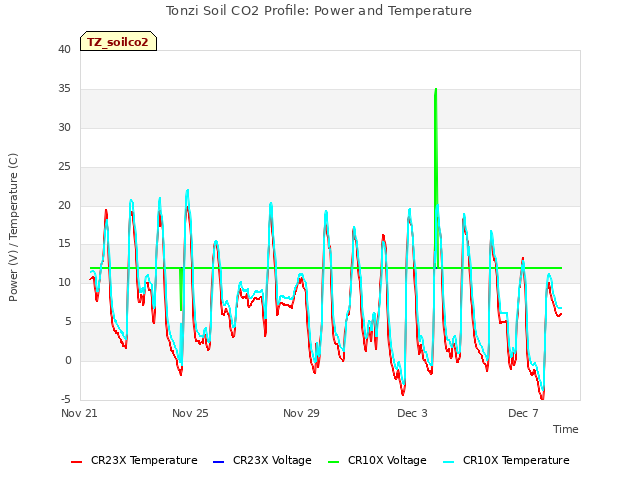

Tonzi Soil CO2 Profile: Power and Temperature

Tree 2 Soil CO2

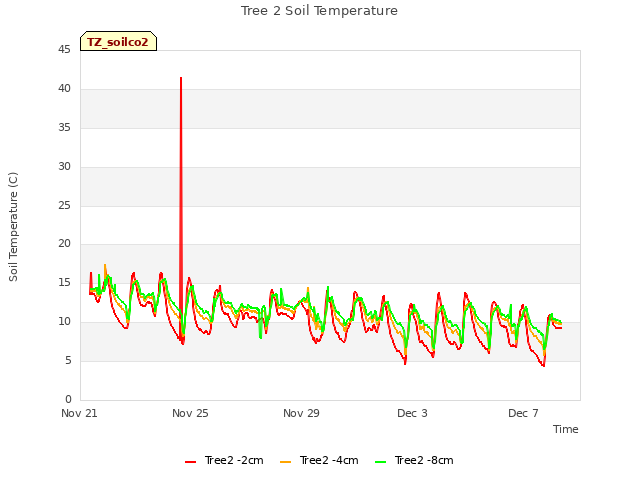

Tree 2 Soil Temperature

Can't check TZ_mixed
3 TZ_mixed graphs found

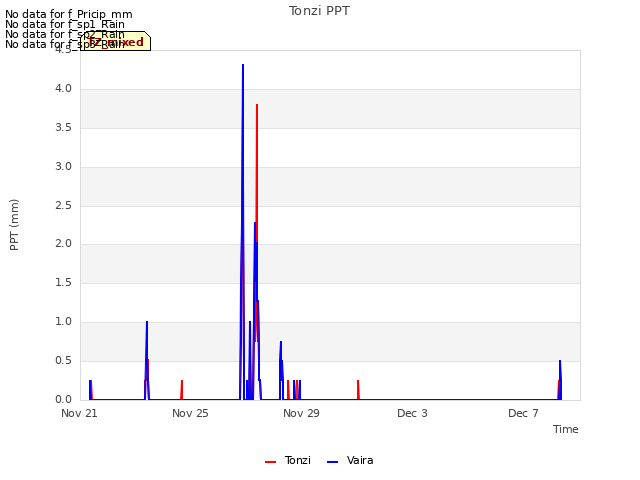

Tonzi PPT

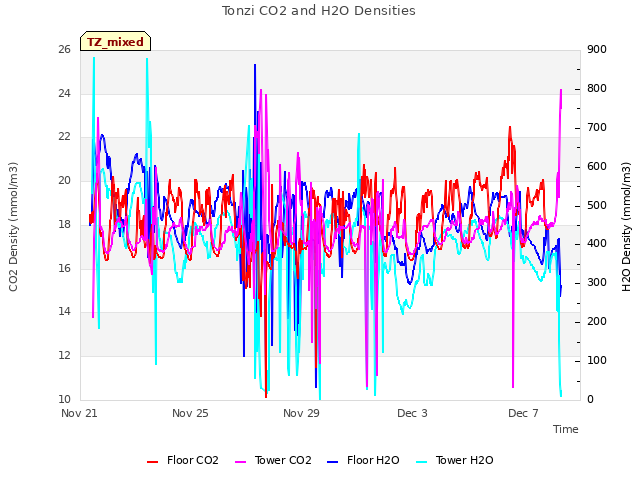

Tonzi CO2 and H2O Densities

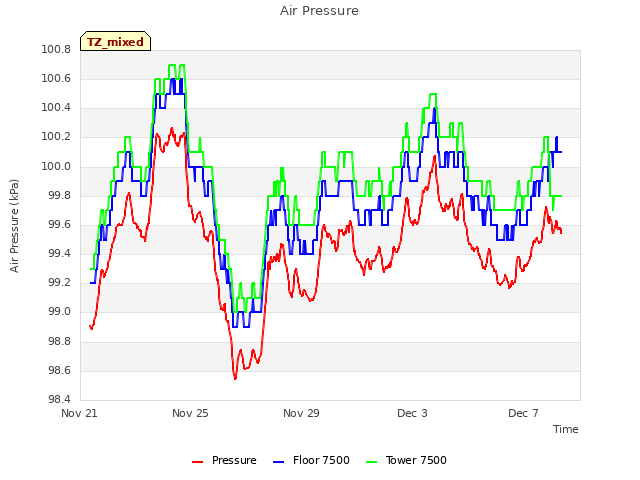

Air Pressure

1 TZ_fflux graphs found

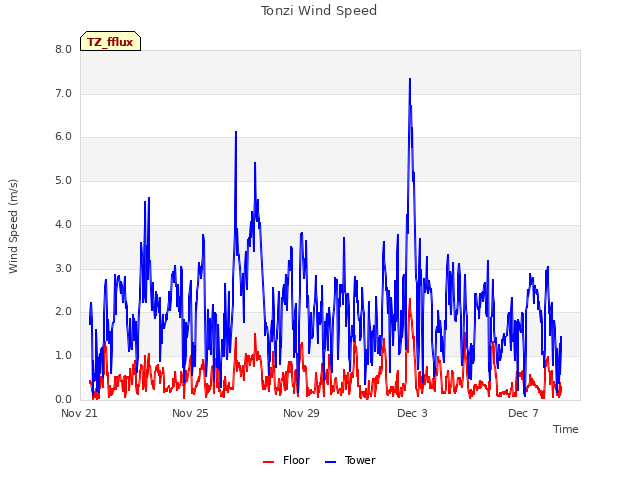

Tonzi Wind Speed

8 TZ_fmet graphs found

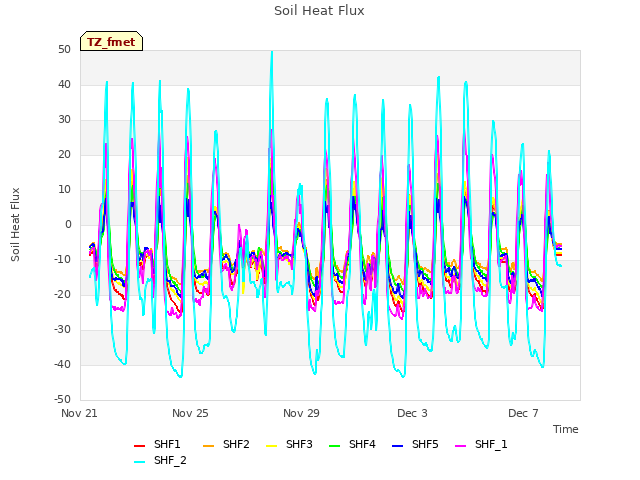

Soil Heat Flux

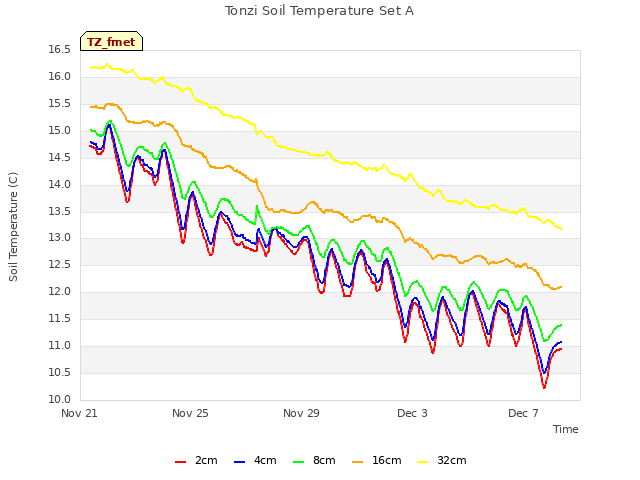

Tonzi Soil Temperature Set A

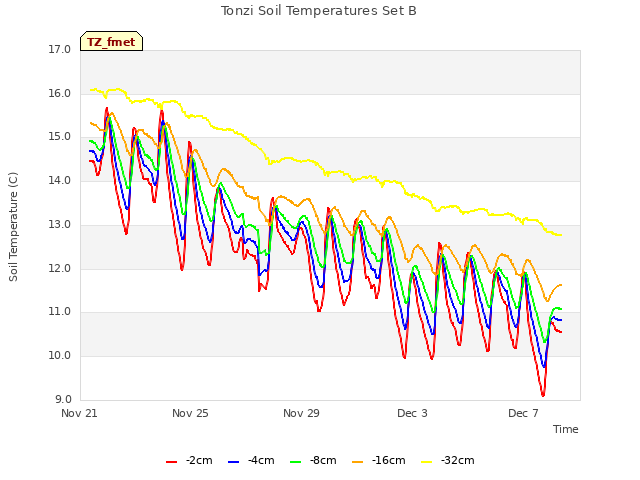

Tonzi Soil Temperatures Set B

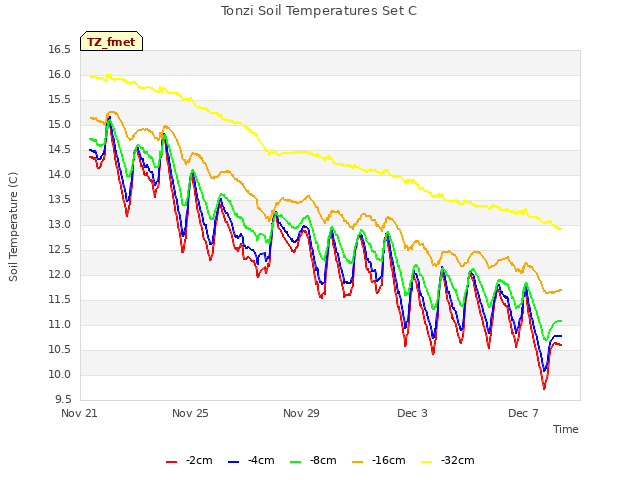

Tonzi Soil Temperatures Set C

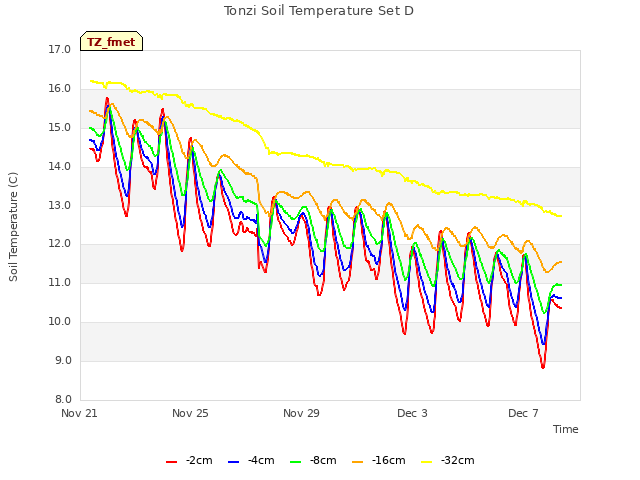

Tonzi Soil Temperature Set D

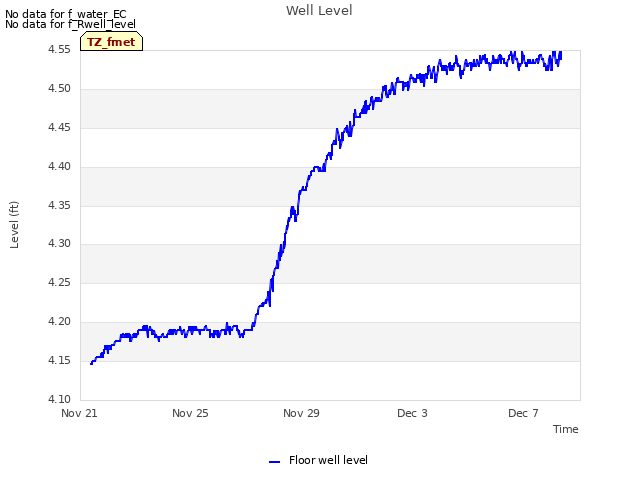

Well Level

Well Water Temperature

Soil Water Potential

No data found for TZ_tram.
3 TZ_co2prof graphs found

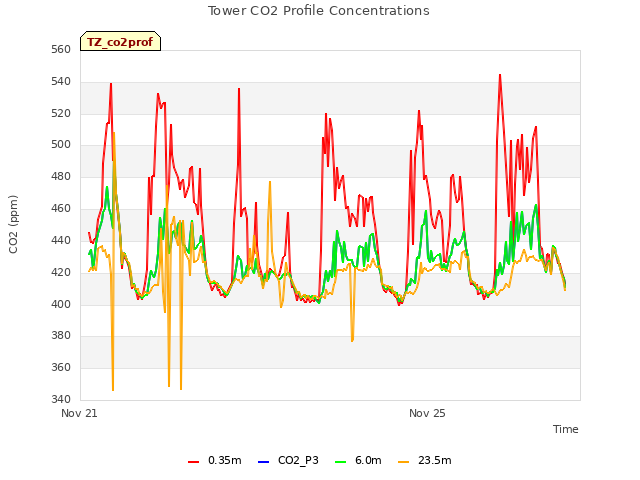

Tower CO2 Profile Concentrations

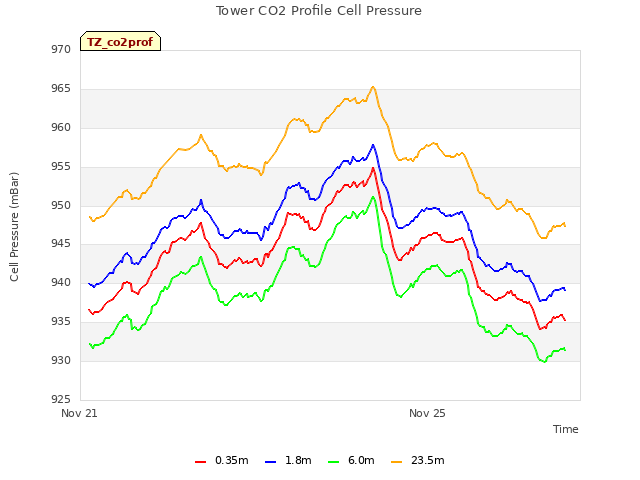

Tower CO2 Profile Cell Pressure

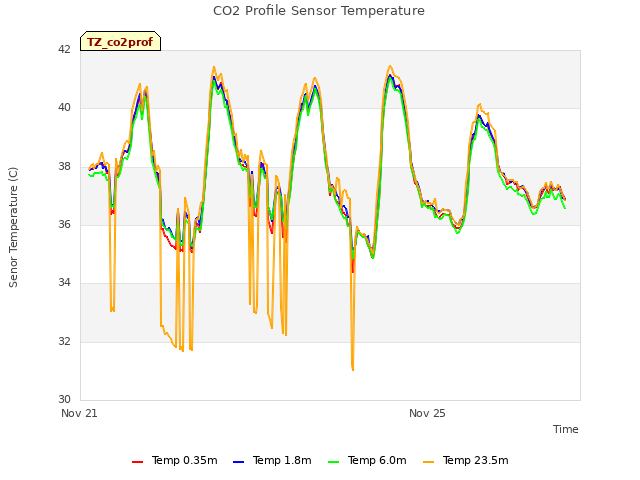

CO2 Profile Sensor Temperature

1 TZ_irt graphs found

Surface Temperatures

No data found for TZ_windprof.
1 TZ_tflux graphs found

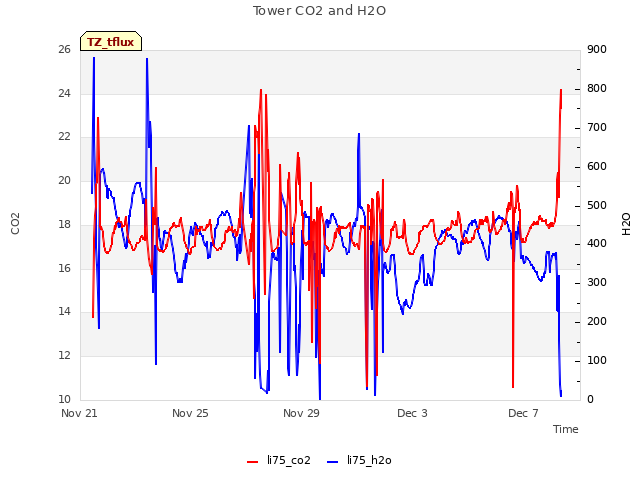

Tower CO2 and H2O

2 TZ_sm graphs found

Floor Solar Radiations

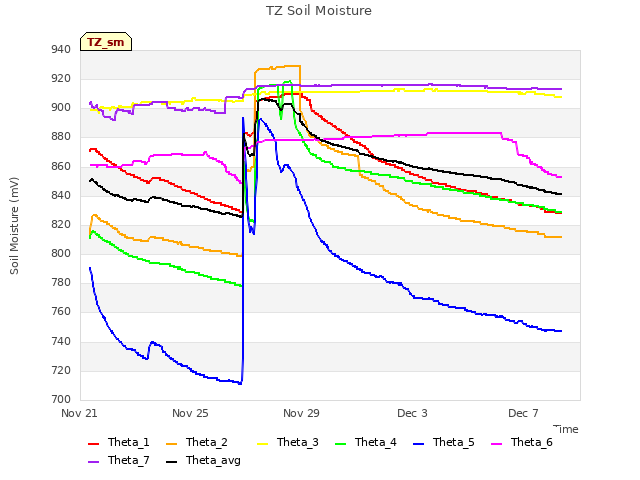

TZ Soil Moisture

Can't check TZ_met
1 TZ_met graphs found

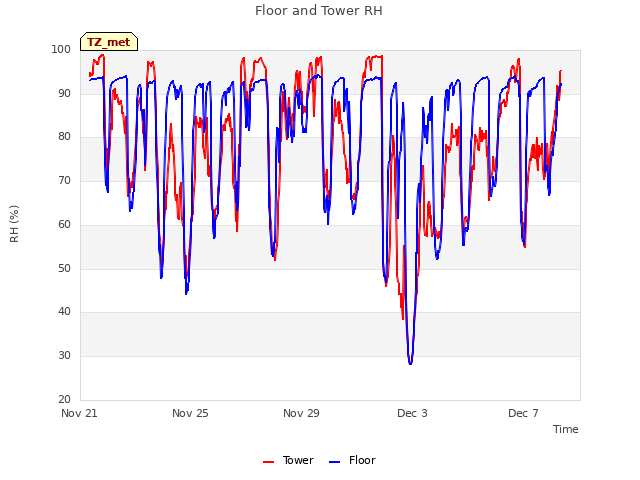

Floor and Tower RH

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
