West Pond: 2016-08-01 10:40:00 (DOY 214)
Author: Elke Eichelmann
Others: Kyle Hemes, Markus Reichstein

Summary: Cut down willow, ants are back in the data logger box, measured water depth, normal data collection.

Arrived: 10:40. Sunny, clear, warm, very light breeze.

Collected USB GHG data; collected met data from CR1000, all looks good; collected camera data. Cleaned GHG sensors and radiation sensors. Forgot to fill methane wash water reservoir box, filled later at 1:30.

Ants in data logger box, cleared out best as possible. Need new ant traps, the current ones are clogged up.

Measured water depth around the tower. The ground was extremely soft so we pushed the measuring tape to “solid” ground and measured from there: (cm) 40, 51, 56, 43, 44.

Cut back willow, and returned at 1:30 with a chainsaw to bring down the trunk.

LI7500 readings
CO2 404.95
H2O 704.1
T 22.82
P 100.99
ss 89.66 -> 90.6 after cleaning
LI7700 readings
CH4 1.97
rssi 40 -> 79.8 after cleaning

Left: 11:10.

 

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

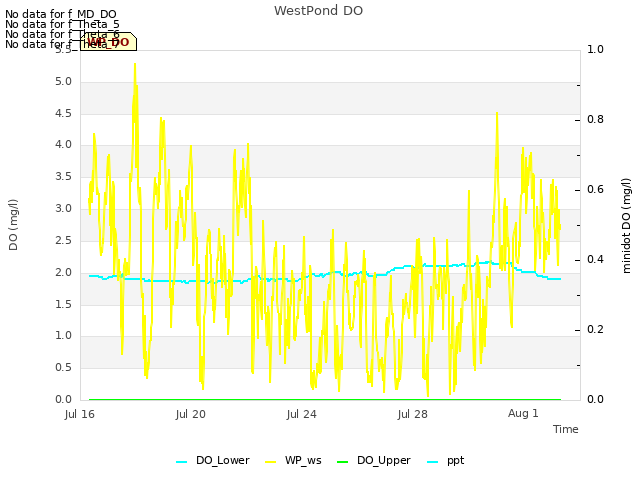

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

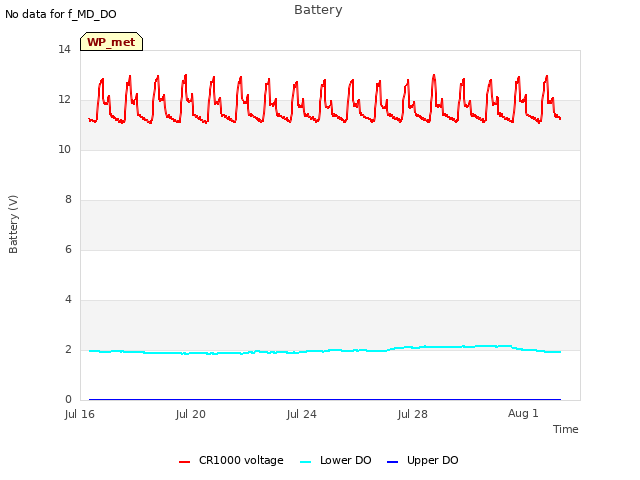

Explore the graph:Battery in a new window

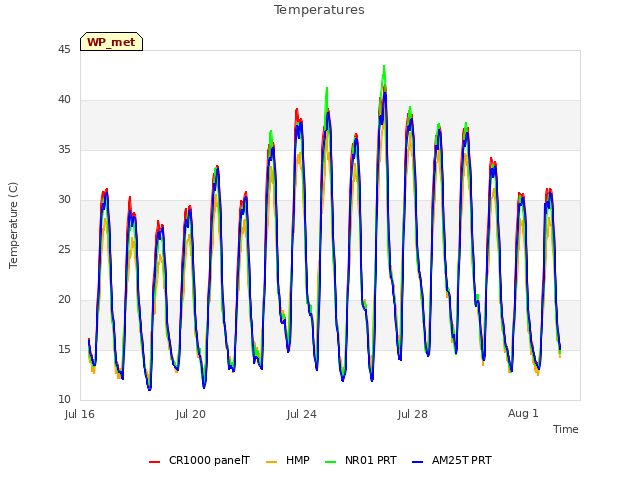

Explore the graph:Temperatures in a new window

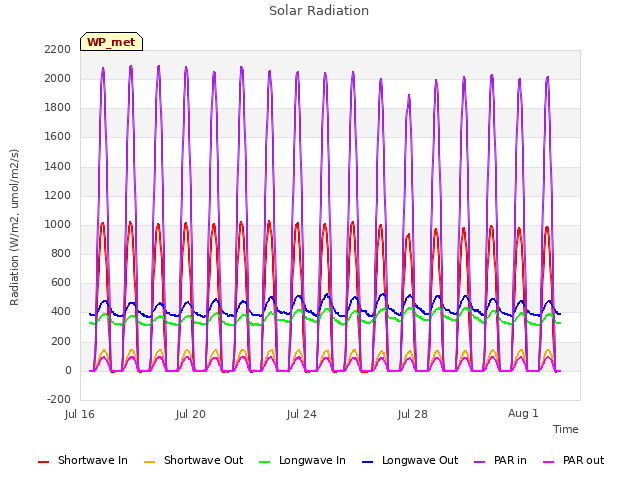

Explore the graph:Solar Radiation in a new window

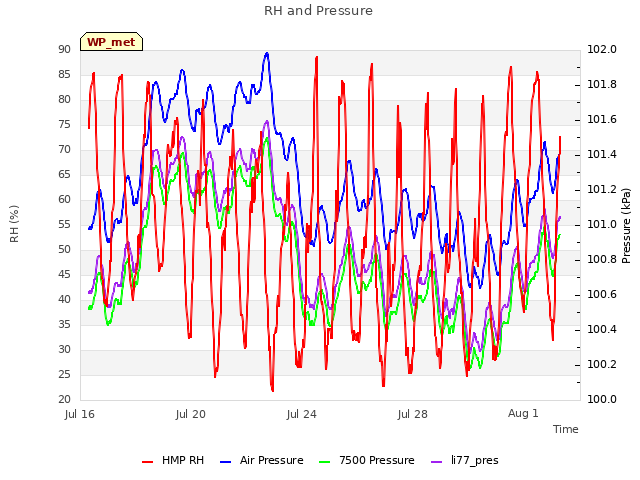

Explore the graph:RH and Pressure in a new window

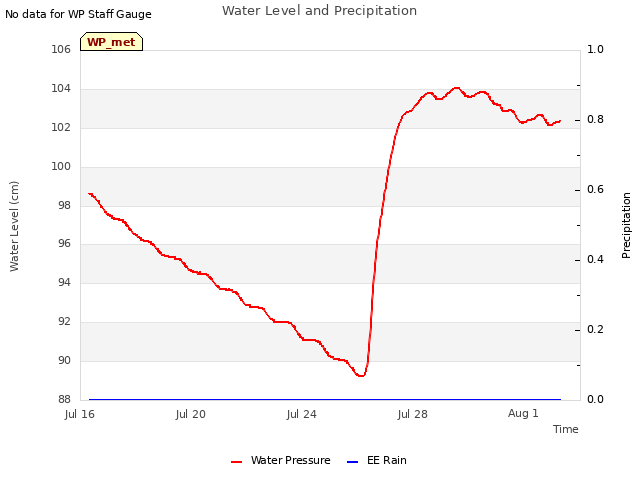

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

Explore the graph:Temperatures Set A in a new window

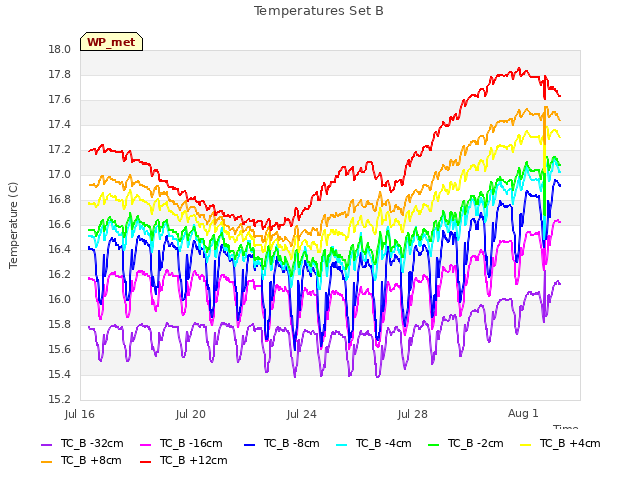

Explore the graph:Temperatures Set B in a new window

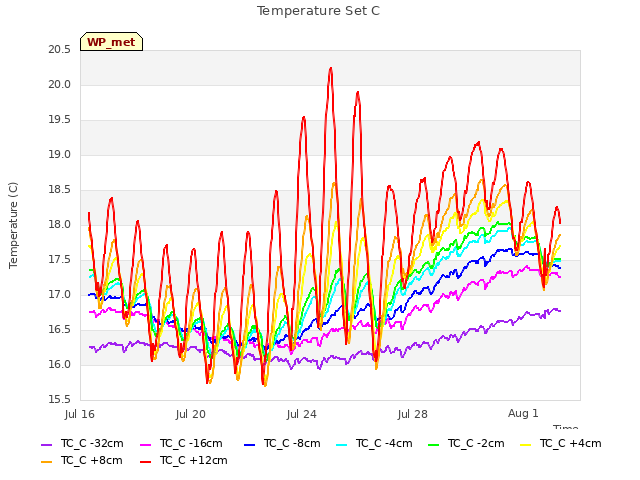

Explore the graph:Temperature Set C in a new window

Explore the graph:Water CO2 and Temp in a new window

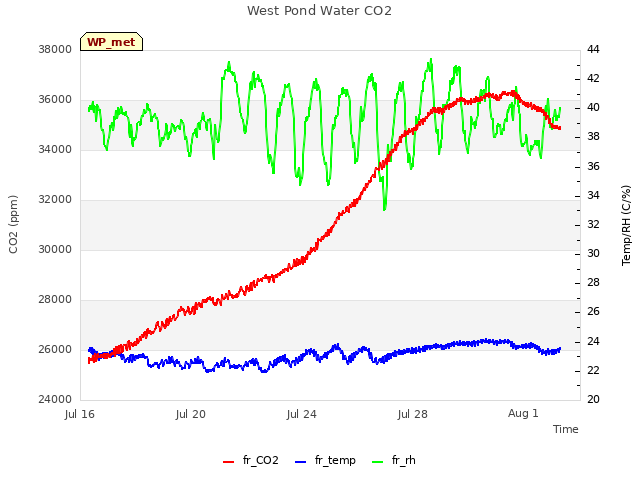

Explore the graph:West Pond Water CO2 in a new window

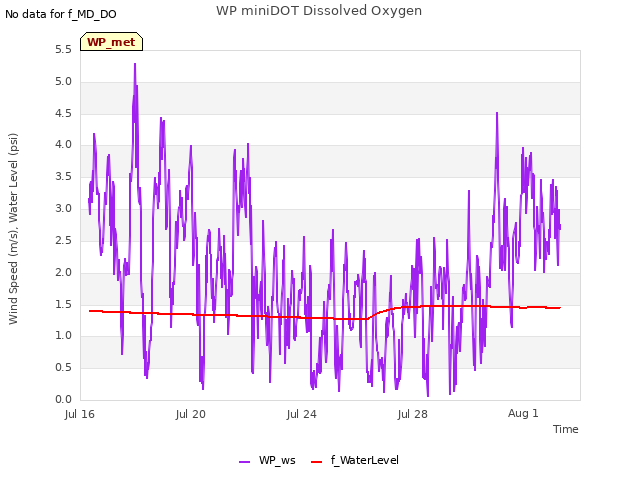

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

Explore the graph:SRS NDVI Channels in a new window

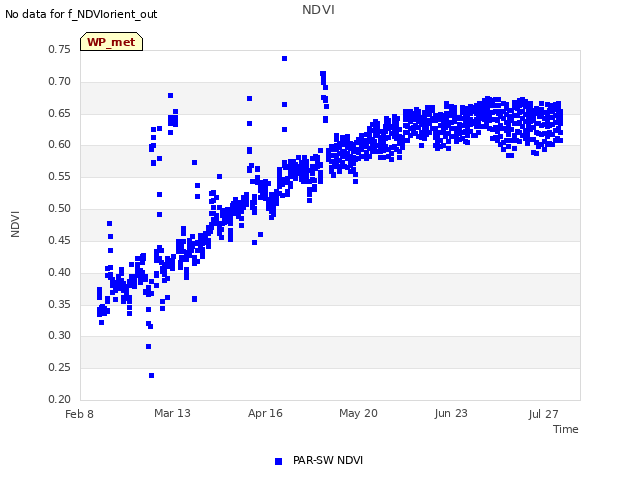

Explore the graph:NDVI in a new window

5 WP_flux graphs found

Explore the graph:Winds in a new window

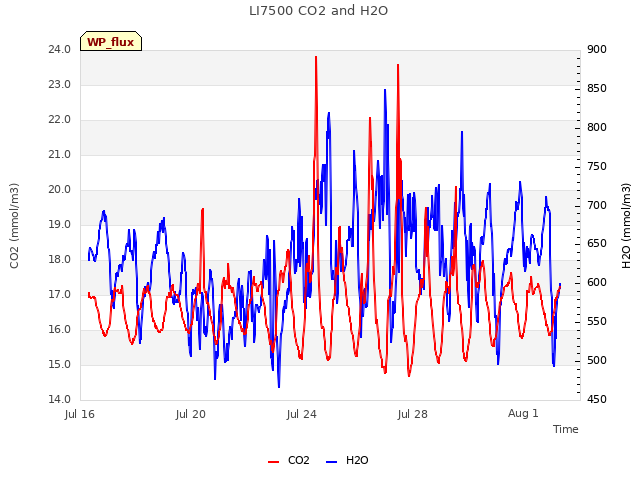

Explore the graph:LI7500 CO2 and H2O in a new window

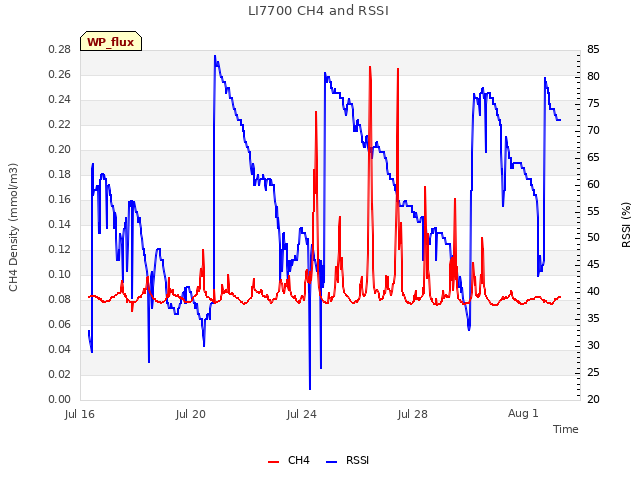

Explore the graph:LI7700 CH4 and RSSI in a new window

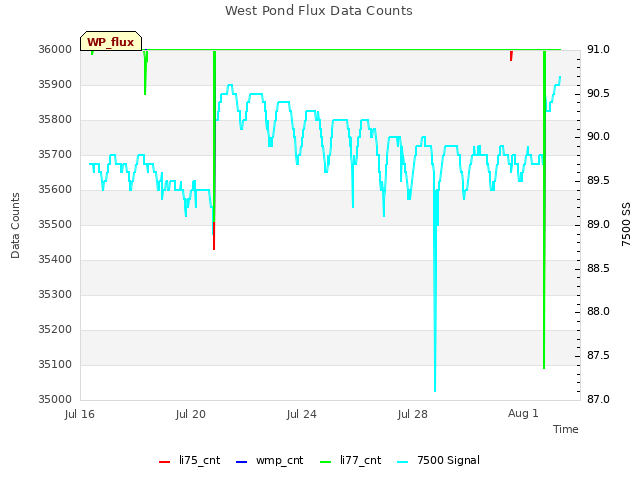

Explore the graph:West Pond Flux Data Counts in a new window

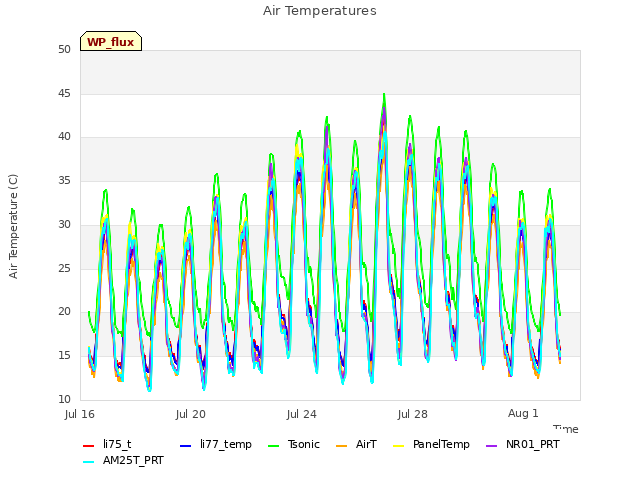

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

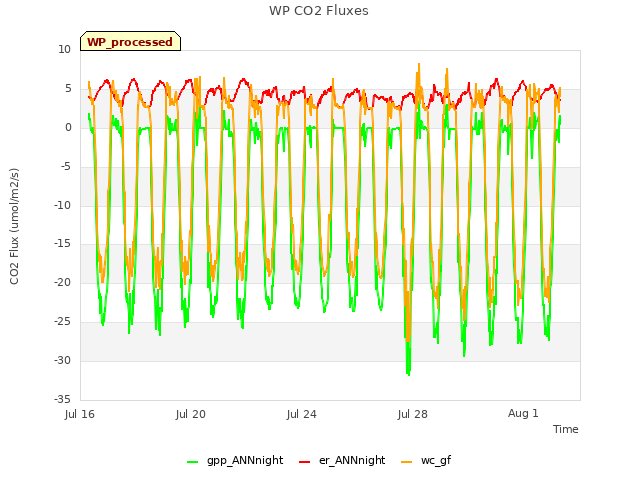

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
