Sherman Wetland: 2016-08-01 16:20:00 (DOY 214)
Author: Elke Eichelmann
Others: Kyle Hemes, Markus Reichstein

Summary: Normal data collection, site not flooded, still no water in well.

Arrived 16:20. Sunny, clear skies, very windy. Field is still dry and the well is also still dry. Weeds and shrubs are filling in around the base of the tower.

Methane wash water reservoir full; collected USB GHG data; collected met data from CR1000, all looks good; swapped flash card “SW” out and put flashcard “SW” in.

LI7500 readings
CO2 392.66
H20 622.3
T 26.97
P101.38
ss 101.23 ->102.7 after cleaning
LI7700 readings
CH4 1.86
rssi 62 ->78 after cleaning

Left: 16:45.

0 photos found

Graphs display:
7 sets found

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
15 SW_met graphs found

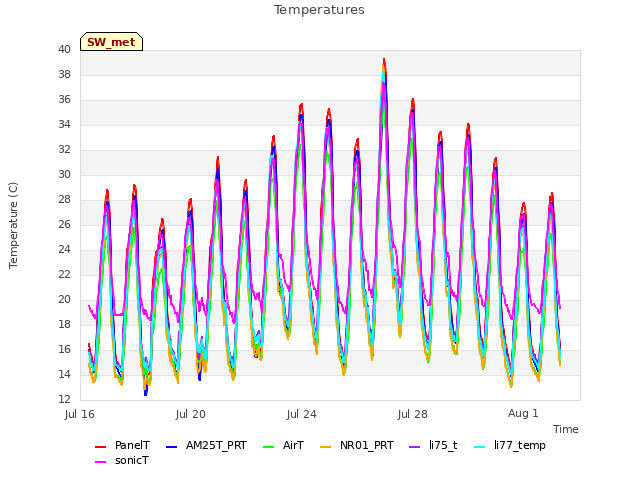

Explore the graph:Temperatures in a new window

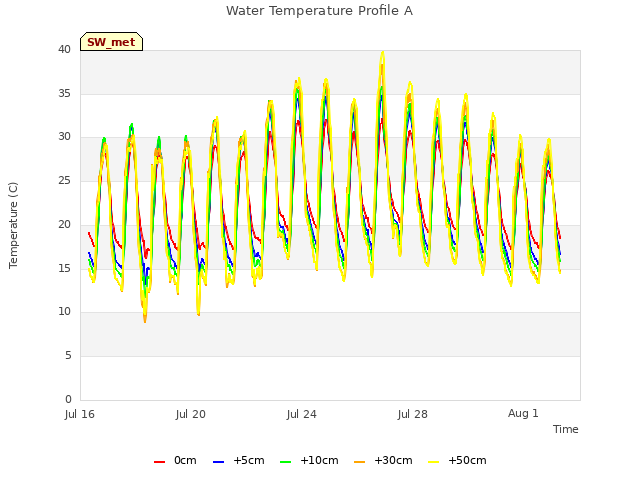

Explore the graph:Water Temperature Profile A in a new window

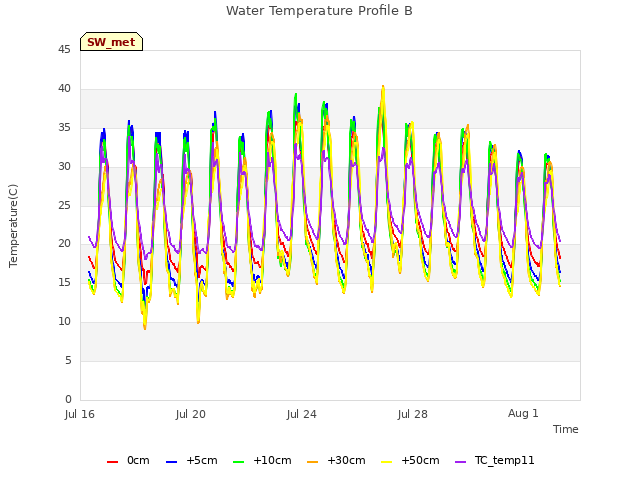

Explore the graph:Water Temperature Profile B in a new window

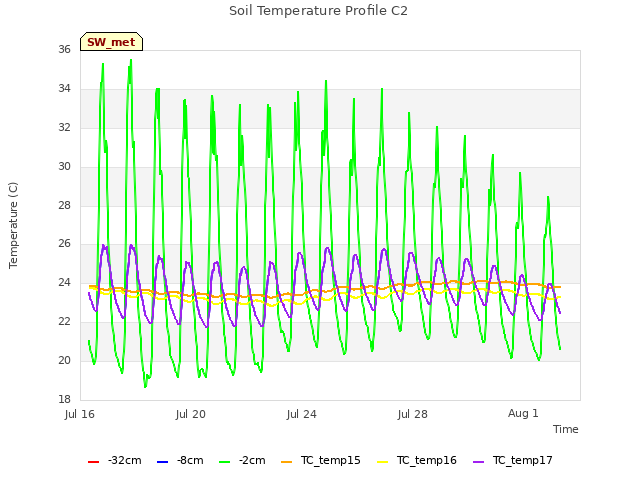

Explore the graph:Soil Temperature Profile C2 in a new window

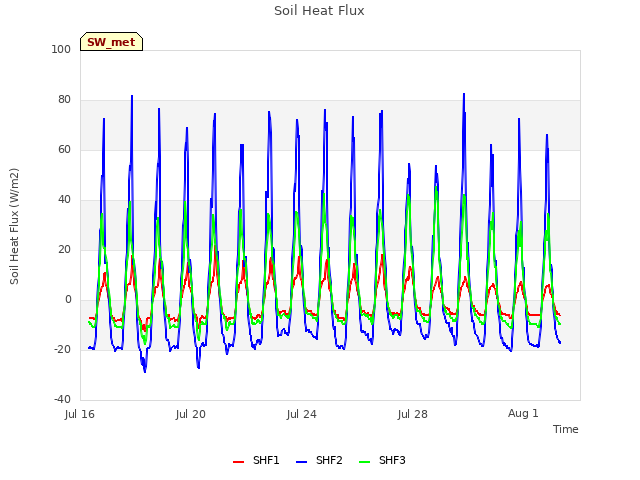

Explore the graph:Soil Heat Flux in a new window

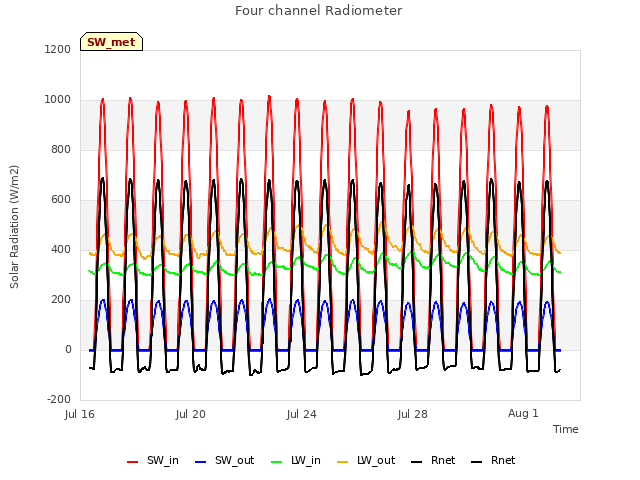

Explore the graph:Four channel Radiometer in a new window

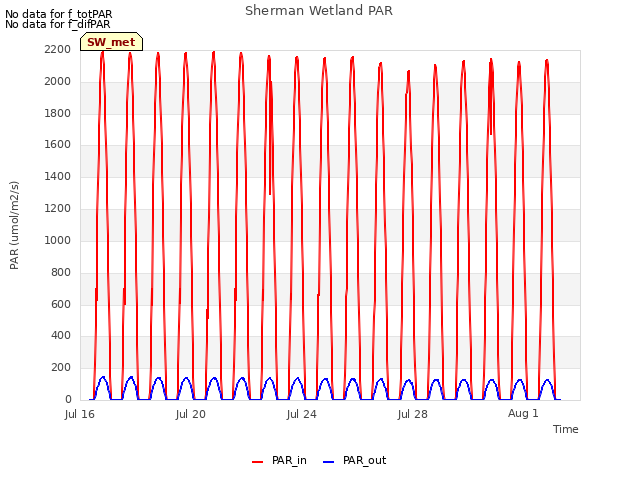

Explore the graph:Sherman Wetland PAR in a new window

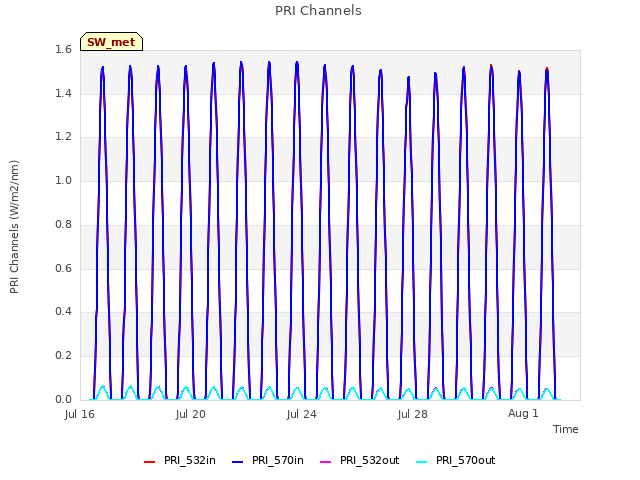

Explore the graph:PRI Channels in a new window

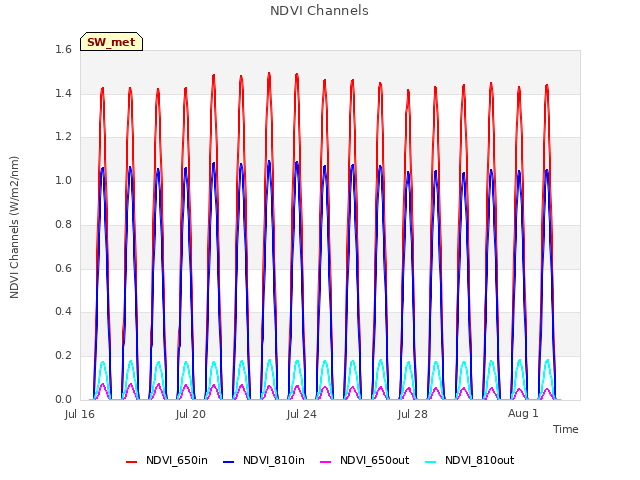

Explore the graph:NDVI Channels in a new window

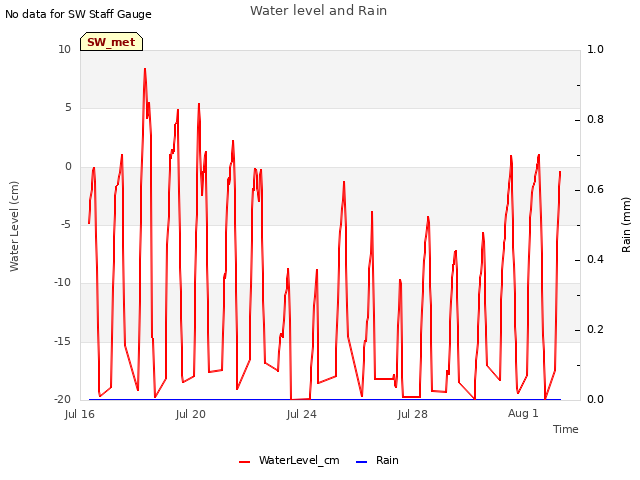

Explore the graph:Water level and Rain in a new window

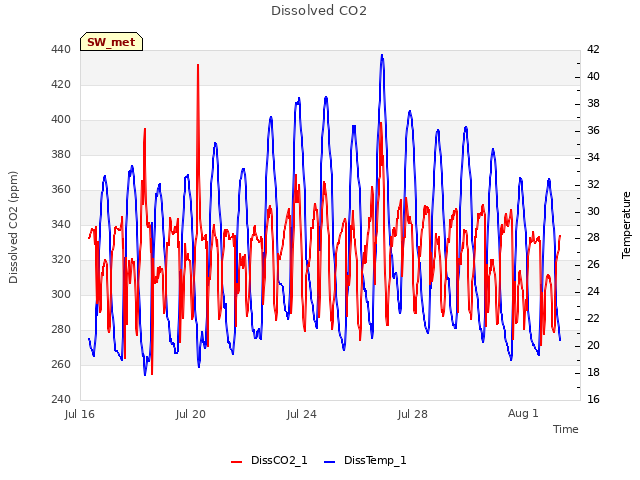

Explore the graph:Dissolved CO2 in a new window

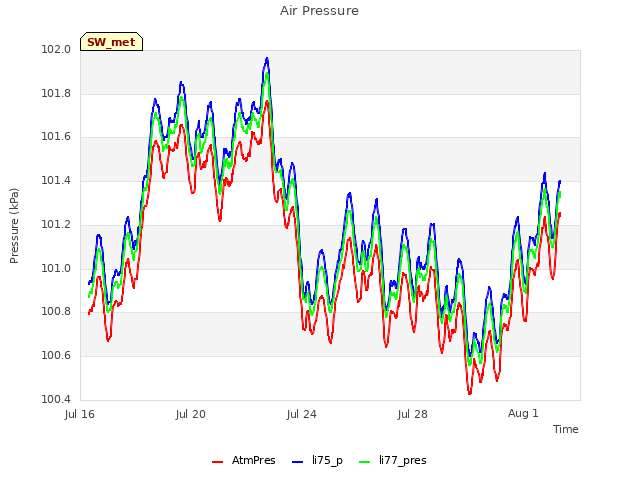

Explore the graph:Air Pressure in a new window

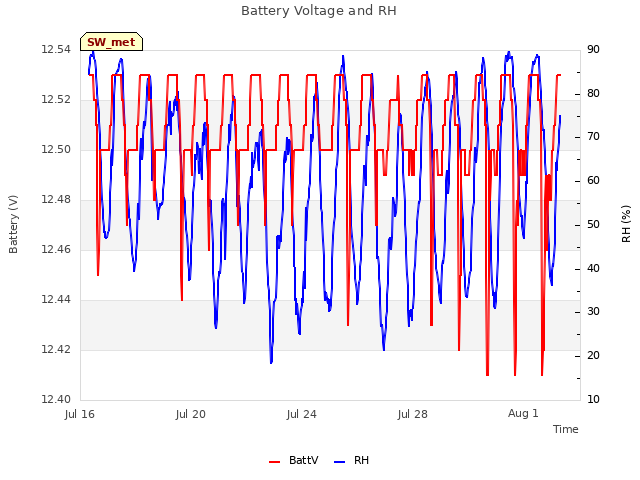

Explore the graph:Battery Voltage and RH in a new window

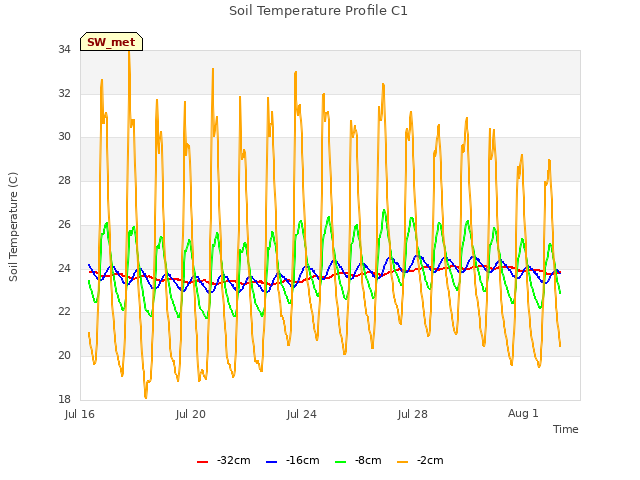

Explore the graph:Soil Temperature Profile C1 in a new window

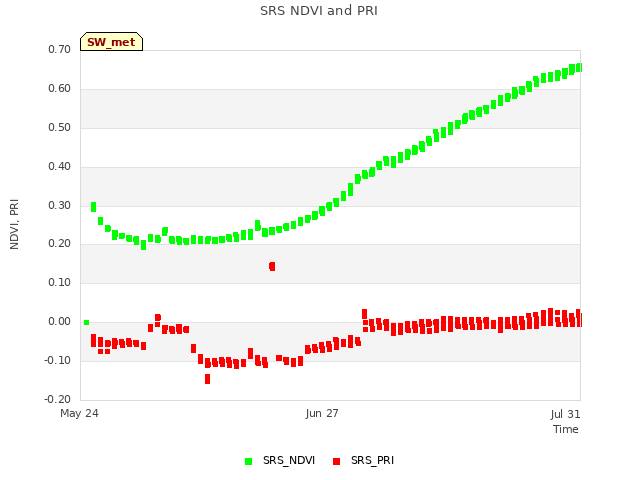

Explore the graph:SRS NDVI and PRI in a new window

4 SW_flux graphs found

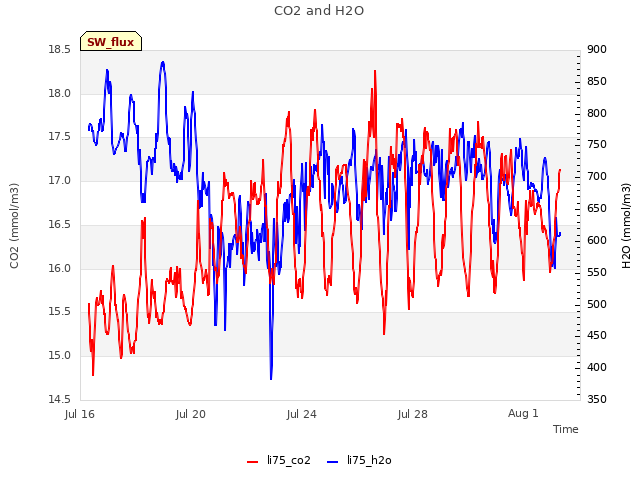

Explore the graph:CO2 and H2O in a new window

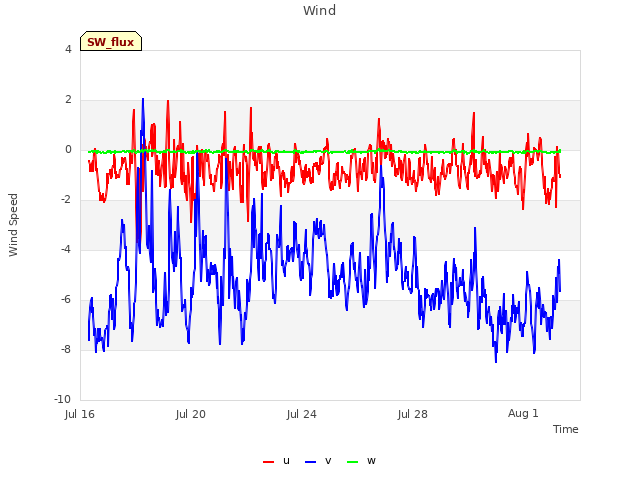

Explore the graph:Wind in a new window

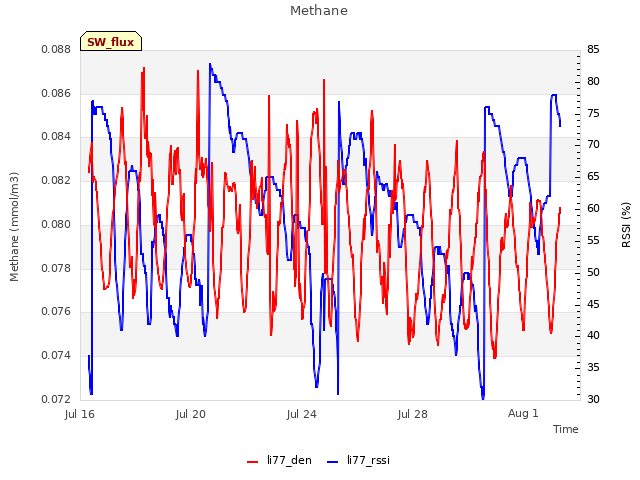

Explore the graph:Methane in a new window

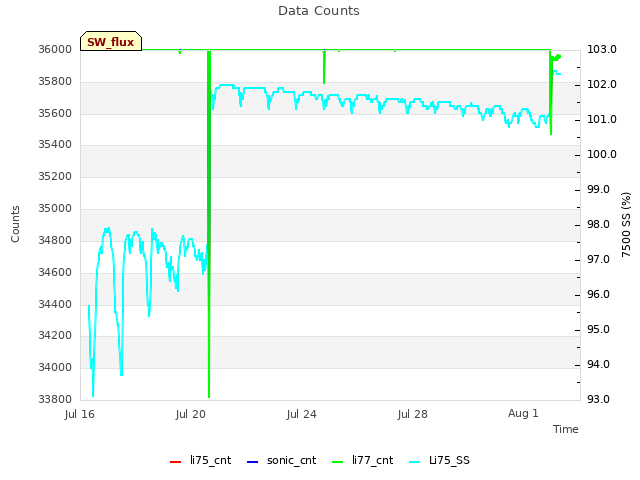

Explore the graph:Data Counts in a new window

Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found

Explore the graph:Temperatures in a new window

Explore the graph:CO2 and H2O in a new window

Explore the graph:Wind in a new window

Explore the graph:Methane in a new window

Explore the graph:Data Counts in a new window

Explore the graph:Temperature Profile A in a new window

Explore the graph:Temperature Profile B in a new window

Explore the graph:Temperature Profile C in a new window

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Four-channel radiometer in a new window

Explore the graph:NDVI Channels in a new window

Explore the graph:PAR in a new window

Explore the graph:Air Pressure and Water Level in a new window

Explore the graph:Air T and RH in a new window

No data found for SW_arable.
