East End: 2016-07-20 13:20:00 (DOY 202)
Author: Alison Haddad
Others: Elke Eichelmann, Kyle Hemes

Summary: Camera program wasn’t running, changed LI7700 thermocouple, regular data collection

Arrived 13:20. Sunny, hot, slight breeze. Water level looks normal. Tule is very green and thick. Lots of otter poop on boardwalk and scaffold.

Methane wash water reservoir filled, was nearly full. Collected USB GHG data, collected met data from CR1000. Collected camera data. Only 1 picture on the camera; seems like program wasn’t running.

Changed the thermocouple on the LI-7700
We moved the bottom platform on the scaffold up a level to hopefully prevent it from being covered in more otter poop.

LI7500 readings
CO2 386.6
H2O 689.6
T 28.79
P 101.53
ss 95.2 -> 97 after cleaning
LI770 readings
CH4 65.5 -> 1.97 after changing LI7700 thermocouple
rssi 46 -> 73 after cleaning

left: 13:40.

0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

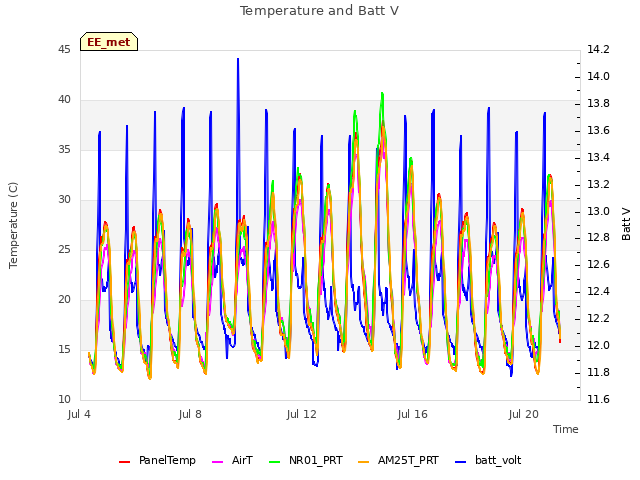

Explore the graph:Temperature and Batt V in a new window

Explore the graph:Soil Moisture and Well Pressure in a new window

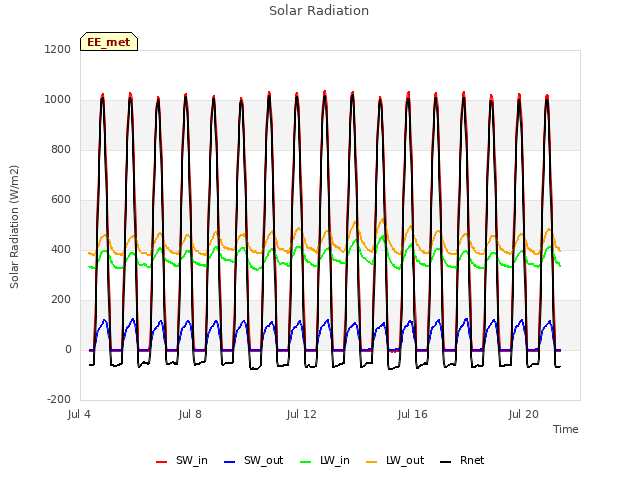

Explore the graph:Solar Radiation in a new window

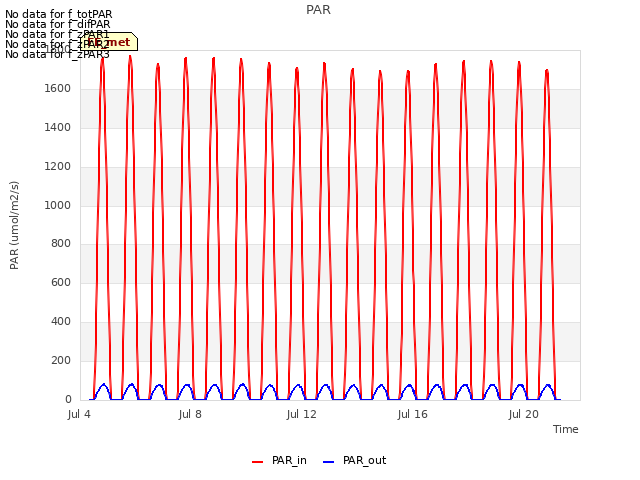

Explore the graph:PAR in a new window

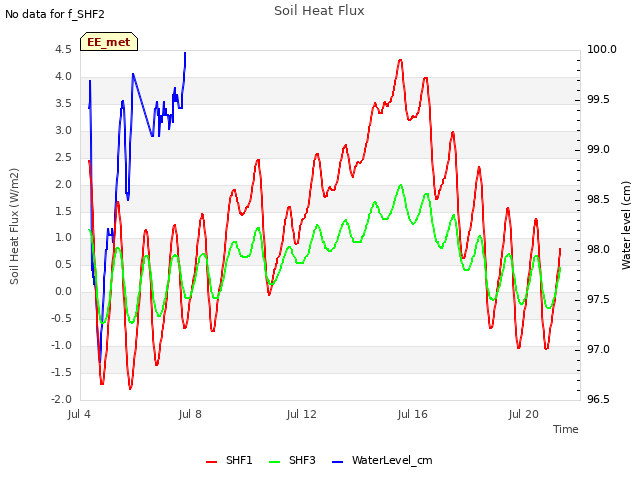

Explore the graph:Soil Heat Flux in a new window

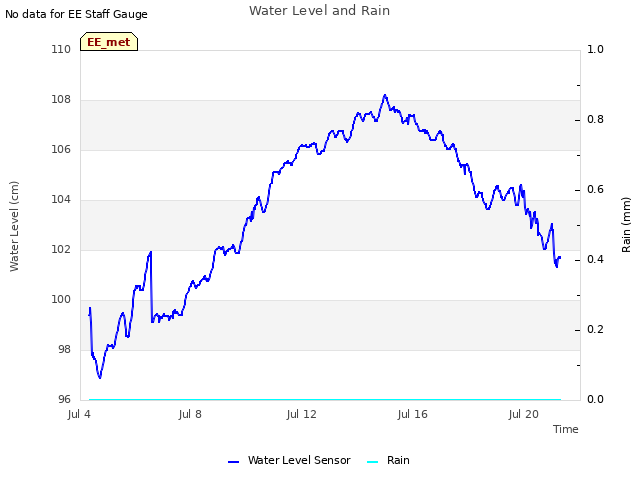

Explore the graph:Water Level and Rain in a new window

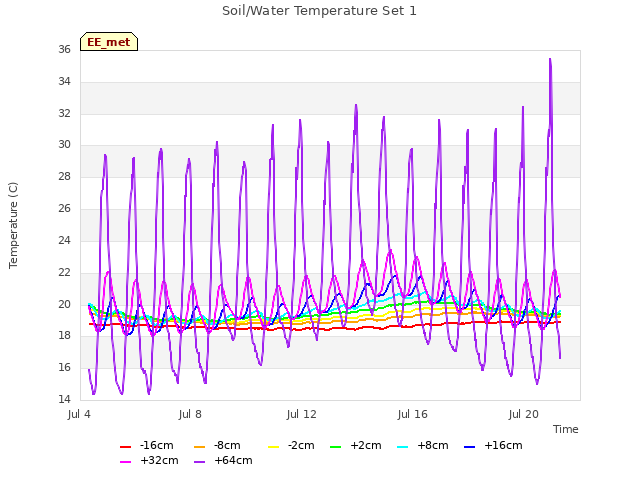

Explore the graph:Soil/Water Temperature Set 1 in a new window

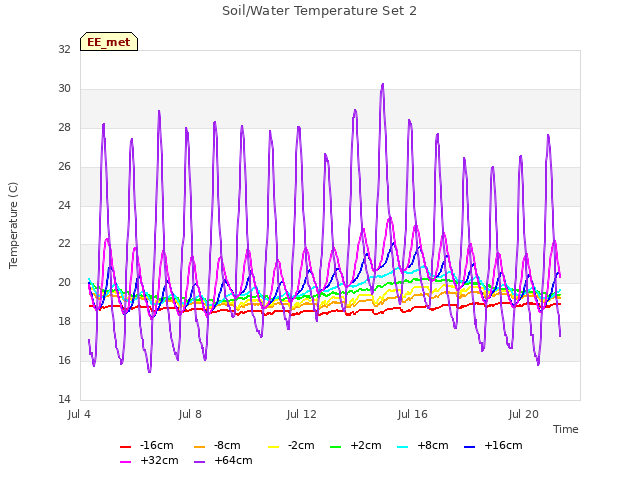

Explore the graph:Soil/Water Temperature Set 2 in a new window

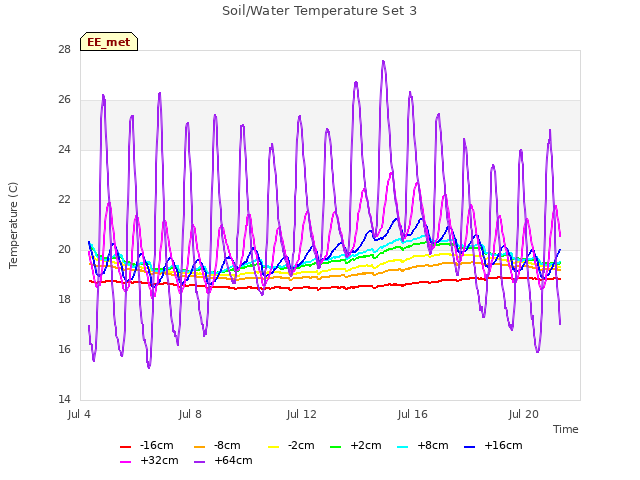

Explore the graph:Soil/Water Temperature Set 3 in a new window

Explore the graph:Dissolved Oxygen and Wind Speed in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:Apogee NDVI in a new window

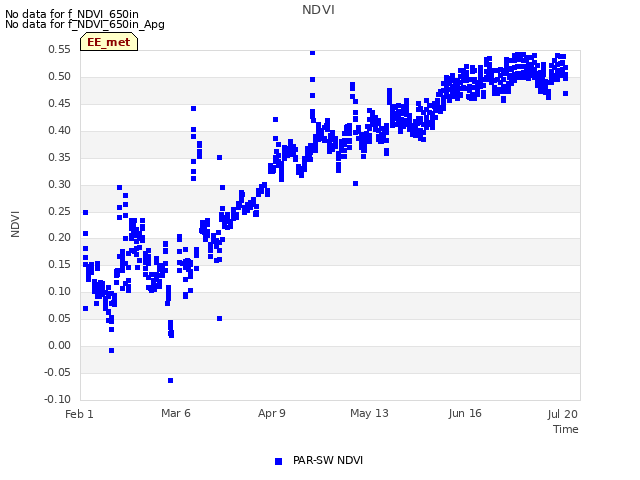

Explore the graph:NDVI in a new window

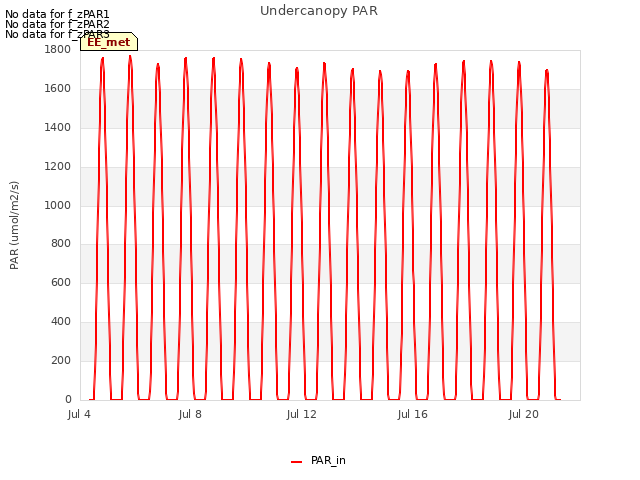

Explore the graph:Undercanopy PAR in a new window

Can't check EE_mixed
1 EE_mixed graphs found

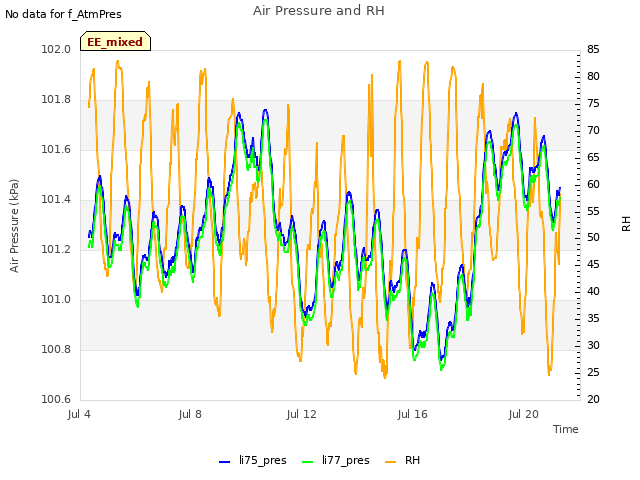

Explore the graph:Air Pressure and RH in a new window

8 EE_flux graphs found

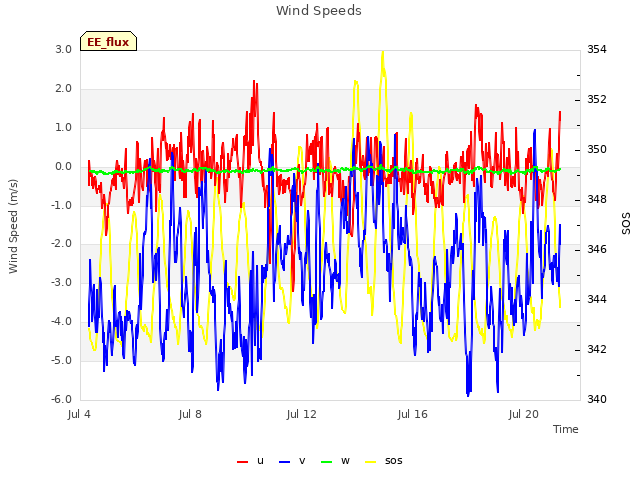

Explore the graph:Wind Speeds in a new window

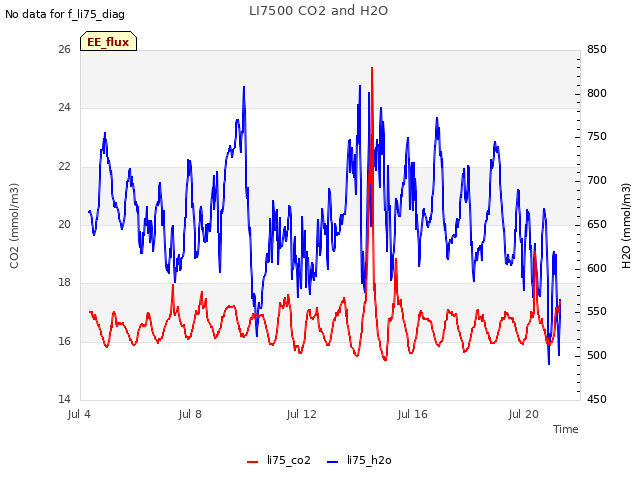

Explore the graph:LI7500 CO2 and H2O in a new window

Explore the graph:LI7700 CH4 and RSSI in a new window

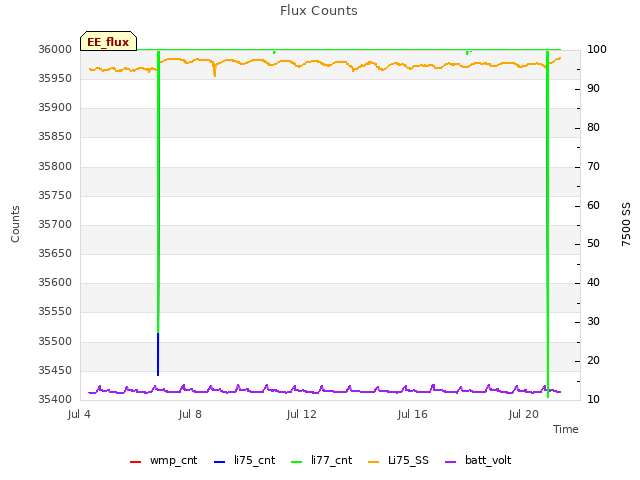

Explore the graph:Flux Counts in a new window

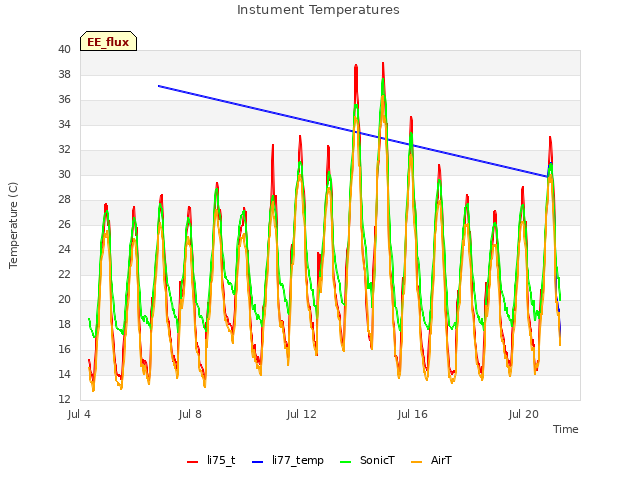

Explore the graph:Instument Temperatures in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Explore the graph:Temp Tower 3 (Mixed Veg) in a new window

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

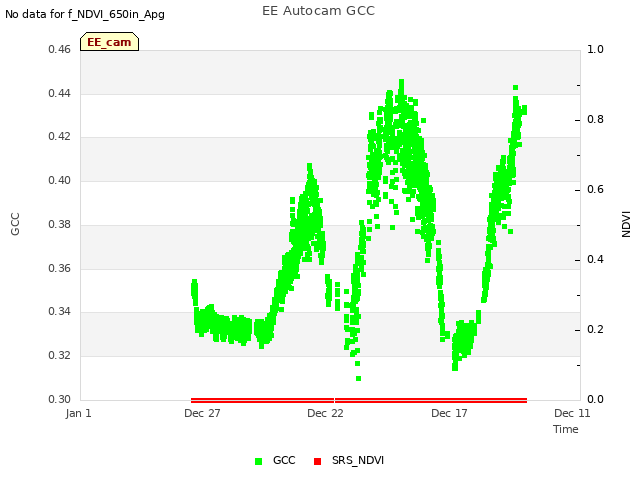

Explore the graph:EE Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

Explore the graph:Sonic SOS in a new window

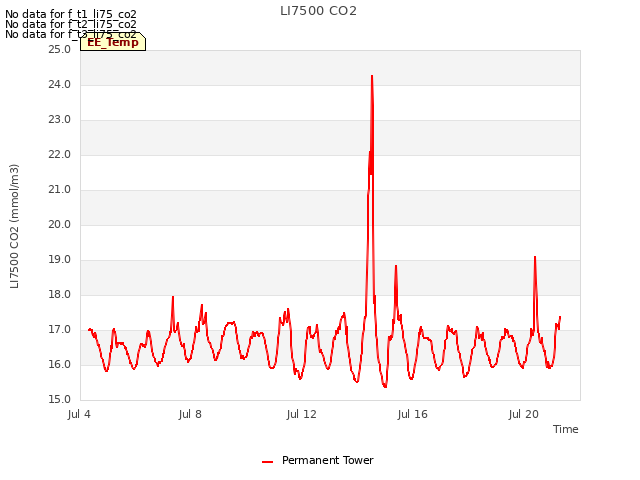

Explore the graph:LI7500 CO2 in a new window

Explore the graph:Water Level in a new window

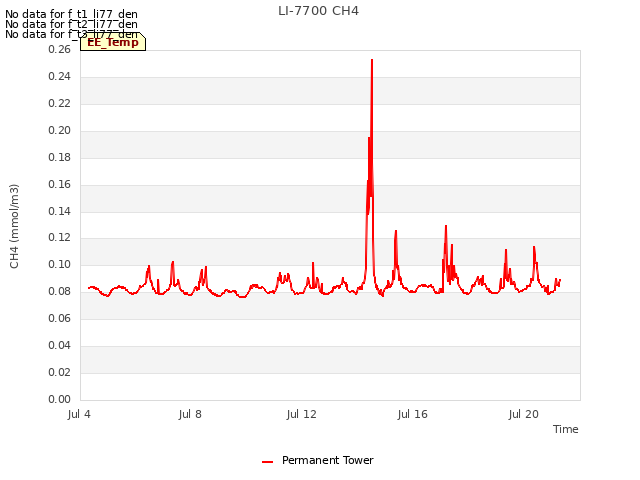

Explore the graph:LI-7700 CH4 in a new window

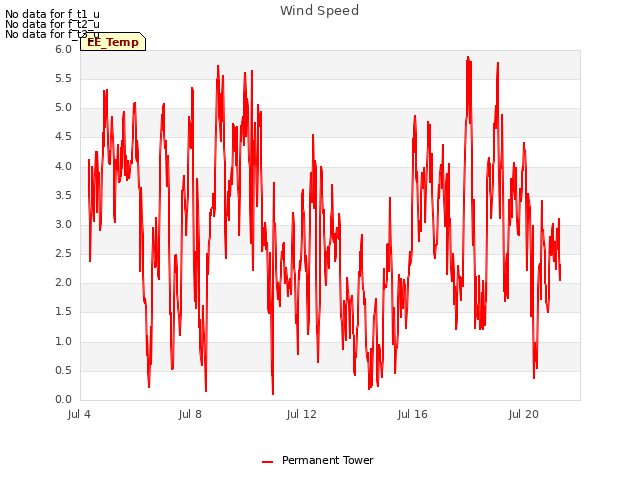

Explore the graph:Wind Speed in a new window

Can't check EE_minidot
1 EE_minidot graphs found

Explore the graph:EE miniDOT Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

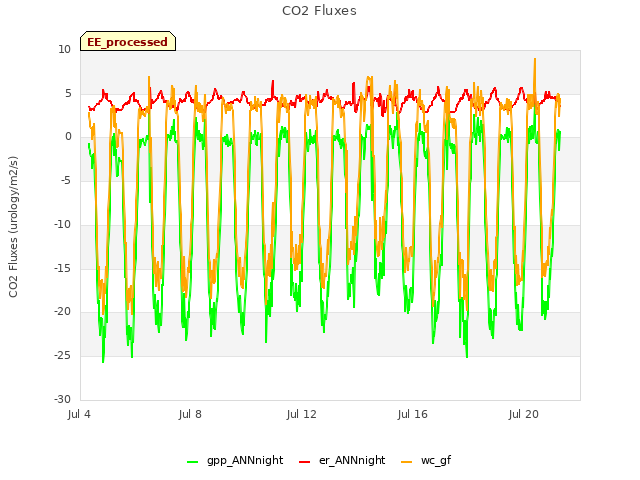

Explore the graph:CO2 Fluxes in a new window
