Mayberry: 2016-07-20 09:55:00 (DOY 202)
Author: Alison Haddad
Others: Elke Eichelmann, Kyle Hemes

Summary: Swapped 7500 for calibration, serviced water sensors, measured water depth at water sensors.

Arrived 9:55:00. Clear, warm, sunny, windy. Wetland looks very brown. Water level is normal to high.

Methane wash water reservoir filled, was about 2/3 full. Collected USB GHG data, collected met data from 23X, collected camera data. DO_SUR and ST16_TUL1 both read –INF. All other met data looks good.
Checked on top DO sensor in the water since it had been giving readings of zero, showing non-zero readings now.

Measured the water depth at water level sensor (right next to the tower): 64cm
Serviced the water sensors.

Swapped 7500 for calibration. Sn 75H-2182 down, sn 75H-2669 up. Initially forgot to calibrate pressure so there may be a few weird values in the data.

LI7500 75H-2182 readings
CO2 387.14
H2O 693.3
T 21.35
P 101.70
ss 82.04
LI7500 75H-2669 readings
CO2 399.9
H20 603.3
T 21.8
P 101.6
ss 102.34
LI7700 readings
CH4 1.97
rssi 38.5 -> 73 after cleaning

left: 10:40

0 photos found

Graphs display:
11 sets found

7 MB_flux graphs found

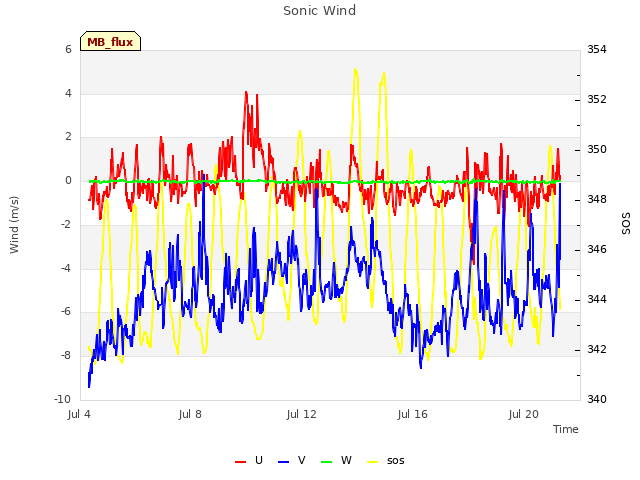

Explore the graph:Sonic Wind in a new window

Explore the graph:LI7700 mV signals in a new window

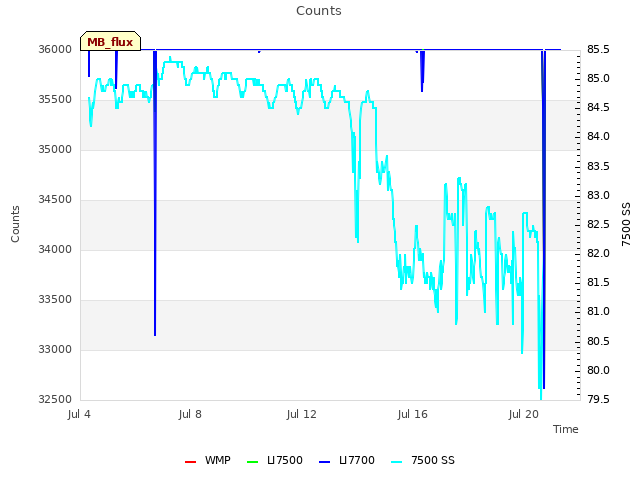

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 from analog signal in a new window

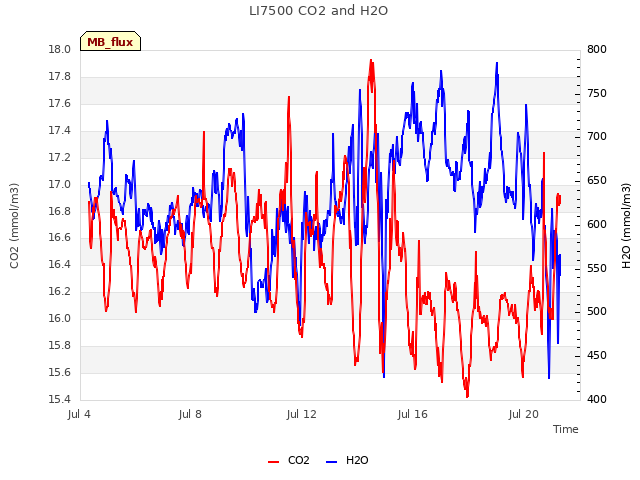

Explore the graph:LI7500 CO2 and H2O in a new window

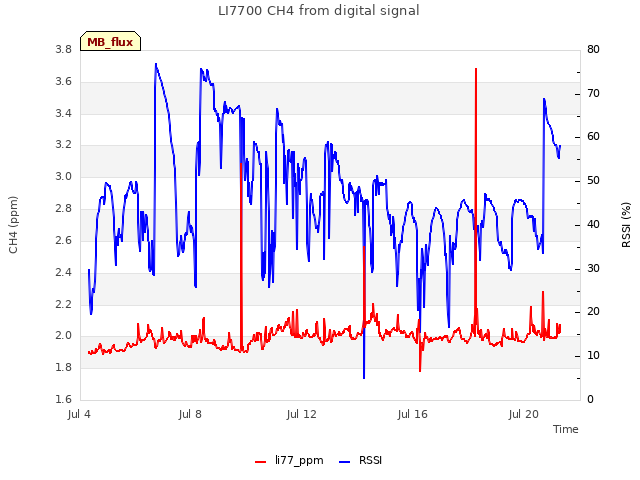

Explore the graph:LI7700 CH4 from digital signal in a new window

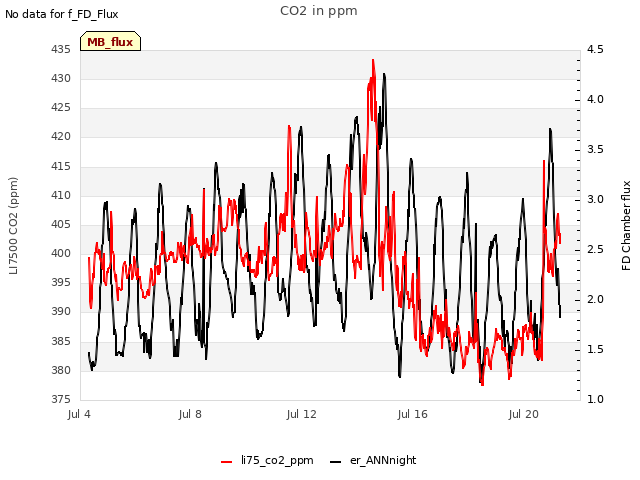

Explore the graph:CO2 in ppm in a new window

No data found for MB_met.
27 MB_tule graphs found

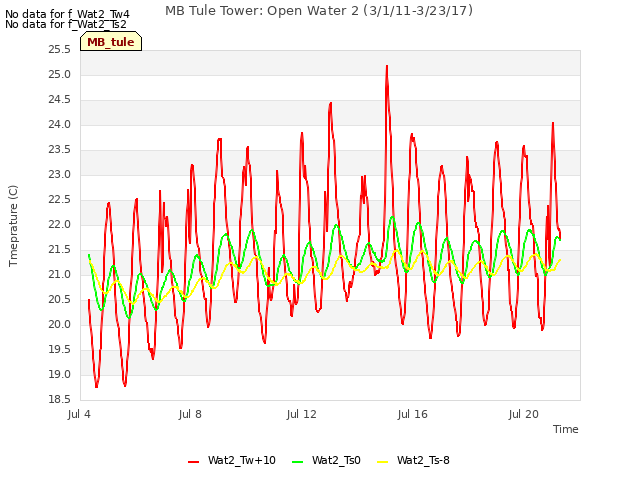

Explore the graph:MB Tule Tower: Open Water 2 (3/1/11-3/23/17) in a new window

Explore the graph:MB Tule Tower: Open Water 1 (3/1/11-2/21/13) in a new window

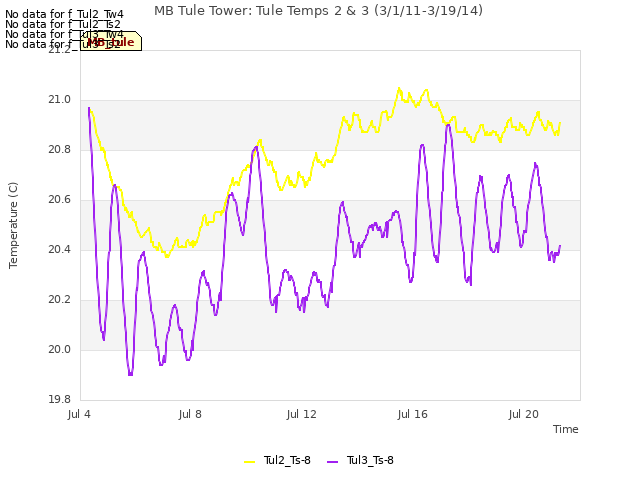

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14) in a new window

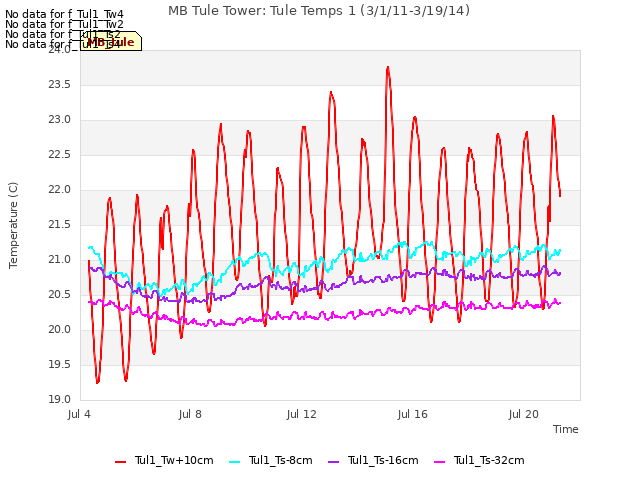

Explore the graph:MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14) in a new window

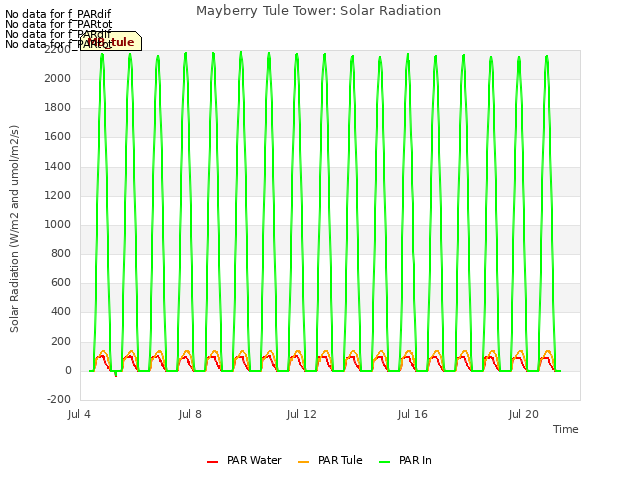

Explore the graph:Mayberry Tule Tower: Solar Radiation in a new window

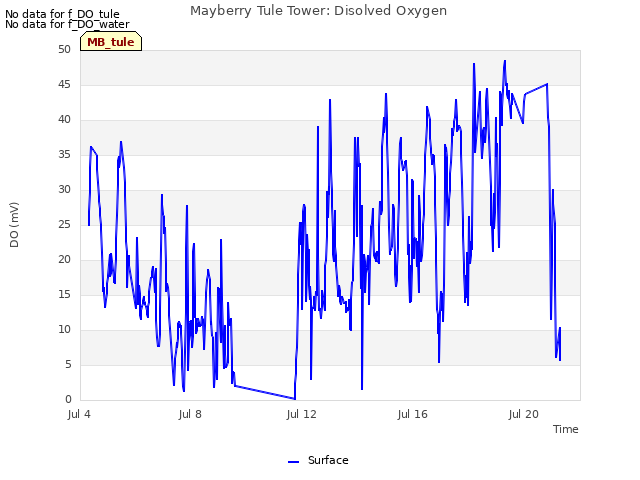

Explore the graph:Mayberry Tule Tower: Disolved Oxygen in a new window

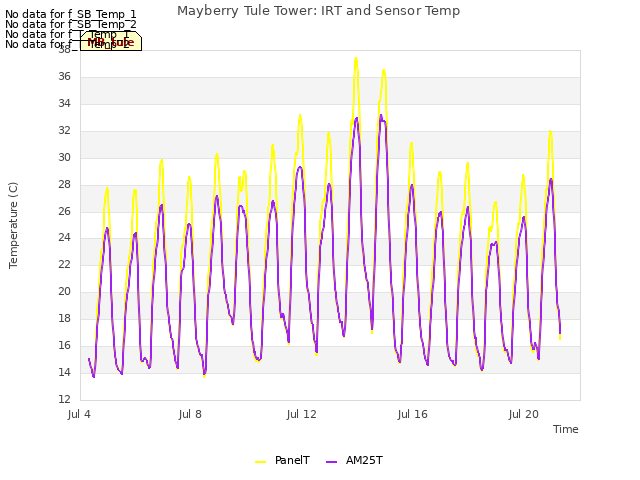

Explore the graph:Mayberry Tule Tower: IRT and Sensor Temp in a new window

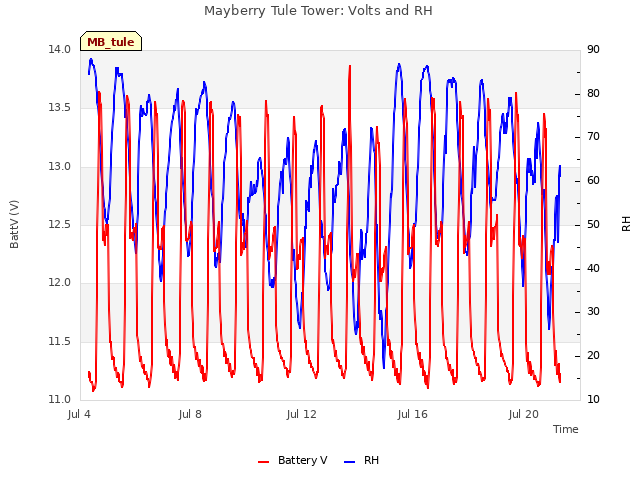

Explore the graph:Mayberry Tule Tower: Volts and RH in a new window

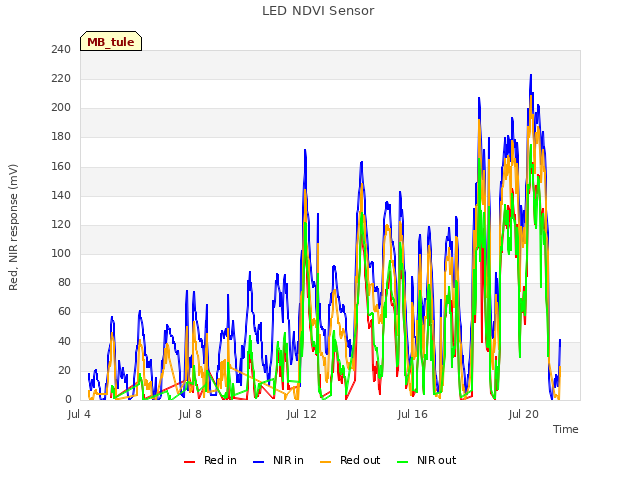

Explore the graph:LED NDVI Sensor in a new window

Explore the graph:Water CO2 in a new window

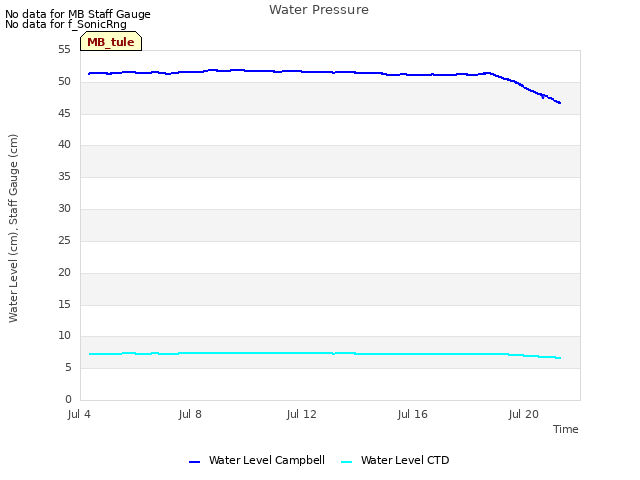

Explore the graph:Water Pressure in a new window

Explore the graph:Fluorometer Data in a new window

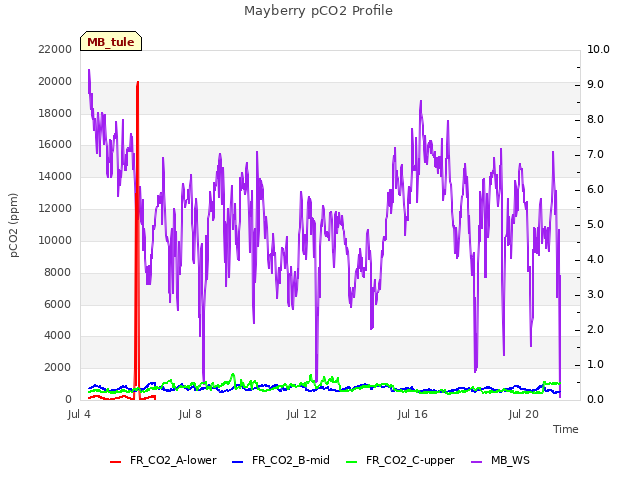

Explore the graph:Mayberry pCO2 Profile in a new window

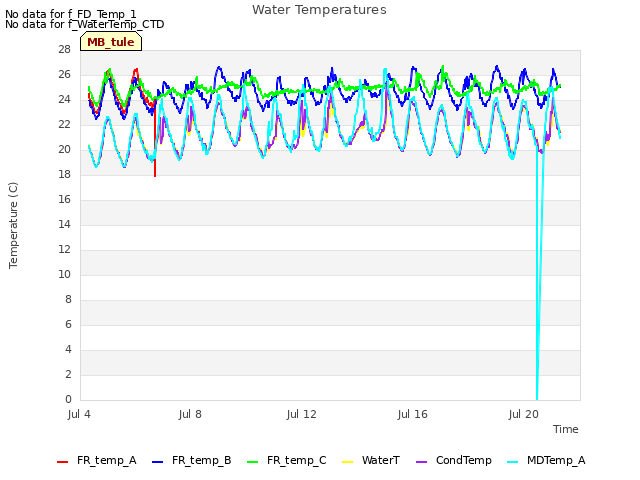

Explore the graph:Water Temperatures in a new window

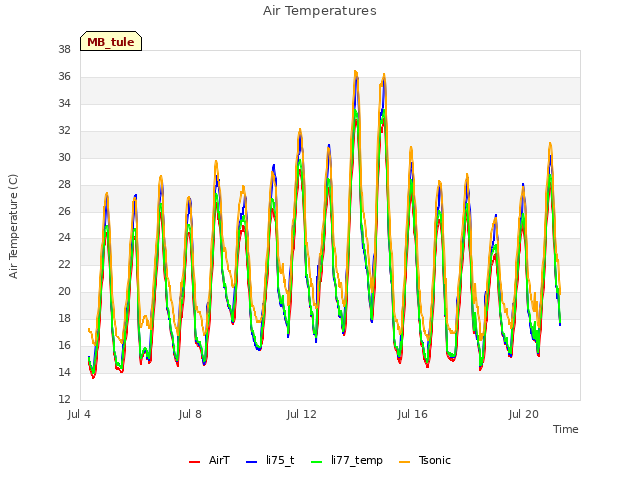

Explore the graph:Air Temperatures in a new window

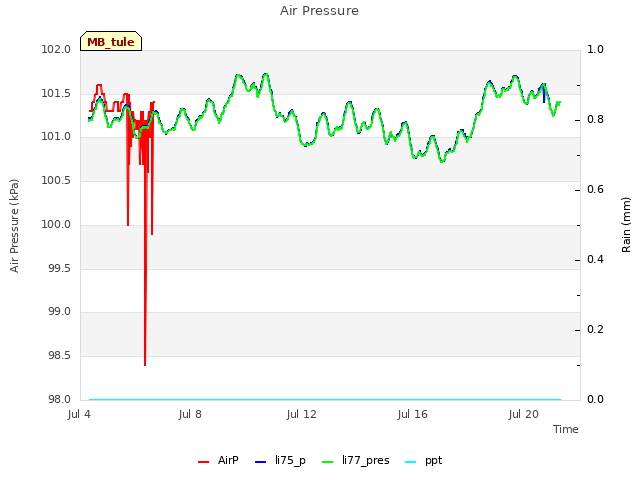

Explore the graph:Air Pressure in a new window

Explore the graph:4-Way Radiometer in a new window

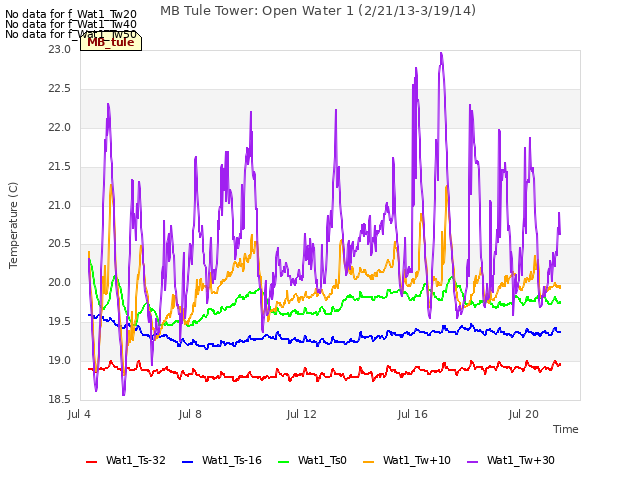

Explore the graph:MB Tule Tower: Open Water 1 (2/21/13-3/19/14) in a new window

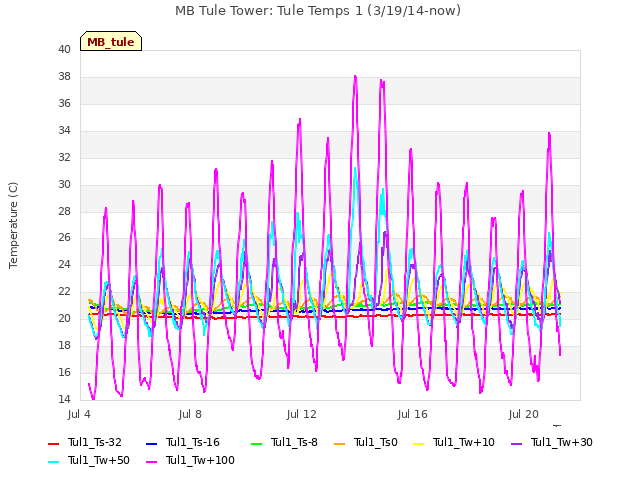

Explore the graph:MB Tule Tower: Tule Temps 1 (3/19/14-now) in a new window

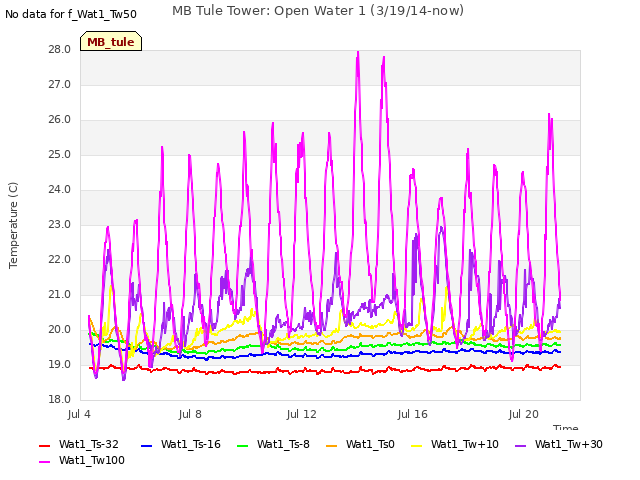

Explore the graph:MB Tule Tower: Open Water 1 (3/19/14-now) in a new window

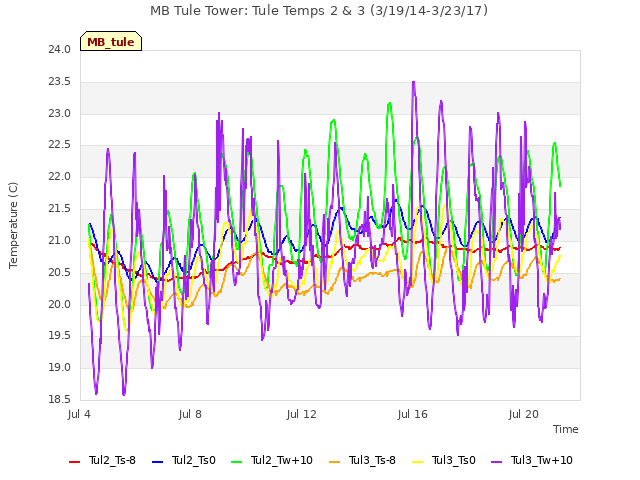

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17) in a new window

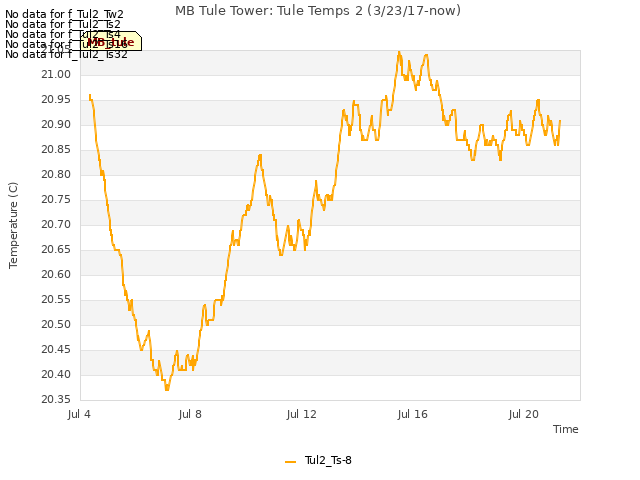

Explore the graph:MB Tule Tower: Tule Temps 2 (3/23/17-now) in a new window

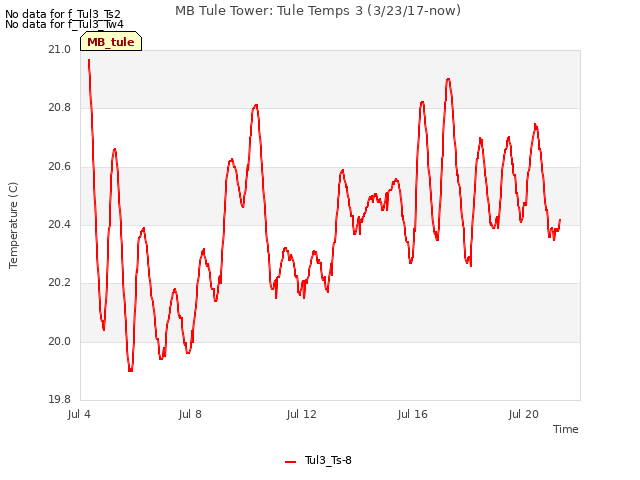

Explore the graph:MB Tule Tower: Tule Temps 3 (3/23/17-now) in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:SRS NDVI in a new window

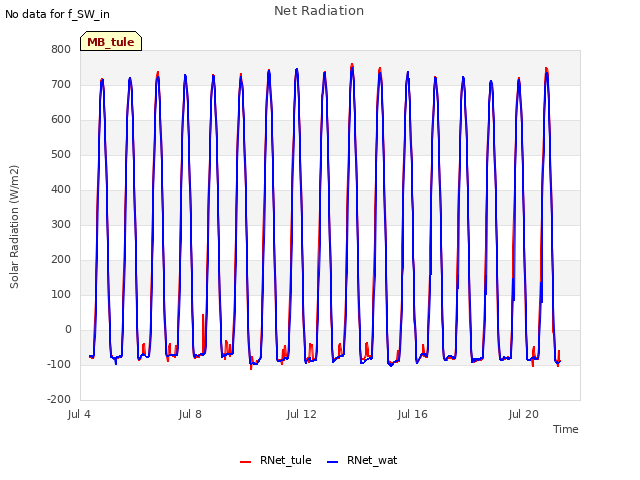

Explore the graph:Net Radiation in a new window

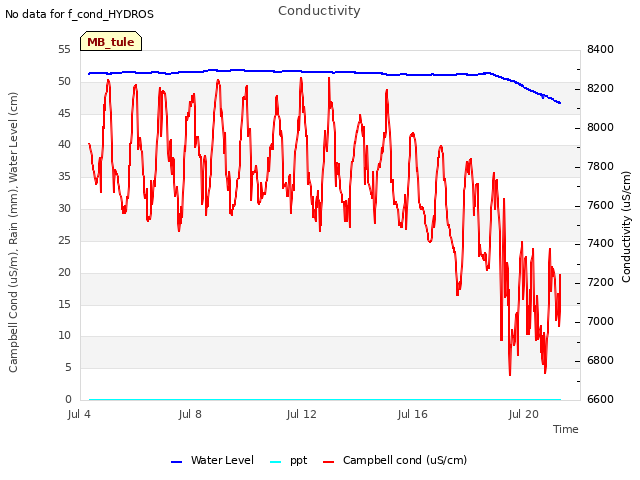

Explore the graph:Conductivity in a new window

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

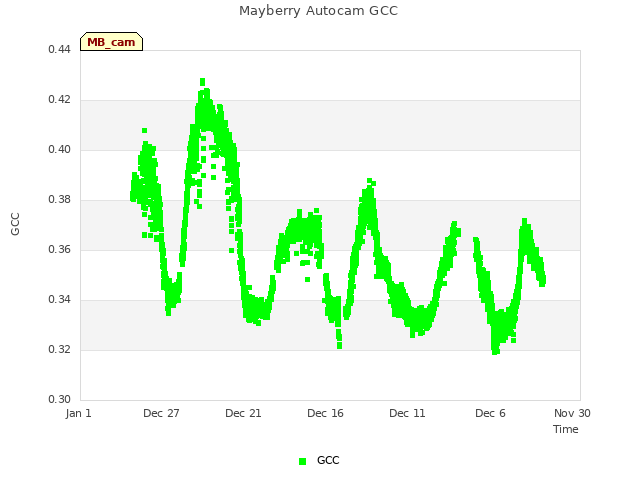

Explore the graph:Mayberry Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
1 MB_minidot graphs found

Explore the graph:Mayberry miniDot Dissolved Oxygen in a new window

Can't check MBSWEEWPBCBA
1 MB_processed graphs found

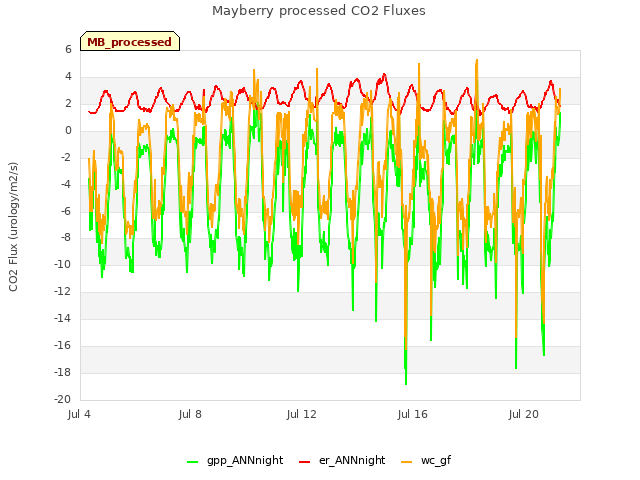

Explore the graph:Mayberry processed CO2 Fluxes in a new window
