Sherman Wetland: 2016-07-20 09:15:00 (DOY 202)
Author: Alison Haddad
Others: Elke Eichelmann, Kyle Hemes
Summary: Locked up solar battery box and charge controller, regular data collection.
| Arrived 9:15. Warm, sunny, windy, clear sky. Field is still very dry. Boardwalk looks complete. Methane wash water reservoir filled, was nearly full. Collected USB GHG data, collected met data from CR1000, collected camera data. Removed CF card “SW†and replaced with new CF card “SWâ€. Depending on how high flooding is, we may need to move the Li-cor boxes. The bottom of the methane wash water reservoir box is ~4 feet off the ground and the bottom of the meteorological data box is ~5.5 feet off the ground. Both are completely or partially below the boardwalk. Removed the extra scaffold platform and moved it to Twitchell Rice as a boardwalk. LI7500 data CO2 380.12 H2O 722.9 T 21.60 P 101.75 ss 97.65 -> 101.9 after cleaning LI7700 data CH4 1.93 rssi 47.7 -> 83 after cleaning left 9:45 |
0 photos found
7 sets found
Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam

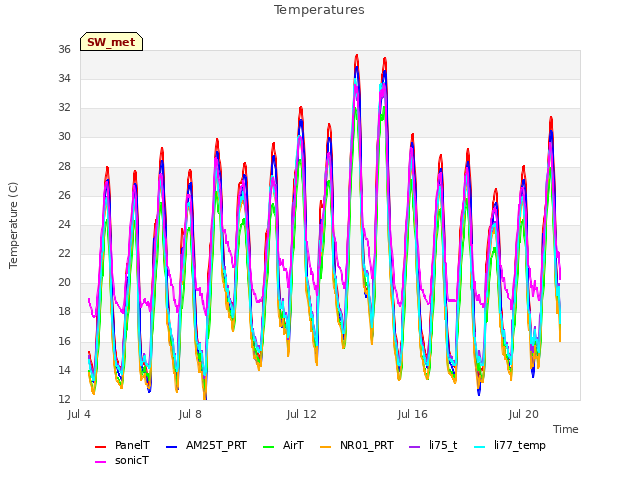

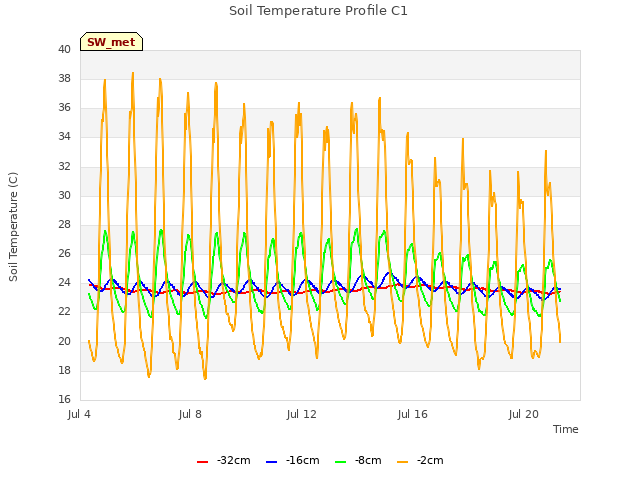

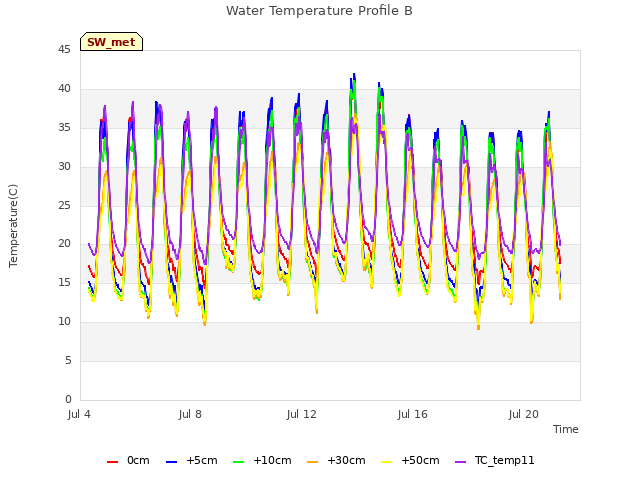

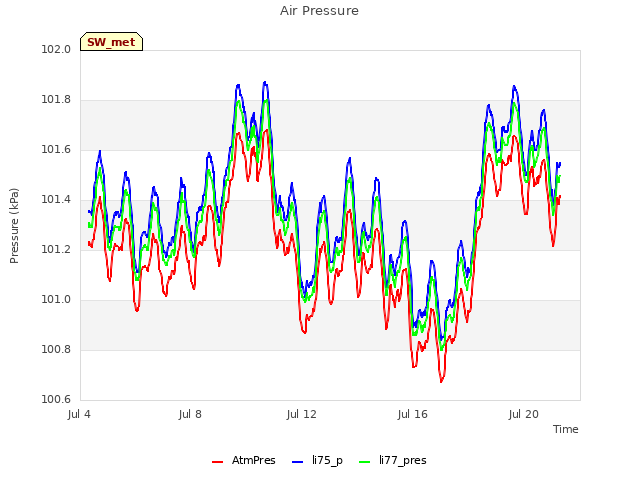

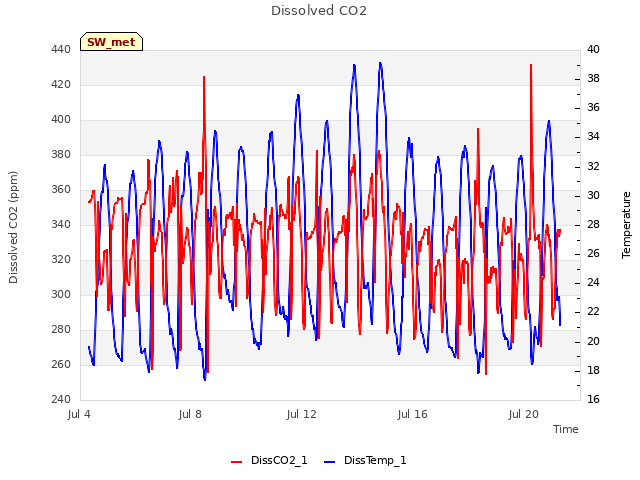

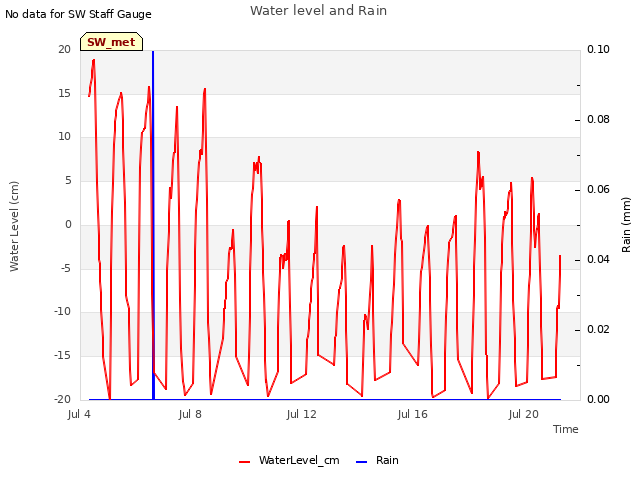

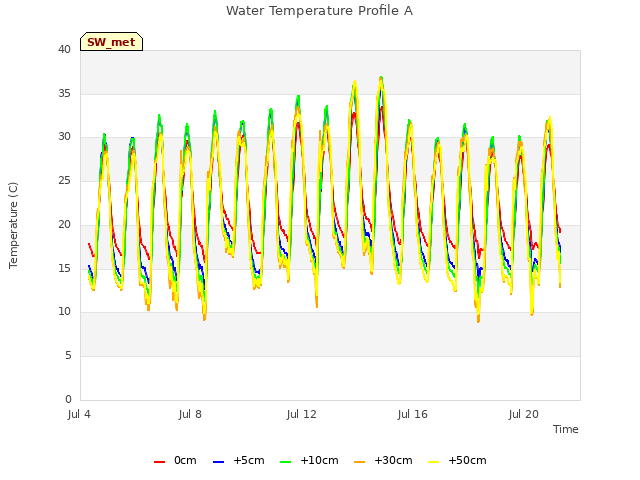

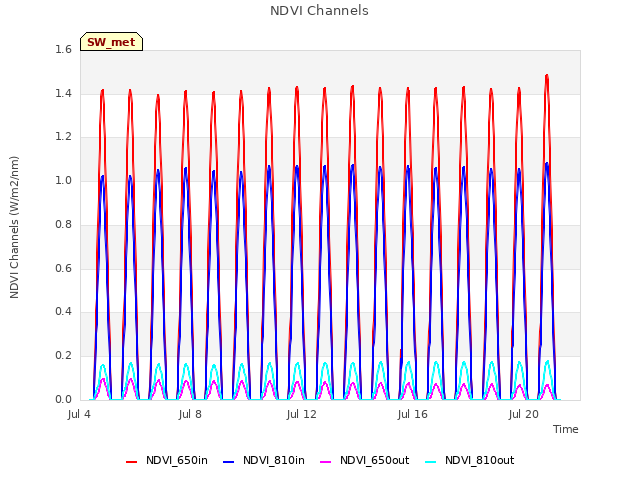

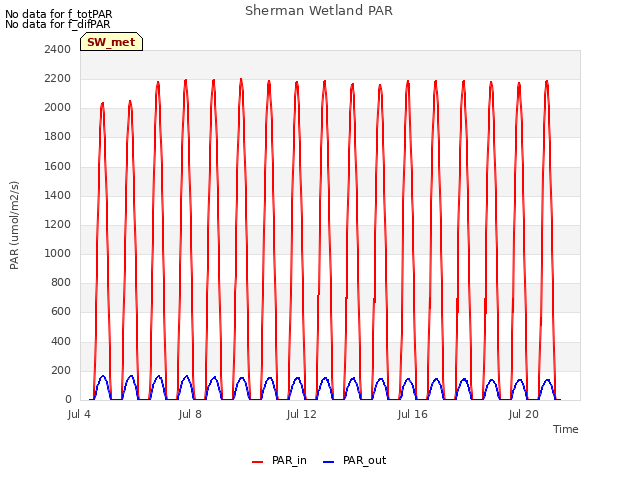

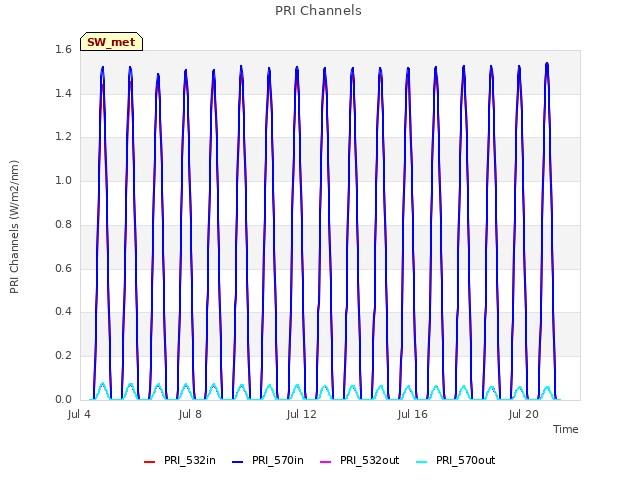

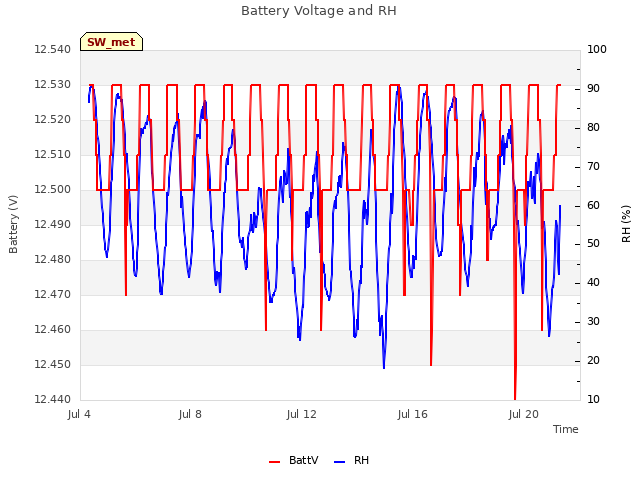

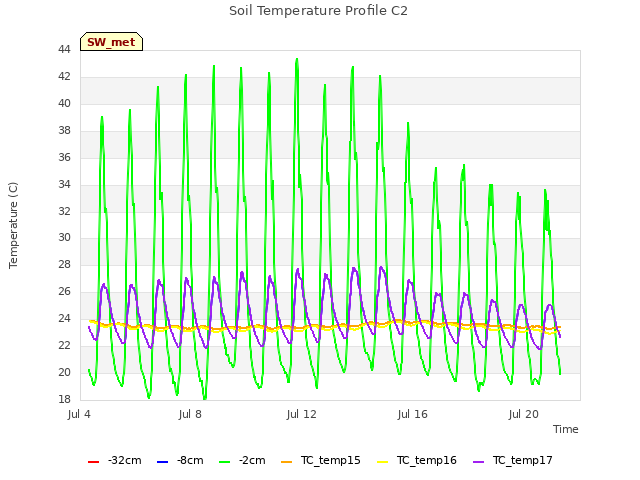

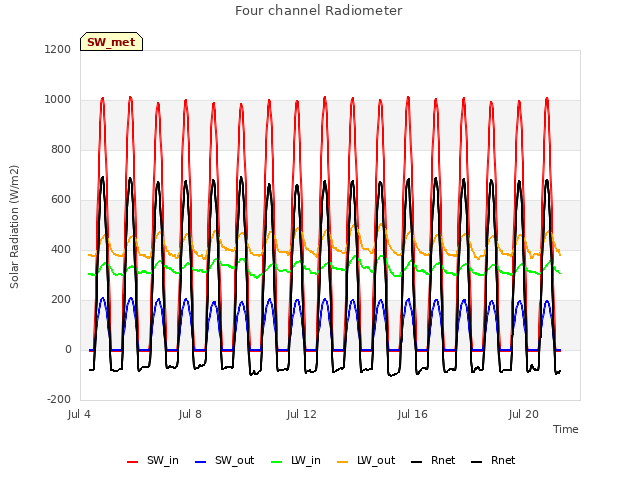

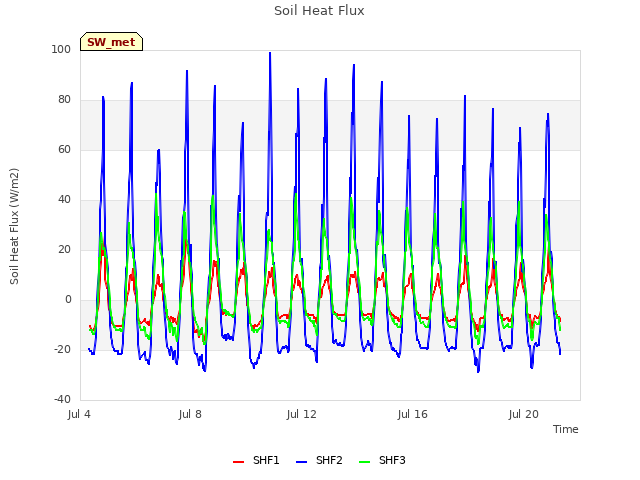

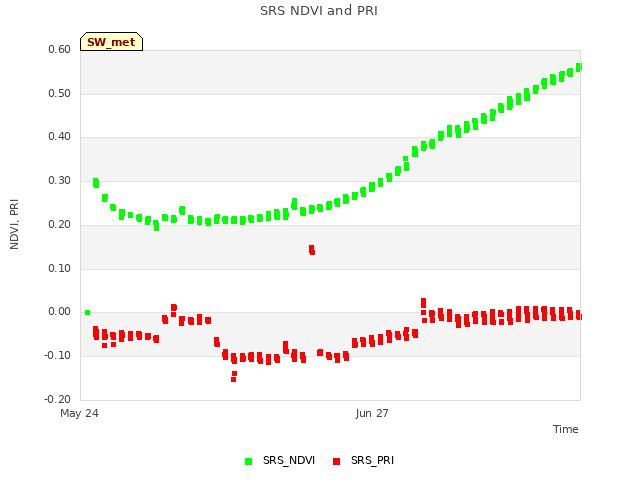

15 SW_met graphs found

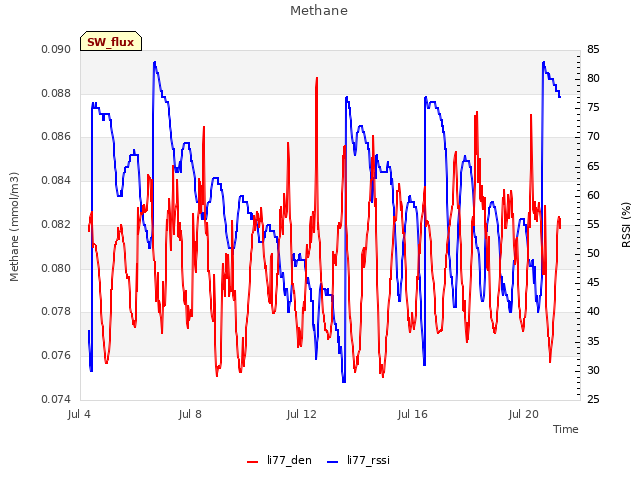

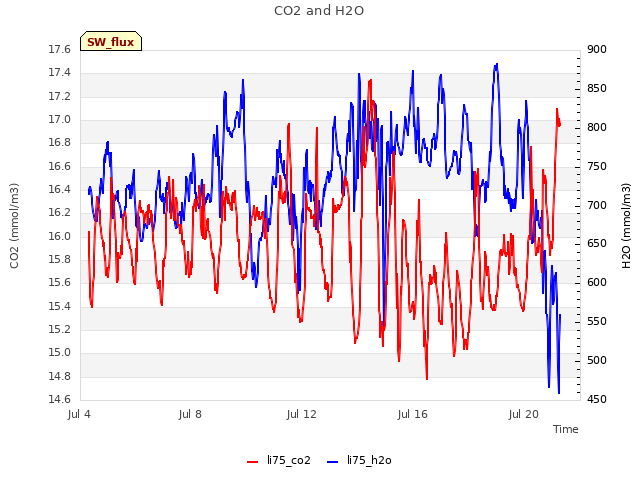

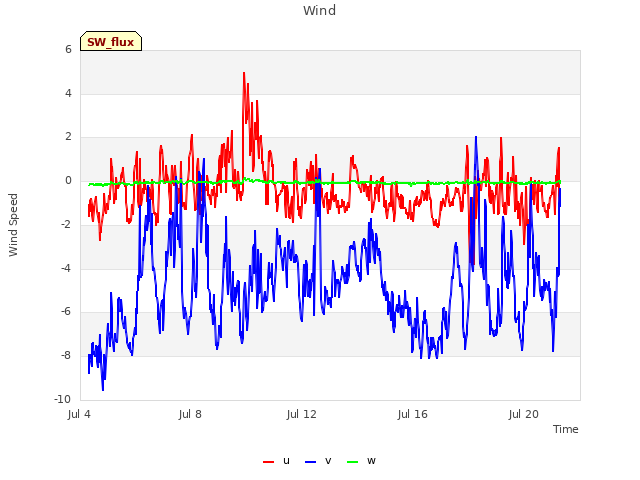

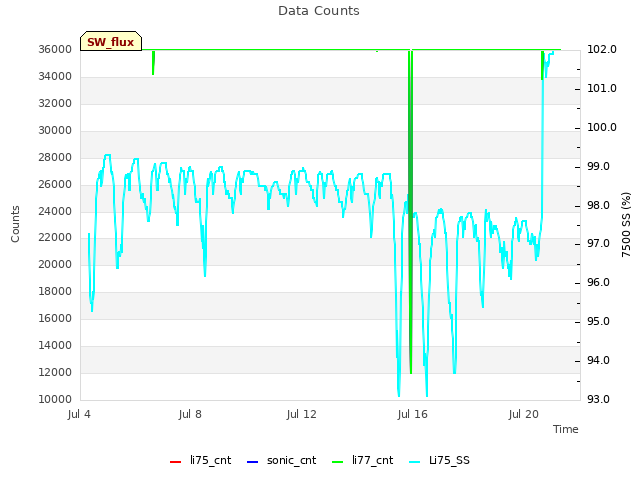

4 SW_flux graphs found
Can't check MBSWEEWPBCBA
Can't check SW_Temp
14 SW_Temp graphs found
No data found for SW_arable.
