Vaira: 2016-04-05 10:30:00 (DOY 96)
Author: Joe Verfaillie
Others: Siyan, Robert Grant

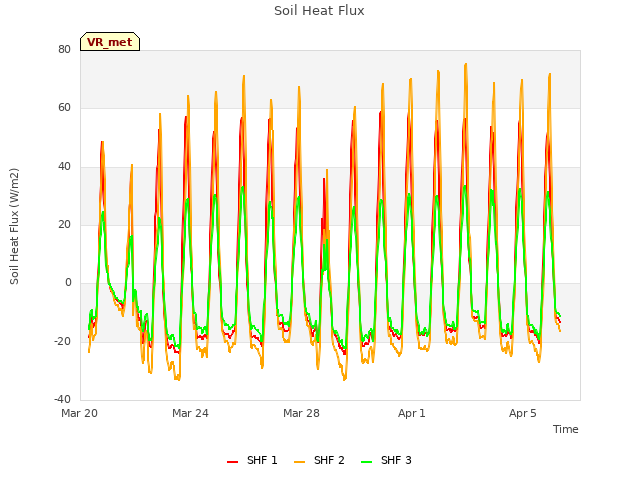

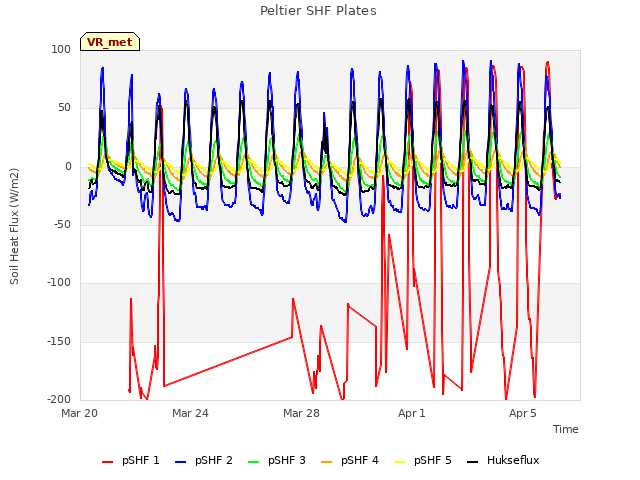

Summary: Replaced Peltier SHF plate one, replace BF3 desiccant

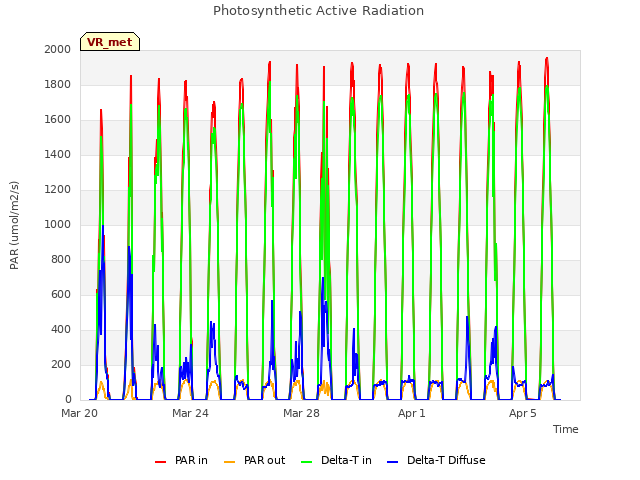

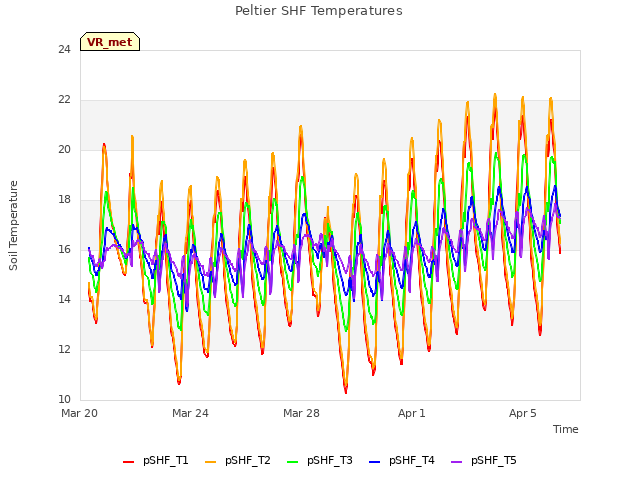

Vaira 2016-04-05 I arrived about 10:30 with Siyan and Robert Grant. It was clear, sunny and warm. The puddles in the road are almost completely dry, but the water hole is still full to the brim. Everything is very green. The grass is not as tall as I expected. I reinstalled Peltier SHF plate one sn P01 at -2cm. The surface soil was dry. I replaced the desiccant in the BF3 diffuse PAR sensor sn 26/8. It had a little bit of condensation in the dome. I forgot my notes so could not change the time on the Raspberry Pi. I cleaned the radiometers.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2016-04-05	TZ_floor	24.15
2016-04-05	TZ_road	27.15
2016-04-05	TZ_tower	31.1

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_2_1 [8] => Soil_Transect_1_1 [9] => SoilCO2_West_A_1 [10] => SoilCO2_West_B_1 [11] => SoilCO2_West_C_1 [12] => Tower_2 [13] => Floor_South_2 [14] => Floor_East_2 [15] => Floor_West_2 [16] => SoilCO2_2 [17] => Soil_Transect_4_2 [18] => Soil_Transect_3_2 [19] => Soil_Transect_2_2 [20] => Soil_Transect_1_2 [21] => SoilCO2_West_A_2 [22] => SoilCO2_West_B_2 [23] => SoilCO2_West_C_2 [24] => Tower_3 [25] => Floor_South_3 [26] => Floor_East_3 [27] => Floor_West_3 [28] => SoilCO2_3 [29] => Soil_Transect_4_3 [30] => Soil_Transect_3_3 [31] => Soil_Transect_2_3 [32] => Soil_Transect_1_3 [33] => SoilCO2_West_A_3 [34] => SoilCO2_West_B_3 [35] => SoilCO2_West_C_3 [36] => Tower_4 [37] => Floor_South_4 [38] => Floor_East_4 [39] => Floor_West_4 [40] => SoilCO2_4 [41] => Soil_Transect_4_4 [42] => Soil_Transect_3_4 [43] => Soil_Transect_2_4 [44] => Soil_Transect_1_4 [45] => SoilCO2_West_A_4 [46] => SoilCO2_West_B_4 [47] => SoilCO2_West_C_4 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	Avg	Spacial Count	Measurement Count
2016-04-05	96	0	nan	23.5	14.7	39.9	20.3	25	20.9	13.6	16.5	16.8	22	14.7	17.9	37.6	31.9	27.7	31.3	25.8	23.1	25.2	27.1	14.5	23.1	14.8	24.9	36.6	37.7	34.6	39.4	43.3	24.8	27.1	30.7	30.4	32.4	31.5	29	49.5	60.3	54.9	46	42.3	30.5	39.7	47.4	28.2	45.4	48.6	60.3
2016-04-05	96	1	nan	23.8	16.2	39.9	21.2	21.2	20.6	7.4	16.5	15.6	21.6	15.6	17.6	32.3	31.9	28.3	30.4	29.8	22.6	25.5	27.7	14.2	22.8	13.6	24.9	37.7	38.8	34.8	38.8	44.4	23.7	28.5	31.5	30.1	33.5	31.3	22.6	40.8	60.9	53.7	48.3	41.7	30.2	42	47.4	28.2	43.7	49.4	60.9
2016-04-05	96	Avg	0-15cm																																																		0
2016-04-05	96	Avg	15-30cm																																																		0
2016-04-05	96	Avg	30-45cm																																																		0
2016-04-05	96	Avg	45-60cm																																																		0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Avg	Spacial Count	Measurement Count
2016-04-05	96	0	nan	21.2	15	11.8	5.3	15.2	21.8	12.1	13.3	26.5	11.7	17.9	22.9	31.4	24.2	15.9	24.5
2016-04-05	96	1	nan	20.3	14.4	11.5	5.9		21.9	12.7	13.3		11.7	16.8	22.6	29.1	23.9	15.9	23.6
2016-04-05	96	Avg	0-15cm																		0
2016-04-05	96	Avg	15-30cm																		0
2016-04-05	96	Avg	30-45cm																		0
2016-04-05	96	Avg	45-60cm																		0

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display: days

9 sets found

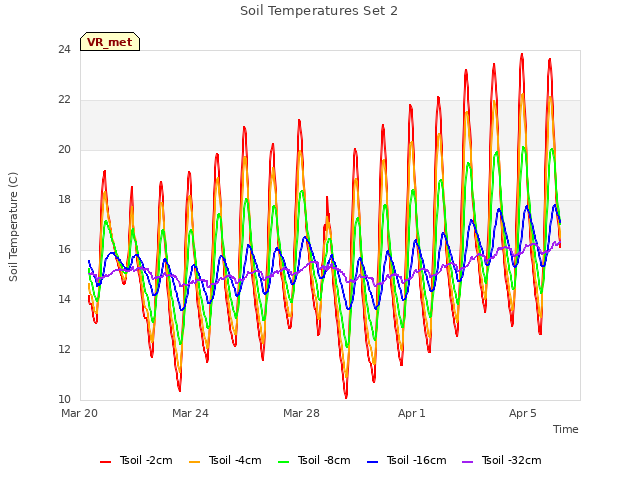

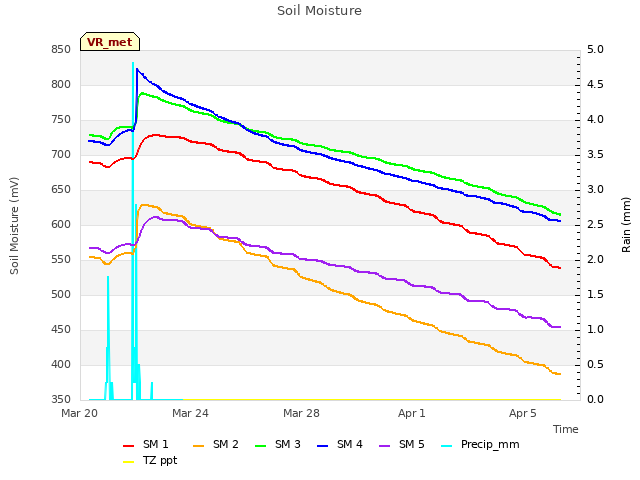

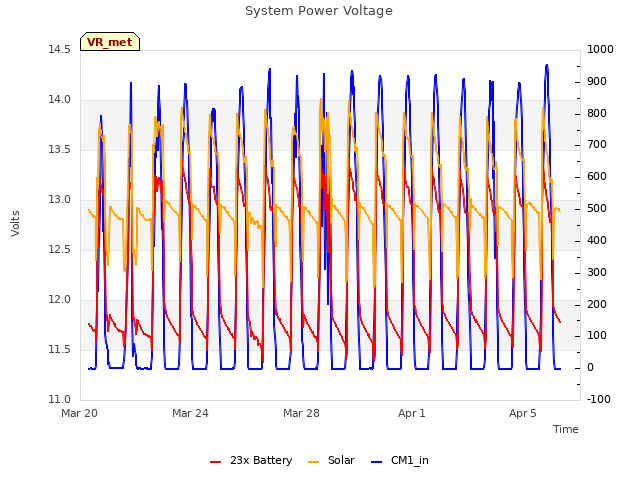

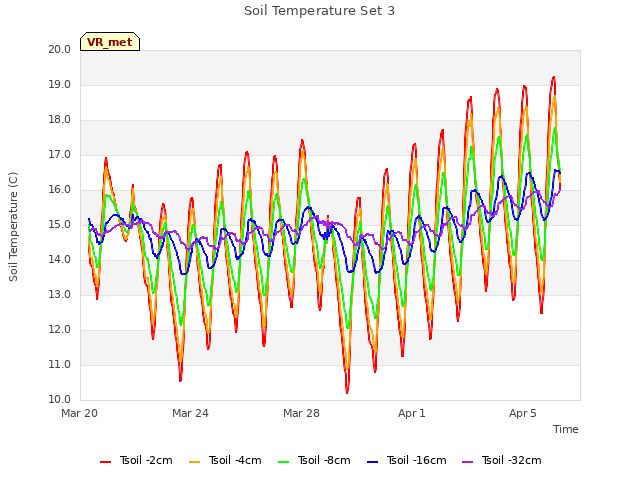

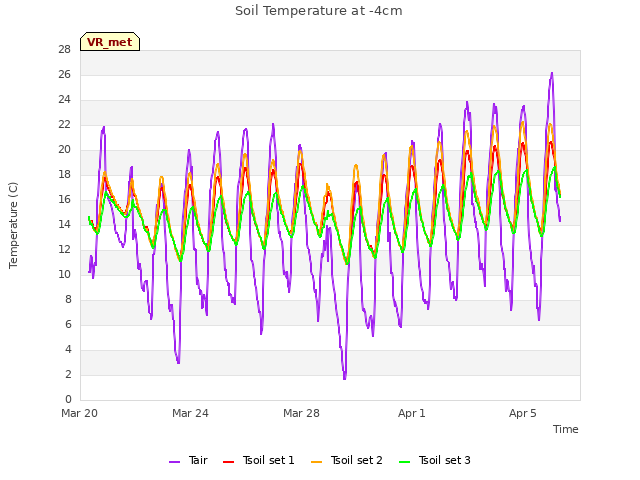

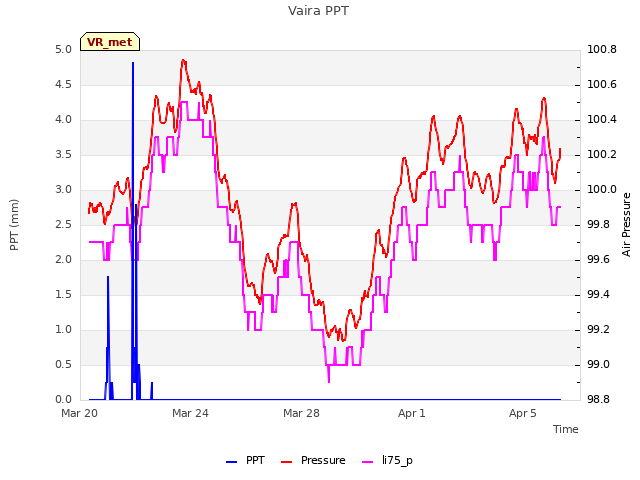

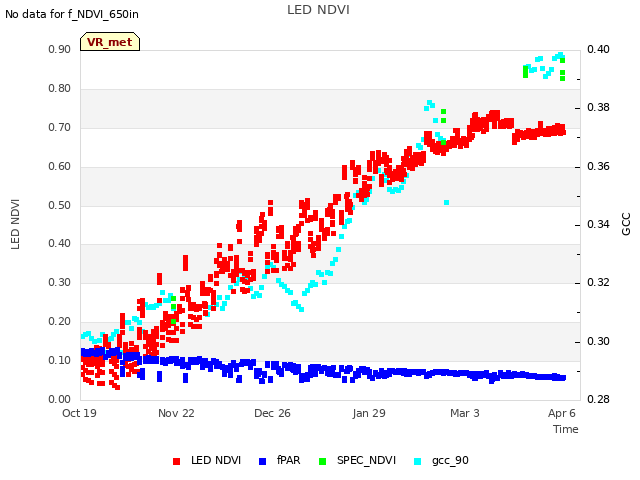

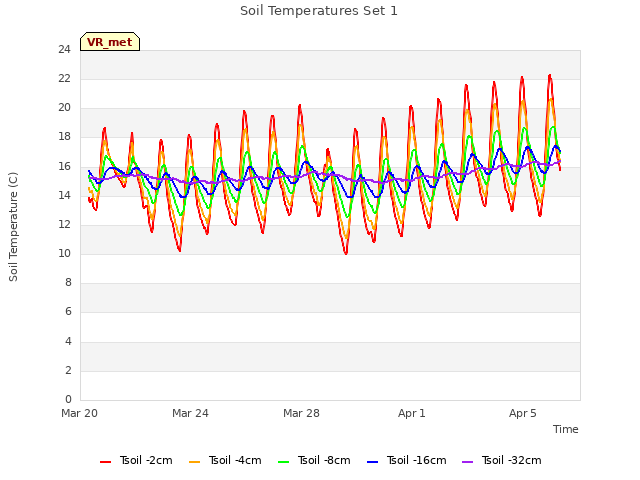

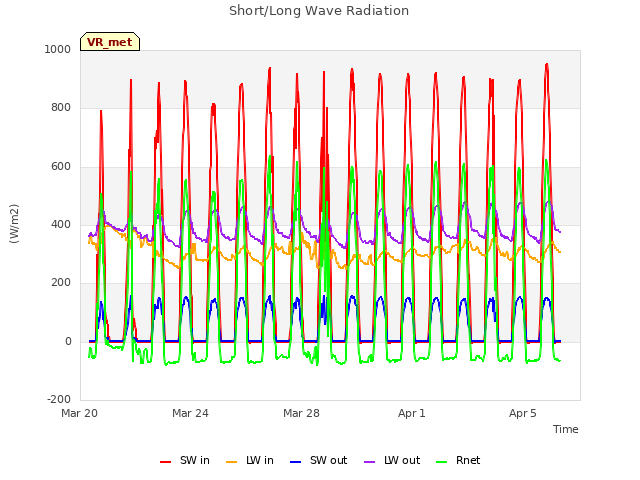

16 VR_met graphs found

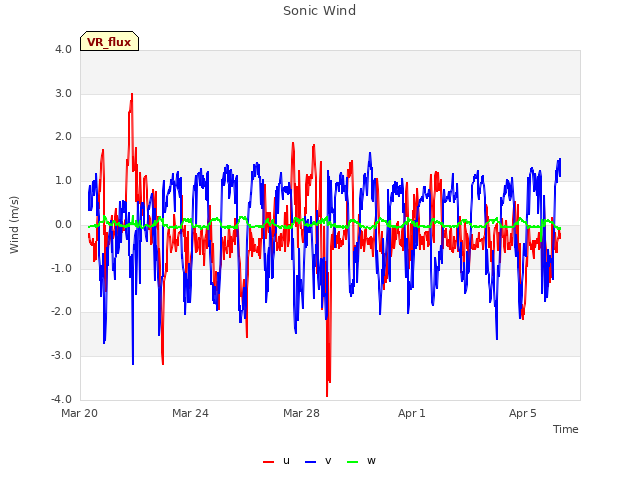

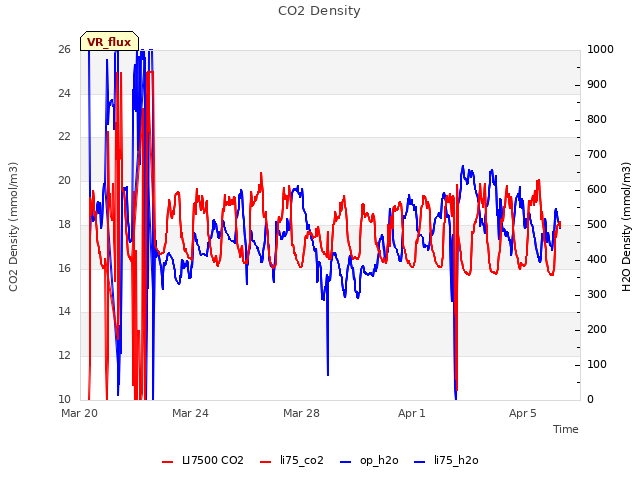

2 VR_flux graphs found

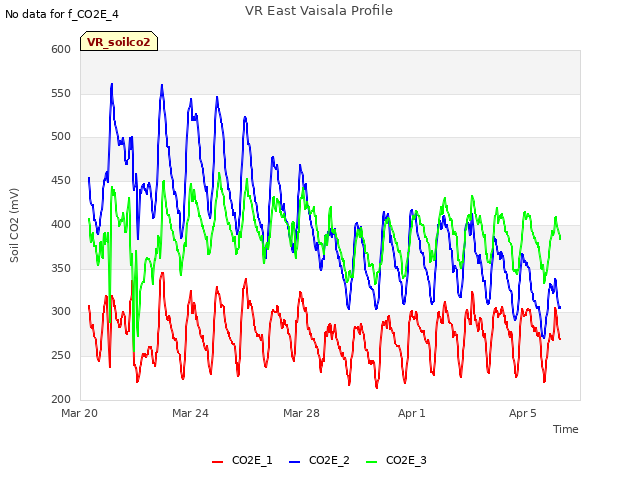

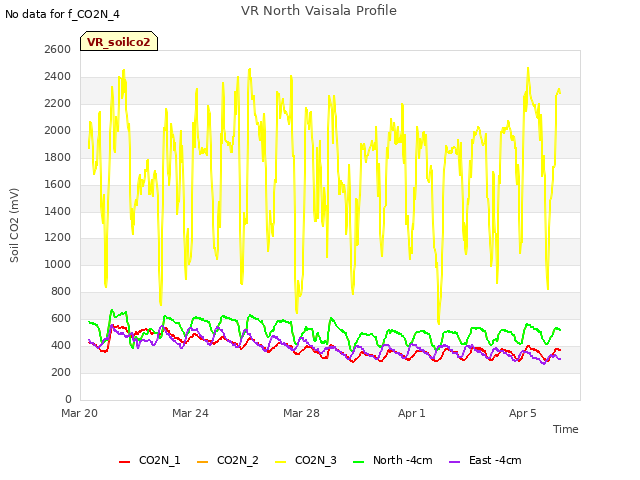

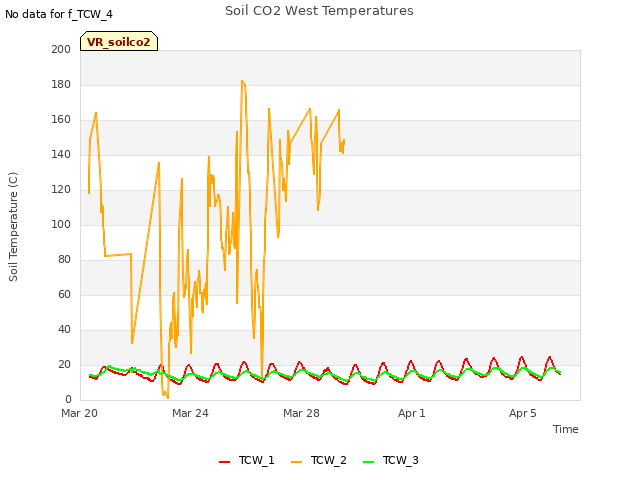

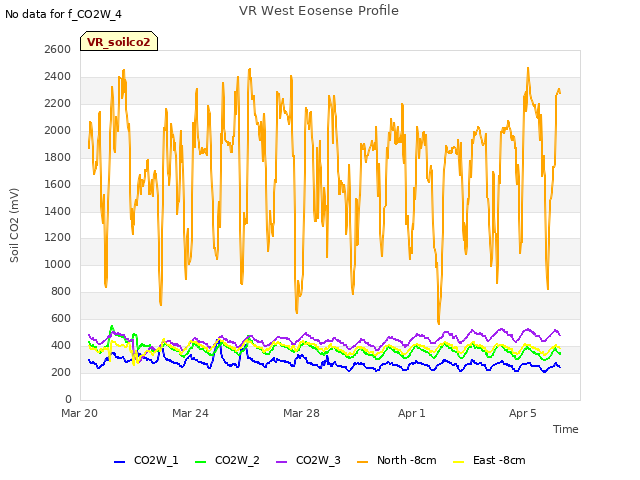

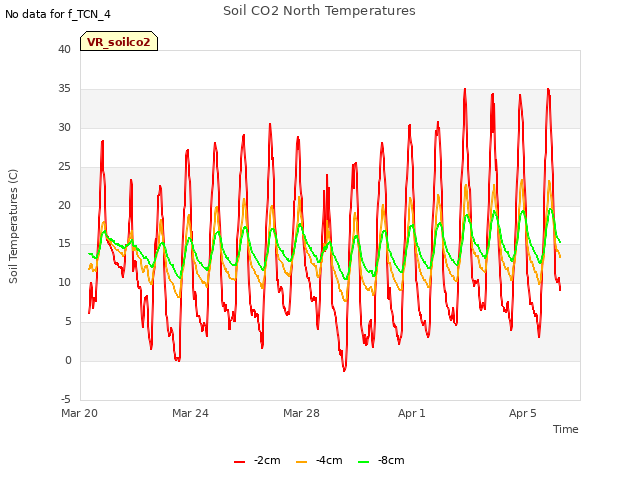

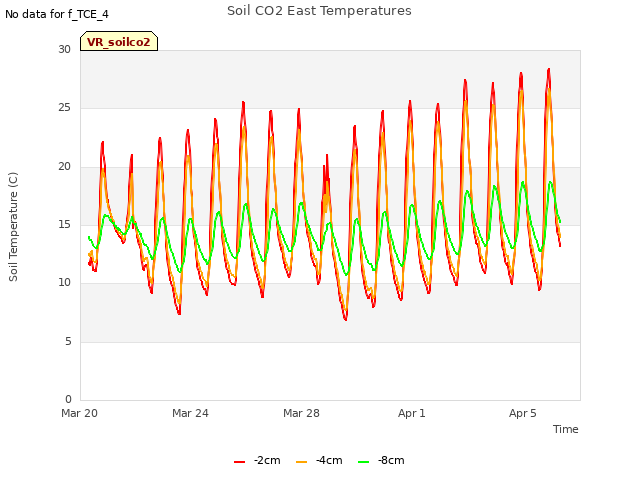

6 VR_soilco2 graphs found

No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
