<--2016-03-23 10:00:00 | 2016-04-05 11:30:00-->
Other sites visited today: Vaira | Tonzi

Tonzi: 2016-04-05 10:00:00 (DOY 96)
Author: Siyan Ma
Others: Joe, Robert Grant

Summary: Nice day, standard fieldwork, no photos from Tower.

When: Date: 4/5/2016 , Day: 96 , Watch Time: 10:00 am .

Where: Tonzi/Vaira Ranch

Who: Siyan, Joe, Robert Grant

Weather: clear, sunny

Phenology: oak leaves look darker than last visit.



Summary

  1. Swapped memory cards of CR1000s at three sites.
  2. Checked and downloaded met data from PC at Floor, and Vaira
  3. No photocam data at Tower
  4. Read dendrometers
  5. Measured soil moisture
  6. Measure groundwater well

Vaira_Grass Site

  1. Downloaded Phenocam images.
  2. Swapped the memory cards of CR1000 (Joe)


  1. Checked the fans of air temp and relative humidity sensors at Vaira. YES! (Joe)
  2. Downloaded met and soil CO2 profile data:



  1. Checked levels of Radiation sensors, clear up surfaces.YES! (joe)
  2. Checked rain gage, make sure not clogged. YES! (Joe)
  3. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence and gate power: 12 v.
  2. Tram stopped running.
  3. swapped the memory cards of CR1000. (Joe)
  4. No Phenocam images; Joe tried fixing it.
  5. checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  6. Checked rain gage, make sure not clogged. YES!

7. closed gate and set up fence. YES!

Toniz_Floor Site

  1. Fence and gate power: 12 v.
  2. Swapped the memory cards of CR1000.



  1. downloaded met data from PC. YES!

CR23X3 – floor-Met

CR23X6 – tower-Met

CR10X2 – floor-Met

Soil CO2 profile: CR23X5 – soil CO2 profile






  1. Closed gate and set up fence. YES!

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2016-04-05TZ_floor24.15
2016-04-05TZ_road27.15
2016-04-05TZ_tower31.1

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower [1] => Floor_South [2] => Floor_East [3] => Floor_West [4] => SoilCO2 [5] => Soil_Transect_4 [6] => Soil_Transect_3 [7] => Soil_Transect_2 [8] => Soil_Transect_1 [9] => SoilCO2_West_A [10] => SoilCO2_West_B [11] => SoilCO2_West_C )

Date DOY Rep Depth
Tower
Floor_South
Floor_East
Floor_West
SoilCO2
Soil_Transect_4
Soil_Transect_3
Soil_Transect_2
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
SoilCO2_West_C
 Avg
Spacial Count
Measurement Count
2016-04-05 96 0 0-15cm 23.5 14.7 39.9 20.3 25 20.9 13.6 16.5 16.8 22 14.7 17.9
2016-04-05 96 0 15-30cm 37.6 31.9 27.7 31.3 25.8 23.1 25.2 27.1 14.5 23.1 14.8 24.9
2016-04-05 96 0 30-45cm 36.6 37.7 34.6 39.4 43.3 24.8 27.1 30.7 30.4 32.4 31.5 29
2016-04-05 96 0 45-60cm 49.5 60.3 54.9 46 42.3 30.5 39.7 47.4 28.2 45.4 48.6 60.3
2016-04-05 96 1 0-15cm 23.8 16.2 39.9 21.2 21.2 20.6 7.4 16.5 15.6 21.6 15.6 17.6
2016-04-05 96 1 15-30cm 32.3 31.9 28.3 30.4 29.8 22.6 25.5 27.7 14.2 22.8 13.6 24.9
2016-04-05 96 1 30-45cm 37.7 38.8 34.8 38.8 44.4 23.7 28.5 31.5 30.1 33.5 31.3 22.6
2016-04-05 96 1 45-60cm 40.8 60.9 53.7 48.3 41.7 30.2 42 47.4 28.2 43.7 49.4 60.9
2016-04-05 96 Avg 0-15cm 23.65 15.45 39.9 20.75 23.1 20.75 10.5 16.5 16.2 21.8 15.15 17.75 20.13 12 24
2016-04-05 96 Avg 15-30cm 34.95 31.9 28 30.85 27.8 22.85 25.35 27.4 14.35 22.95 14.2 24.9 25.46 12 24
2016-04-05 96 Avg 30-45cm 37.15 38.25 34.7 39.1 43.85 24.25 27.8 31.1 30.25 32.95 31.4 25.8 33.05 12 24
2016-04-05 96 Avg 45-60cm 45.15 60.6 54.3 47.15 42 30.35 40.85 47.4 28.2 44.55 49 60.6 45.85 12 24

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels [1] => Flux_Tower [2] => Gate [3] => Biomass_Cage )

Date DOY Rep Depth
Solar_Panels
Flux_Tower
Gate
Biomass_Cage
 Avg
Spacial Count
Measurement Count
2016-04-05 96 0 0-15cm 21.2 15 11.8 5.3
2016-04-05 96 0 15-30cm 15.2 21.8 12.1 13.3
2016-04-05 96 0 30-45cm 26.5 11.7 17.9 22.9
2016-04-05 96 0 45-60cm 31.4 24.2 15.9 24.5
2016-04-05 96 1 0-15cm 20.3 14.4 11.5 5.9
2016-04-05 96 1 15-30cm 21.9 12.7 13.3
2016-04-05 96 1 30-45cm 11.7 16.8 22.6
2016-04-05 96 1 45-60cm 29.1 23.9 15.9 23.6
2016-04-05 96 Avg 0-15cm 20.75 14.7 11.65 5.6 13.18 4 8
2016-04-05 96 Avg 15-30cm 15.2 21.85 12.4 13.3 15.69 4 7
2016-04-05 96 Avg 30-45cm 26.5 11.7 17.35 22.75 19.58 4 7
2016-04-05 96 Avg 45-60cm 30.25 24.05 15.9 24.05 23.56 4 8

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2016-04-05119.6
2016-04-0510215.9
2016-04-05217.4
2016-04-0524522.8
2016-04-05319.9
2016-04-05414.5
2016-04-05517.1
2016-04-05714.1
2016-04-057222.3
2016-04-057922.0
2016-04-05817.1

Water Potential - mode: raw

Time< h>SpeciesTreereadings (bar)
2016-04-05 01:16:00 OAK 102 -12 -10 -6
2016-04-05 01:16:00 OAK 35 -8 -14 -20
2016-04-05 01:16:00 OAK 92 -18 -18
2016-04-05 01:33:00 PINE YNG -1 -1 -1

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

0 photos found

Graphs display: 16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

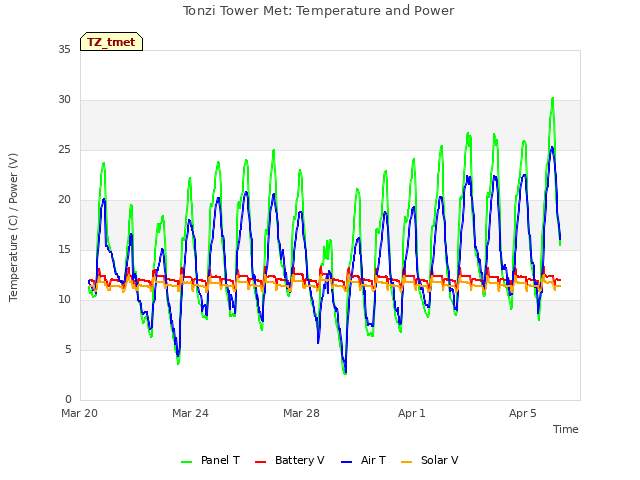

Tonzi Tower Met: Temperature and Power

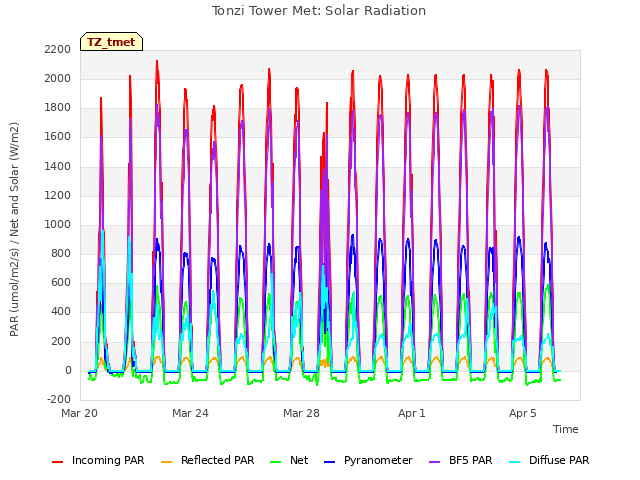

Tonzi Tower Met: Solar Radiation

Tonzi Tower Met: IRT Sensors

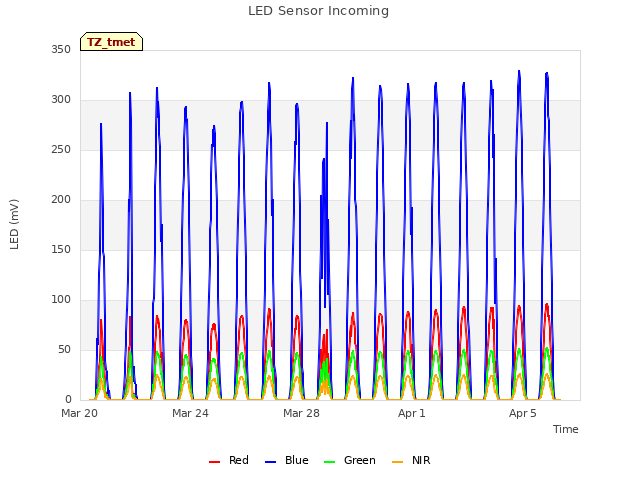

LED Sensor Incoming

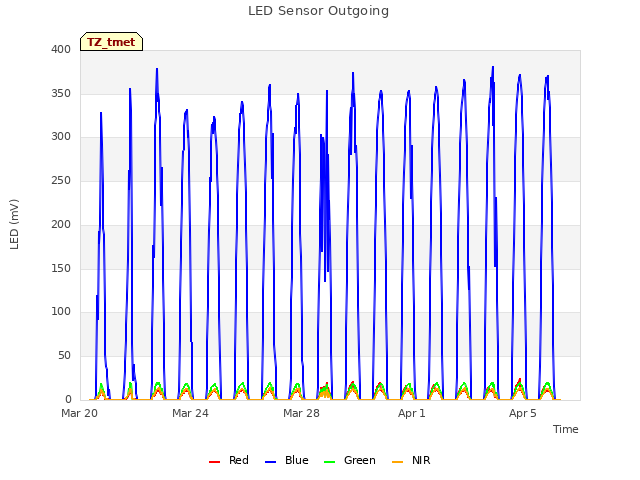

LED Sensor Outgoing

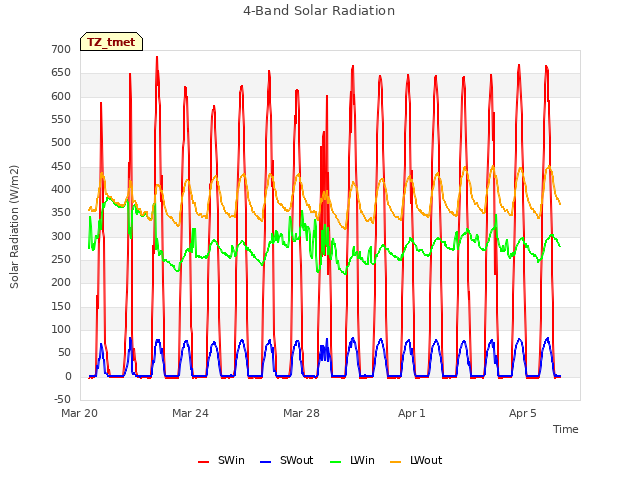

4-Band Solar Radiation

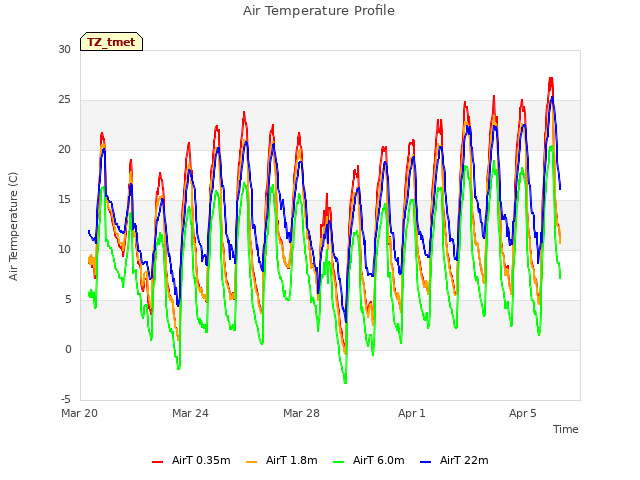

Air Temperature Profile

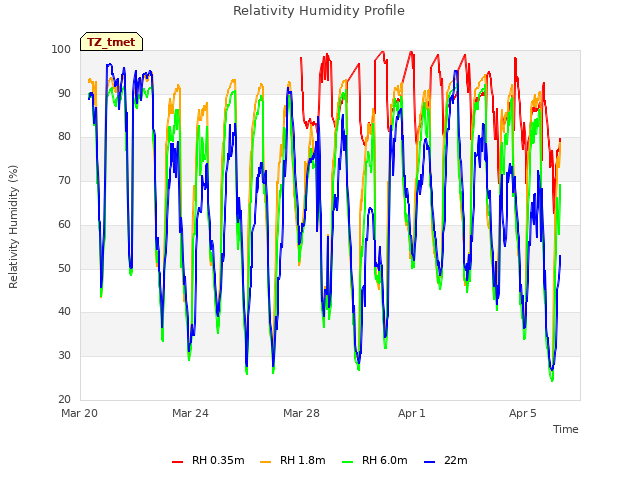

Relativity Humidity Profile

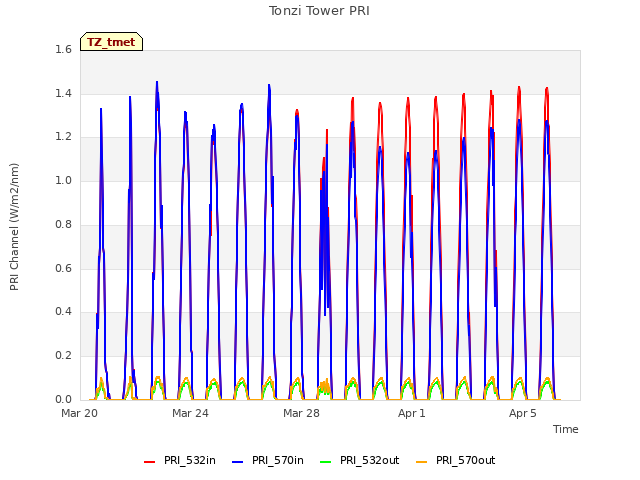

Tonzi Tower PRI

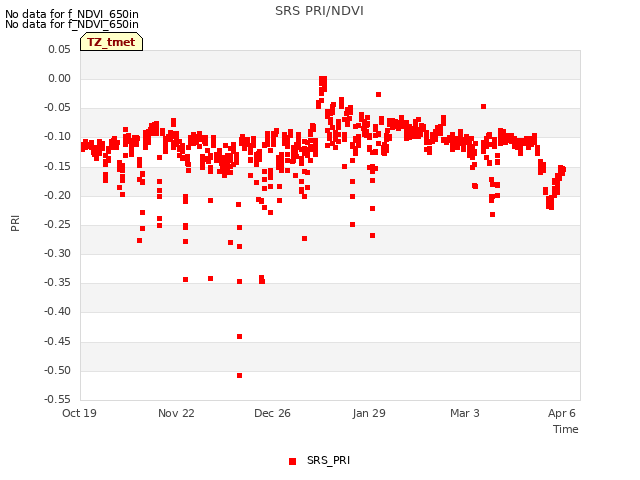

SRS PRI/NDVI

SRS NDVI

11 TZ_soilco2 graphs found

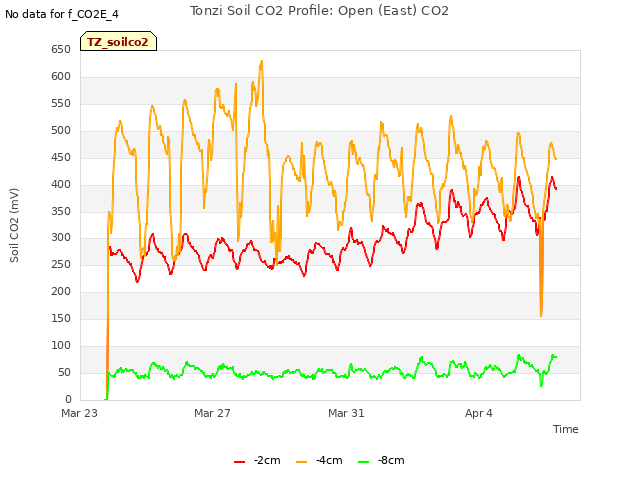

Tonzi Soil CO2 Profile: Open (East) CO2

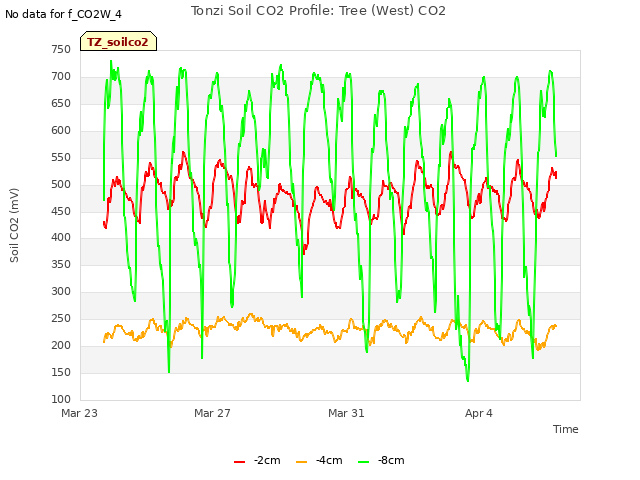

Tonzi Soil CO2 Profile: Tree (West) CO2

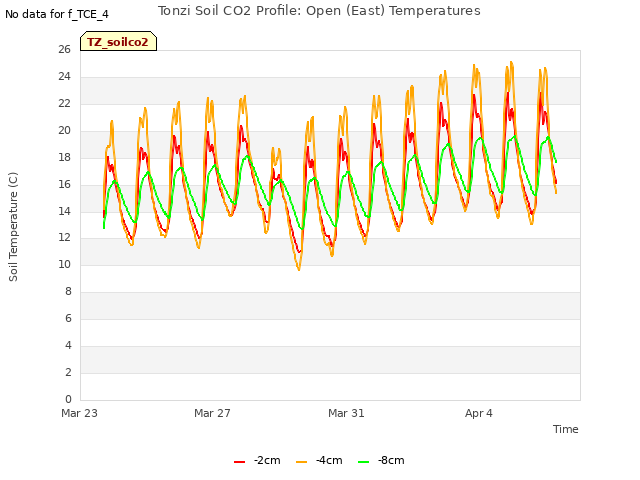

Tonzi Soil CO2 Profile: Open (East) Temperatures

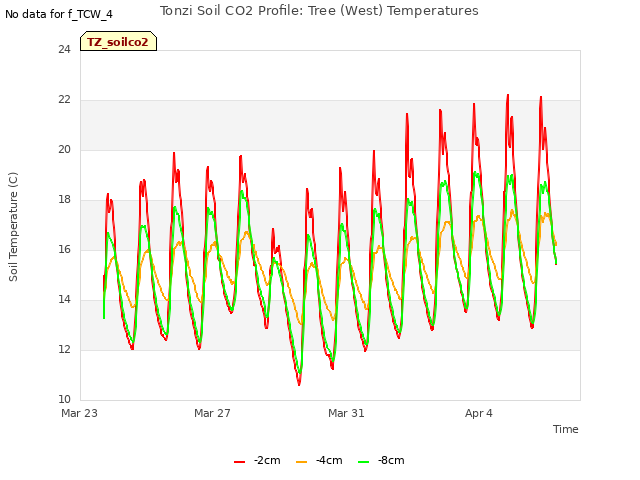

Tonzi Soil CO2 Profile: Tree (West) Temperatures

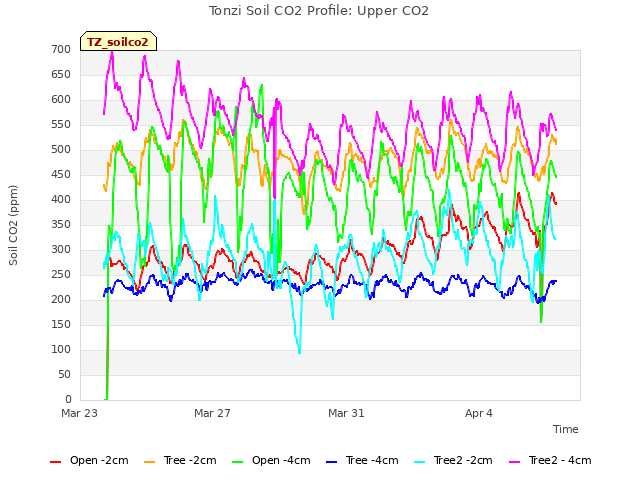

Tonzi Soil CO2 Profile: Upper CO2

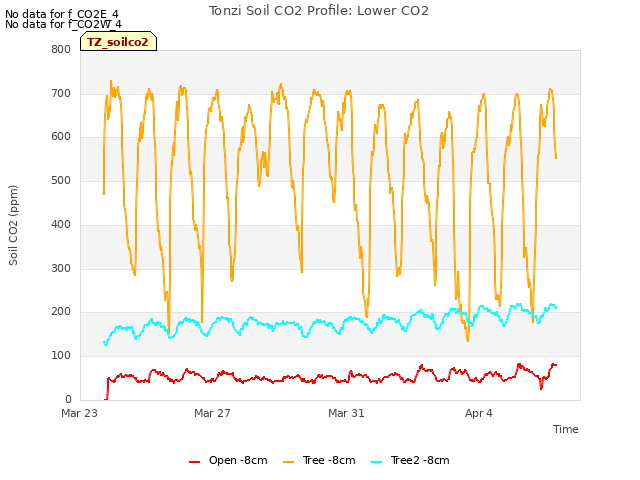

Tonzi Soil CO2 Profile: Lower CO2

Tonzi Soil CO2 Profile: Upper Temperatures

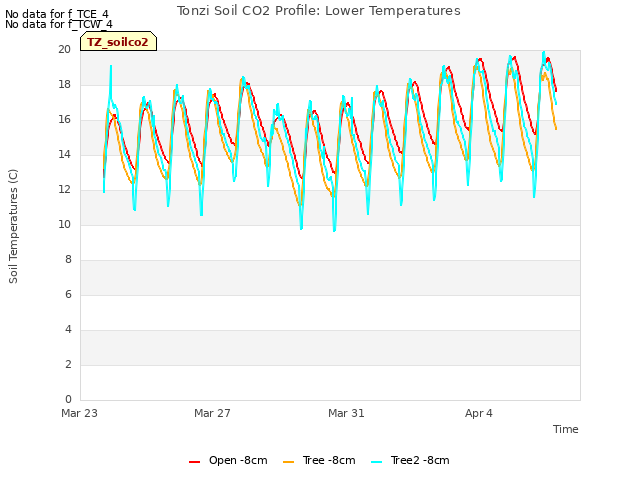

Tonzi Soil CO2 Profile: Lower Temperatures

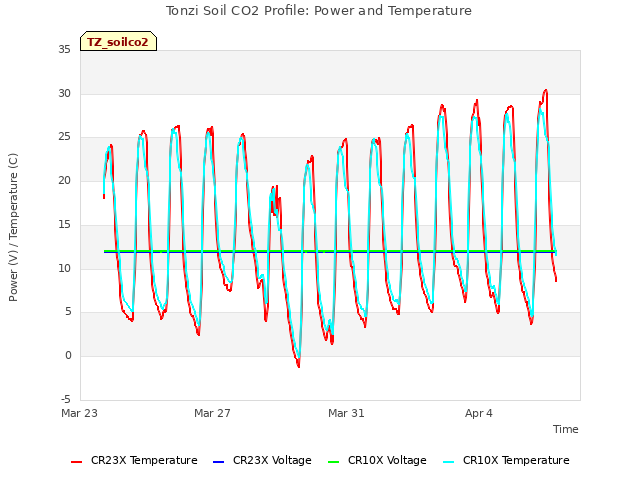

Tonzi Soil CO2 Profile: Power and Temperature

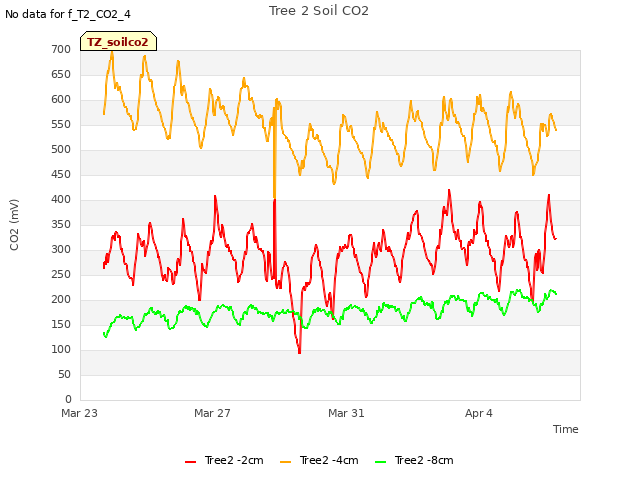

Tree 2 Soil CO2

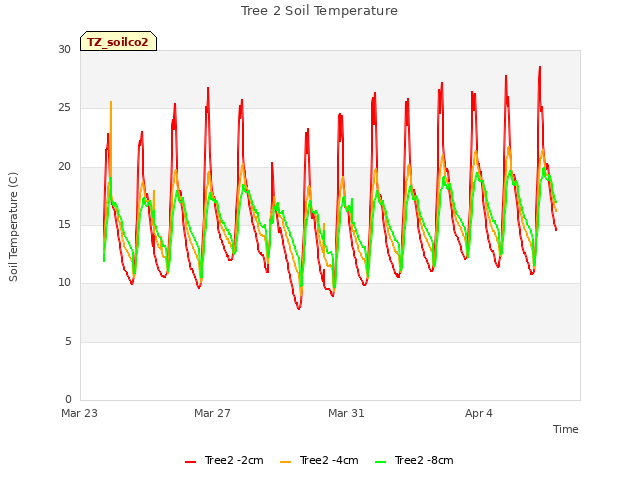

Tree 2 Soil Temperature

Can't check TZ_mixed
3 TZ_mixed graphs found

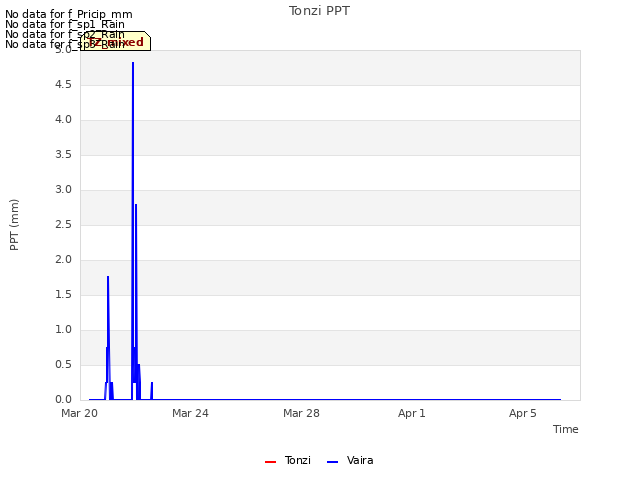

Tonzi PPT

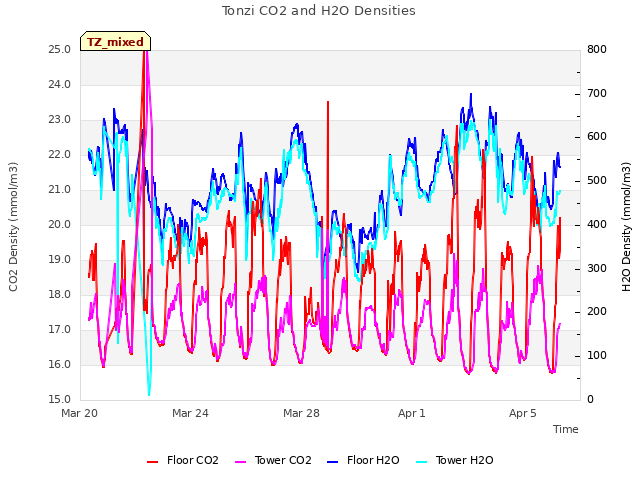

Tonzi CO2 and H2O Densities

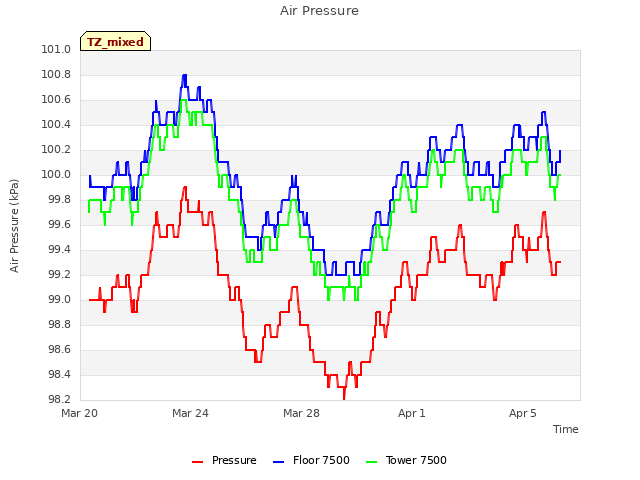

Air Pressure

1 TZ_fflux graphs found

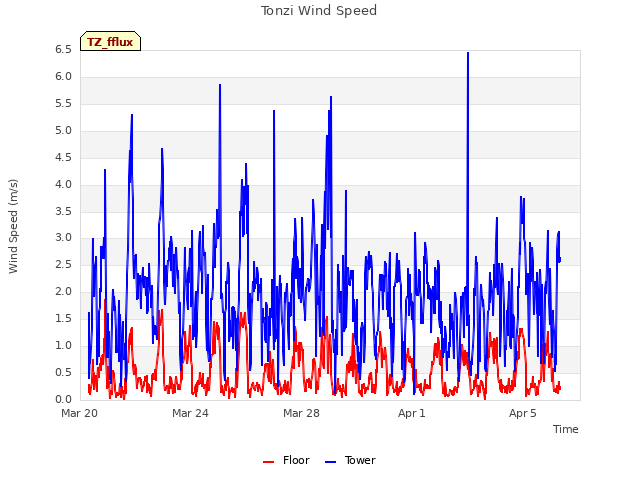

Tonzi Wind Speed

8 TZ_fmet graphs found

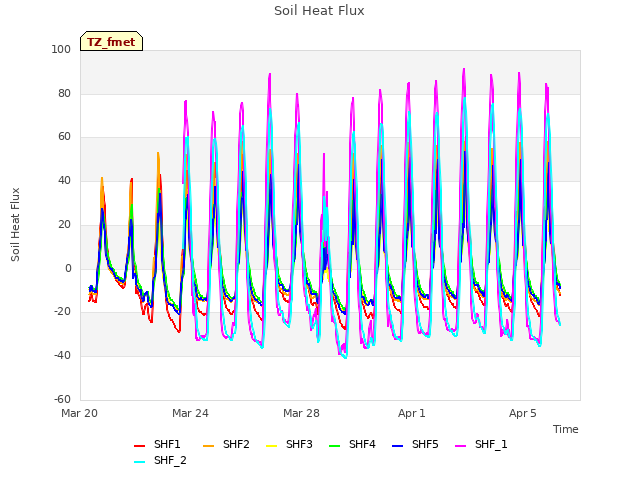

Soil Heat Flux

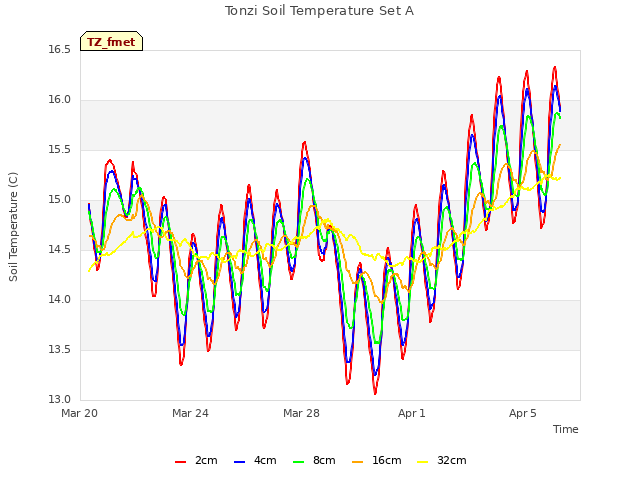

Tonzi Soil Temperature Set A

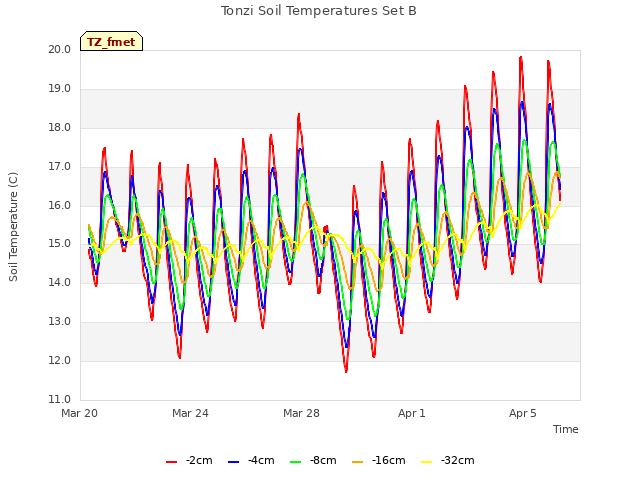

Tonzi Soil Temperatures Set B

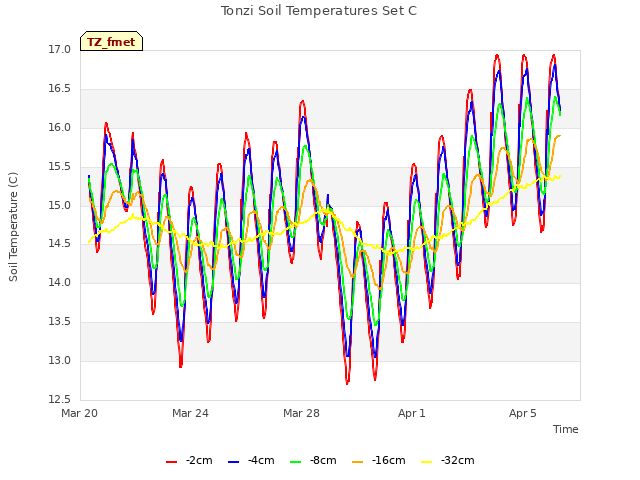

Tonzi Soil Temperatures Set C

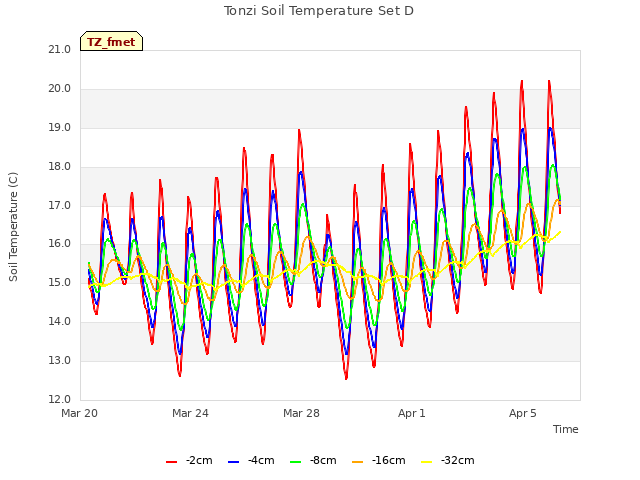

Tonzi Soil Temperature Set D

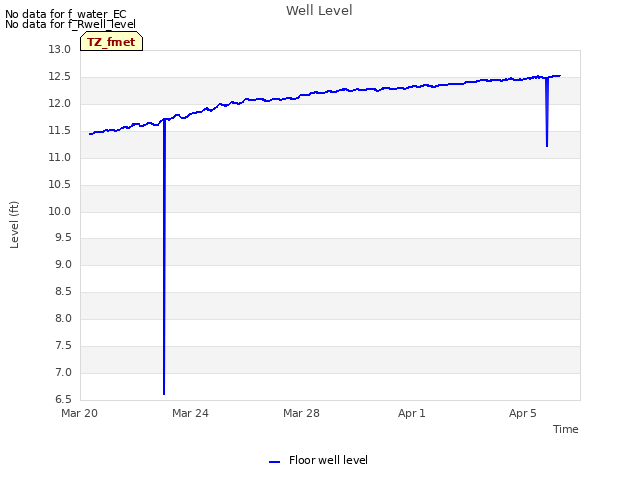

Well Level

Well Water Temperature

Soil Water Potential

No data found for TZ_tram.
No data found for TZ_co2prof.
1 TZ_irt graphs found

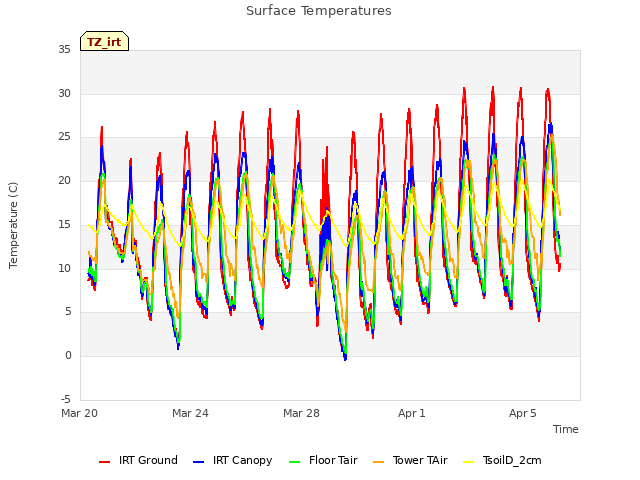

Surface Temperatures

No data found for TZ_windprof.
1 TZ_tflux graphs found

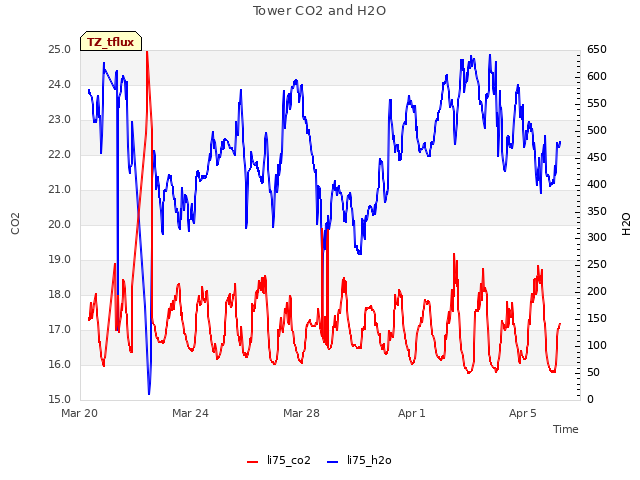

Tower CO2 and H2O

2 TZ_sm graphs found

Floor Solar Radiations

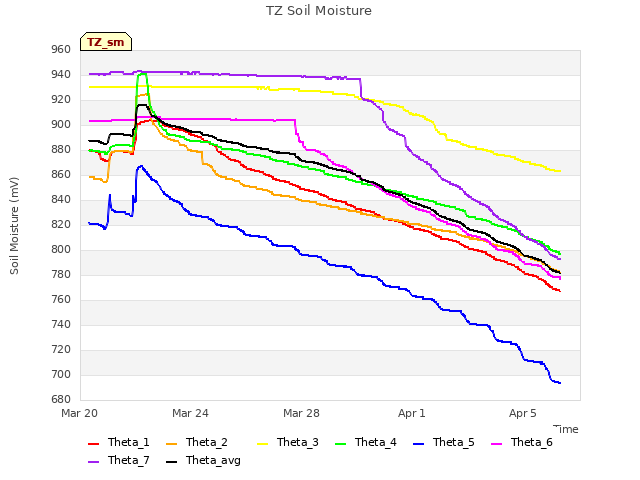

TZ Soil Moisture

Can't check TZ_met
1 TZ_met graphs found

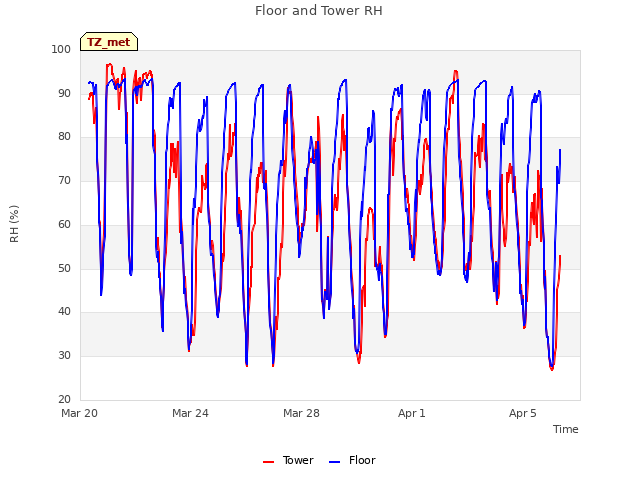

Floor and Tower RH

Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
