Field Notes

<--2016-03-08 08:30:00 | 2016-04-05 10:30:00-->
Other sites visited today: Tonzi | Tonzi

Vaira: 2016-03-23 09:00:00 (DOY 83)
Author: Joe Verfaillie
Others: Siyan

Summary: Fixed Phenocam cable, condensation in BF3, removed Peltier SHF 1 due to broken wire.

Vaira
2016-03-23

I arrived about 9am with Siyan. It was warm, clear and sunny. Everything is very green. There are puddles in the road and the water hole is full.

I tested the Phenocam with the laptop and it is fine – must be the cable. I put a new connector on the old cable for the old D-link web cam. This worked. The Raspberry Pi clock is still on UTC, I need to learn how to set the time zone. The camera is sn 0030F4D0A168.

There was a little condensation in the BF3. Need to add new desiccant next time.

I removed Peltier SHF plate one sn P01. It has a broken wire again.

I cleaned the radiation sensors. The tipping bucket lost its screen, but Siyan found it as it was reinstalled.

Veg Height (cm): Tape measure from ground to top of plant - Outside fenced area - grazed
16, 12, 18, 10, 9, 11, 20, 20, 10, 5, 33, 10, 8, 10, 9, 11, 7, 8, 7, 12, 6, 7, avg = 11.8, stdev = 6.35

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2016-03-23TZ_floor27.9
2016-03-23TZ_road32.3
2016-03-23TZ_tower27.9

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower [1] => Floor_South [2] => Floor_East [3] => Floor_West [4] => SoilCO2 [5] => Soil_Transect_4 [6] => Soil_Transect_3 [7] => Soil_Transect_2 [8] => Soil_Transect_1 [9] => SoilCO2_West_A [10] => SoilCO2_West_B [11] => SoilCO2_West_C )

Date DOY Rep Depth
Tower
Floor_South
Floor_East
Floor_West
SoilCO2
Soil_Transect_4
Soil_Transect_3
Soil_Transect_2
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
SoilCO2_West_C
 Avg
Spacial Count
Measurement Count
2016-03-23 83 0 0-15cm 37.9 32.6 39.9 34.9 38.4 33.2 19.7 27.6 30.5 32.6 25.8 33.5
2016-03-23 83 0 15-30cm 40.5 42.6 33.2 39 39.6 33.8 32.6 31.9 25.6 31.3 25.2 31.9
2016-03-23 83 0 30-45cm 41.9 42.1 39.8 43 46 38 32.7 34.3 34.6 38.2 37.1 39.8
2016-03-23 83 0 45-60cm 41.4 61.5 41.4 45.4 42.8 35.5 45.7 48.8 34.5 46.6 53.1 41.4
2016-03-23 83 1 0-15cm 37 32 39.9 34.3 39.9 33.8 19.7 26.7 29.7 31.4 26.4 32.9
2016-03-23 83 1 15-30cm 40.2 42.4 32.3 38.7 37.4 33.2 32.6 31.6 24.9 30.7 24.9 32.3
2016-03-23 83 1 30-45cm 41 41.9 39.8 42.7 46.6 37.4 32.7 35.2 35.4 36.3 36.8 31
2016-03-23 83 1 45-60cm 42 59.4 41.4 43.4 42 36.8 46 49.4 35.4 46.6 53.7 41.4
2016-03-23 83 Avg 0-15cm 37.45 32.3 39.9 34.6 39.15 33.5 19.7 27.15 30.1 32 26.1 33.2 32.1 12 24
2016-03-23 83 Avg 15-30cm 40.35 42.5 32.75 38.85 38.5 33.5 32.6 31.75 25.25 31 25.05 32.1 33.68 12 24
2016-03-23 83 Avg 30-45cm 41.45 42 39.8 42.85 46.3 37.7 32.7 34.75 35 37.25 36.95 35.4 38.51 12 24
2016-03-23 83 Avg 45-60cm 41.7 60.45 41.4 44.4 42.4 36.15 45.85 49.1 34.95 46.6 53.4 41.4 44.82 12 24

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels [1] => Flux_Tower [2] => Gate [3] => Biomass_Cage )

Date DOY Rep Depth
Solar_Panels
Flux_Tower
Gate
Biomass_Cage
 Avg
Spacial Count
Measurement Count
2016-03-23 83 0 0-15cm 27.6 25.8 25 12.4
2016-03-23 83 0 15-30cm 26.1 28.9 21.6 23.7
2016-03-23 83 0 30-45cm 31 16.5 25.7 31.5
2016-03-23 83 0 45-60cm 41.4 29.7 21.6 31.9
2016-03-23 83 1 0-15cm 26.4 25.8 25.8 12.7
2016-03-23 83 1 15-30cm 24.9 29.2 21.6 23.7
2016-03-23 83 1 30-45cm 30.7 16.5 25.7 31.3
2016-03-23 83 1 45-60cm 41.4 29.9 20.8 33.1
2016-03-23 83 Avg 0-15cm 27 25.8 25.4 12.55 22.69 4 8
2016-03-23 83 Avg 15-30cm 25.5 29.05 21.6 23.7 24.96 4 8
2016-03-23 83 Avg 30-45cm 30.85 16.5 25.7 31.4 26.11 4 8
2016-03-23 83 Avg 45-60cm 41.4 29.8 21.2 32.5 31.23 4 8

Grass Height TZ 12

DateHeight reps (cm)LocationAverageSampSTDEV
2016-03-2326 16 13 18 10 20 8 7 8 13 7 8 GH_ALL11.39185.31

Grass Height VR 22

DateHeight reps (cm)LocationAverageSampSTDEV
2016-03-2320 20 10 5 33 10 8 10 9 11 7 8 7 12 6 7 16 12 18 10 9 11 GH_ALL11.77226.21

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

1 photos found

Joe on site
Joe on site

Graphs display:
9 sets found

16 VR_met graphs found

Explore the graph:Temperatures in a new window

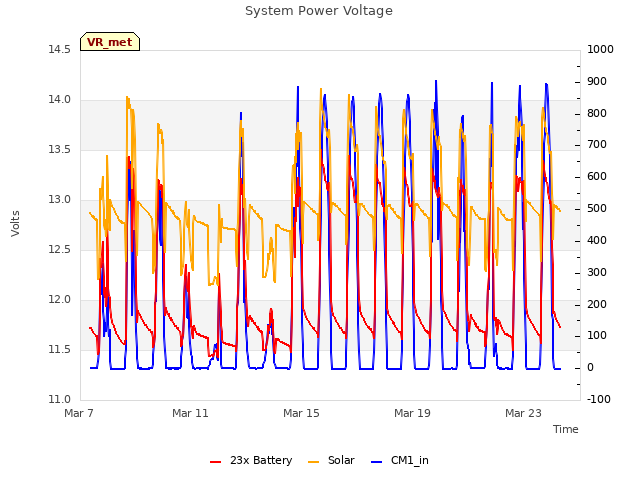

Explore the graph:System Power Voltage in a new window

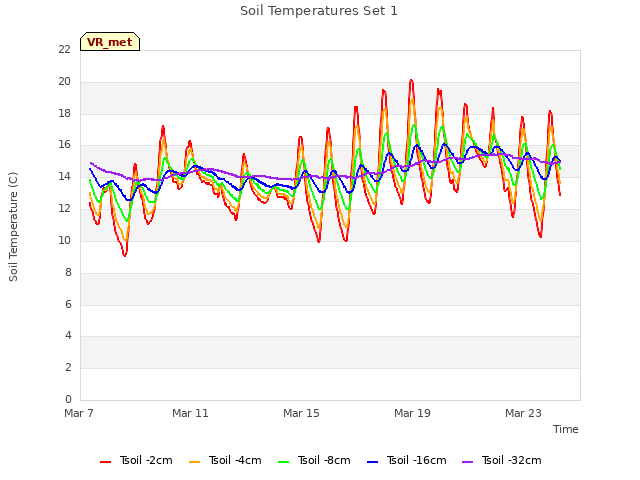

Explore the graph:Soil Temperatures Set 1 in a new window

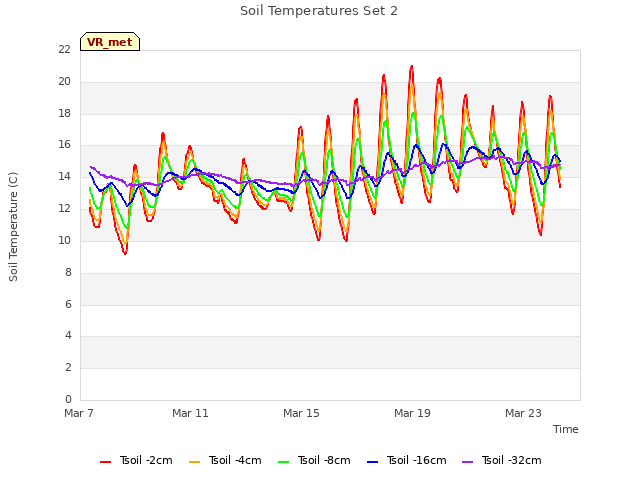

Explore the graph:Soil Temperatures Set 2 in a new window

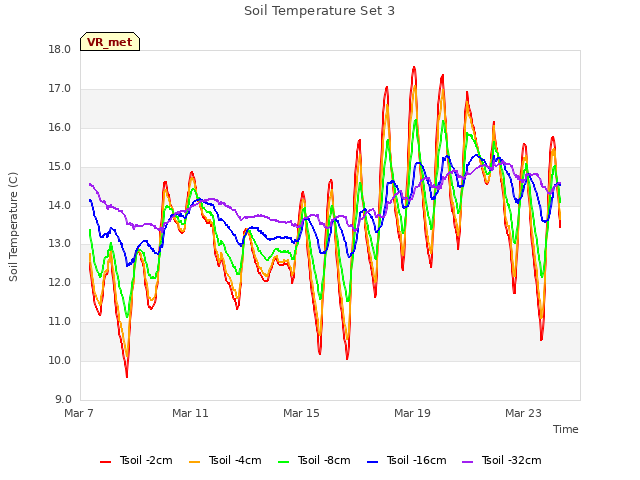

Explore the graph:Soil Temperature Set 3 in a new window

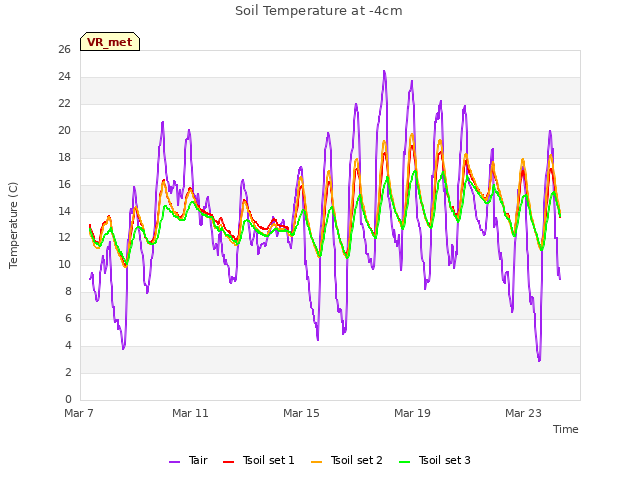

Explore the graph:Soil Temperature at -4cm in a new window

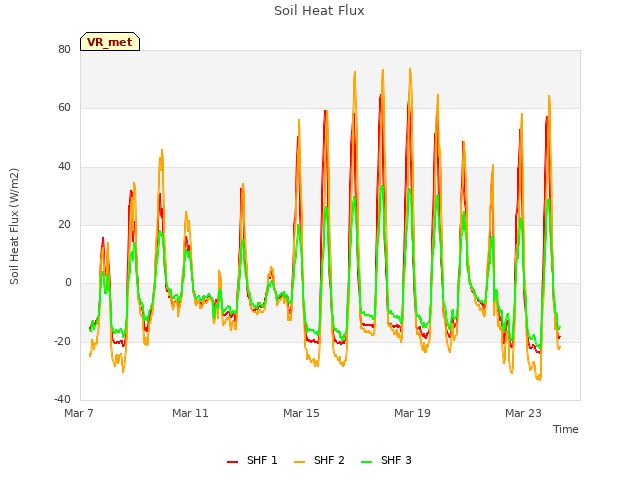

Explore the graph:Soil Heat Flux in a new window

Explore the graph:Soil Moisture in a new window

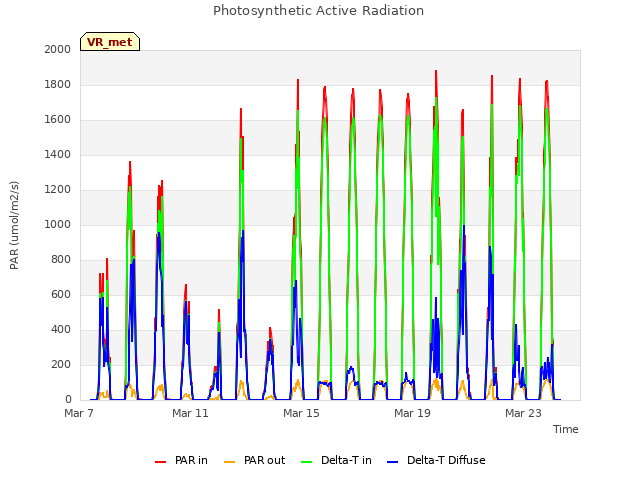

Explore the graph:Photosynthetic Active Radiation in a new window

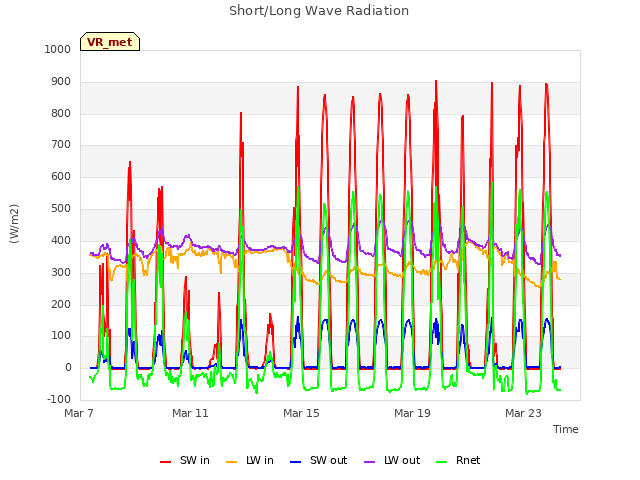

Explore the graph:Short/Long Wave Radiation in a new window

Explore the graph:LED sensor in a new window

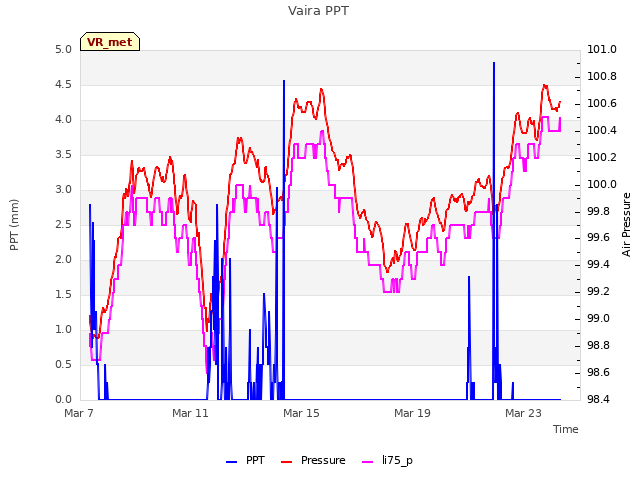

Explore the graph:Vaira PPT in a new window

Explore the graph:Peltier SHF Plates in a new window

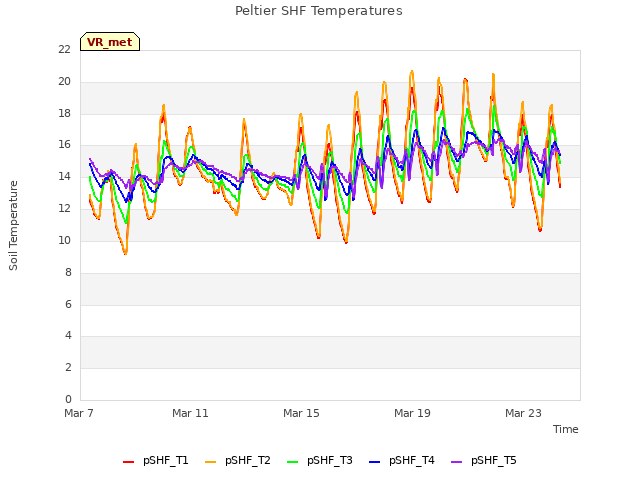

Explore the graph:Peltier SHF Temperatures in a new window

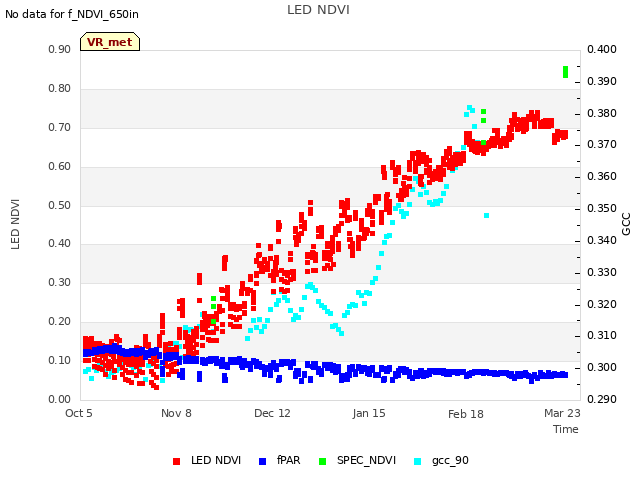

Explore the graph:LED NDVI in a new window

Explore the graph:NDVI SRS Raw Data in a new window

2 VR_flux graphs found

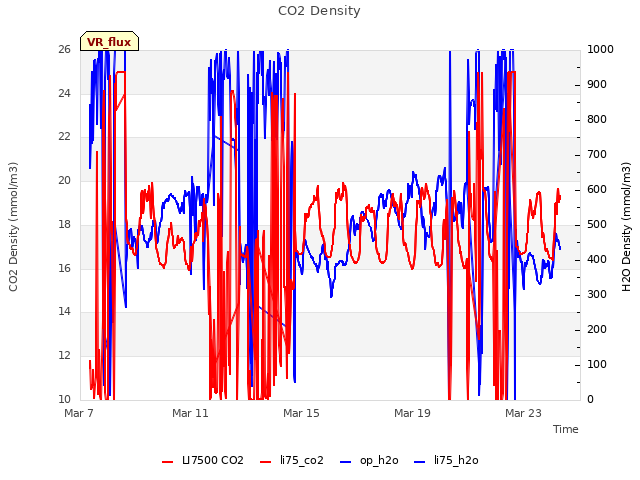

Explore the graph:CO2 Density in a new window

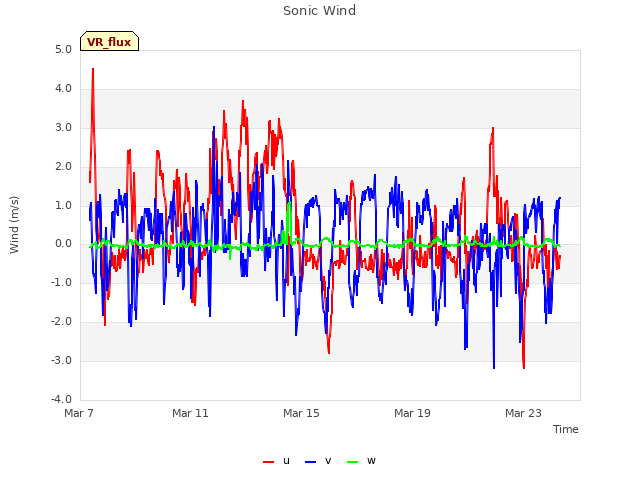

Explore the graph:Sonic Wind in a new window

6 VR_soilco2 graphs found

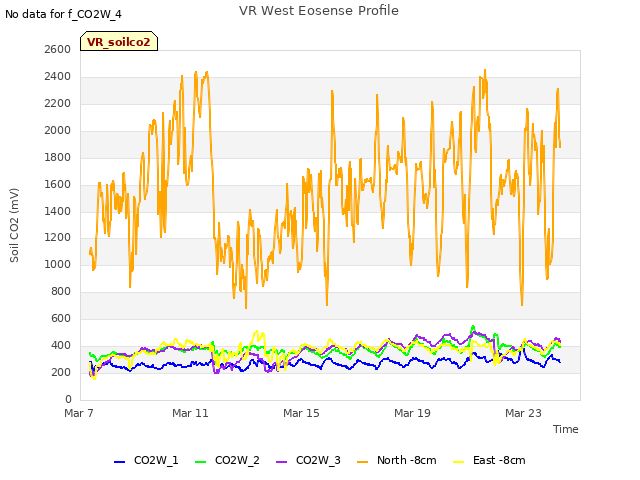

Explore the graph:VR West Eosense Profile in a new window

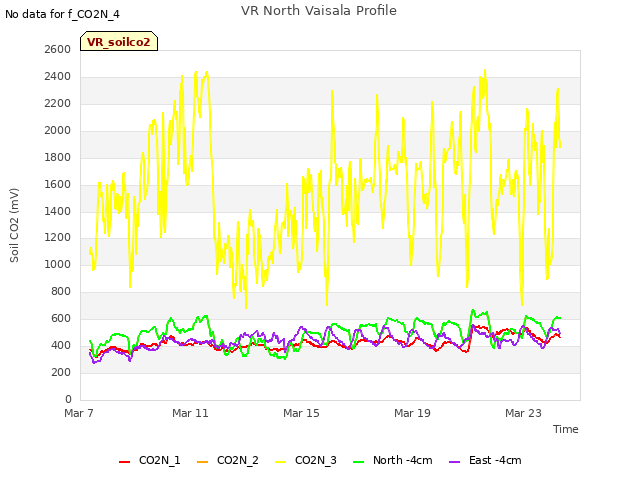

Explore the graph:VR North Vaisala Profile in a new window

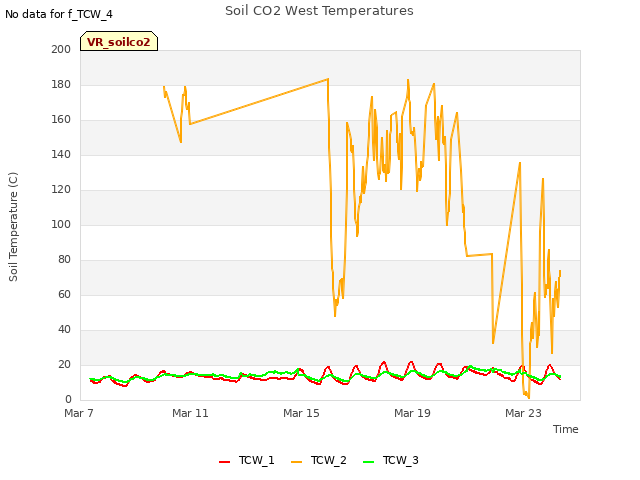

Explore the graph:Soil CO2 West Temperatures in a new window

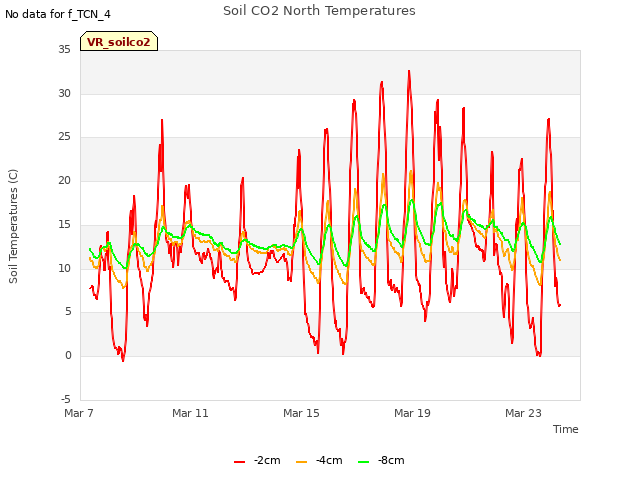

Explore the graph:Soil CO2 North Temperatures in a new window

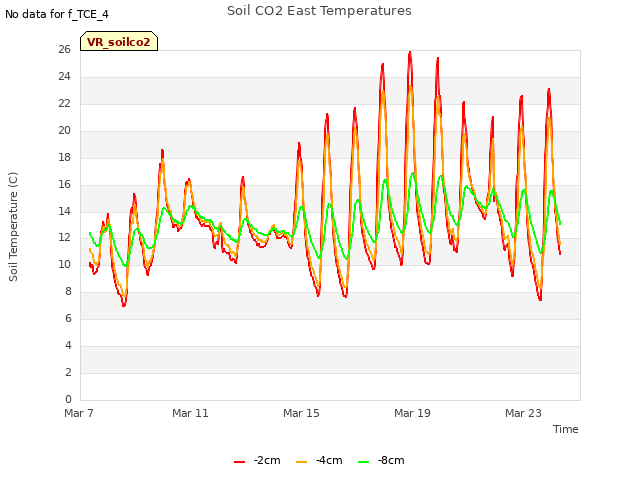

Explore the graph:Soil CO2 East Temperatures in a new window

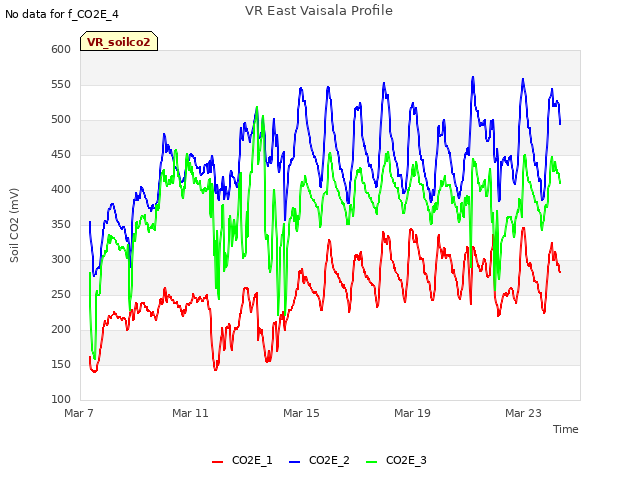

Explore the graph:VR East Vaisala Profile in a new window

No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
