Twitchell Alfalfa: 2016-03-08 11:28:00 (DOY 68)
Author: Patty Oikawa
Others: Kyle Hemes

Summary: Installed new power line, heat flux plates, FR 2cm still giving strange readings

Arrived at 11:28am. It was overcast and breezy. There were lots of sheep on the berm to the north of the field. Kyle cleaned the solar panels. He dug a new trench for the power line to the radiation sensors etc. 10cm deep. I wired in the 3 heat flux plates and Kyle buried them all near the tower (sn 6498, sn 6342, sn 6491).
The 2cm Forerunner probe was reading 0mV we think due to a chewed cable. I replaced the cable but the new reading was 5000mV which is too high. May need a new probe too.

It was too foggy for spectral and the veg height was too short for LAI (5cm).

7500 readings:
CO2 = 401 ppm
H2O = 432 mmol m-3
signal strength = 95.8%
t = 16.9 C
p = 101.9
sos = 342 m s-1

0 photos found

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

Explore the graph:Alfalfa Temperatures in a new window

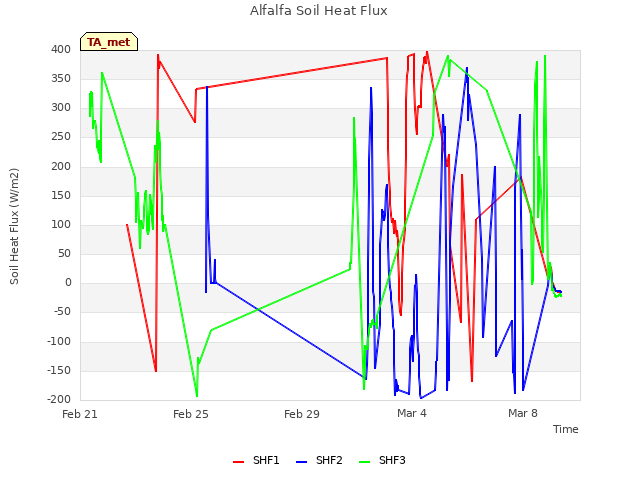

Explore the graph:Alfalfa Soil Heat Flux in a new window

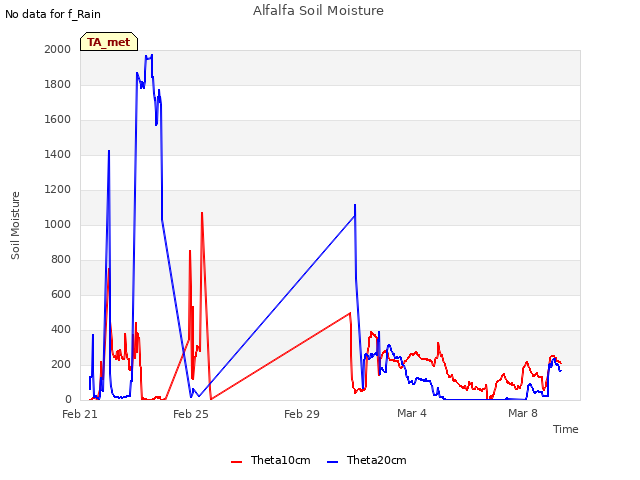

Explore the graph:Alfalfa Soil Moisture in a new window

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

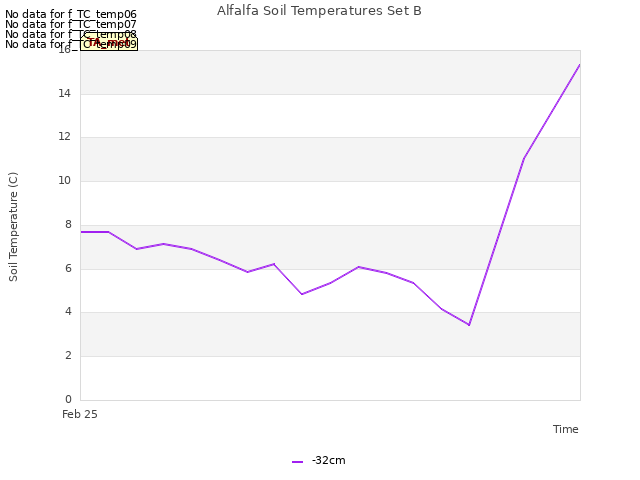

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

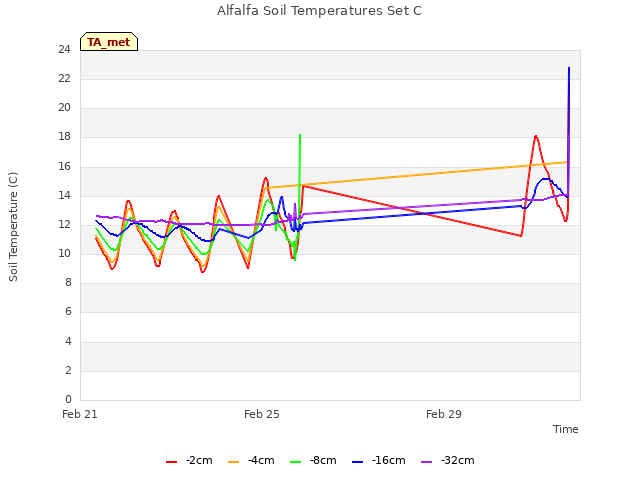

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

Explore the graph:NDVI Narrow Band Radiation in a new window

Explore the graph:Soil CO2 Flux in a new window

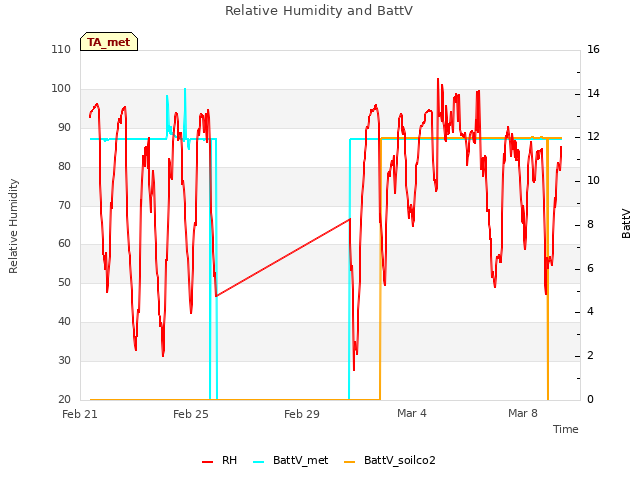

Explore the graph:Relative Humidity and BattV in a new window

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

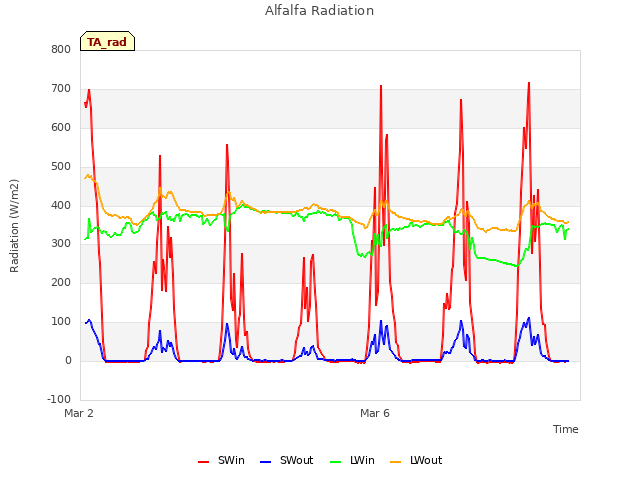

Explore the graph:Alfalfa Radiation in a new window

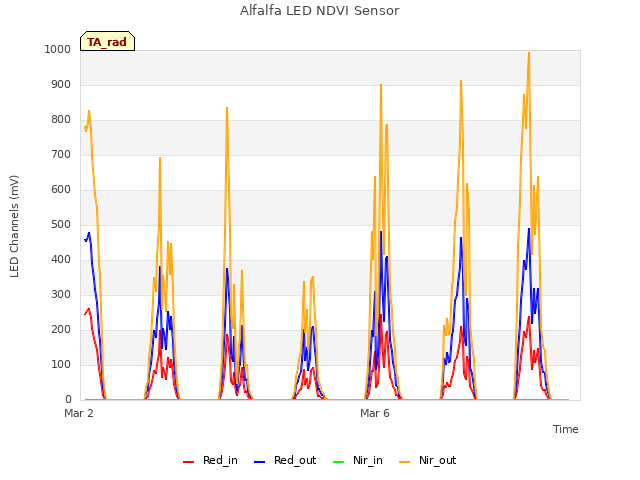

Explore the graph:Alfalfa LED NDVI Sensor in a new window

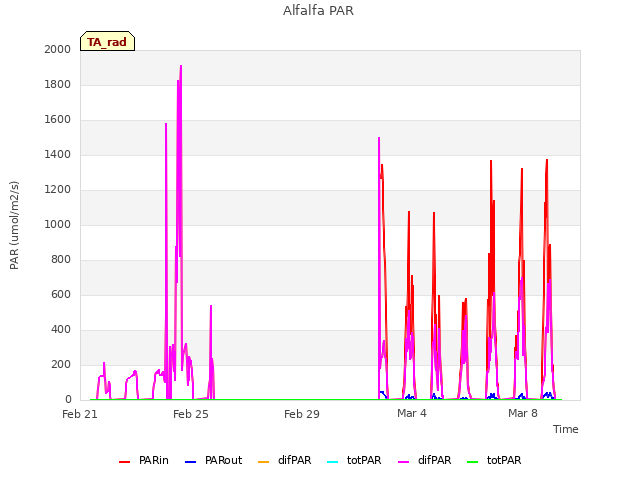

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

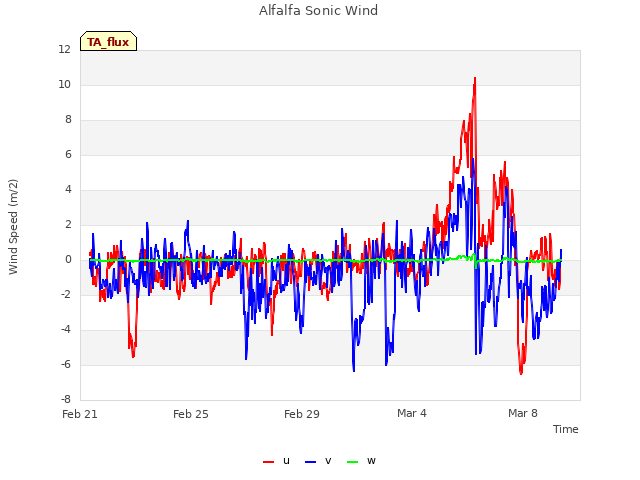

Explore the graph:Alfalfa Sonic Wind in a new window

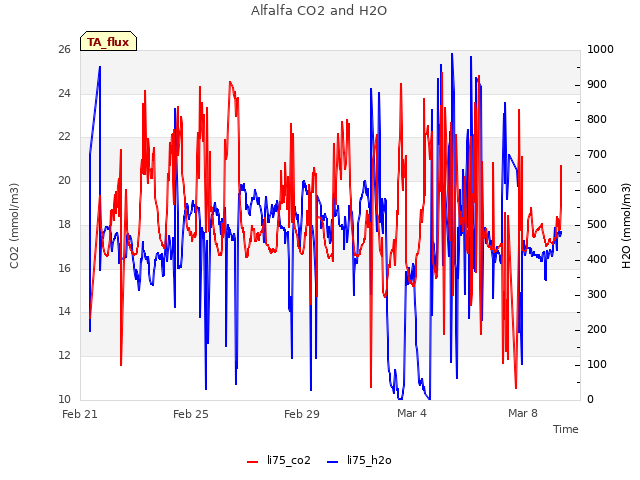

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

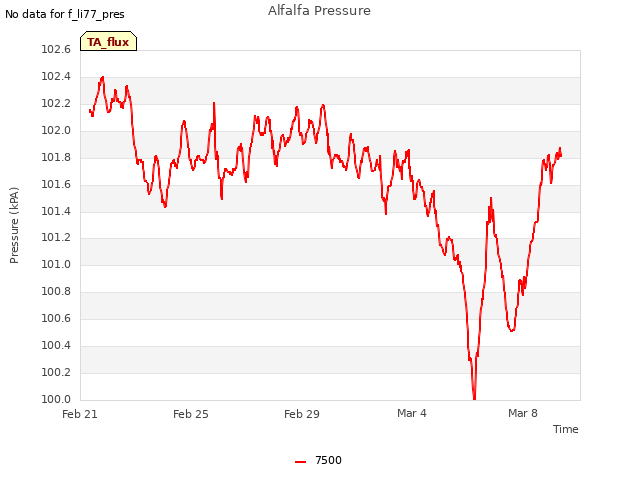

Explore the graph:Alfalfa Pressure in a new window

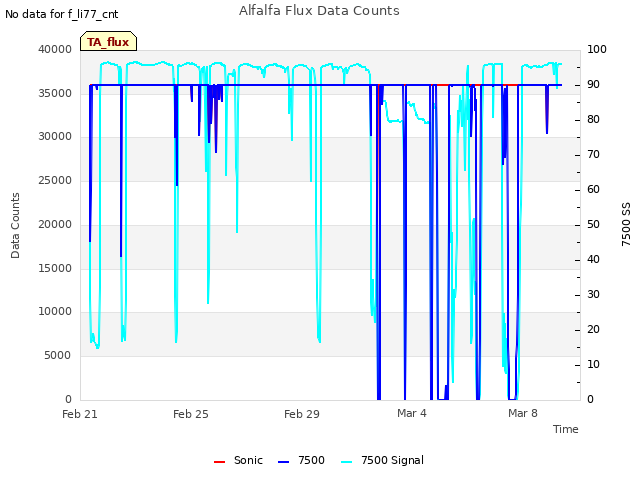

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

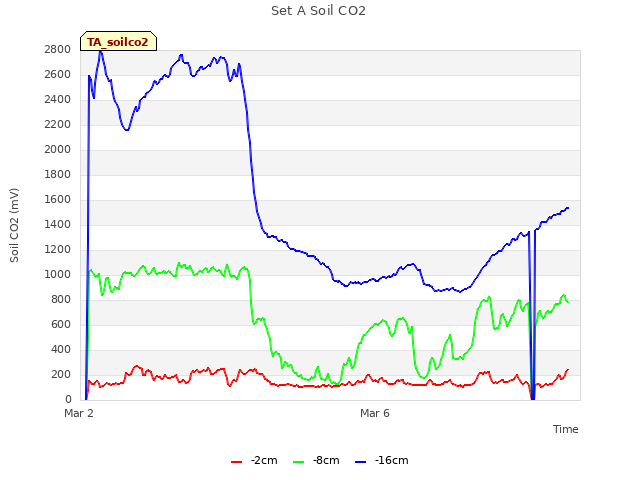

Explore the graph:Set A Soil CO2 in a new window

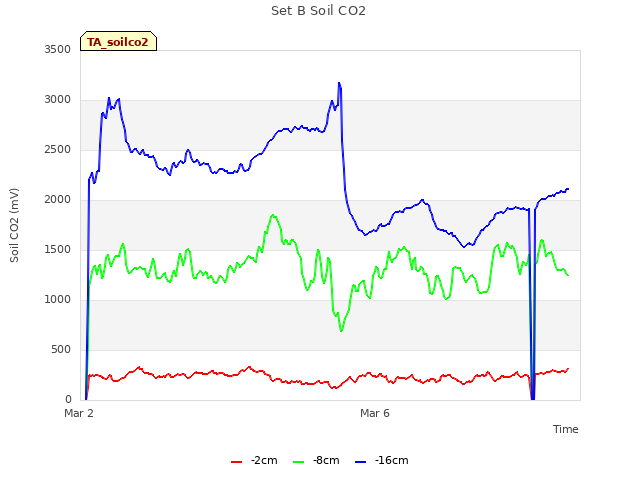

Explore the graph:Set B Soil CO2 in a new window

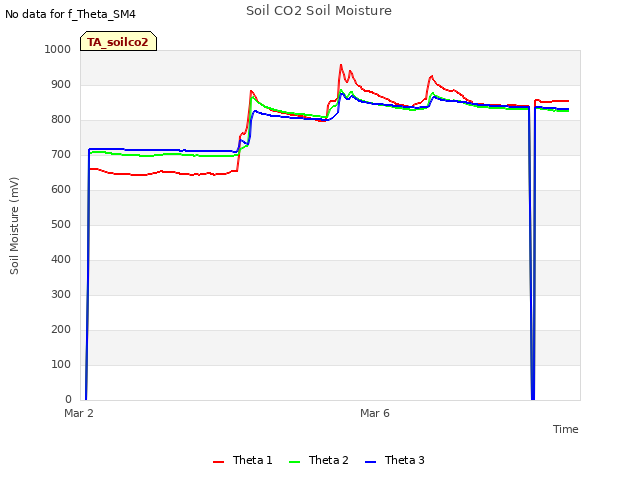

Explore the graph:Soil CO2 Soil Moisture in a new window

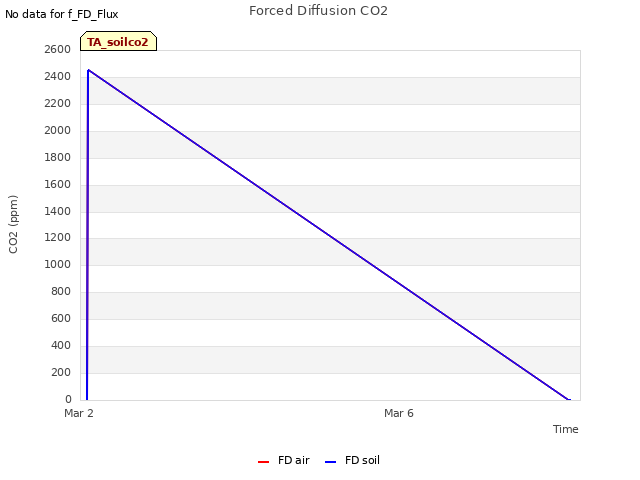

Explore the graph:Forced Diffusion CO2 in a new window

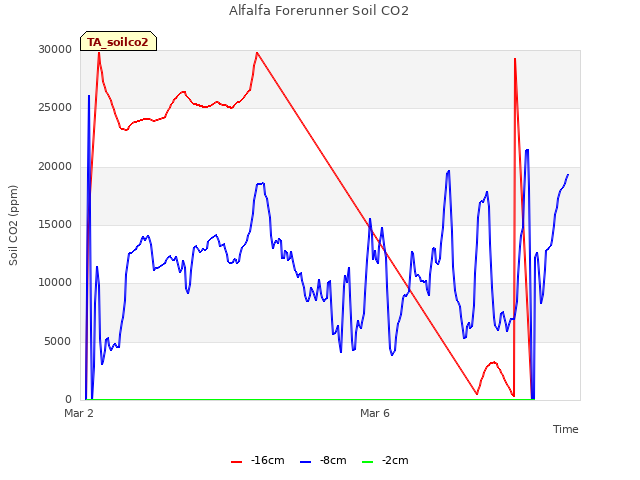

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

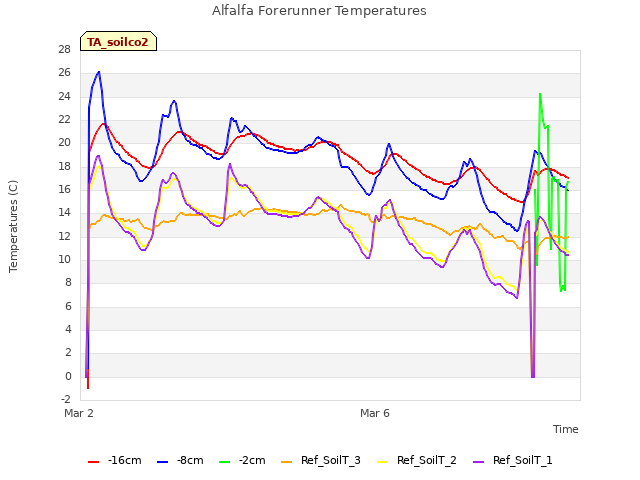

Explore the graph:Alfalfa Forerunner Temperatures in a new window

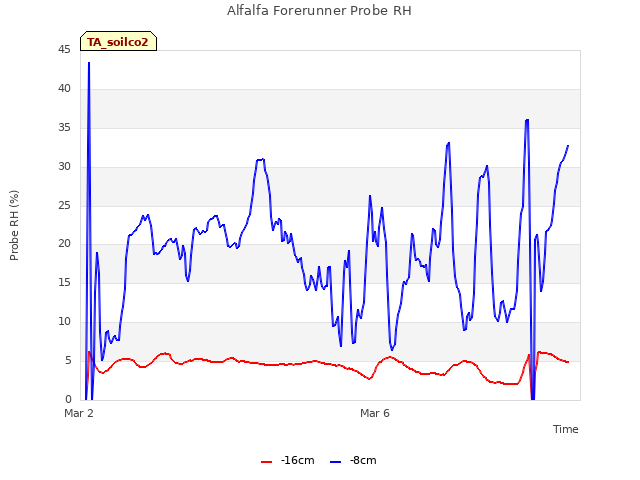

Explore the graph:Alfalfa Forerunner Probe RH in a new window

No data found for TA_arable.
1 TA_cam graphs found

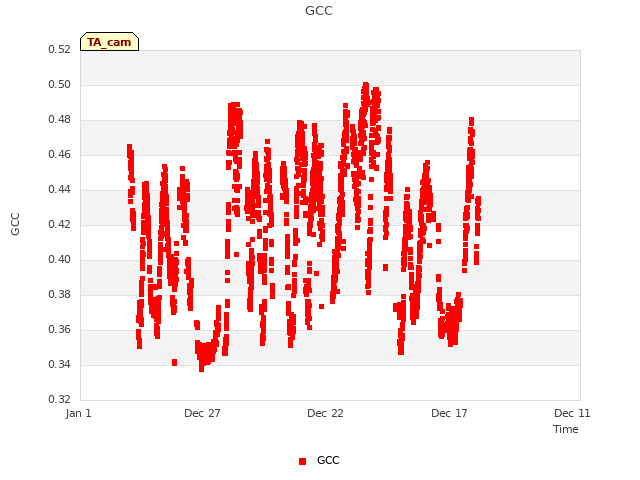

Explore the graph:GCC in a new window
