Field Notes
<--2001-12-05 02:00:00 | 2001-12-07 09:00:00-->Phenocam link: Searching...
Tonzi: 2001-12-06 08:00:00 (DOY 340)
Author: Dennis Baldocchi
Others:
Summary: Installed 6 new batteries with new cables and anticorrosion compounds (system left shutdown to charge new batteries).
| 6Dec01 08:00 Tonzi floor system Currently running -- power drop out last night Install 2 additional Photo-Voltaic Modules (PVM) -- now a total of 6 PVM Set PVM angle to 30 degree from vertical Floor battery bank sn BB-TF Remove old batteries Install 6 new batteries with new cables and anticorrosion compound but leave flux system shut down to complete conditioning charge of new batteries Tonzi Tower PC off -- CR23x6 off install power lead from system batteries to CR23x6 install 2 additional PVM -- now a total of 6 PVM set PVM angle to 30 degree from vertical install alignment bolt with chain retainer on sonic/irga mast on tower |
Field Data
No tank data
No TZ Well data found
No TZ Moisture Point data found
No VR Moisture Point data found
No TZ grass heigth found
No VR grass heigth found
No TZ Tree DBH found
No water potential data found
No TZ Grass Biomass data found
No TZ OakLeaves Biomass data found
No TZ PineNeedles Biomass data found
0 photos found
16 sets found
No data found for TZ_Fenergy.

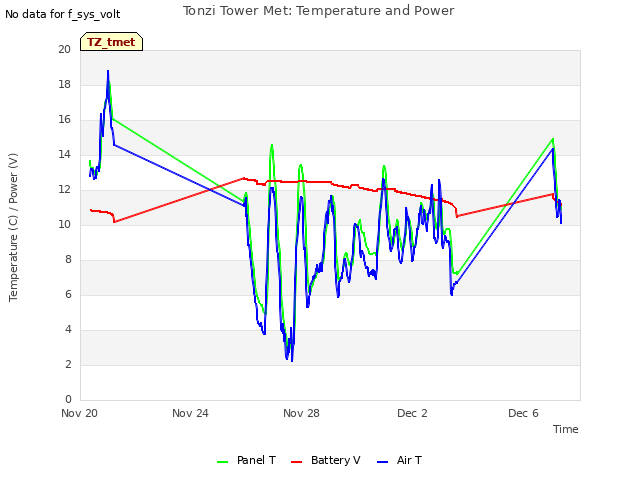

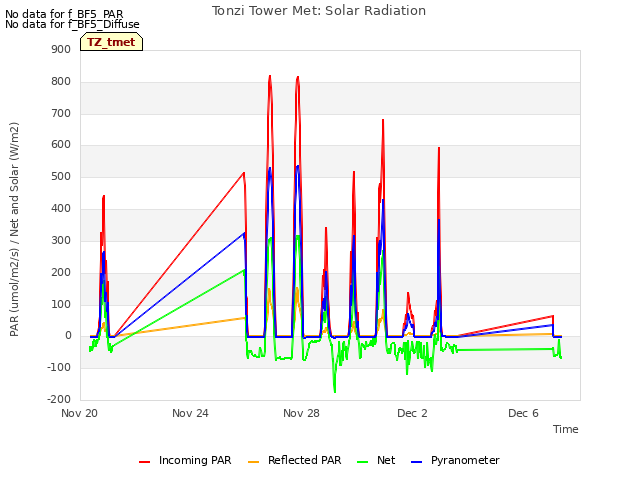

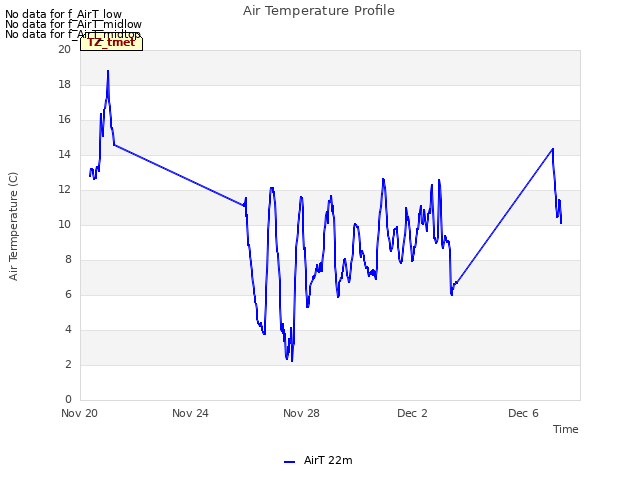

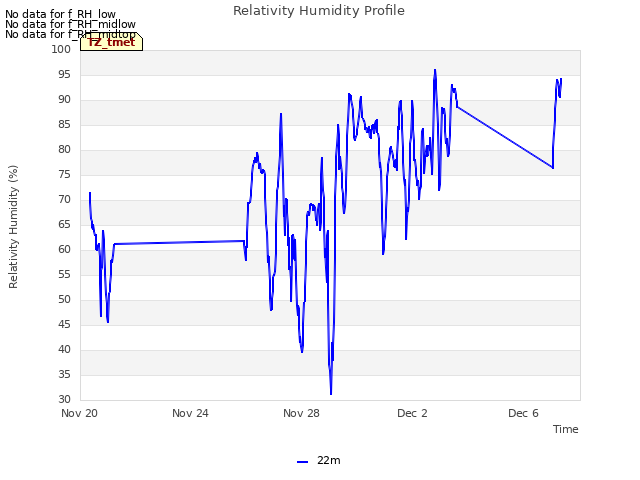

11 TZ_tmet graphs found
No data found for TZ_soilco2.
Can't check TZ_mixed

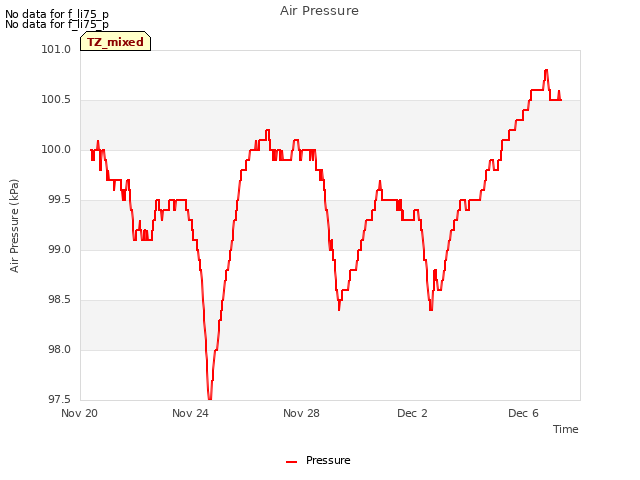

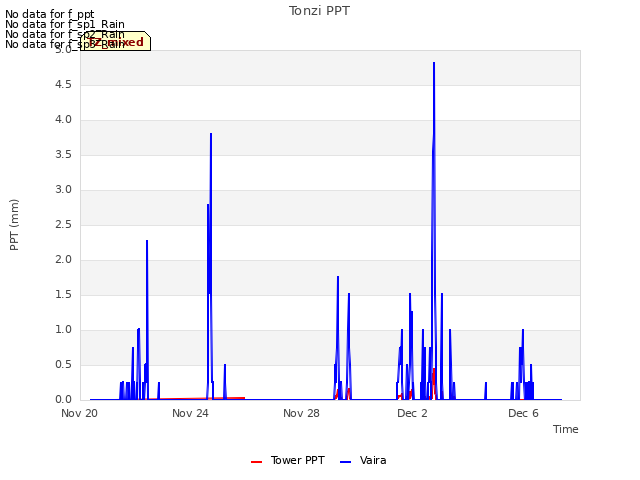

3 TZ_mixed graphs found
No data found for TZ_fflux.

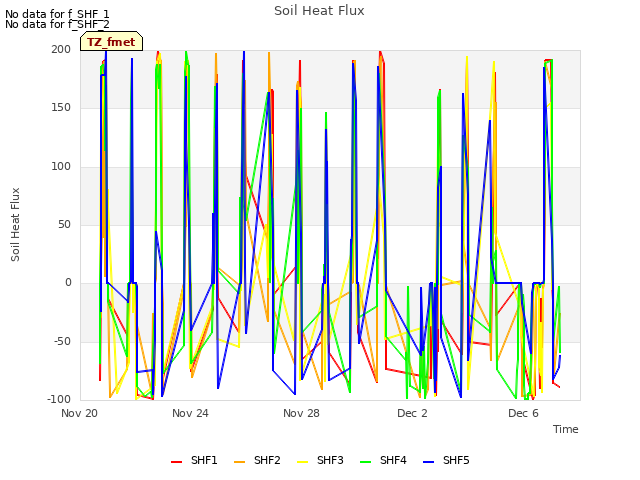

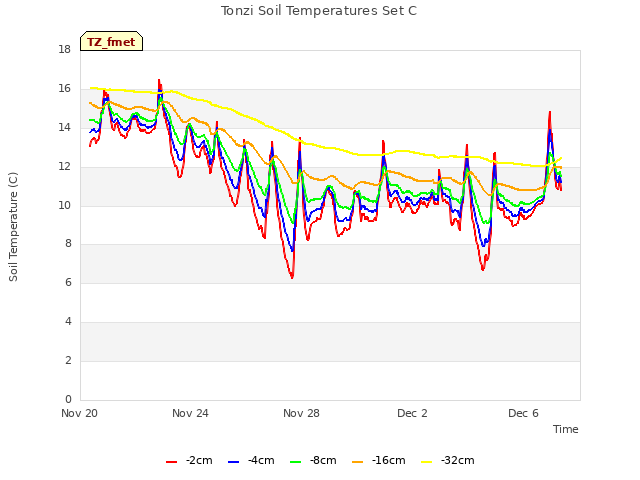

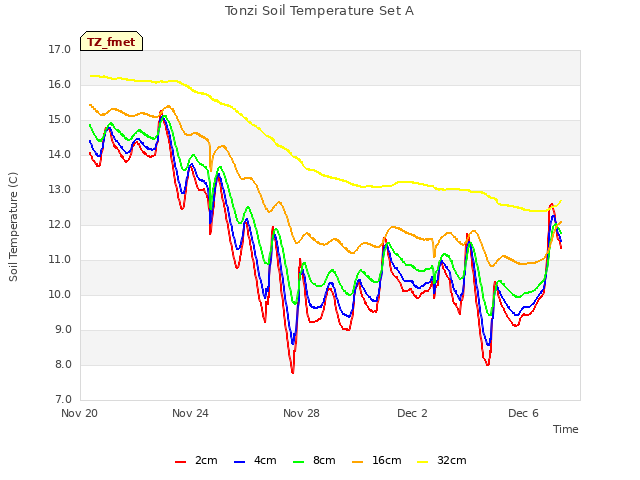

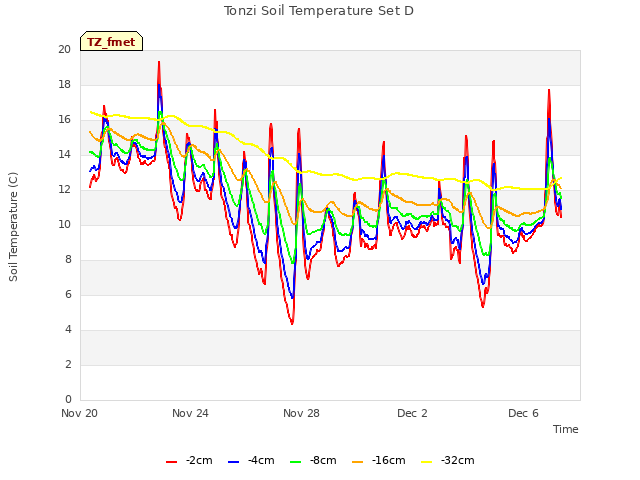

8 TZ_fmet graphs found
No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.

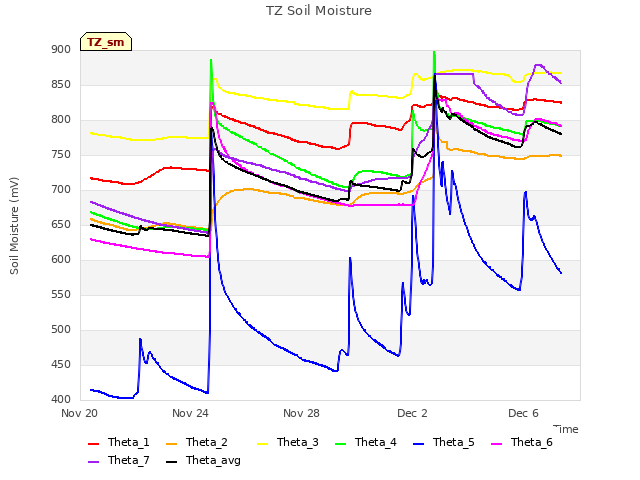

2 TZ_sm graphs found
Can't check TZ_met

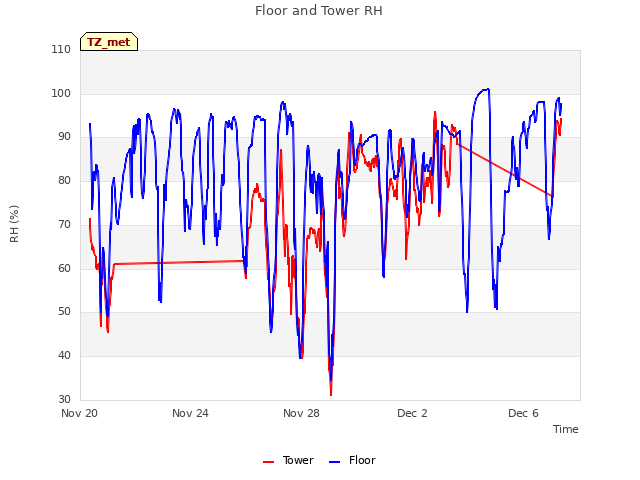

1 TZ_met graphs found
Can't check TZVR_mixed
No data found for TZ_osu.
No data found for TZ_fd.
Tonzi Z-cam data
