Field Notes

<--2001-12-06 08:00:00 | 2001-12-19 12:30:00-->
Phenocam link: Searching...

Tonzi/Vaira: 2001-12-07 09:00:00 (DOY 341)
Author: Dennis Baldocchi
Others:

Summary: Removed 4 of 6 new batteries to fix charging issues.

7 Dec01

Vaira

Solar fence battery volts = 11.99 volts

Change PVM angle to 30 degree from vertical

Remove 6 old batteries

Install 2 new batteries, cables and anticorrosion compound

V reg= 13.7
PVM current = 8.7 - 9.6 noon sun with high thin wispy clouds
load current = 2.2

Tonzi Floor

V reg = 13.7
PVM current = 8.0 noon sun with high thin wispy clouds
load current = 2.2

Remove 4 of 6 of new batteries so only 2 are being used

Note: Dennis and I discussed placing 6 new batteries at each of the
sites. I installed 6 new batteries at Tonzi floor on Thursday and shortly
afterwards I realized that our flux platforms were running fine during the
day when power is available but failed to operate overnight. This is so
because the 6 PVMs deliver current that varies between 2 and 15 amp over
the diurnal cycle. The flux platform uses 3 amp and the remaining current
(0 to 12 amp) is used to charge batteries. If (big if) we got the full 12
amp of charge current over the diurnal cycle it would take 50 hours to
charge the 6 - 100 amp-hour batteries (600 amp-hour/12 amp = 50 hours).
Trying to charge 6 - 100 amp-hour batteries will not work well since we do
not get 50 hours of sunlight in a diurnal cycle!

By cutting the battery capacities from 600 to 200 amp-hour the time to
charge with 12 amp will be 16 hours, much more easily achievable.

Anyway, the floor and vaira systems now have only 2 - 100 amp-hour
batteries and the tower system has 4. We will be able to analyze their
performance and determine which functions better over the next week or 2
and make necessary modifications. I would not be surprised if we have to
go to only 1 - 100 amp-hour battery at each site so we fully charge the
battery daily -- even on cloudy days which would be ideal for continuous
data capture.

0 photos found

Graphs display:
16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

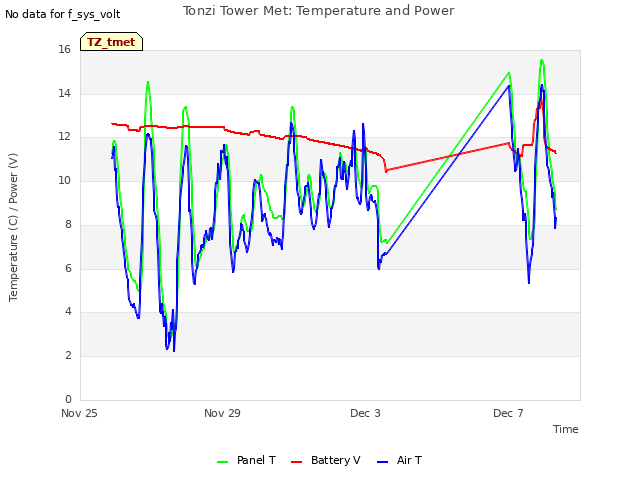

Explore the graph:Tonzi Tower Met: Temperature and Power in a new window

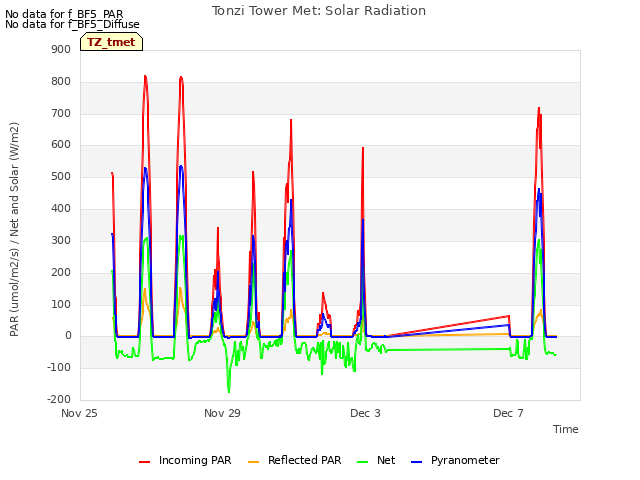

Explore the graph:Tonzi Tower Met: Solar Radiation in a new window

Explore the graph:Tonzi Tower Met: IRT Sensors in a new window

Explore the graph:LED Sensor Incoming in a new window

Explore the graph:LED Sensor Outgoing in a new window

Explore the graph:4-Band Solar Radiation in a new window

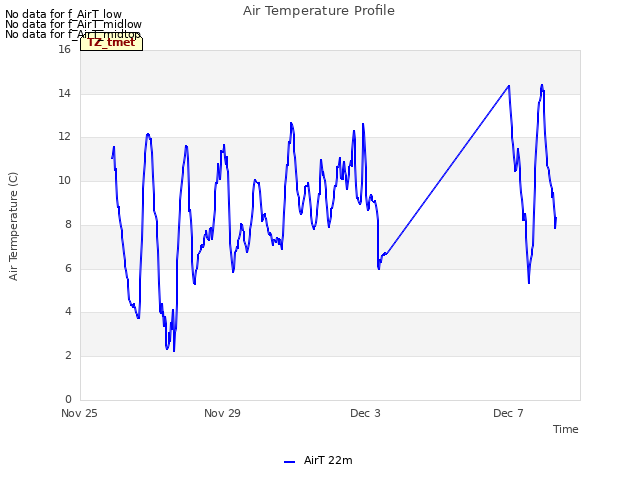

Explore the graph:Air Temperature Profile in a new window

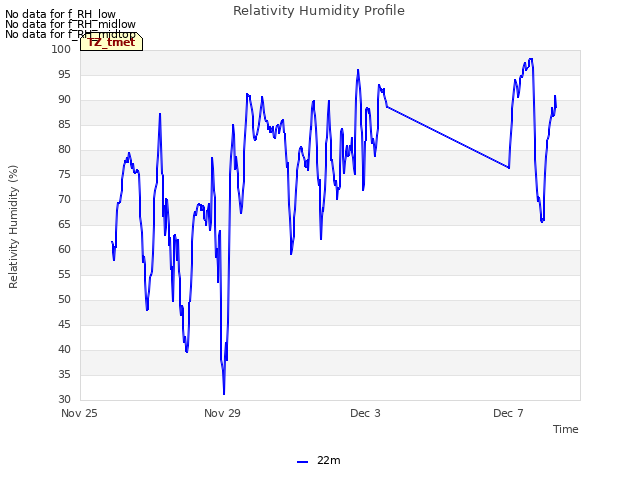

Explore the graph:Relativity Humidity Profile in a new window

Explore the graph:Tonzi Tower PRI in a new window

Explore the graph:SRS PRI/NDVI in a new window

Explore the graph:SRS NDVI in a new window

No data found for TZ_soilco2.
Can't check TZ_mixed
3 TZ_mixed graphs found

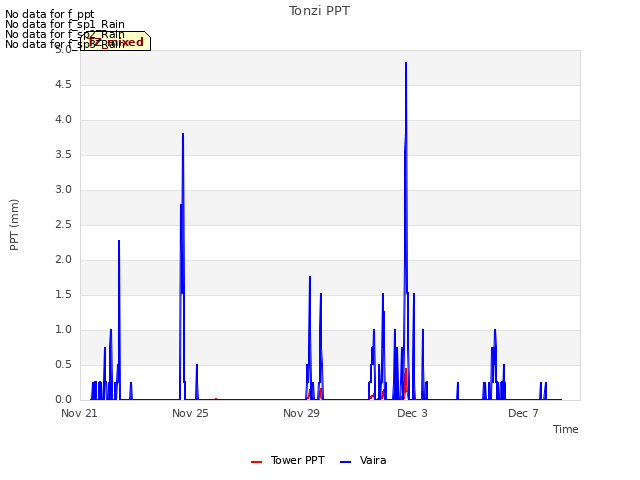

Explore the graph:Tonzi PPT in a new window

Explore the graph:Tonzi CO2 and H2O Densities in a new window

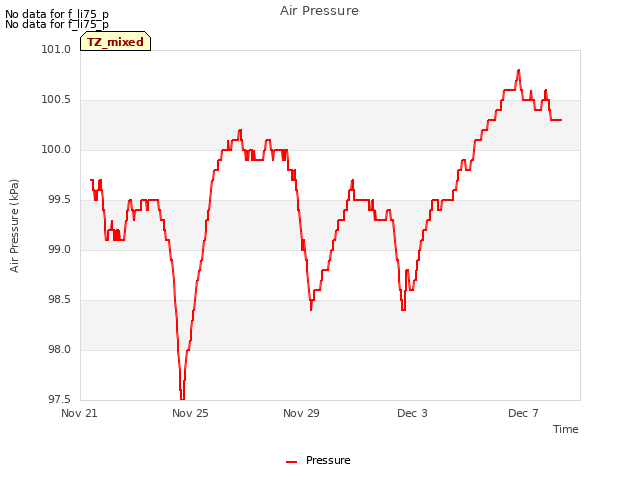

Explore the graph:Air Pressure in a new window

No data found for TZ_fflux.
8 TZ_fmet graphs found

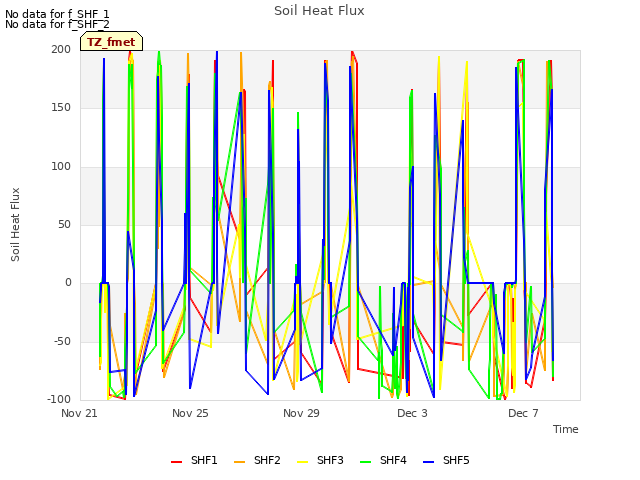

Explore the graph:Soil Heat Flux in a new window

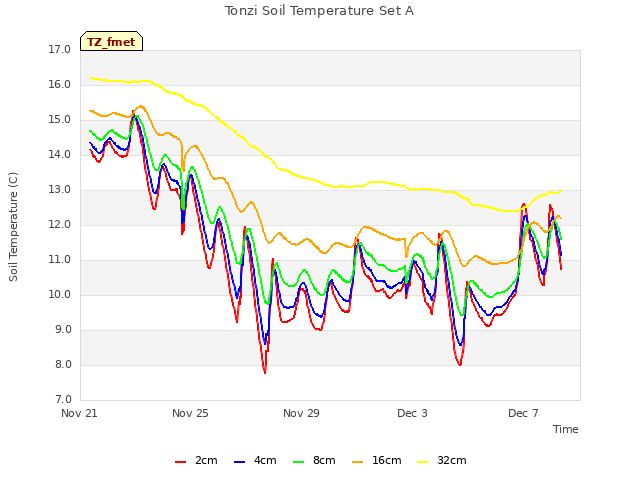

Explore the graph:Tonzi Soil Temperature Set A in a new window

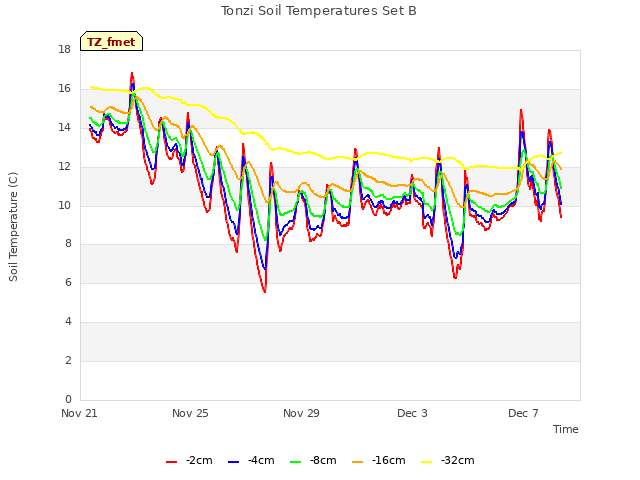

Explore the graph:Tonzi Soil Temperatures Set B in a new window

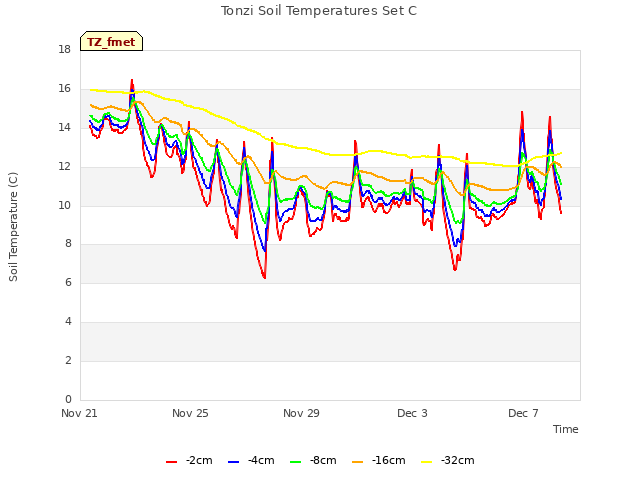

Explore the graph:Tonzi Soil Temperatures Set C in a new window

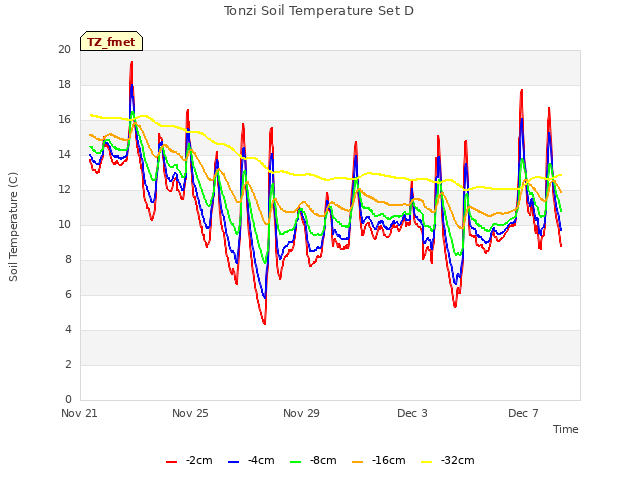

Explore the graph:Tonzi Soil Temperature Set D in a new window

Explore the graph:Well Level in a new window

Explore the graph:Well Water Temperature in a new window

Explore the graph:Soil Water Potential in a new window

No data found for TZ_tram.
No data found for TZ_co2prof.
No data found for TZ_irt.
No data found for TZ_windprof.
No data found for TZ_tflux.
2 TZ_sm graphs found

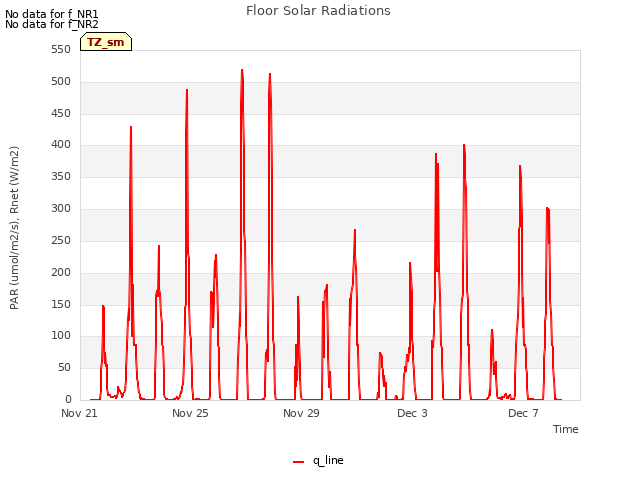

Explore the graph:Floor Solar Radiations in a new window

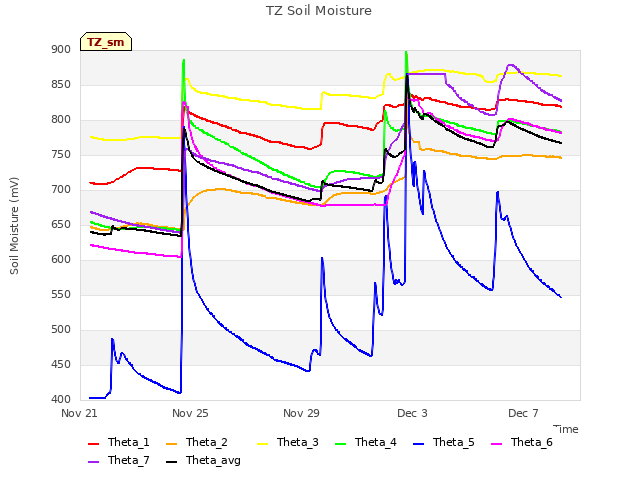

Explore the graph:TZ Soil Moisture in a new window

Can't check TZ_met
1 TZ_met graphs found

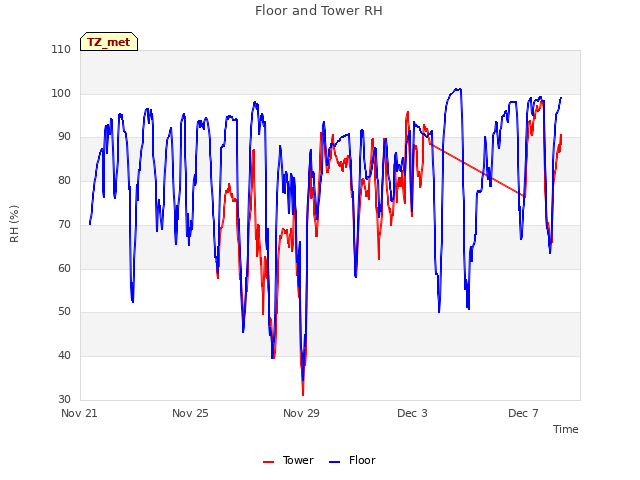

Explore the graph:Floor and Tower RH in a new window
