Twitchell Alfalfa: 2015-11-25 12:19:00 (DOY 329)
Author: Patty Oikawa
Others: Sara Knox
Summary: Clipped around sensors, swapped IRGA, all looked good
| Sara and I arrived at 12:19pm. Clear skies, cold and breezy. Sara clipped around the sensors and did Rsoil (collar 2 was done 2x) and Spectral measurements. Collar 3 is missing—replace next time. We did not do veg height since it had just been harvested (~5cm). I swapped the IRGA (swapped sn 75H-2150 for sn 1594) and downloaded data. The solar panels were very dirty, I think birds are roosting on the new diffuse PAR sensor mounted over the panels. If there is no easy way to lower the new PAR sensor then we will need a ladder at the site to access it. We also need a longer screw for affixing the camera to the pole, it no longer penetrates the wood. 7500: CO2: 396.51 ppm After swap 404.1 H2O: 283.4 mmol m-3 After swap 293.4 SS: 97.56%. After swap 101.87 T: 13.35 C After swap 14.42 P: 101.18 kPa After swap 101.23 SOS: 341.25 m s-1 After swap 341.51 |
3 photos found
Sara on site
Birds on the radiation boom
Sara and Patty on site
7 sets found
Can't check TA_met

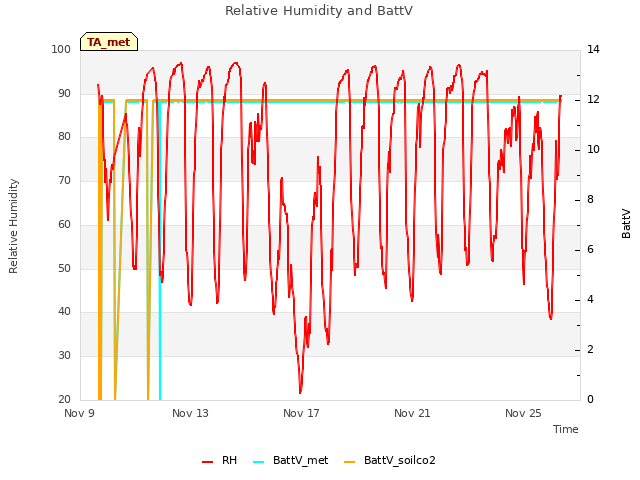

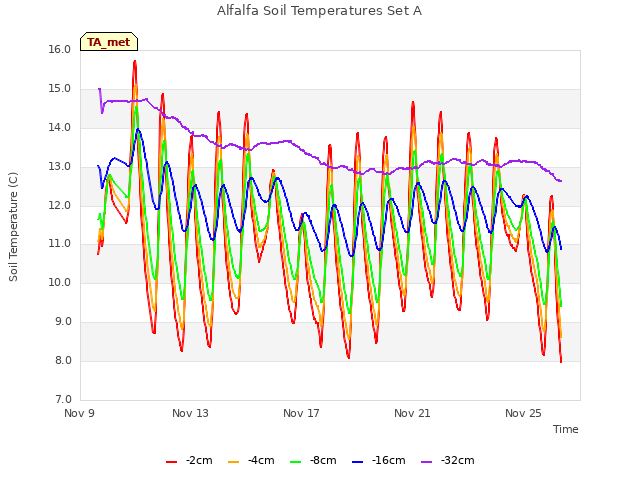

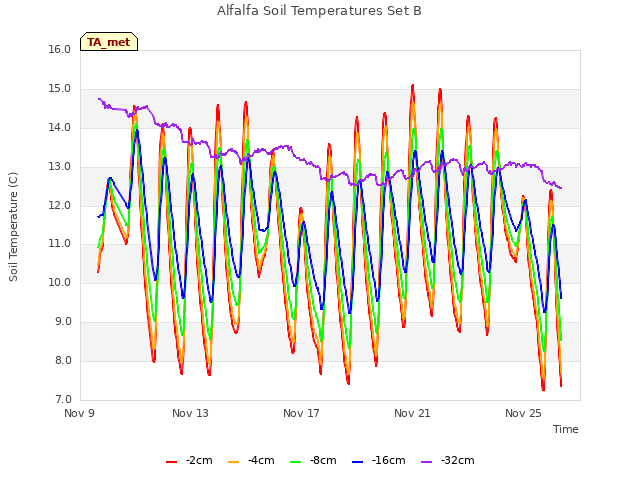

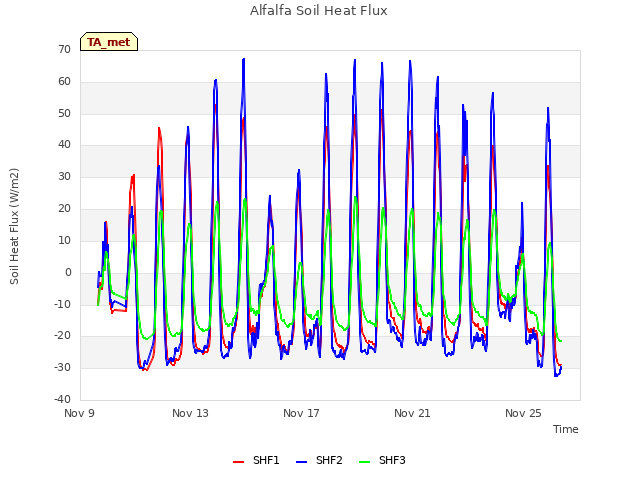

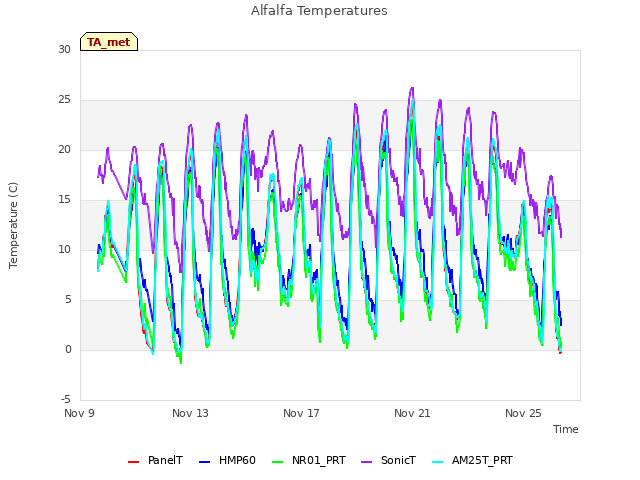

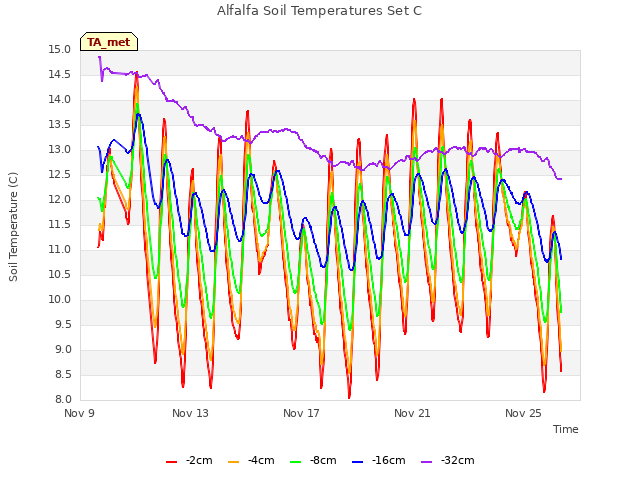

11 TA_met graphs found
Can't check TA_rad

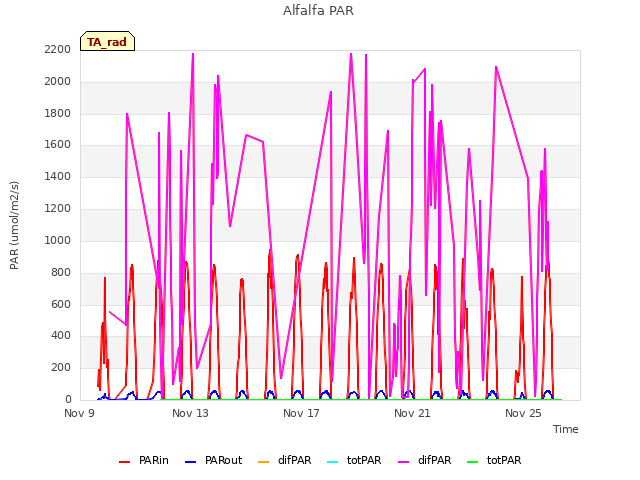

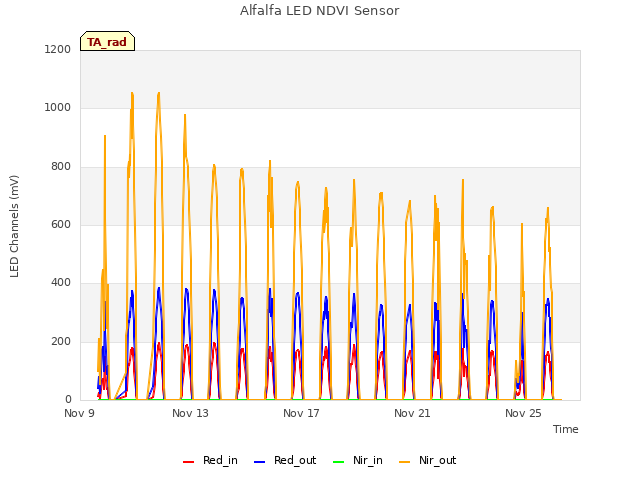

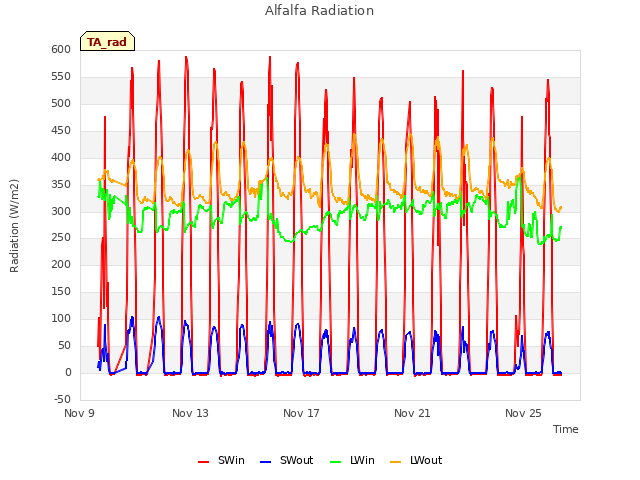

3 TA_rad graphs found
Can't check TA_flux

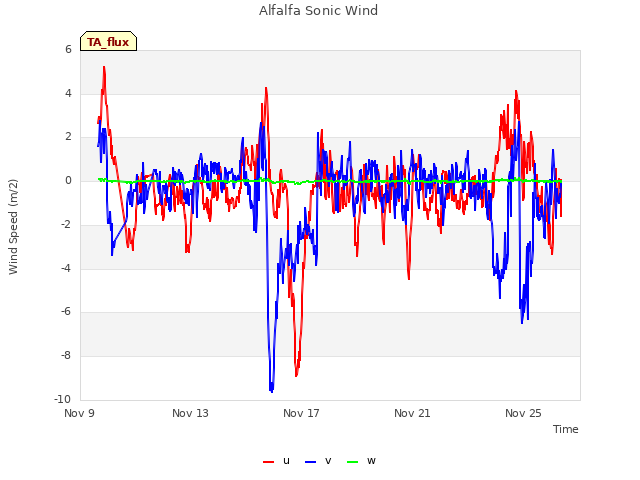

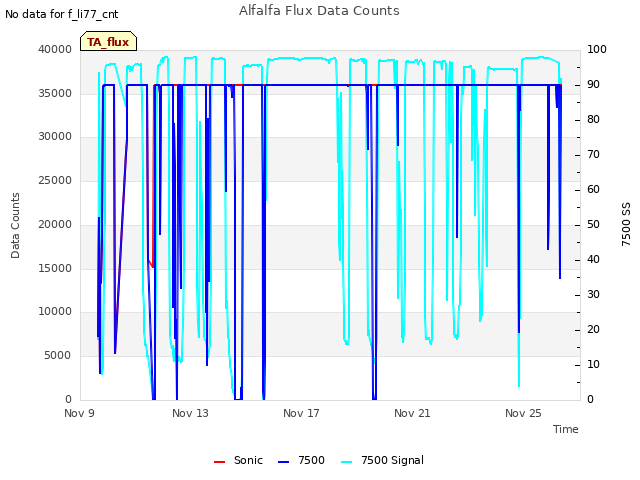

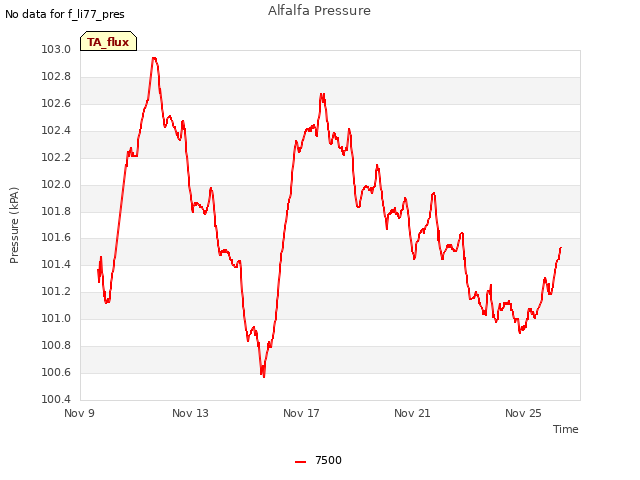

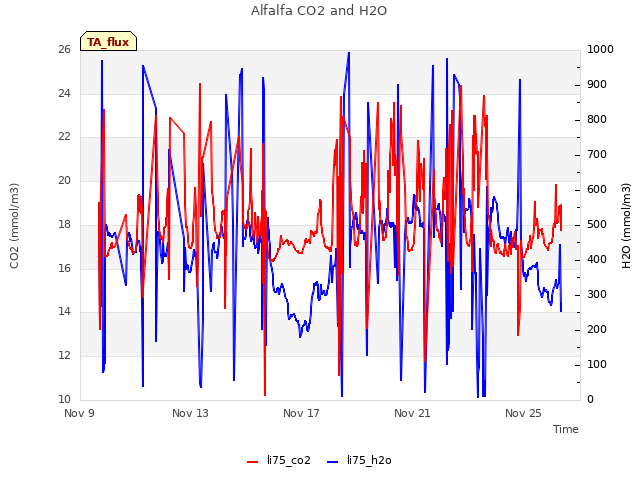

5 TA_flux graphs found
Can't check TA_soilco2

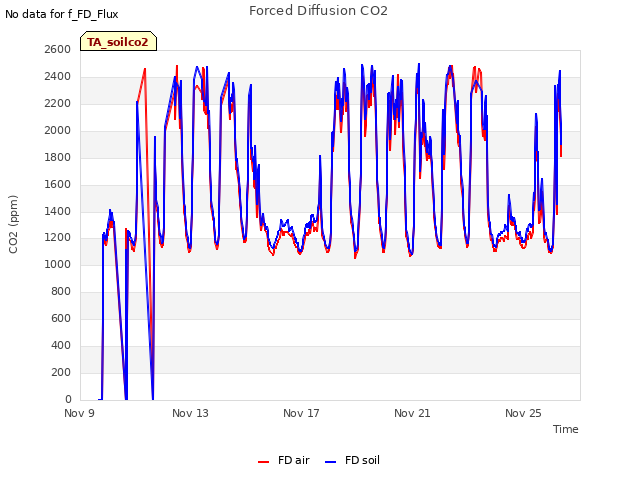

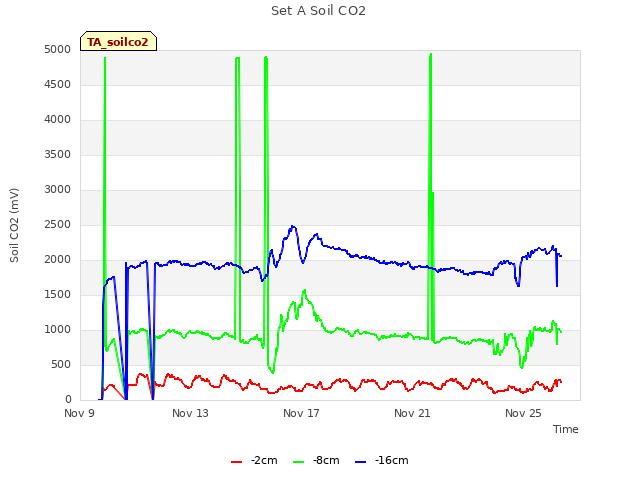

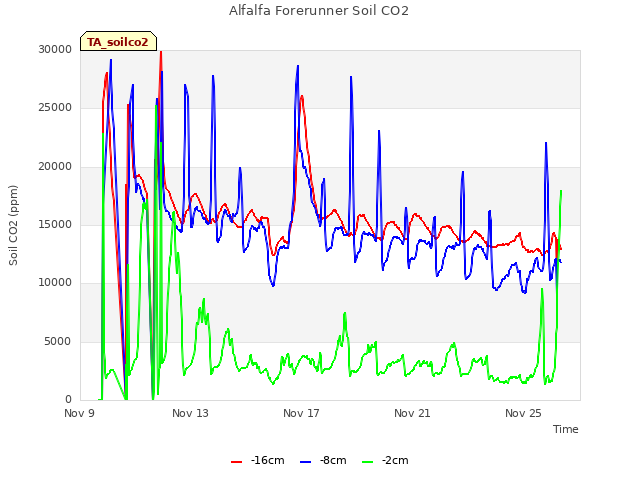

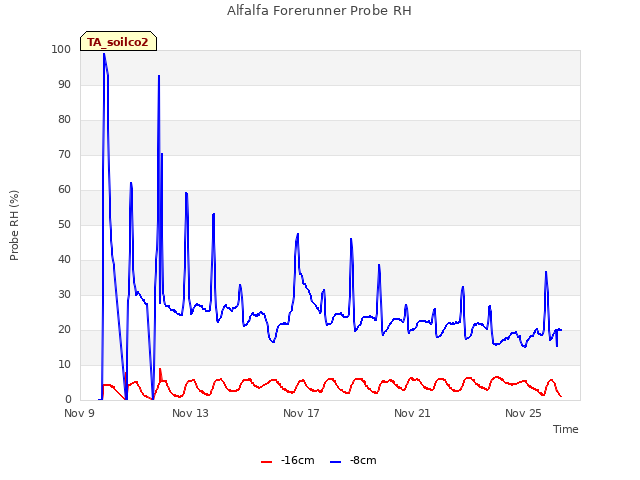

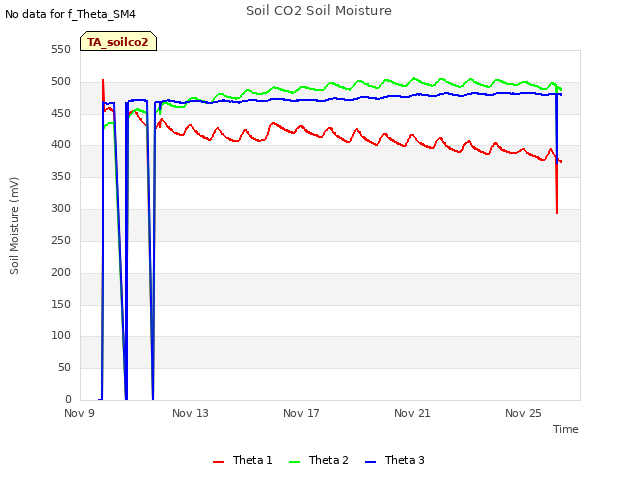

7 TA_soilco2 graphs found
No data found for TA_arable.

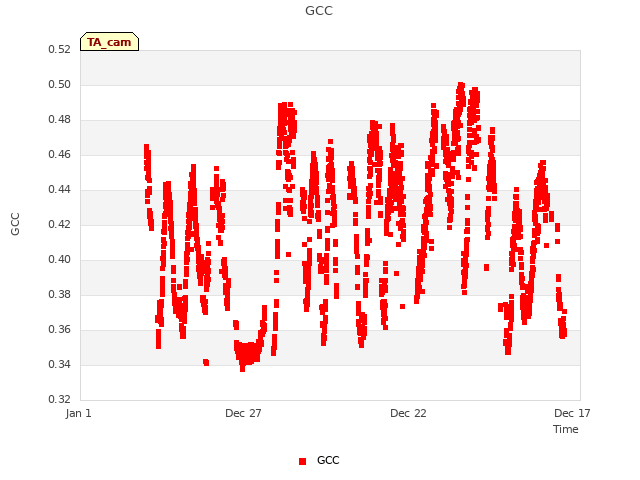

1 TA_cam graphs found
Can't check TATWBABCSB_cam
