Sherman Island: 2008-10-03 10:00:00 (DOY 277)
Author: Dennis Baldocchi
Others: Joe V

Sherman Island - Methane Study

Date

10/3/2008

DOY

276

Standard Time in

10:00

Time out

12:15

Who: Joe V

Weather: Windy, partly sunny, high thin clouds

Phenology: very yellow with new/old flowers – cleaned web cam window

Check list

Fence and gate

Latched – power up

Gill sonics

w

-0.510 +- 0.492

Ts

21.68 +- 0.273

u

2.19 +- 1.004

H20

2.26 +- 0.104

v

5.83 +- 1.282

CO2

0.997 +- 0.057

dir

280

CH4

1.905 +- 0.015

Methane Sensor (type Scroll Scroll esc)

Hi-flow ppm

1.918

Cell Pressure ~ 159 Torr

144.08

After cleaning 40um filter = 146.50

Mirror time > 12 msec

11.01

Sample rate 10Hz

10Hz

Low flow. put back in Hi-flow 10Hz!

Returned to hi flow 10Hz

Pump hours

2689.8

Filter Status

Cleaned 40um filter – some gunk fell out

Water traps

dry

Air conditioning

on

Shelter temperature °F

60

12.4C

Datalogger

Batt volt ~12V

12.11

fan of air temp/RH sensors

going

Radiometric sensors

Look clean

Rain Gauge

clean

Notes:

1) Added D:\Programs\MD9\MD9jv, made batch file for scheduled task and set up scheduled task: D:\Programs\MD9\MD9jv\Release\MD9_1sec.bat should rename D:\Data\CR10X2_1sec.dat to D:\Data\SI2_1sec_08276.10x

2) Cleaned 40um filter on CH4 inlet

3) Checked Verizon link. Initially clicked connect in VZAccess software. Otherwise seemed okay

4) Arm on the diffuse PAR sensor is going around shading the sensor once every 4:25 minutes. Copied 1 second data file.


Additional Tasks

Water table depths (decimal feet from top of well casing)

Note: Outside wells require regular screwdriver to open cap

inside

Off-south

Off-North

Vegetation height outside of enclosure – 20 samples (inches)

If Swapping Li-7500 Analyzer

Remove SN#

Install SN#

Indicate which ditches are full (copy and paste the red cross on the ditch number)

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
10 SI_met graphs found

Explore the graph:Solar Radiation in a new window

Explore the graph:Energy in a new window

Explore the graph:Soil Temperatures Set 1 in a new window

Explore the graph:Soil Temperatures Set 2 in a new window

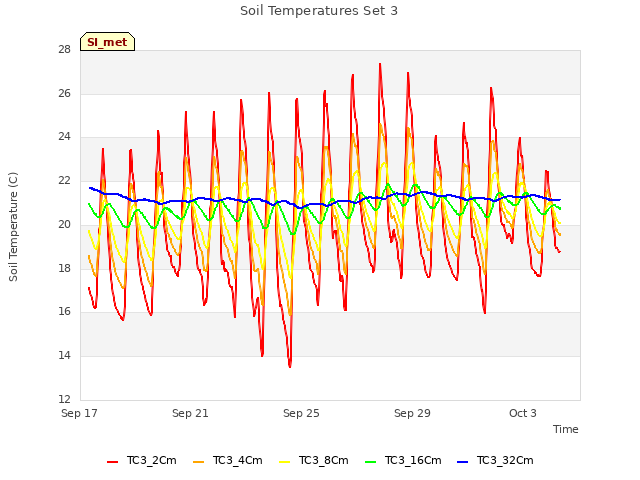

Explore the graph:Soil Temperatures Set 3 in a new window

Explore the graph:Soil Temperature at -16cm in a new window

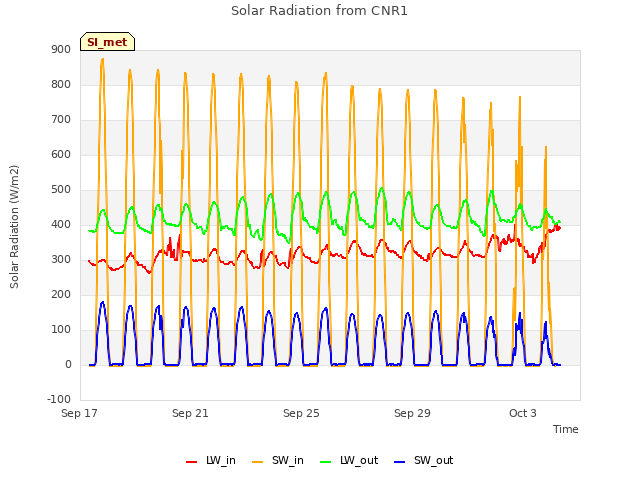

Explore the graph:Solar Radiation from CNR1 in a new window

Explore the graph:Sherman Island Rain in a new window

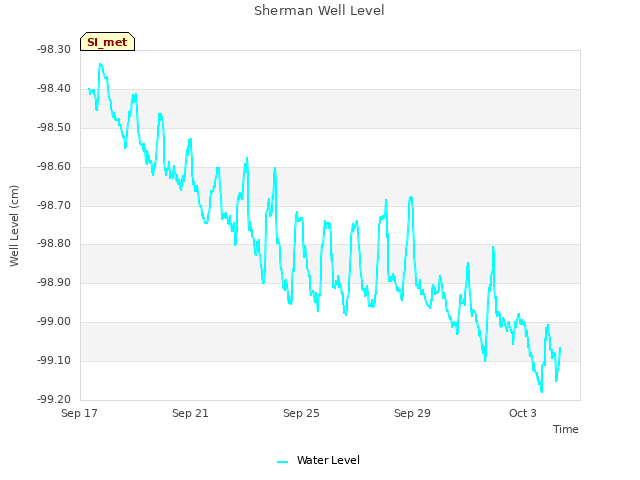

Explore the graph:Sherman Well Level in a new window

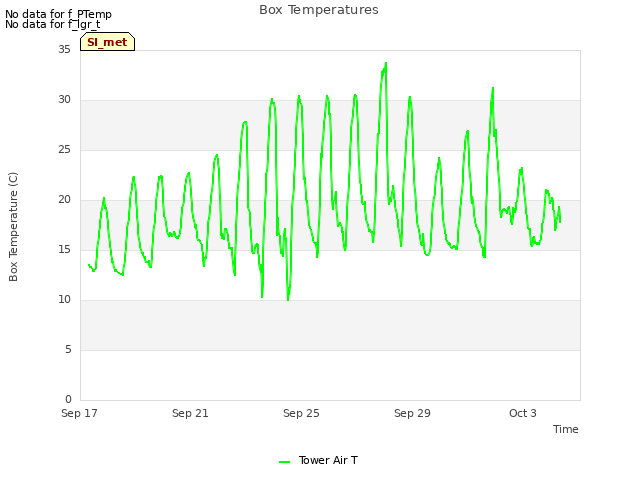

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

Explore the graph:Theta Probes in a new window

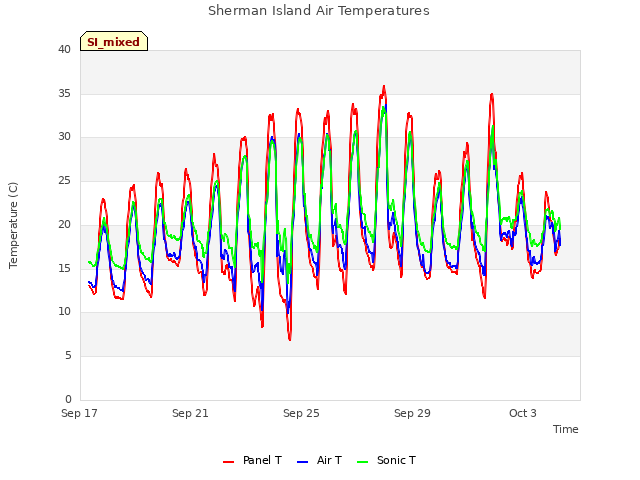

Explore the graph:Sherman Island Air Temperatures in a new window
