Mayberry: 2015-09-30 08:45:00 (DOY 273)
Author: Sara Knox
Others: Joe, Kyle
Summary: bad photos again, calibrated 7700, and normal data download

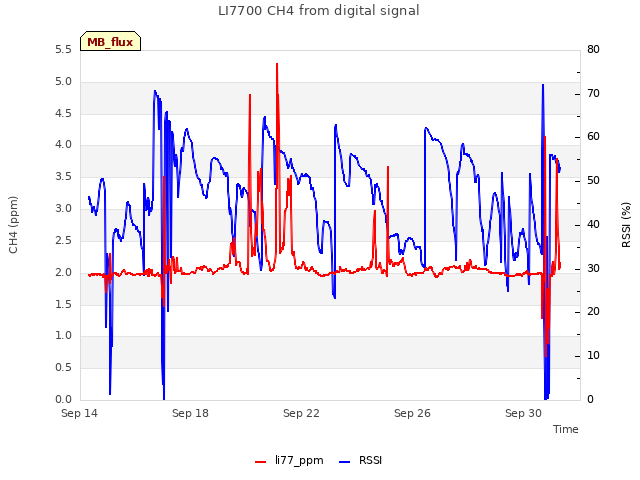

| We arrived at 8:45am. It was overcast, cool and windy. The vegetation continues to senesce. Water levels were low again about 20cm below normal – the surface DO and CO2 were nearly out of the water when we arrived. The photos again were of the inside of the box. The cable was short and pulled the camera back to point up inside the enclosure when the arm was rotated into the upright position. Kyle successfully repositioned the camera and cleaned the radiometers. We serviced the minidots. Joe and I downloaded the data and calibrated the LI-7700 sn TG1-0357. 7500 CO2: 377 µmol/mol (398 after cleaning) H2O: 621 mmol/m3 SS: 95.7% (102.26% after cleaning) Pressure: 101.46 kPa Temperature: 17.04 ˚C SOS: 343 m s-1 7700 CH4: 1.98 ppm RSSI: 33% Reservoir: filled since it was about 1/2 empty Met: OK |
0 photos found
11 sets found

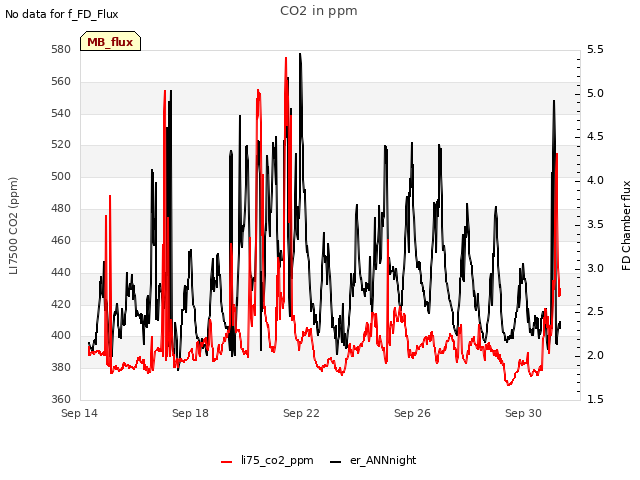

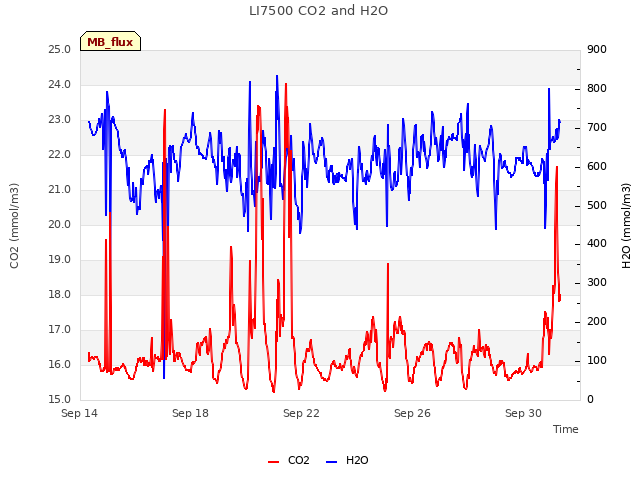

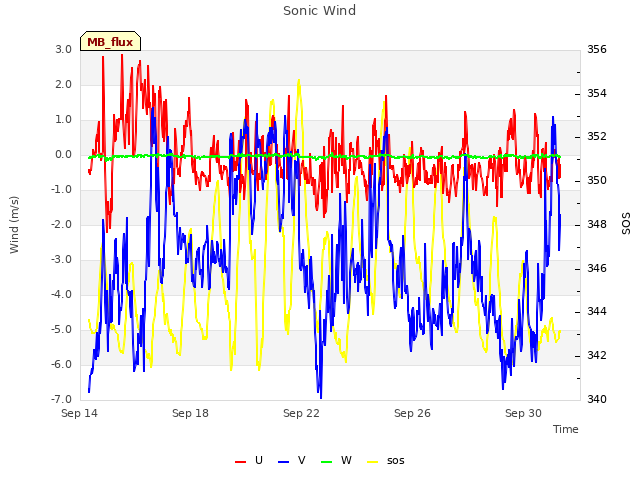

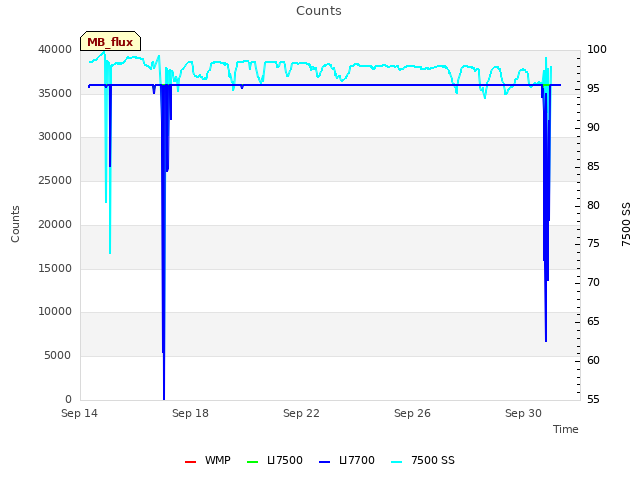

7 MB_flux graphs found
No data found for MB_met.

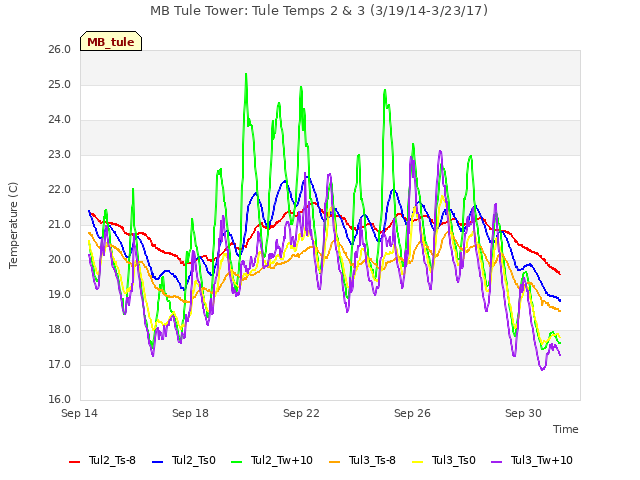

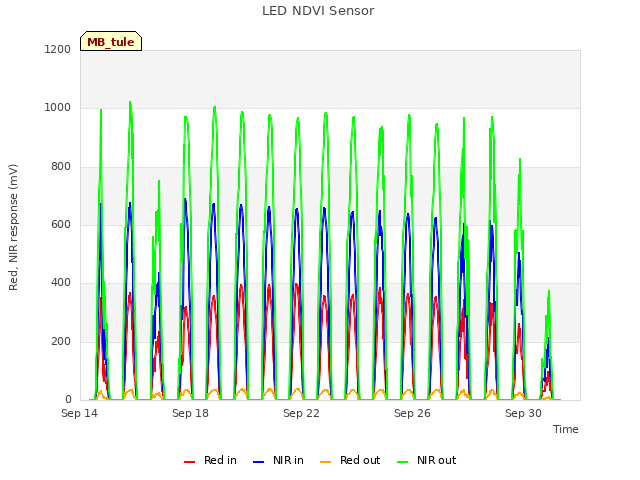

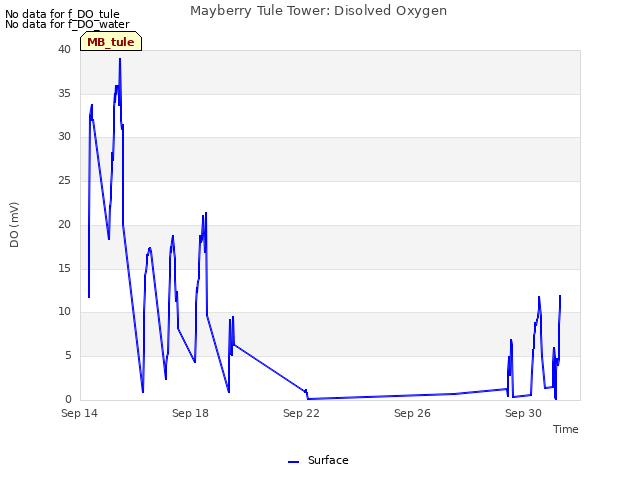

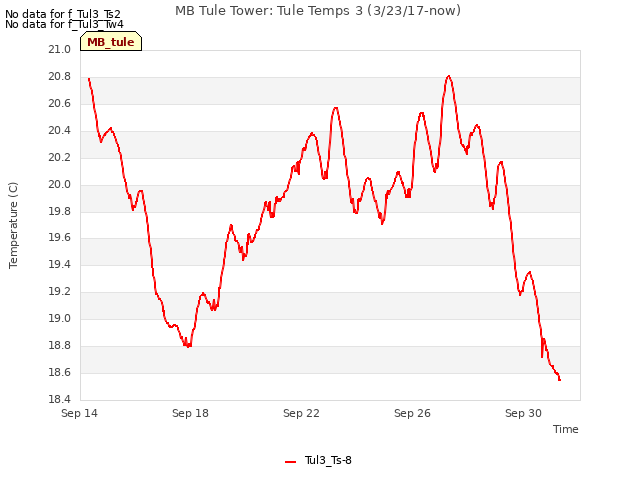

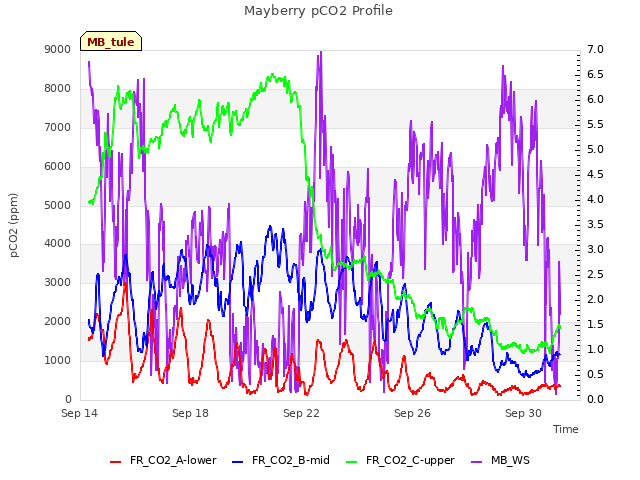

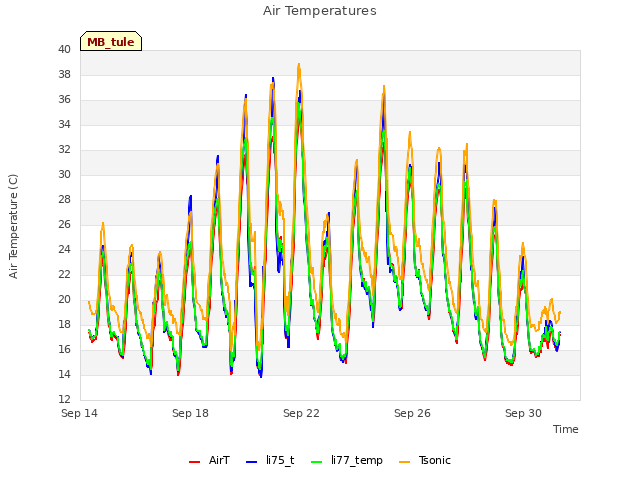

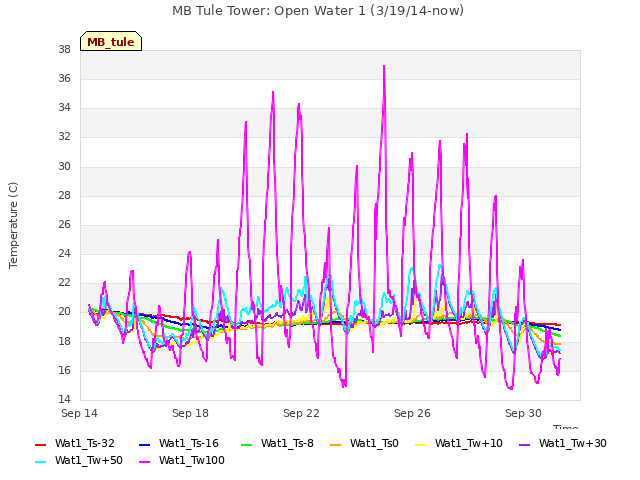

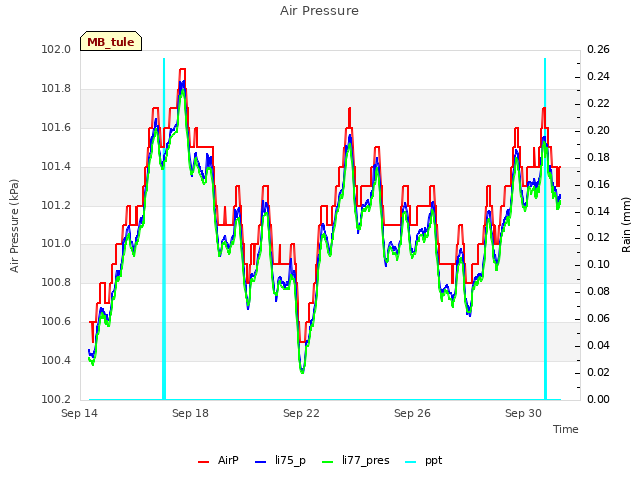

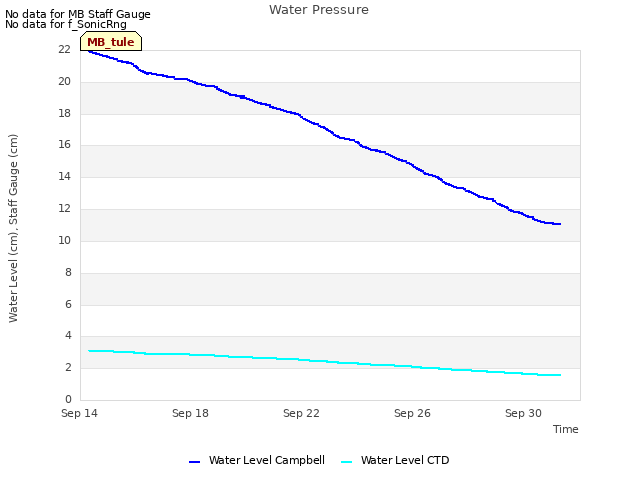

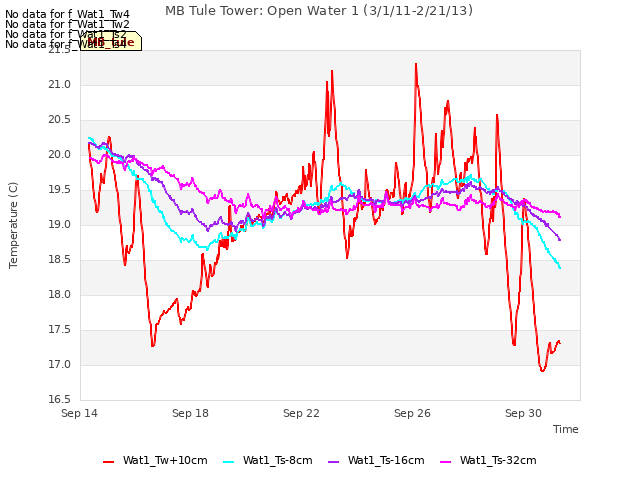

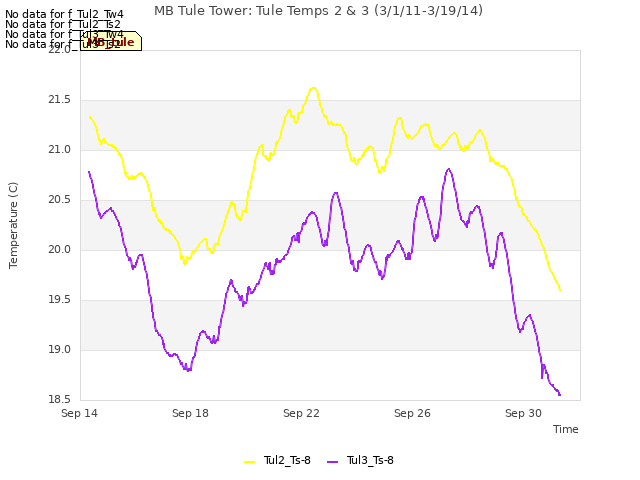

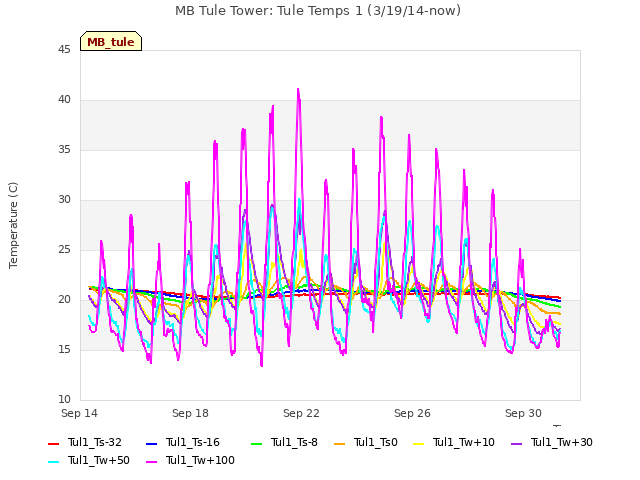

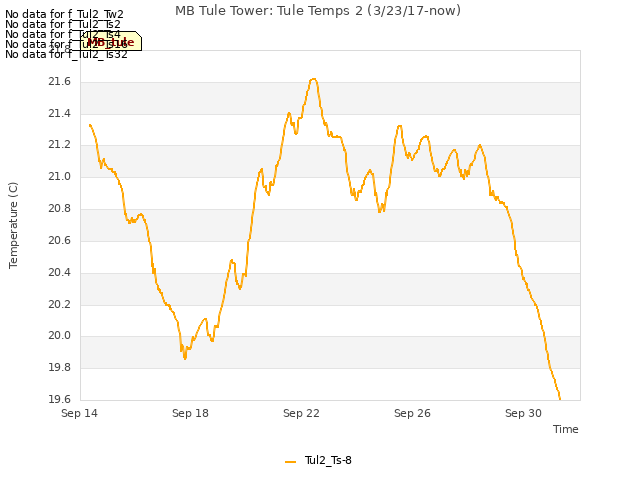

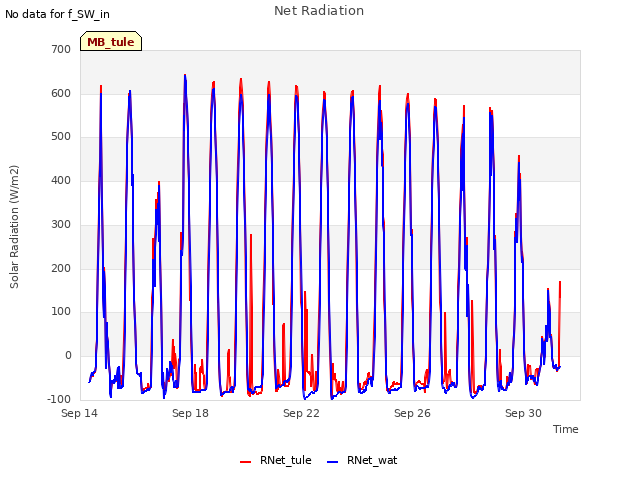

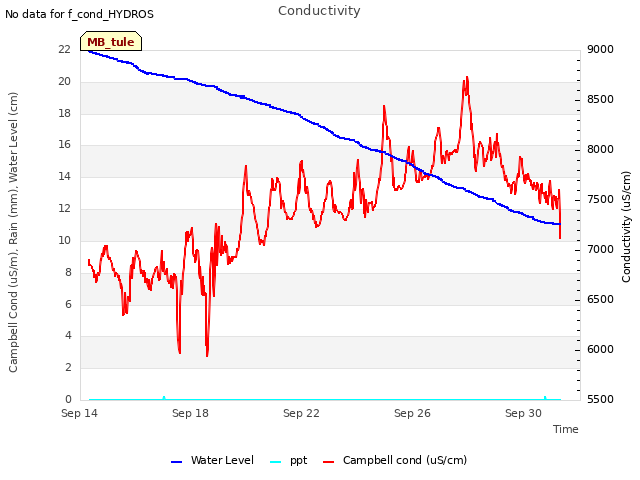

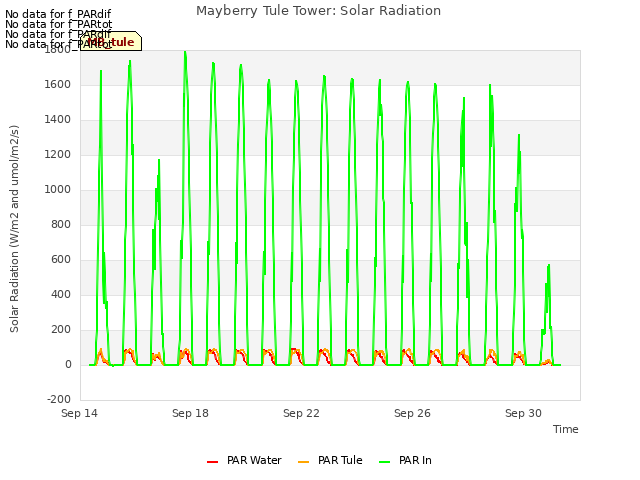

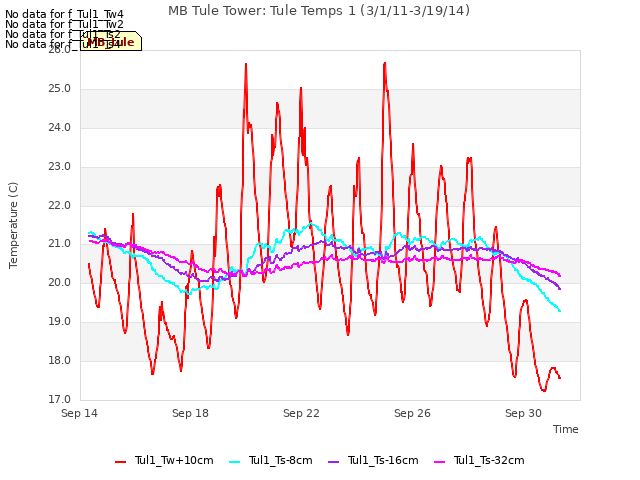

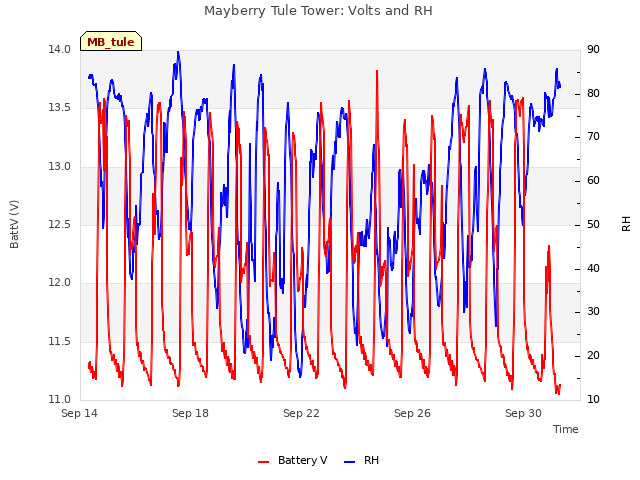

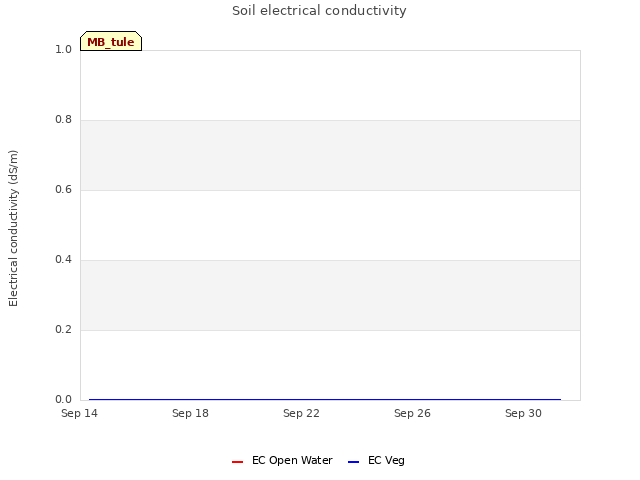

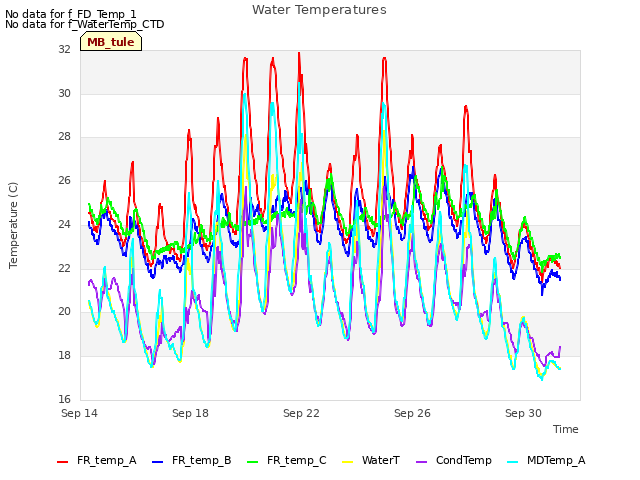

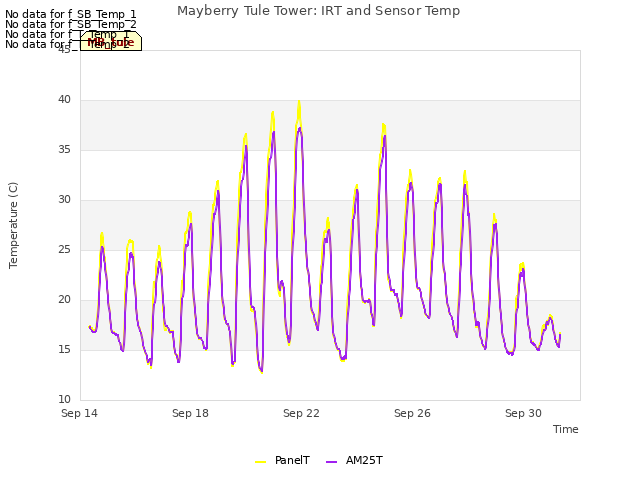

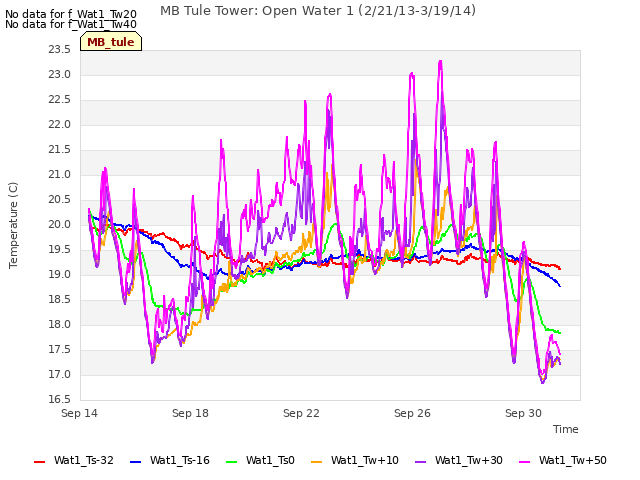

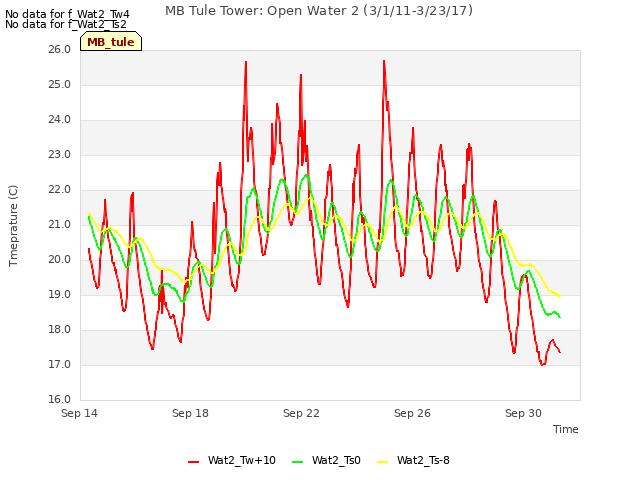

27 MB_tule graphs found
Can't check MBWPEESWGT_mixed
No data found for MB_cam.
Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met

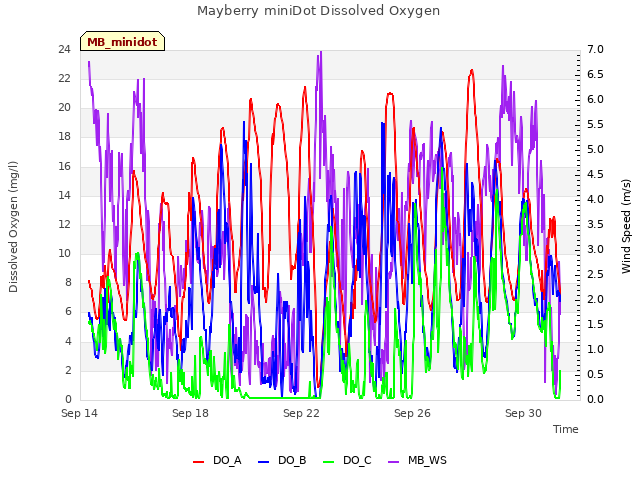

1 MB_minidot graphs found
Can't check MBSWEEWPBCBA

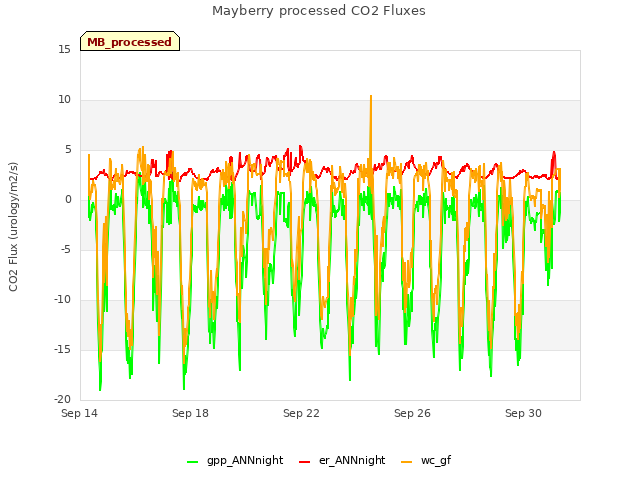

1 MB_processed graphs found
Can't check MB_fd
1 MB_fd graphs found
