Twitchell Alfalfa: 2015-09-30 12:00:00 (DOY 273)
Author: Sara Knox
Others: Joe, Kyle

Summary: power issues and problems with the LI-6400, swapped a Forerunner probe, normal data download

We arrived at 12:00pm. It was rainy, cool and breezy. The alfalfa is about 25 cm tall now. Kyle made clip plot and vegetation height measurements. Joe downloaded data. He also swapped the 2 cm Forerunner probe (sn GP20140009) with a new one (sn GP20140023). I tried to make soil respiration measurements but only managed to make measurements at two collars (1 and 2). First we had a power issue that we traced back to the battery – looks like it needs to be replaced soon. We connected to the other battery and things seemed to work better (although we were still getting a message saying that power was low when CO2 was being scrubbed down so that battery may need to be replaced soon too), however, by the third collar, CO2 was not scrubbing down. We need to do some tests in the lab to see why that was occurring. Wiring for the Forerunner probes was actually ok.

It was raining so no reasonable CO2 and H2O numbers from the 7500.
Met: OK

Veg Height (cm): Tape measure from ground to top of plant
23, 13, 37, 30, 25, 30, 17, 28, 12, 31, 18, 27, 15, 15, 19, 30, 24, 13, 20, 31, avg = 22.9, stdev = 7.44

1 photos found

Site visit
Site visit

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

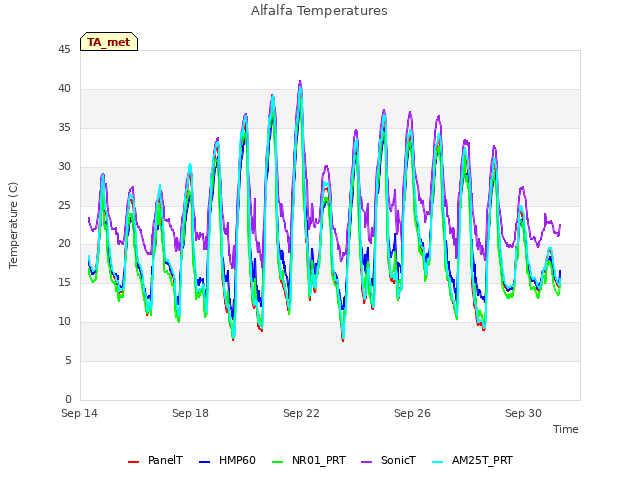

Explore the graph:Alfalfa Temperatures in a new window

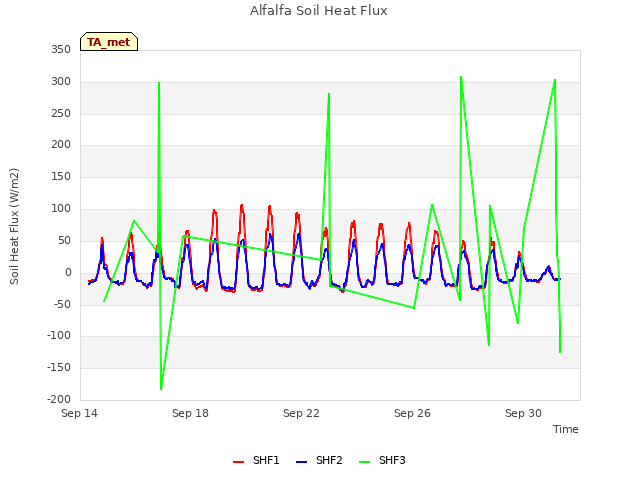

Explore the graph:Alfalfa Soil Heat Flux in a new window

Explore the graph:Alfalfa Soil Moisture in a new window

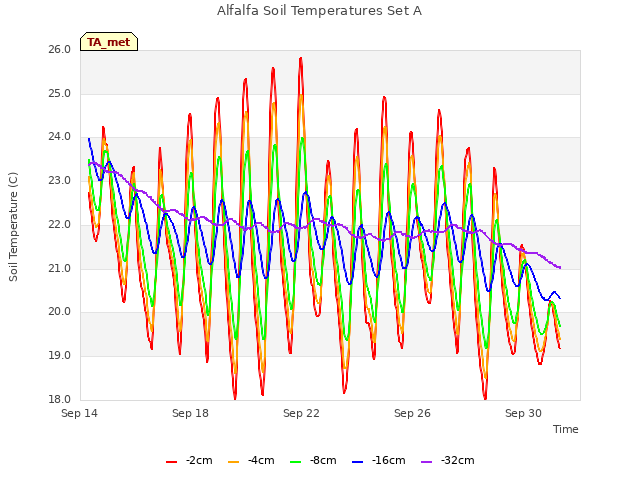

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

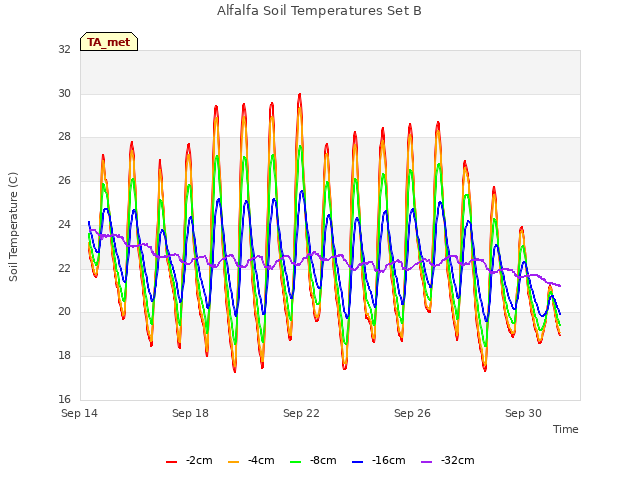

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

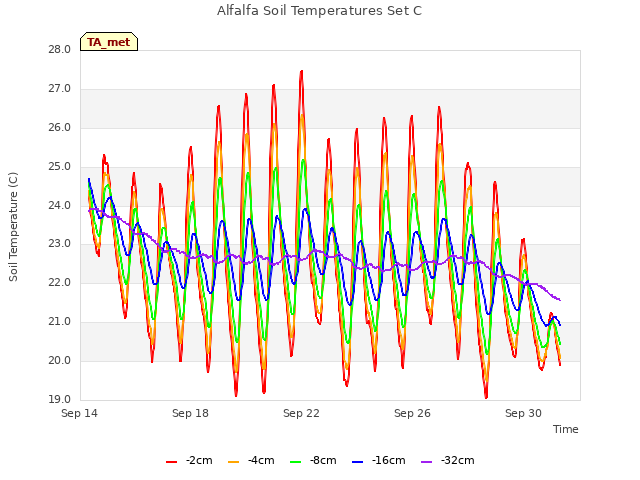

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

Explore the graph:NDVI Narrow Band Radiation in a new window

Explore the graph:Soil CO2 Flux in a new window

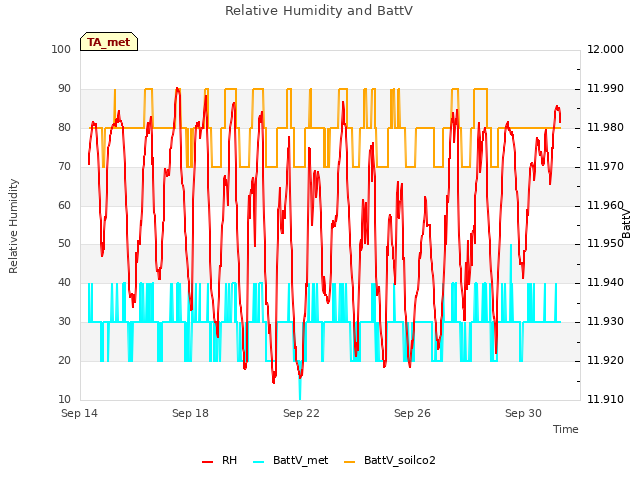

Explore the graph:Relative Humidity and BattV in a new window

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

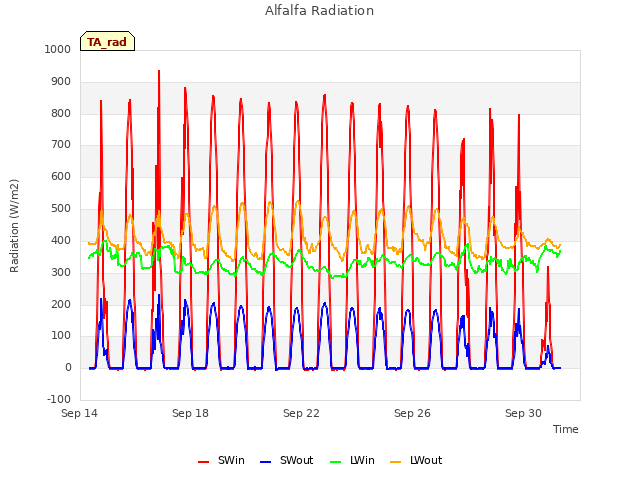

Explore the graph:Alfalfa Radiation in a new window

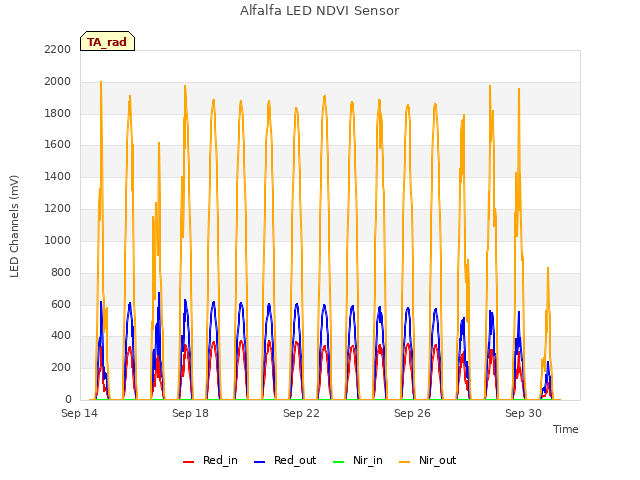

Explore the graph:Alfalfa LED NDVI Sensor in a new window

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

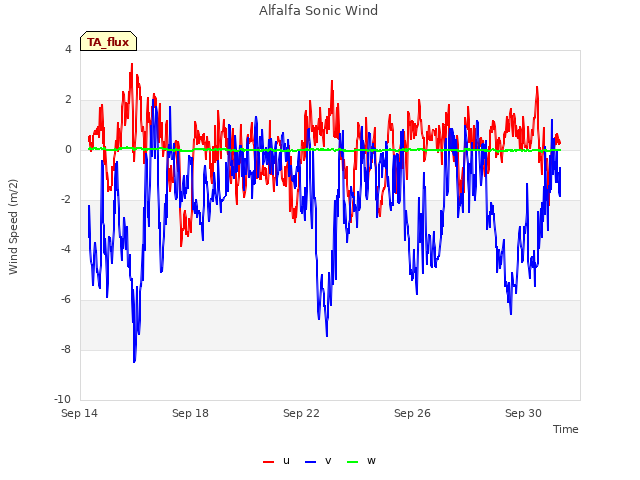

Explore the graph:Alfalfa Sonic Wind in a new window

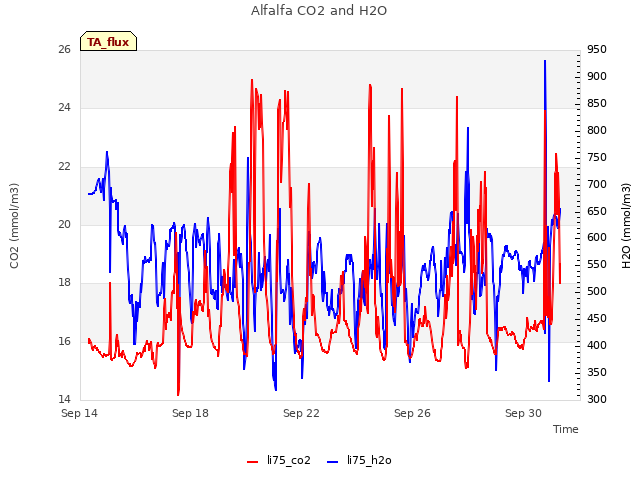

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

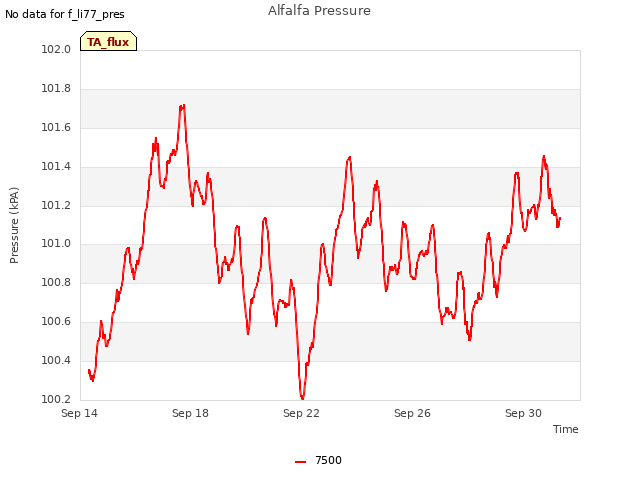

Explore the graph:Alfalfa Pressure in a new window

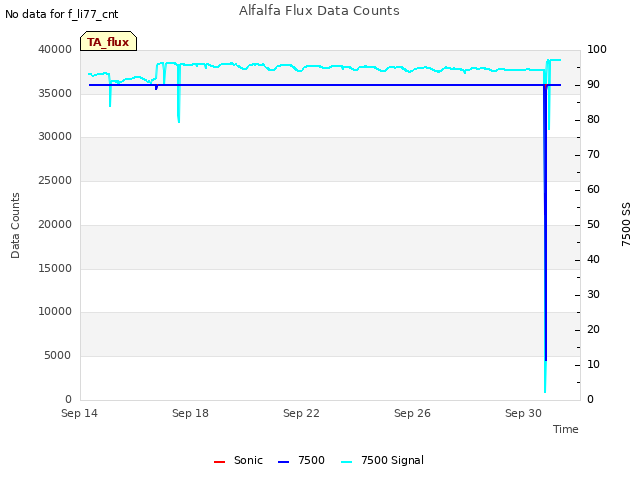

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

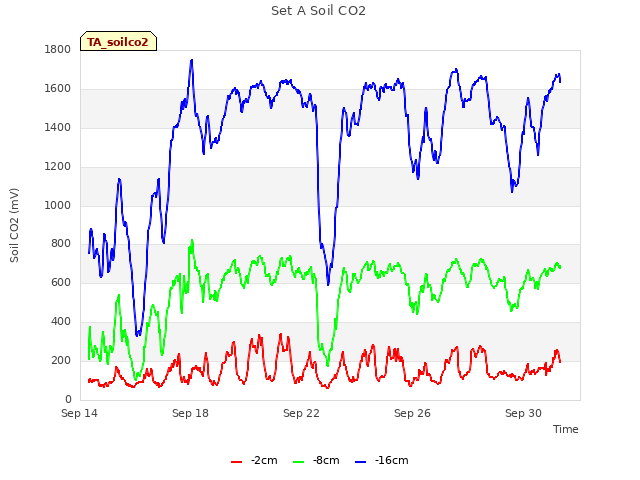

Explore the graph:Set A Soil CO2 in a new window

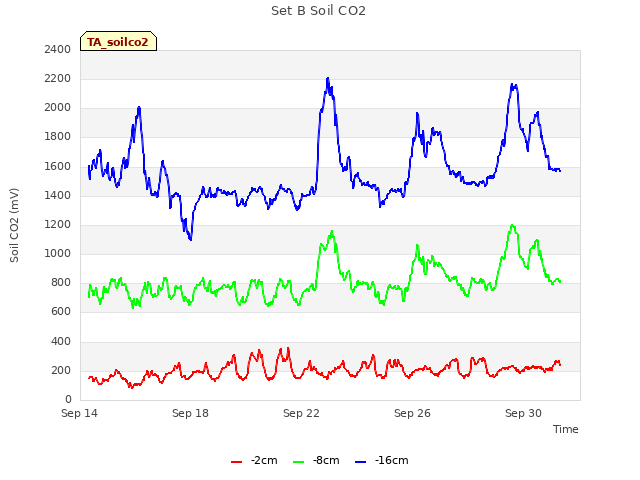

Explore the graph:Set B Soil CO2 in a new window

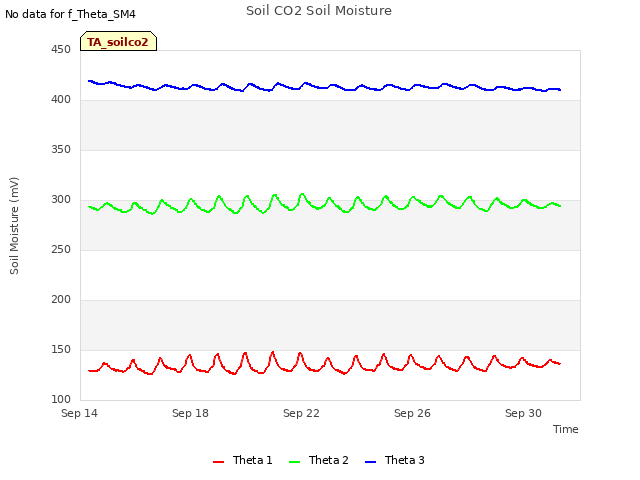

Explore the graph:Soil CO2 Soil Moisture in a new window

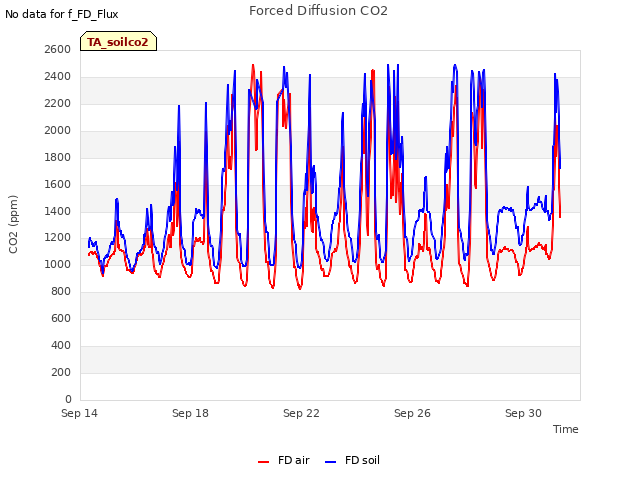

Explore the graph:Forced Diffusion CO2 in a new window

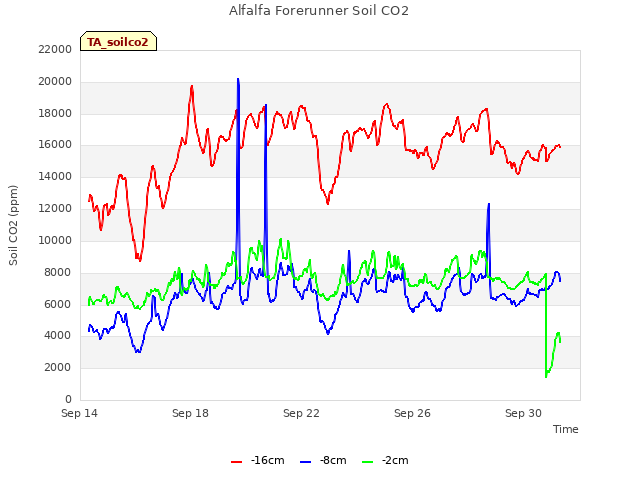

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

Explore the graph:Alfalfa Forerunner Temperatures in a new window

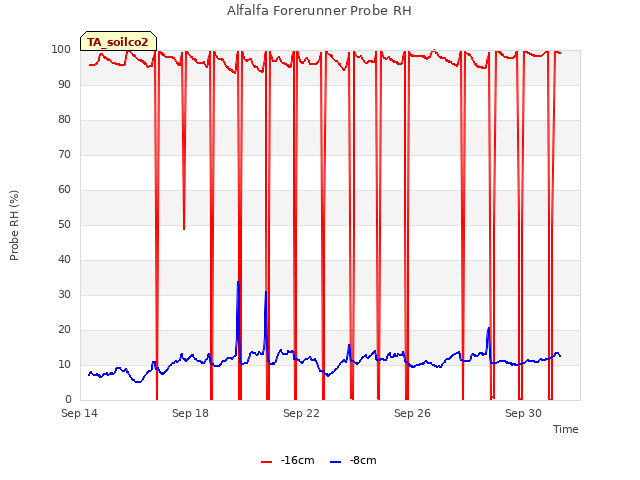

Explore the graph:Alfalfa Forerunner Probe RH in a new window

No data found for TA_arable.
1 TA_cam graphs found

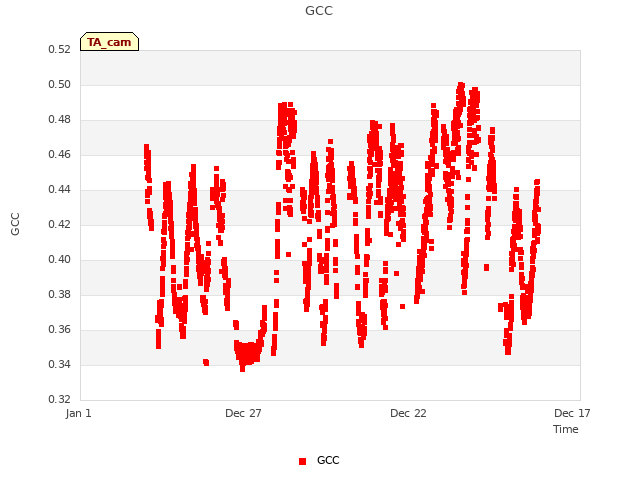

Explore the graph:GCC in a new window

Can't check TATWBABCSB_cam
