Twitchell Alfalfa: 2015-02-05 15:15:00 (DOY 36)
Author: Joe Verfaillie
Others: Sara

Summary: Standard fieldwork, Alfalfa looks good for February

Alfalfa
2015-02-05

I arrived about 3:15 with Sara. It was overcast and warm with little to no wind and the sun peeking through the clouds to the west at the end. The alfalfa looks pretty green for February. No change in the ground squirrel problems.

The 7500 read: 386.3ppm CO2, 823.3mmol/m3 H2O, 83.9SS, 14.71C, 101.27kPa
After cleaning: 423.8ppm CO2, 552.7mmol/m3 H2O, 90.6SS

Sara did soil respiration, veg height and spectral measurements.

I added some more split loom to the ground sensor wires. One of the thermocouples needs to be spliced.

I might have replaced the screw connector on the HMP60 fan.

Veg Height (cm): Tape measure from ground to top of plant
15, 10, 8, 20, 0, 7, 10, 2, 6, 7, 7, 12, 0, 7, 11, 5, 3, 10, 10, 2, avg = 7.6, stdev = 4.99

1 photos found

Sara on site
Sara on site

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

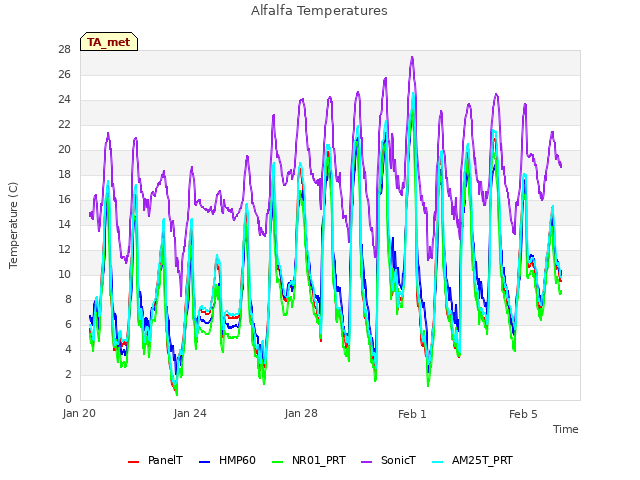

Explore the graph:Alfalfa Temperatures in a new window

Explore the graph:Alfalfa Soil Heat Flux in a new window

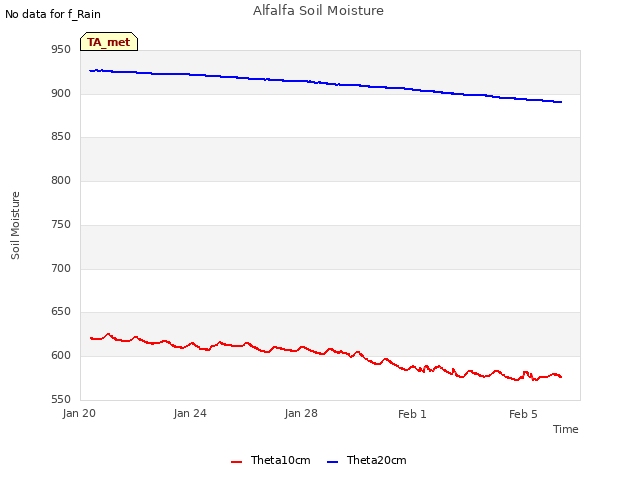

Explore the graph:Alfalfa Soil Moisture in a new window

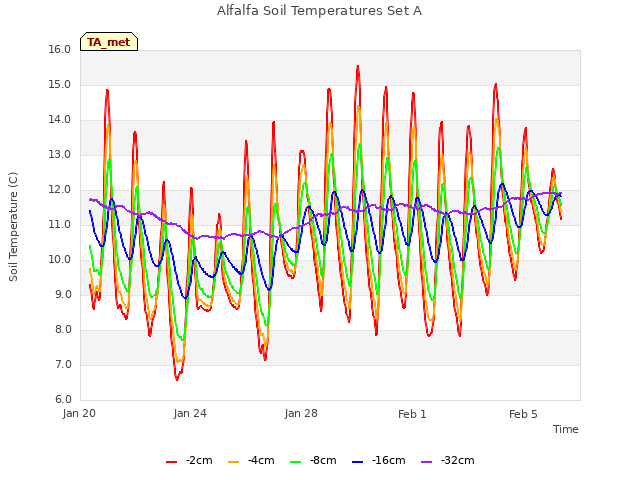

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

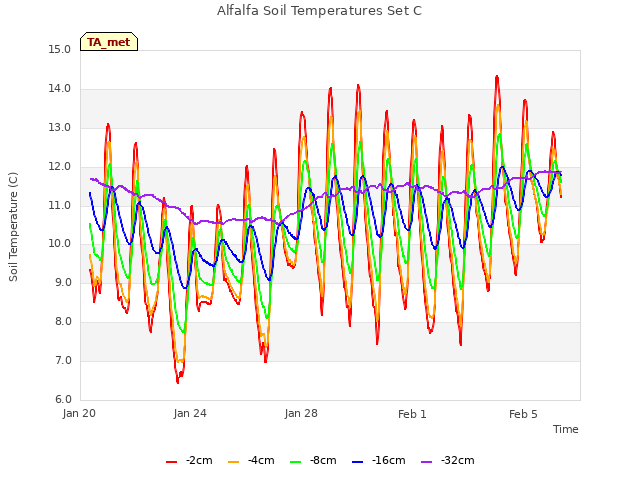

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

Explore the graph:NDVI Narrow Band Radiation in a new window

Explore the graph:Soil CO2 Flux in a new window

Explore the graph:Relative Humidity and BattV in a new window

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

Explore the graph:Alfalfa Radiation in a new window

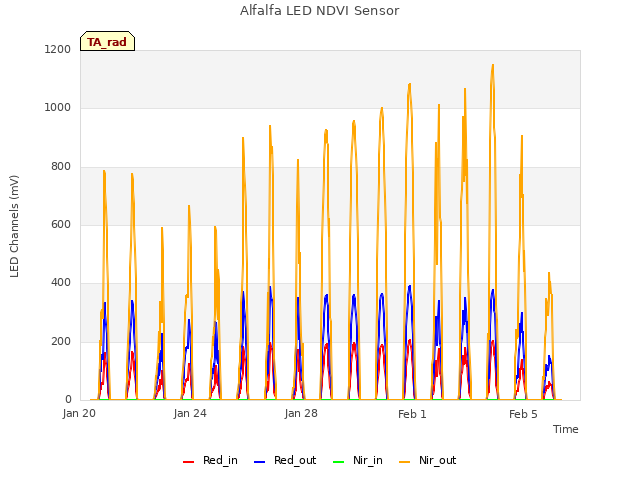

Explore the graph:Alfalfa LED NDVI Sensor in a new window

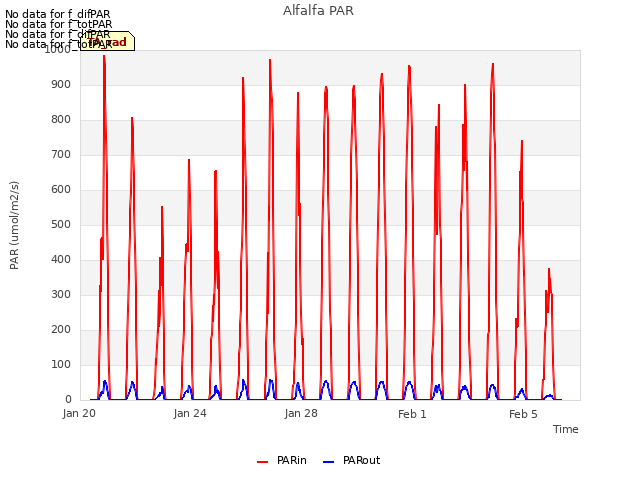

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

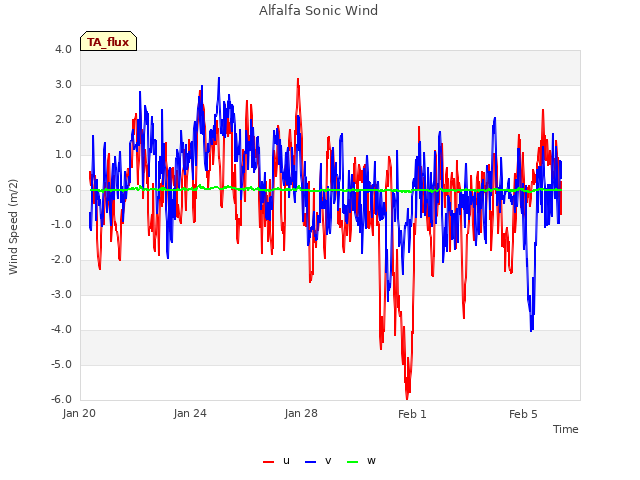

Explore the graph:Alfalfa Sonic Wind in a new window

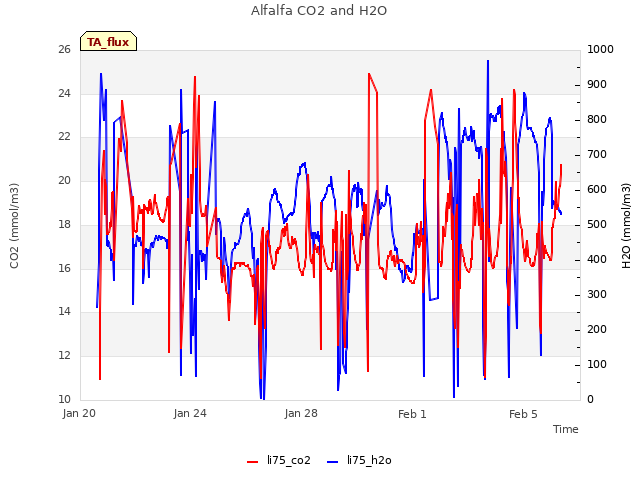

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

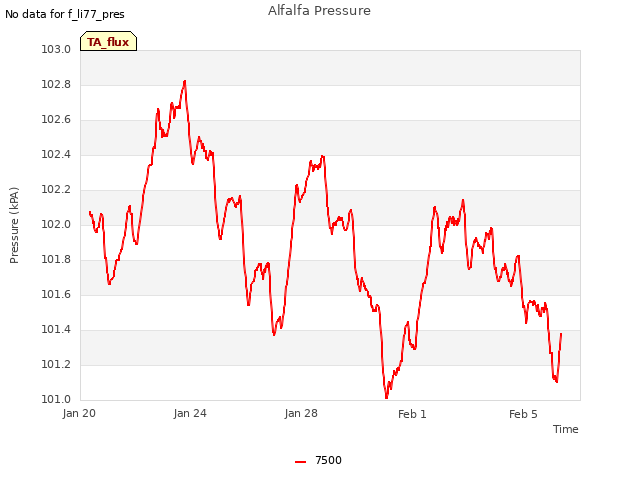

Explore the graph:Alfalfa Pressure in a new window

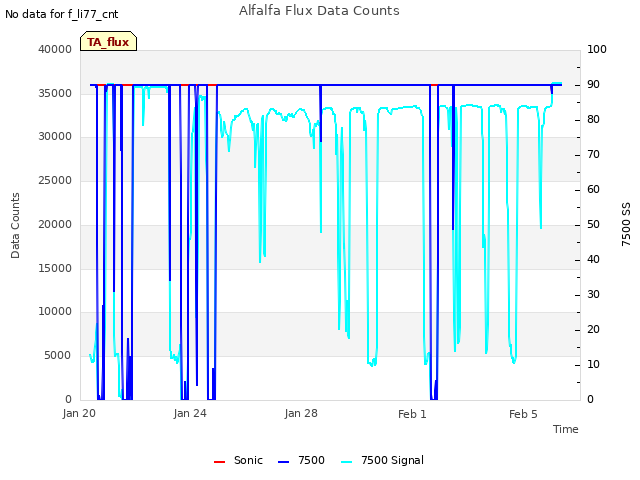

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

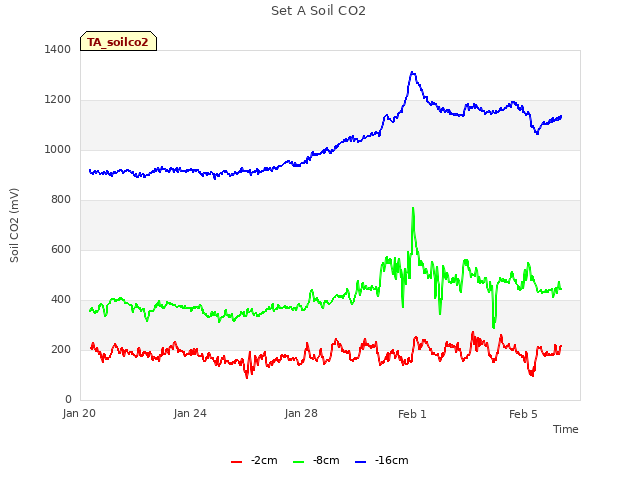

Explore the graph:Set A Soil CO2 in a new window

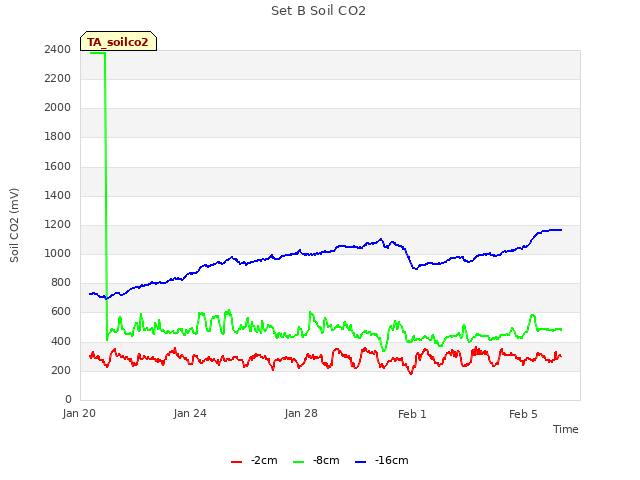

Explore the graph:Set B Soil CO2 in a new window

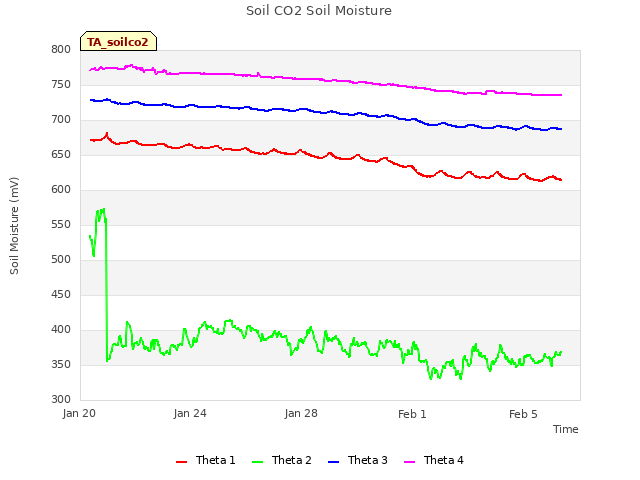

Explore the graph:Soil CO2 Soil Moisture in a new window

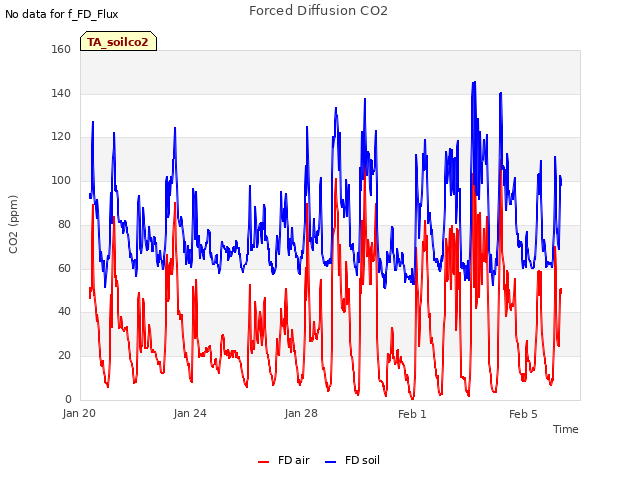

Explore the graph:Forced Diffusion CO2 in a new window

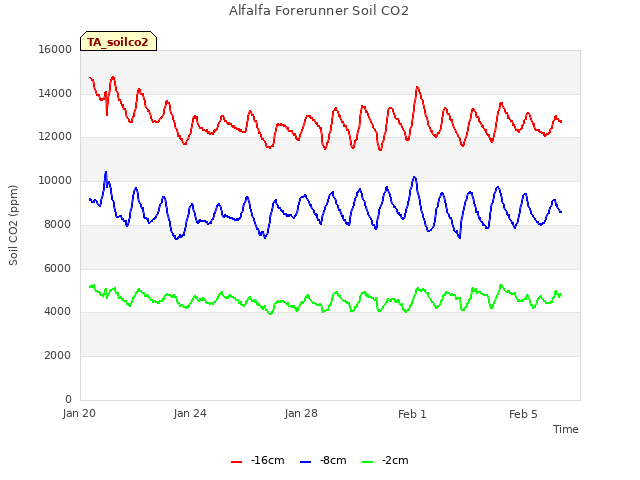

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

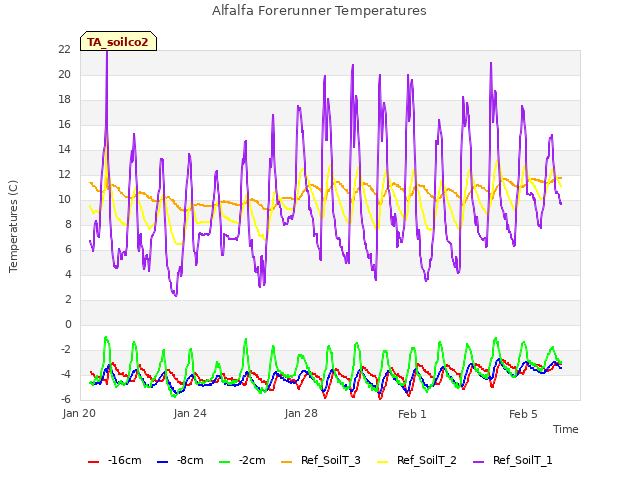

Explore the graph:Alfalfa Forerunner Temperatures in a new window

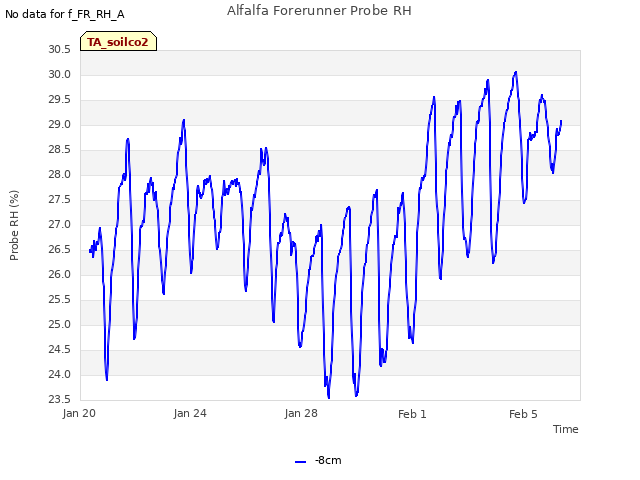

Explore the graph:Alfalfa Forerunner Probe RH in a new window

No data found for TA_arable.
1 TA_cam graphs found

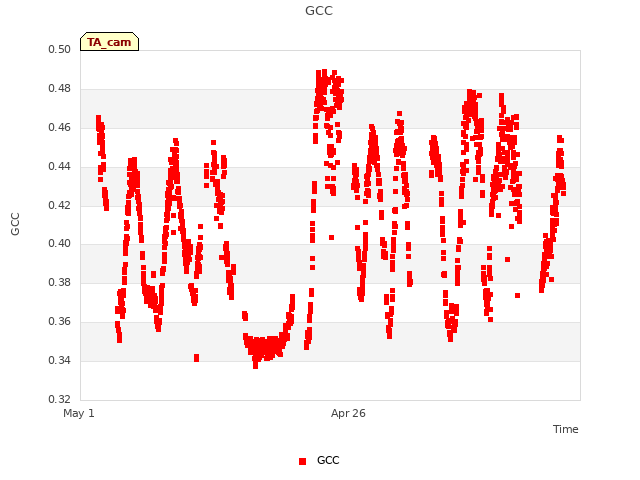

Explore the graph:GCC in a new window

Can't check TATWBABCSB_cam
