Twitchell Alfalfa: 2015-02-19 12:45:00 (DOY 50)
Author: Patty Oikawa
Others: Ana Mendez + Housen Chu

Summary: Clip plots, data collection and critter ridder applied around tower. Need more ant bait.

We arrived at 12:45. Things were still totally overcast and misty so no spectral measurements were taken. There were lots of geese in the neighboring alfalfa field. Ana took clip plots and veg height. Housen applied the critter ridder around the tower to try to deter rodents. He also cleaned sensors while I downloaded data and measured soil respiration (4-5umol m-2 s-1). There were lots of ants in the soil logger box—need better ant bait in there.

7500
CO2: 378.1 umol/mol
H2O: 444.6 mmol/m3
SS: 49.4%
Pressure: 101.97 kPa
Temperature: 12.55ËšC
SOS: 343.15 m s-1
Met: OK
Soil:OK
Rad: OK

Veg Height (cm): Tape measure from ground to top of plant
20, 21, 18, 15, 27, 13, 15, 30, 20, 10, 20, 16, 10, 4, 13, 30, 28, 27, 20, 15, avg = 18.6, stdev = 7.16

0 photos found

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

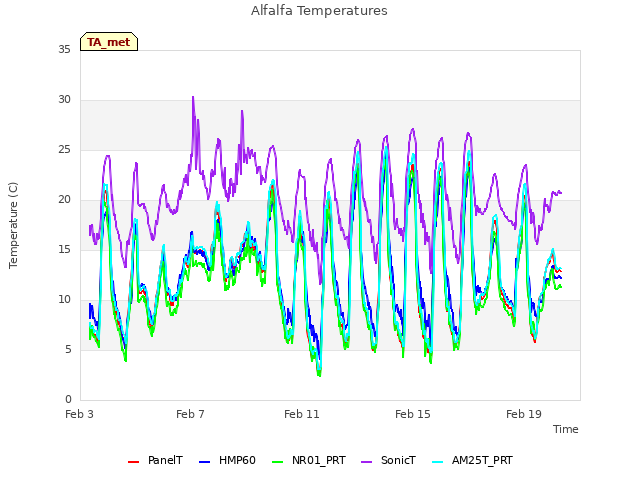

Explore the graph:Alfalfa Temperatures in a new window

Explore the graph:Alfalfa Soil Heat Flux in a new window

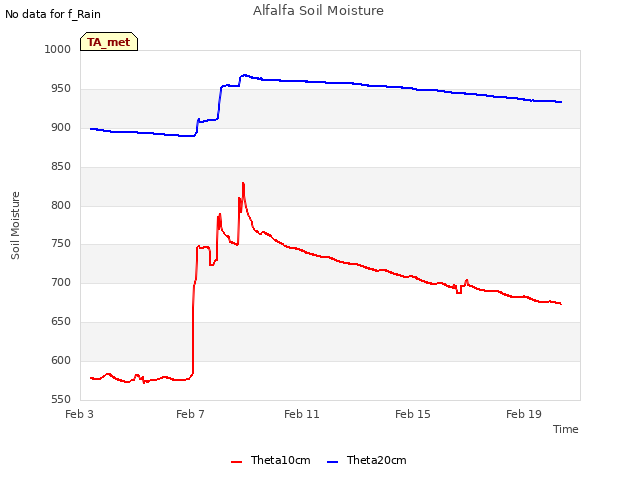

Explore the graph:Alfalfa Soil Moisture in a new window

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

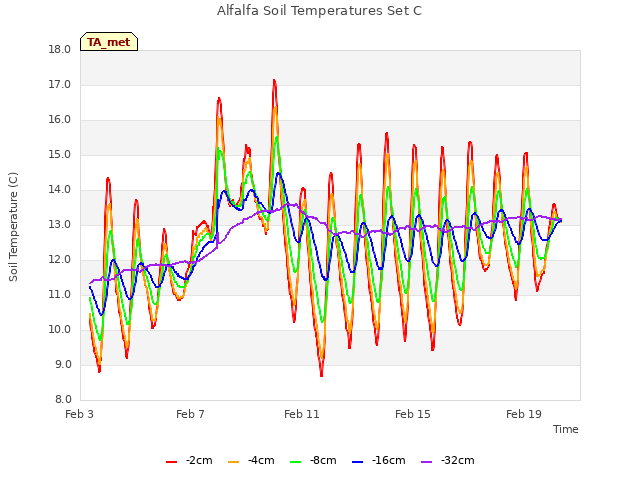

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

Explore the graph:NDVI Narrow Band Radiation in a new window

Explore the graph:Soil CO2 Flux in a new window

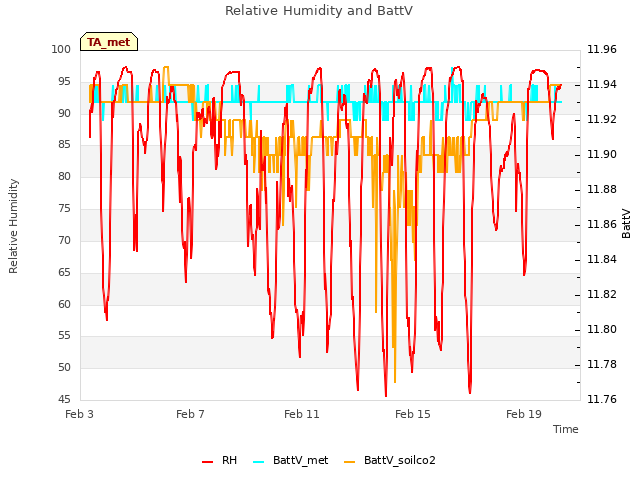

Explore the graph:Relative Humidity and BattV in a new window

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

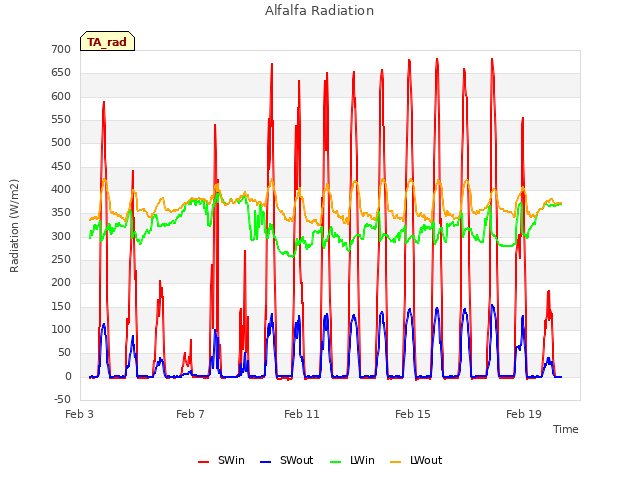

Explore the graph:Alfalfa Radiation in a new window

Explore the graph:Alfalfa LED NDVI Sensor in a new window

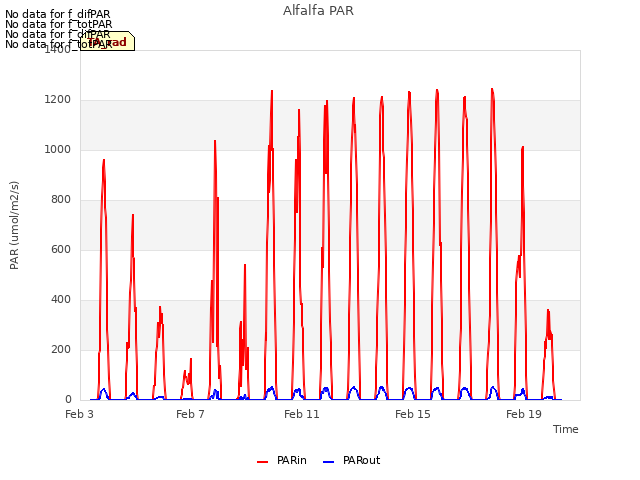

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

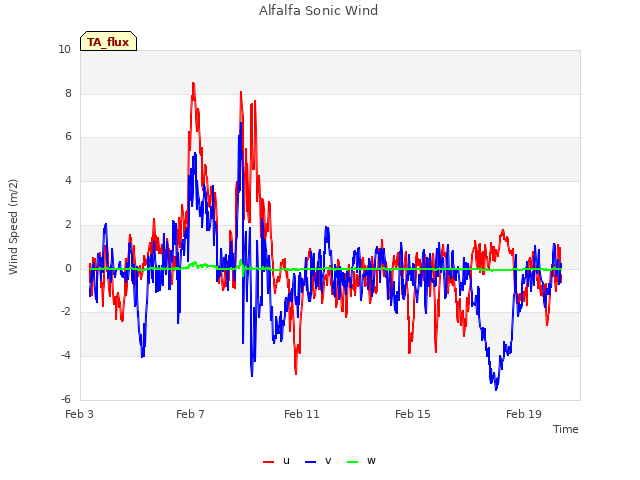

Explore the graph:Alfalfa Sonic Wind in a new window

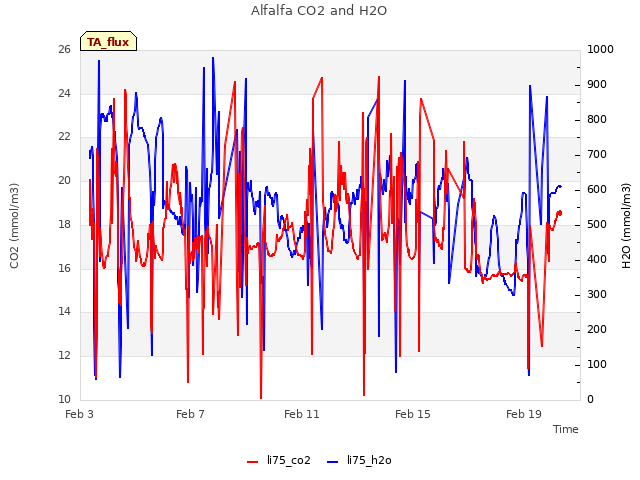

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

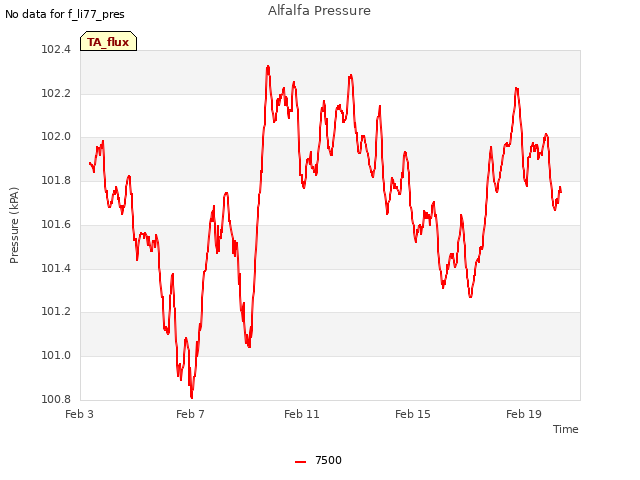

Explore the graph:Alfalfa Pressure in a new window

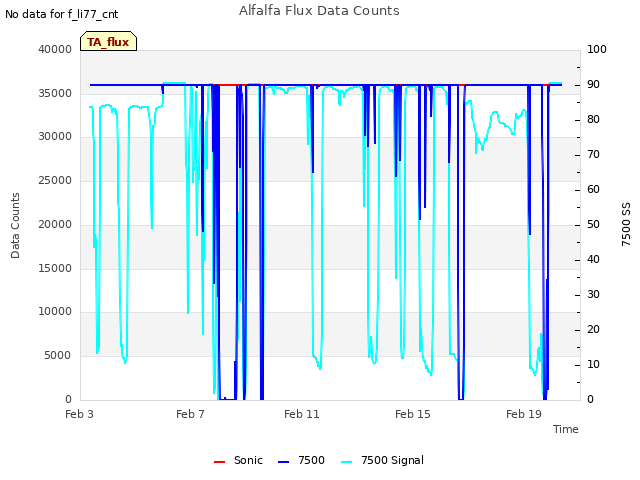

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

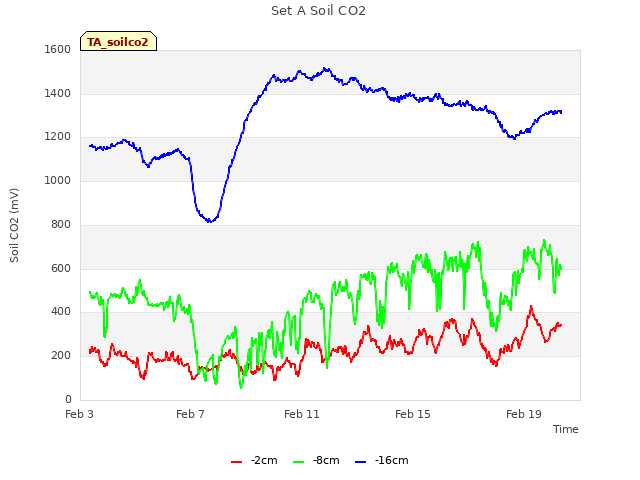

Explore the graph:Set A Soil CO2 in a new window

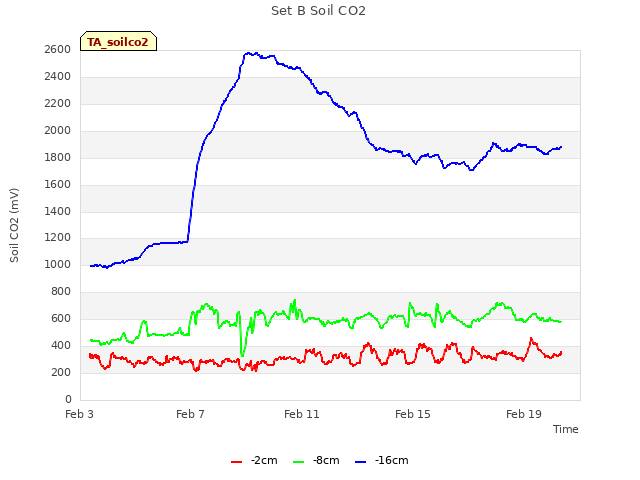

Explore the graph:Set B Soil CO2 in a new window

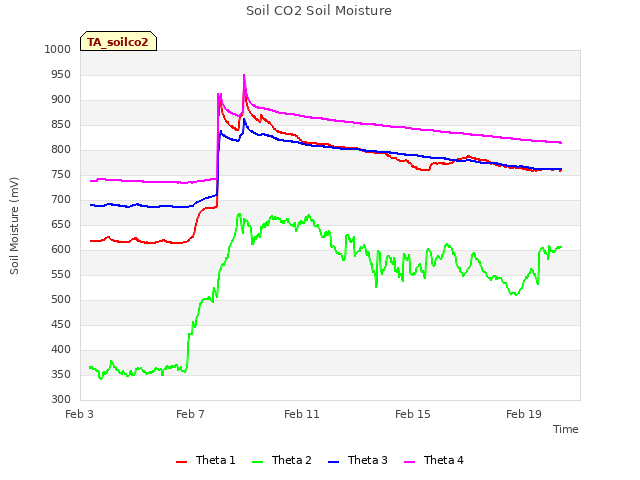

Explore the graph:Soil CO2 Soil Moisture in a new window

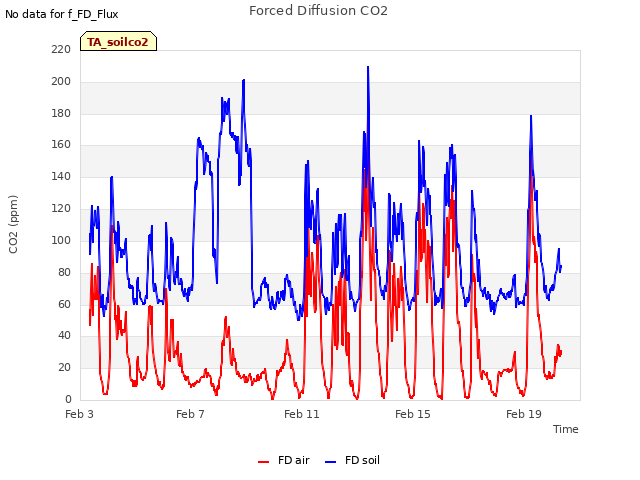

Explore the graph:Forced Diffusion CO2 in a new window

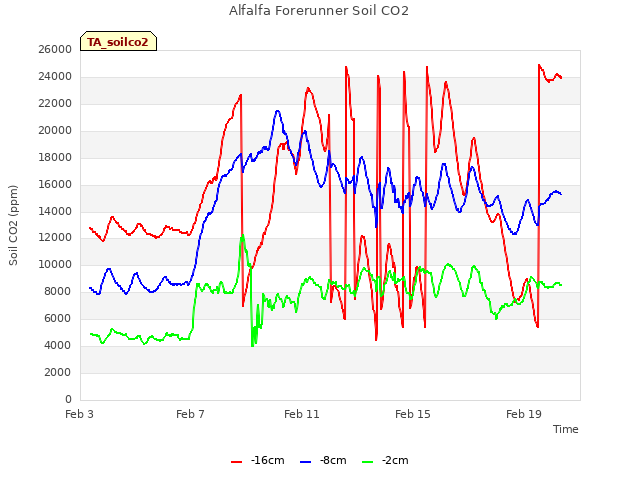

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

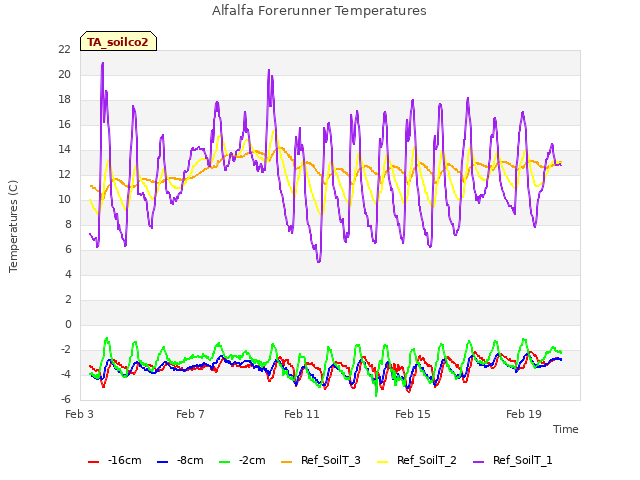

Explore the graph:Alfalfa Forerunner Temperatures in a new window

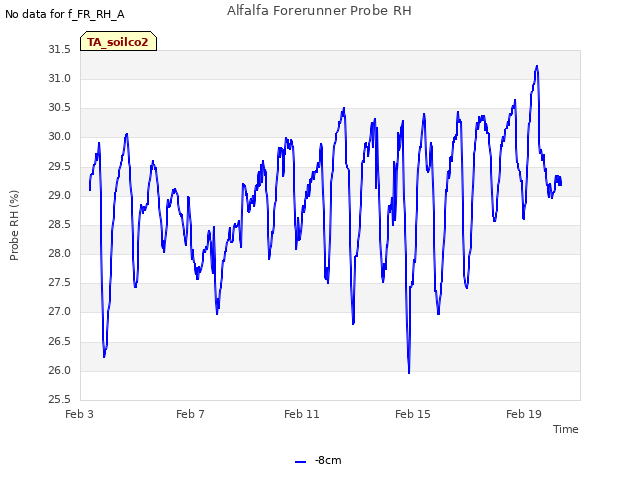

Explore the graph:Alfalfa Forerunner Probe RH in a new window

No data found for TA_arable.
1 TA_cam graphs found

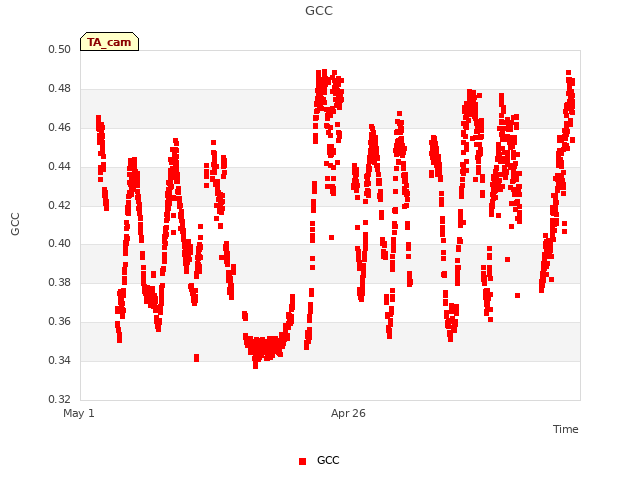

Explore the graph:GCC in a new window
