West Pond: 2015-02-05 13:30:00 (DOY 36)
Author: Joe Verfaillie
Others: Sara

Summary: Power line cut and repaired, inlet not running but water level fine

West Pond
2015-02-05

I arrived about 1:30 with Sara. The fog has lifted and it is warm with overcast skies and little to no wind.

We noticed on the way in to Twitchell Island that they seemed to be grading the levees around the ponds. Sure enough, they hit our power line (yesterday) and cut it. In the process, the charge controller was pulled out of the battery box and disconnected from the batteries. The tower was without power for about a day, but we were able to patch it back together. I should redo the conduit.

The 7700 read: 2.17ppm CH4, 1.5RSSI – after cleaning 68.5 RSSI
The wash box was dry. There might have been several leaks in the tubing near the reservoir box. I cut out the bad section of tubing and reattached it to the box.

The 7500 read: 418.8ppm CO2, 570.2mmol/m3 H2O, 83.3SS, 14.71C, 101.04kPa

Water level was fine but the inlet was not running.

Sara collected water samples.

1 photos found

Ditch cleaning
Ditch cleaning

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

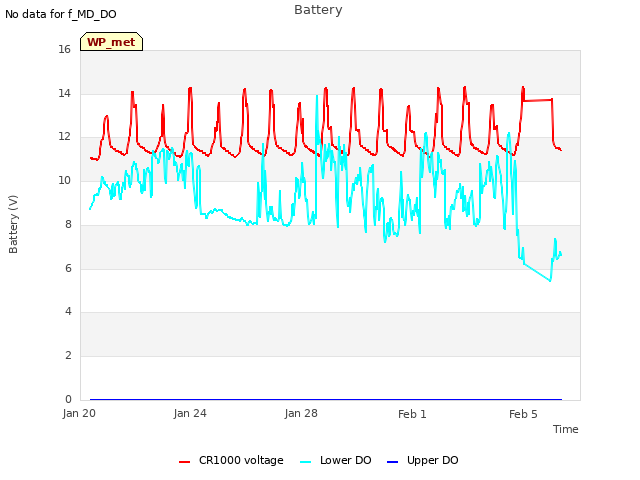

Explore the graph:Battery in a new window

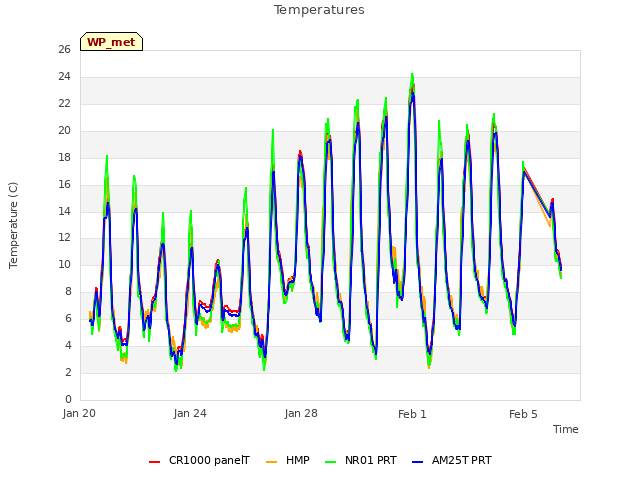

Explore the graph:Temperatures in a new window

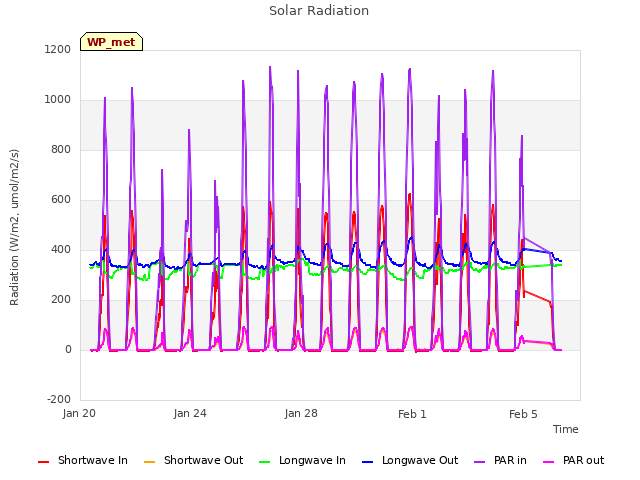

Explore the graph:Solar Radiation in a new window

Explore the graph:RH and Pressure in a new window

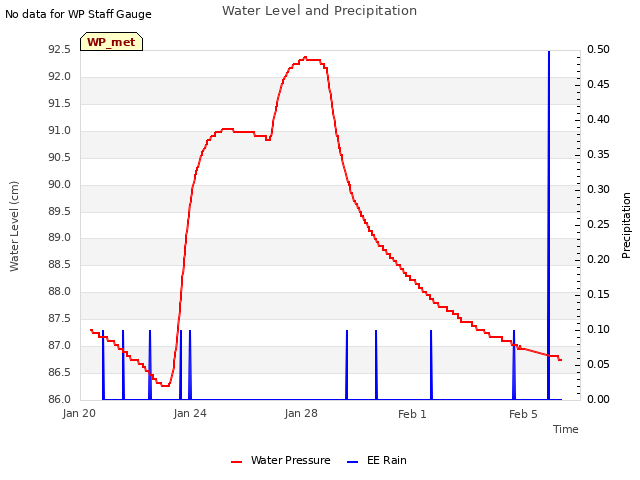

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

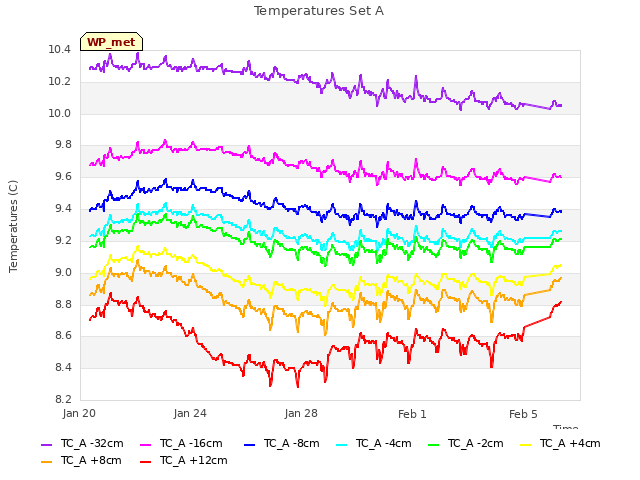

Explore the graph:Temperatures Set A in a new window

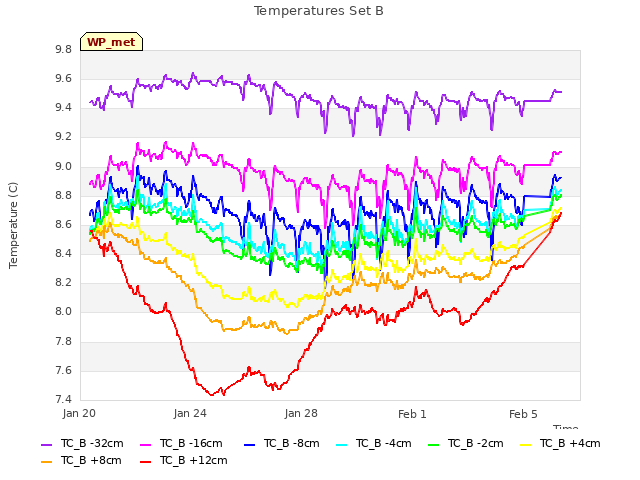

Explore the graph:Temperatures Set B in a new window

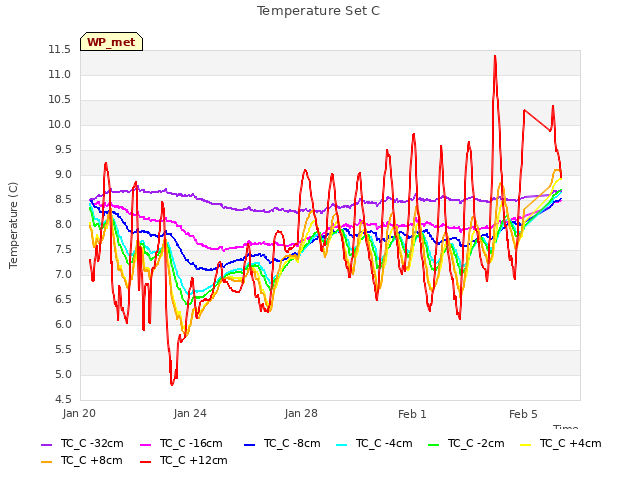

Explore the graph:Temperature Set C in a new window

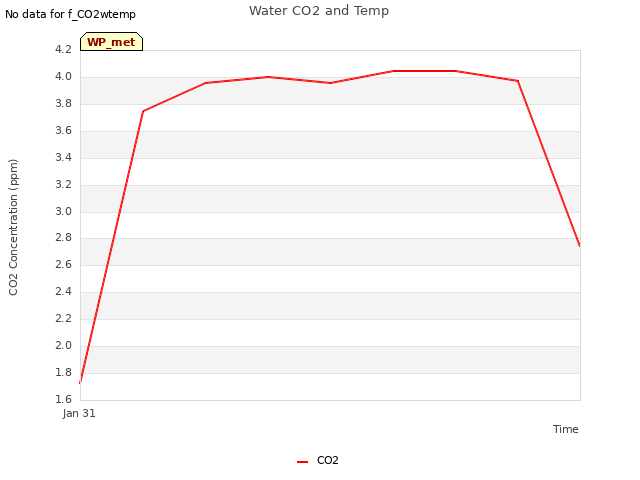

Explore the graph:Water CO2 and Temp in a new window

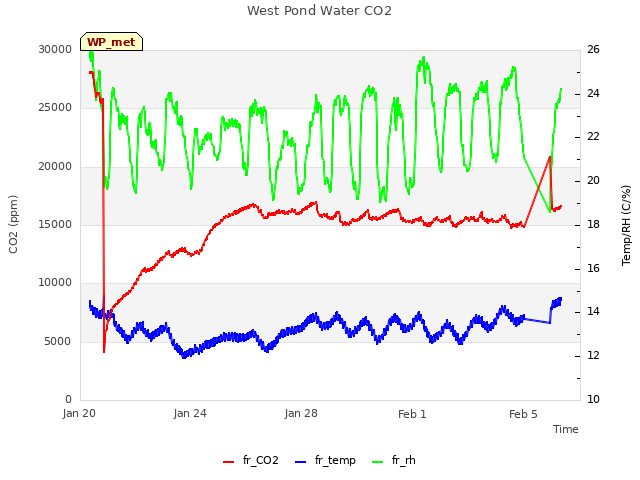

Explore the graph:West Pond Water CO2 in a new window

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

Explore the graph:SRS NDVI Channels in a new window

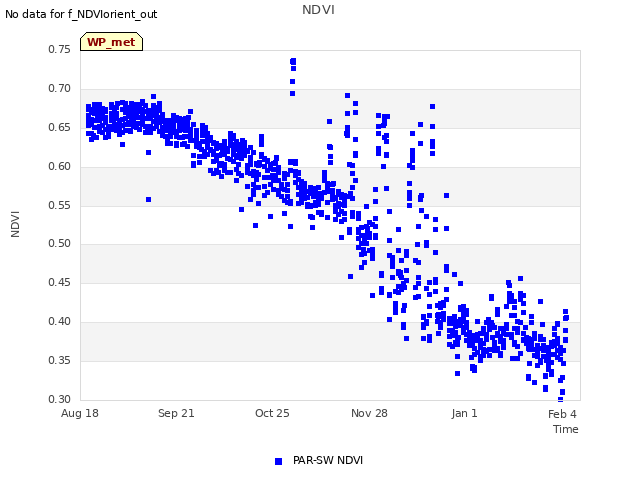

Explore the graph:NDVI in a new window

5 WP_flux graphs found

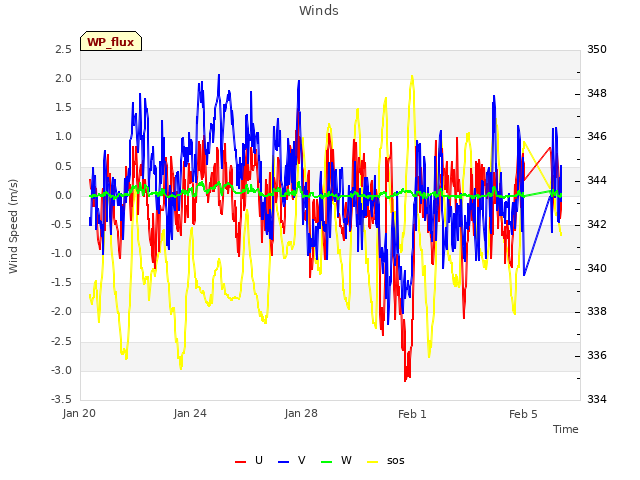

Explore the graph:Winds in a new window

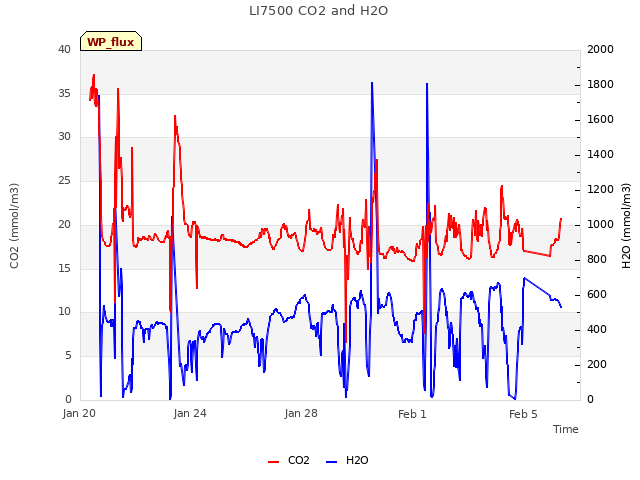

Explore the graph:LI7500 CO2 and H2O in a new window

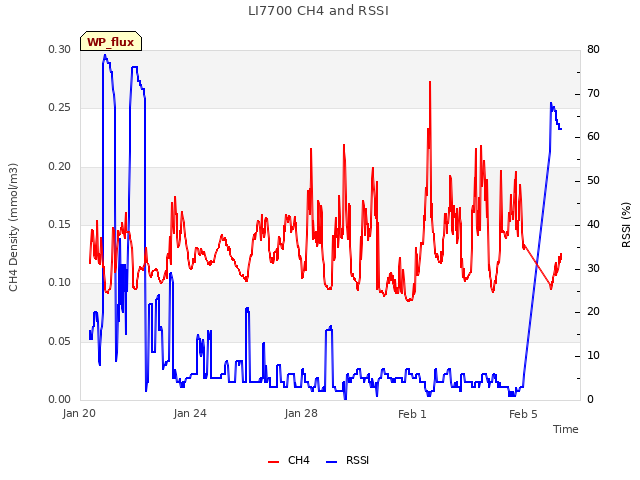

Explore the graph:LI7700 CH4 and RSSI in a new window

Explore the graph:West Pond Flux Data Counts in a new window

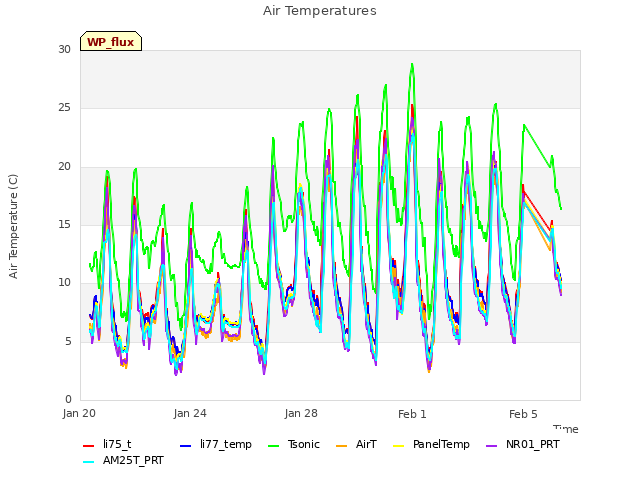

Explore the graph:Air Temperatures in a new window

Can't check MBWPEESWGT_mixed
Can't check MBEEWPSWEPGT_cam
Can't check MBSWEEWPBCBA
1 WP_processed graphs found

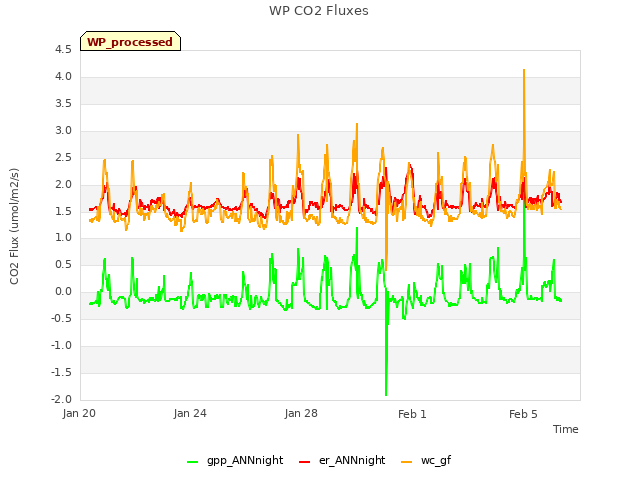

Explore the graph:WP CO2 Fluxes in a new window

No data found for WP_arable.
