Field Notes

<--2014-09-08 13:30:00 | 2014-09-18 11:00:00-->
Other sites visited today: Twitchell Rice | West Pond | East End | Mayberry
Phenocam link: Searching...

Twitchell Alfalfa: 2014-09-10 11:00:00 (DOY 253)
Author: Joe Verfaillie
Others: Sara

Summary: Checked on soil co2 system and radiometers, did soil respiration.

Alfalfa
2014-09-10

I arrived about 11am with Sara. The field to the west was mowed a few days ago, but the field to the east is still mostly un-mowed. There was water in the ditch to the south of the field. It was clear and hot with little to no wind.

I didn’t see anything wrong with the soil CO2 system and it has recovered some since it dropped after mowing. I downloaded the data.

I downloaded the radiation data and thought the power problems had been fixed by cleaning the solar panel last time. However, looking at the data later in the lab, seems it’s still dropping out. I was going to power it from the soil CO2 system but didn’t want to poke that system again just yet. Next time.

Sara did the 6400 soil measurements.

1 photos found

Fieldwork
Fieldwork

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

Explore the graph:Alfalfa Temperatures in a new window

Explore the graph:Alfalfa Soil Heat Flux in a new window

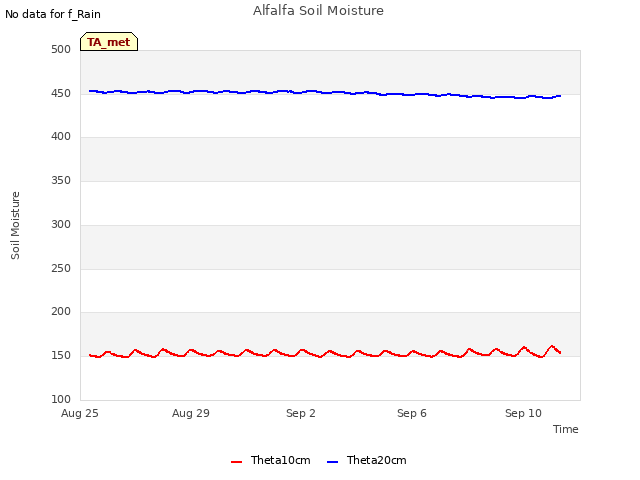

Explore the graph:Alfalfa Soil Moisture in a new window

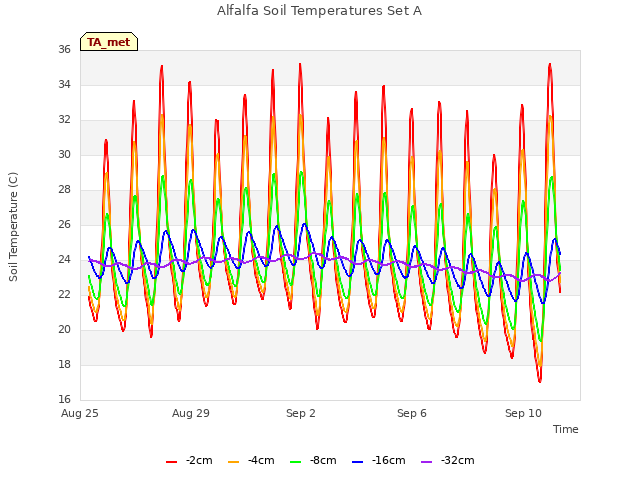

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

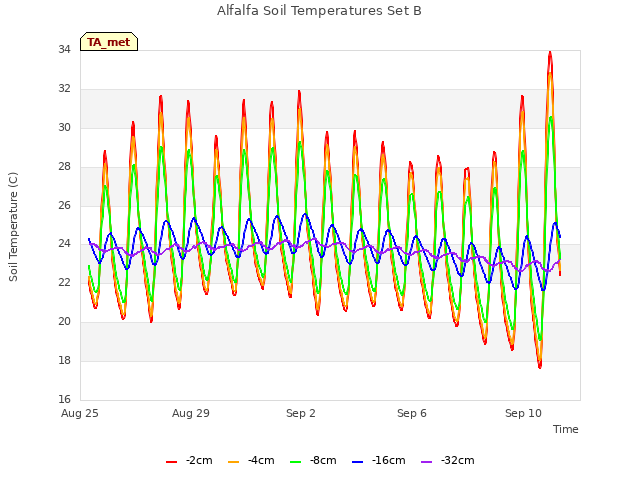

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

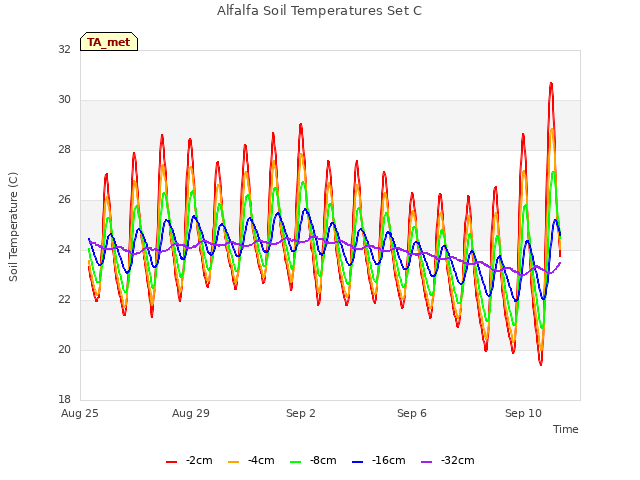

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

Explore the graph:NDVI Narrow Band Radiation in a new window

Explore the graph:Soil CO2 Flux in a new window

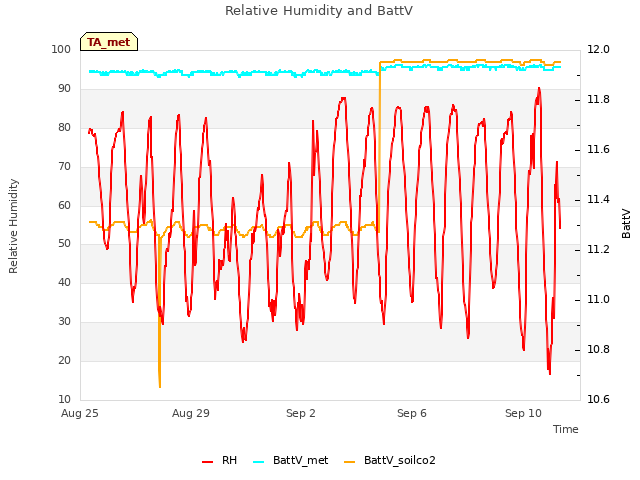

Explore the graph:Relative Humidity and BattV in a new window

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

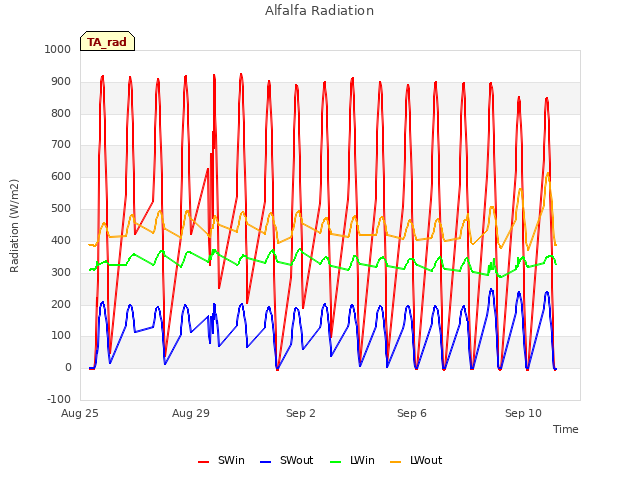

Explore the graph:Alfalfa Radiation in a new window

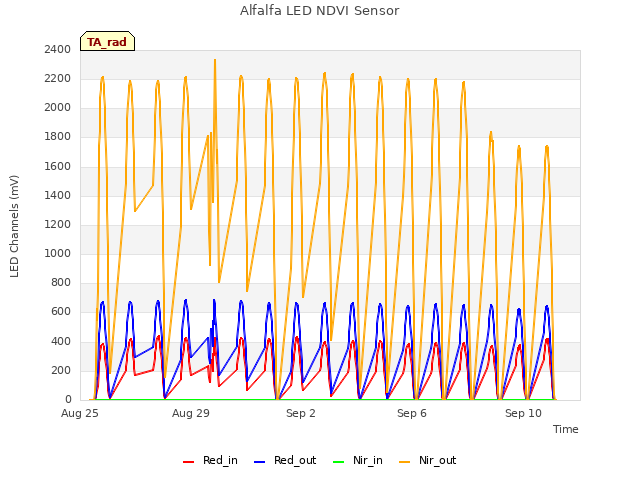

Explore the graph:Alfalfa LED NDVI Sensor in a new window

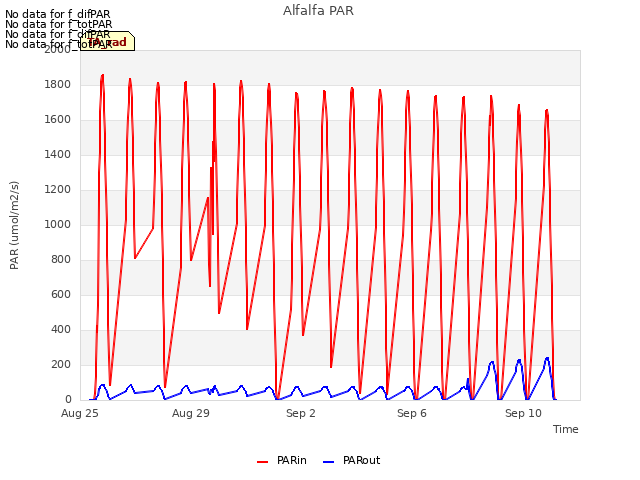

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

Explore the graph:Alfalfa Sonic Wind in a new window

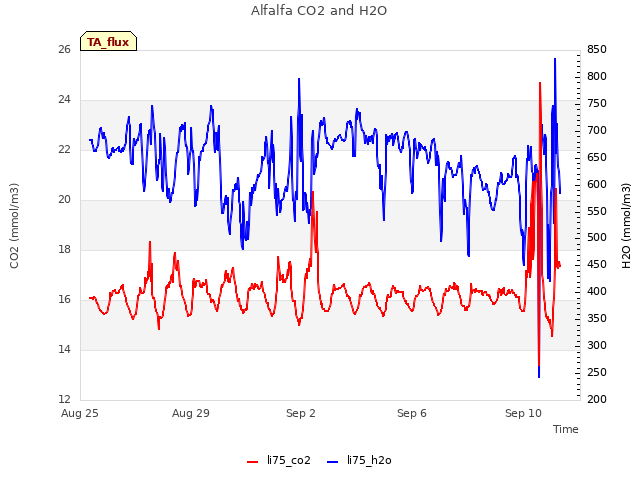

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

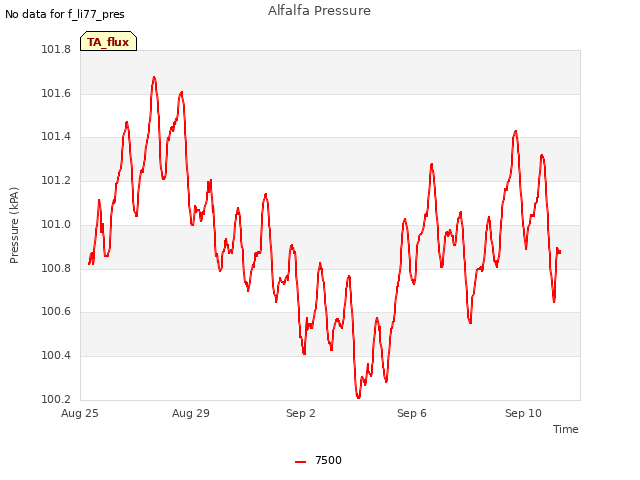

Explore the graph:Alfalfa Pressure in a new window

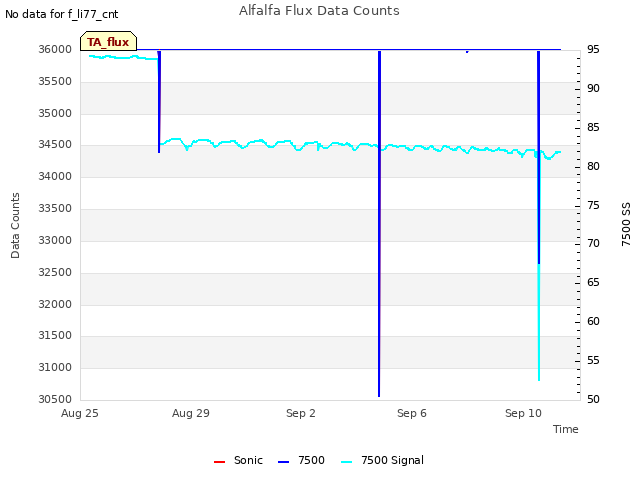

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

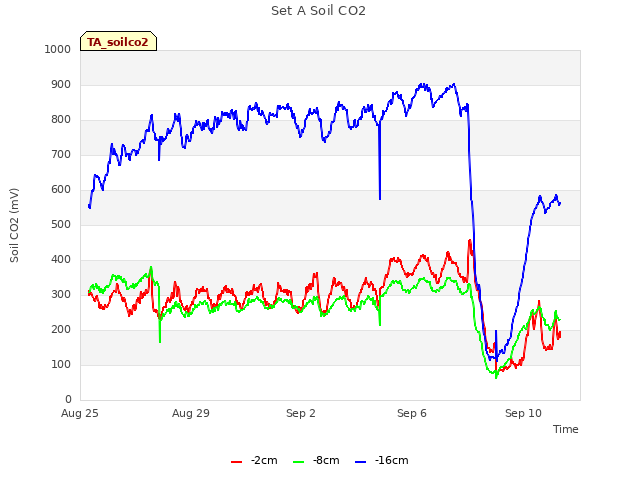

Explore the graph:Set A Soil CO2 in a new window

Explore the graph:Set B Soil CO2 in a new window

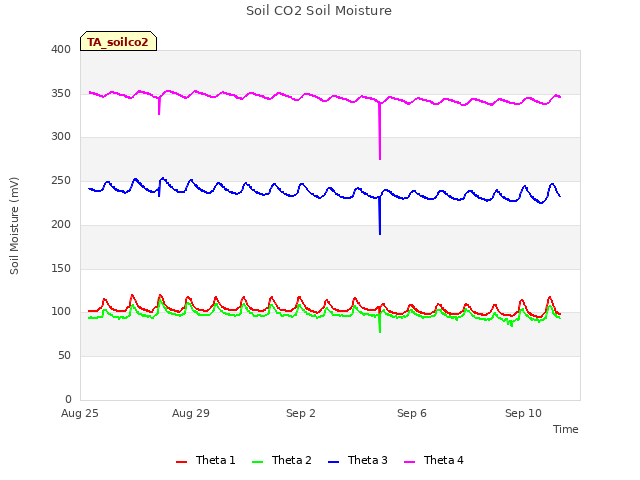

Explore the graph:Soil CO2 Soil Moisture in a new window

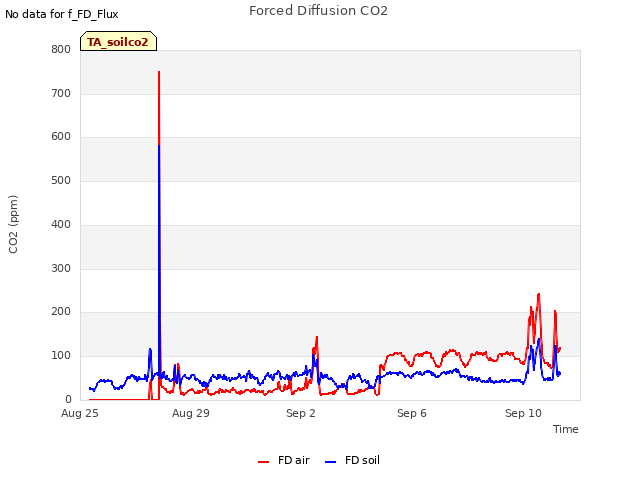

Explore the graph:Forced Diffusion CO2 in a new window

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

Explore the graph:Alfalfa Forerunner Temperatures in a new window

Explore the graph:Alfalfa Forerunner Probe RH in a new window

No data found for TA_arable.
1 TA_cam graphs found

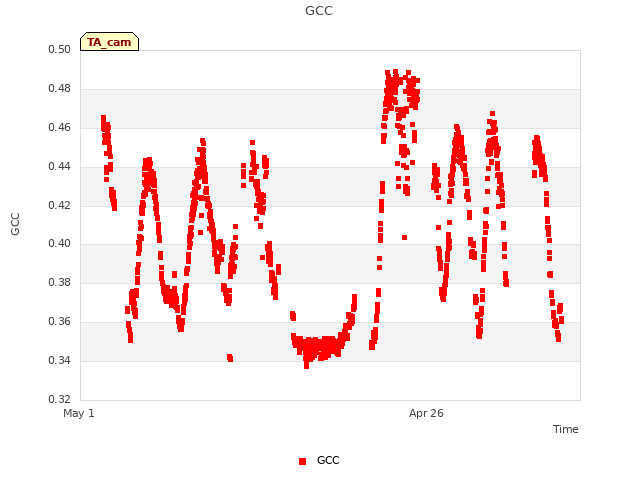

Explore the graph:GCC in a new window

Can't check TATWBABCSB_cam
