Vaira: 2014-08-21 09:00:00 (DOY 233)
Author: Joe Verfaillie
Others: Siyan

Summary: Standard field work, fixed cow fence, met solar panels not pointed at the sun - fixed.

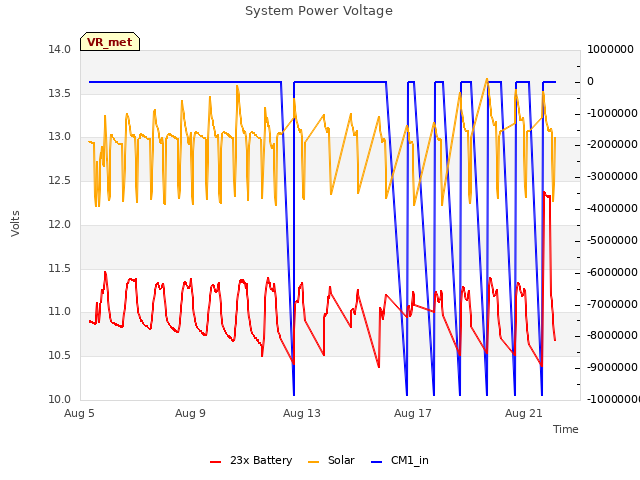

Vaira 2014-08-21 I arrived about 9am with Siyan. It was clean sunny and warm with little to no breeze. The standing dead grass has been beaten down in paths by cows. The trees still look good. We did the standard field work and Siyan collected biomass samples. I fixed the fence charger. The fence and solar panel had been disconnected and the battery was down to about 5 volts. The old met battery that Siyan swapped out last time was still there and better than 12V. I used it to power the fence and brought in the dead motorcycle battery. The solar panels that charge the met battery were pointing north and down, so we lost about half the met data due to low power. I fixed the solar panel orientations. The dead calf is mostly skin and bones but still smells if you get close. I left a shovel at the site to bury it next time maybe. I cleaned the BF3 diffuse sensor.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2014-08-21	TZ_floor	32.4
2014-08-21	TZ_road	39.3
2014-08-21	TZ_tower	35.6

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => Soil_Transect_4_1 [5] => Soil_Transect_1_1 [6] => SoilCO2_West_A_1 [7] => SoilCO2_West_B_1 [8] => SoilCO2_West_C_1 [9] => Tower_2 [10] => Floor_South_2 [11] => Floor_East_2 [12] => Floor_West_2 [13] => SoilCO2_2 [14] => Soil_Transect_4_2 [15] => Soil_Transect_3_2 [16] => Soil_Transect_2_2 [17] => Soil_Transect_1_2 [18] => SoilCO2_West_A_2 [19] => SoilCO2_West_B_2 [20] => SoilCO2_West_C_2 [21] => Tower_3 [22] => Floor_South_3 [23] => Floor_West_3 [24] => SoilCO2_3 [25] => Soil_Transect_4_3 [26] => Soil_Transect_3_3 [27] => Soil_Transect_2_3 [28] => Soil_Transect_1_3 [29] => SoilCO2_West_A_3 [30] => SoilCO2_West_B_3 [31] => SoilCO2_West_C_3 [32] => Floor_South_4 [33] => Floor_West_4 [34] => SoilCO2_4 [35] => Soil_Transect_4_4 [36] => Soil_Transect_3_4 [37] => Soil_Transect_2_4 [38] => Soil_Transect_1_4 [39] => SoilCO2_West_A_4 [40] => SoilCO2_West_B_4 [41] => SoilCO2_West_C_4 [42] => SoilCO2_1 [43] => Soil_Transect_3_1 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	Soil_Transect_4_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	SoilCO2_West_C_3	Floor_South_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	SoilCO2_1	Soil_Transect_3_1	Avg	Spacial Count	Measurement Count
2014-08-21	233	0	nan	7.1	0.6	3.6	4.7	0.1	1.5	7.7	1.5	3.6	10.5	10	11.2	8.1	6	9	14.5	12.2	2.9	15.4	0.6	8.4	17.9	10.3	22.6	12.9	9.5	11.1	16.5	13.1	17.8	15.4	11.1	8.5	11.1	11.1	11	25.9	18.5	10.5	17.6	11.5	19.3
2014-08-21	233	1	nan	8.3	1.2			0.4	1.8	7.1	2.4	5.3	10	10		8.4	5.7	9	15.2	11.5	2.9	6.6	0.5	7.8	18.4	10.9	14.3	14.3	9.5	15.6	15.9	12.9	14.3	15.7	11.1	8.2	11.1		10.2	14.8	18.5	9.9	17.3	11.9	20.2	11.1	6.5
2014-08-21	233	Avg	0-15cm																																														0
2014-08-21	233	Avg	15-30cm																																														0
2014-08-21	233	Avg	30-45cm																																														0
2014-08-21	233	Avg	45-60cm																																														0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Avg	Spacial Count	Measurement Count
2014-08-21	233	0	nan	0.4	1.5	1.6	0.7	8.4	5.1	10	2.9	14	3.4	15.4	12	27.9	11	6.4	14.8
2014-08-21	233	1	nan	0.4	2.1		0.1	8.1	5.7		2.6	13.7	3.1		11.2	28.2	11		15.3
2014-08-21	233	Avg	0-15cm																		0
2014-08-21	233	Avg	15-30cm																		0
2014-08-21	233	Avg	30-45cm																		0
2014-08-21	233	Avg	45-60cm																		0

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

0 photos found

Graphs display: days

9 sets found

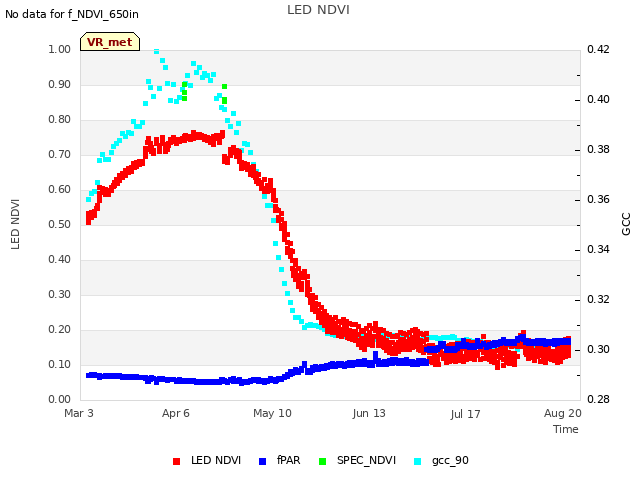

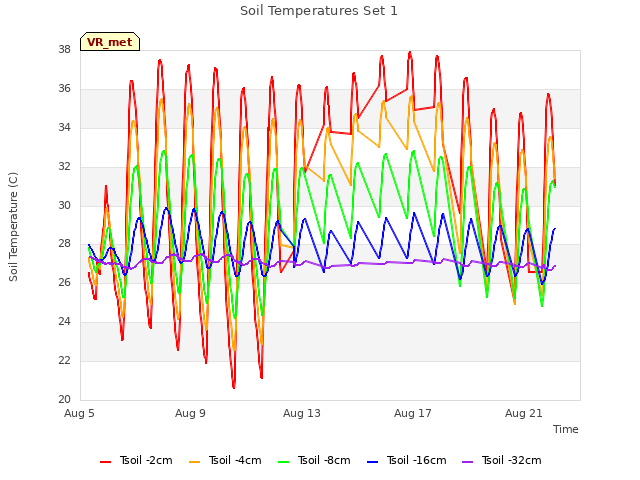

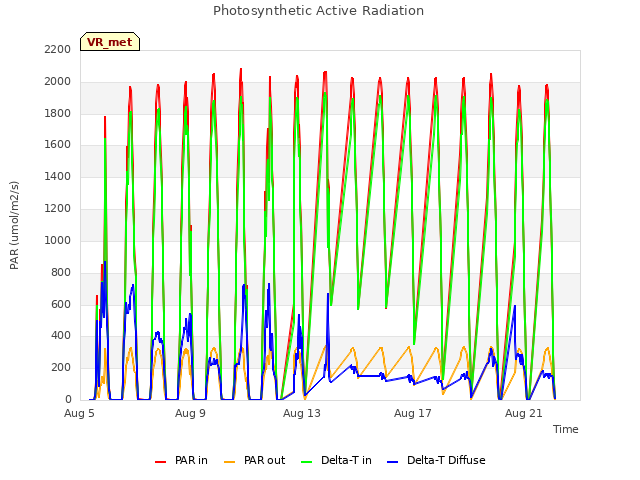

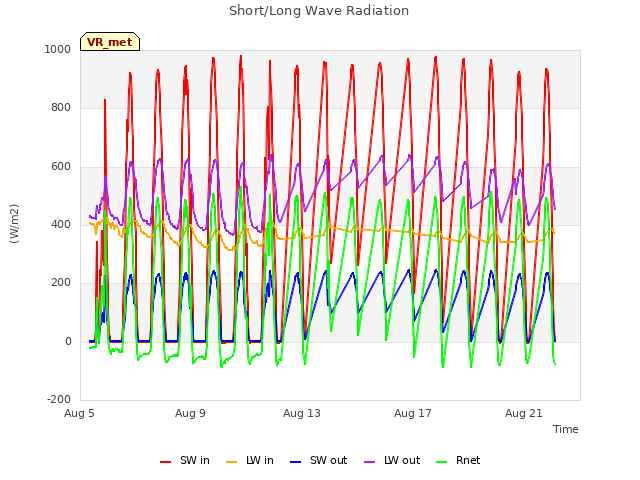

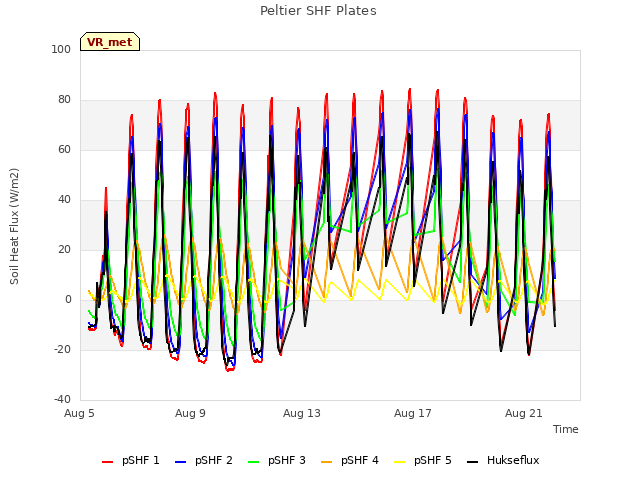

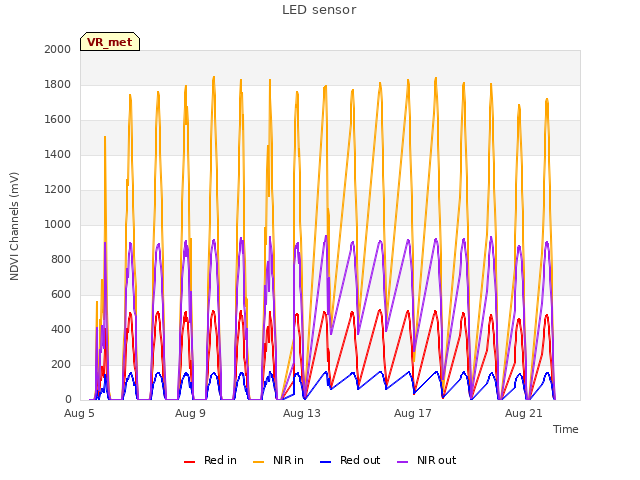

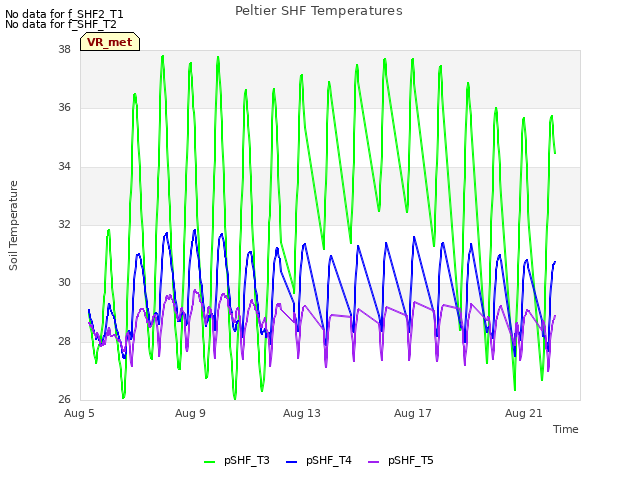

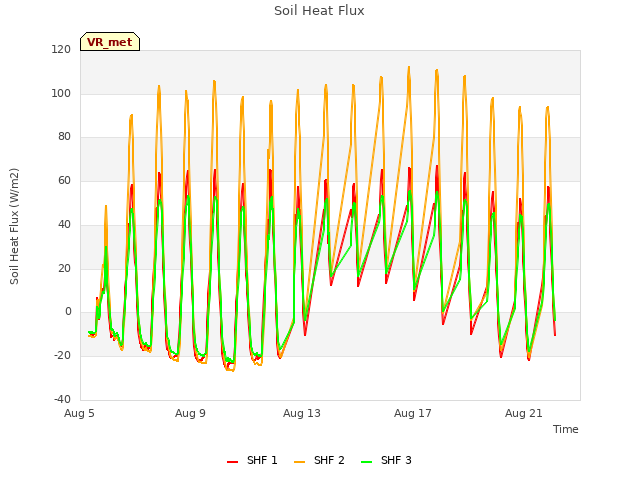

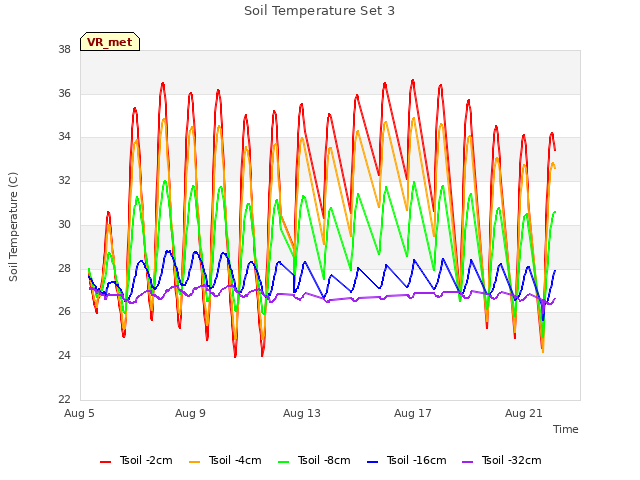

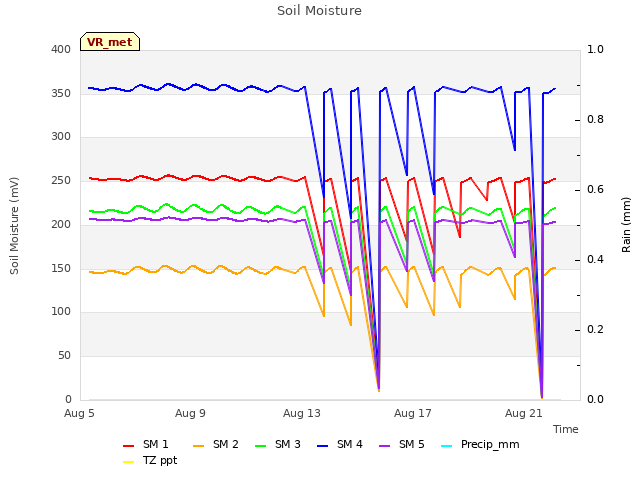

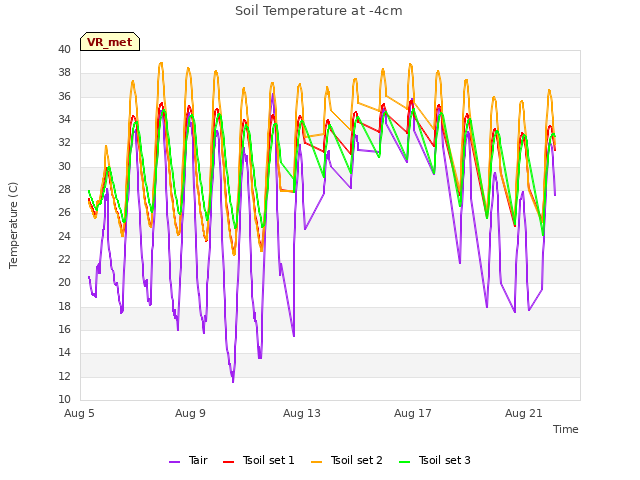

16 VR_met graphs found

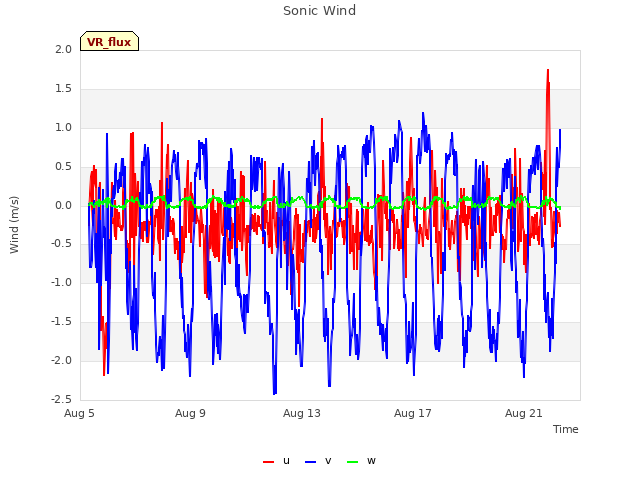

2 VR_flux graphs found

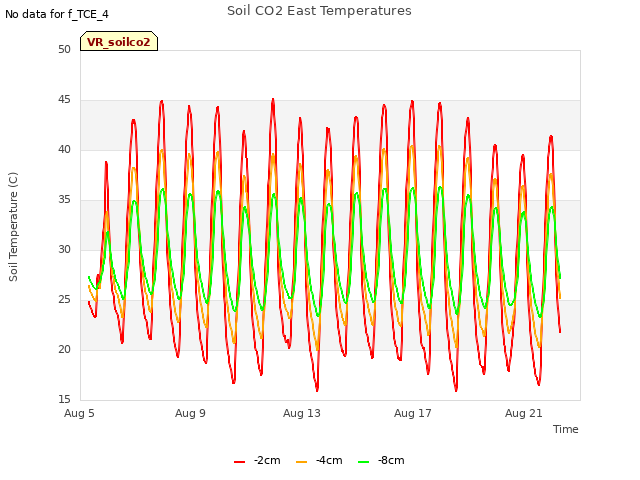

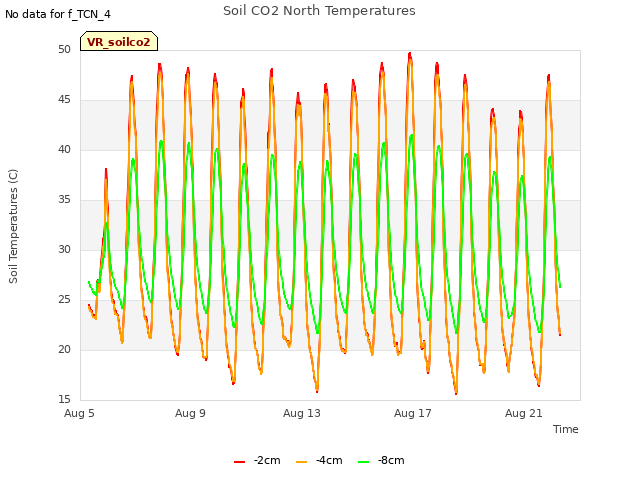

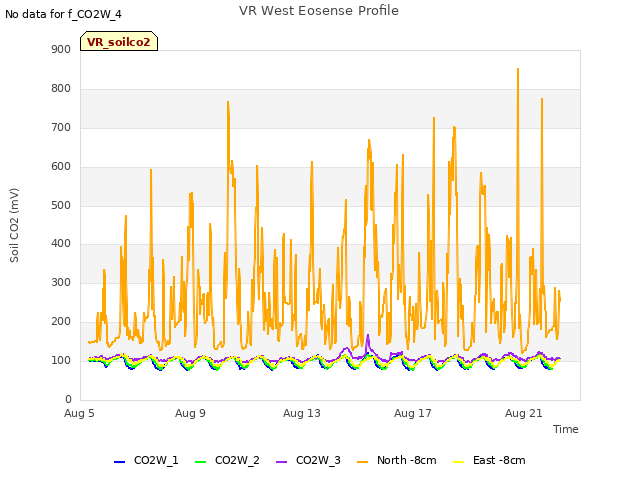

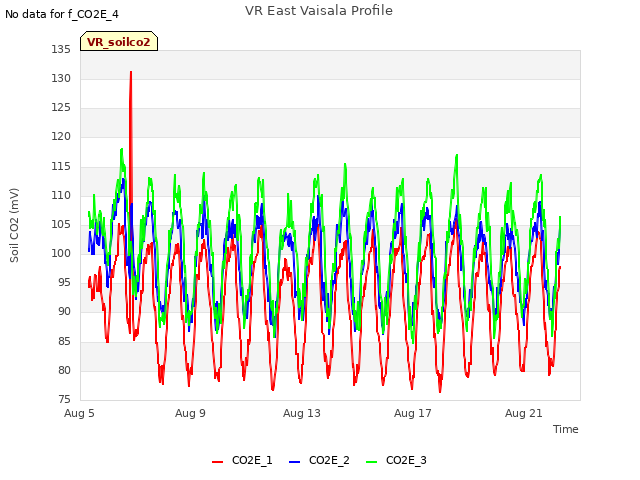

6 VR_soilco2 graphs found

No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
