<--2014-08-21 09:00:00 | 2014-09-11 09:20:00-->Other sites visited today: Vaira | Tonzi
Tonzi: 2014-08-21 10:30:00 (DOY 233)
Author: Joe Verfaillie
Others: Siyan
Summary: Tried to install Decagon PRI sensors, tried to fix the CO2 profile system, set up daily split on the tower computer.

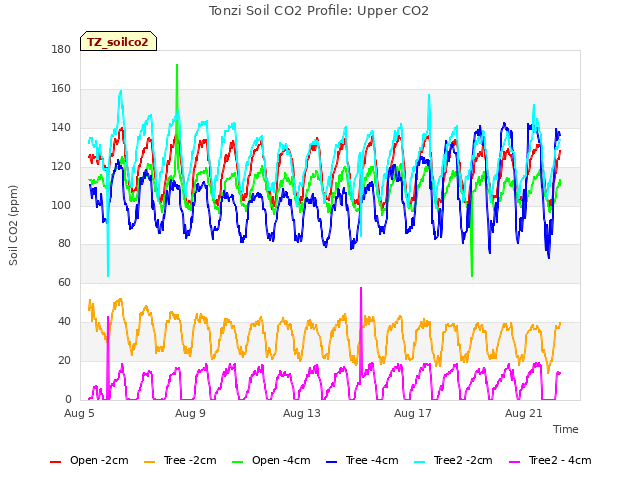

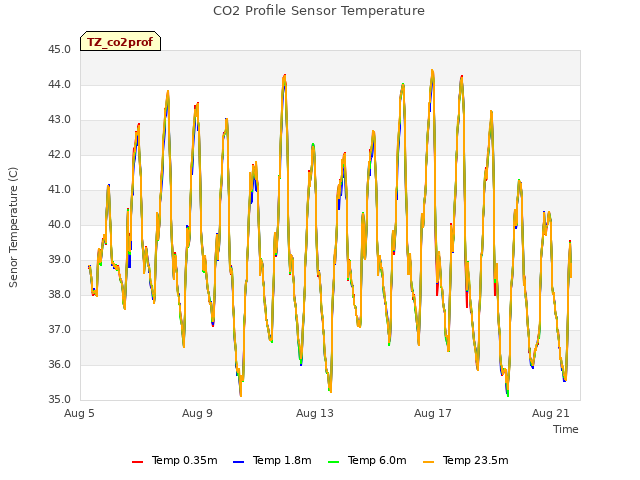

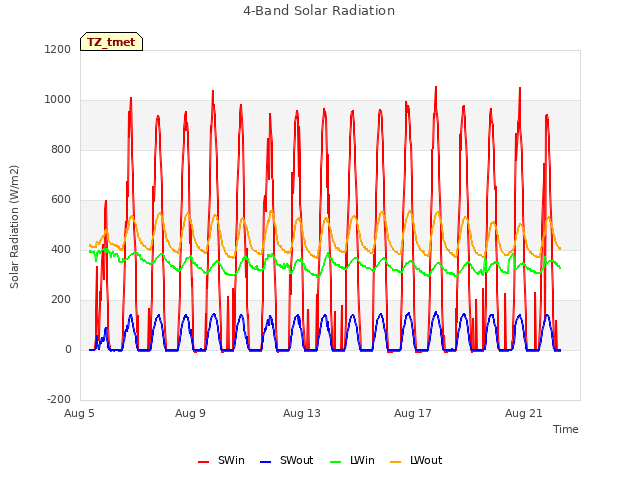

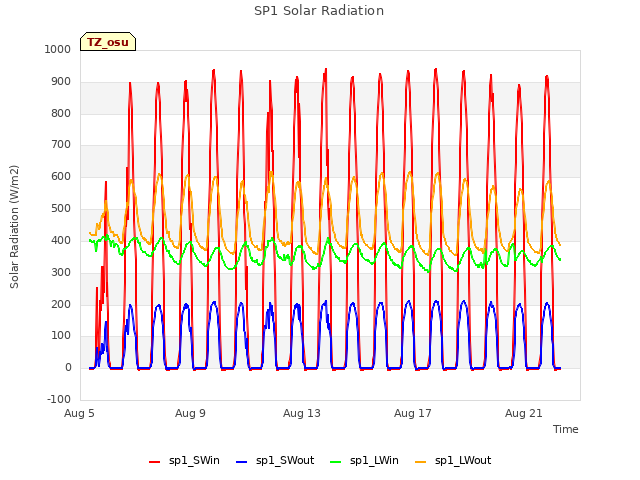

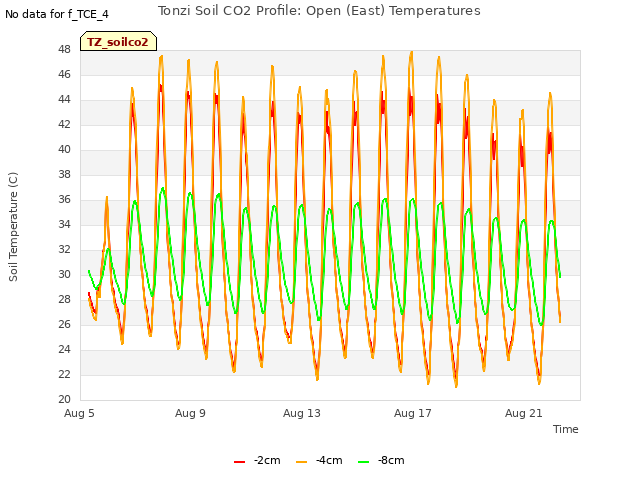

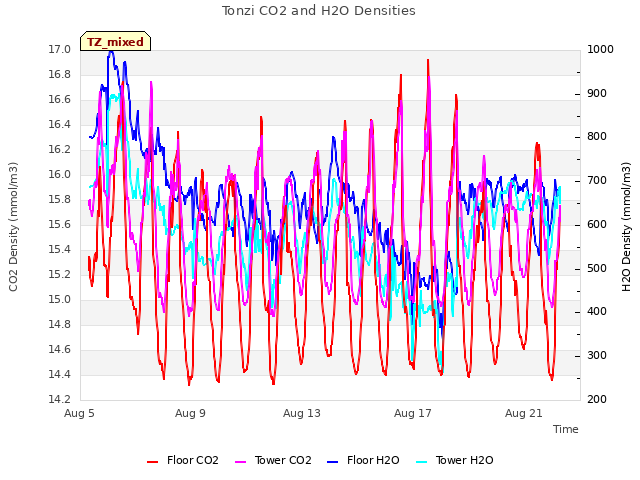

Tonzi 2014-08-21 I arrived about 10:30 with Siyan. It was clear, sunny and hot with a breeze at the top of the tower. We met Mr. Tonzi’s great, great grandson on the way in – he’s maybe 2 years old. I tried to install the new Decagon PRI sensors at the top of the tower. I got them mounted and the program changed, but couldn’t get them to work. I brought in the upward pointing one for testing in the lab. The co2 profile system was giving bad data. I tried cleaning the cell and notice a stain at the outlet end of the cell. Even after cleaning it still was not stable. I pulled the power from the CR10X, the pump and the LI-820. I brought the LI-820 sn CGA-556 in for maintenance. I set up the daily split routines on the tower computer. I cleaned the radiometers and serviced the z-cams. |
Field Data
No tank data
Well Depth
Date | Location | Depth (feet) |
---|---|---|
2014-08-21 | TZ_floor | 32.4 |
2014-08-21 | TZ_road | 39.3 |
2014-08-21 | TZ_tower | 35.6 |
mode = both

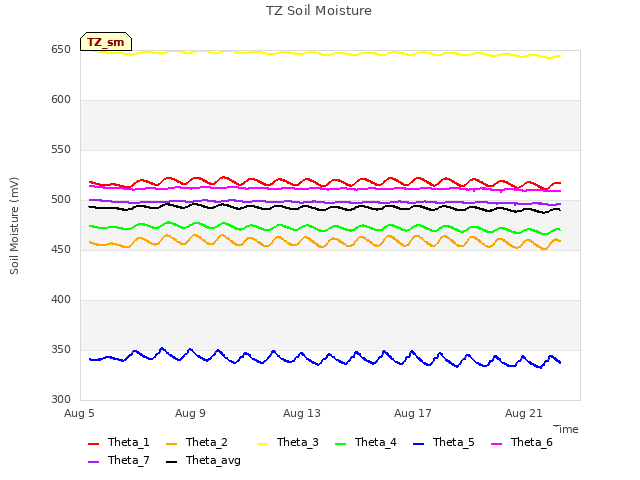

Moisture Point Probes TZ
Array
(
[0] => Tower
[1] => Floor_South
[2] => Floor_East
[3] => Floor_West
[4] => Soil_Transect_4
[5] => Soil_Transect_1
[6] => SoilCO2_West_A
[7] => SoilCO2_West_B
[8] => SoilCO2_West_C
[9] => SoilCO2
[10] => Soil_Transect_3
[11] => Soil_Transect_2
)
Date | DOY | Rep | Depth | Tower |
Floor_South |
Floor_East |
Floor_West |
Soil_Transect_4 |
Soil_Transect_1 |
SoilCO2_West_A |
SoilCO2_West_B |
SoilCO2_West_C |
SoilCO2 |
Soil_Transect_3 |
Soil_Transect_2 |
Avg | Spacial Count |
Measurement Count |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2014-08-21 | 233 | 0 | 0-15cm | 7.1 | 0.6 | 3.6 | 4.7 | 0.1 | 1.5 | 7.7 | 1.5 | 3.6 | ||||||
2014-08-21 | 233 | 0 | 15-30cm | 10.5 | 10 | 11.2 | 8.1 | 9 | 2.9 | 15.4 | 0.6 | 8.4 | 6 | 14.5 | 12.2 | |||
2014-08-21 | 233 | 0 | 30-45cm | 17.9 | 10.3 | 22.6 | 9.5 | 13.1 | 17.8 | 15.4 | 11.1 | 12.9 | 11.1 | 16.5 | ||||
2014-08-21 | 233 | 0 | 45-60cm | 8.5 | 11.1 | 11 | 10.5 | 17.6 | 11.5 | 19.3 | 11.1 | 25.9 | 18.5 | |||||
2014-08-21 | 233 | 1 | 0-15cm | 8.3 | 1.2 | 0.4 | 1.8 | 7.1 | 2.4 | 5.3 | 11.1 | 6.5 | ||||||
2014-08-21 | 233 | 1 | 15-30cm | 10 | 10 | 8.4 | 9 | 2.9 | 6.6 | 0.5 | 7.8 | 5.7 | 15.2 | 11.5 | ||||
2014-08-21 | 233 | 1 | 30-45cm | 18.4 | 10.9 | 14.3 | 9.5 | 12.9 | 14.3 | 15.7 | 11.1 | 14.3 | 15.6 | 15.9 | ||||
2014-08-21 | 233 | 1 | 45-60cm | 8.2 | 11.1 | 10.2 | 9.9 | 17.3 | 11.9 | 20.2 | 14.8 | 18.5 | ||||||
2014-08-21 | 233 | Avg | 0-15cm | 7.7 | 0.9 | 3.6 | 4.7 | 0.25 | 1.65 | 7.4 | 1.95 | 4.45 | 11.1 | 6.5 | 4.56 | 11 | 18 | |
2014-08-21 | 233 | Avg | 15-30cm | 10.25 | 10 | 11.2 | 8.25 | 9 | 2.9 | 11 | 0.55 | 8.1 | 5.85 | 14.85 | 11.85 | 8.65 | 12 | 23 |
2014-08-21 | 233 | Avg | 30-45cm | 18.15 | 10.6 | 18.45 | 9.5 | 13 | 16.05 | 15.55 | 11.1 | 13.6 | 13.35 | 16.2 | 14.14 | 11 | 22 | |
2014-08-21 | 233 | Avg | 45-60cm | 8.35 | 11.1 | 10.6 | 10.2 | 17.45 | 11.7 | 19.75 | 11.1 | 20.35 | 18.5 | 13.91 | 10 | 19 |
mode = both
Moisture Point Probes VR
Array
(
[0] => Solar_Panels
[1] => Flux_Tower
[2] => Gate
[3] => Biomass_Cage
)
Date | DOY | Rep | Depth | Solar_Panels |
Flux_Tower |
Gate |
Biomass_Cage |
Avg | Spacial Count |
Measurement Count |
---|---|---|---|---|---|---|---|---|---|---|
2014-08-21 | 233 | 0 | 0-15cm | 0.4 | 1.5 | 1.6 | 0.7 | |||
2014-08-21 | 233 | 0 | 15-30cm | 8.4 | 5.1 | 10 | 2.9 | |||
2014-08-21 | 233 | 0 | 30-45cm | 14 | 3.4 | 15.4 | 12 | |||
2014-08-21 | 233 | 0 | 45-60cm | 27.9 | 11 | 6.4 | 14.8 | |||
2014-08-21 | 233 | 1 | 0-15cm | 0.4 | 2.1 | 0.1 | ||||
2014-08-21 | 233 | 1 | 15-30cm | 8.1 | 5.7 | 2.6 | ||||
2014-08-21 | 233 | 1 | 30-45cm | 13.7 | 3.1 | 11.2 | ||||
2014-08-21 | 233 | 1 | 45-60cm | 28.2 | 11 | 15.3 | ||||
2014-08-21 | 233 | Avg | 0-15cm | 0.4 | 1.8 | 1.6 | 0.4 | 1.05 | 4 | 7 |
2014-08-21 | 233 | Avg | 15-30cm | 8.25 | 5.4 | 10 | 2.75 | 6.6 | 4 | 7 |
2014-08-21 | 233 | Avg | 30-45cm | 13.85 | 3.25 | 15.4 | 11.6 | 11.03 | 4 | 7 |
2014-08-21 | 233 | Avg | 45-60cm | 28.05 | 11 | 6.4 | 15.05 | 15.13 | 4 | 7 |
No TZ grass heigth found
No VR grass heigth found
Tree DBH
Date | Tag# | Reading (mm) |
---|---|---|
2014-08-21 | 1 | 5.9 |
2014-08-21 | 102 | 5.0 |
2014-08-21 | 2 | 10.3 |
2014-08-21 | 245 | 17.9 |
2014-08-21 | 3 | 8.1 |
2014-08-21 | 4 | 9.0 |
2014-08-21 | 5 | 9.3 |
2014-08-21 | 7 | 8.4 |
2014-08-21 | 72 | 17.6 |
2014-08-21 | 79 | 10.5 |
2014-08-21 | 8 | 12.0 |
Water Potential - mode: raw
Time< h> | Species | Tree | readings (bar) | ||
---|---|---|---|---|---|
2014-08-21 12:27:00 | OAK | 102 | -30 | ||
2014-08-21 12:27:00 | OAK | 35 | -30 | ||
2014-08-21 12:27:00 | OAK | 92 | -25 | ||
2014-08-21 12:34:00 | PINE | OLD | -35 | -20 | -19 |
2014-08-21 12:34:00 | PINE | YNG | -1 | -7 | -7 |
