East End: 2014-07-31 13:40:00 (DOY 212)
Author: Cove Sturtevant
Others: Dennis, Patty

Summary: Cattails poking up everywhere! Water levels a bit higher. All well.

East End Wetland
2014-07-31

We arrived about 13:40 PDT. It was hot with a light breeze. The site has changed dramatically. There are now cattails poking up from the water just about everywhere. The water levels are a little higher than they have been.

Patty took water samples.

I checked the tower level – perfectly level.
Checked sonic N @ 342 °N magnetic

7500 readings:
CO2 = 15.4 mmol m-3 (same after cleaning)
H2O = 620 mmol m-3 (same after cleaning)
p = 101.2 kPa
t = 33 C
Diag: 248 (same after cleaning)
Sos: 350 m s-1

7700 readings:
CH4: 1.9 ppm
RSSI: 27% (85% after cleaning)

MET looked good.



0 photos found

Graphs display:
11 sets found

14 EE_met graphs found

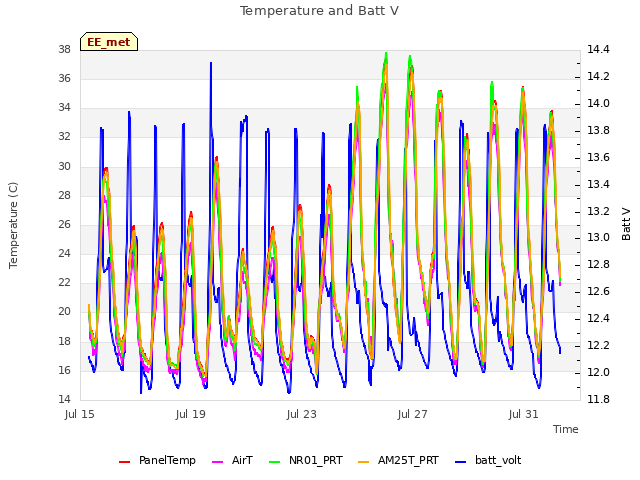

Temperature and Batt V

Soil Moisture and Well Pressure

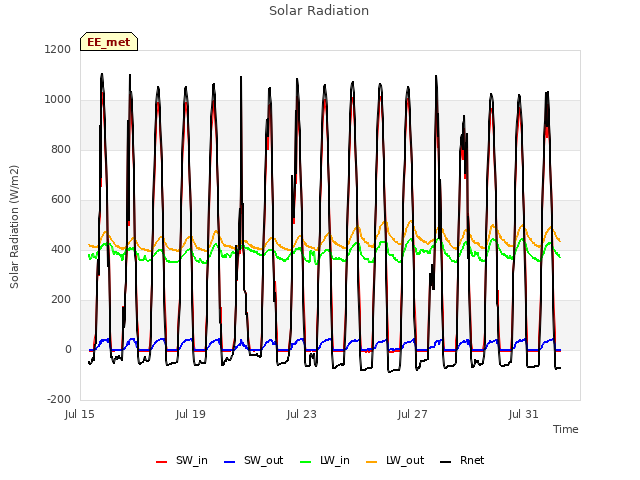

Solar Radiation

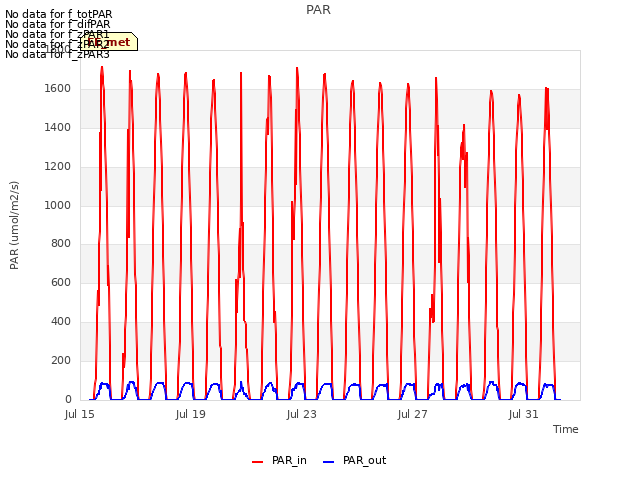

PAR

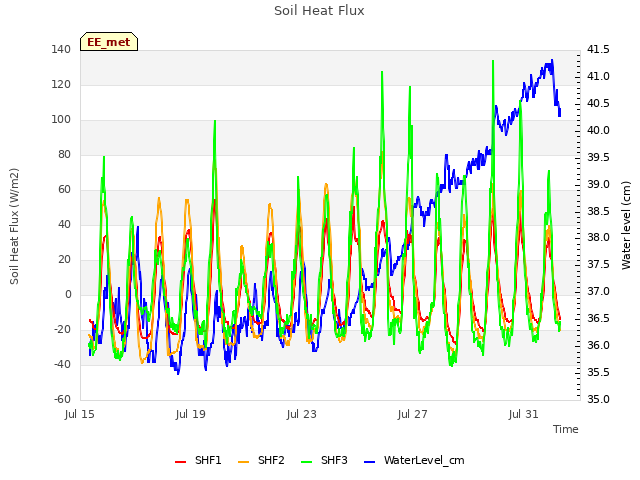

Soil Heat Flux

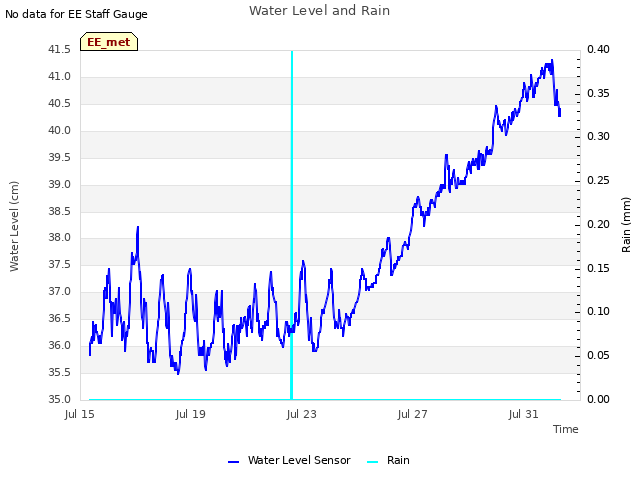

Water Level and Rain

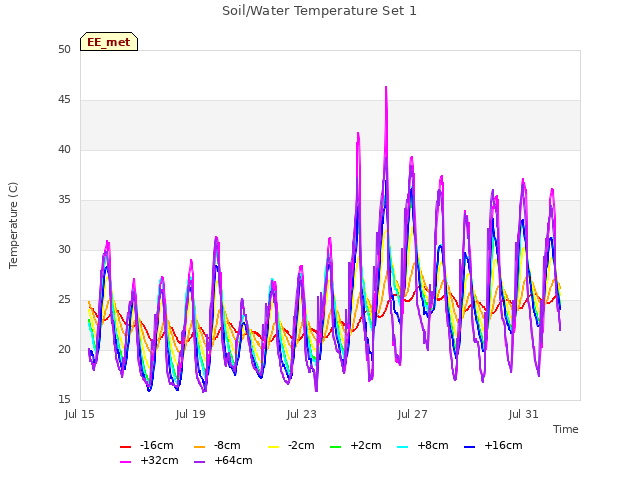

Soil/Water Temperature Set 1

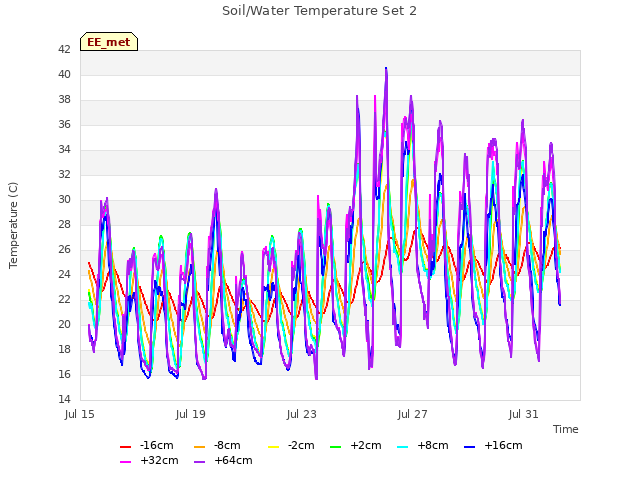

Soil/Water Temperature Set 2

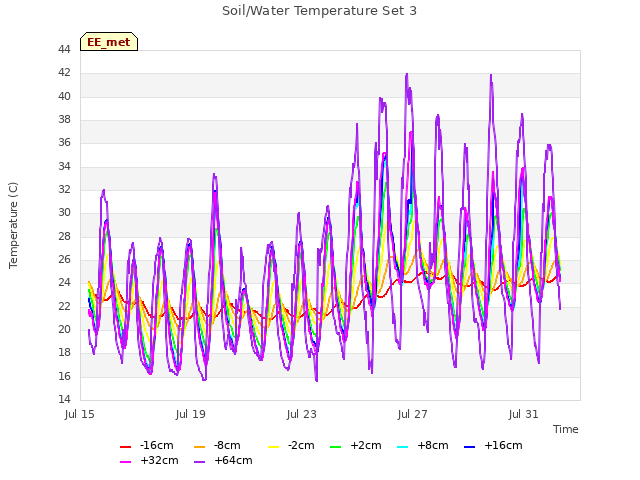

Soil/Water Temperature Set 3

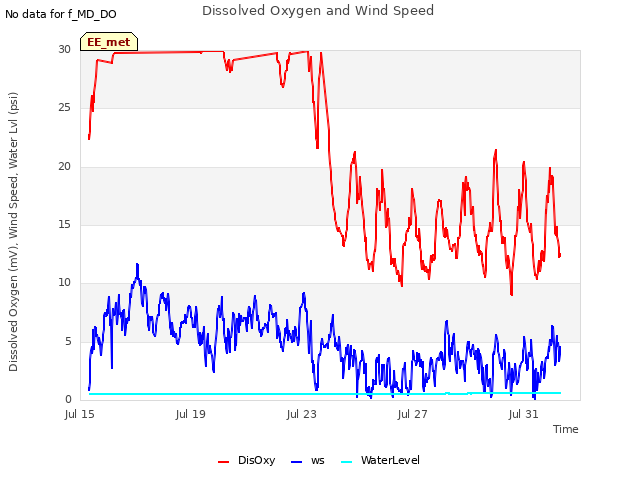

Dissolved Oxygen and Wind Speed

SRS NDVI Channels

Apogee NDVI

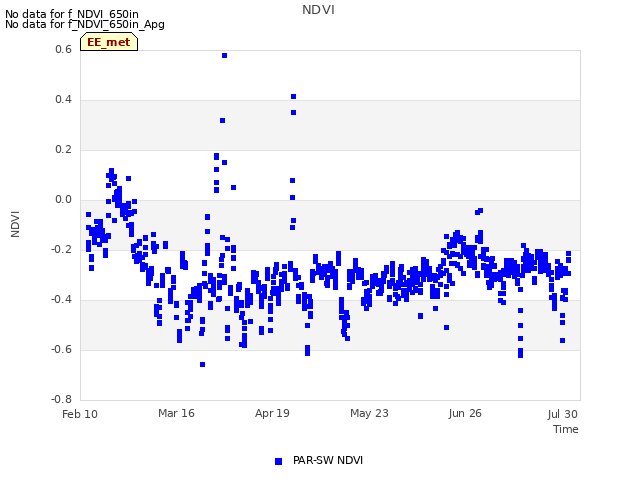

NDVI

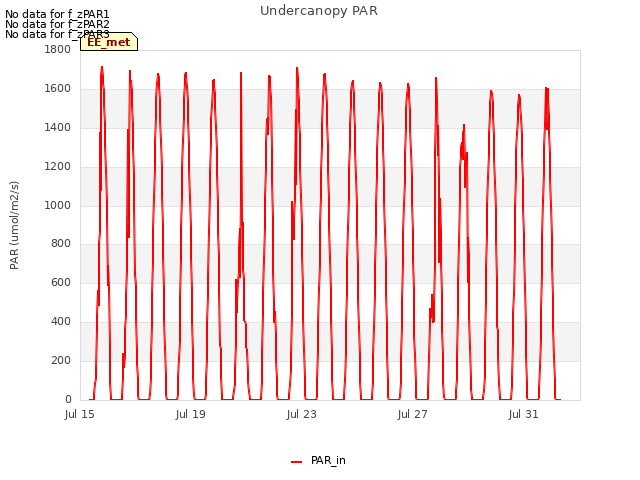

Undercanopy PAR

Can't check EE_mixed
1 EE_mixed graphs found

Air Pressure and RH

8 EE_flux graphs found

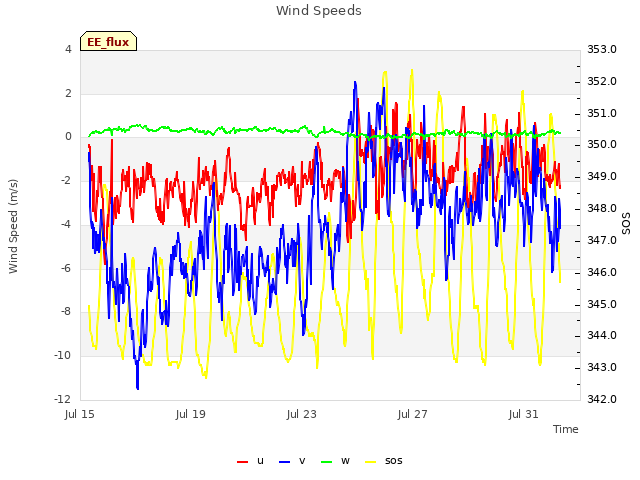

Wind Speeds

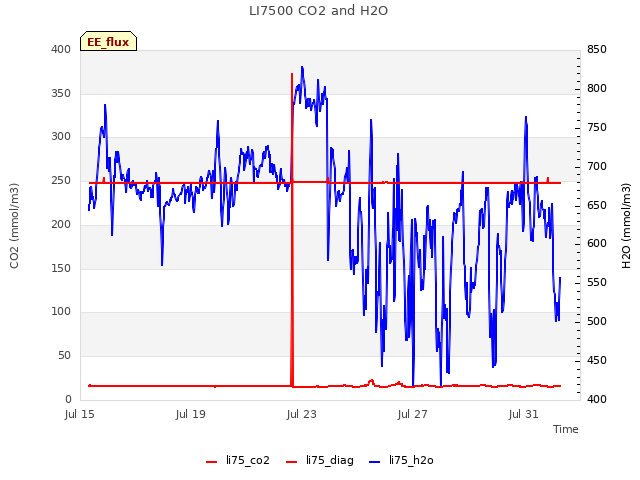

LI7500 CO2 and H2O

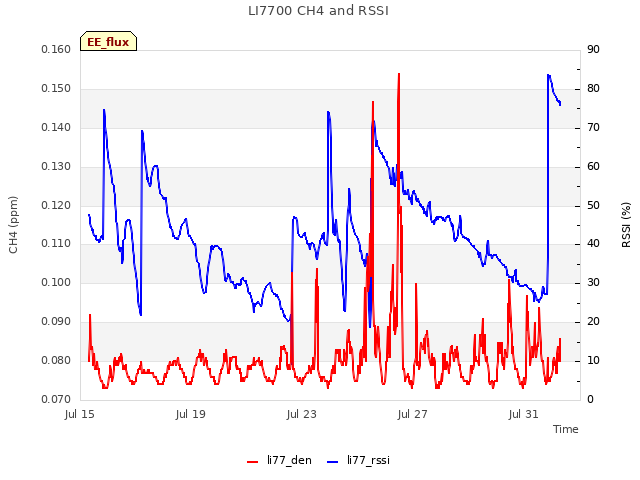

LI7700 CH4 and RSSI

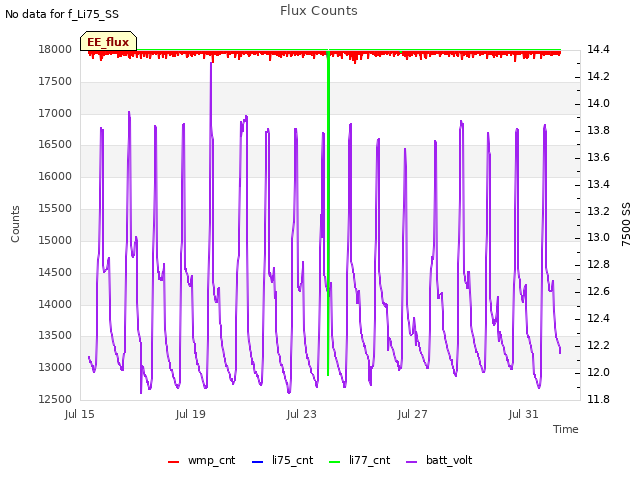

Flux Counts

Instument Temperatures

Temp Tower 3 (Mixed Veg)

Temp Tower 3 (Mixed Veg)

Temp Tower 3 (Mixed Veg)

Can't check MBWPEESWGT_mixed
1 EE_cam graphs found

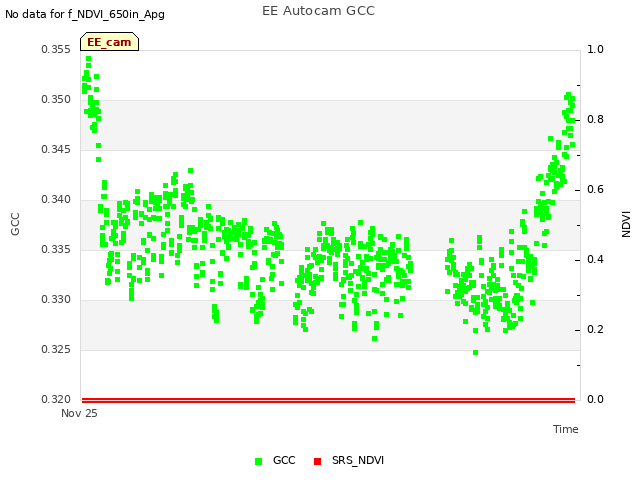

EE Autocam GCC

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
Can't check EE_Temp
5 EE_Temp graphs found

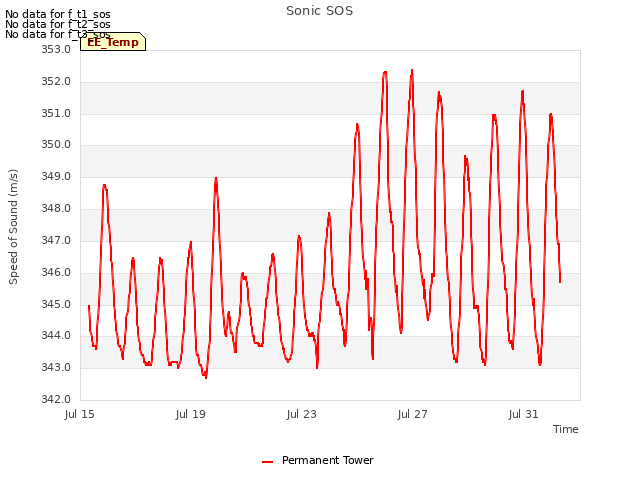

Sonic SOS

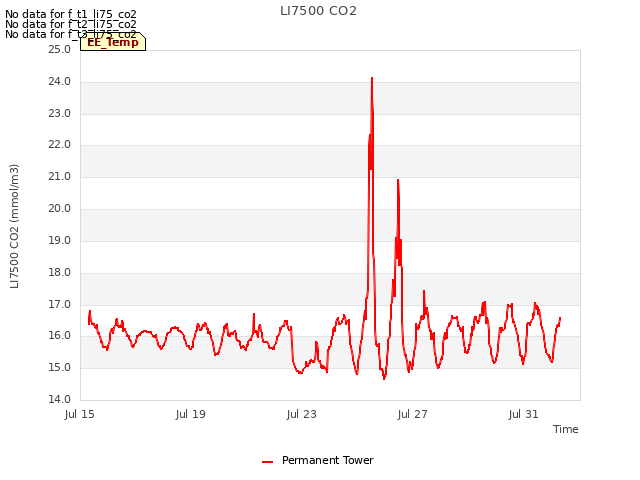

LI7500 CO2

Water Level

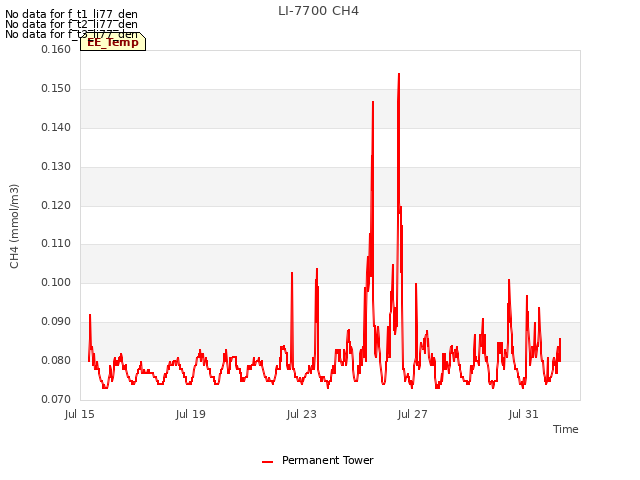

LI-7700 CH4

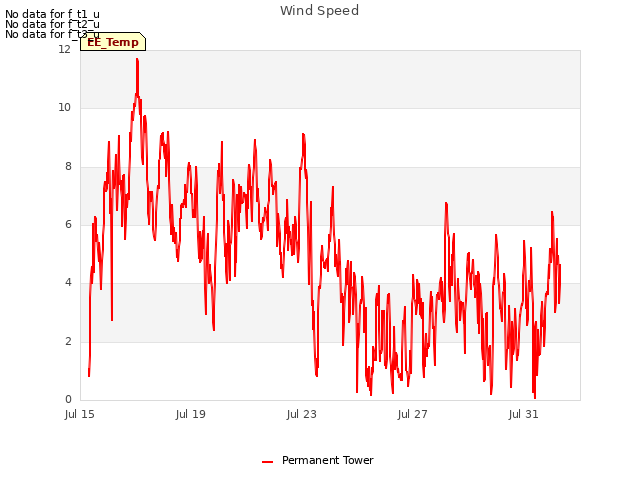

Wind Speed

Can't check EE_minidot
1 EE_minidot graphs found

EE miniDOT Dissolved Oxygen

Can't check MBSWEEWPBCBA
1 EE_processed graphs found

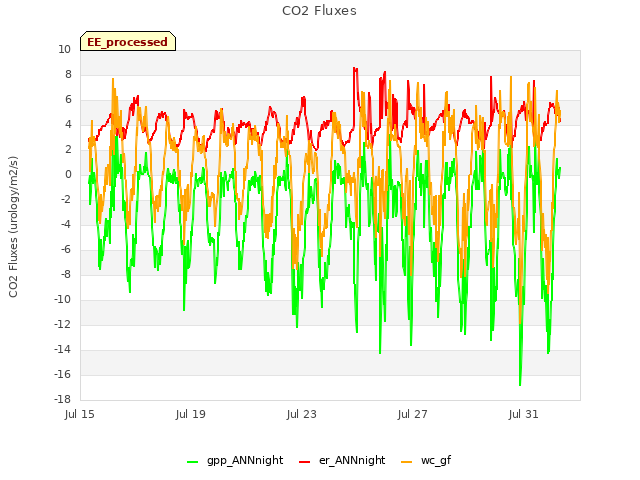

CO2 Fluxes
