Sherman Island: 2014-07-31 09:10:00 (DOY 212)
Author: Cove Sturtevant
Others: Dennis, Patty

Summary: Standard site visit. All well.

Sherman
2014-07-31

We arrived around 09:10 PDT. It was windy and pleasant out. The site is a mix of golden, flowered, dry pepperweed along with a green understory of grass and forbs and even some green pepperweed plants. I attended to the tower and did a veg height transect while Patty did soil respiration and Dennis did moisture point. Later Dennis and I did spectral together. I forgot to do well depth.

LGR readings: 1.88 ppm, 09:10, 22.3 C, 132.9 Torr (adjusted to 146.3 Torr), 14.72 us, 10 Hz

7500 readings:
CO2: 16.4 mmol m-3 (same after cleaning)
H2O: 760 mmol m-3 (same after cleaning)
P = 101.5 kPa
T = 23.6 C
Diag: 248
Sos = 344.5 m s-1

Soil CO2 looked good.
Met looked good.
Cleaned rad.

Veg Height (cm): Tape measure from ground to top of plant - some green pepperweed and green grass/forb understory
56, 20, 15, 100, 44, 63, 18, 13, 79, 47, 67, 35, 69, 82, 79, 31, 66, 42, 13, 66, avg = 50.3, stdev = 26.31

1 photos found

Fieldwork
Fieldwork

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

Explore the graph:Solar Radiation in a new window

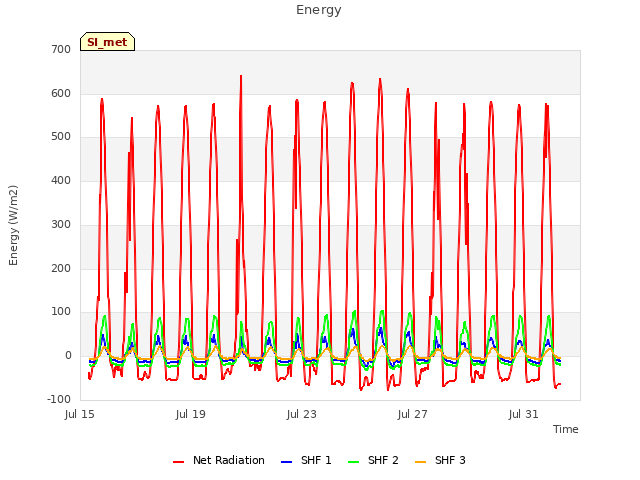

Explore the graph:Energy in a new window

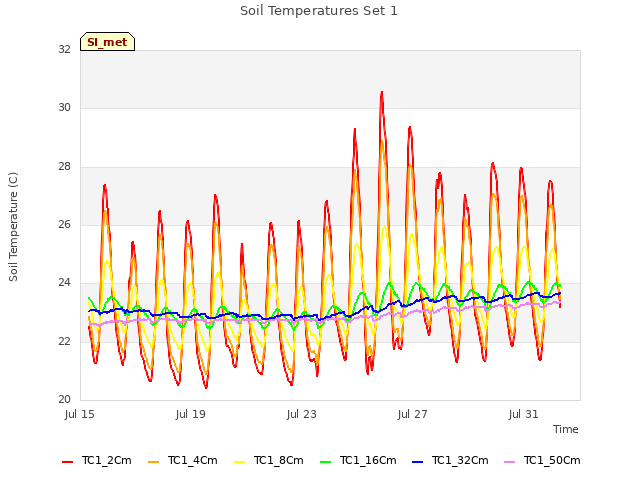

Explore the graph:Soil Temperatures Set 1 in a new window

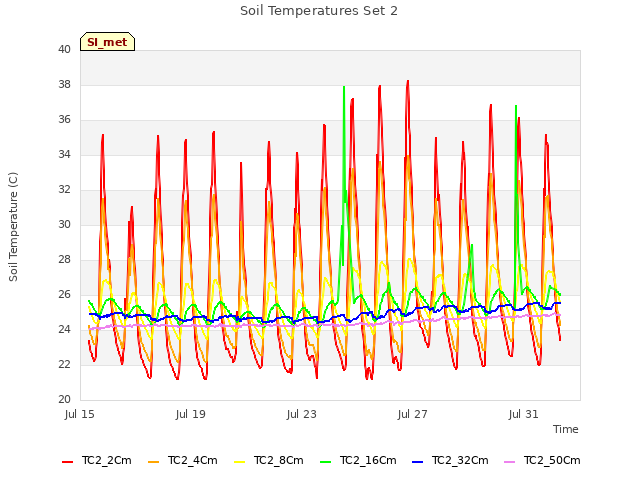

Explore the graph:Soil Temperatures Set 2 in a new window

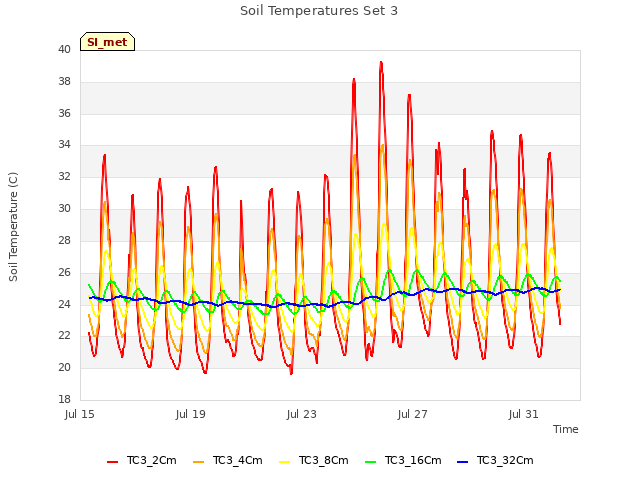

Explore the graph:Soil Temperatures Set 3 in a new window

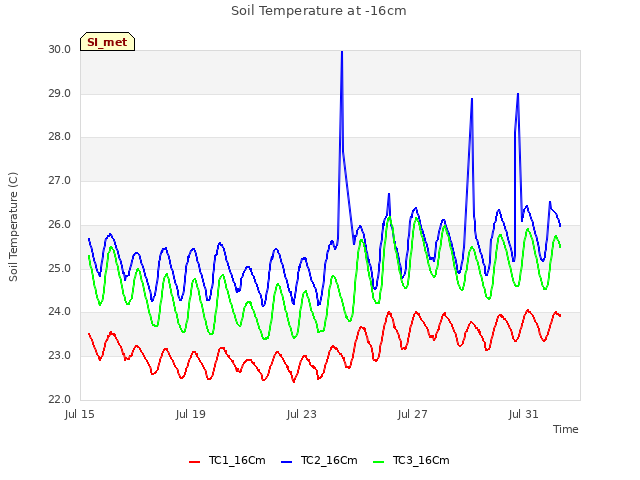

Explore the graph:Soil Temperature at -16cm in a new window

Explore the graph:LED NDVI Sensor Output in a new window

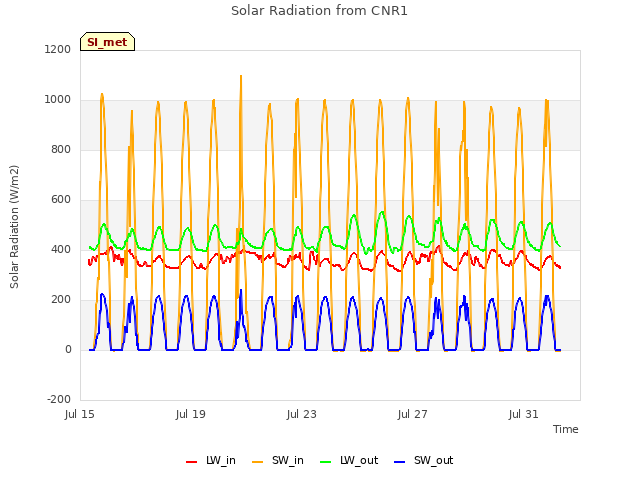

Explore the graph:Solar Radiation from CNR1 in a new window

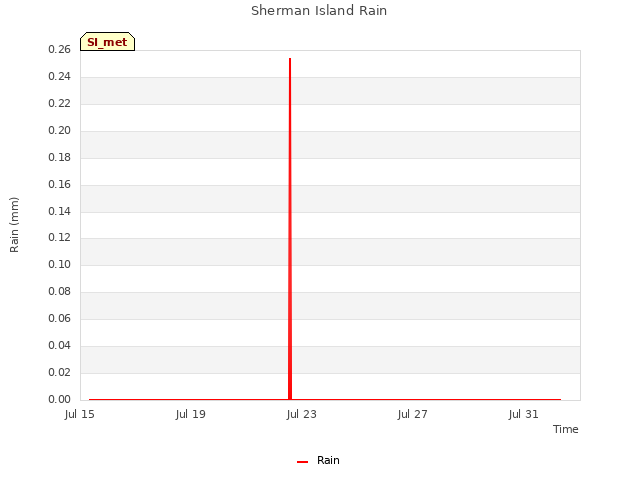

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

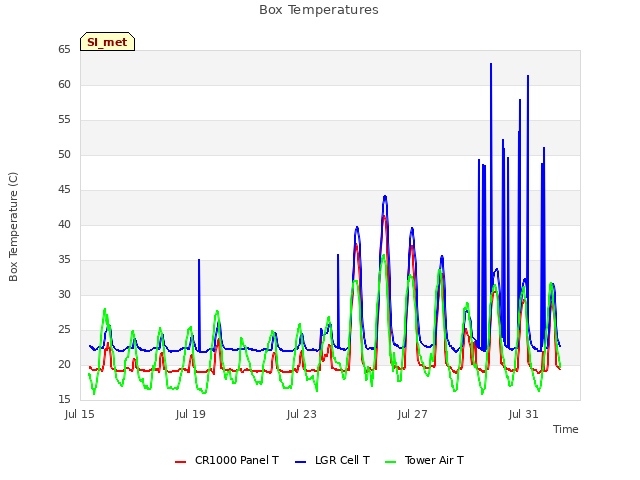

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

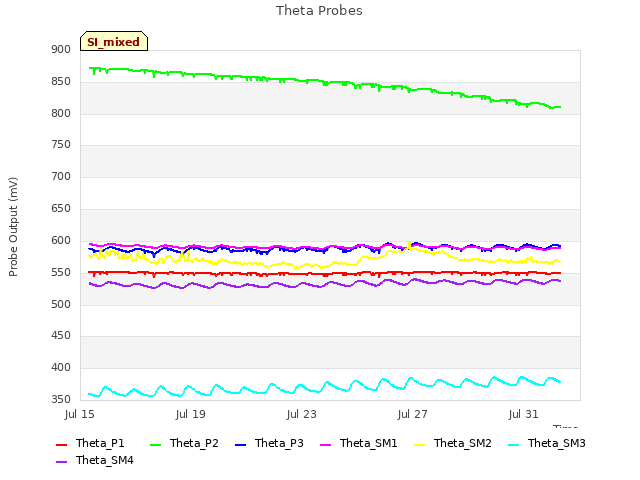

Explore the graph:Theta Probes in a new window

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

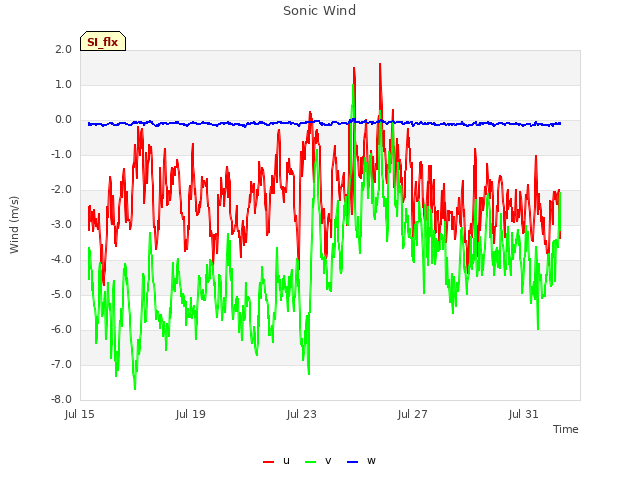

Explore the graph:Sonic Wind in a new window

Explore the graph:CH4 Concentrations in a new window

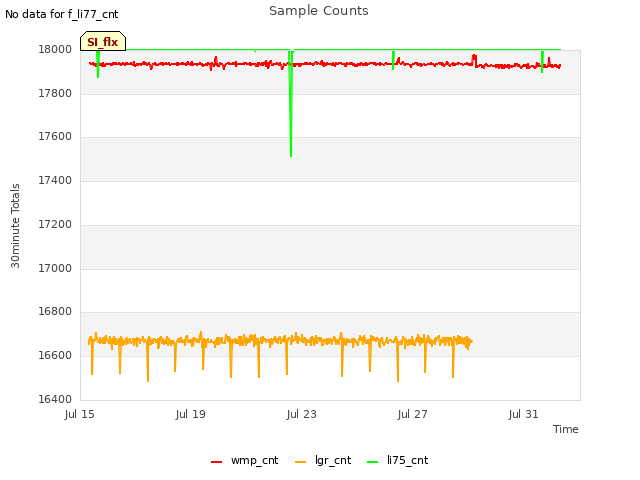

Explore the graph:Sample Counts in a new window

Explore the graph:LI7500 CO2 and H2O in a new window

4 SI_soilco2 graphs found

Explore the graph:Sherman Island Vaisala Soil CO2 in a new window

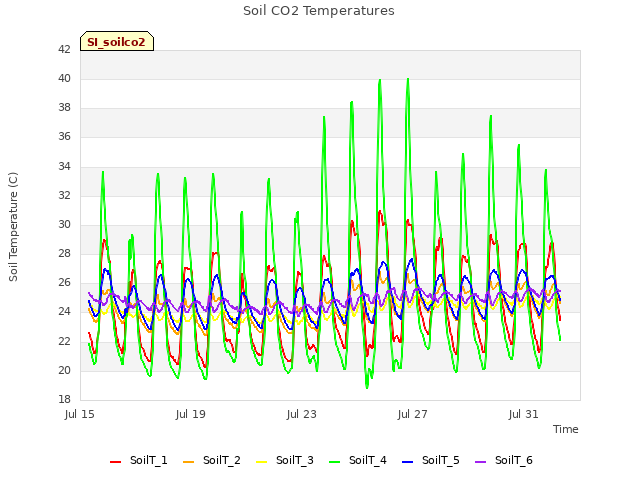

Explore the graph:Soil CO2 Temperatures in a new window

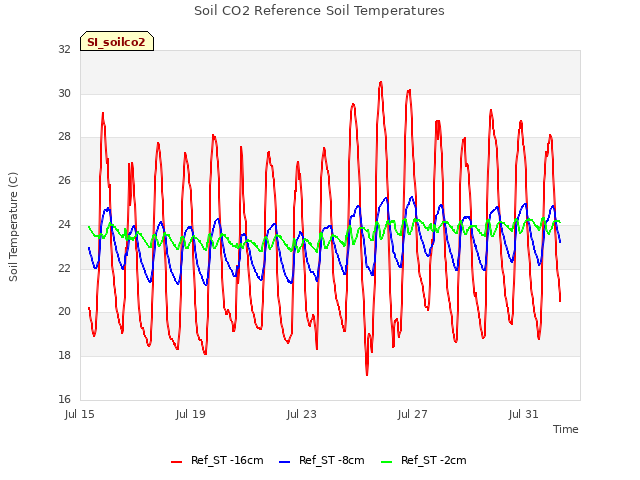

Explore the graph:Soil CO2 Reference Soil Temperatures in a new window

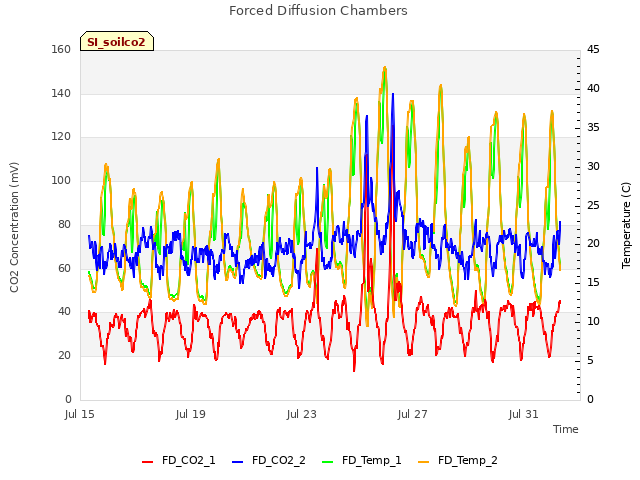

Explore the graph:Forced Diffusion Chambers in a new window
