Vaira: 2014-06-25 08:30:00 (DOY 176)
Author: Joe Verfaillie
Others: Siyan

Summary: Standard field work, missed collecting latest me data, checked sonic settings.

Vaira 2014-06-25 I arrived about 8:30am with Siyan. It was clear, sunny and warm. The grass is completely dead. The water hole is much lower than it was four weeks ago. The trees still look pretty good. We did the standard field work. Seems I missed collecting the most recent met data from the CR23X. I got some of the older data but not the last two weeks. It should be collected next time. I checked the sonic settings Vaira Sonic: B3 E1 F1 G1 J2 J5 L1 M7 NA O1 P6 U1 Z1 X1 B3 – 9600 baud E1 – Full duplex F1 – 8 bits, no parity G1 – measurement average off J2 – Two differential channels J5 – No SE channels L1 - M7 – UVW continuous binary NA – id A O1 – ASCII format comma separated P6 – 10 samples per second U1 – m/s X1 – Align U to Axis This seems to indicate that the U axis is aligned with the transducer head and not the north spar. This could introduce a 30 degree offset to wind directions.

Field Data

No tank data

Well Depth

Date	Location	Depth (feet)
2014-06-25	TZ_floor	30.6
2014-06-25	TZ_road	39
2014-06-25	TZ_tower	41.4

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_4_1 [6] => Soil_Transect_3_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => Tower_2 [11] => Floor_South_2 [12] => Floor_East_2 [13] => Floor_West_2 [14] => SoilCO2_2 [15] => Soil_Transect_4_2 [16] => Soil_Transect_3_2 [17] => Soil_Transect_2_2 [18] => Soil_Transect_1_2 [19] => SoilCO2_West_A_2 [20] => SoilCO2_West_B_2 [21] => SoilCO2_West_C_2 [22] => Tower_3 [23] => Floor_South_3 [24] => Floor_East_3 [25] => Floor_West_3 [26] => SoilCO2_3 [27] => Soil_Transect_4_3 [28] => Soil_Transect_3_3 [29] => Soil_Transect_2_3 [30] => Soil_Transect_1_3 [31] => SoilCO2_West_A_3 [32] => SoilCO2_West_B_3 [33] => Floor_South_4 [34] => Floor_East_4 [35] => Floor_West_4 [36] => SoilCO2_4 [37] => Soil_Transect_4_4 [38] => Soil_Transect_3_4 [39] => Soil_Transect_2_4 [40] => Soil_Transect_1_4 [41] => SoilCO2_West_A_4 [42] => SoilCO2_West_B_4 [43] => SoilCO2_West_C_4 [44] => SoilCO2_West_C_1 [45] => SoilCO2_West_C_3 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_4_1	Soil_Transect_3_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	SoilCO2_West_C_1	SoilCO2_West_C_3	Avg	Spacial Count	Measurement Count
2014-06-25	176	0	nan	10.9	1.3	11.2	6.8	3.4	0.1	2	3.6	5.6	2.1	9.7	13.6	10.9	10	8.4	17	21	13.3	5.4	7.5	0.5	18.5	18.7	12.3	13.4	15.4	18.4	11.1	22.1	-16.2	12.3	15.9	16.5	6.4	21.1	12.2	11.1	21.3	13.6	23.4	11	20.8	14.8	15.3
2014-06-25	176	1	nan	9.1	1.2			2.4	1.2	2.5	1.8			9	13.6		10	8.7	10	21.9	13.3	4.8			17.6	18.4	11.7		15.1	18.7	10.3	23.2	15.4	12.9			7.9		15.6	11.1	11.3	14.8	22.8	10.7			15.6	21	30.8
2014-06-25	176	Avg	0-15cm																																																0
2014-06-25	176	Avg	15-30cm																																																0
2014-06-25	176	Avg	30-45cm																																																0
2014-06-25	176	Avg	45-60cm																																																0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Avg	Spacial Count	Measurement Count
2014-06-25	176	0	nan	0.1	1.8	0.9	0.7	10	6.6	5.4	3.2	14.3	2	8.4	10.6	26.5	11.6	8.2	13.6
2014-06-25	176	1	nan	0.3	2.4	0.9	0.4	9	6.3	5.7	3.2	13.1	1.4	8.4	10.3	27.6	10.7	8.7	13
2014-06-25	176	Avg	0-15cm																		0
2014-06-25	176	Avg	15-30cm																		0
2014-06-25	176	Avg	30-45cm																		0
2014-06-25	176	Avg	45-60cm																		0

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

1 photos found

Joe on site

Graphs display: days

9 sets found

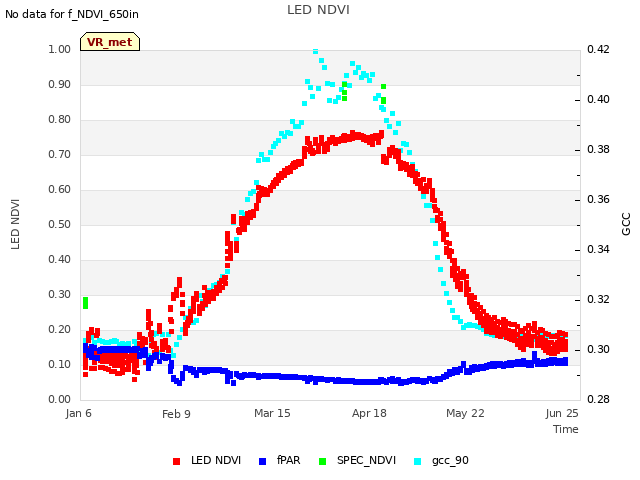

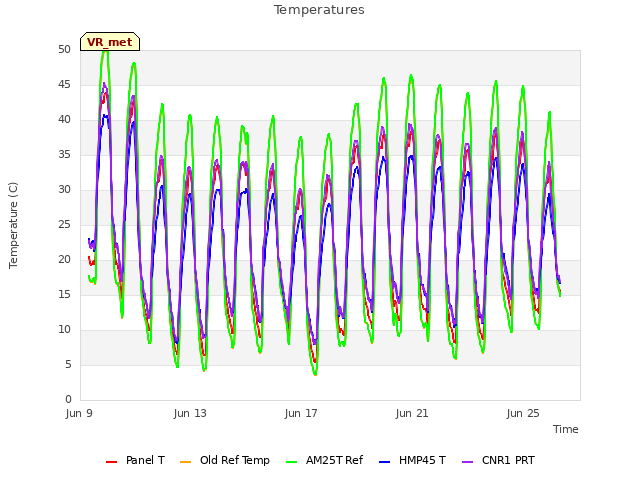

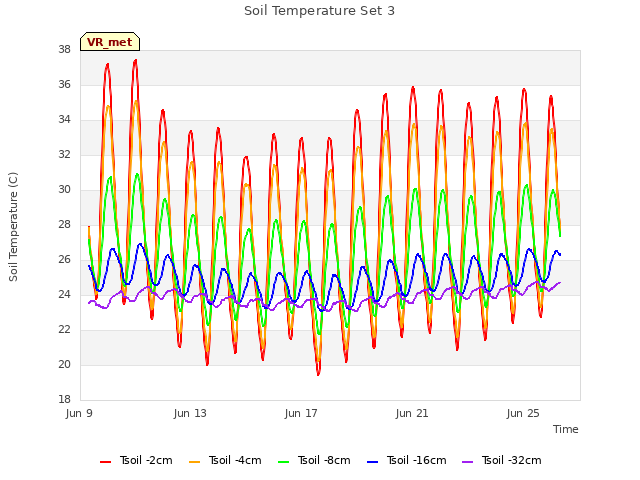

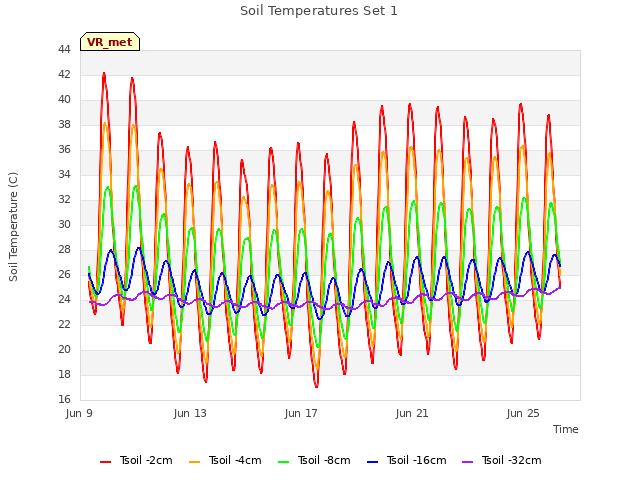

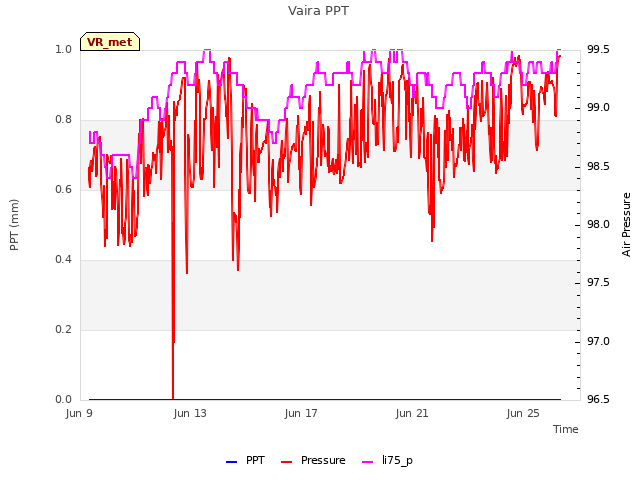

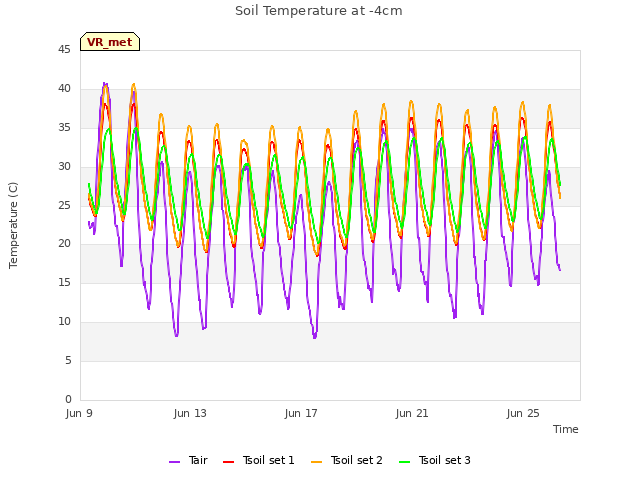

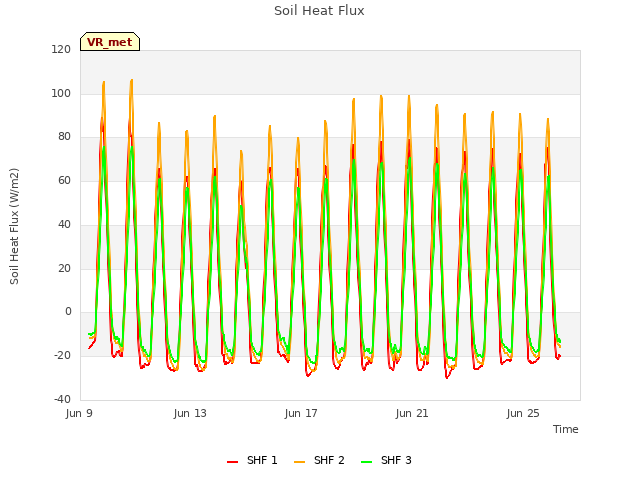

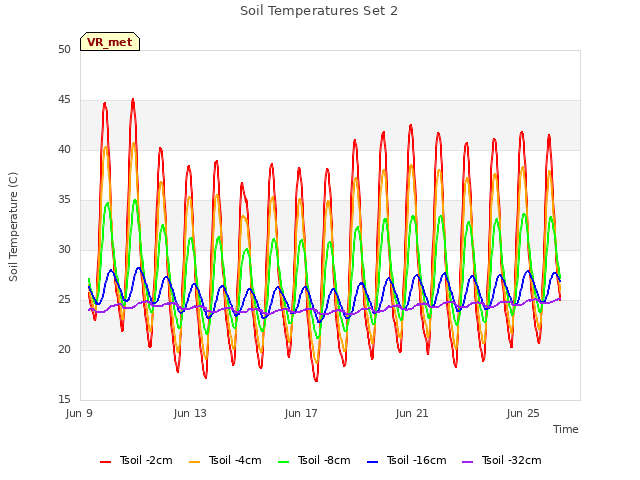

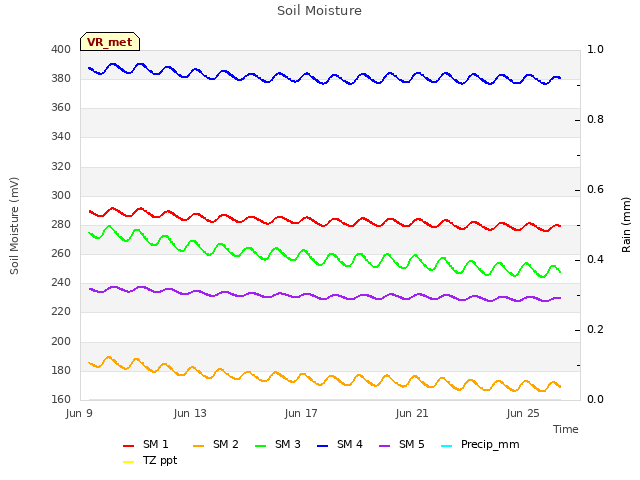

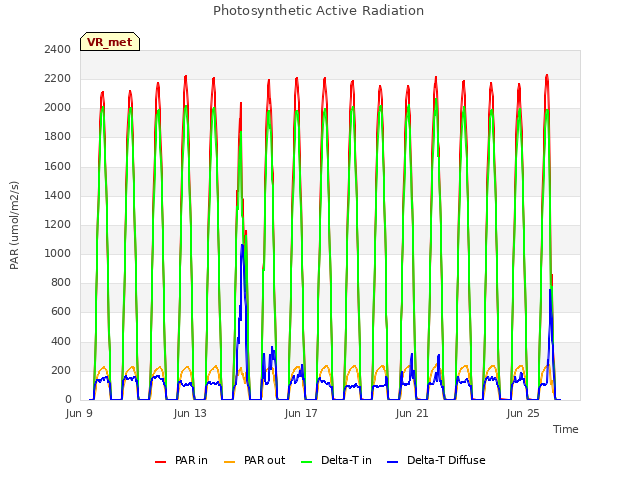

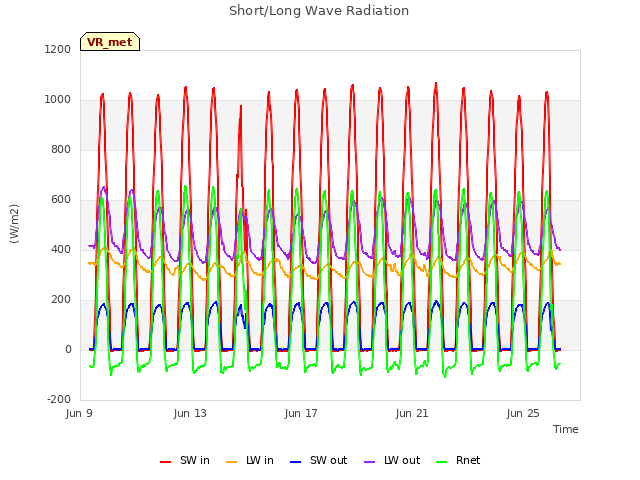

16 VR_met graphs found

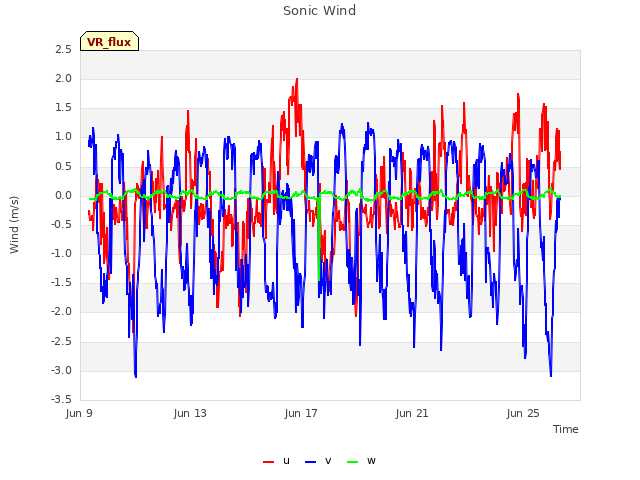

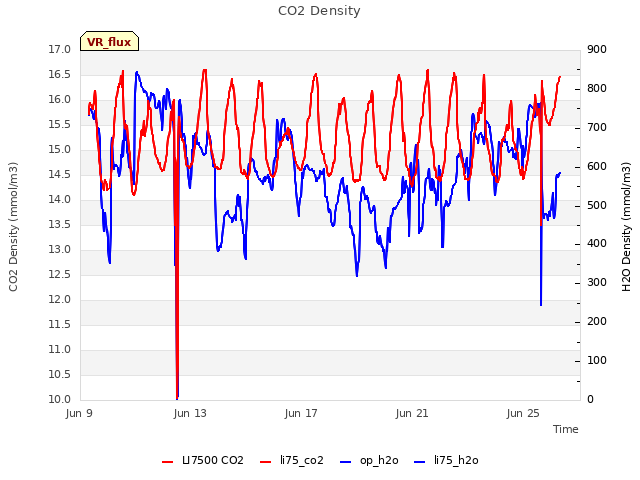

2 VR_flux graphs found

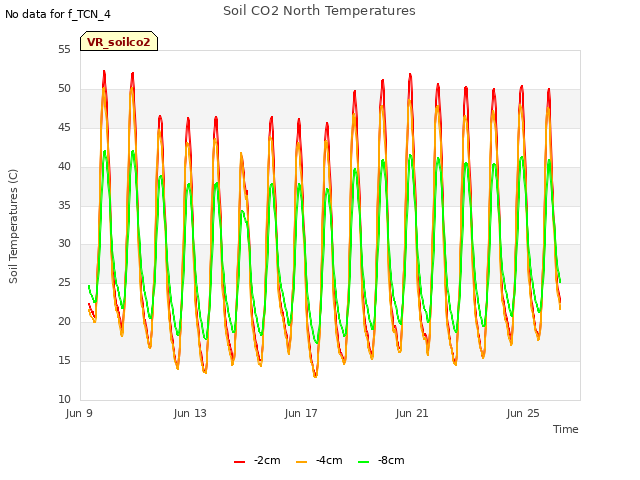

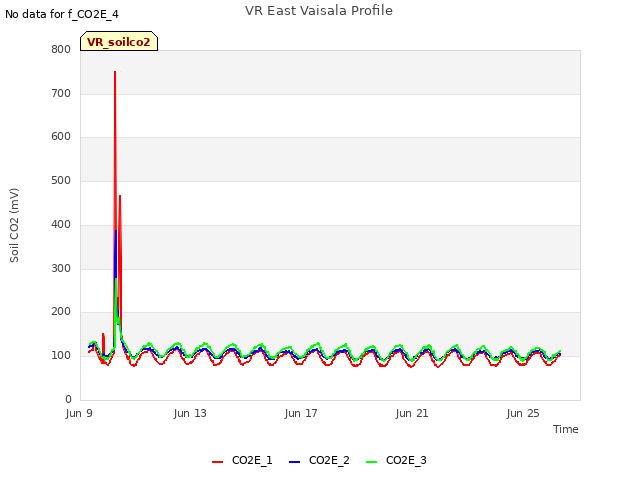

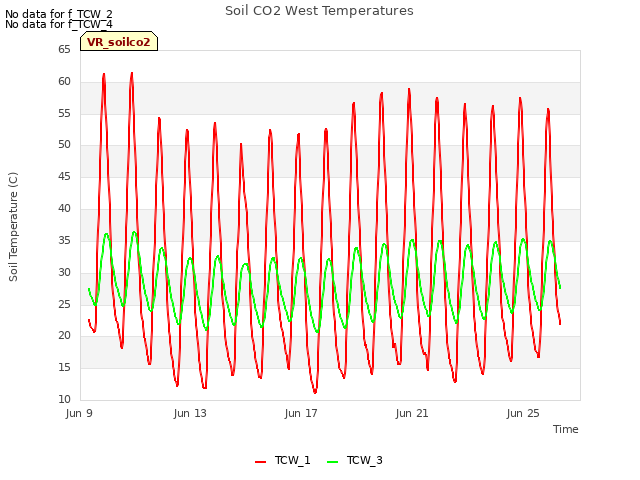

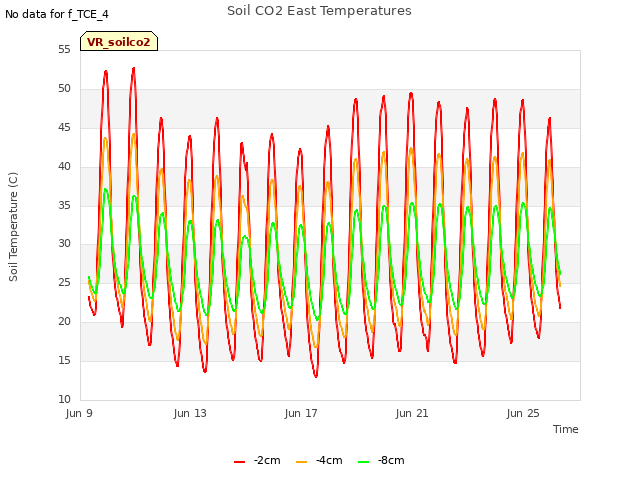

6 VR_soilco2 graphs found

No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
