Field Notes

<--2014-04-22 09:00:00 | 2014-06-25 08:30:00-->
Other sites visited today: Tonzi
Phenocam link: Searching...

Vaira: 2014-05-22 08:15:00 (DOY 142)
Author: Joe Verfaillie
Others:

Summary: Standard field work. Soil co2 sensors need reinstall. Grass is tall.

Vaira 2014-05-22 I arrived about 8:15am. It was clear, sunny and warm with a very light breeze from the east shifting around to the north. The grass is really tall between waist and shoulder high (100 to 140cm) and thick. The water hole is till full of water. I did the moisture point readings. I did the spectral measurements with the tripod at max height to get above the grass. I saved a global dark file, but only the sample spectra where saved in incoming and reflected pairs. At the end I fussed with the settings so that the dark and scope files were saved as well. I downloaded the Phenocam photos from the computer. I forgot to reinstall the serial port drivers on the white netbook, but I was able to use the other netbook to collect data from the data loggers. I cleaned bird droppings out of the tipping bucket. There was a bit of water in the tipper. The soil CO2 probes in the west and north sets are very loose in the ground. We should try to reset these this summer.

Field Data

No tank data

No VR Well data found

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower_1 [1] => Floor_South_1 [2] => Floor_East_1 [3] => Floor_West_1 [4] => SoilCO2_1 [5] => Soil_Transect_3_1 [6] => Soil_Transect_2_1 [7] => Soil_Transect_1_1 [8] => SoilCO2_West_A_1 [9] => SoilCO2_West_B_1 [10] => SoilCO2_West_C_1 [11] => Tower_2 [12] => Floor_South_2 [13] => Floor_East_2 [14] => Floor_West_2 [15] => SoilCO2_2 [16] => Soil_Transect_4_2 [17] => Soil_Transect_3_2 [18] => Soil_Transect_2_2 [19] => Soil_Transect_1_2 [20] => SoilCO2_West_A_2 [21] => SoilCO2_West_B_2 [22] => SoilCO2_West_C_2 [23] => Tower_3 [24] => Floor_South_3 [25] => Floor_East_3 [26] => Floor_West_3 [27] => SoilCO2_3 [28] => Soil_Transect_4_3 [29] => Soil_Transect_3_3 [30] => Soil_Transect_2_3 [31] => Soil_Transect_1_3 [32] => SoilCO2_West_A_3 [33] => SoilCO2_West_B_3 [34] => Tower_4 [35] => Floor_South_4 [36] => Floor_East_4 [37] => Floor_West_4 [38] => SoilCO2_4 [39] => Soil_Transect_4_4 [40] => Soil_Transect_3_4 [41] => Soil_Transect_2_4 [42] => Soil_Transect_1_4 [43] => SoilCO2_West_A_4 [44] => SoilCO2_West_B_4 [45] => SoilCO2_West_C_4 [46] => SoilCO2_West_C_3 [47] => Soil_Transect_4_1 )

0000

Date	DOY	Rep	Depth	Tower_1	Floor_South_1	Floor_East_1	Floor_West_1	SoilCO2_1	Soil_Transect_3_1	Soil_Transect_2_1	Soil_Transect_1_1	SoilCO2_West_A_1	SoilCO2_West_B_1	SoilCO2_West_C_1	Tower_2	Floor_South_2	Floor_East_2	Floor_West_2	SoilCO2_2	Soil_Transect_4_2	Soil_Transect_3_2	Soil_Transect_2_2	Soil_Transect_1_2	SoilCO2_West_A_2	SoilCO2_West_B_2	SoilCO2_West_C_2	Tower_3	Floor_South_3	Floor_East_3	Floor_West_3	SoilCO2_3	Soil_Transect_4_3	Soil_Transect_3_3	Soil_Transect_2_3	Soil_Transect_1_3	SoilCO2_West_A_3	SoilCO2_West_B_3	Tower_4	Floor_South_4	Floor_East_4	Floor_West_4	SoilCO2_4	Soil_Transect_4_4	Soil_Transect_3_4	Soil_Transect_2_4	Soil_Transect_1_4	SoilCO2_West_A_4	SoilCO2_West_B_4	SoilCO2_West_C_4	SoilCO2_West_C_3	Soil_Transect_4_1	Avg	Spacial Count	Measurement Count
2014-05-22	142	0	nan	13	6.2	39.9	11.1	8	3.9	2.1	5.6	10.1	6.8	25.6	10.9	16.4	22.5	13.3	9	10.9	13.9	15.2	6.9	9.7	0.3	18.2	21.5	15.1	24.3	19	9	12.3	39.6	20.4	17.6	17.6	18.4	41.4	13.6	19.9	11.1	11.1	13.9	41.1	35.4	14.2	31.4	25.4	15.9
2014-05-22	142	1	nan	13	7.4	39.9	11.1	7.1	6.5	1.2	6.2	10.9	5.3		11.5	16.4	33.8	13	10	11.2	16.1	15.5	6.3	7.8	6.6	16.7	20.9	15.6	17	20.1	8.7	11.7	11.2	20.9	17.3	18.7	21.8	41.4	12.2	24.2	11.1	11.1	13.9	31.7	45.1	14.2	31.1	27.1		17.6
2014-05-22	142	2	nan											5.3						11.8						15.8						11.7											13.9						25.9	18.2	3.9
2014-05-22	142	Avg	0-15cm																																																		0
2014-05-22	142	Avg	15-30cm																																																		0
2014-05-22	142	Avg	30-45cm																																																		0
2014-05-22	142	Avg	45-60cm																																																		0

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels_1 [1] => Flux_Tower_1 [2] => Gate_1 [3] => Biomass_Cage_1 [4] => Solar_Panels_2 [5] => Flux_Tower_2 [6] => Gate_2 [7] => Biomass_Cage_2 [8] => Solar_Panels_3 [9] => Flux_Tower_3 [10] => Gate_3 [11] => Biomass_Cage_3 [12] => Solar_Panels_4 [13] => Flux_Tower_4 [14] => Gate_4 [15] => Biomass_Cage_4 )

0000

Date	DOY	Rep	Depth	Solar_Panels_1	Flux_Tower_1	Gate_1	Biomass_Cage_1	Solar_Panels_2	Flux_Tower_2	Gate_2	Biomass_Cage_2	Solar_Panels_3	Flux_Tower_3	Gate_3	Biomass_Cage_3	Solar_Panels_4	Flux_Tower_4	Gate_4	Biomass_Cage_4	Avg	Spacial Count	Measurement Count
2014-05-22	142	0	nan	3.6	5.6	10.3	0.3	7.8	10.3	12.7	4.5	2.3	14.3	15.9	11.7	13.9	26.8	11.6	14.2
2014-05-22	142	1	nan	4.7	5.3	8.3	0.1	7.8	10.3	8.7	4.8	2	13.7	12	11.2	13	26.2	11.3	13.9
2014-05-22	142	Avg	0-15cm																		0
2014-05-22	142	Avg	15-30cm																		0
2014-05-22	142	Avg	30-45cm																		0
2014-05-22	142	Avg	45-60cm																		0

No TZ grass heigth found

No VR grass heigth found

No VR Tree DBH found

No water potential data found

No VR Grass Biomass data found

No VR OakLeaves Biomass data found

No VR PineNeedles Biomass data found

2 photos found

Compass heading of Vaira sonic

Joe on site

Graphs display: days

9 sets found

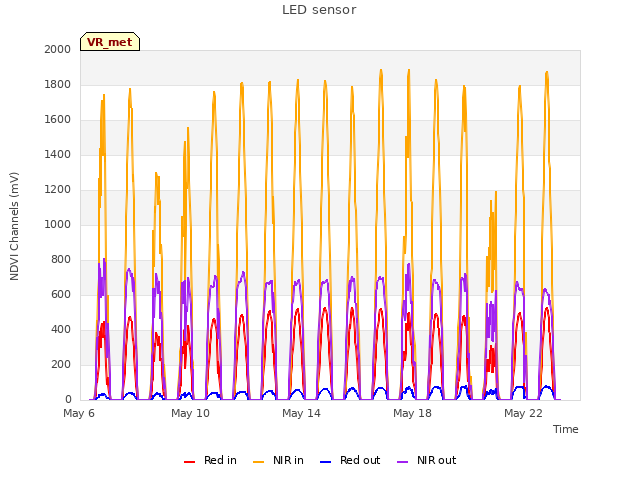

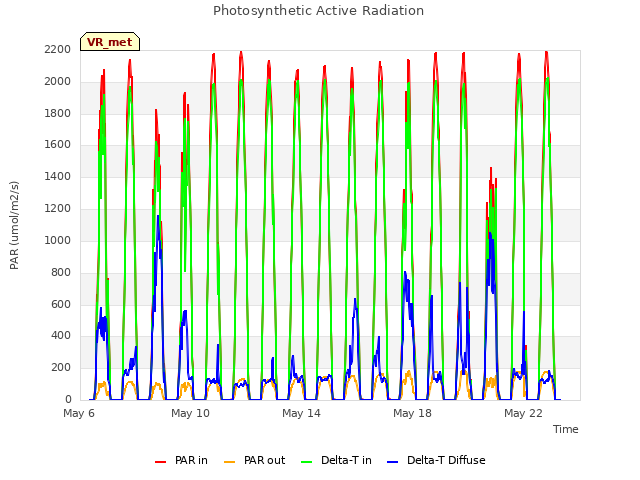

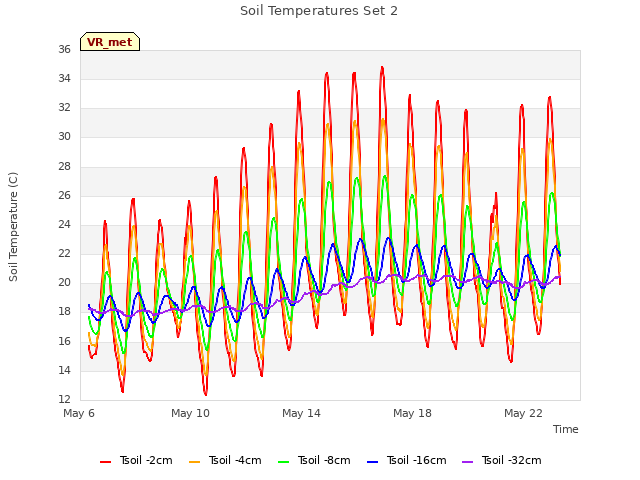

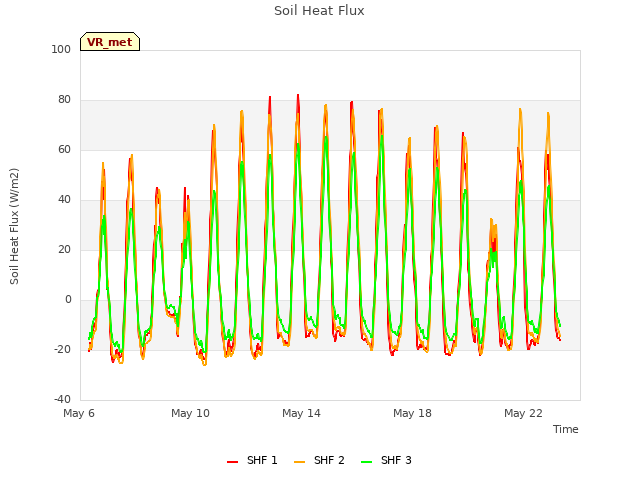

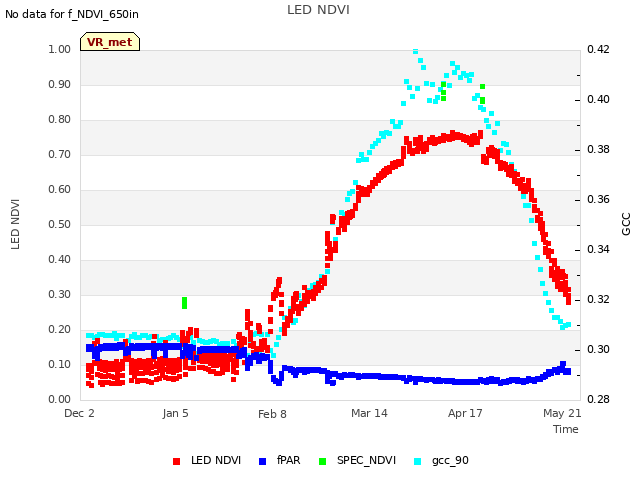

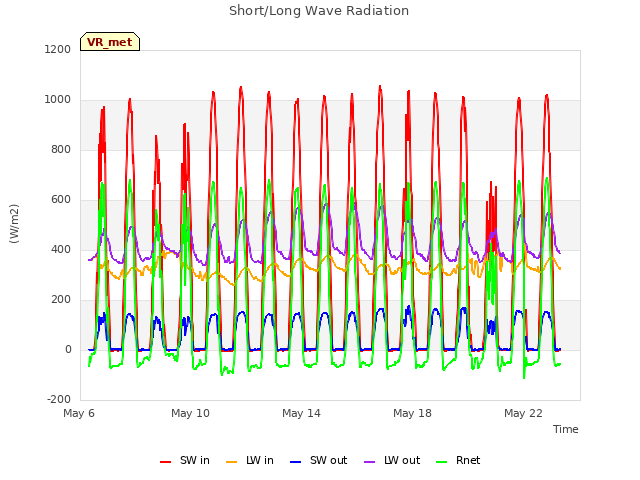

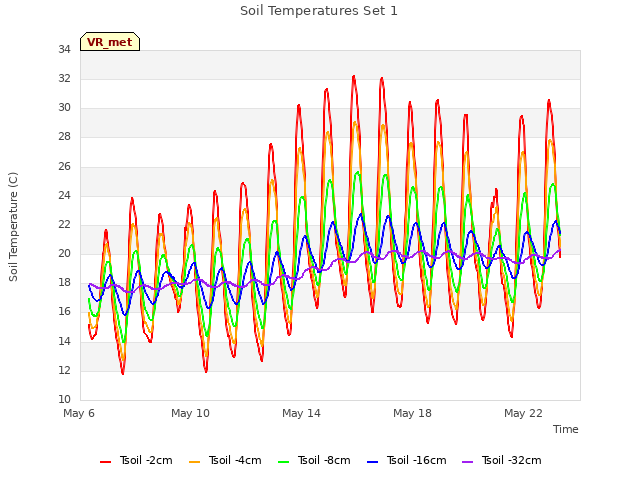

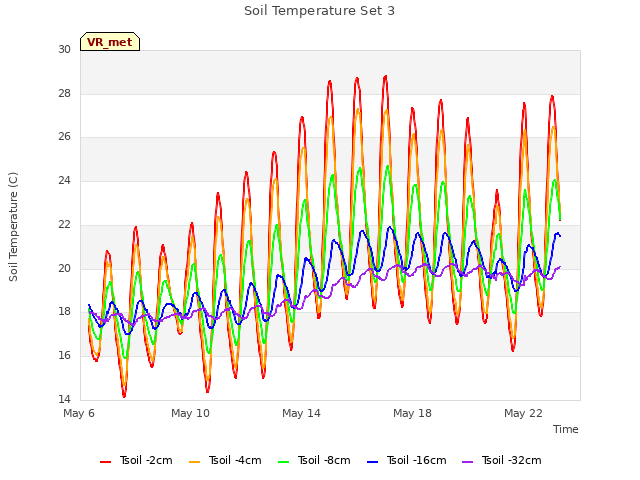

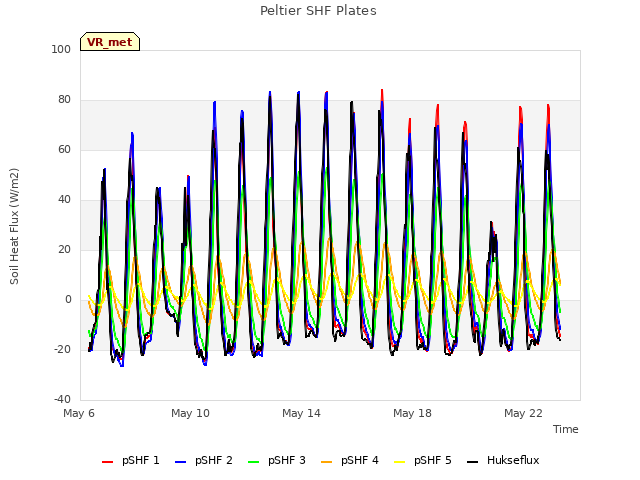

16 VR_met graphs found

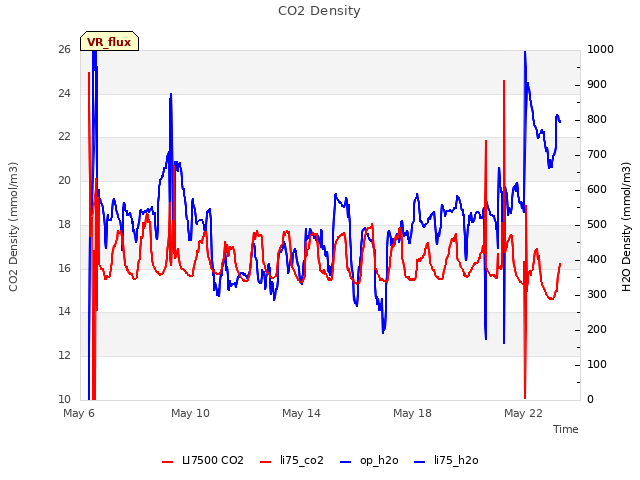

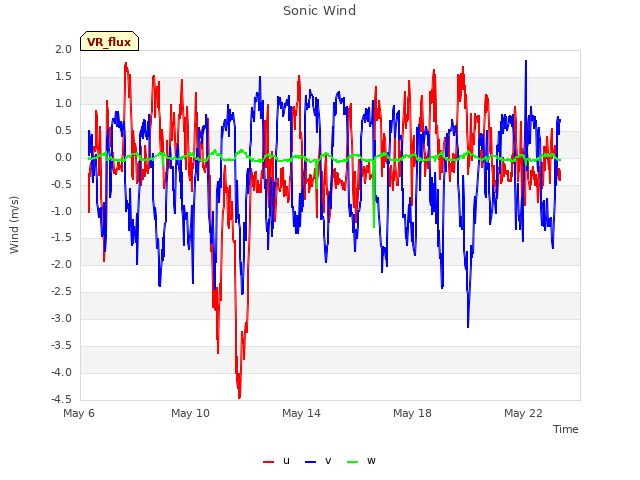

2 VR_flux graphs found

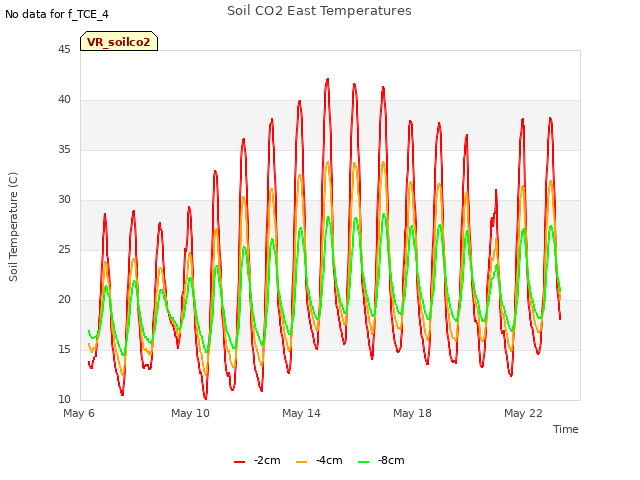

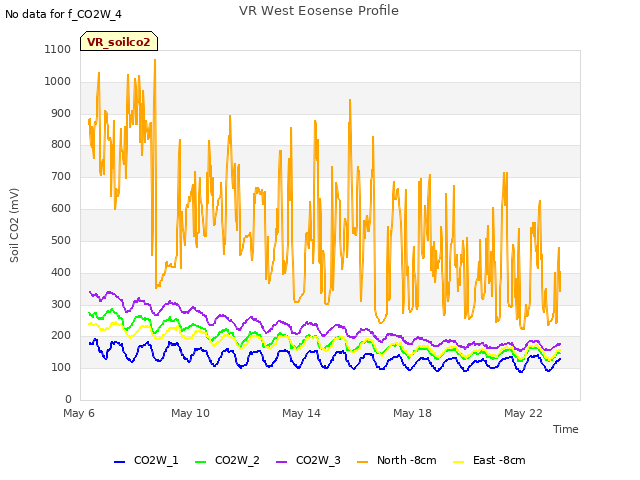

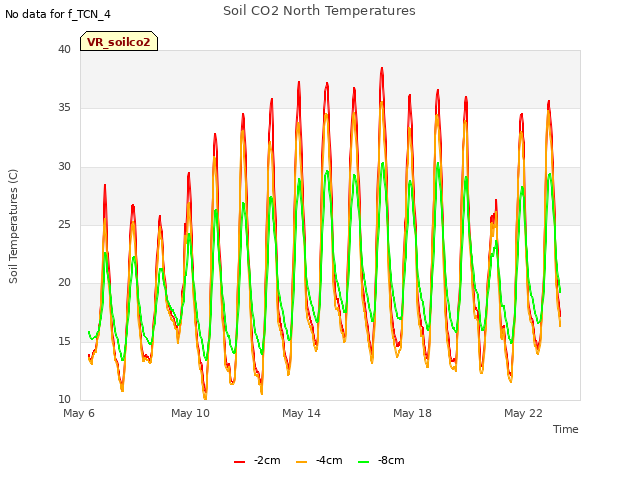

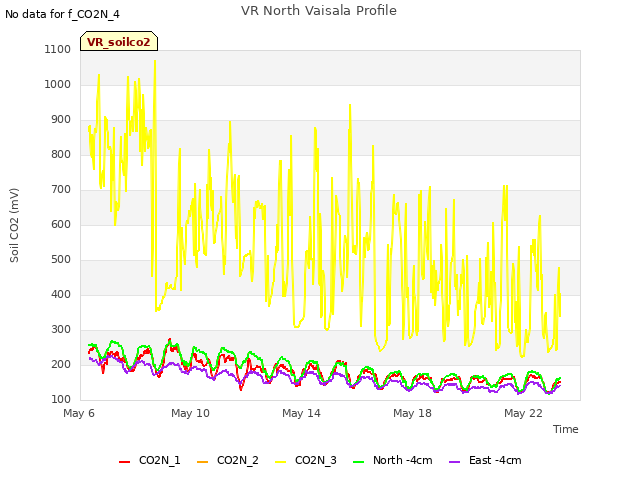

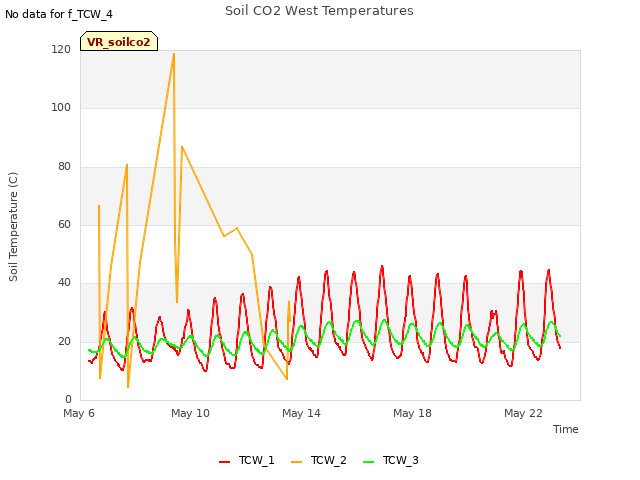

6 VR_soilco2 graphs found

No data found for VR_pond.
Can't check TZVR_mixed
No data found for VR_fd.
No data found for VR_processed.
No data found for VR_arable.
No data found for VR_soilvue.
