Field Notes

<--2014-06-25 04:30:00 | 2014-07-02 12:00:00-->
Other sites visited today: Tonzi | Vaira

Tonzi: 2014-06-25 04:40:00 (DOY 176)
Author: Siyan Ma
Others: Joe

Summary: Predawn water potential, reset dendrometers, fixed co2 profile system, fixed tram


When: Date: 6/25/2014 , Day: 176 , Watch Time: 4:40 am .
Where: Tonzi/Vaira Ranch
Who: Siyan, Joe
Weather: clear, sunny
Phenology: golden grasses


Summary
  1. Measured pre-dawn water potential
  2. Swapped Li-7500 at Vaira.
  3. memory cards of CR1000s at three sites.
  4. Checked and downloaded winflux from PC at Tower and Floor.
  5. Checked and downloaded met data from PC at Tower, Floor, and Vaira.
  6. Joe fixed the CO2 profile system and Tram.
  7. Reset the starting point of dendrometers if reading was close to saturated.
  8. Read dendrometers
  9. Measured soil moisture
  10. Measured grass height
  11. Measure groundwater well

Vaira_Grass Site
  1. Fence and gate power: 12 v.
  2. Downloaded Phenocam images. (Joe)
  3. Swapped the memory cards of CR1000.
  4. Swapped Li-7500s. sn 0035 off sn 0073 on.
  5. Checked the fans of air temp and relative humidity sensors at Vaira. YES!
  6. Downloaded met and soil CO2 profile data: (Joe)
  7. Checked levels of Radiation sensors, clear up surfaces.YES!
  8. Checked rain gage, make sure not clogged. YES!
  9. Closed gate and set up fence. YES!

Tonzi_Tower Site

  1. Fence and gate power: 12 v.
  2. downloaded Winflux data from PC. YES!

  1. swapped the memory cards of CR1000. (Joe)
  2. download Phenocam images. Yes!
  3. checked the fans of air temp. and relative humidity sensors on the tower and the floor. YES!
  4. Checked rain gage, make sure not clogged. YES!
  5. Downloaded met data from PC
  6. Checked CO2 profile: Joe fixed it.

9. closed gate and set up fence. YES!
Toniz_Floor Site
  1. Fence and gate power: 12 v.
  2. downloaded Winflux data from PC. YES!

  1. Swapped the memory cards of CR1000.

  1. downloaded met data from PC. YES!

CR23X3 – floor-Met
CR23X6 – tower-Met
CR10X2 – floor-Met
Soil CO2 profile: CR23X5 – soil CO2 profile



  1. Closed gate and set up fence. YES!

Field Data

No tank data

Well Depth

DateLocationDepth (feet)
2014-06-25TZ_floor30.6
2014-06-25TZ_road39
2014-06-25TZ_tower41.4

mode = both
Moisture Point Probes TZ
Array ( [0] => Tower [1] => Floor_South [2] => Floor_East [3] => Floor_West [4] => SoilCO2 [5] => Soil_Transect_4 [6] => Soil_Transect_3 [7] => Soil_Transect_1 [8] => SoilCO2_West_A [9] => SoilCO2_West_B [10] => Soil_Transect_2 [11] => SoilCO2_West_C )

Date DOY Rep Depth
Tower
Floor_South
Floor_East
Floor_West
SoilCO2
Soil_Transect_4
Soil_Transect_3
Soil_Transect_1
SoilCO2_West_A
SoilCO2_West_B
Soil_Transect_2
SoilCO2_West_C
 Avg
Spacial Count
Measurement Count
2014-06-25 176 0 0-15cm 10.9 1.3 11.2 6.8 3.4 0.1 2 3.6 5.6 2.1
2014-06-25 176 0 15-30cm 9.7 13.6 10.9 10 8.4 17 21 5.4 7.5 0.5 13.3 18.5
2014-06-25 176 0 30-45cm 18.7 12.3 13.4 15.4 18.4 11.1 22.1 12.3 15.9 16.5 -16.2
2014-06-25 176 0 45-60cm 6.4 21.1 12.2 11.1 21.3 13.6 11 20.8 14.8 23.4 15.3
2014-06-25 176 1 0-15cm 9.1 1.2 2.4 1.2 2.5 1.8 21
2014-06-25 176 1 15-30cm 9 13.6 10 8.7 10 21.9 4.8 13.3 17.6
2014-06-25 176 1 30-45cm 18.4 11.7 15.1 18.7 10.3 23.2 12.9 15.4 30.8
2014-06-25 176 1 45-60cm 7.9 15.6 11.1 11.3 14.8 10.7 22.8 15.6
2014-06-25 176 Avg 0-15cm 10 1.25 11.2 6.8 2.9 0.65 2.25 2.7 5.6 2.1 21 6.04 11 17
2014-06-25 176 Avg 15-30cm 9.35 13.6 10.9 10 8.55 13.5 21.45 5.1 7.5 0.5 13.3 18.05 10.98 12 21
2014-06-25 176 Avg 30-45cm 18.55 12 13.4 15.25 18.55 10.7 22.65 12.6 15.9 16.5 -0.4 30.8 15.54 12 20
2014-06-25 176 Avg 45-60cm 7.15 21.1 13.9 11.1 16.3 14.2 10.85 20.8 14.8 23.1 15.45 15.34 11 19

mode = both
Moisture Point Probes VR
Array ( [0] => Solar_Panels [1] => Flux_Tower [2] => Gate [3] => Biomass_Cage )

Date DOY Rep Depth
Solar_Panels
Flux_Tower
Gate
Biomass_Cage
 Avg
Spacial Count
Measurement Count
2014-06-25 176 0 0-15cm 0.1 1.8 0.9 0.7
2014-06-25 176 0 15-30cm 10 6.6 5.4 3.2
2014-06-25 176 0 30-45cm 14.3 2 8.4 10.6
2014-06-25 176 0 45-60cm 26.5 11.6 8.2 13.6
2014-06-25 176 1 0-15cm 0.3 2.4 0.9 0.4
2014-06-25 176 1 15-30cm 9 6.3 5.7 3.2
2014-06-25 176 1 30-45cm 13.1 1.4 8.4 10.3
2014-06-25 176 1 45-60cm 27.6 10.7 8.7 13
2014-06-25 176 Avg 0-15cm 0.2 2.1 0.9 0.55 0.94 4 8
2014-06-25 176 Avg 15-30cm 9.5 6.45 5.55 3.2 6.18 4 8
2014-06-25 176 Avg 30-45cm 13.7 1.7 8.4 10.45 8.56 4 8
2014-06-25 176 Avg 45-60cm 27.05 11.15 8.45 13.3 14.99 4 8

No TZ grass heigth found

No VR grass heigth found

Tree DBH

DateTag#Reading (mm)
2014-06-25199
2014-06-2517.4
2014-06-2510222.8
2014-06-251024.4
2014-06-25220.9
2014-06-25210.3
2014-06-2524518.0
2014-06-25323.3
2014-06-2536.8
2014-06-25499
2014-06-25410.1
2014-06-25526.1
2014-06-2558.3
2014-06-25721.8
2014-06-2578.4
2014-06-257218.2
2014-06-257923.0
2014-06-257910.9
2014-06-25812.3

Water Potential - mode: raw

Time< h>SpeciesTreereadings (bar)
2014-06-25 04:40:00 OAK 102 -10 -15 -14
2014-06-25 04:40:00 OAK 35 -15 -21 -19
2014-06-25 04:40:00 OAK 92 -7 -8 -8.5
2014-06-25 05:01:00 PINE OLD -10 -15 -18
2014-06-25 05:01:00 PINE YNG -8 -7 -3

No TZ Grass Biomass data found

No TZ OakLeaves Biomass data found

No TZ PineNeedles Biomass data found

1 photos found

Predawn water potential
Predawn water potential

Graphs display: 16 sets found

No data found for TZ_Fenergy.
11 TZ_tmet graphs found

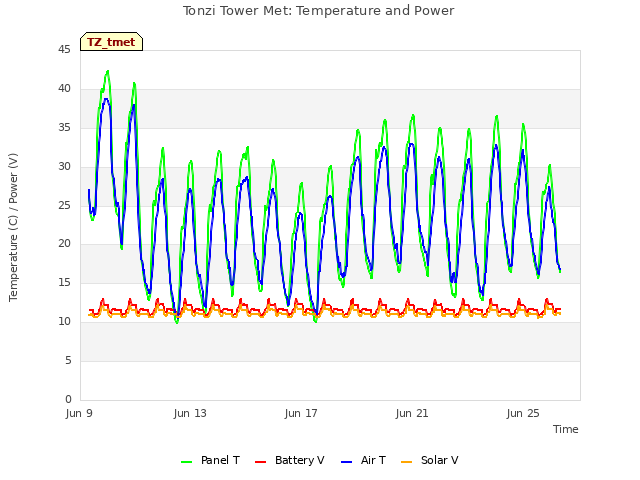

Tonzi Tower Met: Temperature and Power

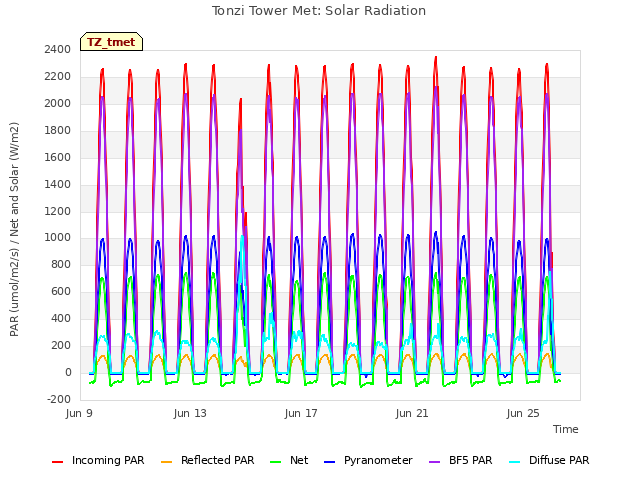

Tonzi Tower Met: Solar Radiation

Tonzi Tower Met: IRT Sensors

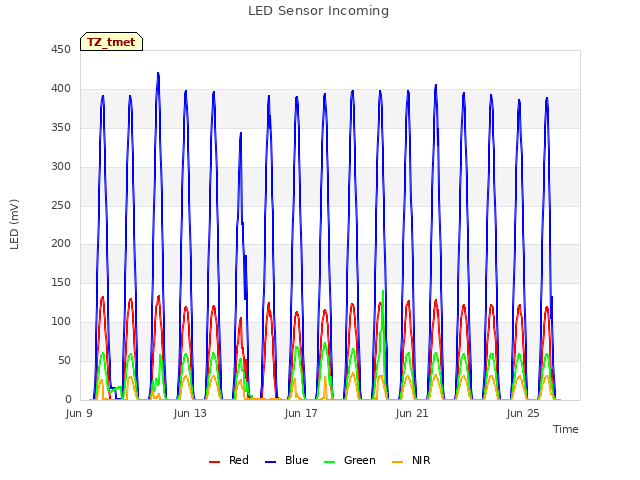

LED Sensor Incoming

LED Sensor Outgoing

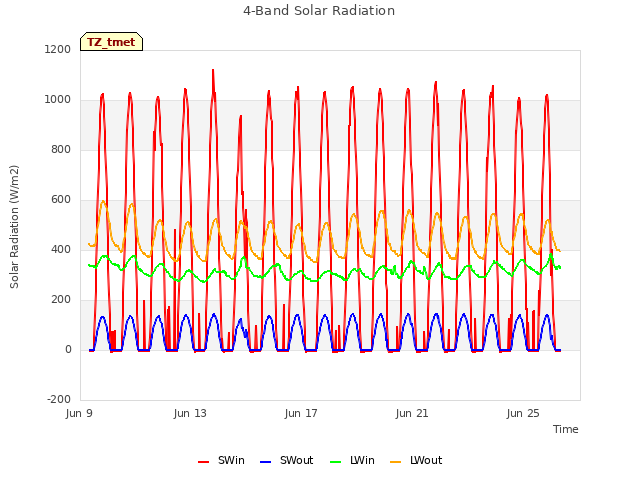

4-Band Solar Radiation

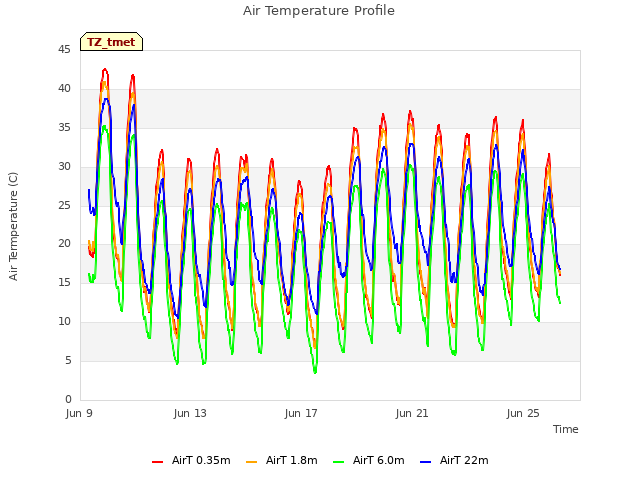

Air Temperature Profile

Relativity Humidity Profile

Tonzi Tower PRI

SRS PRI/NDVI

SRS NDVI

11 TZ_soilco2 graphs found

Tonzi Soil CO2 Profile: Open (East) CO2

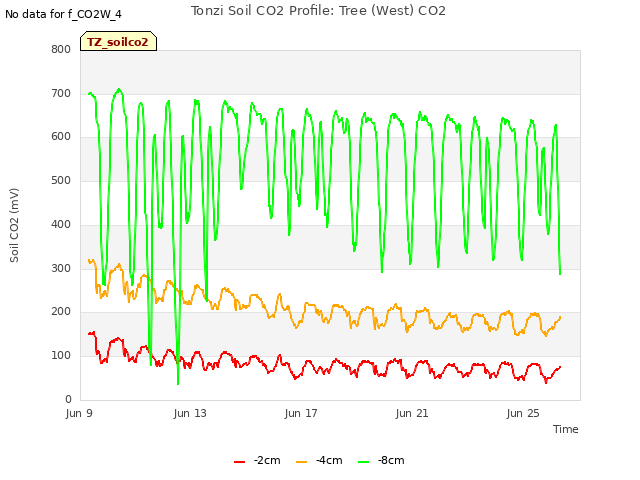

Tonzi Soil CO2 Profile: Tree (West) CO2

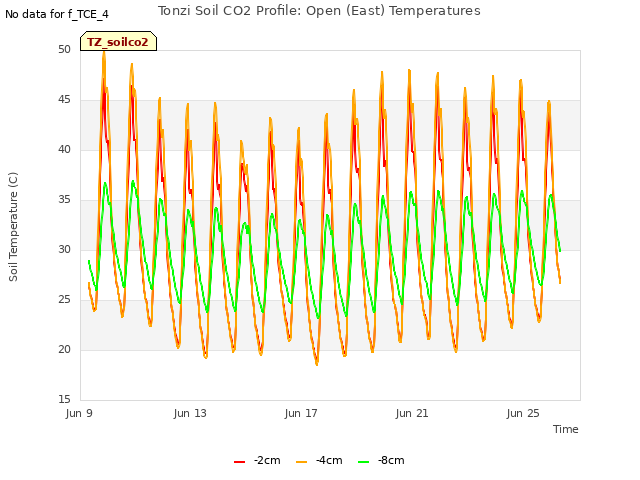

Tonzi Soil CO2 Profile: Open (East) Temperatures

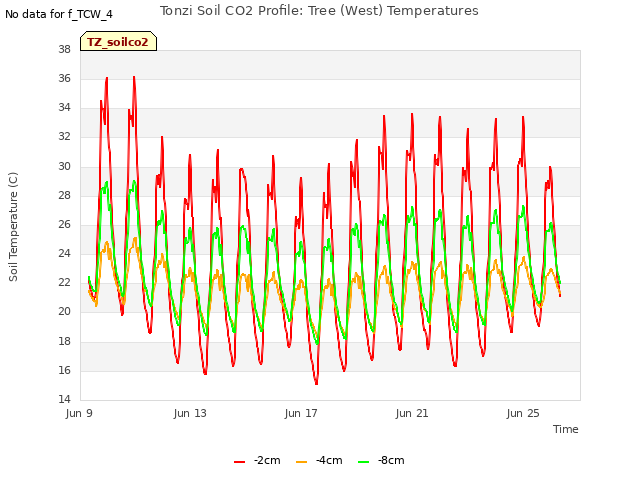

Tonzi Soil CO2 Profile: Tree (West) Temperatures

Tonzi Soil CO2 Profile: Upper CO2

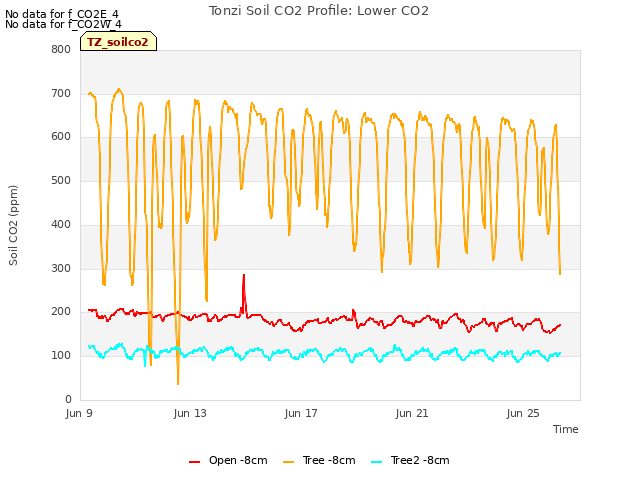

Tonzi Soil CO2 Profile: Lower CO2

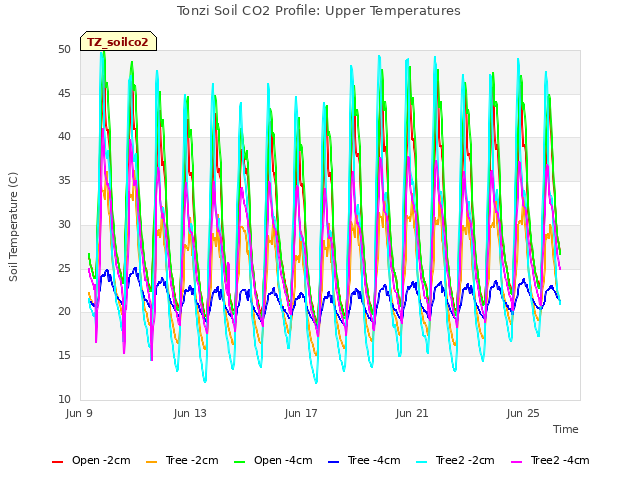

Tonzi Soil CO2 Profile: Upper Temperatures

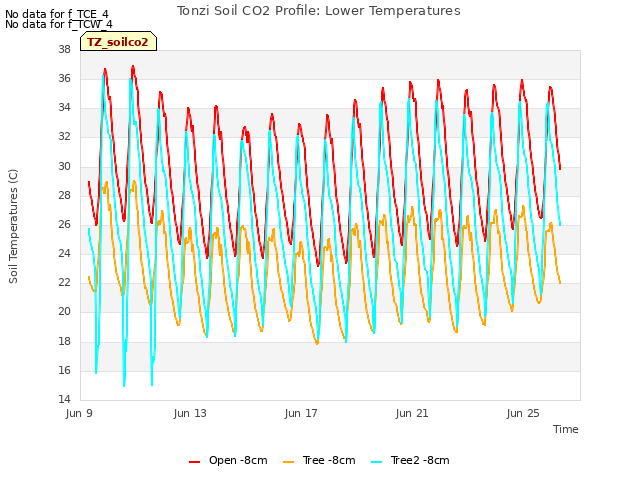

Tonzi Soil CO2 Profile: Lower Temperatures

Tonzi Soil CO2 Profile: Power and Temperature

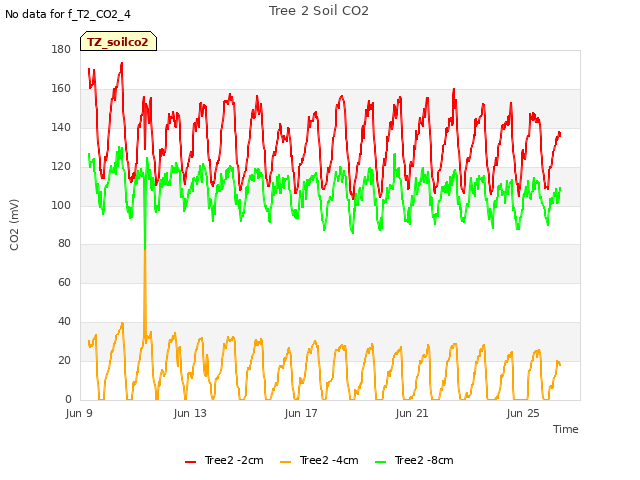

Tree 2 Soil CO2

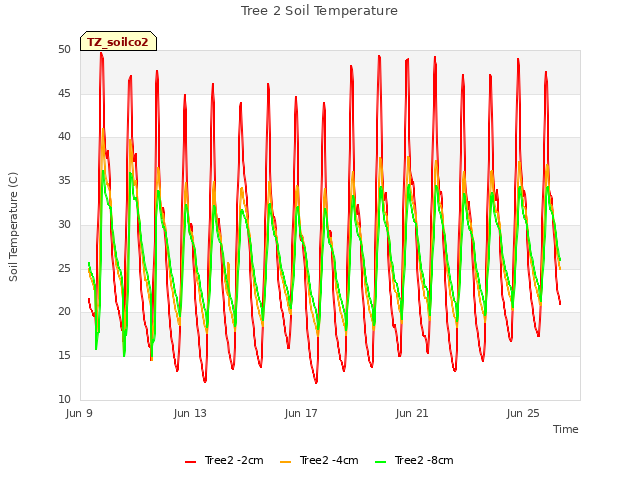

Tree 2 Soil Temperature

Can't check TZ_mixed
3 TZ_mixed graphs found

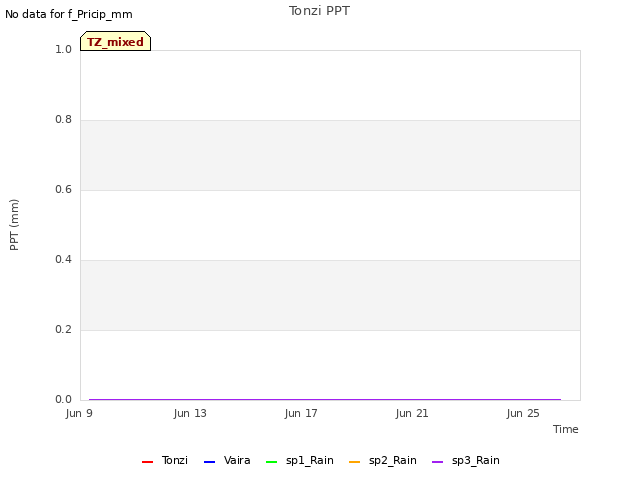

Tonzi PPT

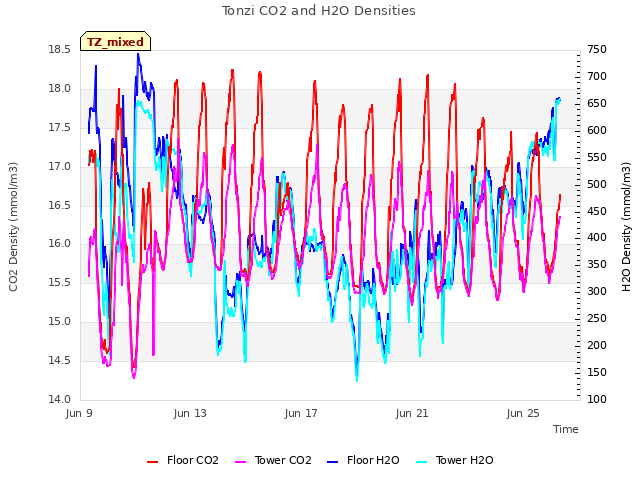

Tonzi CO2 and H2O Densities

Air Pressure

1 TZ_fflux graphs found

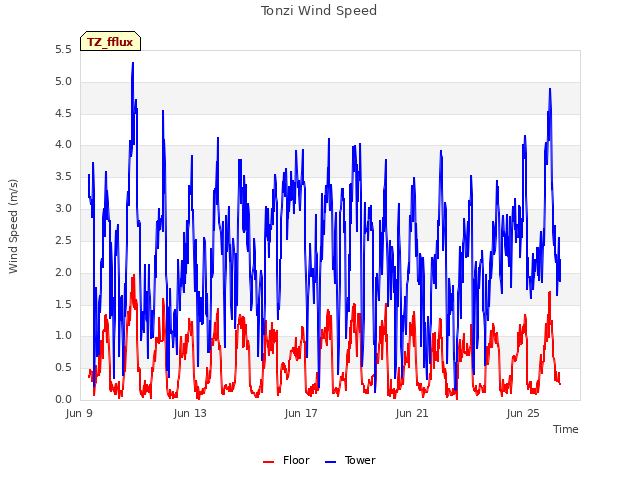

Tonzi Wind Speed

8 TZ_fmet graphs found

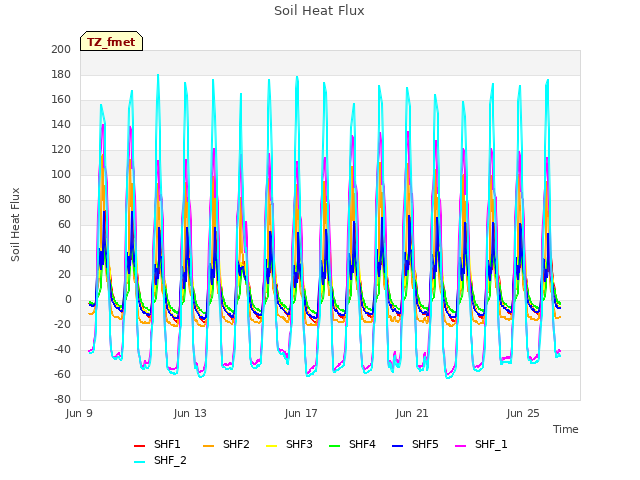

Soil Heat Flux

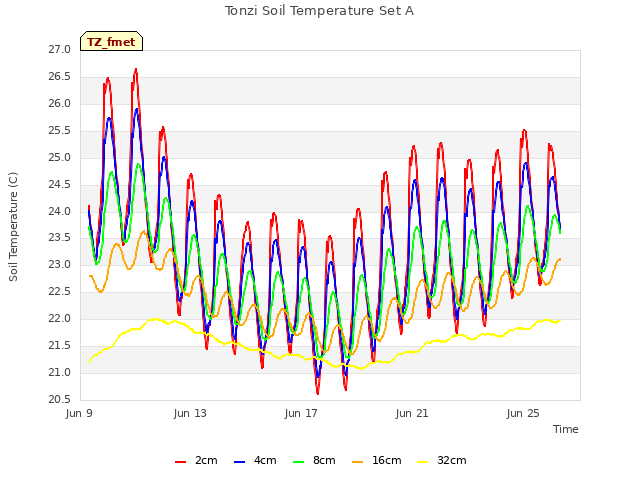

Tonzi Soil Temperature Set A

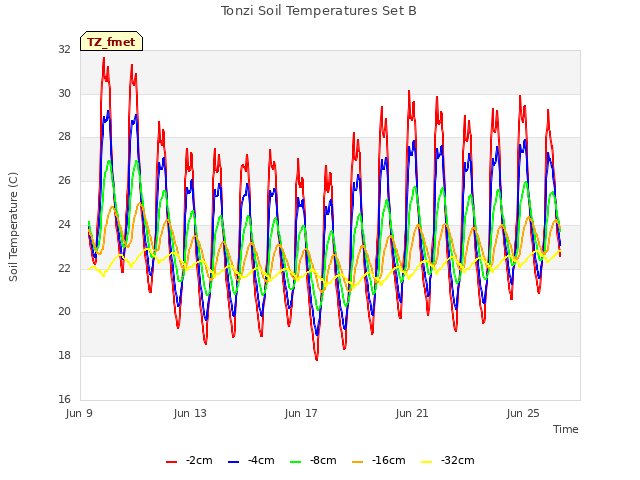

Tonzi Soil Temperatures Set B

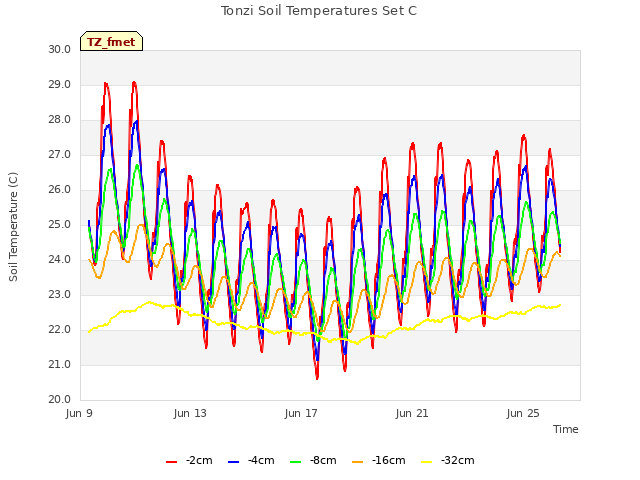

Tonzi Soil Temperatures Set C

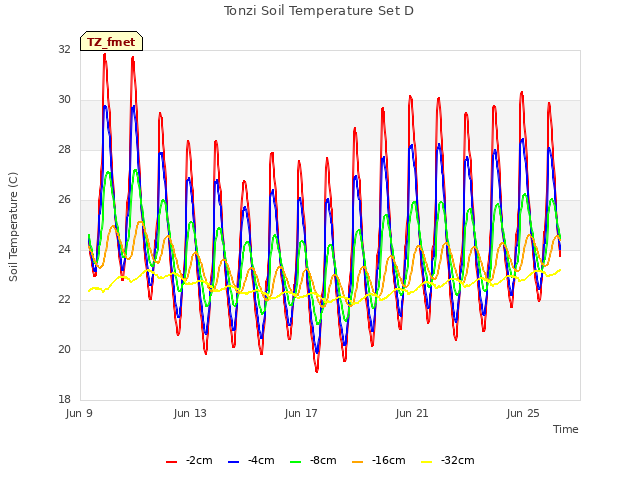

Tonzi Soil Temperature Set D

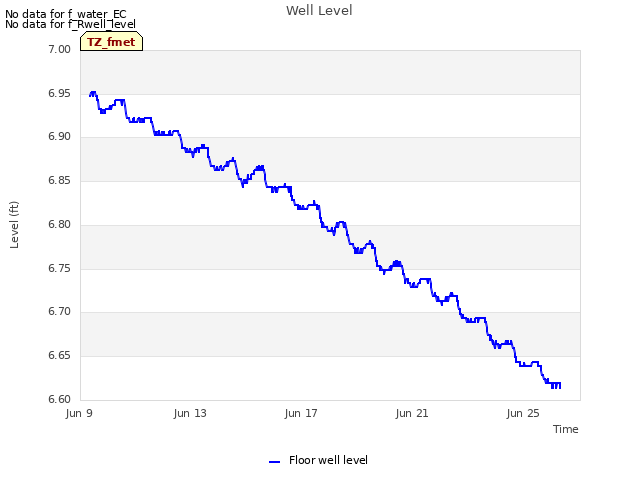

Well Level

Well Water Temperature

Soil Water Potential

1 TZ_tram graphs found

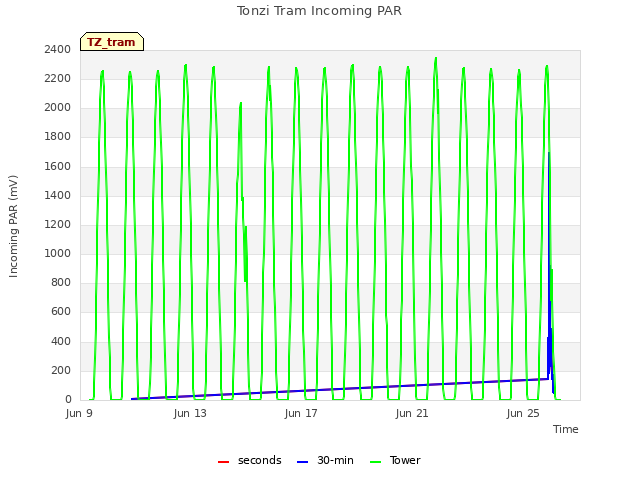

Tonzi Tram Incoming PAR

3 TZ_co2prof graphs found

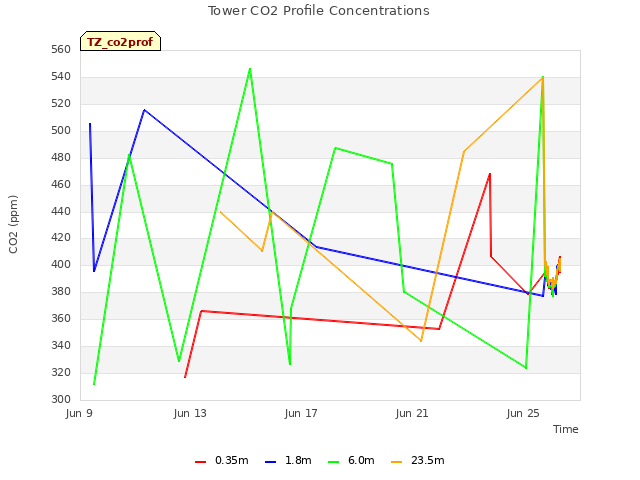

Tower CO2 Profile Concentrations

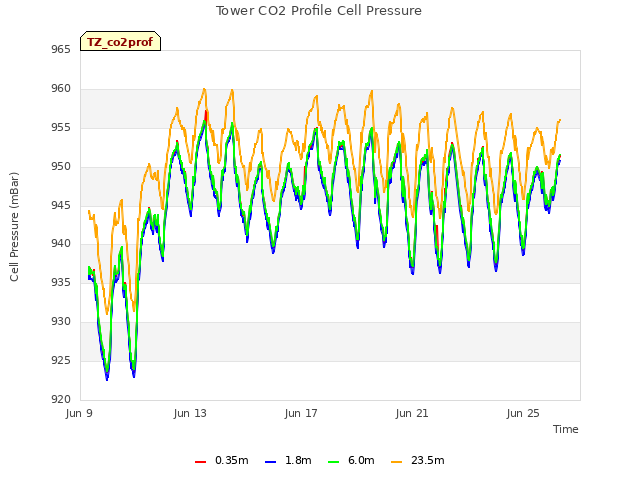

Tower CO2 Profile Cell Pressure

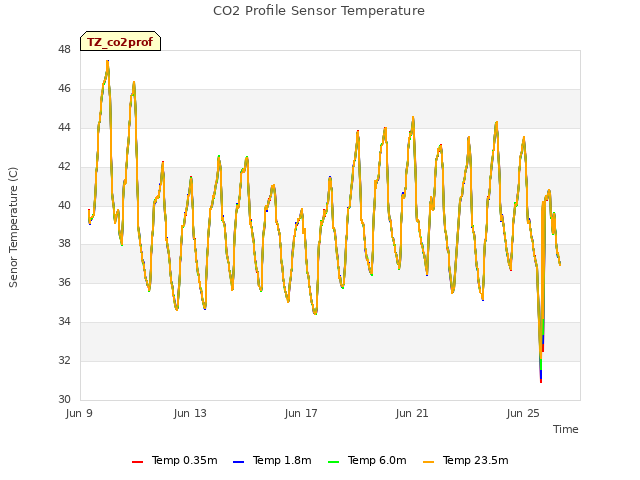

CO2 Profile Sensor Temperature

No data found for TZ_irt.
No data found for TZ_windprof.
1 TZ_tflux graphs found

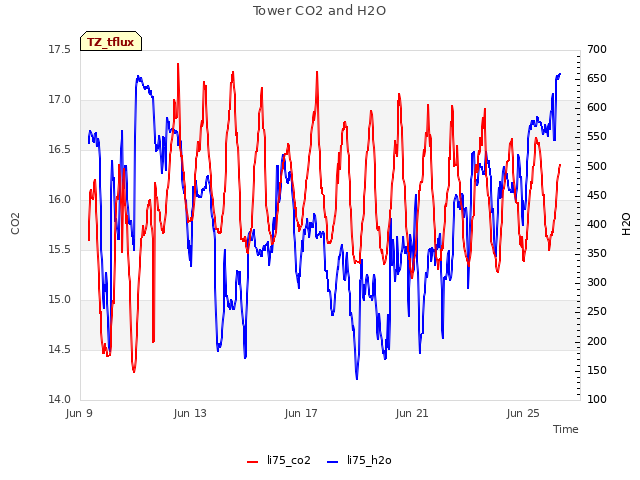

Tower CO2 and H2O

2 TZ_sm graphs found

Floor Solar Radiations

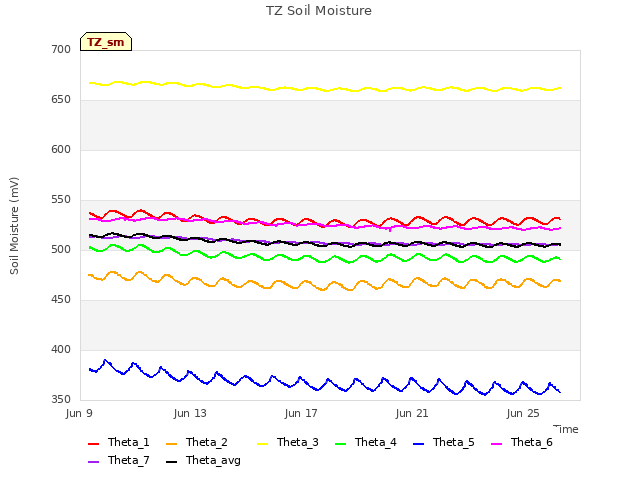

TZ Soil Moisture

Can't check TZ_met
1 TZ_met graphs found

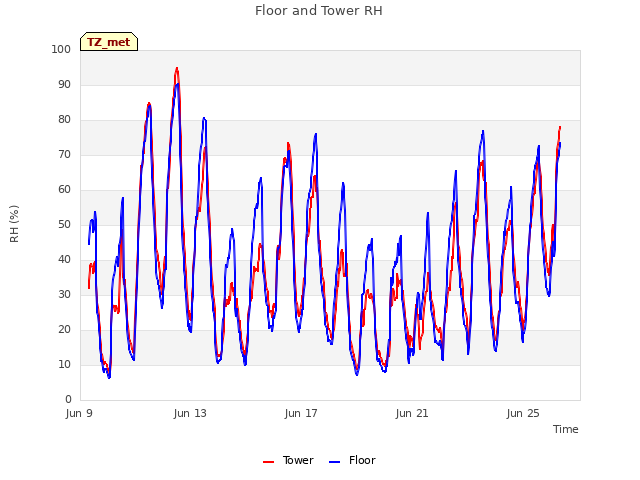

Floor and Tower RH

Can't check TZVR_mixed
8 TZ_osu graphs found

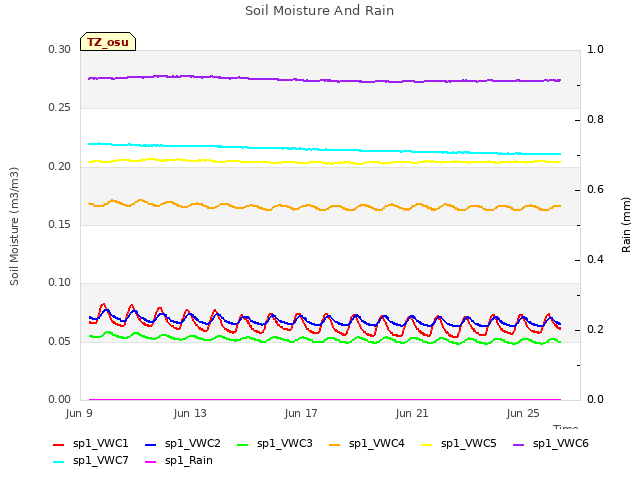

Soil Moisture And Rain

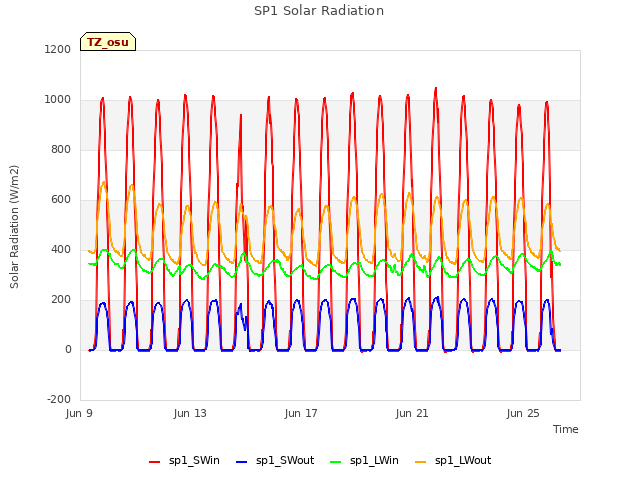

SP1 Solar Radiation

SP1 Soil Temperature Profile

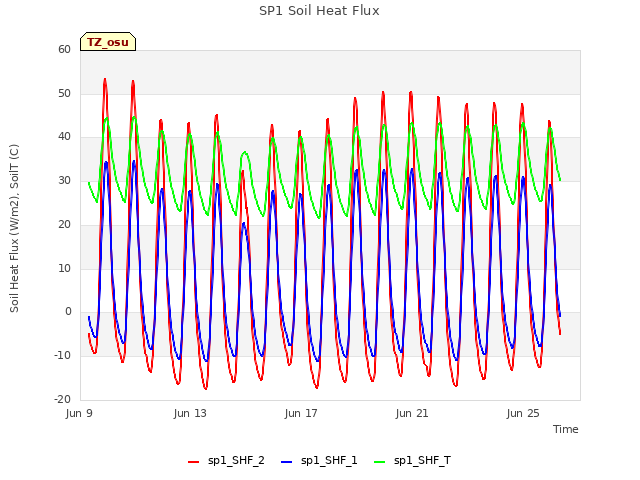

SP1 Soil Heat Flux

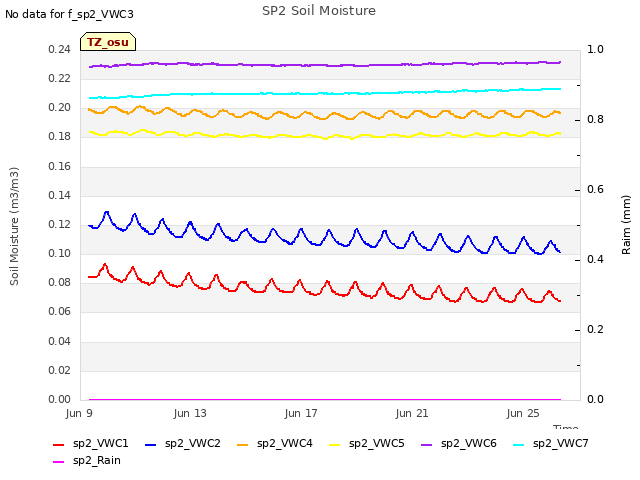

SP2 Soil Moisture

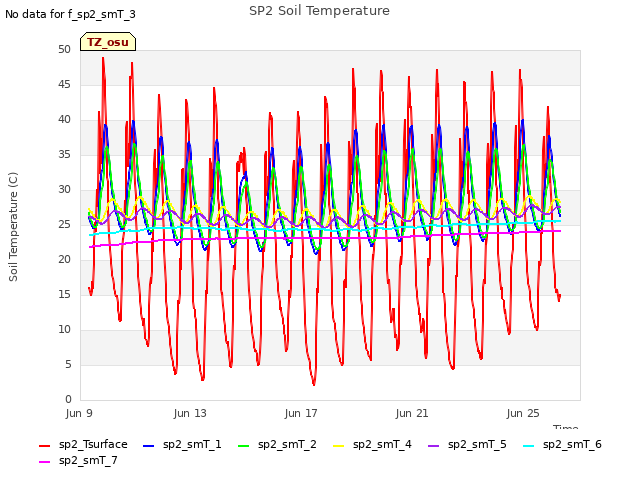

SP2 Soil Temperature

SP3 Soil Moisture

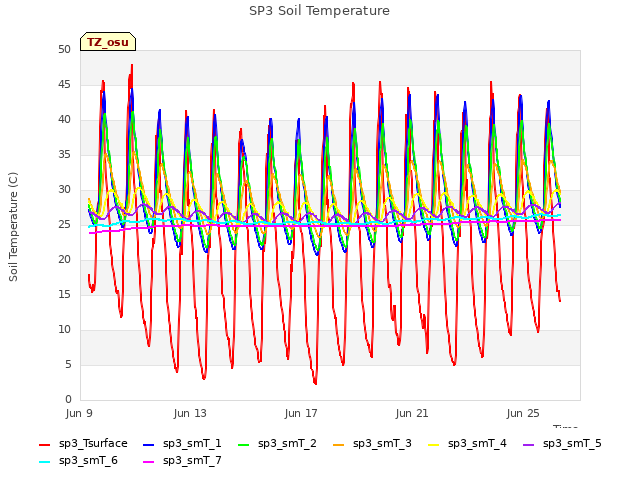

SP3 Soil Temperature

No data found for TZ_fd.
Tonzi Z-cam data

plot of Tonzi z-cam LAI

plot of Tonzi z-cam gap fration
