Sherman Island: 2014-05-21 09:00:00 (DOY 141)
Author: Sara Knox
Others: Joe and Madeleine

Summary: Standard fieldwork, restarted LGR since seemed slow, downloaded soil CO2 data

Sherman
2014-05-21

I arrived about 9:00 with Joe and Madeleine. It was clear, sunny and warm with a light breeze. The pepperweed is flowering but the field seems slightly browner than last week.

The LGR read: 21.77C, 133.0Torr (145.2 after adjusting), 14.74usec, 10Hz, 1.881ppm CH4

The 7500 read: 16.22mmol/m3 CO2, 680mmol/m2 H2O, 101.26kPa, 21.75C, 249diag

The LGR seemed slow so Joe restarted it. In slow flow mode the pressure was decreasing towards zero.

Joe downloaded the soil CO2 data so that Patty could check the data since she replaced a few probes last week and wanted to make sure everything looked good. Joe also noted that probe #3 at set B seemed high.

I did spectral measurements. Joe and Madeleine did moisture point and well depth and Madeleine measured veg height.

Veg Height (cm): Tape measure from ground to top of plant - pepperweed dense and blooming
90, 70, 87, 60, 110, 96, 80, 92, 80, 74, 80, 70, 80, 100, 75, 94, 80, 90, 65, 110, avg = 84.2, stdev = 13.74

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

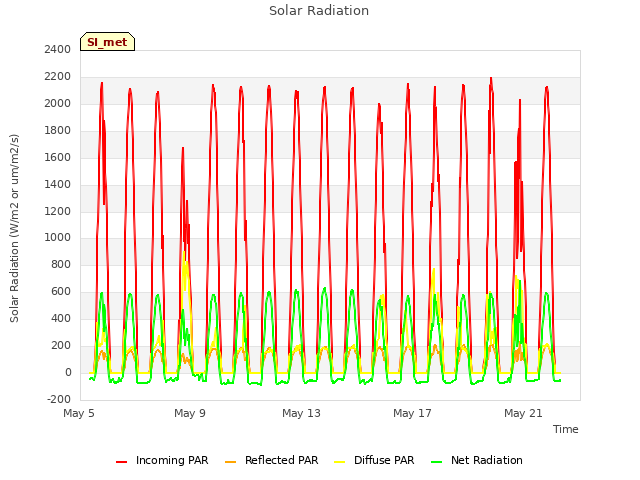

Explore the graph:Solar Radiation in a new window

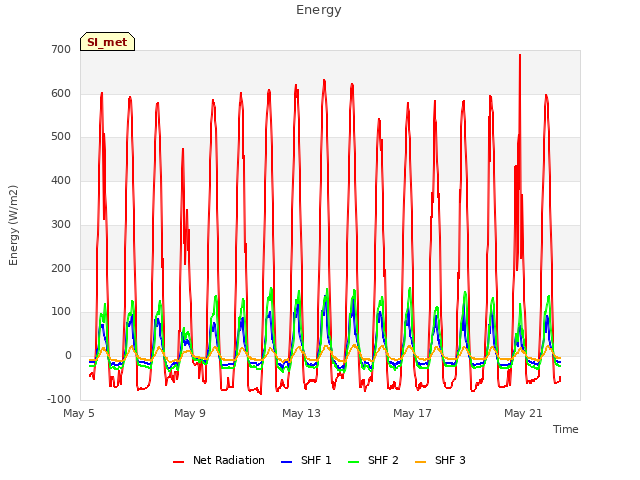

Explore the graph:Energy in a new window

Explore the graph:Soil Temperatures Set 1 in a new window

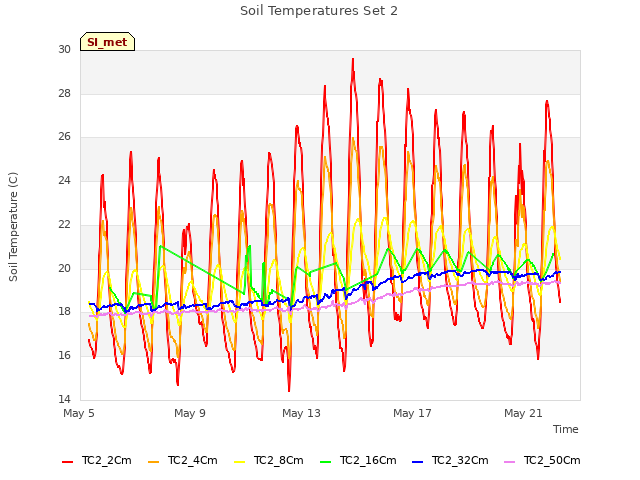

Explore the graph:Soil Temperatures Set 2 in a new window

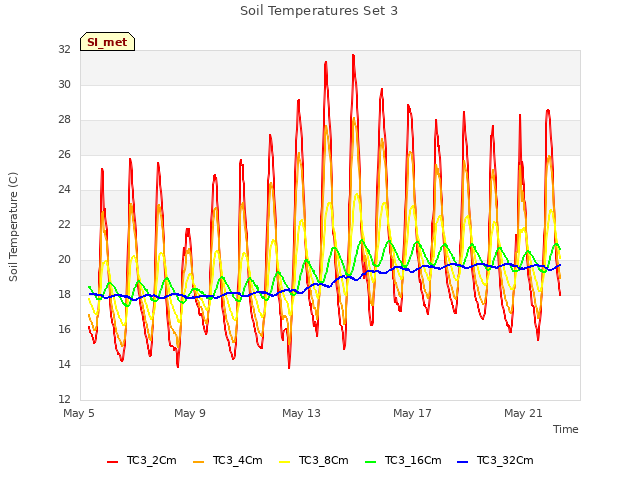

Explore the graph:Soil Temperatures Set 3 in a new window

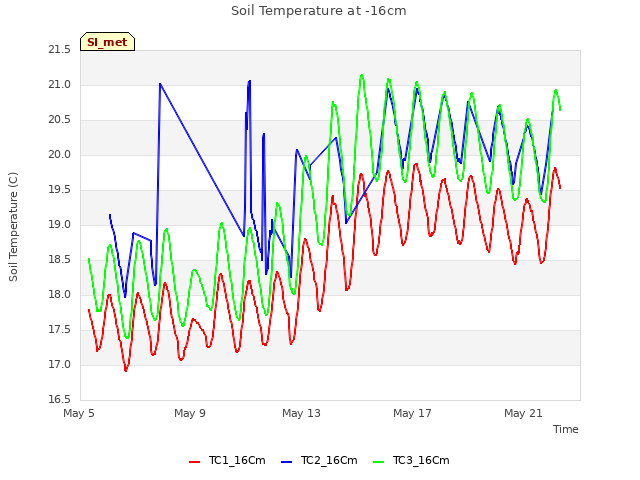

Explore the graph:Soil Temperature at -16cm in a new window

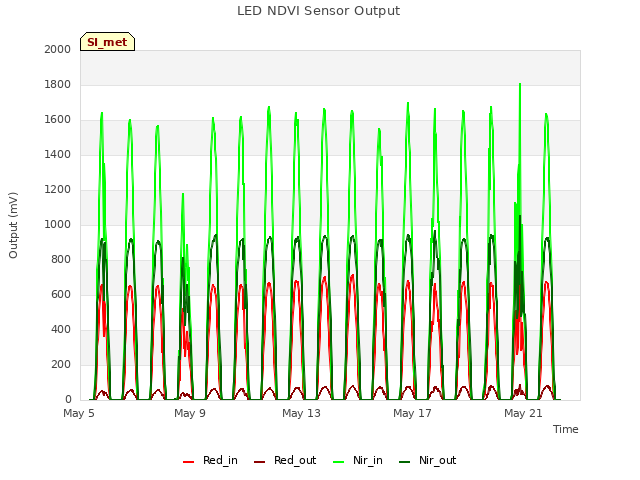

Explore the graph:LED NDVI Sensor Output in a new window

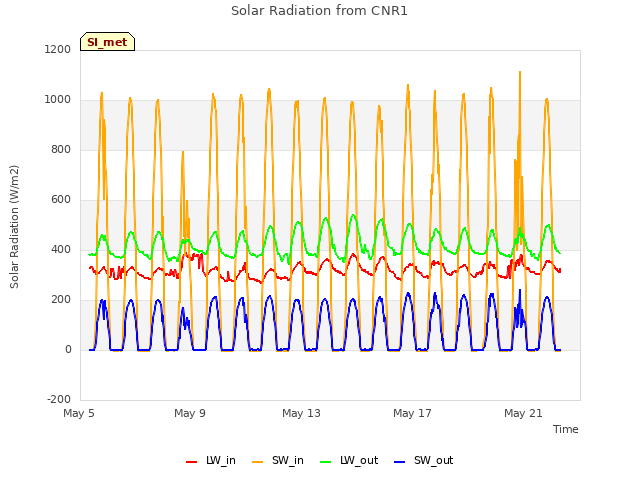

Explore the graph:Solar Radiation from CNR1 in a new window

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

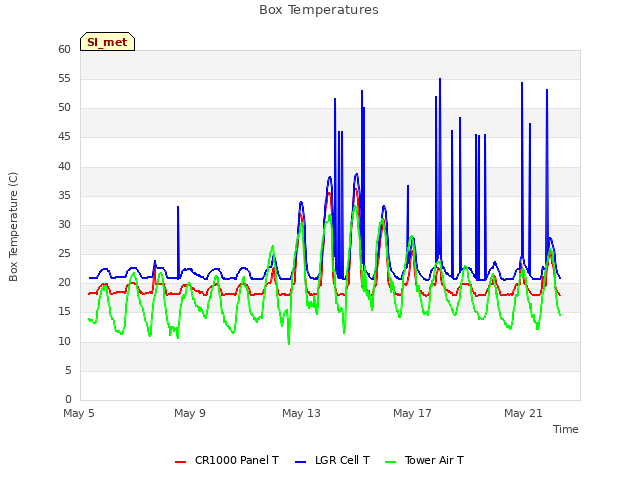

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

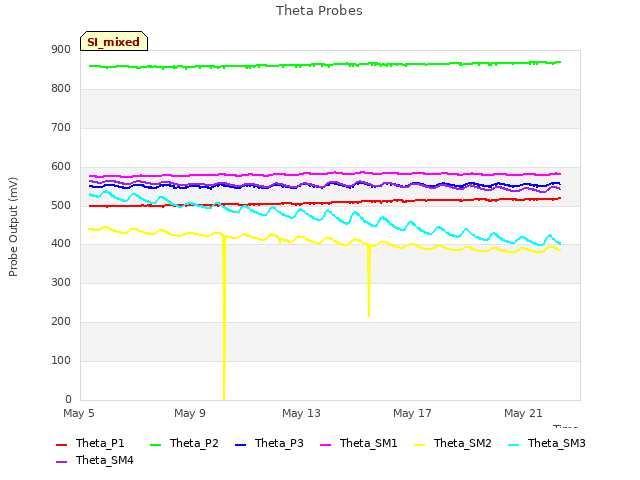

Explore the graph:Theta Probes in a new window

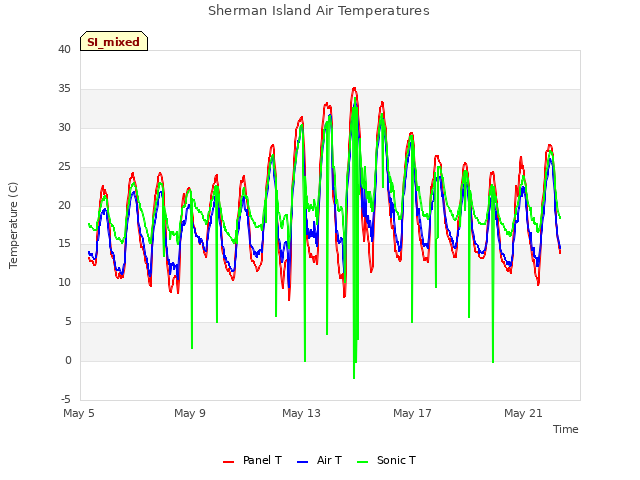

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

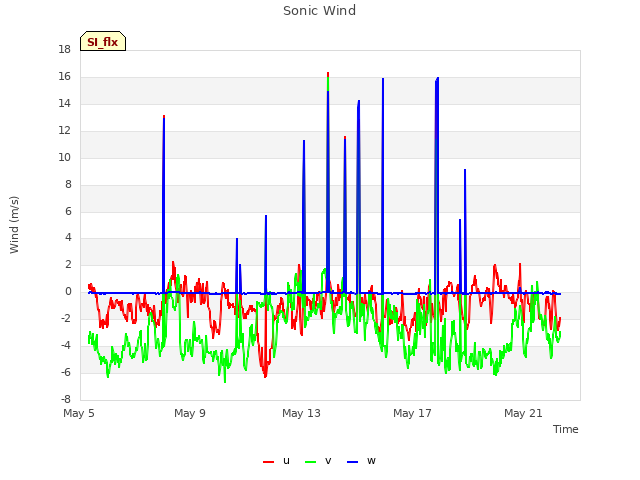

Explore the graph:Sonic Wind in a new window

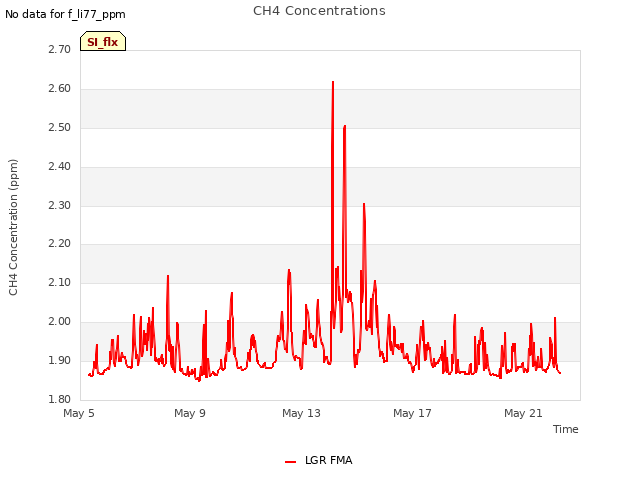

Explore the graph:CH4 Concentrations in a new window

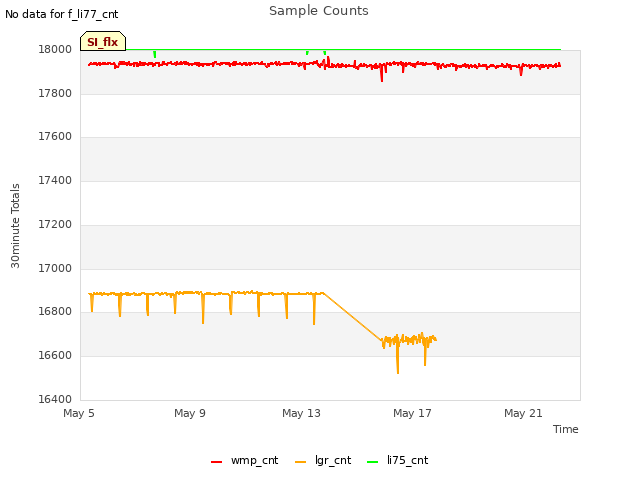

Explore the graph:Sample Counts in a new window

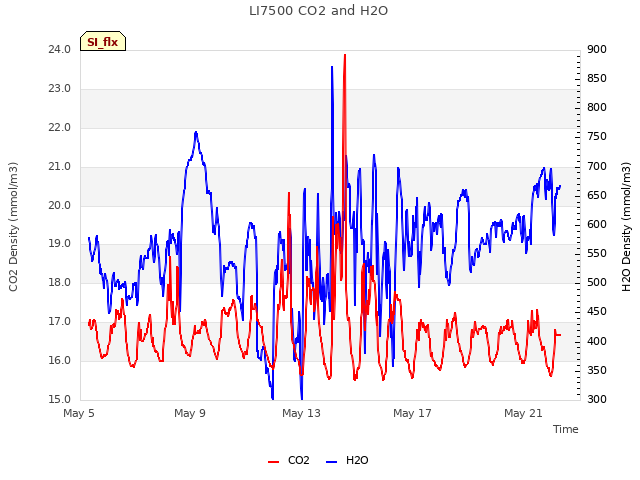

Explore the graph:LI7500 CO2 and H2O in a new window

3 SI_soilco2 graphs found

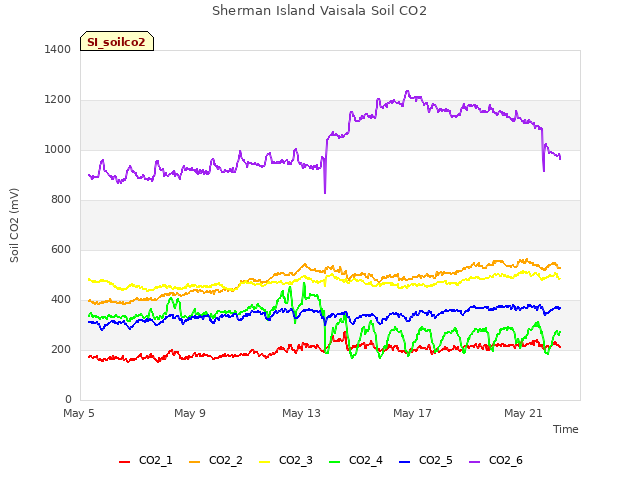

Explore the graph:Sherman Island Vaisala Soil CO2 in a new window

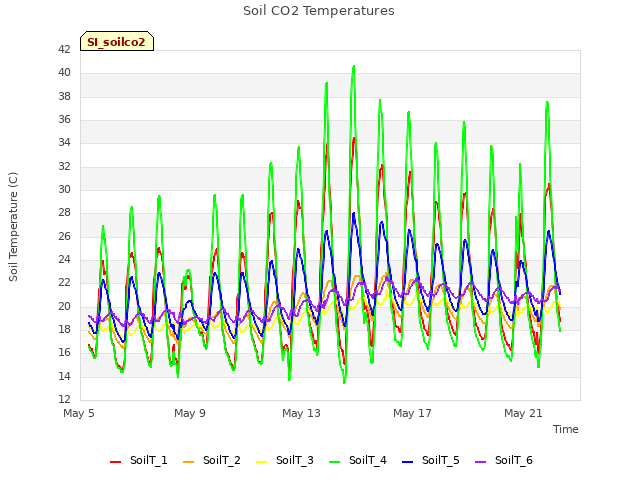

Explore the graph:Soil CO2 Temperatures in a new window

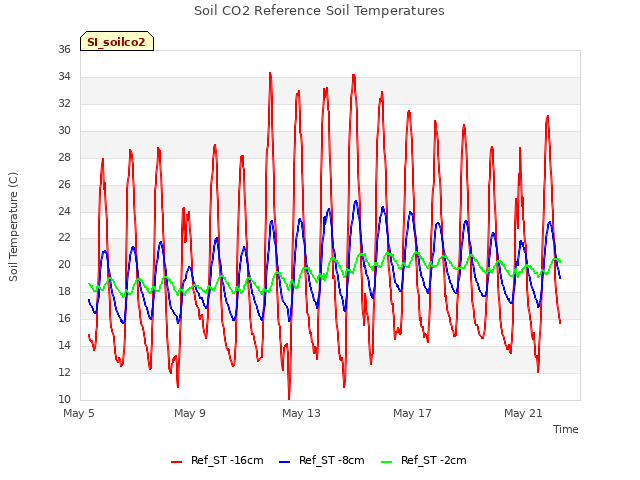

Explore the graph:Soil CO2 Reference Soil Temperatures in a new window
