Sherman Island: 2014-04-28 09:30:00 (DOY 118)
Author: Cove Sturtevant
Others: Joe, Sara

Summary: Pepperweed super tall and dense. Standard field work & data download.

Sherman
2014-04-28

We arrived about 9:30 PDT. It was sunny and warm with a light breeze. The pepperweed is super tall and dense with a white powdery fungus that billows up and makes you think of anthrax. Joe attended to the tower and downloaded data. Sara did soil respiration but the IRGA was giving the high humidity warning again, so measurements may be bad. She also did moisture point and LAI measurements. I did spectral, veg height, and well depth.

Joe tried to set up the autocam to record raw images at midday.

LGR readings: 1.955 ppm, 09:29, 21.35 C, 130.2 Torr (adjusted to 143.3 Torr), 14.776 us, 10 Hz

7500 readings:
CO2: 17.08 mmol m-3 (same after cleaning)
H2O: 590 mmol m-3 (same after cleaning)
P = 102.1 kPa
T = 19.3 C
Diag: 249 (same after cleaning)

Met & Soil CO2 looked good.

Veg Height (cm): Tape measure from ground to top of plant - short green grass layer, pepperweed super dense and tall
41, 5, 76, 52, 60, 65, 6, 93, 43, 90, 17, 89, 44, 105, 0, 89, 4, 40, 92, 82, avg = 54.7, stdev = 34.65

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

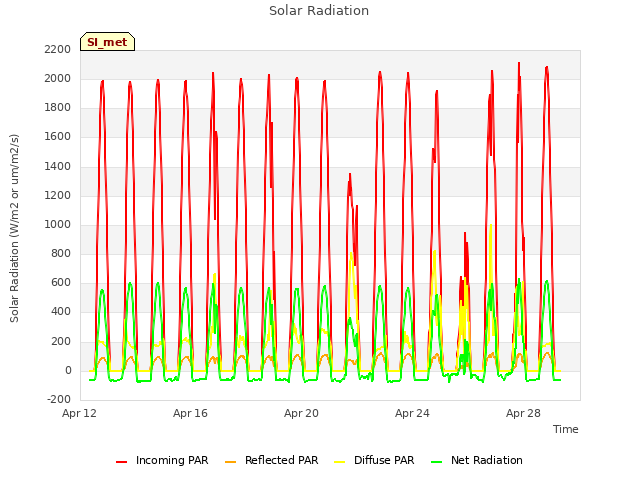

Solar Radiation

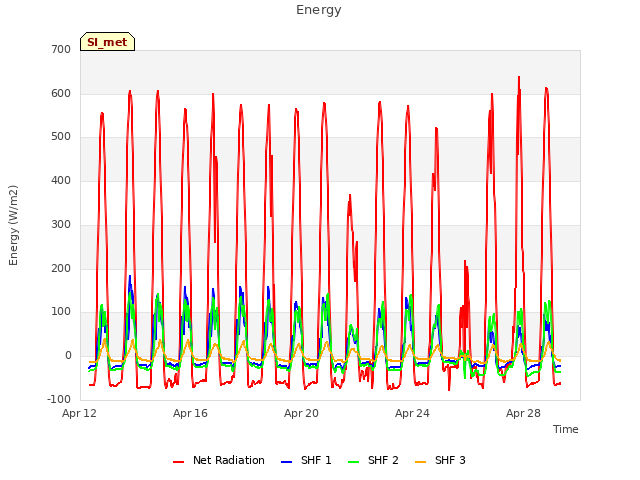

Energy

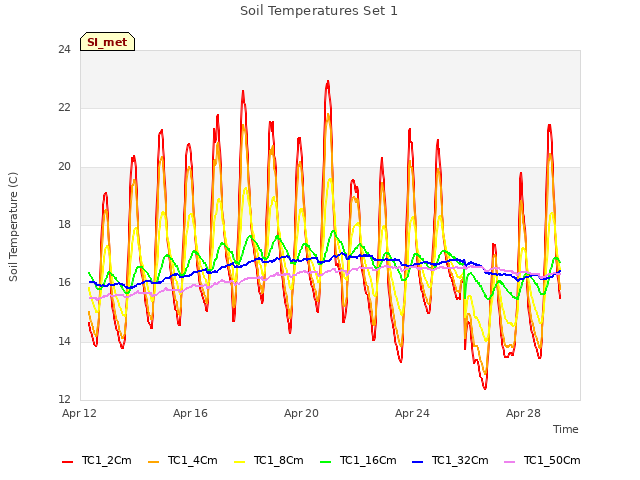

Soil Temperatures Set 1

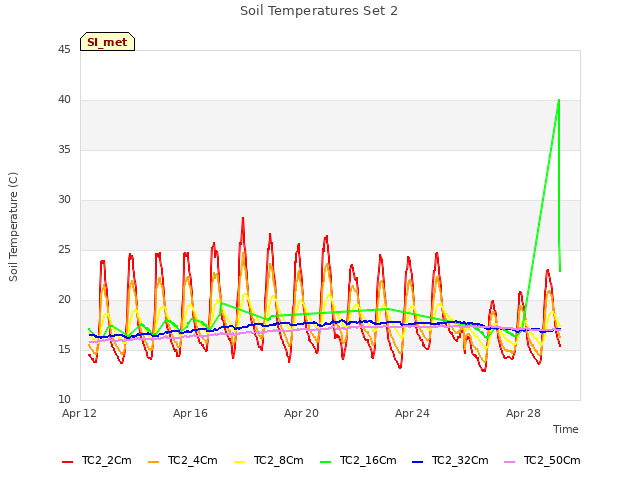

Soil Temperatures Set 2

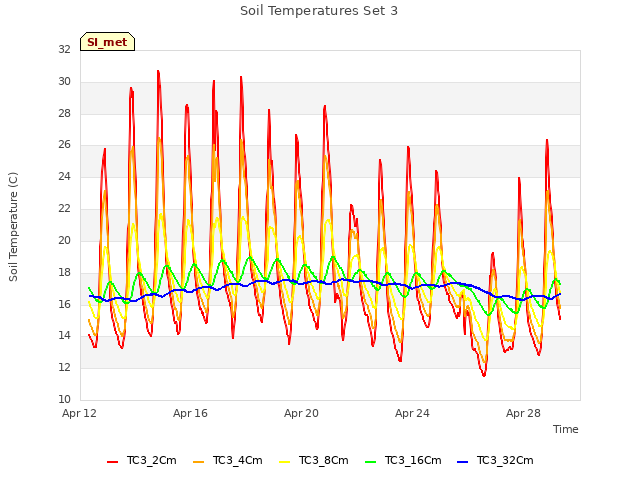

Soil Temperatures Set 3

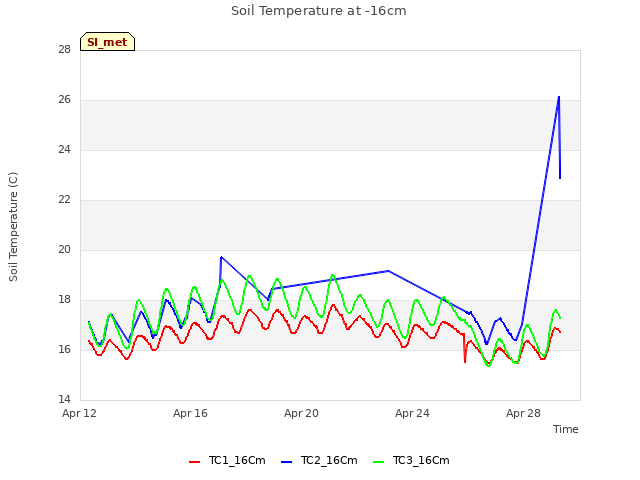

Soil Temperature at -16cm

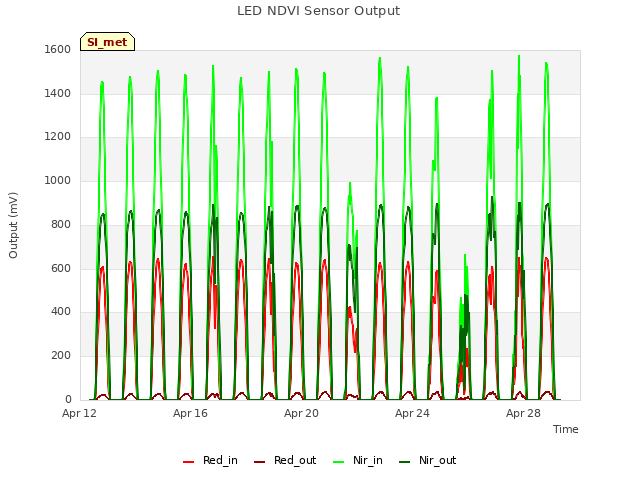

LED NDVI Sensor Output

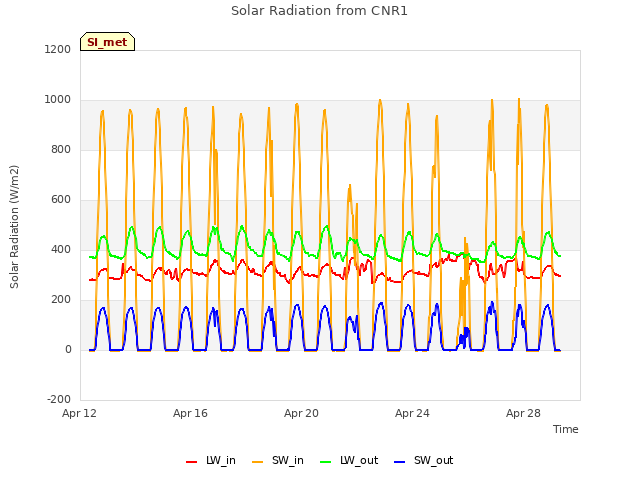

Solar Radiation from CNR1

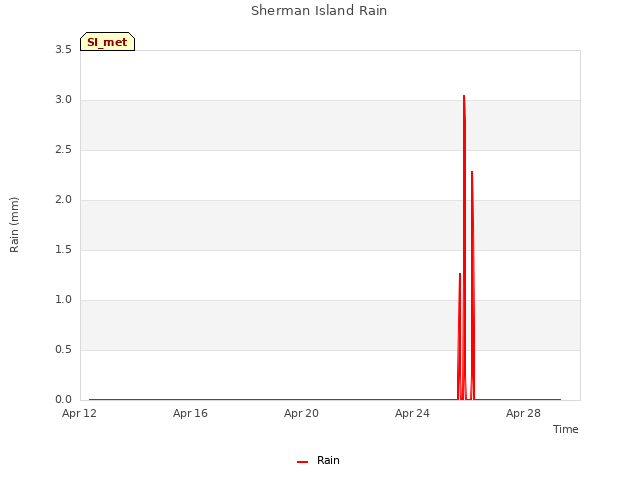

Sherman Island Rain

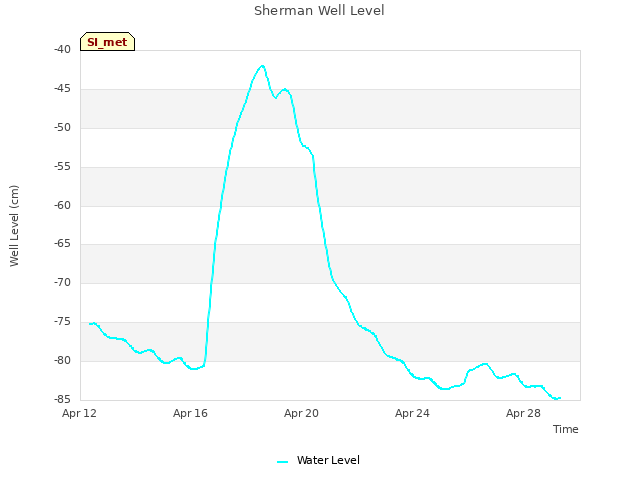

Sherman Well Level

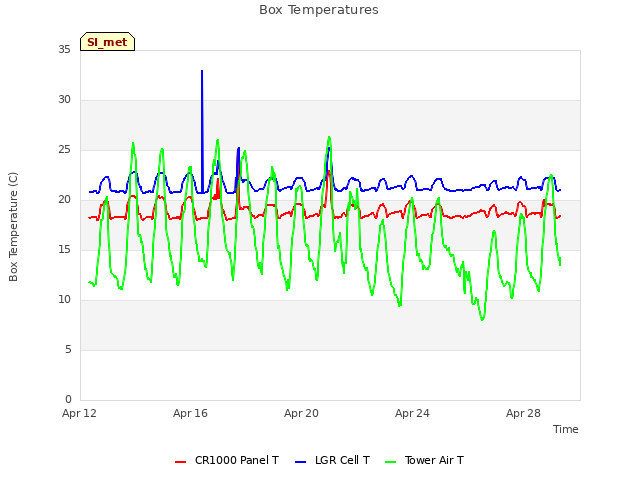

Box Temperatures

Can't check SI_mixed
2 SI_mixed graphs found

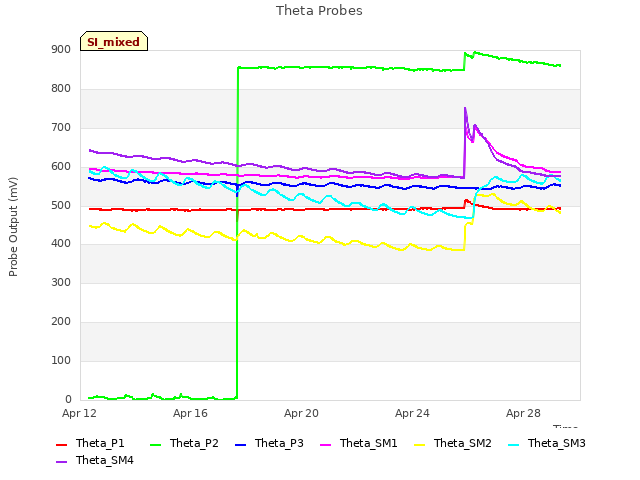

Theta Probes

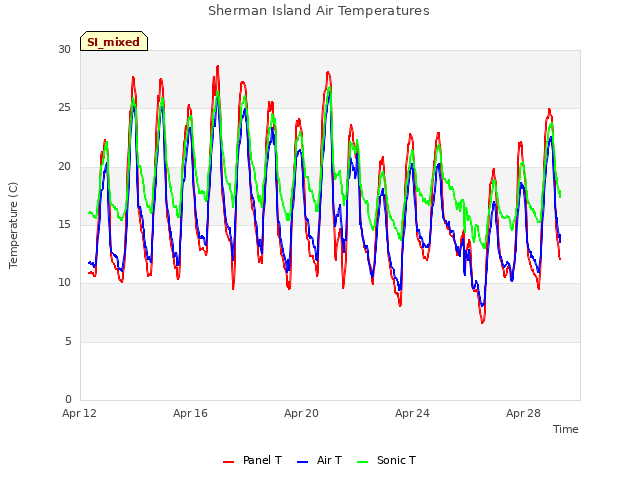

Sherman Island Air Temperatures

4 SI_flx graphs found

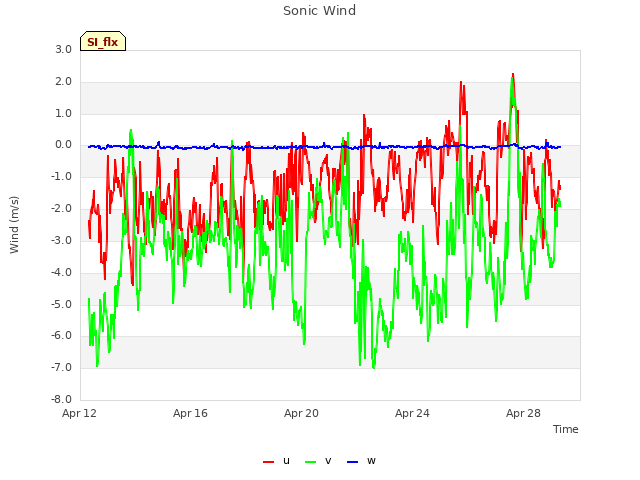

Sonic Wind

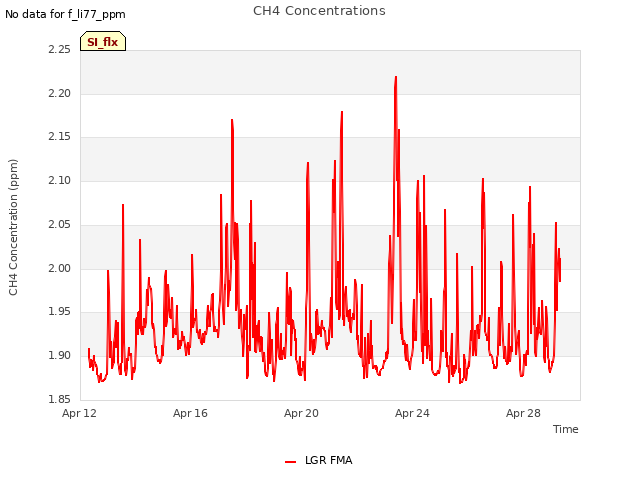

CH4 Concentrations

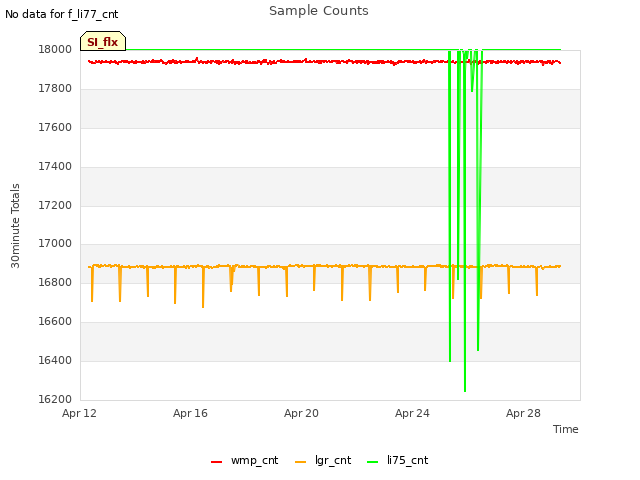

Sample Counts

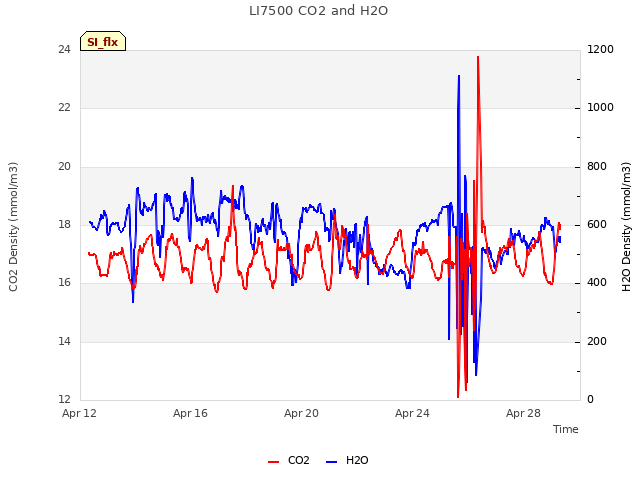

LI7500 CO2 and H2O

3 SI_soilco2 graphs found

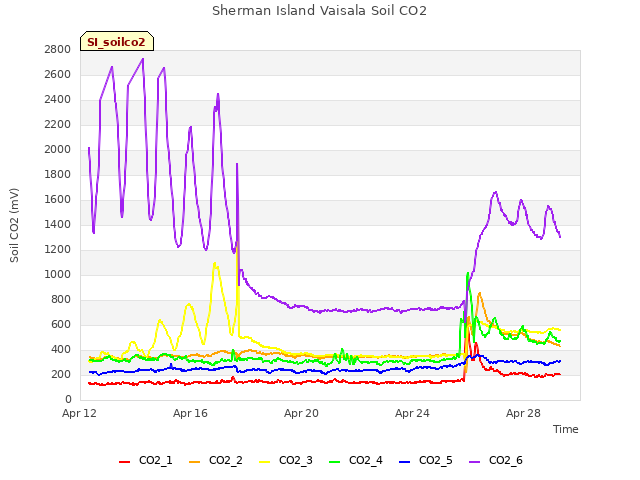

Sherman Island Vaisala Soil CO2

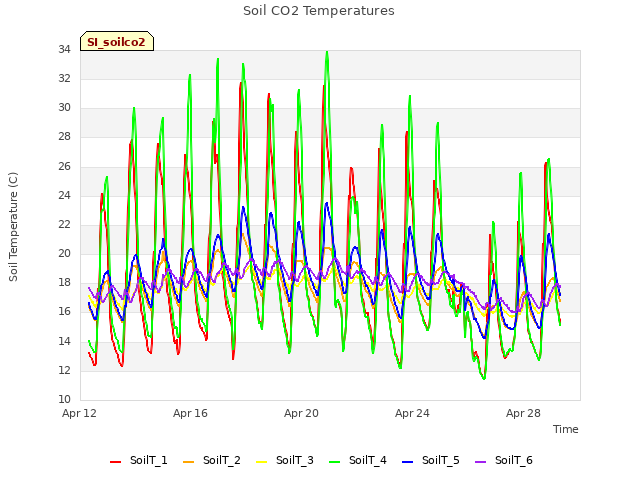

Soil CO2 Temperatures

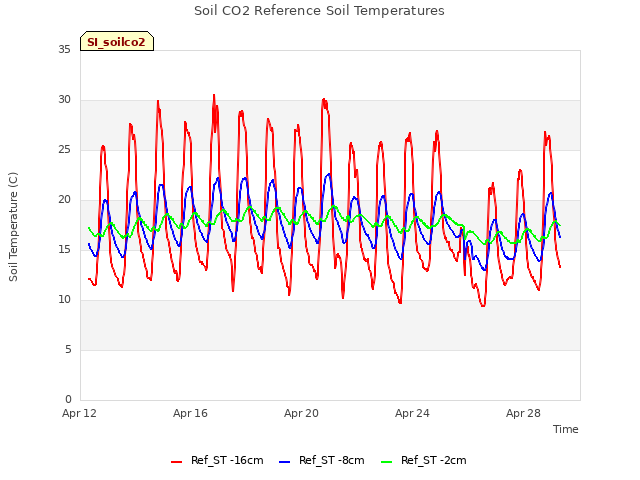

Soil CO2 Reference Soil Temperatures

Can't check TWSI_mixed
Can't check SIMBTWEE_met
