West Pond: 2013-10-16 14:40:00 (DOY 289)
Author: Cove Sturtevant
Others: Joe, Laurie, Pascal

Summary: New inlet constructed but not running. Water level at tower low. Ants still in Met box, need more putty to reseal.

West Pond
2013-10-02

We arrived around 14:40 PDT. It was sunny, warm, and calm. Laurie went to collect water samples while Joe, Pascal and I attended to the tower and downloaded data. A new inlet has been constructed near the old, but neither was running. The water level at the tower was low, just barely exposing the CO2 probe.

The ants are still in the Met box and still active around the Soil CO2 circuit board, but arent actively laying their eggs behind the propped up board. Well bring an air can and more putty next week to blow out the ants and better seal the opening where the wires enter the box.

7500 readings:
CO2 = 383 ppm (400 after cleaning)
H2O = 360 mmol m-3 (310 after cleaning)
signal strength = 76.3% (82.2% after cleaning)
t = 27.4 C
p = 101.5 kPa
sos = 349.3 m s-1

7700 readings:
CH4 = 2.05 ppm (1.99 ppm after cleaning)
RSSI = 24 (75 after cleaning)
Reservoir was 2/3 full.

MET looked good.
Downloaded data.

0 photos found

Graphs display:
8 sets found

Can't check WP_DO
1 WP_DO graphs found

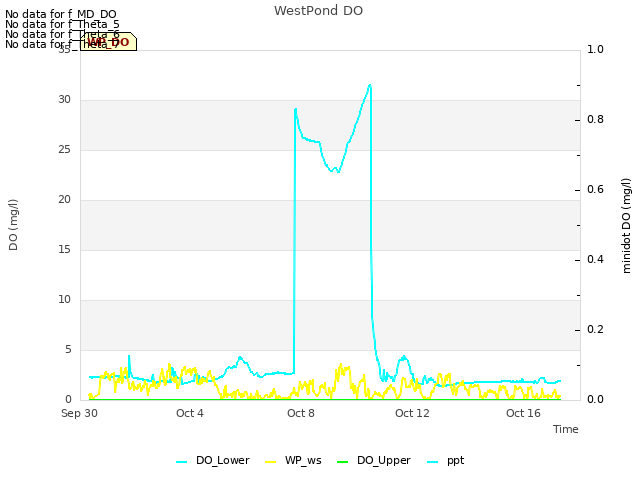

Explore the graph:WestPond DO in a new window

14 WP_met graphs found

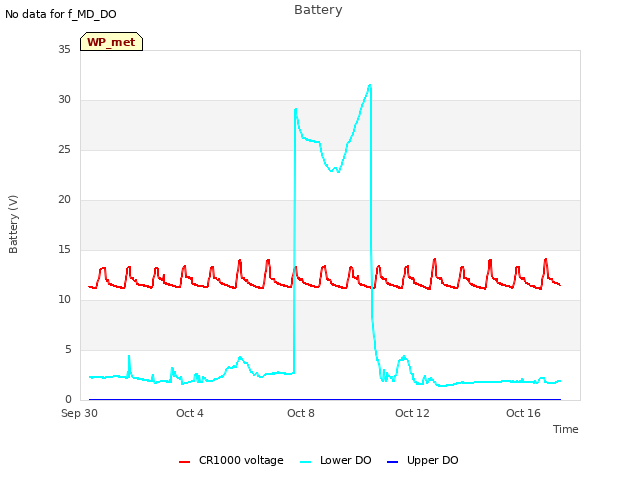

Explore the graph:Battery in a new window

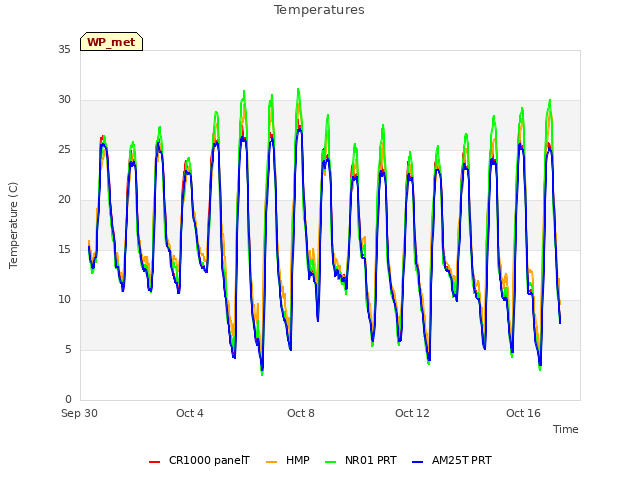

Explore the graph:Temperatures in a new window

Explore the graph:Solar Radiation in a new window

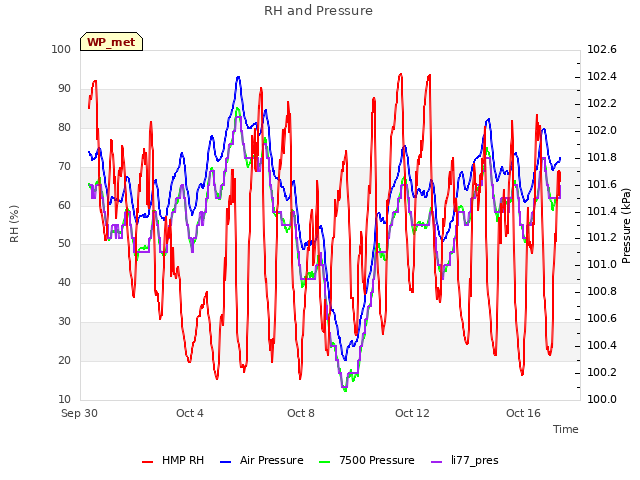

Explore the graph:RH and Pressure in a new window

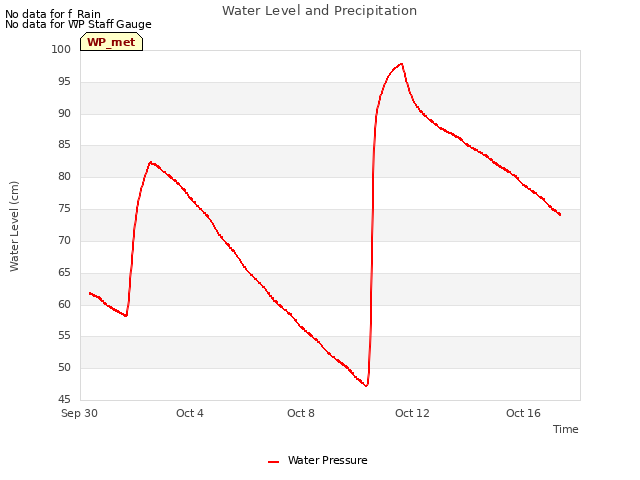

Explore the graph:Water Level and Precipitation in a new window

Explore the graph:Conductivity in a new window

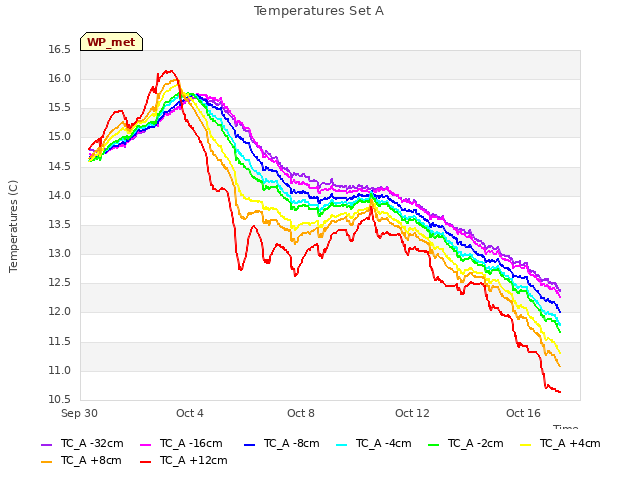

Explore the graph:Temperatures Set A in a new window

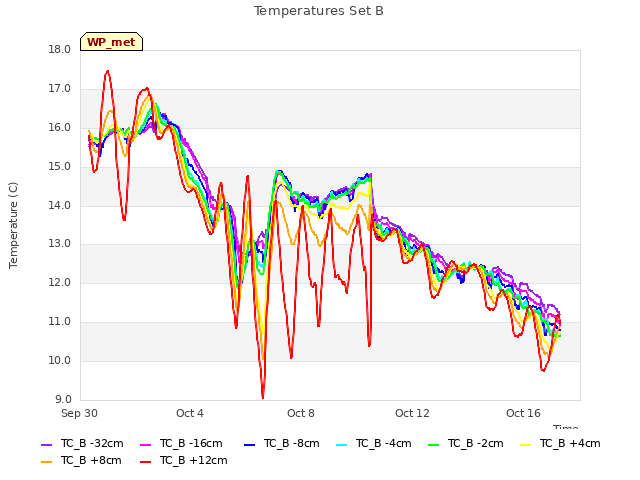

Explore the graph:Temperatures Set B in a new window

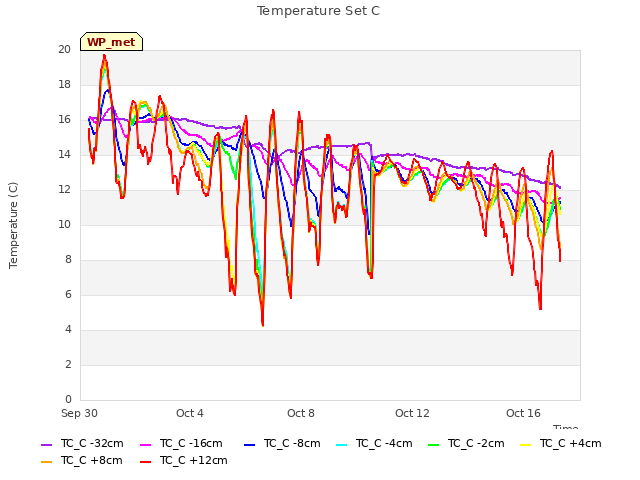

Explore the graph:Temperature Set C in a new window

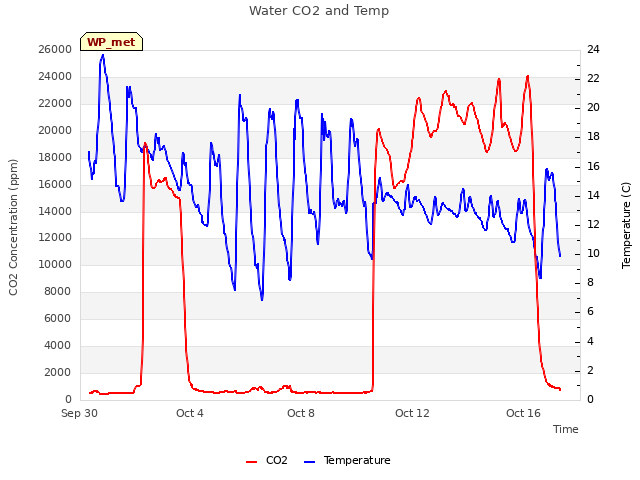

Explore the graph:Water CO2 and Temp in a new window

Explore the graph:West Pond Water CO2 in a new window

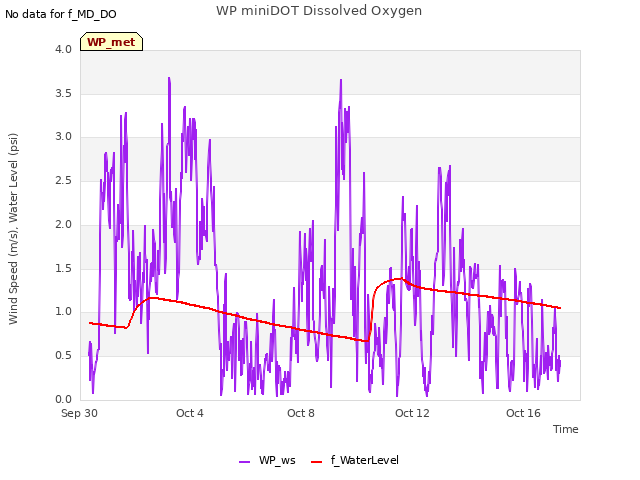

Explore the graph:WP miniDOT Dissolved Oxygen in a new window

Explore the graph:SRS NDVI Channels in a new window

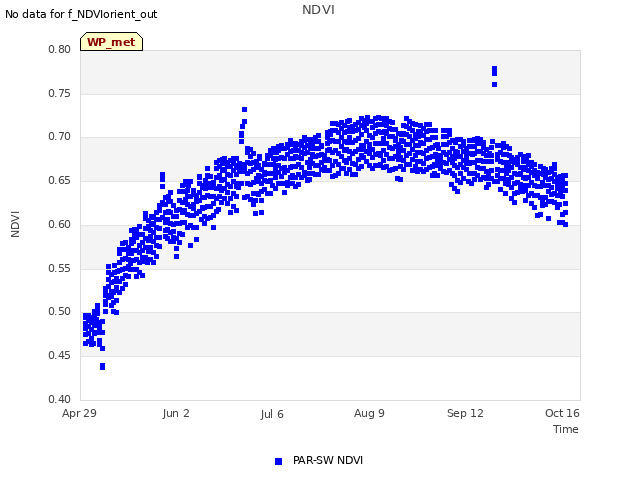

Explore the graph:NDVI in a new window

5 WP_flux graphs found

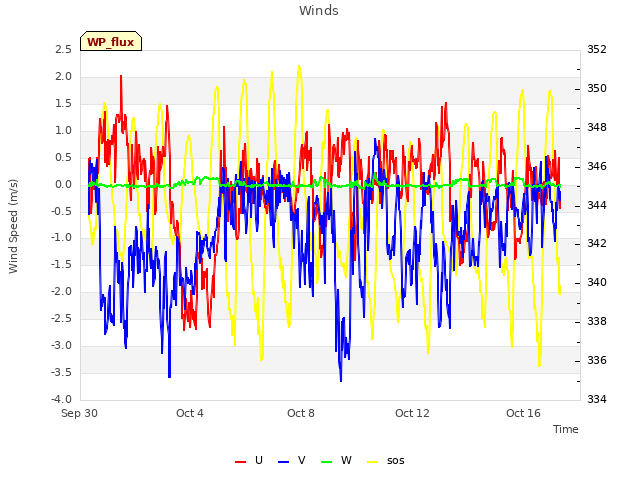

Explore the graph:Winds in a new window

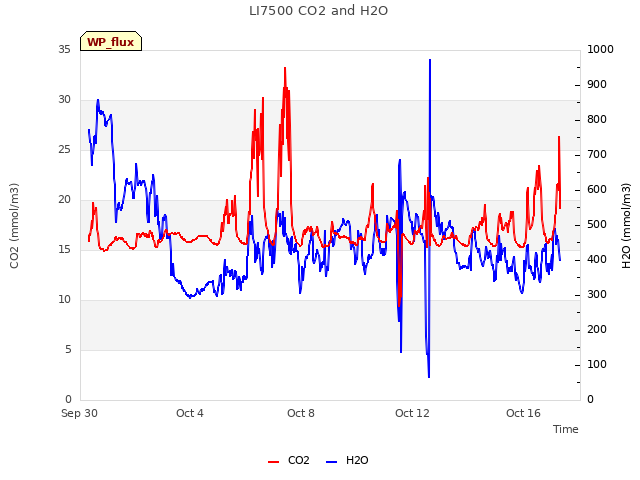

Explore the graph:LI7500 CO2 and H2O in a new window

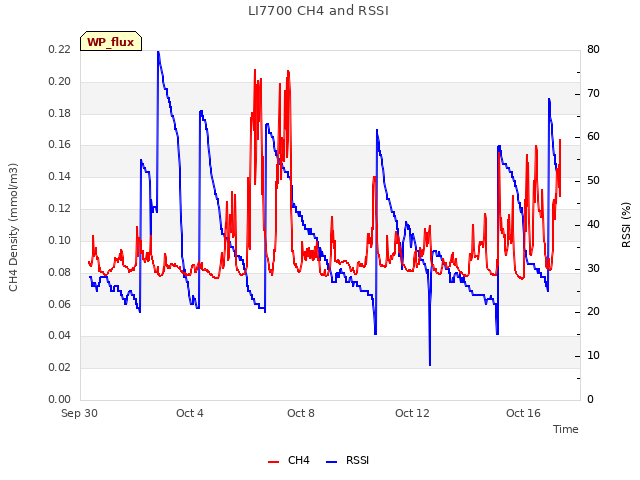

Explore the graph:LI7700 CH4 and RSSI in a new window

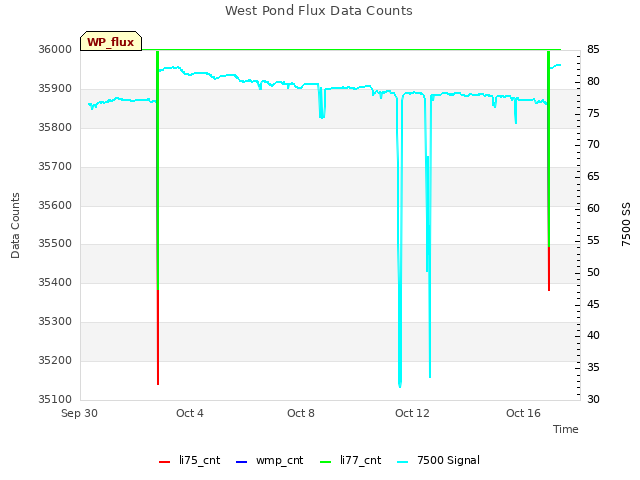

Explore the graph:West Pond Flux Data Counts in a new window

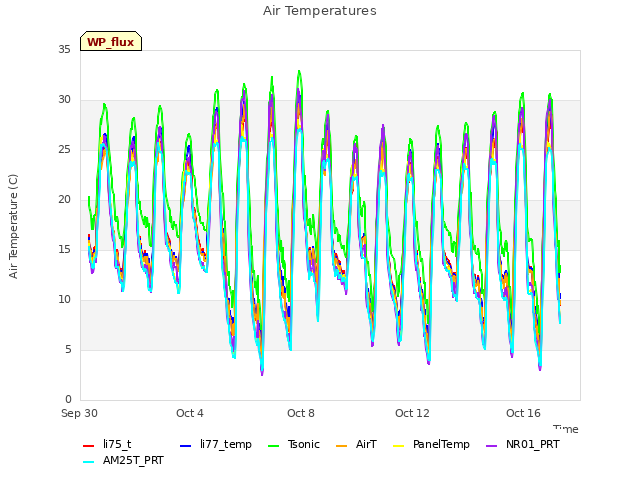

Explore the graph:Air Temperatures in a new window
