Field Notes

<--2013-09-18 11:45:00 | 2013-10-16 13:15:00-->
Other sites visited today: Sherman Island | Mayberry | Twitchell Rice | DWR Corn | West Pond
Phenocam link: Searching...

Twitchell Alfalfa: 2013-10-02 13:00:00 (DOY 275)
Author: Cove Sturtevant
Others: Sara, Patty

Summary: Alfalfa mowed, but not baled. Extended water table well to 1.5 m, still no water. Downloaded data.

Twitchell Alfalfa
2013-10-02

We arrived about 13:00 PDT. It was sunny, warm (25 C), and breezy. The alfalfa has been mowed, but not baled. [Joe: autocam shows the field was mowed between 9-22 and 9-24.] We brought Franks auger with us to continue digging the water table well. We got down to about 1.5 m with still no water, stopping so that the PVC tube still extended about 10 cm above the surface. We also brought Franks water pressure sensor to install, but decided against it since we hadnt reached the water table. Consensus upon return was to monitor the well for signs of water table increase as they flood the new wetland nearby, and install the water pressure sensor if the water table rises into the range of the well.

Patty did spectral while Sara clipped the unmowed alfalfa around the radiation boom and I downloaded data.

7500 readings:
CO2 = 387 ppm (396 after cleaning)
H2O = 450 mmol m-3 (435 after cleaning)
SS = 75.2% (76.6% after cleaning)
T = 25.9 C
p = 101.7 kPa
sos = 348.4 m s-1

7700 readings:
CH4: 1.88 ppm (same after cleaning)
RSSI: 34% (72% after cleaning)
Reservoir was empty refilled to 2/3.

MET looked good.
Radiation looked good.
Cleaned radiation sensors.
Downloaded data.

2 photos found

Sara on site
Sara on site

Cove on site
Cove on site

Graphs display:
7 sets found

Can't check TA_met
11 TA_met graphs found

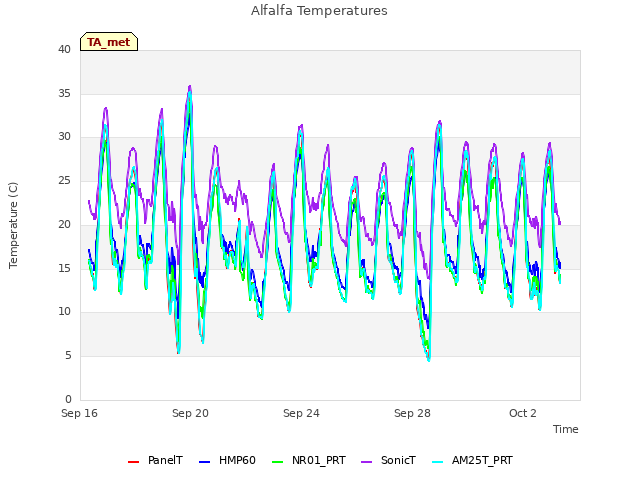

Explore the graph:Alfalfa Temperatures in a new window

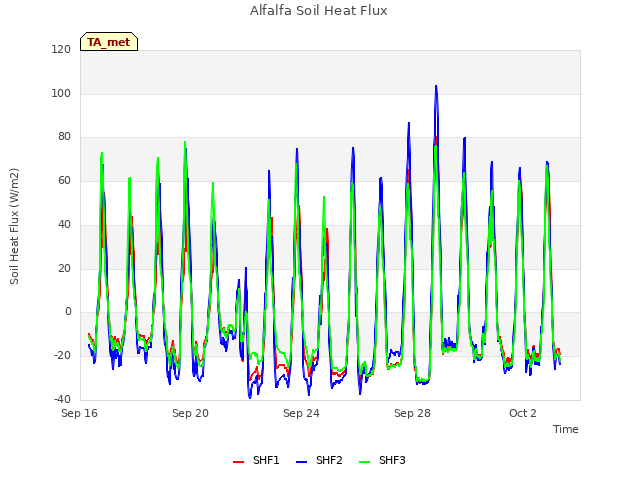

Explore the graph:Alfalfa Soil Heat Flux in a new window

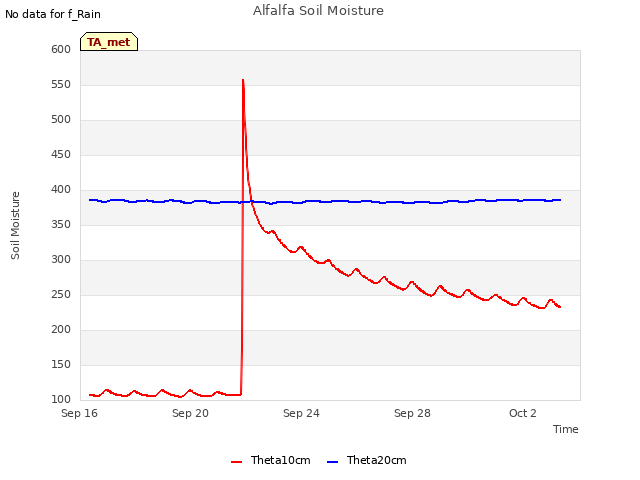

Explore the graph:Alfalfa Soil Moisture in a new window

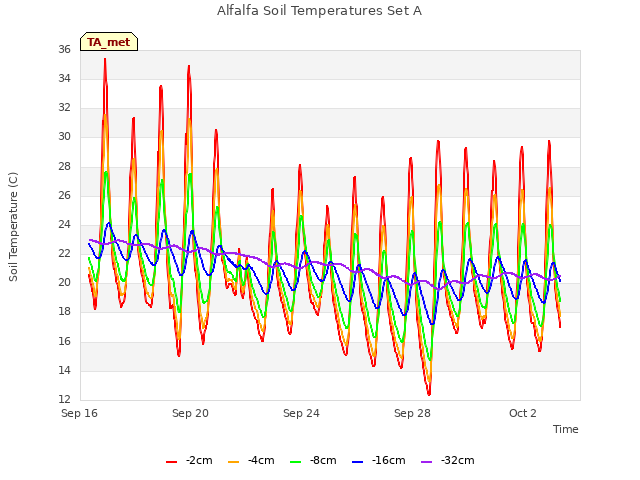

Explore the graph:Alfalfa Soil Temperatures Set A in a new window

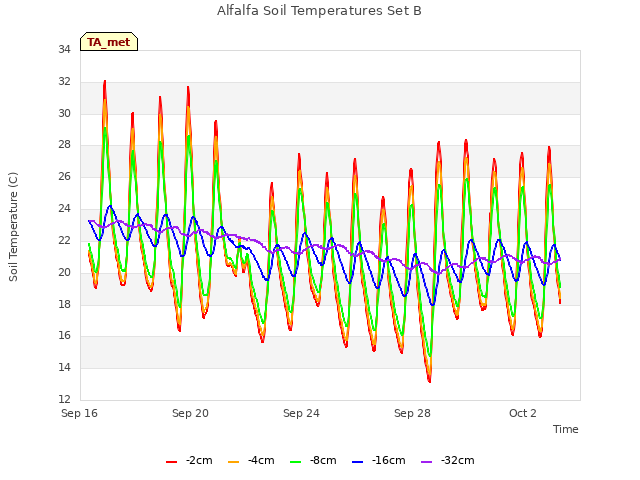

Explore the graph:Alfalfa Soil Temperatures Set B in a new window

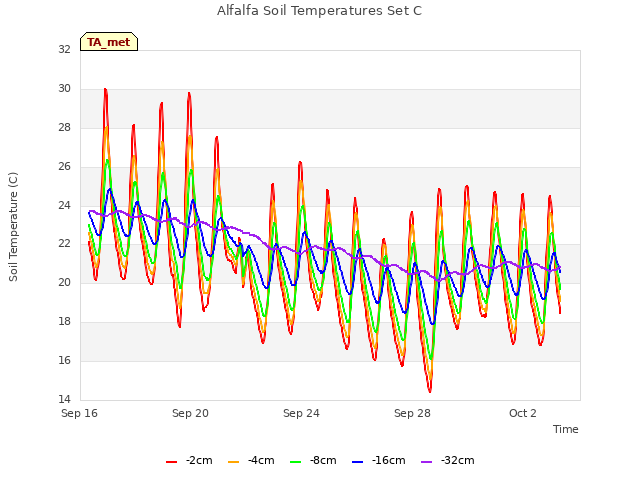

Explore the graph:Alfalfa Soil Temperatures Set C in a new window

Explore the graph:NDVI Narrow Band Radiation in a new window

Explore the graph:Soil CO2 Flux in a new window

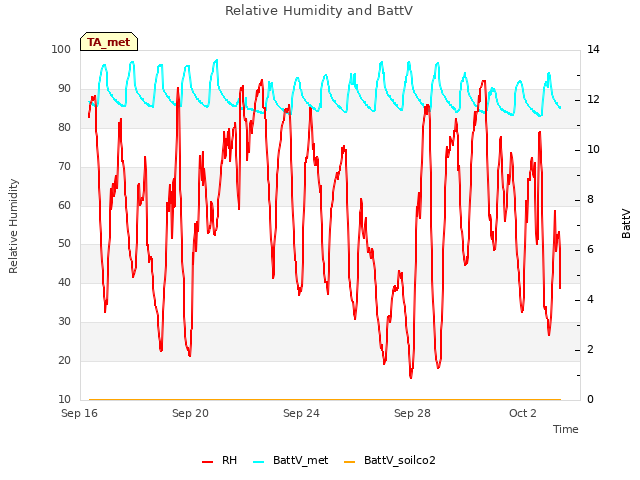

Explore the graph:Relative Humidity and BattV in a new window

Explore the graph:SRS NDVI and PRI in a new window

Explore the graph:PRI Narrow Band Channels in a new window

Can't check TA_rad
3 TA_rad graphs found

Explore the graph:Alfalfa Radiation in a new window

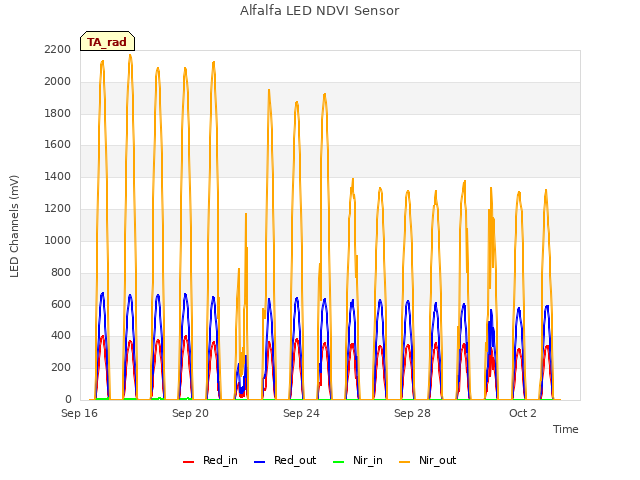

Explore the graph:Alfalfa LED NDVI Sensor in a new window

Explore the graph:Alfalfa PAR in a new window

Can't check TA_flux
5 TA_flux graphs found

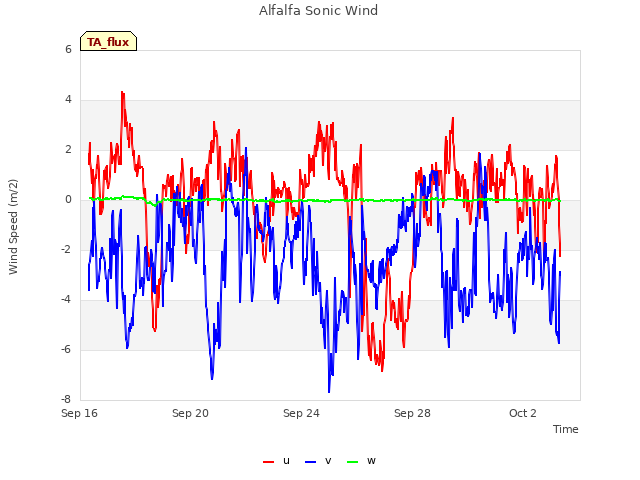

Explore the graph:Alfalfa Sonic Wind in a new window

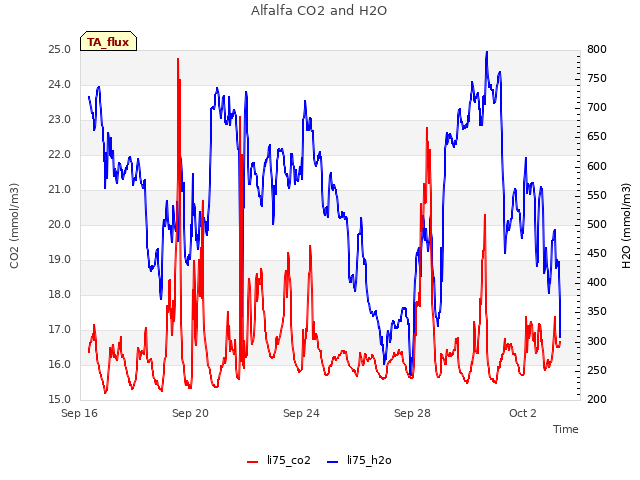

Explore the graph:Alfalfa CO2 and H2O in a new window

Explore the graph:Alfalfa Methane in a new window

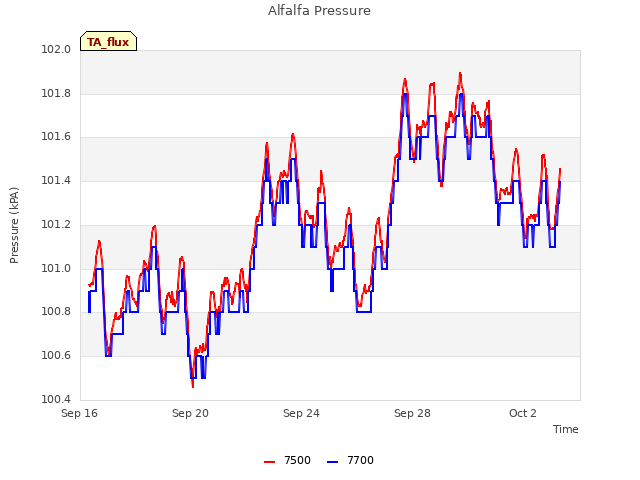

Explore the graph:Alfalfa Pressure in a new window

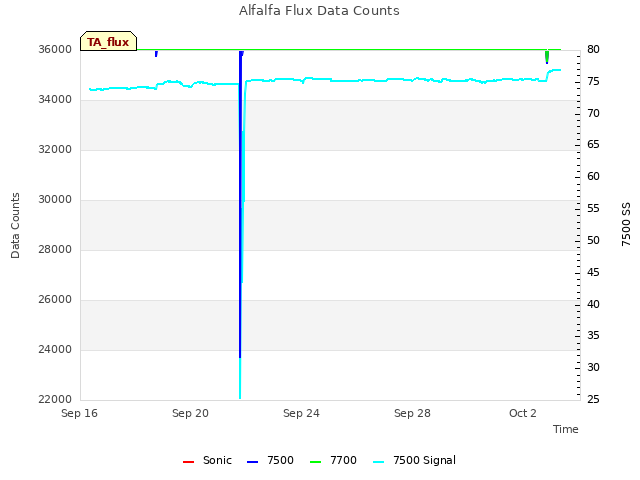

Explore the graph:Alfalfa Flux Data Counts in a new window

Can't check TA_soilco2
7 TA_soilco2 graphs found

Explore the graph:Set A Soil CO2 in a new window

Explore the graph:Set B Soil CO2 in a new window

Explore the graph:Soil CO2 Soil Moisture in a new window

Explore the graph:Forced Diffusion CO2 in a new window

Explore the graph:Alfalfa Forerunner Soil CO2 in a new window

Explore the graph:Alfalfa Forerunner Temperatures in a new window

Explore the graph:Alfalfa Forerunner Probe RH in a new window

No data found for TA_arable.
1 TA_cam graphs found

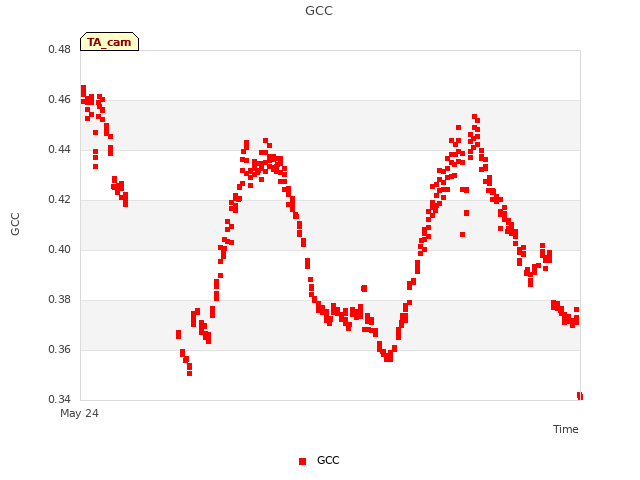

Explore the graph:GCC in a new window

Can't check TATWBABCSB_cam
