Field Notes

<--2013-08-21 14:20:00 | 2013-09-05 09:20:00-->
Other sites visited today: Twitchell Rice | DWR Corn | West Pond | Twitchell Alfalfa | Sherman Island
Phenocam link: Searching...

Mayberry: 2013-08-28 14:40:00 (DOY 240)
Author: Cove Sturtevant
Others: Sara

Summary: HMP45 hanging loose from shield, reinstalled. Water level high. Replaced 7700 washer fluid tubing.

Mayberry
2013-08-28

We arrived about 14:40 PDT. It was breezy, sunny, and warm. Sara went out and grabbed water samples and cleaned the tule tower instruments while I downloaded data and attended to the tower. The HMP45 was hanging loose from the radiation shield; I reinstalled it. Sara reported that the water level was a bit high, so she cleaned the water instruments in the tules but not in the deeper channel.

7500 readings:
CO2: 390 ppm (same after cleaning)
H2O: 810 mmol m-3 (same after cleaning)
signal strength = 95.8% (96.4% after cleaning)
t: 30.1 C
p = 101.1 kPa
sos = 350 m s-1

Current 7700 readings:
CH4 = 1.9 ppm (same after cleaning)
RSSI = 53 (86 after cleaning)
The reservoir was full.

We replaced the 7700 washer fluid tubing and covered it with split line tubing to protect it from the sun.

MET looked good.

0 photos found

Graphs display:
11 sets found

7 MB_flux graphs found

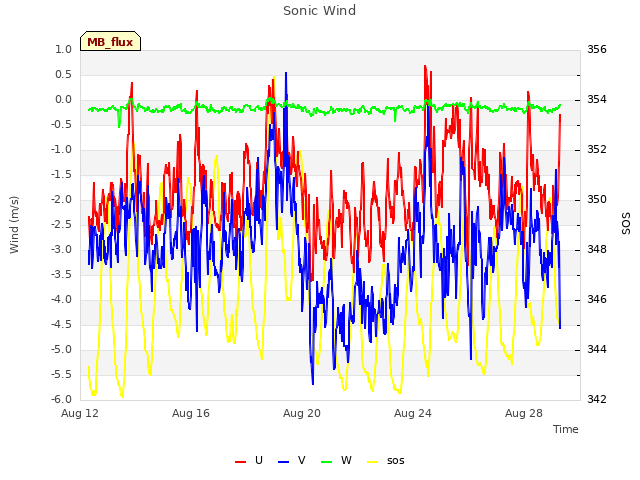

Explore the graph:Sonic Wind in a new window

Explore the graph:LI7700 mV signals in a new window

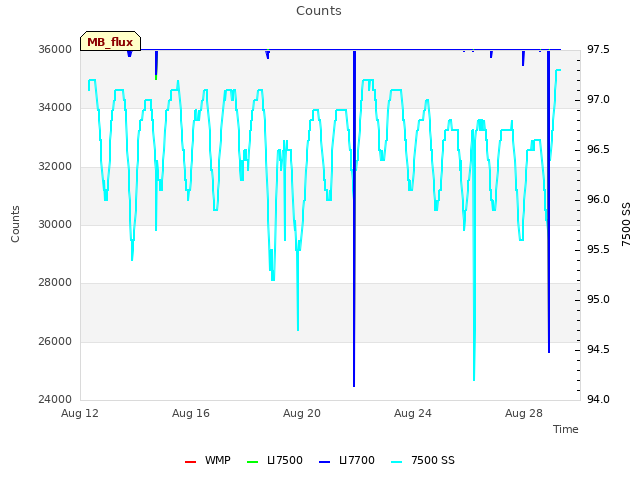

Explore the graph:Counts in a new window

Explore the graph:LI7700 CH4 from analog signal in a new window

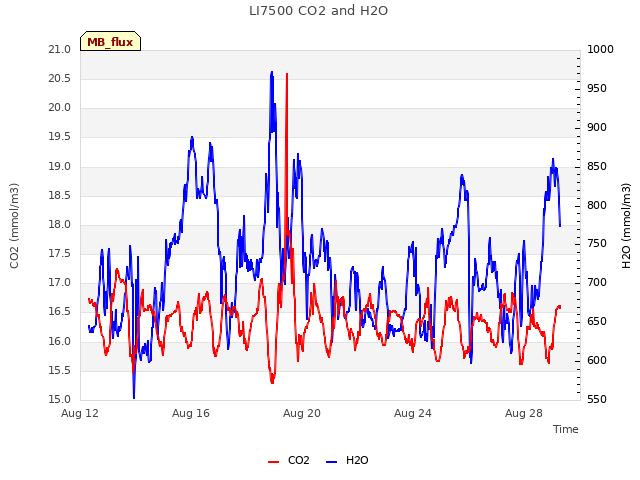

Explore the graph:LI7500 CO2 and H2O in a new window

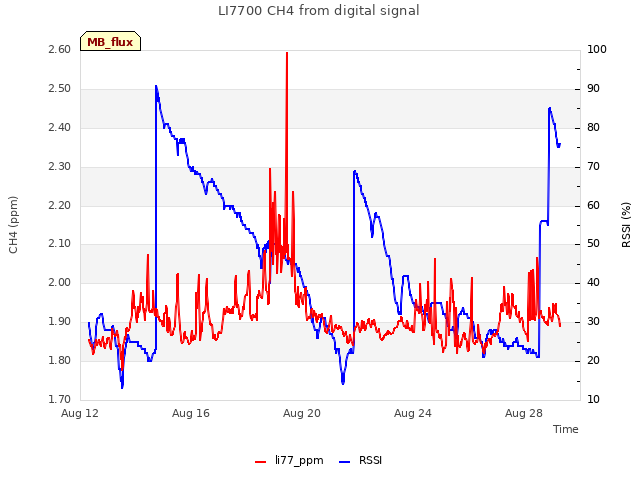

Explore the graph:LI7700 CH4 from digital signal in a new window

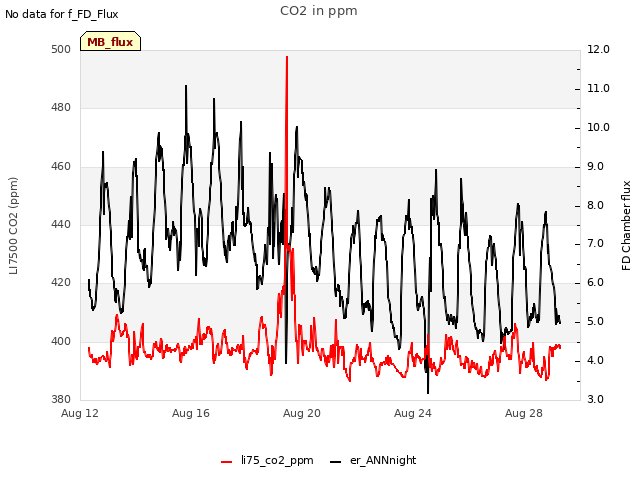

Explore the graph:CO2 in ppm in a new window

No data found for MB_met.
27 MB_tule graphs found

Explore the graph:MB Tule Tower: Open Water 2 (3/1/11-3/23/17) in a new window

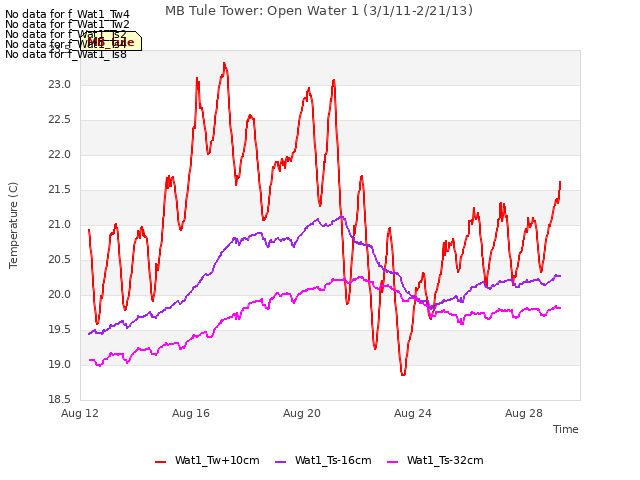

Explore the graph:MB Tule Tower: Open Water 1 (3/1/11-2/21/13) in a new window

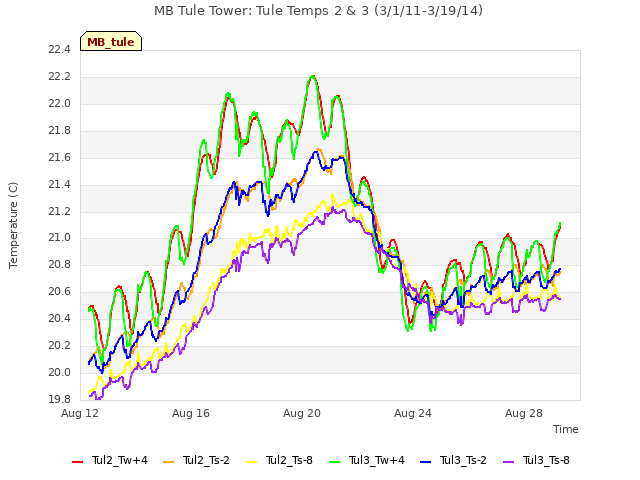

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14) in a new window

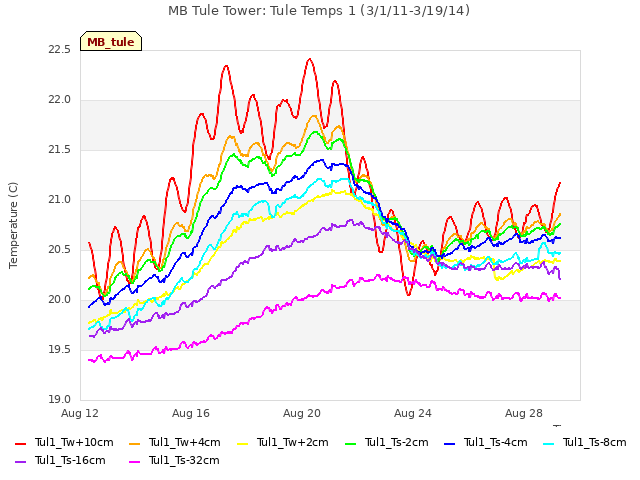

Explore the graph:MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14) in a new window

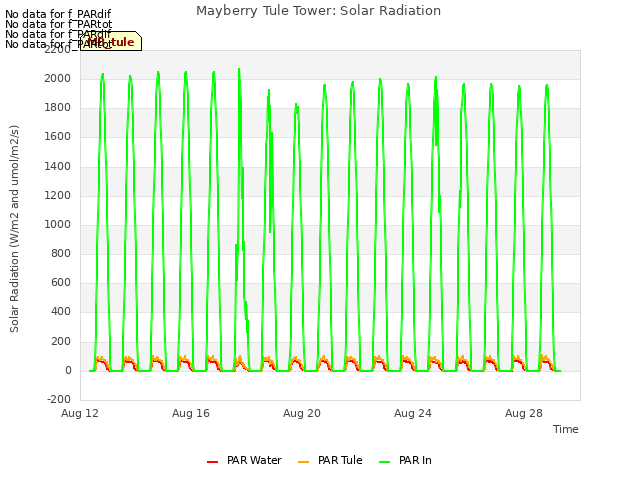

Explore the graph:Mayberry Tule Tower: Solar Radiation in a new window

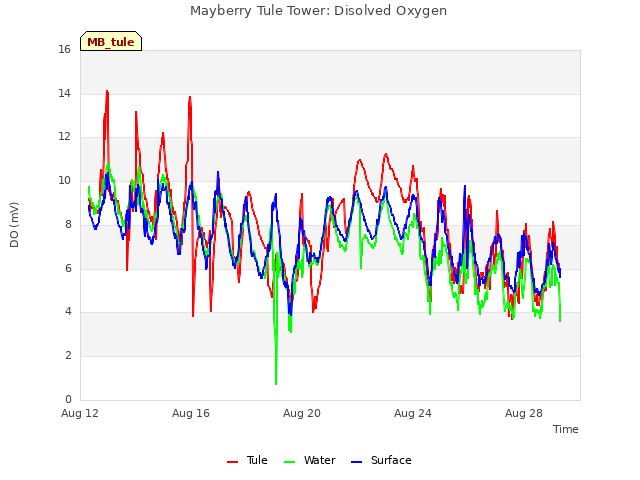

Explore the graph:Mayberry Tule Tower: Disolved Oxygen in a new window

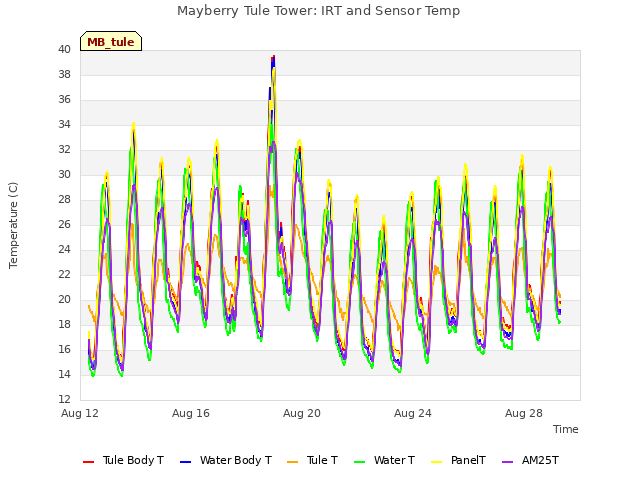

Explore the graph:Mayberry Tule Tower: IRT and Sensor Temp in a new window

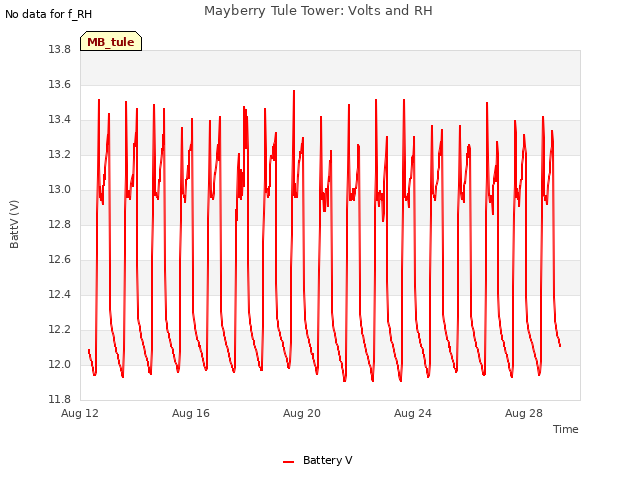

Explore the graph:Mayberry Tule Tower: Volts and RH in a new window

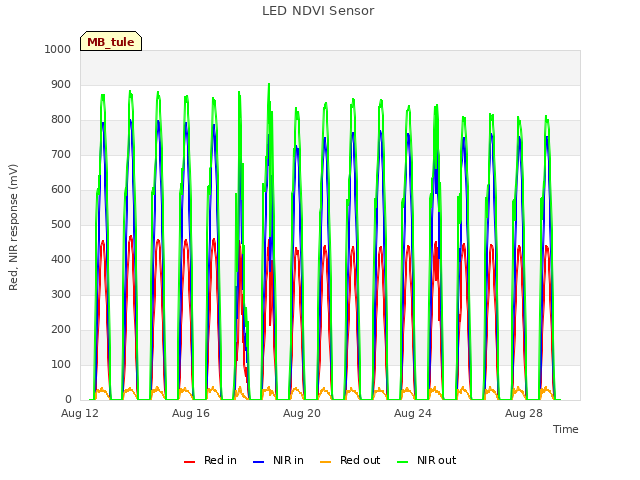

Explore the graph:LED NDVI Sensor in a new window

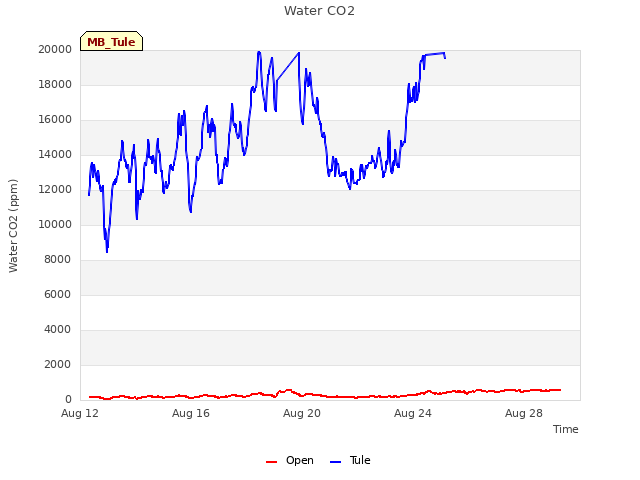

Explore the graph:Water CO2 in a new window

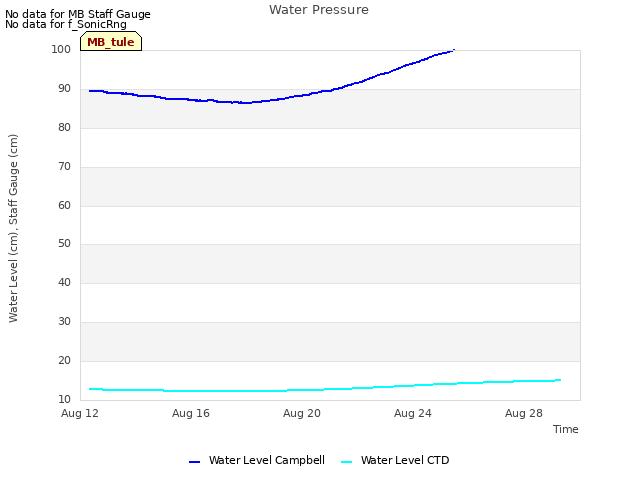

Explore the graph:Water Pressure in a new window

Explore the graph:Fluorometer Data in a new window

Explore the graph:Mayberry pCO2 Profile in a new window

Explore the graph:Water Temperatures in a new window

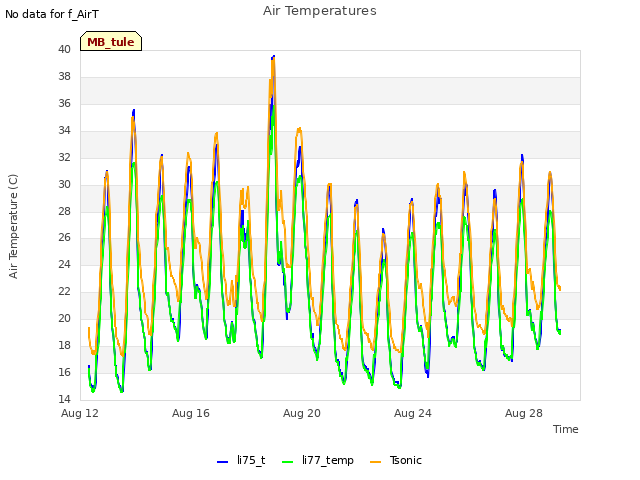

Explore the graph:Air Temperatures in a new window

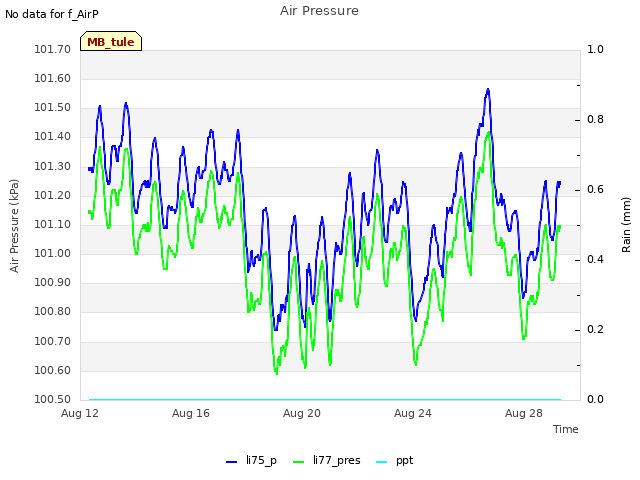

Explore the graph:Air Pressure in a new window

Explore the graph:4-Way Radiometer in a new window

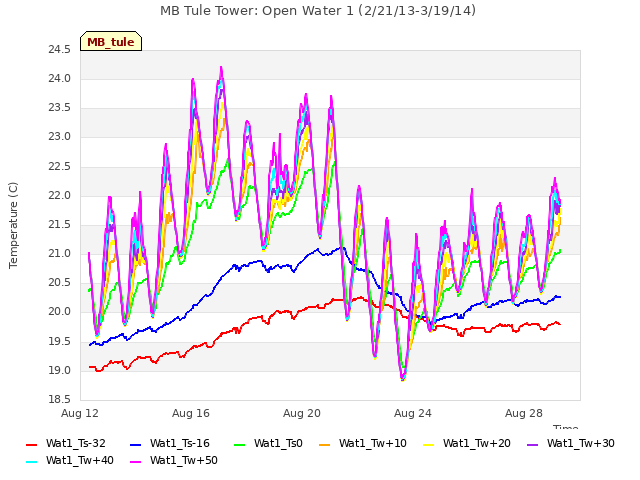

Explore the graph:MB Tule Tower: Open Water 1 (2/21/13-3/19/14) in a new window

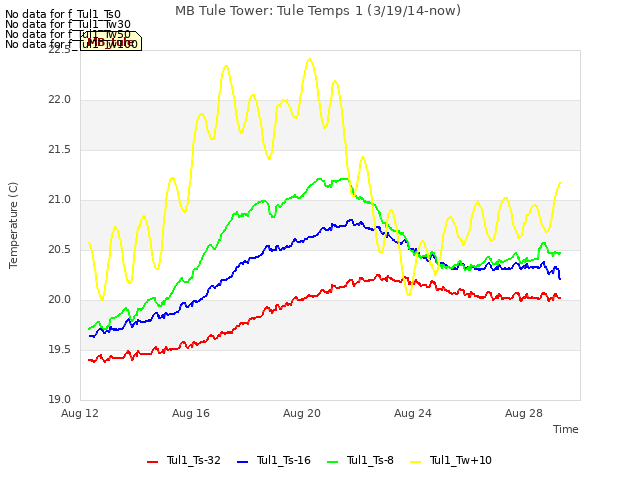

Explore the graph:MB Tule Tower: Tule Temps 1 (3/19/14-now) in a new window

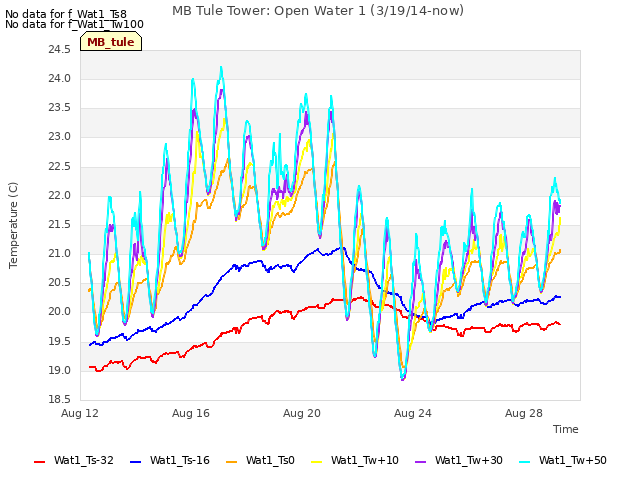

Explore the graph:MB Tule Tower: Open Water 1 (3/19/14-now) in a new window

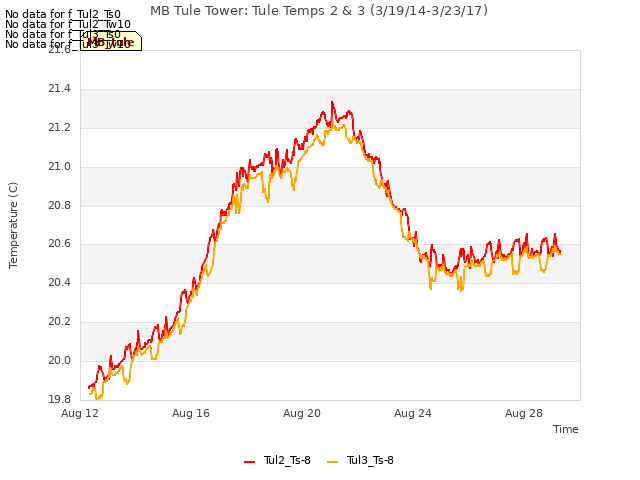

Explore the graph:MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17) in a new window

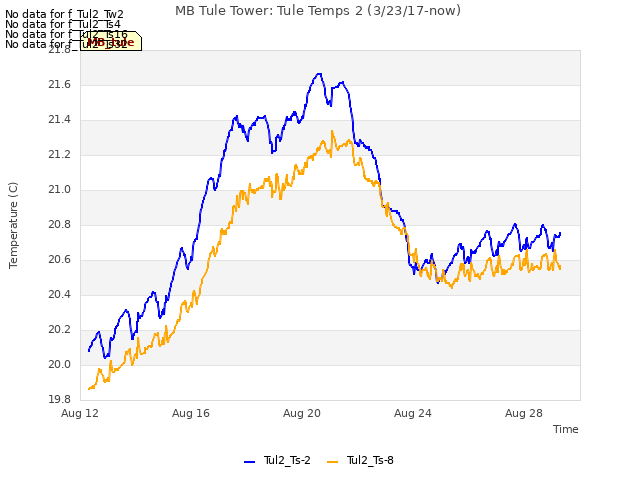

Explore the graph:MB Tule Tower: Tule Temps 2 (3/23/17-now) in a new window

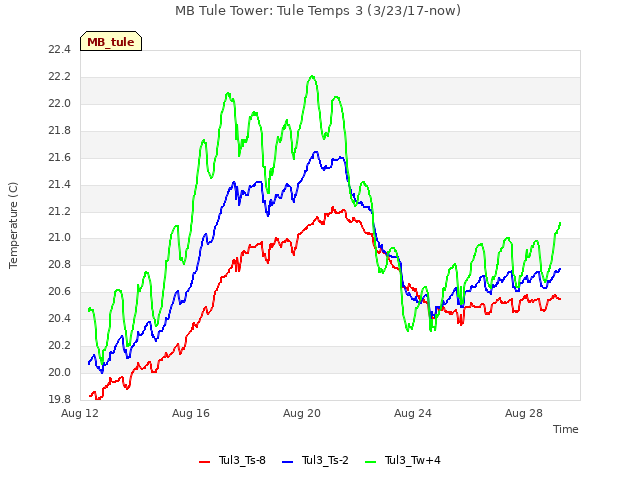

Explore the graph:MB Tule Tower: Tule Temps 3 (3/23/17-now) in a new window

Explore the graph:SRS NDVI Channels in a new window

Explore the graph:SRS NDVI in a new window

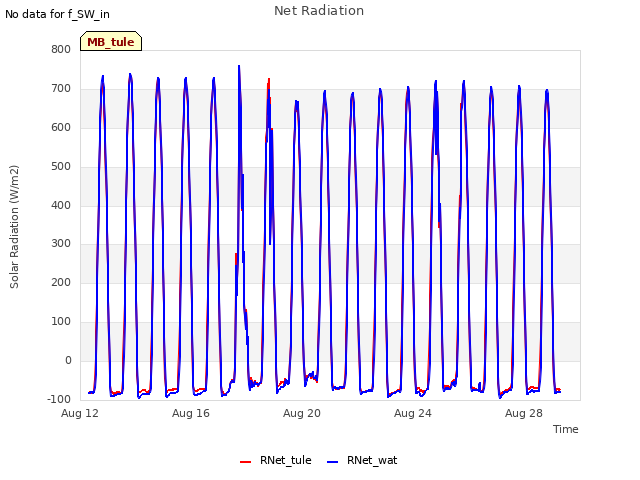

Explore the graph:Net Radiation in a new window

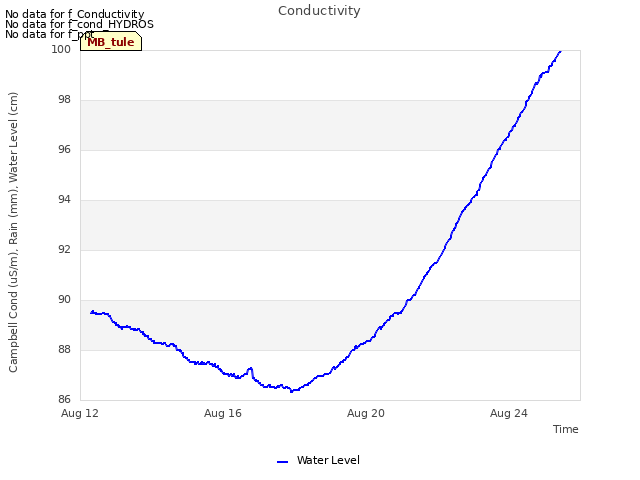

Explore the graph:Conductivity in a new window

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

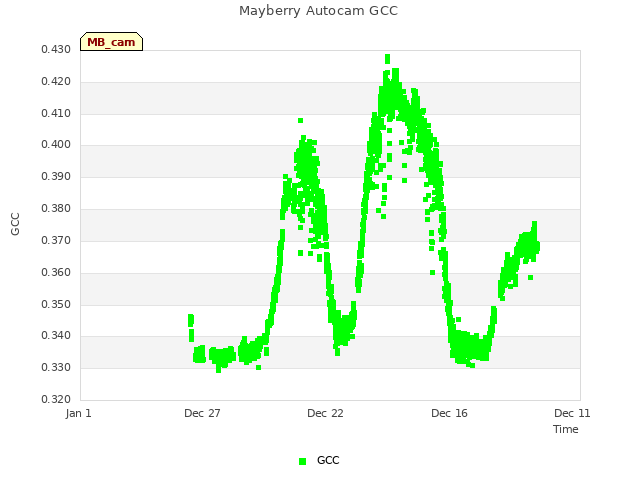

Explore the graph:Mayberry Autocam GCC in a new window

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
No data found for MB_minidot.
Can't check MBSWEEWPBCBA
1 MB_processed graphs found

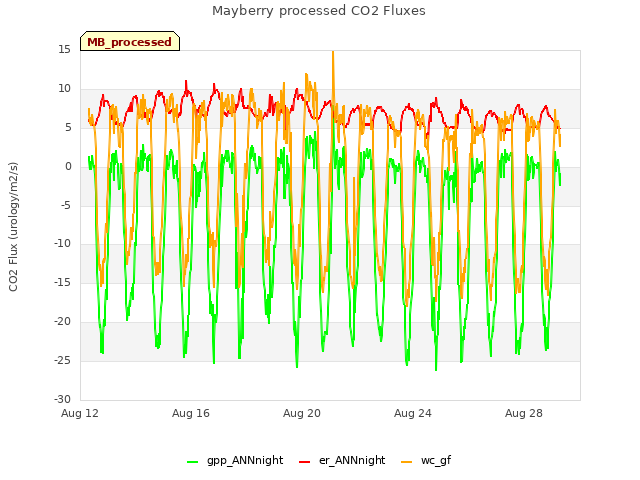

Explore the graph:Mayberry processed CO2 Fluxes in a new window

Can't check MB_fd
1 MB_fd graphs found

Explore the graph:Water Forced Diffusion CO2 Flux in a new window
