Mayberry: 2013-05-24 16:30:00 (DOY 144)
Author: Cove Sturtevant
Others: Joe, Dennis, Laurie

Summary: Data collection, changed time zone on 7550 and 7700 to Etc/GTM-8

Mayberry
2013-05-24

We arrived about 16:30 PDT. It was windy and warm. The site is in full growth mode, with a lot of green but also quite a bit of dead standing tules as well. This was just a short trip to clean the flux instruments and download data. All was well.

The 7700 read 1.927ppm CH4 at 40 RSSI. The RSSI climbed to 82 after cleaning. The 7700 Reservoir was full.

The 7500 read 377ppm CO2, 425mmol/m3 H2O at 29.6 AGC.

We adjusted the 7550 and 7700 time zone to Etc/GMT-8.

We still need to update the 7550 firmware and check the coefficients especially the pressure and the new signal strength values.

3 photos found

Non-native Mute swans at Mayberry
Non-native Mute swans at Mayberry

Non-native Mute swans at Mayberry
Non-native Mute swans at Mayberry

Folks on the tule tower
Folks on the tule tower

Graphs display:
11 sets found

7 MB_flux graphs found

Sonic Wind

LI7700 mV signals

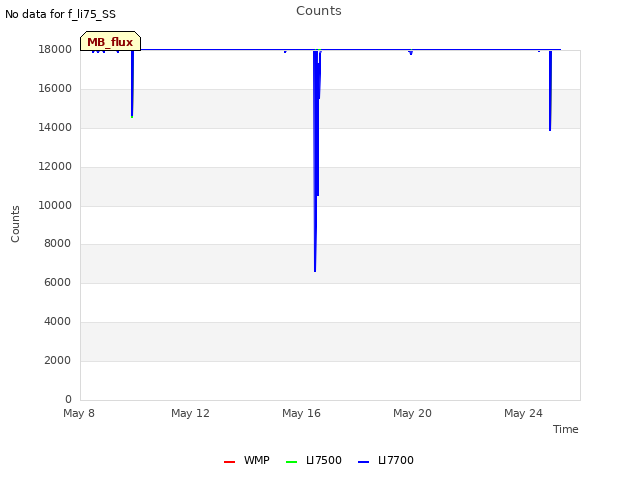

Counts

LI7700 CH4 from analog signal

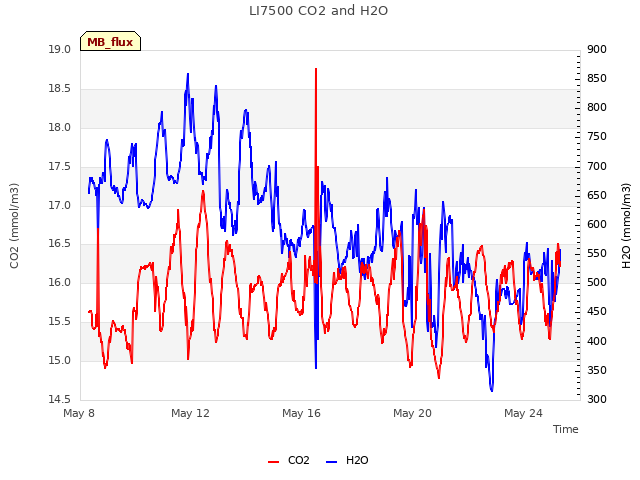

LI7500 CO2 and H2O

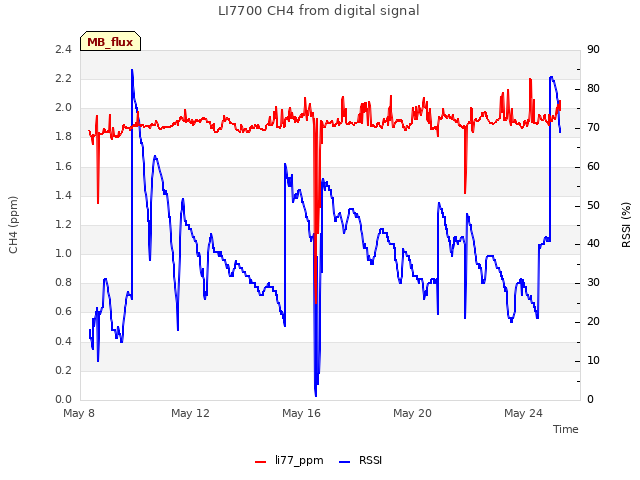

LI7700 CH4 from digital signal

CO2 in ppm

No data found for MB_met.
27 MB_tule graphs found

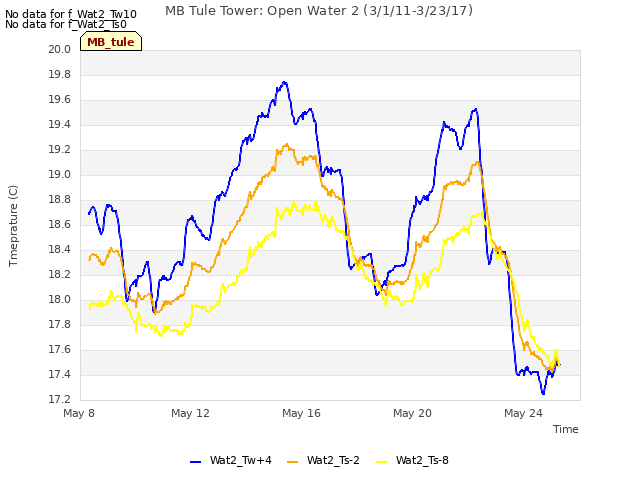

MB Tule Tower: Open Water 2 (3/1/11-3/23/17)

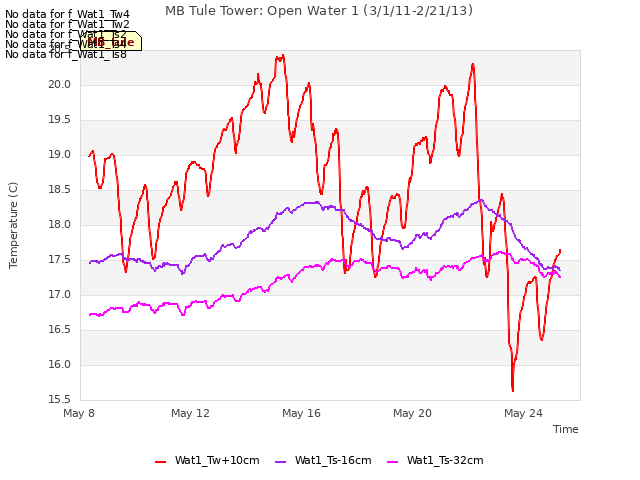

MB Tule Tower: Open Water 1 (3/1/11-2/21/13)

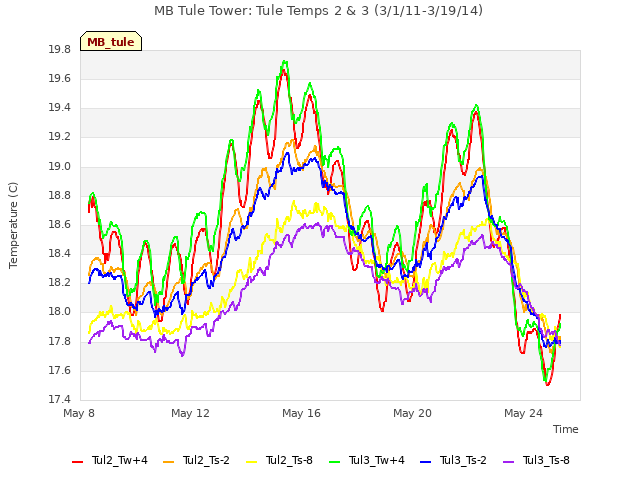

MB Tule Tower: Tule Temps 2 & 3 (3/1/11-3/19/14)

MB Tule Tower: Tule Temps 1 (3/1/11-3/19/14)

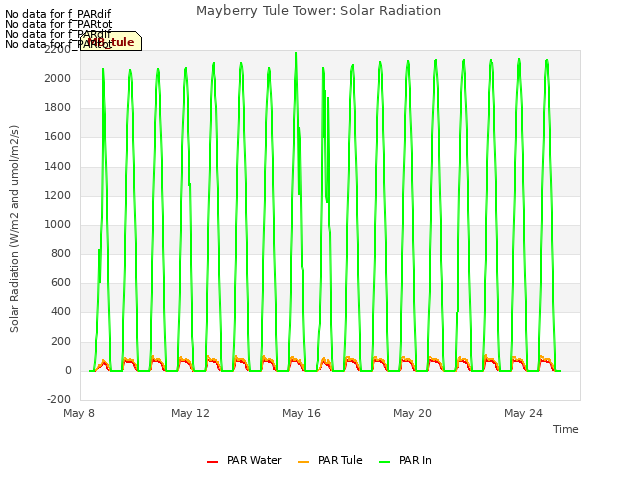

Mayberry Tule Tower: Solar Radiation

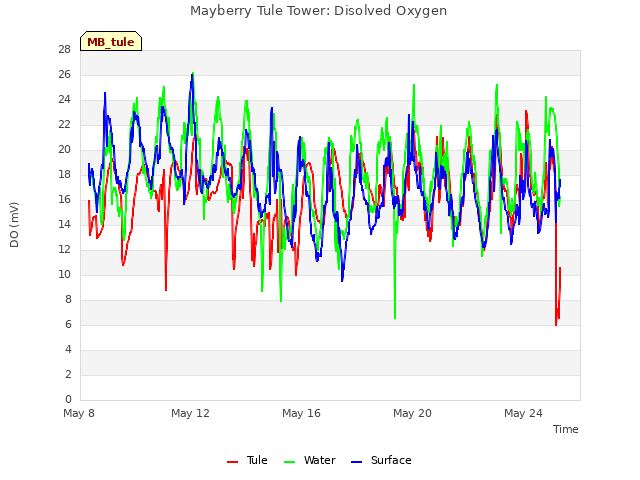

Mayberry Tule Tower: Disolved Oxygen

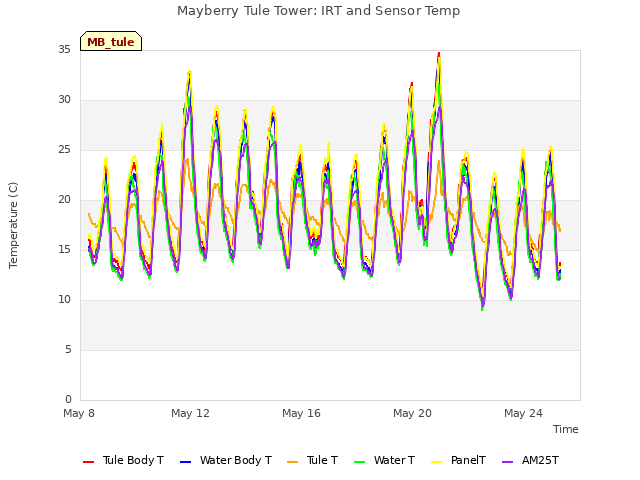

Mayberry Tule Tower: IRT and Sensor Temp

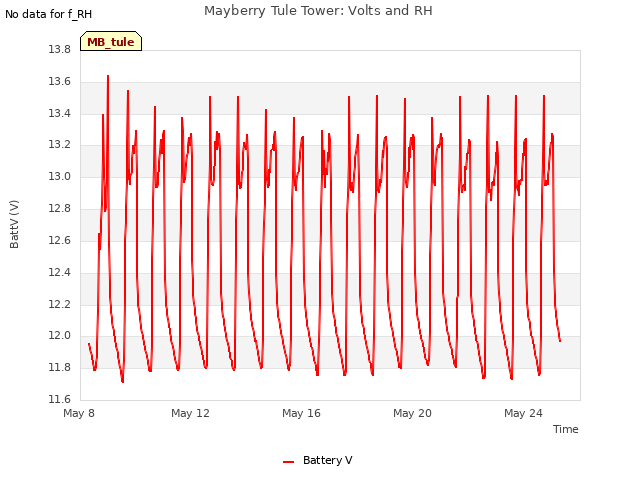

Mayberry Tule Tower: Volts and RH

LED NDVI Sensor

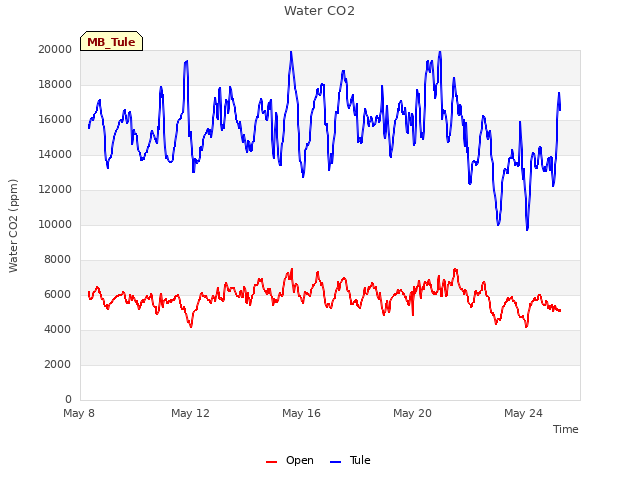

Water CO2

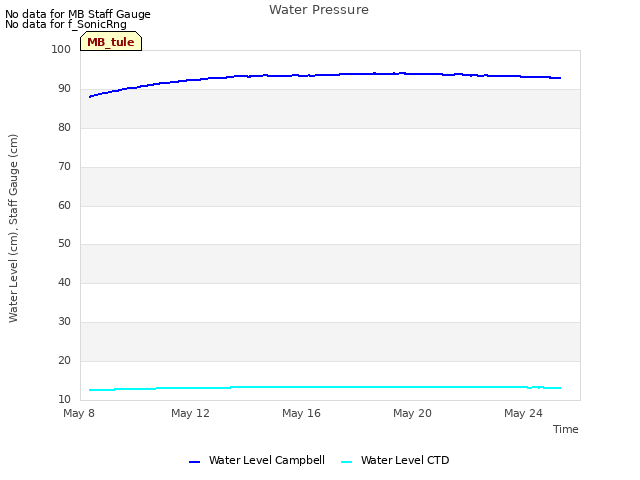

Water Pressure

Fluorometer Data

Mayberry pCO2 Profile

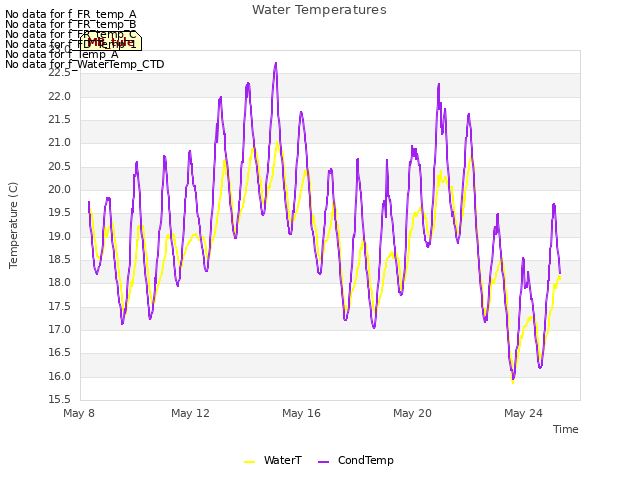

Water Temperatures

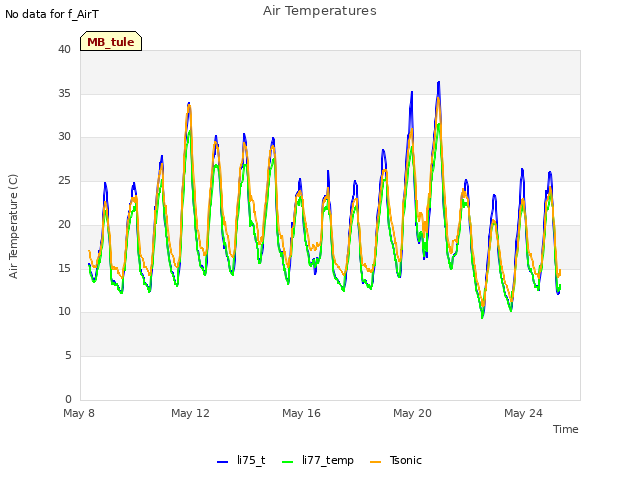

Air Temperatures

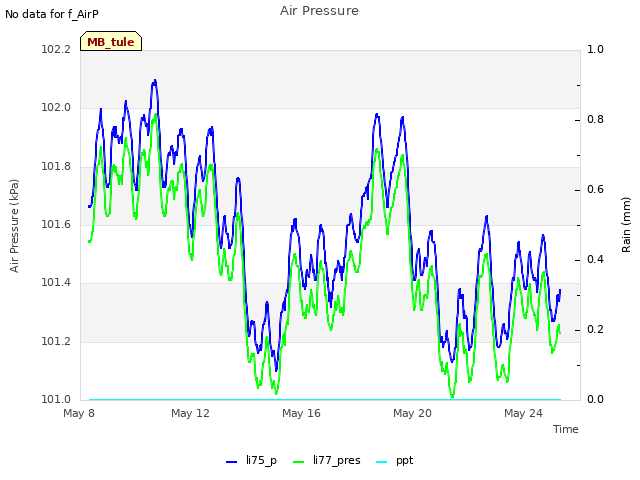

Air Pressure

4-Way Radiometer

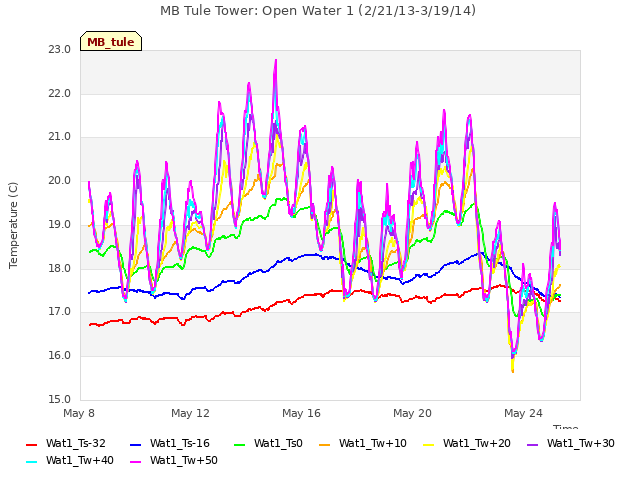

MB Tule Tower: Open Water 1 (2/21/13-3/19/14)

MB Tule Tower: Tule Temps 1 (3/19/14-now)

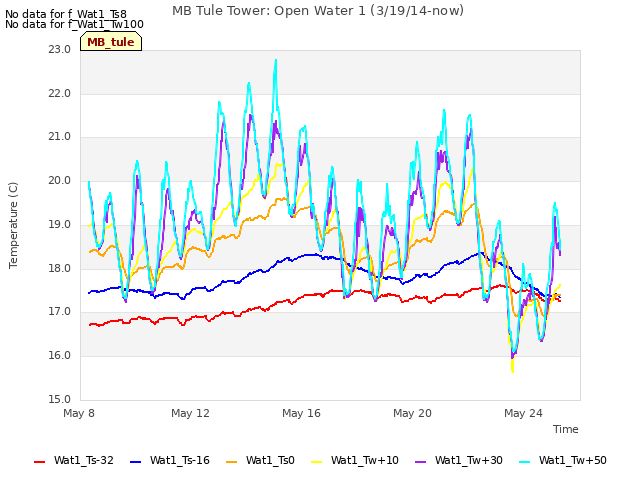

MB Tule Tower: Open Water 1 (3/19/14-now)

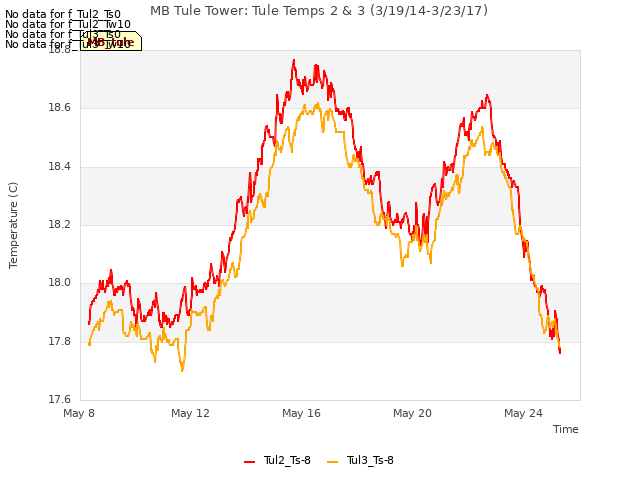

MB Tule Tower: Tule Temps 2 & 3 (3/19/14-3/23/17)

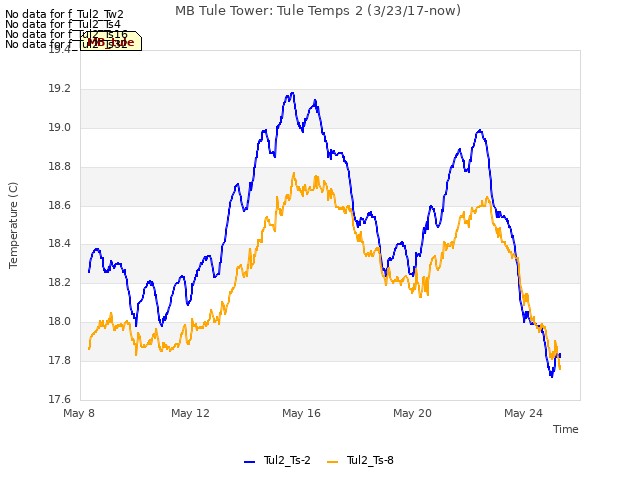

MB Tule Tower: Tule Temps 2 (3/23/17-now)

MB Tule Tower: Tule Temps 3 (3/23/17-now)

SRS NDVI Channels

SRS NDVI

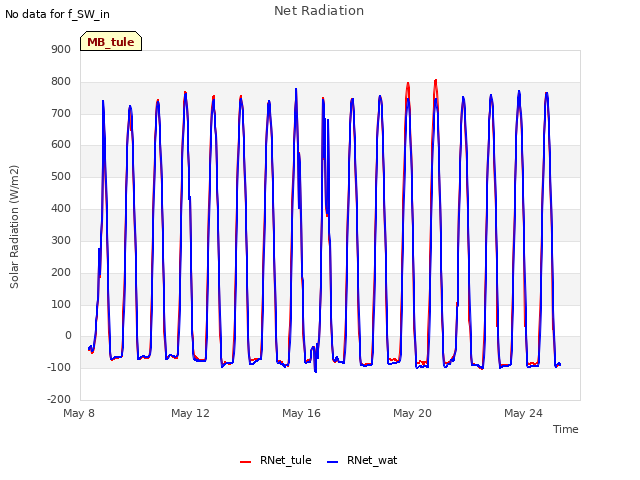

Net Radiation

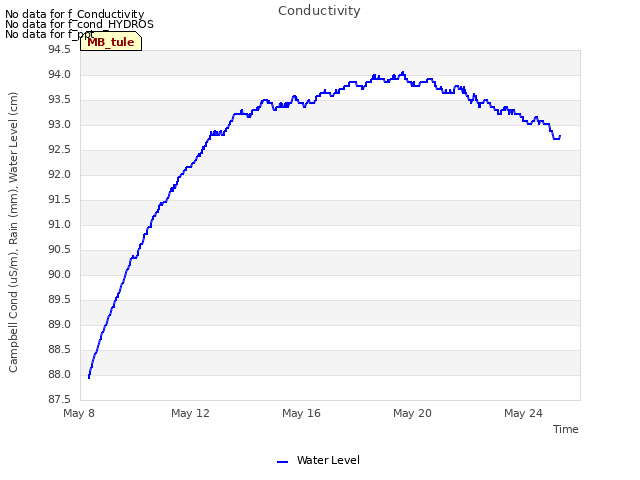

Conductivity

Can't check MBWPEESWGT_mixed
1 MB_cam graphs found

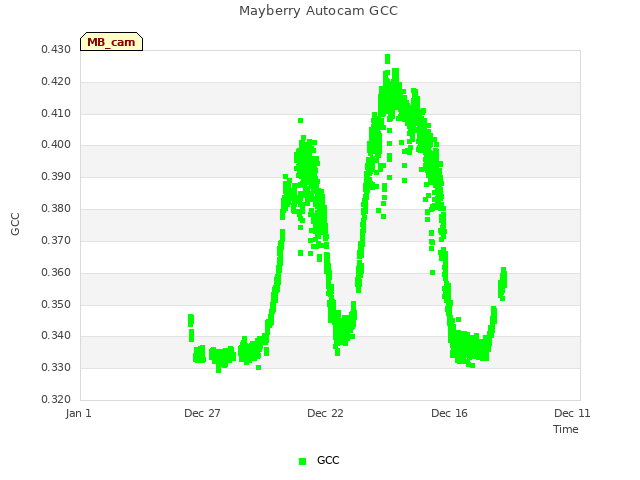

Mayberry Autocam GCC

Can't check MBEEWPSWEPGT_cam
Can't check SIMBTWEE_met
No data found for MB_minidot.
Can't check MBSWEEWPBCBA
1 MB_processed graphs found

Mayberry processed CO2 Fluxes

Can't check MB_fd
1 MB_fd graphs found

Water Forced Diffusion CO2 Flux
