Sherman Island: 2013-05-24 16:00:00 (DOY 144)
Author: Cove Sturtevant
Others: Joe, Dennis, Laurie

Summary: Pepper weed in full bloom, water levels high, computer needed restarting, soil CO2 down due to low voltage condition.

Sherman
2013-05-24

We arrived about 16:00 PDT just to download data and clean the flux instruments. Sara, Iryna, Dillon, and Jenny were there earlier to do regular field work. It was windy and warm. The water under the bridge was high, close to lapping up on the road at one place. The pepperweed was flowering heavily.

The mouse pointer wasnt working and Joe had to fiddle quite a bit with the computer, including a couple restarts to get it working again. No known cause.

The LGR read 15:13, 23.68C, 136.90Torr, 16.809usec, 10Hz, 1.911ppm CH4. The pressure was adjusted to 148.2Torr.

The 7500 read 16.27mmol/m3 CO2, 274mmol/m3 H2O at 248 AGC.

The soil CO2 sensors were down again due to a low voltage condition on the charge controller. I reset it. I need to buy a new power supply.

0 photos found

Graphs display:
7 sets found

No data found for SI_mp.
11 SI_met graphs found

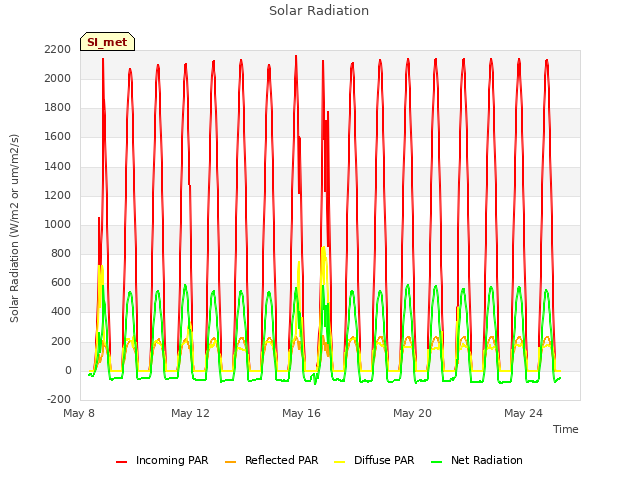

Explore the graph:Solar Radiation in a new window

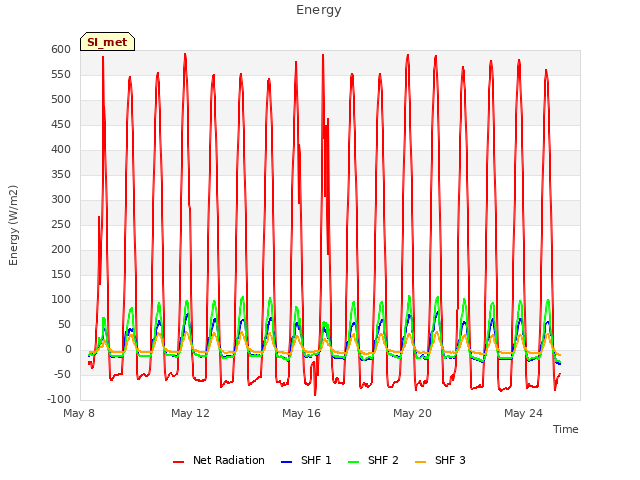

Explore the graph:Energy in a new window

Explore the graph:Soil Temperatures Set 1 in a new window

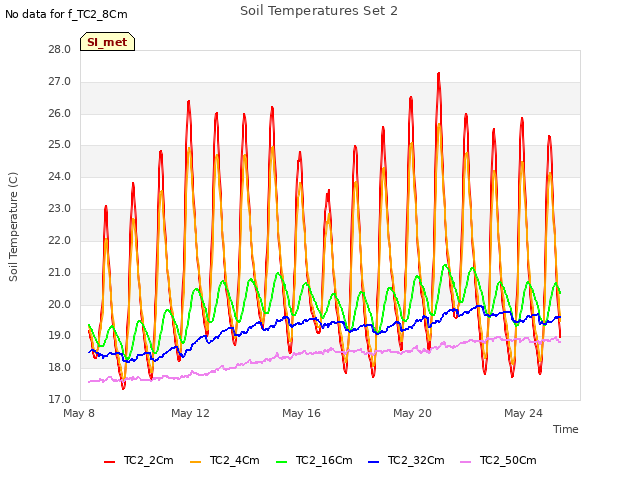

Explore the graph:Soil Temperatures Set 2 in a new window

Explore the graph:Soil Temperatures Set 3 in a new window

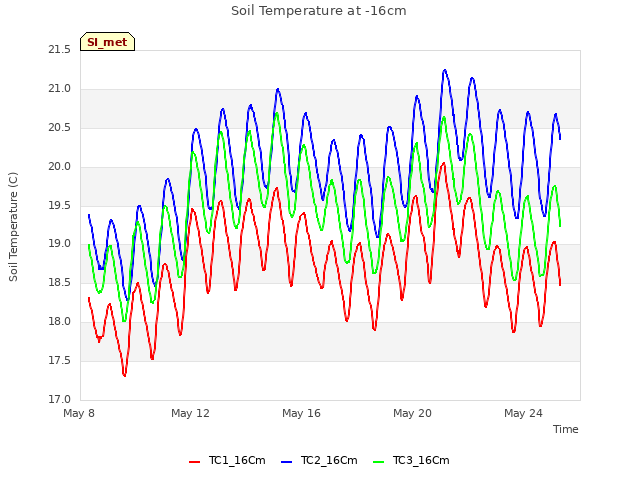

Explore the graph:Soil Temperature at -16cm in a new window

Explore the graph:LED NDVI Sensor Output in a new window

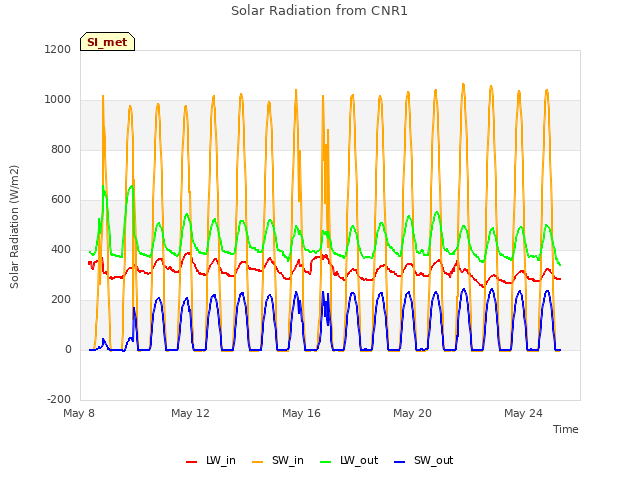

Explore the graph:Solar Radiation from CNR1 in a new window

Explore the graph:Sherman Island Rain in a new window

Explore the graph:Sherman Well Level in a new window

Explore the graph:Box Temperatures in a new window

Can't check SI_mixed
2 SI_mixed graphs found

Explore the graph:Theta Probes in a new window

Explore the graph:Sherman Island Air Temperatures in a new window

4 SI_flx graphs found

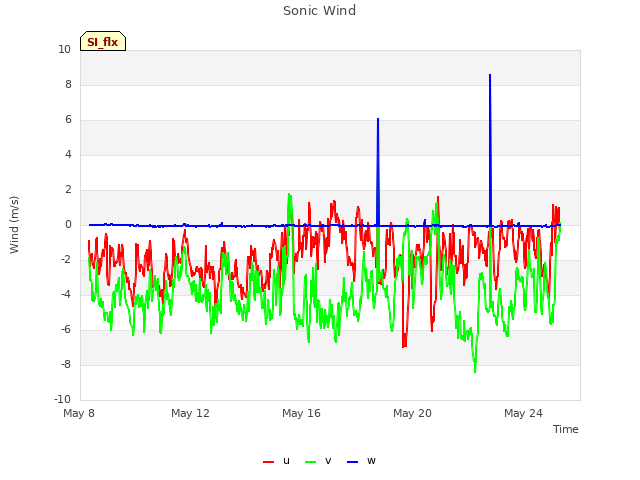

Explore the graph:Sonic Wind in a new window

Explore the graph:CH4 Concentrations in a new window

Explore the graph:Sample Counts in a new window

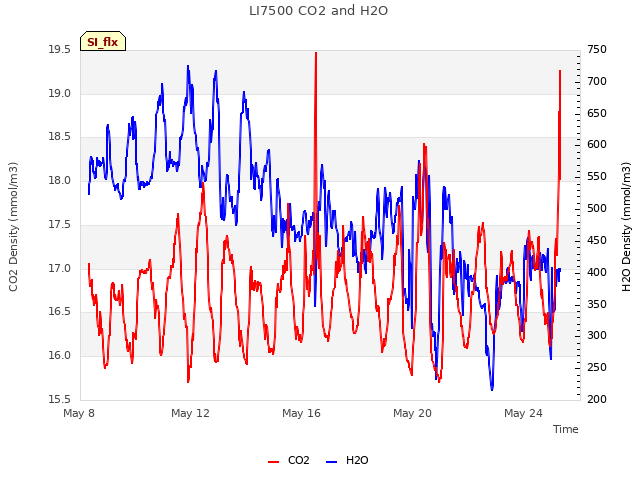

Explore the graph:LI7500 CO2 and H2O in a new window

3 SI_soilco2 graphs found

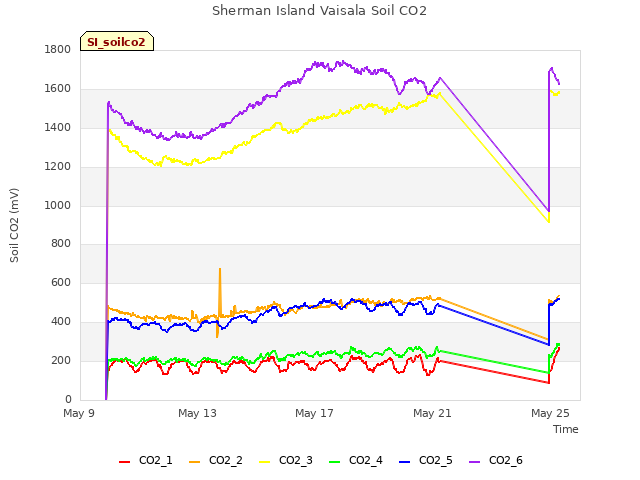

Explore the graph:Sherman Island Vaisala Soil CO2 in a new window

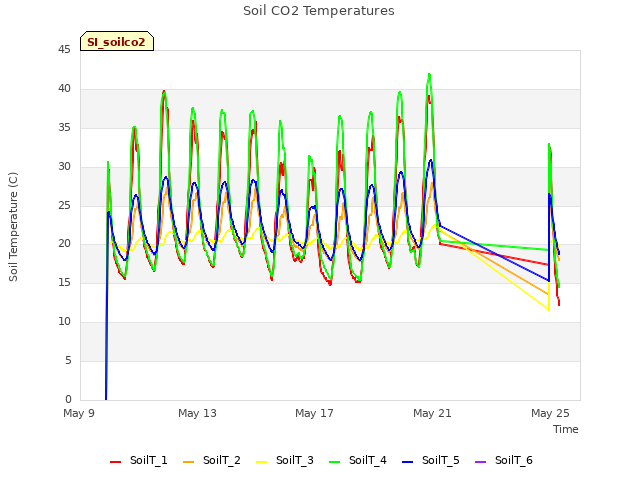

Explore the graph:Soil CO2 Temperatures in a new window

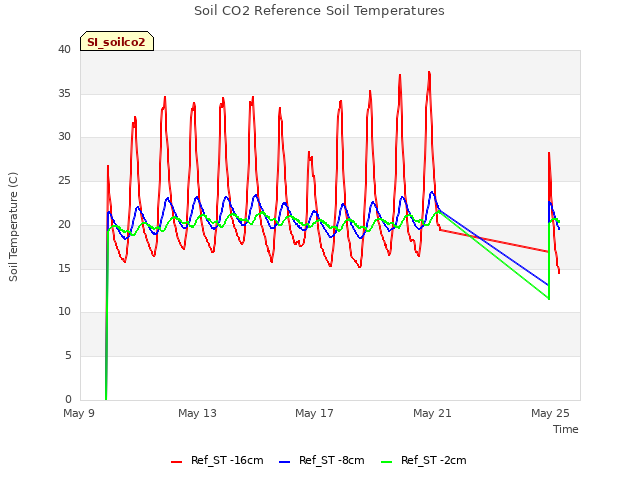

Explore the graph:Soil CO2 Reference Soil Temperatures in a new window
